Niko 10-821-01 User manual

1
10-821-01
Lees de volledige handleiding vóór installatie en ingebruikname.
1. BESCHRIJVING
Met de videosplitter 10-821-01 kan u het videosignaal van een Toegangscontrolesysteem
Standaard opsplitsen en versterken om grotere video-installaties op te bouwen.
Videosplitter 10-821-01 wordt gebruikt bij de verdeling van het videosignaal per etage

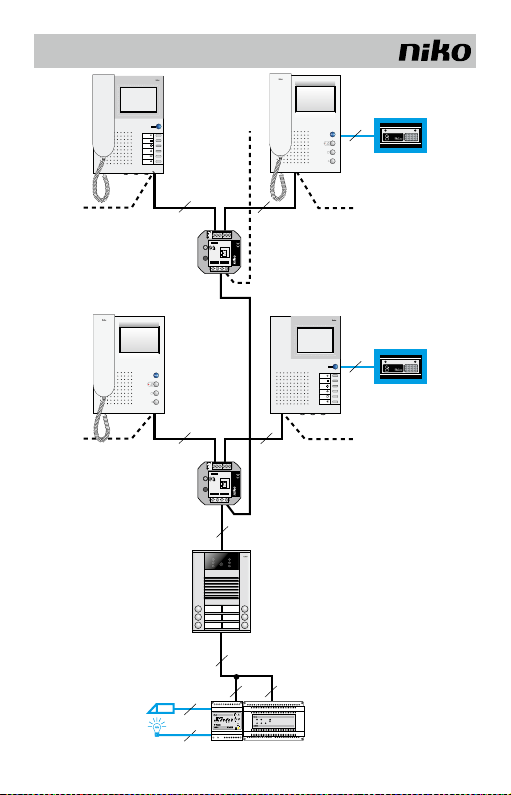

in een stijgleiding (fig.1). De videosplitter ontvangt het videosignaal en splitst het in 2
onafhankelijke video-uitgangssignalen.
Welke kabels zijn nodig?
Niko raadt het volgende aan:
- JYSTY(-F2) min. 3 x 2 x 0,8mm
- TVVF (-F2) min. 3 x 2 x 0,8mm
- TPVF min. 3 x 2 x 0,6mm (Beperkt het aantal aan te sluiten componenten.Voor specificaties,
zie technische catalogus).
Opmerking: Een kabel met 4 (getwiste) aderparen heeft als voordeel dat er voldoende
reserveparen zijn als een paar beschadigd wordt.
2. MONTAGE EN AANSLUITING
De videosplitter is geschikt voor plaatsing in een inbouwdoos. Voor de aansluiting van de
bus en het videosignaal, zie fig.1 en fig.2.

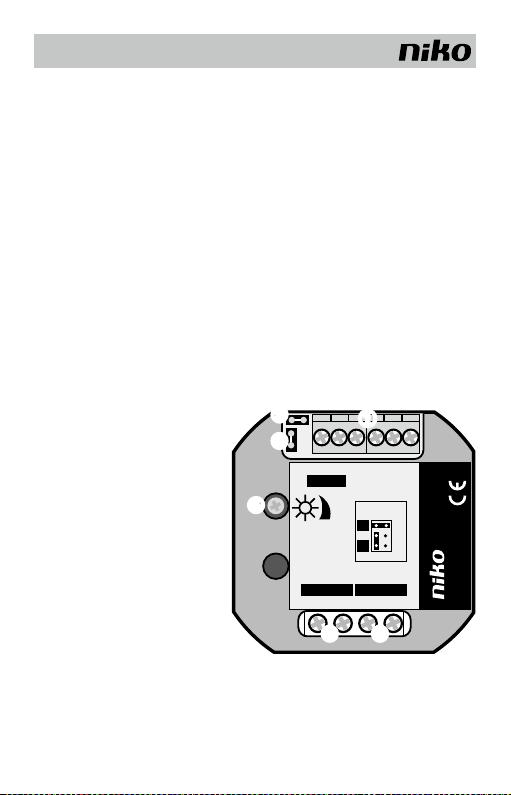

➊ aansluitklemmen ingangssignaal
➋ J1: afsluitweerstand
➌ J2: 5/6-draads bekabeling
➍ regelaar helderheid videobeeld
➎aansluitklemmen video-uitgang 1
➏aansluitklemmen video-uitgang 2
Grenswaarden voor een stijgleiding:
- Max. 15 video-inbouwsplitters 2 (10-821-01) in lijn (in-uit) aansluiten.
LET OP: de laatste video-inbouwsplitter in lijn moet m.b.v.een afsluitweerstand de videobus
afsluiten.
- Max. 30 videobinnenposten per voeding 10-805-01.
- Aan elke video-uitgang van een video-inbouwsplitter 2 kunnen max. 6 videobinnenposten
in lijn (in – uit) doorverbonden worden.
Opmerking: gelieve voor grote en complexe systemen contact op te nemen met Niko.
NL
IN
Video
OUT1
Video OUT2
Video
V1 V2 V1
V2 V1 MPba
V2
6
ON
OFF
5
J1
J2
10-821-01
1.0
➊
➋
➌
➍
➎ ➏

2
10-821-01
6/5-draads bekabeling
Bij systemen met beperkte grootte kan voor 5-draads bekabeling gekozen worden. De
M-klem hoeft dan niet bekabeld te worden. Alle jumpers moeten dan op de 5-draads
bekabeling ingesteld worden.
3. WERKING EN GEBRUIK
Beeldkwaliteit - versterkingsregeling
TIP: Regel de helderheid van het beeld best met 2 personen: iemand om de regelaar te
bedienen en iemand om de beeldkwaliteit op de videobinnenposten op te volgen.
Let op: Door signaalverzwakking in de videobus (V1,V2) na splitsing kan de helderheid van
het beeld verminderen. Draai met een schroevendraaier aan de regelaar om de helderheid
van het beeld (beide videosignalen) aan te passen.
- draaien in wijzerzin: beeld wordt helderder
- draaien in tegenwijzerzin: beeld wordt minder helder
Jumper J1 en J2
J1: afsluitweerstand bepalen
J1 horizontaal over beide bovenste pinnen: videosplitters als laatste toestel
op de videobus
J1 verticaal over twee bovenste pinnen links of rechts: videosplitter
NIET als laatste toestel op de videobus
Jumper horizontaal over beide middelste pinnen: geen toepassing
J2: 5/6-draads bekabeling bepalen
J2 horizontaal over beide onderste pinnen: videosplitter gebruikt in een video-
systeem dat 5-draads bekabeld is (klem b en klem M intern doorverbonden)
J2 verticaal over twee onderste pinnen links of rechts: videosplitter
gebruikt in een videosysteem dat 6-draads bekabeld is.
IN
Video
OUT1
Video OUT2
Video
V1 V2 V1
V2 V1 MPba
V2
6
ON
OFF
5
J1
J2
10-821-01
1.0
NL
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2

3
10-821-01
4. TECHNISCHE GEGEVENS
Voedingsspanning........................................ +24V ±8%
Behuizing .................................................... inbouw
Afmetingen..................................................B:51mm; H:51mm; D:22mm
Gewicht....................................................... 30g
Bedrijfstemperatuur .....................................-20 tot +50°C
Ingangsimpedantie J1 (afsluitweerstand) ....... 100Ω
Ingangsstroom............................................. I(a)=0,0mA; I(Pmax)=55mA
Signaalversterking........................................ 0dB tot +12dB* (lineair)
Max. uitgangssignaal.................................... 4Vpp*
* bij 1Vpp aan de ingang en bij een afsluitweerstand van 100Ω (J1)
5. WETTELIJKE WAARSCHUWINGEN
- De installatie dient te worden uitgevoerd door een bevoegd persoon en met inachtname
van de geldende voorschriften.
- Deze handleiding dient aan de gebruiker te worden overhandigd. Zij moet bij het dossier
van de elektrische installatie worden gevoegd en dient te worden overgedragen aan
eventuele nieuwe eigenaars. Bijkomende exemplaren zijn verkrijgbaar via de Niko-website
of -supportdienst.
- Bij de installatie dient rekening gehouden te worden met (lijst is niet limitatief):
- de geldende wetten, normen en reglementen;
- de stand van de techniek op het ogenblik van de installatie;
- het feit dat een handleiding alleen algemene bepalingen vermeldt en dient gelezen te
worden binnen het kader van elke specifieke installatie;
- de regels van goed vakmanschap.
- Bij twijfel kan u de supportdienst van Niko raadplegen of contact opnemen met een
erkend controleorganisme.
Support België: Support Nederland:
tel. + 32 3 778 90 80 tel. + 31 183 64 06 60
website: http://www.niko.be website: http://www.niko.nl
e-mail: support@niko.be e-mail: sales@niko.nl
In geval van defect kan u uw product terugbezorgen aan een erkende Niko-groothandel
samen met een duidelijke omschrijving van uw klacht (manier van gebruik, vastgestelde
afwijking…).
6. GARANTIEBEPALINGEN
- G arantie t e r mijn : t w e e jaar vana f l e verin g s d atum. A ls l e vering s d a tum geld t d e f a c tu u r da t u m
van aankoop van het goed door de consument. Indien geen factuur voorhanden is, geldt
de productiedatum.
- De consument is verplicht Niko schriftelijk over het gebrek aan overeenstemming te
informeren, uiterlijk binnen de twee maanden na vaststelling.
NL

4
10-821-01
- In geval van een gebrek aan overeenstemming van het goed heeft de consument recht
op een kosteloze herstelling of vervanging, wat door Niko bepaald wordt.
- Niko is niet verantwoordelijk voor een gebrek of schade als gevolg van een foutieve
installatie, oneigenlijk of onachtzaam gebruik of verkeerde bediening of transformatie
van het goed.
- De dwingende bepalingen van de nationale wetgevingen betreffende de verkoop van
consumptiegoederen en de bescherming van de consumenten van de landen waarin Niko
rechtstreeks of via zuster/dochtervennootschappen, filialen, distributeurs, agenten of
vaste vertegenwoordigers verkoopt, hebben voorrang op bovenstaande bepalingen.
NL

5
10-821-01
Lisez entièrement le mode d’emploi avant toute installation et mise en service.
1. DESCRIPTION
Le répartiteur vidéo 10-821-01 permet de séparer le signal vidéo d’un système Contrôle
d’accès standard et de l’amplifier pour élaborer de plus grandes installations vidéo. Le
répartiteur vidéo 10-821-01 est utilisé pour répartir le signal vidéo par étage dans un
câble montant (fig.1b). Le répartiteur vidéo reçoit le signal vidéo et le divise en 2 signaux
de sortie vidéo indépendants.
Quels câbles sont nécessaires?
Niko vous conseille les types suivants:
- JYSTY(-F2) min. 3 x 2 x 0,8 mm
- TVVF (-F2) min. 3 x 2 x 0,8 mm
- TPVF min. 3 x 2 x 0,6 mm (limite le nombre d’éléments raccordables. Pour les spéci-
fications, voir le catalogue technique).
Remarque:
Un câble avec 4 paires de conducteurs (torsadées) a l’avantage de prévoir suffisamment
de paires de réserve si l’une d’entre elles est endommagée.
2. MONTAGE ET RACCORDEMENT
Le répartiteur vidéo 10-821-01 (fig.1a) est conçu pour être placé dans un boîtier d’encas-
trement. Pour le raccordement du bus et du signal vidéo, voir fig.1 et fig.2.

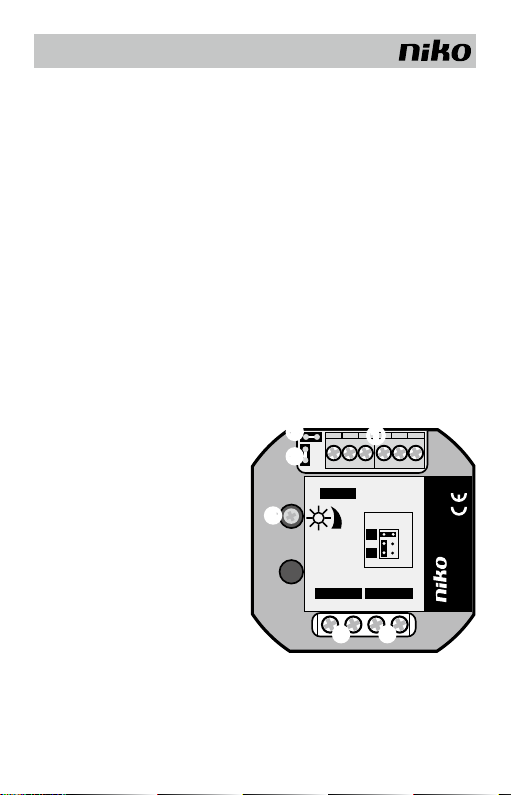

➊ bornes de raccordement signal d’entrée
➋ J1: résistance terminale
➌ J2: câblage 5/6 fils
➍ dispositif de réglage de la luminosité de
l’image vidéo
➎bornes de raccordement sortie vidéo 1
➏bornes de raccordement sortie vidéo 2
Limites pour un câble montant:
- Raccorder max. 15 répartiteurs vidéo 2 à
encastrer (10-821-01) en ligne (entrée-
sortie).
Attention: le dernier répartiteur vidéo à encastrer de la ligne doit fermer le bus vidéo au
moyen d’une résistance terminale.
- Max. 30 postes intérieurs vidéo par alimentation 10-805-01.
- Max. 6 postes intérieurs vidéo peuvent être raccordés en ligne (entrée - sortie) à chaque
sortie vidéo d’un répartiteur vidéo 2 à encastrer.
Remarque: en cas de systèmes grandes et complexes, contactez Niko.
FR
IN
Video
OUT1
Video OUT2
Video
V1 V2 V1
V2 V1 MPba
V2
6
ON
OFF
5
J1
J2
10-821-01
1.0
➊
➋
➌
➍
➎ ➏

6
10-821-01
Câblage 6/5 fils
En cas de systèmes limités, le câblage à 5 fils suffit. La borne M ne doit pas être câblée.
Tous les cavaliers doivent alors être réglés sur le câblage à 5 fils.
3. FONCTIONNEMENT ET UTILISATION
Adaptation de la qualite de l’image - réglage de l’amplification
ASTUCE: Réglez de préférence la luminosité de l’image à deux: une personne s’occupe
du dispositif de réglage et une autre suit l’évolution de la qualité de l’image sur les
postes intérieurs vidéo.
Attention: La luminosité de l’image peut diminuer en raison d’une atténuation du signal
dans le bus vidéo (V1, V2) après la séparation. Faites tourner le dispositif de réglage au
moyen d’un tournevis pour adapter la luminosité de l’image (les deux signaux vidéo).
- tourner dans le sens horaire: l’image devient plus claire
- tourner dans le sens antihoraire: l’image devient moins claire
Cavaliers J1 et J2
J1: déterminer la résistance terminale
J1 à l’horizontale sur les deux broches supérieures: répartiteur vidéo comme
dernier dispositif du bus vidéo
J1 à l a v e r t i c a l e su r d e ux b r o c he s s up é r i eu r es à g a u ch e o u à dr o i te :
le répartiteur vidéo N’EST PAS le dernier dispositif du bus vidéo
Un cavalier à l’horizontale sur les deux broches du milieu: pas d’appli-
cation
J2: déterminer le câblage 5/6 fils
J2 à l’horizontale sur les deux broches inférieures: le répartiteur vidéo est
utilisé dans un système vidéo qui est doté d’un câblage à 5 fils (les bornes b
et M sont raccordées en interne)
J2 à la verticale sur deux broches inférieures à gauche ou à droite:
le séparateur vidéo est utilisé dans un système vidéo qui est doté
d’un câblage à 6 fils
IN
Video
OUT1
Video OUT2
Video
V1 V2 V1
V2 V1 MPba
V2
6
ON
OFF
5
J1
J2
10-821-01
1.0
FR
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2

7
10-821-01
4. CARACTERISTIQUES TECHNIQUES
Tension d’alimentation.........................................+24V ±8%
Boîtier ................................................................encastré
Dimensions ........................................................l: 51mm; H: 51mm; P: 22mm
Poids..................................................................30g
Température de fonctionnement...........................-20 à +50°C
Impédance d’entrée J1 (résistance terminale)....... 100Ω
Courant d’entrée.................................................I(a)=0,0mA; I(Pmax)=55mA
Amplification du signal ........................................de 0dB à +12dB* (linéaire)
Signal de sortie max............................................ 4Vpp*
* avec 1Vpp à l’entrée et avec une résistance terminale de 100Ω (J1)
5. PRESCRIPTIONS LEGALES
- L’installation doit être effectuée par une personne compétente et dans le respect des
prescriptions en vigueur.
- Ce mode d’emploi doit être remis à l’utilisateur. Il doit être joint au dossier de l’ins-
tallation électrique et être remis à d’éventuels autres propriétaires. Des exemplaires
supplémentaires peuvent être obtenus sur le site web ou auprès du service ‘support
Niko’.
- Il y a lieu de tenir compte des points suivants avant l’installation (liste non limitative):
- les lois, normes et réglementations en vigueur;
- l’état de la technique au moment de l’installation;
- ce mode d’emploi qui doit être lu dans le cadre de toute installation spécifique;
- les règles de l’art.
- En cas de doute, vous pouvez appeler le service ‘support Niko’ ou vous adresser à un
organisme de contrôle reconnu.
Support Belgique: Support France:
+ 32 3 778 90 80 + 33 820 20 6625
site web: http://www.niko.be site web: http://www.niko.fr
e-mail: support@niko.be e-mail: ventes@niko.fr
En cas de défaut de votre appareil, vous pouvez le retourner à un grossiste Niko agréé,
accompagné d’une description détaillée de votre plainte (manière d’utilisation, divergence
constatée…).
6. CONDITIONS DE GARANTIE
- Délai de garantie: 2 ans à partir de la date de livraison. La date de la facture d’achat
par le consommateur fait office de date de livraison. Sans facture disponible, la date
de fabrication est seule valable.
- Le c o ns o m ma t eu r e s t te n u d e pr é ve n ir N i k o pa r é c r i t de t o u t m an q u em e nt à l a c o n c or d a n ce
des produits dans un délai max. de 2 mois après constatation.
- Au cas ou pareil manquement serait constaté, le consommateur a droit à une réparation
gratuite ou à un remplacement gratuit selon l’avis de Niko.
FR

8
10-821-01
- Niko ne peut être tenu pour responsable pour un défaut ou des dégâts suite à une
installation fautive, à une utilisation contraire ou inadaptée ou à une transformation du
produit.
- Les dispositions contraignantes des législations nationales ayant trait à la vente de
biens de consommation et la protection des consommateurs des différents pays où
Niko procède à la vente directe ou par entreprises interposées, filiales, distributeurs,
agents ou représentants fixes, prévalent sur les dispositions susmentionnées.
FR

9
10-821-01
Read the complete manual before attempting installation and activating the
system.
1. DESCRIPTION
The video splitter 10-821-01 enables the video signal of a Access Control Standard system
to be split up and amplified in order to build bigger video installations. The video splitter
10-821-01 is used for splitting the video signal per floor in rising mains (fig.1). The video
splitter receives the video signal and splits it up in two separate video output signals.
Which cables are required?
Niko recommends the following:
- JYSTY(-F2) min. 3 x 2 x 0.8mm
- TVVF (-F2) min. 3 x 2 x 0.8mm
- TPVF min. 3 x 2 x 0,6mm (Limits the number of components to be connected. For
specifications, see technical catalogue).
Note: A cable with 4 (twisted) pairs has the advantage of offering sufficient spare pairs
in case one pair is damaged.
2. INSTALLATION AND CONNECTION
Video splitter 10-821-01 (fig.1a) is suitable for mounting in a flush mounting box. For the
connection of the bus and the video signal, see fig.1 and fig.2.
➊ connection terminals input signal
➋ J1: terminal resistor
➌ J2: 5/6-wire cabling
➍ control video image clarity
➎connection terminals video output 1
➏connection terminals video output 2
Limit values for rising mains:
-Max. 15 video flush mounting splitters
2 (10 - 82 1- 0 1) c a n be c o n n ec t e d i n li ne
(in-out).
Note: the last video flush mounting splitter in line has to be closed off by means of a
terminal resistor.
- Max. 30 video internal units per power supply 10-805-01.
- At every video output of a video flush mounting splitter 2, max. 6 video internal units
can be connected in line (in-out).
Note: for large and complex systems, please contact Niko.
EN
IN
Video
OUT1
Video OUT2
Video
V1 V2 V1
V2 V1 MPba
V2
6
ON
OFF
5
J1
J2
10-821-01
1.0
➊
➋
➌
➍
➎ ➏

10
10-821-01
6/5-wire cabling
In case of limited systems, a 5-wire cabling suffices. In that case, the M terminal does
not have to be wired. All jumpers then have to be set to 5-wire cabling.
4. OPERATION AND USE
Image quality - amplification
TIP: Preferably adjust the image clarity with 2 people: one to control the controller and
one to check the image quality on the video internal units.
Note: Due to signal attenuation in the video bus (V1, V2) after splitting, the brightness of
the image can decrease. Turn the control by means of a screwdriver to adjust the image
brightness (both video signals).
- turning clockwise: image becomes brighter
- turning counterclockwise: image becomes less bright
Jumper J1 and J2
J1: defining terminal resistor
J1 horizontally over both upper pins: video splitters as last appliance on
the video bus
J1 vertically over two pins upper left or right: video splitters NOT
as last appliance on the video bus
Jumper horizontally over both middle pins: no application
J2: defining 5/6-wire cabling
J2 horizontally over both bottom pins: video splitter used in a 5-wire video
system (terminal b and M interconnected)
J2 vertically over two pins bottom left or right: video splitter used
in a 6-wire video system
IN
Video
OUT1
Video OUT2
Video
V1 V2 V1
V2 V1 MPba
V2
6
ON
OFF
5
J1
J2
10-821-01
1.0
EN
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2
6
ON
OFF
5
J1
J2

11
10-821-01
4. TECHNICAL DATA
Supply voltage ............................................. +24V ±8%
Cover .......................................................... flush mounting
Dimensions .................................................W51mm; H51mm; D22mm
Weight ........................................................ 30g
Operating temperature ................................. -20 to +50°C
Input impedance J1 (terminal resistor)........... 100Ω
Input current................................................I(a)=0,0mA; I(Pmax)=55mA
Signal gain .................................................. 0dB to +12dB* (linear)
Max. output signal........................................ 4Vpp*
* in case of 1Vpp at the input and terminal resistor of 100Ω (J1)
5. LEGAL WARNINGS
- The installation has to be carried out by a qualified person and in compliance with the
statutory regulations.
- This user manual has to be handed over to the user. It has to be included in the electri-
cal installation file and has to be passed on to any new owners. Additional copies are
available on the Niko website or via the support service.
- During installation, the following has to be taken into account (not limited to list
below):
- The statutory laws, standards and regulations;
- The state of the art technique at the moment of installation;
- This user manual, which must be read within the scope of each specific installation,
only states general regulations;
- The rules of proper workmanship
- In case of questions, you can consult Niko’s support service or contact a registered
control organisation.
Support Belgium: Support UK
+32 3 778 90 80 +44 1525877707
website : http://www.niko.be website: http://www.nikouk.com
In case of a defect, you can return your product to a registered Niko wholesaler, together
with a clear description of your complaint (Conditions of use, stated defect…).
6. GUARANTEE PROVISIONS
- Period of guarantee: 2 years from date of delivery. The delivery date is the invoice date
of purchase of the product by the consumer. If there is no invoice, the date of production
applies.
- The consumer is obliged to inform Niko in writing about the defect, within two months
after stating the defect.
- In case of a failure to conform, the consumer has the right to a repair or replacement
(decided by Niko) free of charge.
EN

12
10-821-01
- Niko cannot be held liable for a defect or damage as a result of an incorrect installation,
improper or careless use or wrong usage or transformation of the goods.
- The compulsory regulations of the national legislation concerning the sales of consumer
goods and the protection of the consumers in the countries where Niko sells, directly or
via sister or daughter companies, chain stores, distributors, agents or permanent sales
representatives, take priority over the rules and regulations mentioned above.
EN

13
10-821-01
2
12V 1A max
6/5
6/5
10-406
10-821-01
10-555
6/5
10-560
4
2
12V 1A max
6/5
10-821-01
10-556
6/5
10-555
10-801 10-805-01
2
2
22
V2 V1 M P b a
10-821-01
V2 V1 M P b a
10-821-01
max.6
max.6
max.15
fig.1

14
10-821-01
fig.2
10-821-01
V1 V2
OU T2
Video
10-821-01
a b E P M K V1 V2
V1 V2
OU T1
Video
a b E P M K V1 V2
230V~
aG b R P M V1 V2
16 17
1 3
230V~
5 7 9
23 24 29 31
10-801 10-805-01
IN
Video
max.15
max.6
10-555 10-560
10-556 10-555
max.6
ba P M V1 V2
a b E P M K V1 V2a b E P M K V1 V2

15
10-821-01

16
10-821-01
nv Niko sa
Industriepark West 40, BE-9100 Sint-Niklaas, Belgium
tel.: + 32 3 778 90 00 — fax: + 32 3 777 71 20
e-mail: support@Niko.be — www.niko.be PM010-82101R08171
Table of contents
Languages:
Other Niko Media Converter manuals
