Safety Cautions
Precautions
Please read this manual carefully before using your NEC HT1000 Pro-
jector and keep the manual handy for future reference.Your serial num-
ber is located on the bottom of your projector. Record it here:
CAUTION
To turn off main power, be sure to remove the plug from power
outlet.
The power outlet socket should be installed as near to the
equipment as possible, and should be easily accessible.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED NEC SERVICE PER-
SONNEL.
This symbol warns the user that uninsulated voltage within the
unit may be sufficient to cause electrical shock. Therefore, it is
dangerous to make any kind of contact with any part inside of
the unit.
This symbol alerts the user that important information con-
cerning the operation and maintenance of this unit has been
provided.
The information should be read carefully to avoid problems.
WARNING
TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO
RAIN OR MOISTURE.
DO NOT USETHIS UNIT’S GROUNDED PLUG WITH AN EXTEN-
SION CORD OR IN AN OUTLET UNLESS ALL THREE PRONGS
CAN BE FULLY INSERTED.
DO NOT OPEN THE CABINET.THERE ARE HIGH-VOLTAGE COM-
PONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALI-
FIED NEC SERVICE PERSONNEL.
DOC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Acoustic Noise Information Ordinance -3. GSGV:
The sound pressure level is less than 70 dB (A) according to ISO 3744
or ISO 7779.
RF Interference
WARNING
The Federal Communications Commission does not allow any
modifications or changes to the unit EXCEPT those specified
by NEC Soluctions (America), Inc. in this manual. Failure to com-
ply with this government regulation could void your right to
operate this equipment. This equipment has been tested and
found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.These limits are designed
to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guar-
antee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio / TV technician for
help.
In UK, a BS approved power cable with moulded plug has a Black (five
Amps) fuse installed for use with this equipment. If a power cable is not
supplied with this equipment please contact your supplier.
Important Safeguards
These safety instructions are to ensure the long life of your projector
and to prevent fire and shock. Please read them carefully and heed all
warnings.
Installation
1. For best results, use your projector in a darkened room.
2. Place the projector on a flat, level surface in a dry area away from
dust and moisture.
3. Do not place your projector in direct sunlight, near heaters or heat
radiating appliances.
4. Exposure to direct sunlight, smoke or steam can harm internal com-
ponents.
5. Handle your projector carefully. Dropping or jarring can damage in-
ternal components.
6. Do not place heavy objects on top of the projector.
7. If you wish to have the projector installed on the ceiling:
a. Do not attempt to install the projector yourself.
b. The projector must be installed by qualified technicians in order
to ensure proper operation and reduce the risk of bodily injury.
c. In addition, the ceiling must be strong enough to support the
projector and the installation must be in accordance with any
local building codes.
d. Please consult your dealer for more information.
IMPORTANT INFORMATION

E-3
For Europe only
SCART adapter
(7N520018)
Fire and Shock Precautions
1. Ensure that there is sufficient ventilation and that vents are unob-
structed to prevent the build-up of heat inside your projector. Allow at
least 3 inches (10 cm) of space between your projector and a wall.
2. Prevent foreign objects such as paper clips and bits of paper from
falling into your projector.
Do not attempt to retrieve any objects that might fall into your projec-
tor. Do not insert any metal objects such as a wire or screwdriver
into your projector. If something should fall into your projector, dis-
connect it immediately and have the object removed by a qualified
NEC service personnel.
3. Do not place any liquids on top of your projector.
4. Do not look into the lens while the projector is on. Serious damage
to your eyes could result.
5. Keep any items such as magnifying glass out of the light path of the
projector. The light being projected from the lens is extensive, there-
fore any kind of abnormal objects that can redirect light coming out
of the lens, can cause unpredictable outcome such as fire or injury
to the eyes.
6. Do not cover the lens with the supplied lens cap or equivalent while
the projector is on. Doing so can lead to melting of the cap and
possibly burning your hands due to the heat emitted from the light
output.
7. The projector is designed to operate on a power supply of 100-120
or 200-240 V 50/60 Hz AC. Ensure that your power supply fits this
requirement before attempting to use your projector.
8. Handle the power cable carefully and avoid excessive bending.
A damaged cord can cause electric shock or fire.
9. If the projector is not to be used for an extended period of time,
disconnect the plug from the power outlet.
10. Do not touch the power plug during a thunderstorm. Doing so can
cause elecrical shock or fire.
CAUTION
1. Do not try to touch the ventilation outlet on the front and side as it
can become heated while the projector is turned on.
2. Do no use the tilt-foot for purposes other than originally intended.
Misuses such as gripping the tilt-foot or hanging on the wall can
cause damage to the projector.
3. Enable High-Speed Fan mode if you continue to use the projector
for consecutive days. (From the Advanced menu, select [Projector
Options] →[Setup] →[Page 4] →[High Speed Fan Mode].)
4. Do not unplug the power cable from the wall outlet under any one of
the following circumstances.
Doing so can cause damage to the projector:
*While the Hour Glass icon appears.
*While the message "Please wait a moment." appears. This mes-
sage will be displayed after the projector is turned off.
*While the cooling fans are running. (The cooling fans continue to
work for 90 seconds after the projector is turned off).
5. Do not eject the PC card while its data is being accessed. Doing so
can damage your PC card data.
6. Do not hold the lens part with your fingers. Doing so could pinch
fingers or hands causing injury.
Lamp Replacement
•To replace the lamp, follow all instructions provided on page E-48.
•Be sure to replace the lamp when the message "The lamp has
reached the end of its usable life. Please replace the lamp."
appears. If you continue to use the lamp after the lamp has reached
the end of its usable life, the lamp bulb may shatter, and pieces of
glass may be scattered in the lamp case. Do not touch them as the
pieces of glass may cause injury.
If this happens, contact your NEC dealer for lamp replacement.
•Allow a minimum of 90 seconds to elapse after turning off the pro-
jector. Then turn off the main power switch, disconnect the power
cable and allow 60 minutes to cool the projector before replacing
the lamp.
What's in the Box?
Make sure your box contains everything listed. If any pieces are miss-
ing, contact your dealer.
Please save the original box and packing materials if you ever need to
ship your HT1000 Projector.
Lens cap
(24FT8661)
Remote control
(7N900371)
Power cable
(7N080204: North America)
(7N080003: G model)
Projector
Soft carrying case
(24BS7111)
OFF
VIDEO
AUTO ADJ.
COMPONENT RGB
DVI
POWER
ON
S-VIDEO
ASPECT
3D
REFORM
EFFECTOR
VOLUME
MAGNIFY
HELP
VIEWER
PIC-MUTE
SLIDE
FOLDER
SLIDE
LIST
SELECT
FREEZE
POSITION
Batteries
SELECT
C
N
A
C
E
L
T
E
R
N
E
E
M
N
U
SOURCEAUTOADJUST
ON
STANDBY
STATUS
POWER
LAMP
3DREFORM
PC-CARD
RGB signal cable
(7N520001)
Audio cable
(7N520014)
S-Video cable
(7N520015)
Composite video cable
(7N520016)
Component video cable
(RCA ⳯ 3-to-RCA ⳯ 3)
(7N520017)
Quick
Connect
Guide
User’s
manual
For North America only
Registration card
Limited warranty
For Europe only
Guarantee policy
String and rivet
(24C05051) (24C04531)

E-4
TABLE OF CONTENTS
IMPORTANT INFORMATION ........................................... E-2
Safety Cautions ........................................................................................... E-2
What's in the Box? ...................................................................................... E-3
INTRODUCTION ......................................................... E-5
Introduction to the Projector ....................................................................... E-5
Part Names of the Projector ........................................................................ E-6
Attaching the lens cap .............................................................................. E-6
Top Features ............................................................................................. E-7
Terminal Panel Features ........................................................................... E-8
Part Names of the Remote Control ........................................................... E-9
Battery Installation .............................................................................. E-10
Remote Control Precautions ............................................................... E-10
Operating Range ................................................................................. E-10
INSTALLATION AND CONNECTIONS .................................. E-11
Setting Up the Screen and the Projector ................................................... E-11
Selecting a Location ............................................................................... E-11
Throw Distance and Screen Size ............................................................ E-12
Making Connections .................................................................................. E-13
Wiring Diagram ...................................................................................... E-13

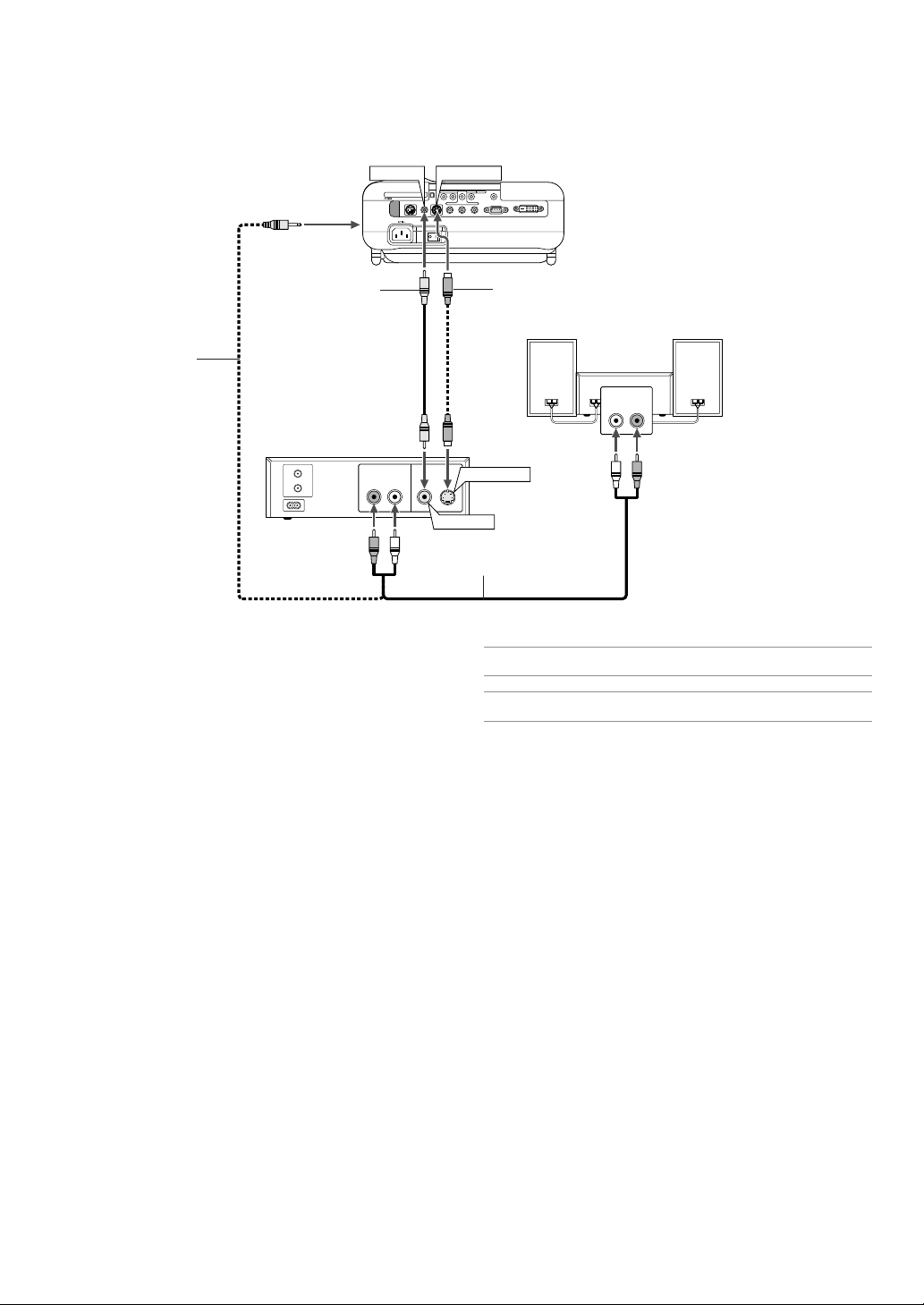

Connecting Your VCR or Laser Disc Player ............................................ E-14
Connecting Your DVD Player .................................................................. E-15
Connecting Your PC or Macintosh Computer ......................................... E-16
When Viewing a DVI Digital Signal ......................................................... E-17
Connecting the Supplied Power Cable .................................................... E-17
PROJECTING AN IMAGE (BASIC OPERATION) ...................... E-18
Turning on the Projector ............................................................................ E-18
Selecting a Source ..................................................................................... E-19
Adjusting the Picture Size and Position ..................................................... E-19
Correcting the Horizontal and Vertical Keystone Distortion (3D Reform) .. E-20
Optimizing RGB Picture Automatically ...................................................... E-21
Turning Up or Down Volume ..................................................................... E-22
Turning off the Projector ........................................................................... E-22
CONVENIENT FEATURES .............................................. E-23
Using Sweet Vision function ...................................................................... E-23
Using Zoom Position ................................................................................. E-23
Turning Off the Image and Sound .............................................................. E-24
Freezing a Picture ...................................................................................... E-24
Enlarging and Moving a Picture ................................................................. E-24
Getting the On-line Help ............................................................................ E-24
Changing Background Logo ...................................................................... E-25
USING THE VIEWER ................................................... E-26
Making the Most out of the Viewer Function ............................................. E-26
Operating the Viewer Function from the Projector (playback) ................... E-27
Projecting slides (Viewer) ...................................................................... E-27
Auto Play Mode ...................................................................................... E-28
Switching to Slides Directly from Other Input Modes ............................ E-28
Viewing Digital Images ........................................................................... E-28
Storing Images Displayed on the Projector on the PC card (Capture) .... E-28
Deleting Captured Images ...................................................................... E-29
Using the PC Card Files Fucntion (PC Card Files) ................................... E-29
USING ON-SCREEN MENU ............................................ E-30
Basic Menu Operation ............................................................................... E-30
Using the Menus .................................................................................... E-30
Customizing the Menu ........................................................................... E-30
Menu tree .................................................................................................. E-31
Menu Elements .......................................................................................... E-34
Entering Alphanumeric Characters by Using the Menu .......................... E-35
Menu Descriptions & Functions ................................................................ E-35
Source Select ......................................................................................... E-35
Video/S-Video/Component/RGB/DVI (DIGITAL)/Viewer/Entry List
Image Options ........................................................................................ E-36
Selecting Aspect Ratio ........................................................................ E-36
Masking Unwanted Area (Blanking) .................................................... E-38
Adjusting Position and Clock .............................................................. E-38
Zoom Position .................................................................................... E-38
Selecting Resolution ........................................................................... E-38
Selecting Overscan Percentage ........................................................... E-38
Selecting Video Filter Level ................................................................. E-38
Selecting Noise Reduction Level ......................................................... E-38
Selecting Signal Type .......................................................................... E-38
Picture Management .............................................................................. E-38
Picture ................................................................................................ E-39
User Adjust (when using User 1 to 4) ................................................. E-39
Selecting Reference Setting .......................................................... E-39
Selecting Gamma Correction Mode .............................................. E-39
Selecting Color Correction ............................................................ E-39
Adjusting Color Temperature and White Balance .......................... E-39
Picture Options ............................................................................. E-39
Sweet Vision/3D Y/C Separation/Deinterlace/Black Expansion/Con-
trast Enhancement
Projector Options ................................................................................... E-40
Using 3D Reform ................................................................................ E-40
Keystone ....................................................................................... E-40
Cornerstone .................................................................................. E-40
Menu [Page1] ..................................................................................... E-40
Selecting Menu Language/Selecting Menu Mode/Customizing the
Menu/Selecting Menu Display Time
Menu [Page 2] .................................................................................... E-40
Turning On / Off Source Display / Turning On / Off Message / Selecting
Menu Color
Setup [Page 1] .................................................................................... E-41
Setting Lamp Mode to Normal or Eco/Selecting Projector Orientation/
Selecting a Color or Logo for Background
Setup [Page 2] .................................................................................... E-41
Setting Viewer Options/Selecting Capture Options
Setup [Page 3] .................................................................................... E-41
Selecting Signal Format
Setup [Page 4] .................................................................................... E-41
Enabling Auto Adjust/Enabling Auto Start/Enabling Power Manage-
ment/Enabling Power Off Confirmation/Enabling Horizontal and Verti-
cal Keystone Correction Save/Enabling High Speed Fan Mode/Enabling
Idle Mode/Enabling Screen Trigger/Enabling 3D Surround/Clearing
Lamp Hour Meter
Setup [Page 5] .................................................................................... E-42
Selecting Communication Speed/Selecting Default Source/Disabling the
Cabinet Buttons
Selecting Aspect Ratio and Position for Screen .................................. E-43
Setting LAN Mode ............................................................................... E-43
IP Address .................................................................................... E-43
Mail .............................................................................................. E-44
Status ........................................................................................... E-44
Setting a Password ............................................................................. E-45
Security ............................................................................................... E-45
Tools ...................................................................................................... E-47
Using Sleep Timer ............................................................................... E-47
Using Capture ..................................................................................... E-47
Using PC Card Files ............................................................................ E-47
Help ........................................................................................................ E-47
Contents ............................................................................................. E-47
Information ......................................................................................... E-47
Returning to Factory Default .................................................................. E-47
MAINTENANCE ........................................................ E-48
Replacing the Lamp ................................................................................... E-48
Cleaning .................................................................................................... E-49
Lens Protector ....................................................................................... E-49
TROUBLESHOOTING ................................................... E-50
Power Indicator ......................................................................................... E-50
Status Indicator ......................................................................................... E-50
Lamp Indicator .......................................................................................... E-50
Common Problems & Solutions ................................................................ E-51
When using the Viewer function ................................................................ E-51
SPECIFICATIONS ...................................................... E-52
APPENDIX .............................................................. E-53
Cabinet Dimensions .................................................................................. E-53
Pin Assignments of D-Sub RGB Input Connector ...................................... E-53
Compatible Input Signal List ..................................................................... E-54
Compatible Input Signal List for DVI Signal (RGB only) ............................ E-55
PC Control Codes and Cable Connection ................................................... E-56
PC Control Connector (DIN-8P) ................................................................ E-56
Using Software Keyboard .......................................................................... E-56
Operation Using an HTTP Browser ............................................................ E-57
TravelCare Guide ....................................................................................... E-58

E-5
INTRODUCTION
Introduction to the Projector
This section introduces you to your new HT1000 Projector and describes
the features and controls.
Congratulations on Your Purchase of The HT1000 Pro-
jector
The HT1000 is our most sophisticated single chip DLP™ based projec-
tor for the commercial and residential entertainment user. With the
HT1000 you will enjoy projecting images up to 200" (measured diago-
nally) from your DVD player, VCR, satellite hookup, HDTV source, PC
or Macintosh computer (desktop or notebook) and images from you
digital camera. The HT1000 can be setup on a coffee table, tabletop,
cart, bookshelf or permanently installed*1. With an extensive input panel,
quick connect guide and full function remote, you will be ready to im-
merse yourself in big screen enjoyment.
Features you’ll enjoy on the HT1000:
•Phenomenal 3000:1 contrast ratio with a variable IRIS that allows
you to fine-tune the image contrast
•3D Reform technology for positioning the projector in off center loca-
tions in the room and still get aligned images
•NEC designed and developed SweetVision™ technology for en-
hanced images, more vibrant colors and blacks richer with detail
•Faroudja®DCDi™ video processing technology
•Ability to display 16:9 and 4:3 aspect ratio sources
•HDTV, SDTV compatibility
•3D 10-bit video decoder for expanded black levels and adaptive
gamma correction
•Digital photo viewer to display larger than life images from your digi-
tal cameras PC or compact flash card
•Built in speakers with 3D sound for an integrated audio solution
•Easy set up and operation
•High performance long life lamp for low total operating costs
•Eco-mode lamp technology for increased lamp life and energy sav-
ings
•Uncompromising display of video and data. Improves white level, color
accuracy, dynamic range, and display of varying levels of black in an
image.
•Sealed optics for reduced maintenance and better performance in
dusty areas
• Wireless remote control operation
•Network capable with a wired card for the ability to maintain and
control your projector from your computer
•Smart security settings for password protection, control panel lock
and PC card protection key to help prevent unauthorized use
•Multiple video mode selections depending on your source.
•Control the unit with a PC using the PC Control port.
•NEC’s exclusive Advanced AccuBlend intelligent pixel blending tech-
nology - an extremely accurate image compression technology - of-
fers a crisp image with HTDV 1080p (1920⳯1080) resolution*2.
•Supports most IBM VGA, SVGA, XGA, SXGA (with Advanced
AccuBlend)*2, Macintosh, component signal (YCbCr/ YPbPr) or any
other RGB signals within a horizontal frequency range of 24 to 69 kHz
and a vertical frequency range of 48 to 88 Hz. This includes NTSC,
PAL, PAL-N, PAL-M, PAL60, SECAM and NTSC4.43 standard video
signals.
NOTE: Composite video standards are as follows:
NTSC: U.S. TV standard for video in U.S. and Canada.
PAL: TV standard used in Western Europe.
PAL-N: TV standard used in Argentine, Paraguay and Uruguay.
PAL-M: TV standard used in Brazil.
PAL60: TV standard used for NTSC playback on PAL TVs.
SECAM: TV standard used in France and Eastern Europe.
NTSC4.43: TV standard used in Middle East countries.
•You can control the projector with a PC using the PC Control port
and wired LAN.
•The contemporary cabinet design is light, compact, easy to carry.
*1Do not attempt to mount the projector on a ceiling yourself.
The projector must be installed by qualified technicians in order
to ensure proper operation and reduce the risk of bodily injury.
In addition, the ceiling must be strong enough to support the pro-
jector and the installation must be in accordance with any local
building codes. Please consult your dealer for more information.
*2HDTV 1080p (1920⳯1080), HDTV 1080i (1920⳯1080) and
HDTV 720p (1280⳯720) are displayed with NEC’s Advanced
AccuBlend.
Digital Light Processing, DLP, Digital Micromirror Device and DMD are
trademarks of Texas Instruments.
The specifications are subject to change without notice.
Faroudja is a registered trademark of Faroudja Laboratories, Inc. DCDi
is a trademark of Faroudja Laboratories, Inc.
All other trademarks are the property of their respective owners.
All specifications subject to change without notice.

E-6
Part Names of the Projector
SELECT
C
N
A
C
E
L
T
E
R
N
E
E
M
N
U
SOURCEAUTOADJUST
ON
STANDBY
STATUS
POWER
LAMP
3DREFORM
PC-CARD
Ventilation (outlet)
Heated air is exhausted from here
*This security slot supports the MicroSaver®Security System. MicroSaver®is a registered trademark of Kensington Microware Inc. The logo is
trademarked and owned by Kensington Microware Inc.
Built-in Security Slot ( )*
Adjustable Tilt Foot Lever (See page E-19)
Attaching the lens cap
To attach the lens cap to the bottom with the supplied string and rivet:
Remote Sensor (See page E-10)
Focus Ring (See page E-20)
Controls (See page E-7)
Ventilation (inlet)
Zoom Lever (See page E-20)
Carrying Handle
Lens Cap
Lens
Adjustable Tilt Foot (See page E-19)
PC CONTROL RGB IN DVI-D IN
SG TRIGGER
VIDEO IN S-VIDEO IN
S-VIDEO
S-VIDEORGB/DVI
RGB/DVI
VIDEO VIDEOAUDIO IN
AUDIO IN
COMPONENT
YCb/PbCr/Pr
Stereo Speaker (2W)
AC Input
Connect the supplied power cable's three-pin plug here, and plug the
other end into an active wall outlet. (See page E-17)
Main Power Switch
When you plug the supplied power cable into an active wall outlet and
turn on the Main Power switch, the POWER indicator turns orange and
the projector is in standby mode. (See page E-18)
Remote Sensor (See page E-10)
PC Card Slot
Rear Foot
Ventilation (outlet)
Heated air is exhausted from here
Lamp cover screw
Rear Foot
Rotate to make the projector level. (See page E-20)
PC Card Eject Button
1. Thread the string through the
hole on the lens cap and then
tie a knot in the string.
2. Use the rivet to attach the
string to the bottom of the
projector.
Iris Lever (See page E-20)
Lamp cover (See page E-48)

E-7
910 45 11
678 121 3
2
Top Features
1. POWER Button (ON / STAND BY) ( )
Use this button to turn the power on and off when the main power is
supplied and the projector is in standby mode.
NOTE: To turn on or off the projector, press and hold this button for a mini-
mum of two seconds.
2. STATUS Indicator
If this light blinks red rapidly, it indicates that an error has occurred,
the lamp cover is not attached properly or the projector has over-
heated. If this light remains orange, it indicates that you have pressed
a cabinet key while the Control Panel Key Lock is enabled. See the
Status Indicator section on page E-50 for more details.
3. POWER Indicator
When this indicator is green, the projector is on; when this indicator
is orange, it is in standby or idle mode. See the Power Indicator sec-
tion on page E-50 for more details.
4. SOURCE Button
Use this button to select a video source such as a VCR, DVD player,
PC or Viewer (PC card).
Press and release this button quickly to display the Source List.
Each time this button is pressed for a minimum of ONE second the
input source will change as follows:
Video →S-Video →Component →RGB →DVI (DIGITAL) →Viewer →
Video →...
If no input signal is present, the input will be skipped.
5. AUTO ADJUST Button
Use this button to adjust Position-H/V and Pixel Clock/Phase for an
optimal picture. Some signals may not be displayed correctly or take
time to switch between sources.
NOTE: This function may not be available depending upon the input signal.
6. PC CARD Access Indicator
Lights while accessing a PC card.
7. ENTER Button
Executes your menu selection and activates items selected from the
menu.
8. CANCEL Button
Press this button to exit "Menus". Press this button to return the ad-
justments to the last condition while you are in the adjustment or
setting menu.
9. SELECT 왖왔왗왘 (+) (–) / Volume Buttons
왖왔 : Use these buttons to select the menu of the item you wish to
adjust. When no menus appear, these buttons work as a vol-
ume control.
왗왘 : Use these buttons to change the level of a selected menu item.
A press of the 왘button executes the selection. When the menus
or the Viewer tool bar is not displayed, these buttons can be
used to select a slide, or to move the cursor in Folder List or
Slide List.
10. MENU Button
Displays the menu.
11. LAMP Indicator
If this light blinks red rapidly, it's warning you that the projection lamp
has exceeded 1500 hours (up to 2000 hours in Eco mode) of service.
After this light appears, replace the lamp as soon as possible. (See
page E-48). If this is lit green continually, it indicates that the lamp
mode is set to Eco. See the Lamp Indicator section on page E-50 for
more details.
12. 3D REFORM Button
Press this button to enter 3D Reform mode to correct the keystone
(trapezoidal) distortion, and make the image square.

E-8
PC CONTROL RGB IN DVI-D IN
SC TRIGGER
VIDEO IN S-VIDEO IN
S-VIDEOS-VIDEO RGB/DVIRGB/DVIVIDEOVIDEO AUDIO INAUDIO IN COMPONENT
YCb/Pb Cr/Pr
93511
24110 86
71213
Terminal Panel Features
1. RGB IN / Component Input Connector (Mini D-Sub 15 Pin)
Connect your computer or other analog RGB equipment such as IBM
compatible or Macintosh computers. Use the supplied RGB cable to
connect to your computer. This also serves as a component input
connector that allows you to connect a component video output of
component equipment such as a DVD player. This connector also
supports SCART output signal. See page E-16 for more details.
2. DVI-D IN (DVI 24 Pin)
This connector can be used to accept digital signal output from a
computer or a setup box with a DVI connector. (HDCP compatible)
3. RGB/DVI AUDIO IN Mini Jack (Stereo Mini)
This is where you connect audio output from your computer con-
nected to RGB IN or DVI-D IN.
4. COMPONENT (Y, Cb/Pb, Cr/Pr) input Connectors (RCA)
Connect component video outputs (Y/Cb/Cr, Y/Pb/Pr) of the external
equipment such as DVD player.
NOTE: These connectors accept component signal only.
5. COMPONENT AUDIO IN Mini Jack (Stereo Mini)
This is where you connect audio output from your DVD player or
component equipment connected to COMPONENT IN.
6. VIDEO IN (RCA)
Connect a VCR, DVD player or laser disc player here to project video.
7. VIDEO AUDIO IN Mini Jack (Stereo Mini)
This is where you connect audio output from your VCR, DVD player
or laser disc player connected to VIDEO IN.
8. S-VIDEO IN (Mini DIN 4 Pin)
Connect a VCR, DVD player or laser disc player with S-Video output.
NOTE: S-Video provides more vivid color and higher resolution than the tra-
ditional composite video format.
9. S-VIDEO AUDIO IN Mini Jack (Stereo Mini)
This is where you connect audio output from your VCR, DVD player
or laser disc player connected to S-VIDEO IN.
10. PC CONTROL Port (Mini DIN 8 Pin)
Use this port to connect your PC to control your projector via a serial
cable. This enables you to use your PC and serial communication
protocol to control the projector. The NEC optional serial cable
(CA03D) is required to use this port. If you are writing your own pro-
gram, typical PC control codes are on page E-56. A cap is put on the
port at the factory. Remove the cap when using the port.
11. SC TRIGGER Mini Jack
When the projector is powered ON the screen trigger output sends a
high voltage trigger to the screen controller and the screen will go
down.
When the projector is powered OFF the screen trigger stops sending
a low voltage trigger to the screen controller and the screen will go
up.
NOTE: To enable the SC.TRIGGER function, be sure to turn on "Screen Trig-
ger" in "Page 4" of the Setup. See page E-42.
NOTE: Screen Controllers are supplied and supported by screen manufac-
tures. This option is not included with the projector.
NOTE: Do not use this jack for anything other than intended use. Connecting
an audio cable or equivalent to the SC. TRIGGER Mini Jack causes damage to
this mini jack.
12. PC CARD Eject Button
Press to eject a PC card partially.
13. PC CARD Slot
Insert a PC card or commercially available wired LAN card here.
Stereo mini cable
(not supplied)
Tip (12V)
Ring (NC)
Sleave (ground. 0V)

E-9
13. ENTER Button
Executes your menu selection and activates items selected from the
menu.
14. CANCEL Button
Press this button to exit "Menus". Press this button to return the ad-
justments to the last condition while you are in the adjustment or
setting menu.
15. ASPECT Button
Press this button to display the Aspect Ratio select screen. See page
E-36.
16. FREEZE Button
This button will freeze a picture. Press again to resume motion.
17. 3D REFORM Button
Press this button to enter 3D Reform to correct the keystone (trap-
ezoidal) distortion, and make the image square. See page E-20.
18. EFFECTOR Button
Press this button to display the Sweet Vision setup screen. You can
set options for the Sweet Vision feature in the Setup from the menu.
See page E-23.
19. PICTURE Button
Press this button to display the Picture Management window. See
page E-38.
20. POSITION Button
This button adjusts position of a zoomed image. See page E-23.
21. MAGNIFY (+) (–) Button
Use this button to adjust the image size up to 400%. The image is
magnified about the center of the screen. When the image is magni-
fied, you can move the image by using the SELECT 왖왔왗 왘 button.
See page E-24.
22. HELP Button
Provides the online help or the set information.
23. PIC-MUTE Button
This button turns off the image and sound for a short period of time.
Press again to restore the image and sound.
NOTE: When the menu is displayed, a press of this button mutes an image
and sound without turning off the menu.
24. VOLUME (+) (–) Button
Press (+) to increase the volume and (–) to decrease it.
25. VIEWER Button
Press this button to select the Viewer source.
26. SLIDE (+) (–) Button
Press (+) to select the next folder or slide and (–) to select the previ-
ous folder or slide. See page E-27.
27. FOLDER LIST Button
Press this button to select Viewer source to display a list of folders
included in a PC card. See page E-27.
28. SLIDE LIST Button
Press this button to select Viewer source to display a list of slides
included in a PC card. See page E-27.
M
E
N
U
ASPECT
OFF
VIDEO
AUTO ADJ.
S-VIDEO COMPONENT RGB
DVI
ON
3D REFORM
EFFECTOR PICTURE
POSITION MAGNIFY
HELP
PIC-MUTE
VIEWER
SLIDE
FOLDER
SLIDE
LIST
VOLUME
E
N
T
E
R
C
A
N
C
E
L
POWER
SELECT
FREEZE
24
19
17
25
26
27
28
15
18
20
22
23
21
1413
11
109
85 7
6
3
4
2
16
12
ASPECT
FREEZE
3D
RE
HELP
POINT
ER
VOLUME
M
OFF
VIDEO
AUTOADJ.
S-VIDEO COMPONENT
RGB
DVI
ON
POWER
SELECT
1
1. Infrared Transmitter
Direct the remote control toward
the remote sensor on the projec-
tor cabinet.
2. LED
Flashes when any button is
pressed.
3. POWER ON Button
If the main power is applied, you
can use this button to turn your
projector on.
NOTE: To turn on the projector, press
and hold the POWER ON button for a
minimum of two seconds.
4. POWER OFF Button
You can use this button to turn
your projector off.
NOTE: To turn off the projector, press
and hold the POWER OFF button for
a minimum of two seconds.
5. VIDEO Button
Press this button to select an
NTSC, PAL, PAL-N, PAL-M,
PAL60, SECAM or NTSC4.43
compatible video source from a
VCR, DVD player, or laser disc
player.
6. S-VIDEO Button
Press this button to select an
S-Video source from a VCR, DVD
player or laser disc player.
7. COMPONENT Button
Press this button to select a video source from component equip-
ment connected to your COMPONENT input.
8. RGB Button
Press this button to select a video source from computer or compo-
nent equipment connected to your RGB INPUT port.
9. AUTO ADJ Button
Use this button to adjust an RGB source for an optimal picture. Some
signals may not be displayed correctly or take time to be displayed.
See page E-21.
NOTE: This function may not be available depending upon the input signal.
10. DVI Button
Press this button to select a DVI digital signal from a computer or
settop box.
11. MENU Button
Displays the menu for various settings and adjustments.
12. SELECT 왖왔왗왘 Button
왖왔 : Use these buttons to select the menu of the item you wish to
adjust.
왗왘 : Use these buttons to change the level of a selected menu item.
A press of the 왘button executes the selection.When the menus
or the Viewer tool bar is not displayed, these buttons can be
used to select a slide, or to move the cursor in Folder List or
Slide List.
Part Names of the Remote Control

E-10
Battery Installation
1. Press firmly and slide the battery cover off.
2. Remove both old batteries and install new ones (AA). Ensure that
you have the batteries' polarity (+/-) aligned correctly.
3. Slip the cover back over the batteries until it snaps into place. Do not
mix different types of batteries or new and old batteries.
Remote Control Precautions
•Handle the remote control carefully.
•If the remote control gets wet, wipe it dry immediately.
•Avoid excessive heat and humidity.
•If you will not be using the remote control for a long time, remove the
batteries.
•Do not place the batteries upside down.
•Do not use new and old batteries together, or use different types of
batteries together
Operating Range
30°
30°
30°
25°
7m/22 feet
7m/22 feet
Remote control
Remote sensor on the
projector cabinet
•The infrared signal operates by line-of-sight up to a distance of about
22 feet / 7 m and within a 55°(Front) / 60°(Rear) angle of the remote
sensor on the projector cabinet.
•The projector will not respond if there are objects between the re-
mote control and the sensor, or if strong light falls on the sensor.
Weak batteries will also prevent the remote control from properly
operating the projector.
Note on Remote Control Operation:
If you press and hold the SELECT 왗왘왖왔 button while installing new
batteries, the remote control may fail to work properly.
Should this happen, remove the batteries and then install them again
without touching the SELECT button.
