Nikrans NS-600-Multi User manual

WWW.CELL-PHONE-SIGNAL-BOOSTER.COM
#$$%
" $"
129)5:#<3;1
Freq.: 900, 1800, 2100, 2600, 800 MHz
Coverage: 6500 ft²

"
This user’s manual describes the installation and maintenance of wide band consumer boosters. Please do
read user manual carefully before installing and maintaining repeaters. The information in this manual is
subject to change without prior notice.
#$('"#
Users must follow the principles below⯑
Repeater should follow system requirements; assure good grounding and lightning
protection.
The power supply voltage of repeater should meet security requirements; any operation
shall be carried out only after turning oZ power in advance. Only the professional is
authorized for the operation.
o not dismantle machine, maintain or replace its components by yourself, because this
way the equipment may be damaged and you may even get an electric shock.
o not open the repeater, touch the module of the repeater, or open the cover of the
module to touch electronic component. The components will be damaged due to
electrostatic.
Please keep away from heating equipment, because the repeater dissipates heat during
working. And do not cover a booster with anything that in\uences heat dissipation.

$"%$"##"'
%"##
Cell Phone Signal Booster is a perfect solution for providing improvement of cellular signal reception inside
a house, o]ce, restaurant, VIP Room, apartment, building or shopping mall.
Generally cell phones cannot pick up or maintain a strong cellular signal due to one of the two following
reasons:
1. 6+);1656.;0--)9-:;):-#;);165 – Base stations are used to provide broad coverage. However
there are many areas in which signal strength gets reduced due to topographic peculiarities or local
Governmental restrictions regarding the height or location of base stations. Rural areas generally have
fewer base stations than urban regions.
2. );<9)3)5,)5),-*:;9<+;165: – Signal strength can also be negatively aZected by trees, hills,
buildings, weather and other obstructions. You may be relatively close to a base station but still unable to
make a call. This often occurs inside houses, o]ces and other buildings with stucco, concrete or metal
walls that may block the signal.
The Signal Booster works with two antennas. An Indoor antenna communicates with your cell phone and
an Outdoor antenna communicates with the base station (BS). The Outdoor antenna receives a signal from
the BS and sends it through the cable to the Signal Booster, where it gets ampli[ed and re-transmitted by
the Indoor antenna throughout a building. When the Indoor antenna picks up a signal from your cellular
device, the Signal Booster ampli[es that signal and transmits it through the cable to the Outdoor antenna
and back to the BS.
(Note: The Signal Booster will only operate if there is an adequate signal to amplify.)

#" $

# $
Indoor coverage: 6500 ft²
Up-link freq: 832-862, 880-915, 1710-1785, 1920-1980, 2500-2570MHz MHz
own-link freq: 791-821, 925-960, 1805-1880, 2110-2170, 2620-2690MHz MHz
Up-link Gain: 60 dB
own-link Gain: 65 dB
Power supply: Input AC100~264V, output C9V/3A
Working t °C: -25/+55
Humidity: 5 - 85%
Size (mm): 175*131*33mm
Booster Weight: 0.7 kg
dBm: 17 dBm

" $"#(#$&"&'
The picture below shows how simple and fast booster installation is and how eZectively it works.
A Yaggi or panel antenna (it depends on the booster model and its power), as donor/outdoor antenna, is
installed at the top of the roof to pick up good mobile signals from the base station, and sends them
through the cable to the booster where the signals get ampli[ed signi[cantly; and then the output signals
are distributed throughout the area by the indoor/server antenna. Clear phone calls or high speed mobile
data are immediately achieved within the area.

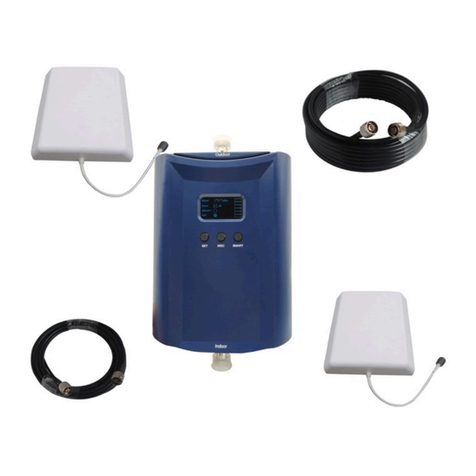

A repeater kit includes:
•<;,6695;-55)⯑
Outdoor panel or wide band Yaggi is recommended.
Function: To pick up outside signals from the base station and send them by cable to the repeater;
outdoor antenna also transmits the uplink signals from the repeater back to the base station.
•5,6695;-55):
It is mounted inside a building to transmit the improved signals throughout the coverage area.
•)*3-:: Сoaxial cables for indoor and outdoor antennas.
•6<5;15/:: Special mountings for antennas and the booster (depends on a booster model)
• Power Supply
7;165)33?:
•#731;;-9: or couplers: when the building structure is too complicated or there is big loss due to
thick walls or other reasons, splitters or couplers shall be used so that more antennas can be
installed in separate zones to distribute the signals to each corner of the coverage area.
•,,1;165)315,669)5;-55): when the building structure is too complicated

$###$$%
<;,669)5;-55)15:;)33);165
The repeater’s main function is to improve weak RF signals in an area. The formula is: Input power +
Gain= Output power. The signal strength from an outdoor antenna directly aZects the e]ciency of the
indoor coverage. It is very important to choose the correct outdoor antenna location in order to get the
best signal.
If you don't know exactly where your operator's base station is located, go through the antenna aiming
process for getting the best result. To aim the antenna correctly, follow the steps below:
1. Setup the entire booster system, including antennas and cables, and power it on.
2. A person on the roof aims the antenna in a certain direction. The other person inside waits for 1
minute and checks signal level on the phone.
3. Then rotate the antenna its 1/8th of the way around, which equals 45 degrees. The person inside
does the same procedure with signal testing.
4. Repeat the process 8 times until you try all 8 directions, in every 45 degrees sector.
5. Compare the results of signal testing – the closer dB parameter to 0, the better booster
performance you get.
6. Fix the antenna in the direction with better signal result.
Note! We recommend mounting the antenna on the side of the building aiming away from the building,
which will reduce amount of possible obstacles. For your convenience and acceleration of the process
perform the testing in pair.
• The mobile phone shall display full bar signals in location where the outdoor antenna is installed
Phone calls or data transmission shall be smooth and stable. It is recommended to test the signal
3 times in location where an outdoor antenna is to be installed
As shown from the illustration above, you should test the signals in points from A to E, and select a
best place that displays full bar signals.
• Outdoor antenna installation Requirements:
Outdoor antenna should be installed on the roof of the house or in some other place where your
mobile device is within coverage zone. Mobile signal should be as strong that at least three-four
bars are indicated on your phone display.
Outdoor antenna should be [xed in straightly.
It is necessary to waterproof connectors of the outdoor antenna and feeder lines.
Repeater is a two-way signal ampli[er. So proper isolation between outdoor antenna and indoor
antenna is necessary in order to avoid self-oscillation. A perfect example of self-oscillation is when
you take a MIC and a loudspeaker for example; if they are too close to each other, it could cause
big noise.
If isolation can’t be achieved due to limited distance, the roof of the building, walls or any other
barriers can be used between antennas to increase isolation.

5:;)33);1656.)7)5-3)5;-55)):)56<;,669)5;-55)
5:;)33);1656.()/1>1,-*)5,)5;-55)):)56<;,669)5;-55)
5:;)33);1656.)()//1)5;-55)):)56<;,669)5;-55)
)*3-3)?6<;)5,+655-+;69)::-4*3?
1. Keep the type, speci[cations, routing direction, location and curvature radius of cables in
compliance with the model requirements. Place cables in correct order, bend them smoothly, and
protect the surface from any damage.
2. Place RF cables separately from power cables. Take proper isolation measures if they have to be
placed on the same cable racks owing to the site condition restrictions.
3. Fasten all connection parts of the whole system in correct order, from the antenna to repeater
interfaces, and make sure that the electrical interfaces are well contacted. Give waterproof
treatment to outdoor connection parts.
4. Take lightning protection measures for the antenna and feeder system in accordance with the
system requirements. Avoid deforming the antenna feeder where grounding clips are placed, and
give waterproof treatment to the feeder.
5,669)5;-55)15:;)33);165
Correct antennas types shall be used according to the site conditions and the requirement.

1. Omni antenna (ceiling Omni or whip antenna) shall be installed in the center and radiate all
directions.
2. It is better to use a directional panel antenna or Yaggi antenna when the area shape is long and
narrow (corridors, long row of houses in two sides, tunnels or elevators or rural open space).
"-8<19-4-5;:;615,669)5;-55)15:;)33);165
• indoor antenna should be 5 meter distance from an outdoor antenna
• indoor antenna should be at least 2 meters above the ground
• indoor antenna should be [xed vertically with the ground.

" $"#$$
5:;)33);1659-8<19-4-5;:
5:;)33);1656+);165"-8<19-4-5;:
1. The repeater shall be installed indoor in a cool, dry and ventilated room without erosive gas or
smoke, or on a cool and ventilated wall to ensure excellent heat dissipation.
2. Installation height should be su]cient for RF cable wiring, heat dissipation and maintenance.
3. Independent and stable power supply is necessary.
 6>-99-8<19-4-5;
Generally AC 100~264V AC / 50±5Hz power supply is required.
5:;)33);165#;-7:
5:;)33);165:+0-4-:
Installation with 1 indoor antenna

#$$#$ #
1. Find an appropriate position for an outdoor antenna. ( see the r equirements in 6.1. sect. )
2. Plug in the outdoor antenna to the mobile booster from BS side and fasten tightly.
3. Plug in the indoor antenna to the mobile booster from MS side and fasten tightly.
4. Connect the signal booster to the Power Supply.
!Some models have an inbuilt Power Supply. Please, examine the manual applied to your model, if
your signal repeater kit doesn’t include separate Power Supply, skip this step!
If the light indicator on the booster turns on it means the installation has been implemented
correctly.
NOTE: Switch on the signal booster only after you connect outdoor and indoor antennas in the
proper way!
5. Test the signal of your mobile telephone – a maximum quantity of bars should be indicated on the
display of your phone in each corner of the location within booster coverage zone. In case the
mobile signal is still instable try to change the position of the outdoor antenna for more proper
one.
4769;)5;56;-:.6915:;)33);165
1. Cables from outdoor antenna should not be wound and be placed as straight as possible in order
not to create any hindrance for signal reception and its transmission.
2. Cables should be shortened to the acceptable maximum so that not to waste or decrease mobile
signal coverage range.
3. In order to prevent water from coming into the mobile phone booster through the cable make a
loop in it.
4. Keep the outdoor antenna as far as possible from frequency aerials, high voltage cables, metal
nets or transformers.
5. Never point the front of a irectional outdoor antenna towards the indoor antenna.
6. Plug the power supply into the Signal Booster input (carefully, to avoid damaging the center pin)
and then into a wall outlet.
6;- It is recommended to plug all AC power supplies for home electronics into a Surge Protector
Power Strip.
7. If the light indicator doesn’t turn on, please see the lights indication instructions.
8. Using multiple Signal Boosters in one installation could cause interference to the base station
(except for the In-Line Signal Boosters).

"-7-);-9@:769;:,-:+917;165
1. Outdoor port: connected with the outdoor antenna by cable
2. Indoor port: connected with indoor antenna directly or by cable
3. C IN: connected with power supply.
++-::691-::-3-+;165
Choosing accessories pay attention to the two characteristics – frequency and impedance. All accessories
shall support the repeater’s frequencies. For example, if the repeater’s frequency is GSM900, all the
accessories must support the GSM900 frequency.
"-7-);-9#-;;15/:
5,1+);691/0;5:;9<+;165:
"-7-);-9-);<9-:#-;;15/:
The repeater is controlled via LC touch screen on the front panel. See the detailed introduction listed
below:

1. Shows the UL& L average frequency.
2. Shows the UL& L maximum gain.
3. Smart function. The repeater could set the gain automatically to prevent the Alarm.
4. Antenna Isolation etection. At [rst power on the repeater, it will detect the oscillation
automatically between the outdoor and indoor antennas.
5. ALC Alarm indicator.
6. 5 bars of the output signal strength indication, which shows the maximum output power of the
repeater. Each signal bar represents 5dB.
7. Press to select or con[rm the settings.
8. Increase the gain or upward adjusting of the average frequency. ecrease the gain or downward
adjusting of the average frequency.
9. Smart key. Press the key enter into Smart function.
The repeater has Manual Gain Control (MGC) feature that enables engineers to reduce the gain of the
repeater manually via touch screen if oscillation is detected. Users could also use the “Smart” function as
well, which will help to set to the suitable gain automatically without any interference to the mobile
network.
In order to maintain safe and speci[c output signal levels, this repeater has built-in signal oscillation
detection circuit to adjust the gain automatically so as to avoid interference to the cellular network, also it
gets color changing LE indicating its environmental status: the Alarm LE will change color from green to
orange or red, (depending on the input power level) when the system detects signal oscillation in the

working band or the input signal is beyond a safe limit.
The repeater also features a Network Safe / MUTE feature that automatically shuts oZ the repeater to
protect the cellular network. Users shall make sure the LE remains green at all times for optimum system
performance.
!<-:;165:#63<;165:
'0);:1/5)33-=-315,41:67;14)3.69;0-+699-+;*66:;-9.<5+;16515/
For the optimal functioning of the booster, the BS (input) readings should be between - 65 and 50 dBm.
The MS (output power) readings must be between +05 and +15 dBm. evice Gain must be 65/65 dB. If
the BS is lower than - 65dBm, the coverage will be smaller. However, the device can work normally. If the
BS is too weak, it'll be necessary to adjust the position of the outdoor antenna by raising it as high as
possible (on a pole on the rooftop) and pointing it towards the provider's nearest base station. If the BS is
higher than - 50 dBm, the device will have a self-excitation issue. In those conditions, the output signal will
drop during communications. If the two antennas are placed very close to each other, it will evoke self-
excitation. To [x the problem, you would need to place the outdoor antenna at the largest possible
distance from the indoor antenna.
#?:;-4$-:;
0-+2>0-;0-9;0-+6=-9)/-1:/66,
1. Take a test with a mobile phone or a data card (engineering mobile phone is preferred).
To test signal level with a cell phone, make use of its engineering mode (Field Test Mode), which
is an application available in free access or a phone mode requiring no extra setups. On most
used mobile OS (operating systems) the test mode can be started as follows:
◦ iOS. Type *3001#12345#* and hit Call
◦ Android. Type *#*#197328640#*#* to activate
◦ Windows. Type ##3282# and start.
◦ Blackberry. Press TOOLS, SETTINGS, STATUS or OPTIONS, STATUS.
Note! To get parameters for 2G, 3G and LTE, disable WiFi. In case you cannot [nd Field Test
Mode on your cell phone, use bars on the screen of your mobile phone to evaluate the change.
If the signals in most areas have not been improved, please check recommendations below again:
- Weak input signal leads to low output power. To increase input signal power level, change the
direction of the outdoor antenna or its installation position or replace it for an antenna with higher
gain.
- Check whether it is necessary to use additional indoor antennas as barriers block signal
penetration; also check whether the repeater’s power is enough; please install extra indoor
antennas or replace the repeater for another model with higher power level.
2. If the signals in small parts of the area have not been improved, please check the following:
- Check whether the indoor antenna is installed correctly or not; you may try to change the
antenna location to improve coverage.
- Check if it is necessary to adjust the direction of the indoor antenna.
- Check whether it is necessary to add one or more antennas to enhance the coverage in special
areas.

For maximum precision in signal level testing, switch your cell phone into Field Test Mode and see dB
parameter. The closer dB signal level to 0, the better cell phone reception you’ll get.
• -105 to -100 = Bad/drop call
• -99 to -90 = Getting bad/signal may break up
• -89 to -80 = OK/shouldn't have problems, but maybe
• -79 to -65 = Good
• Over -65 = Excellent
Your task is to get at least -79dB signal to ensure reliable communication and strong signal inside the
building.
Remark:
•"-,<+-);;-5<);165=)3<-: — by ensuring the isolation level
•5+9-):-6<;7<;76>-9 — recommended ways: to adjust outdoor antenna direction/location, or
replace it to an antenna with higher gain to increase input signal strength.
"-7-);-9+)556;+644<51+);-15 6>-9:;);<:
1. The power is on but there is a signal \uctuation or a \ash signal. The phone call cannot be made/
received.
It shall be caused by the insu]cient isolation between outdoor and indoor antennas.
3-):-;)2-;0-.6336>15/4-):<9-:
- Firstly check whether the alarm LE lights. The light may indicate the isolation is insu]cient.
- Secondly adjust the antennas’ directions or locations or enlarge distance between them.
- Thirdly reduce the repeater’s gain by ATT IP if the above listed methods don’t work.
$0-.6336>15/4-):<9-:+)5)3:6*-0-37.<3
- Use the roof of the building to enlarge isolation (Please try to place the outdoor antenna and
indoor antenna on diZerent \oors).

- Use some obstacles (Such as walls).
2. The repeater’s power is on but the phone cannot get connected to the network and still can not
communicate.
"-):65 There are loose or wrong connections in the repeater system.
#63<;165 Please try to fasten the connections between diZerent parts of the system.
"-):65 The signals received by outdoor antenna of other operators nearby are too strong. (For
example, the other operators’ signals are 10 dB stronger than the needed signals.)
#63<;165 Change the direction of the outdoor antenna or its installation position, so that the
gap of signal strength is reduced between operators.
#63<;165 Use barriers (like buildings and walls) to block signals from other operators.

!
'133*66:;-915+9-):-;0-"9),1);165
No, it will decrease instead.
Every cell phone irradiates heavily being in zones with poor mobile signal as a cell phone is constantly in
searching mode. The danger is your cell phone is about 2cm to your body, which makes its usage rather
harmful. And when a booster is installed, it improves the mobile signals in the coverage, and your cell
phone stops irradiating strongly, thus it will reduce the RF radiation of the mobile phone tremendously.
The maximum power level of booster is 0.01W, and it decreases to be maximum 0.001W when reaching
indoor antenna. And since the indoor antenna is installed over the ceiling or onto the wall, there is usually
more than 3 meter away from the human body, 3meter away means at least 40dB propagation loss, or
10000 times less, 0.0000001W, and therefore it is too weak to in\uence human bodies though it is still a
very good signal for mobile phones.
.;0-76>-915,1+);691:6A).;-915:;)3315/;0-9-7-);-9>0);
:06<3,,6
Check if the repeater’s power supply works normally or not.
.9-7-);-9@:76>-9:<773?1:5694)331/0;1:6569C):015/)33
;0-;14->0);:06<3,,6
Firstly, check whether all connectors are connected well or not. If it is all right, please, adjust the direction
of the outdoor and indoor antenna. Make sure the horizontal distance is 75 feet or more, the vertical
distance is 20 feet or more.
.;0-9-7-);-9)5,76>-9:<773?)9-15:;)33-,+699-+;3?>0?;0-
:1/5)31::;133*),
1. According to the steps above, verify if all the cables and connectors are connected correctly or not and
correct the connections if necessary.
2. If connections are correct, please, adjust the direction of the outdoor antenna, point it towards BTS
antenna, and make sure it can accept the strongest signal.
.;-915:;)3315/;0-9-7-);-9;0-:1/5)31:/66,*<;;0-+655-+;165
1::36>6915;-941;;-5;69+)556;0-)9+3-)93?;0-6;0-9:1,-
1. Please, check the indoor antenna position, and whether the cables and connectors are connected
correctly or not.
2. Adjust the indoor antenna direction and make sure it can easily receive a cell phone signal.

%$"#"
Nikrans boosters is the result of a 7-year experience in selling cell phone signal ampli[ers throughout
EMEA, APAC, NAR and other regions. For all these years we’ve been following the market carefully listening
to customers and industry leading experts with the aim of working up our own vision and quality standards
in signal ampli[cation.
Nikrans product line includes about 40 models: from basic single-band devices with 100 m2coverage to
high-end all-in-one solutions covering up to 5000 m2. epending on the model, boosters operate in GSM,
CS, C MA, LTE or combination of these standards at 850-2100 MHz frequencies. The product line is
extended with a series of antennas, splitters and other accessories for completing exclusive custom
projects of any di]culty level.
Nikrans product development process is rigorously assessed to comply with ISO 9001:2008 standard and
implicates internal tests, which greatly ensures the quality of our goods. High product quality is also
con[rmed by Phoenix Testlab, Germany and is proved with CE and RoHS certi[cates. That’s why a 3-year
warranty applies to any of Nikrans boosters.
-9;1B+);-:

Hereby, Nikrans declares that this signal booster is in compliance with the essential requirements and
other relevant provisions of Radio Equipment irective (RE ) 2014/53/UE (CE marking).
[e-mail] · [phone] (Sales) · www.cell-phone-signal-booster.com
