OPERATOR
M A N U A L
Advance SR 1100 B/ECO
Models 9082317010, 9083201010

56041475
INDEX
INTRODUCTION / GENERAL INFORMATION................................................................................. 1
UNPACKING ................................................................................................................................... 2
TECHNICAL DATA.......................................................................................................................... 3
DESCRIPTION OF COMMANDS AND CONTROL PANEL ............................................................... 4
PRELIMINARY OPERATIONS (battery operated version) ............................................................ 5-7
PRELIMINARY OPERATIONS (version with eco version)............................................................. 8-11
USE (battery operated version).................................................................................................... 12-16
USE OF THE WORKING PROGRAMS........................................................................................ 12
USE (version with eco version) .................................................................................................... 17-22
USE OF THE WORKING PROGRAMS........................................................................................ 18
FURTHER PERFORMANCES OF THE MACHINE
WITH eco version ..................................................................................................................... 22
SIDE BRUSHES ADJUSTMENT AND REPLACEMENT..................................................................... 23
MAIN BRUSH REPLACEMENT........................................................................................................ 24-25
FILTER CLEANING AND REPLACEMENT ........................................................................................ 26-27
MAINTENANCE .............................................................................................................................. 28
BATTERIES: CONTROL AND RECHARGE .................................................................................. 28
BRAKES ADJUSTMENT ............................................................................................................. 29
FRONT LAMP REPLACEMENT................................................................................................... 29
MAINTENACE OF THE eco version .......................................................................................... 30-31
SUMMARY OF MAINTENANCE CONTROLS (battery version) ............................................... 32
SUMMARY OF MAINTENANCE CONTROLS (petrol version) ................................................. 33
OPTIONAL ITEMS........................................................................................................................... 34
SAFETY FUNCTIONS AND TROUBLE-SHOOTING ......................................................................... 35

56041475
INTRODUCTION / GENERAL INFORMATION
1
INTRODUCTION
This manual will help you get the most from your Sweeper Advance.
Any “left” or “right” indications are always defined with reference to the machine forward movement direction. He has the skilled
personnel, the original parts and the tools needed to meet your requirements. The machine should not be used without protection devices.
For your safety, make sure that all the safety guards are closed or mounted correctly before stating up the machine.
PARTS AND SERVICE
Repairs, when required should be performed by your Authorized Advance Service Center, who employs factory trained service personnell,
and maintains an inventory of Advance original replacement parts and accessories.
Call the Advance Dealer named below for repair parts or service.
Please specify the Model and the Serial Number when discussing your machine.
NAME PLATE
The Model Number and the Serial Number of your machine are shown on the Nameplate on the machine. This information is needed when
ordering repair parts for the machine. Use the space below to note the Model and Serial Number of your machine for future reference.
GENERAL SAFETY RULES
Carefully follow the rules described below to avoid injury to the operator and damage to the machine.
Carefully read the labels on the machine, do not cover them for any reason and replace them immediately if they become worn or
damaged.
Do not place containers with liquids on the machine.
The machine storage temperature should range between -25°C and +55°C.
Humidity should range between 30 and 95%.
Do not use the machine in an explosive atmosphere.
Do not use the machine as a transport vehicle.
Do not allow the brushes to operate while the machine is stationary to avoid damaging to the floor.
In case of fire, use a powder extinguisher. Do not use water.
Do not bump into shelves or scaffolding where there is a risk of falling objects.
Adjust the operating speed to the floor adhesion.
Do not exceed the declared slope limits to avoid unstable conditions.
When the machine is parked, remove the key and engage the parking brake.
When machine operating malfunctions occur, make sure that they are not caused by a lack of routine maintenance. If not, request
assistance from the service centre.
If parts must be replaced, request ORIGINAL spare parts from a dealer and/or Authorised Retailer.
For all maintenance operations, disconnect the electric power supply to the machine.
Do not remove the guards which require the use of tools to be disassembled.
Do not wash the machine with direct or pressurised water streams, or with corrosive substances.
The machine should be inspected by a service centre every 200 hours of operation.
The machine must never be left unattended, during the scrapping phase, because of the presence of toxic-harmful materials (batteries,
oils, etc.) which are subject to standards that require disposal in special centres.
The machine will not generate damaging vibrations.
MODIFICATION AND IMPROVEMENTS
Our company constantly improves its products and reserves the right to make changes and improvements at its discretion without being
obligated to apply such benefits to the machines that were previously sold.
SAFETY
How to prevent accidents.
No accident prevention programme is effective without the complete co-operation of the person directly responsible for operating the
machine.
Most of the accidents that may occur in a company, on the job or during transfers are caused by the non-observance of the fundamental
safety rules.
A careful and cautious user is the best guarantee against accidents and is more effective than any type of prevention programme.
SAVE THESE INSTRUCTIONS!
Model:
Serial No.:
Power:
Tot weight:
Prod. No.:
Max axel rear:
Max axel front:
Noise level:
Voltage:
MADE IN ITALY
Nilfisk-Advance, Inc.
Plymouth, MN, USA
www.nilfisk-advance.com
LISTED Conforms to
UL STD. 583
9901122

56041475
UNPACKING
When the machine is delivered, carefully
inspect the shipping carton and the machine
for damage. If damage is evident, save the
shipping carton so that it can be inspected.
Contact the Advance Customer Service
Department immediately to file a freight
damage claim.
Please check that the following items be
supplied with the machine:
1 - envelope with cables for batteries and
connector for battery-charger.
2 - technical documents (Spare Parts
Catalogue, Manual for Use and Maintenance
and - for the petrol version only - Use and
Maintenance Manual of the engine).
2

56041475

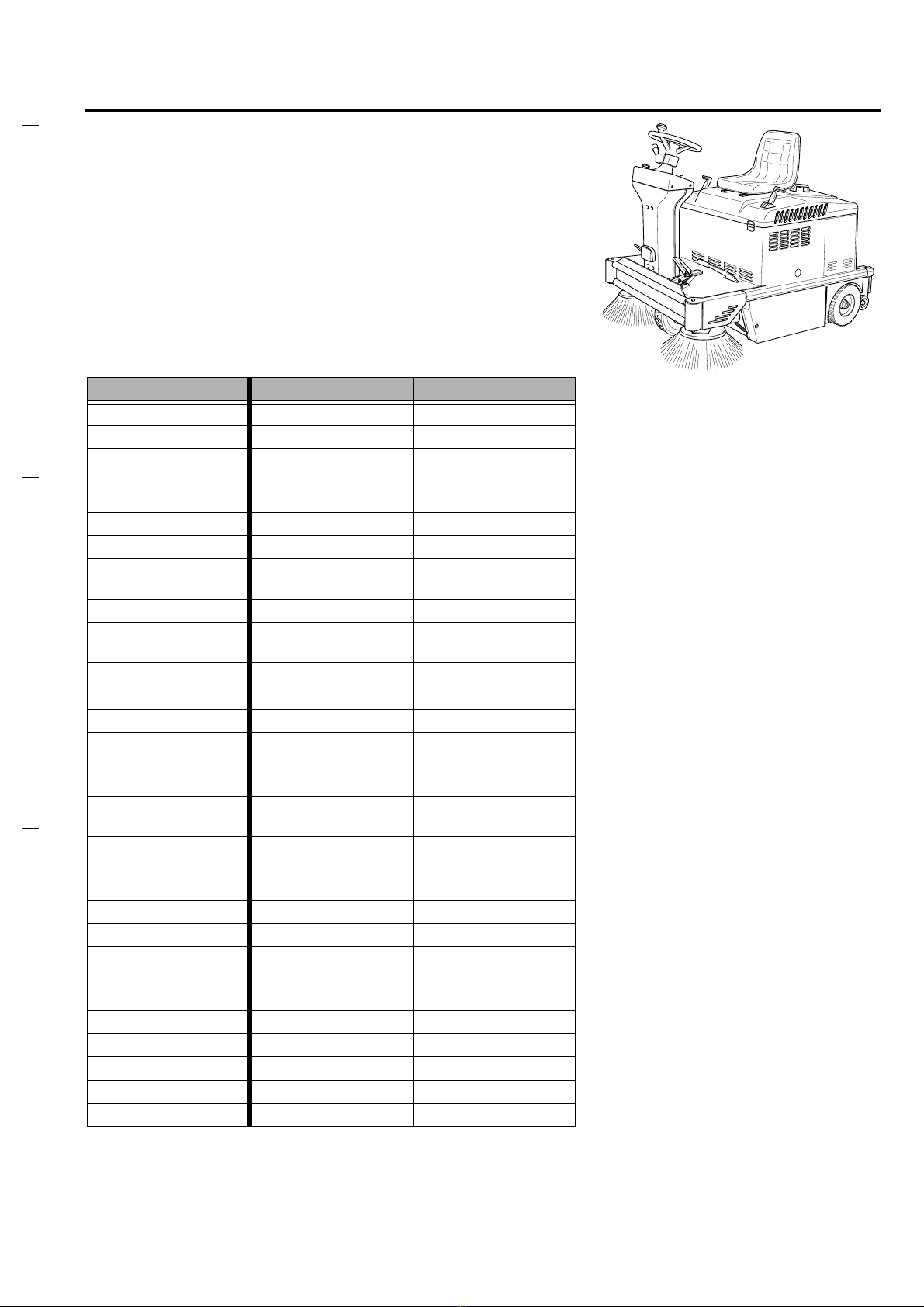

TECHNICAL DATA
3
Recommended battery: 2 x 6V 244 Ah @ 20
Note: Using the recommended batteries the working autonomy will be of about 3
hours.
VERSION SR 1100B SR 1100 ECO
Voltage 24V 24V
Engine model / Vanguard OHV
Nominal Power at 3600
RPM / 4 Hp - 2,97 Kw
Displacement / 126 cc (7,69 cu.in)
Start / Automatic
Drive electrical motor 450W - 120 RPM 400W - 130 RPM
Main brush electrical
motor 500W - 1600 RPM 500W - 1600 RPM
Suction electrical motor 30W - 3300 RPM 200W - 3300 RPM
Side brush electrical
motor 90W - 120 RPM 60W - 120 RPM
Forward speed max 7 km/h (4,8 mi/h) 6,2 km/h (4,2 mi/h)
Reverse speed max 3,5 km/h (2,4 mi/h) 3,6 km/h (2,4 mi/h)
Max slope 20% 20%
Main brush Ø 300 mm x 700 mm
(11,8 x 27 in)
Ø 300 x 700 mm
(11,8 x 27 in)
Side brush Ø 430 mm (17 in) Ø 430 mm (17 in)
Cleaning width with 1
side brush 900 mm (35 in) 900 mm (35 in)
Cleaning width with 2
side brushes 1100 mm (43 in) 1100 mm (43 in)
Front wheel (NR 1) Ø 250 mm (9,8 in) Ø 250 mm (9,8 in)
Rear drive wheels (NR 2) Ø 250 mm (9,8 in) Ø 250 mm (9,8 in)
Container capacity 70 lt (~ 6 gal) 70 lt (~ 6 gal)
Panel filter 5 micron - 4 m
2
5 micron - 43 sqf
5 micron - 4 m
2
5 micron - 43 sqf
Electrical filter shaker 30W - 3800 RPM 90W - 6000 RPM
Machine length 1376 mm (54 in) 1376 mm (54 in)
Width 910 mm (36 in) 910 mm (36 in)
Height 1193 mm (47 in) 1193 mm (47 in)
Fuel tank capacity / 3 lt (3,2 qt)
Engine oil tank capacity / 0,6 lt (0,64 qt)

56041475
11
9
12
13
10
12
3
4
7
5
68
14
16
17
18 19
15

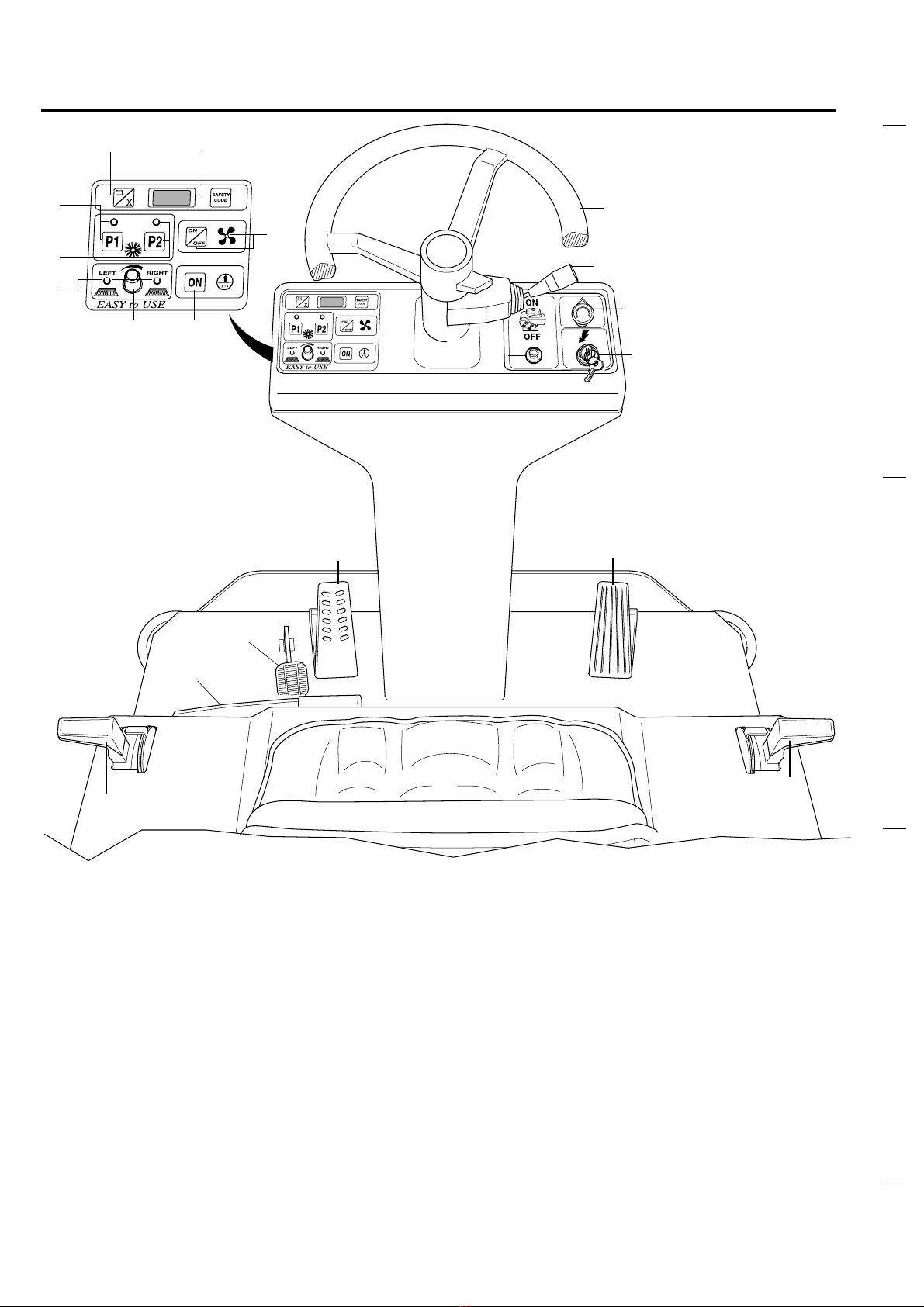

DESCRIPTION OF COMMANDS AND
CONTROL PANEL
1 - Voltmeter/hourmeter push button
2 - Display
3 - Button for selection/indicator of
working program P1
4 - Button for selection/indicator of
working program P2
5 - ON/OFF button and indicator of
suction motor
6 - Knob for the speed adjustment of the
side brushes
7 - Indicator of the operation of left/right
side brushes
8 - ON button of filter-shaker motor
9 - Emergency stop push button
4
10 - ON/OFF main key switch
11 - Start/Stop push button for eco version
12 - Selection of forw./reverse speed, light
ON/OFF, horn
13 - Steering wheel
14 - Pedal for flap lifting
15 - Brake pedal
16 - Accelerator
17 - Parking brake lever
18 - Lever for left side brush command
19 - Lever for right side brush command

56041475
The electric machine (operated only with
batteries) requires four 6V batteries.
Depending on the country where the machine
is sold three possibilities can occur:
1 - the battery is supplied with the machine
and it is set, complete with acid solution
2 - the battery is supplied with the machine
and it is set, but not complete with acid
solution
3 - the battery is not supplied.

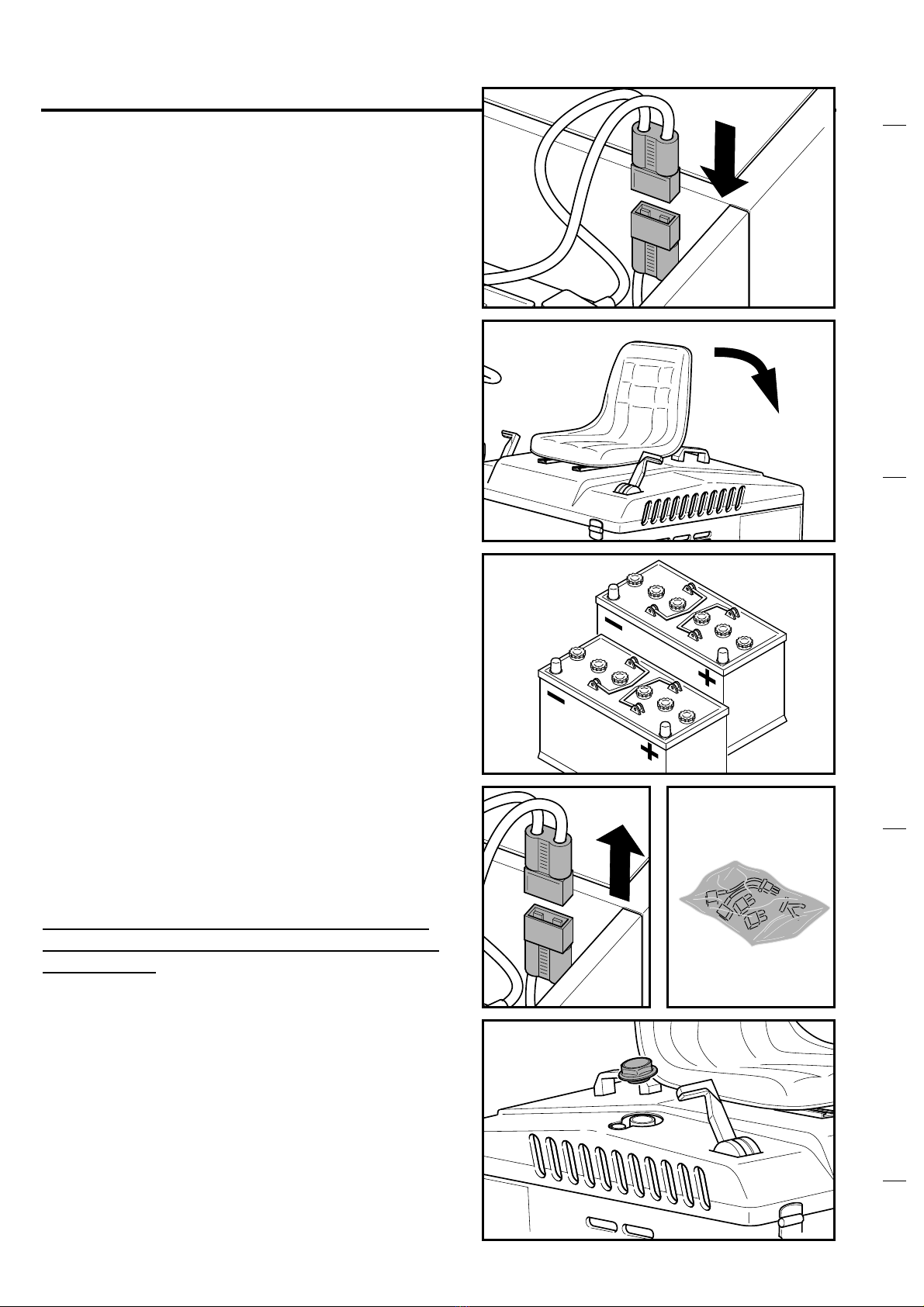

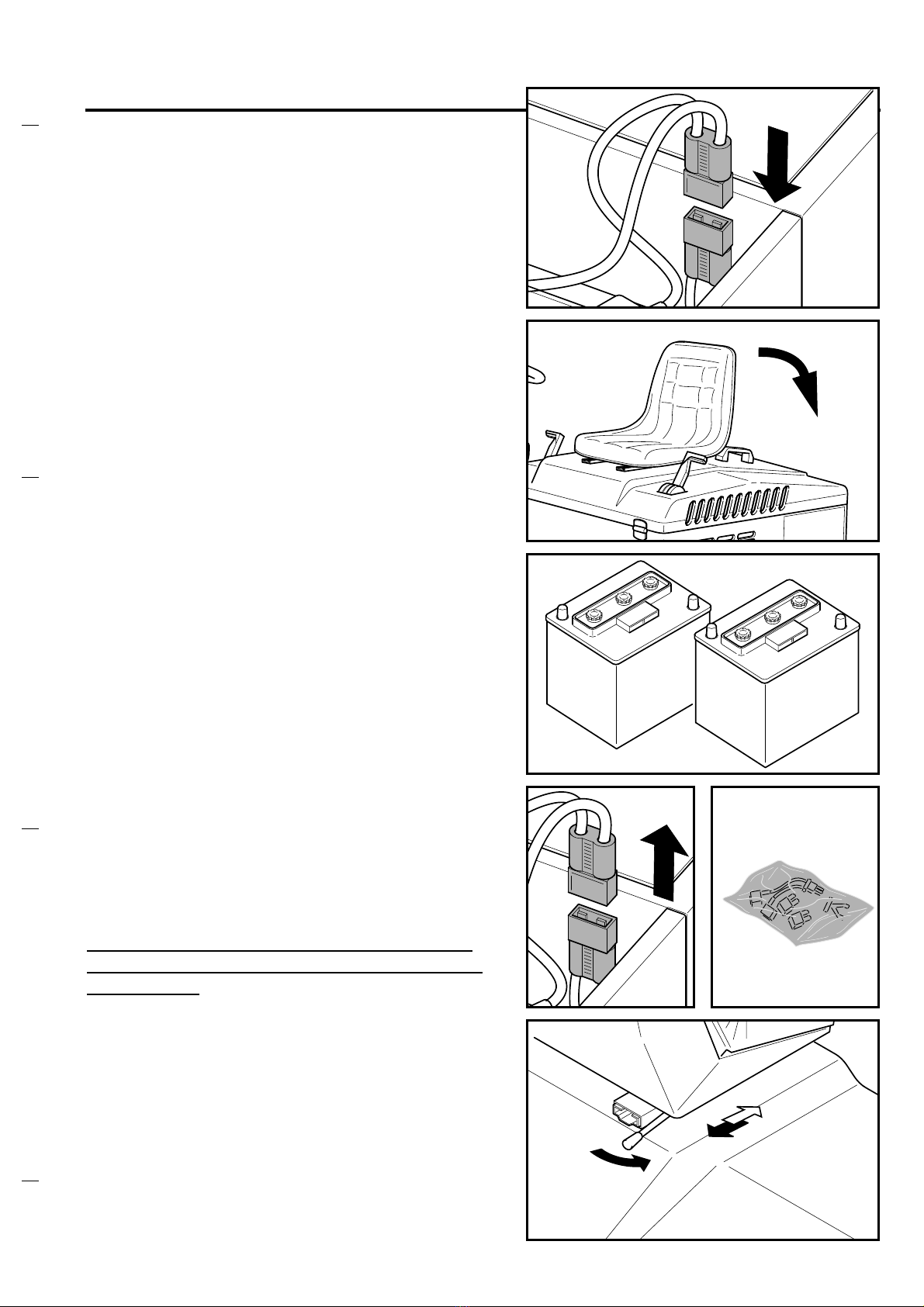

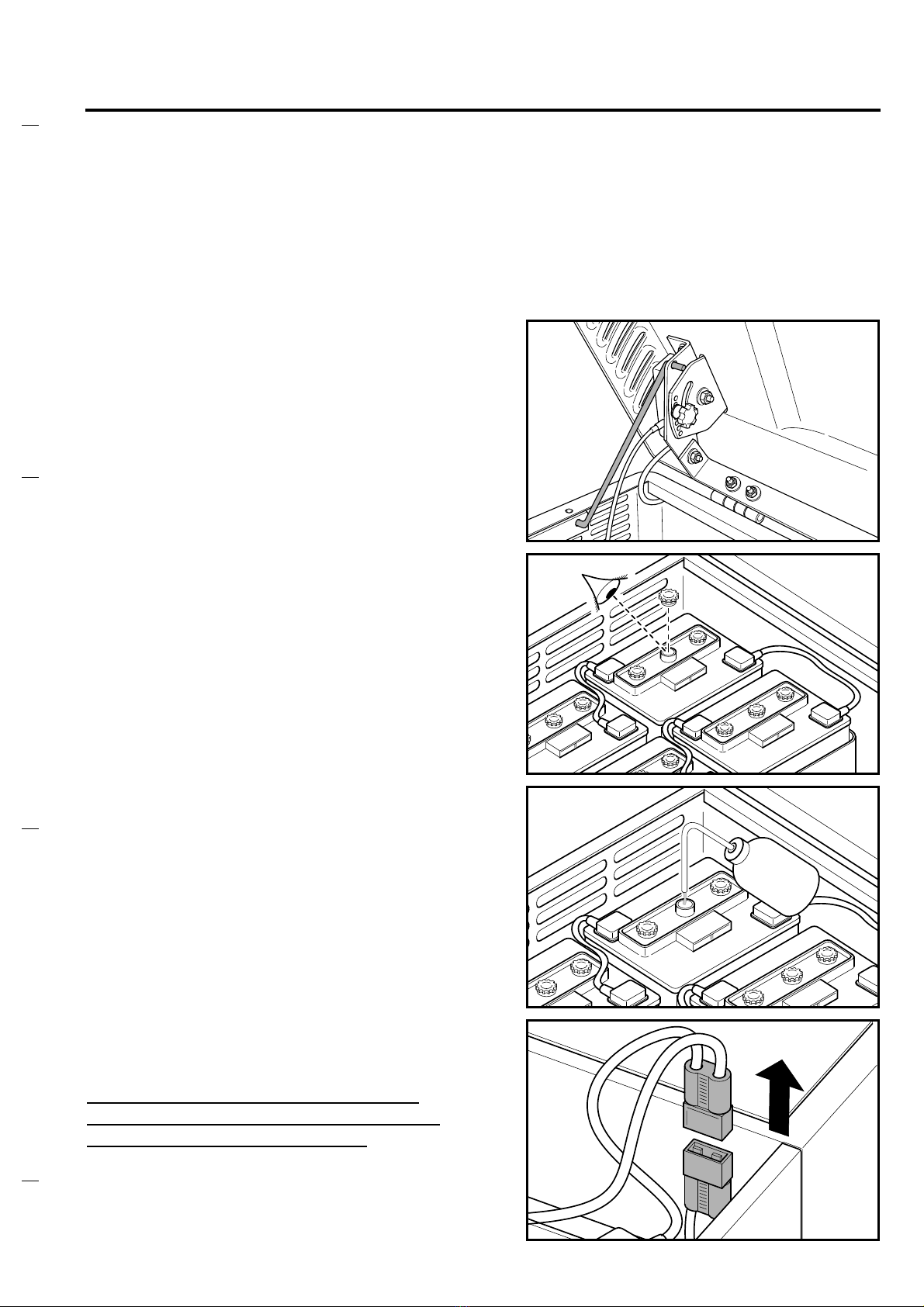

The battery compartment is under the seat:
lift the compartment lid, toward the steering
wheel, and verify which one of the three
possibilities is applied to your machine.
If the batteries are installed open one of the
caps of every battery and check if they are
filled with electrolyte.
1 - If the battery is filled:
1a . Check the electrolyte level in every cell and
-if necessary- fill up with distilled water.
1b . Proceed with a battery recharge according
to the MAINTENANCE paragraph and to
the Battery User Manual.
WARNING: before stating the battery
recharge the battery connector must be
disconnected from the machine.
After the recharge plug the battery connector
to the machine.
PRELIMINARY OPERATIONS
(battery operated version)
5

56041475
PRELIMINARY OPERATIONS
(battery operated version)
2 - If the batteries are installed but not filled
with acid solution they must be filled with
a solution of sulphuric acid (density not
lower than 1.270 Kg when at 25°C)
according to the instructions specified
below and in the Battery User Manual.

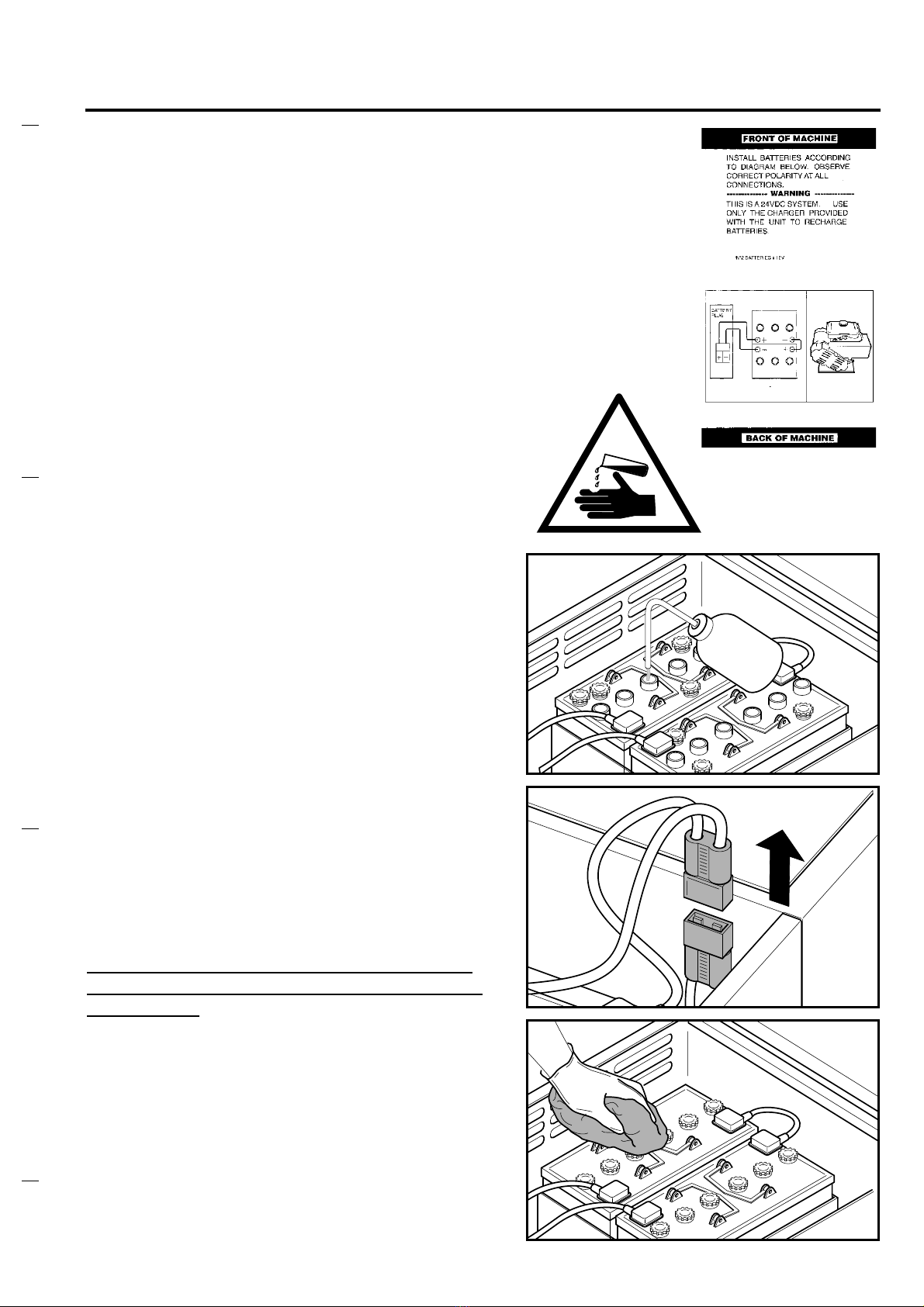

BATTERY FILLING UP WITH ACID SOLUTION
Warning: the battery acid is corrosive; if it
comes in contact with the skin or eyes rinse
thoroughly with water and consult a
physician.
The batteries must be filled in a well
ventilated area.
Fill every battery cell with acid; the right level
is specified in the Battery User Manual.
After one hour fill up with acid, if necessary.
Let batteries rest for a further hour; then
proceed with a recharge according to the
instructions specified in the Battery User
Manual and in the MAINTENANCE paragraph.
During the recharge the battery caps must be
open.
WARNING: before starting the recharge the
battery connector must be disconnected from
the machine.
After the recharge close all the cell caps and
clean the top of the battery from any acid
remains.
6

56041475
Connect the battery connector to the
machine.
Close the lid of the battery compartment.
3 - If the machine is not equipped with
batteries they must be procured and
mounted. It is recommended to get the
assistance of qualified personnel to chose
and set the batteries.
The electrical cables supplied with the
machine can be used for the connection of the
four batteries.
WARNING: before starting the recharge the
battery connector must be disconnected from
the machine.
After having set the batteries climb onto the
machine and adjust the seat to find the most
comfortable position.
Now the machine is ready to be used.
PRELIMINARY OPERATIONS
(battery operated version)
7

56041475
PRELIMINARY OPERATIONS
The machine operated with eco version
requires two 12V batteries.
Depending on the country where the machine
is sold three possibilities can occur:
1 - the battery is supplied with the machine
and it is set, complete with acid solution
2 - the battery is supplied with the machine
and it is set, but not complete with acid
solution
3 - the battery is not supplied.
The battery compartment is under the seat:
lift the compartment lid, toward the steering
wheel, and verify which one of the three
possibilities is applied to your machine.
If the batteries are installed open one of the
caps of every battery and check if they are
filled with electrolyte.
1 - If the battery is filled:
1a . Check the electrolyte level in every cell and
fill up -if necessary- with distilled water.
1b . Proceed with a battery recharge according
to the MAINTENANCE paragraph and to
the Battery User Manual.
WARNING: before stating the battery
recharge the battery connector must be
disconnected from the machine.
After the recharge plug the battery connector
to the machine.
8

56041475
2 - If the batteries are installed but not filled
with acid solution they must be filled with
a solution of sulphuric acid (density not
lower than 1.270 Kg when at 25°C)
according to the instructions specified
below and in the Battery User Manual.
BATTERY FILLING UP WITH ACID SOLUTION
Warning: the battery acid is corrosive; if it
comes in contact with the skin or eyes rinse
thoroughly with water and consult a
physician.
The batteries must be filled in a well
ventilated area.
Fill every battery cell with acid; the right level
is specified in the Battery User Manual.
After one hour fill up with acid, if necessary.
Let batteries rest for a further hour; then
proceed with a recharge according to the
instructions specified in the Battery User
Manual and in the MAINTENANCE paragraph.
During the recharge the battery caps must be
open.
WARNING: before starting the recharge the
battery connector must be disconnected from
the machine.
After the recharge close all the cell caps and
clean the top of the battery from any acid
remains.
PRELIMINARY OPERATIONS
9

56041475
PRELIMINARY OPERATIONS
Connect the battery connector to the
machine.
Close the lid of the battery compartment.
3 - If the machine is not equipped with
batteries they must be procured and
mounted. It is recommended to get the
assistance of qualified personnel to chose
and set the batteries.
The electrical cables supplied with the
machine can be used for the connection of the
four batteries.
WARNING: before starting the recharge the
battery connector must be disconnected from
the machine.
Fill the fuel tank with unleaded petrol.
10

56041475

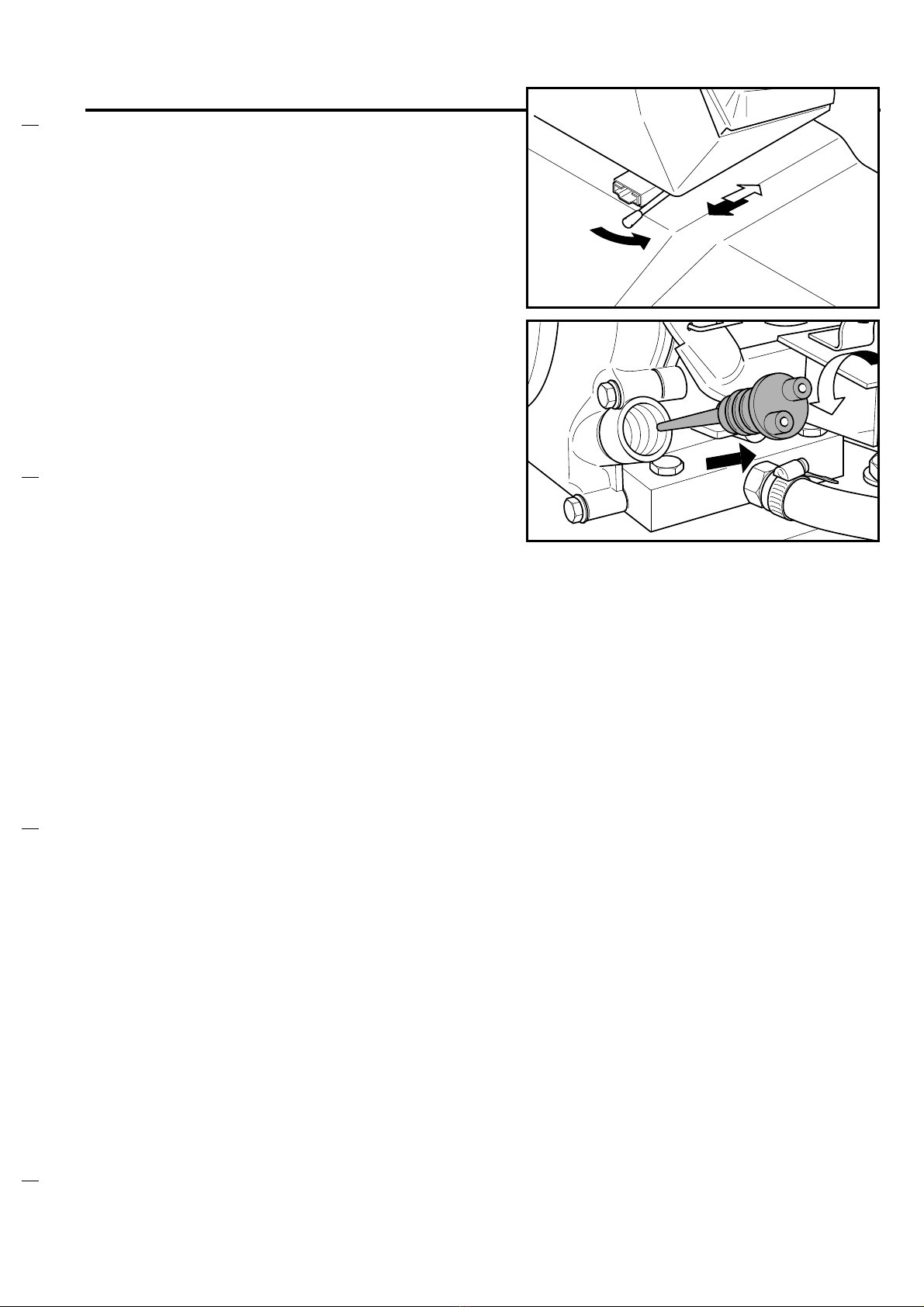

Climb onto the machine and adjust the seat to
find the most comfortable position.
Now the machine is ready to be used.
For oil control please ceck at page 30.
PRELIMINARY OPERATIONS
11

56041475
USE (battery operated version)
Insert the ignition key into the panel and turn
it clockwise: the display will show all zeros and
after about three seconds the battery voltage
will appear.
Note : the temporary lighting of the side brush
indicators and the short sound from the
reverse speed acoustic indicator
correspond to a normal behaviour.
Wait not less than three seconds before
restarting the machine after switch Off.
Check the charge status of the batteries on
the display.
Note : the display has two functions: voltmeter
and hour meter. The voltmeter will
activate the block function during an
undervoltage; it will disable all the
machine activities - except for the drive
- when the battery voltage drops below
20 Volt (the display flashes): recharge
the battery as specified in the
Maintenance paragraph.
To access the hour meter function press
the button shown in the figure: the
display will show the number of
machine service hours. Press the button
again to display the number of machine
service minutes. Pressing the button
again or waiting ten seconds the value
on the display will return to the battery
voltage level.
USE OF THE WORKING PROGRAMS
It is possible to choose one of the two working
programs P1 and P2 , pressing the relevant
button:
P1 is the “light cleaning program” (for
internal environment, i.e. smooth floor,
moquette, small debris etc.)
P2 is the “hard cleaning program” (for
external environment, i.e. asphalt, uneven
floor, big debris etc.).
12

56041475
P1 P2
After having pressed the preferred button the
relevant light indicator will turn on, together
with the suction motor indicator.
The temporary activation of the main brush
and suction electrical motors will also occur;
(the relevant light indicators will flash).
Note: the working parameters of programs P1
and P2 are pre-set by the manufacturer
of the machine: if you want to change
the pre-set values call the customer
service personnel of your supplier.
Lower the side brush/es pressing the top of
the relevant lever and moving it forward,
Note: on the control panel the corresponding
light indicators will turn on.
To lift the side brush/es press the top of the
levers and move them backward.
Note: the side brush/es, the main brush and
the suction fan will start automatically
when the accelerator pedal will be
pressed (AUTO POWER-ON).
It is possible to adjust the side brush/es
turning speed by means of the dedicated
knob.
USE (battery operated version)
13

56041475
USE (battery operated version)
Select the forward speed by means of the
command lever.
Press the accelerator pedal to start the job.
Note: by releasing the accelerator pedal (or
setting the command lever to the
neutral position) the automatic switch
off of all functions will occur within 8
seconds (Auto Power Off); the light
indicators of the selected working
program and of the suction fan will
start flashing. The automatic restart of
all functions will automatically occur as
soon as the accelerator pedal will be
pushed again (Auto Power ON).
In order to enable the selection of a
different working program first disable
the previously selected one.
When it is necessary to sweep on a wet floor
stop the suction fan pressing the relevant
button, in order to prevent the damage of the
paper panel filter with water.
In order to get an efficient cleaning function
the panel filter must always be clean.
Press the filter-shaker button, even if the
machine is working.
This operation must be repeated every 10 to
15 minutes, depending on the kind of rubbish
to be swept; before emptying the dirt
container and, in any case, at the end of the
work.
During the operation of the filter-shaker the
suction fan will continue to run (no automatic
stop will occur).
If you want to stop the suction fan during the
filter shaker operation - two possibilities exist:
1st- to stop the fan by pressing the dedicated
ON/OFF button.
2nd- to wait for the functions automatic
power off (after the release of the
accelerator pedal)
To restart the suction fan either press the ON/
OFF button or use the accelerator pedal.
As an alternative - in order to make easier the
operator’s job - the automatic filter sheaking
will occur, every five minutes.
14

56041475
1
4
2
3
To collect light and bulky waste materials lift
the front flap using the left pedal (do not
press the pedal down for a long time, not to
reduce the suction capability of the machine).
The machine get an automatic breaking
function when the accelerator pedal is
released; when necessary the service brake
can also be used (see the figure).
When driving reverse an intermittent acoustic
signal will be heared and all the functions will
remain enabled.
In the figure the functions of the command
lever are shown:
1- forward speed
2- reverse speed
3- horn
4- front light On/Off.
The machine is equipped with an emergency
stop button; by pressing this button (red light
On) a sudden stop of the machine will occur
and all functions will turn Off.
To restart the machine turn the red button
clockwise (according to the arrow shown on
the button itself).
To restart the normal operation re-select one
of the two working programs P1 or P2.
A safety device is located inside the operator
seat: the drive function - either forward or
reverse - is disabled as soon as the operator
will stand up or leave the seat.
USE (battery operated version)
15

56041475
USE (battery operated version)

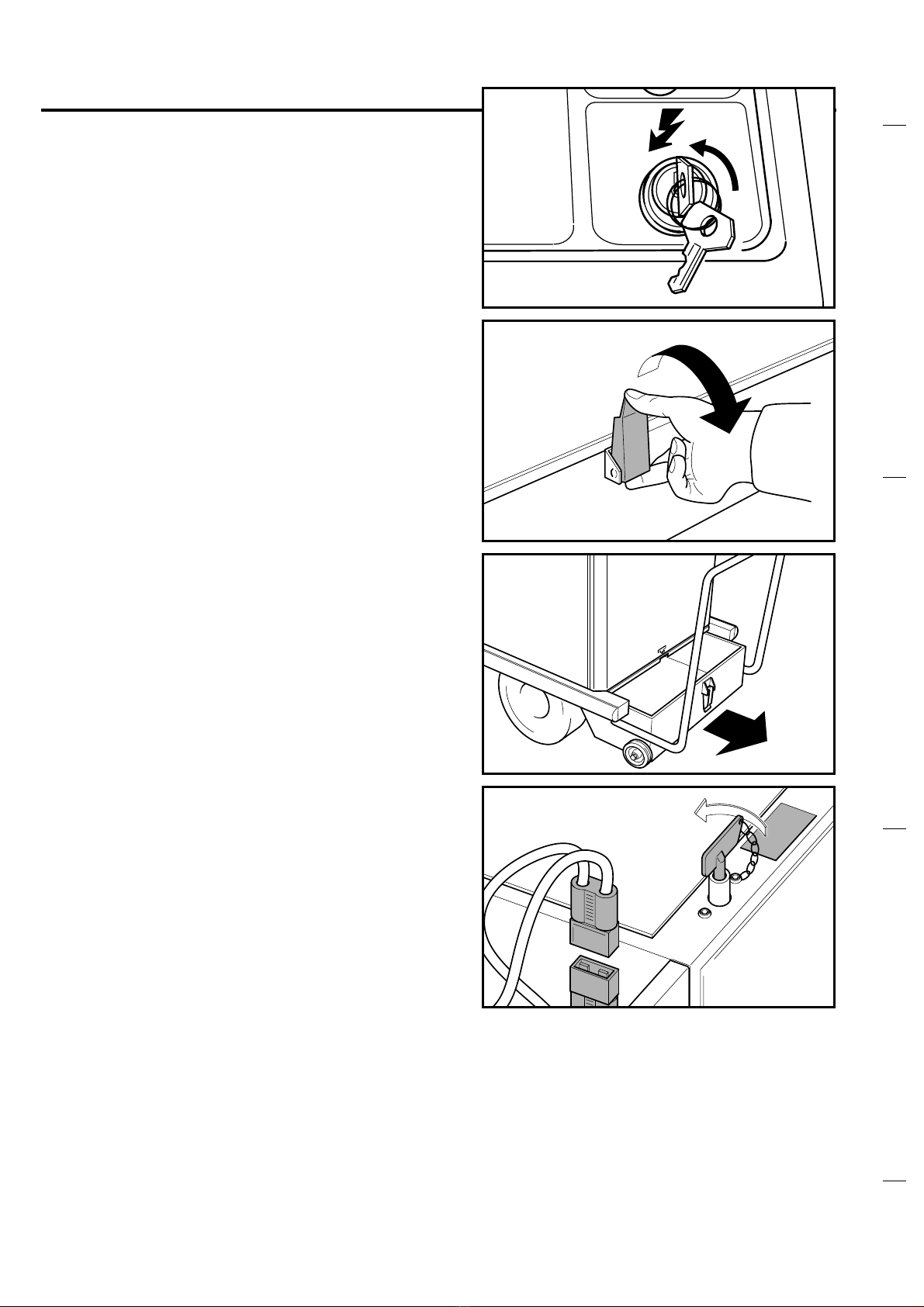

At the end of the job turn off the selected
working program (P1 or P2). Before leaving
the machine make sure that the side brush/es
be lifted, the parking brake engaged and the
master key in the Off position (counter-
clockwise).
At the end of the job or whenever it is
necessary empty the rear dirt container.
In the event that the machine must be pushed
in Off condition or without batteries turn the
proper red key counter-clockwise (see the
figure), in order to disengage the electrical
drive motor and disable the self-breaking
function. Turn and eventually remove the red
key that can be seen after lifting the lid of the
battery compartment.
16

56041475

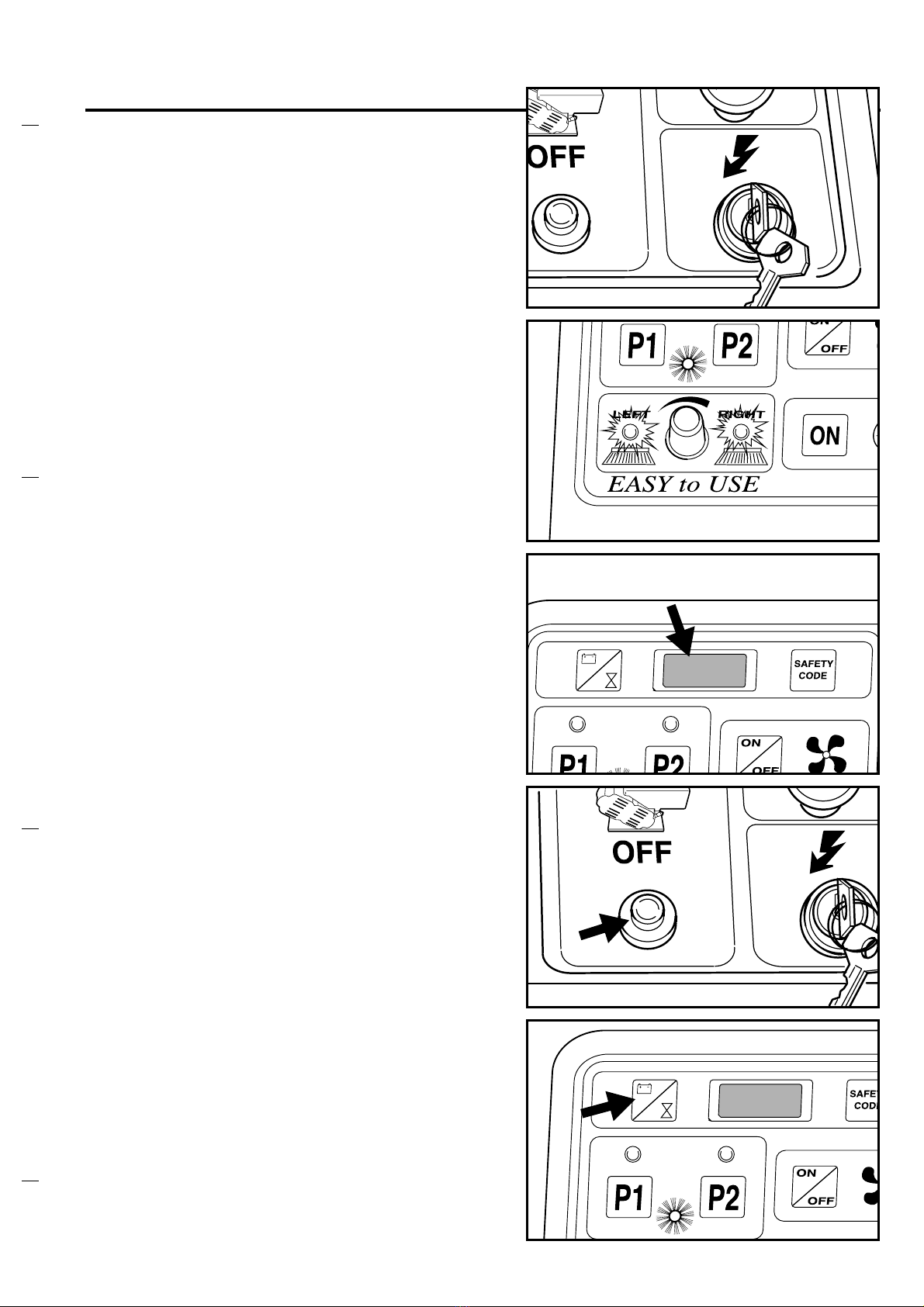

Insert the ignition key into the panel and turn
it clockwise: the display will show all zeros and
after about three seconds the battery voltage
will appear.
Note: the temporary lighting of the side brush
indicators and the short sound from the
reverse speed acoustic indicator
correspond to a normal behaviour.
Wait not less than three seconds before
restarting the machine after switch Off.
Check the charge status of the batteries on
the display.
Note: the display has two functions: voltmeter
and hour meter. The voltmeter will
activate the block function during an
undervoltage; it will disable all the
machine activities - except for the drive
- when the battery voltage drops below
20 Volt (the display is flashing); when
this condition is achieved you have two
options: either recharge the battery
according the Maintenance paragraph,
or start the eco version.
To start the eco version press the red button
shown in the figure; to stop the engine press
the same button again.
To access the hour meter function press
the button shown in the figure: the
display will show the number of
machine service hours. Press the button
again to display the number of machine
service minutes. Pressing the button
again or waiting ten seconds the value
on the display will return to the battery
voltage level.
USE (ECO version)
17
