Introduction
Dear Customer
Congratulations with your Nilsk Outdoor product
The City Ranger 2250 is a Danish designed and manufactured product which oers a very exible
way of maintaining outdoor areas.
Optimal use of your Nilsk Outdoor utility machine
To ensure optimal performance of your Nilsk Outdoor utility machine, please read this manual
carefully before using the machine. Failure to do so can result in personal injury and damage to
the machine.
Safety
The utility machine is equipped with various devices to ensure optimal operational safety both
for the user and the surroundings. We ask you to pay particular attention to section 1.1 Safety.
The machine must only be serviced by professionals.
The City Ranger 2250 is designed only for use by professionals. On delivery, the user will receive
thorough training to become a competent operator.
Do not lend the machine to anyone who has not been thoroughly trained and has not read this
manual carefully.
The operator’s manual should be considered as a permanent part of the machine and so must
remain with the machine if it is sold.
Warnings
Some items in this operator’s manual are marked with this warning symbol.
The warning indicates areas where extra care has to be taken to avoid personal
injury or damage to the machine and its accessories. The warning also shows
what you should pay special attention to.
Reservations
As it is the Nilsk Outdoor Division policy to make continuous improvements, we reserve the right
to alter the specications and equipment at any time without notice. Nilsk Outdoor Division
accepts no liability for errors or omissions in the operator’s manual.
Contact us
Should you have any questions regarding your Nilsk Outdoor product, do not hesitate to contact
Nilsk Outdoor Division.
Best regards
Nilsk Outdoor Division, Nilsk A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
e-mail: info@nilsk-outdoor.com · www.nilsk-outdoor.com
!
Operator’s Manual City Ranger 2250

3
Contents
Operator’s Manual City Ranger 2250
Introduction....................................................................................4
General information .............................................................................5
1.1 Safety ...................................................................................5
1.2 Attachments .............................................................................7
1.3 EC Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1.4 Technical data ............................................................................9
1.5 Access to the cab .........................................................................12
1.6 Steering column .........................................................................13
1.7 Operational features......................................................................16
1.8 Joystick console..........................................................................17
1.9 Pedals ..................................................................................19
1.10 Start/stop function for salt and sand spreader (extra equipment)...............................20
1.11 Fuses ...................................................................................21
1.12 Towing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
1.13 Front attachment frame – A-frame .........................................................24
1.14 Rear attachment frame – B-frame .........................................................24
1.15 Cab seat – mechanical or pneumatic suspension .............................................25
1.16 Cab heating .............................................................................26
1.17 Cab ventilation...........................................................................26
1.18 Air conditioning..........................................................................26
1.19 Opening and removing side screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
1.20Opening the loading frame ................................................................28
1.21Removing the cab/roll bar .................................................................29
1.22Fitting the cab/roll bar ....................................................................31
1.23Trailer ..................................................................................33
Operator’s manual ..............................................................................34
2.1 Daily checks before start-up ...............................................................34
2.2 Start, drive and stop ......................................................................36
Service and maintenance ........................................................................39
3.1 Daily maintenance .......................................................................39
3.2 Lubricating ..............................................................................40
3.3 City Ranger 2250 service and maintenance chart .............................................41
3.4 Hydraulic system ........................................................................43
3.5 Engine maintenance......................................................................44
3.6 Fuel ....................................................................................46
3.7 Cooler ..................................................................................48
3.8 Air lter.................................................................................49
3.9 Windscreen washer liquid .................................................................49
3.10 Battery .................................................................................50
3.11 Generator V-belt .........................................................................51
3.12 Removal of wheels .......................................................................51
3.13 Cabin lter ..............................................................................52
Conditions .....................................................................................53
4.1 Warranty................................................................................53
4.2 Complaints ..............................................................................54
4.3 Disposal.................................................................................54
Wearing parts ..................................................................................55
5.1 Wearing parts - City Ranger 2250...........................................................55
Notes ........................................................................................57

4
The utility machine City Ranger 2250
The City Ranger 2250 is an outdoor utility machine with a complete range of special attachments
that allows you to work outdoors, all year round. Sweeping and vacuuming in spring and autumn,
mowing grass and lawn-edge cutting in the summer, sweeping snow, and spreading gravel and
sand in the winter. The City Ranger 2250 is market tested, eective and professional. Designed
for versatility, this user-friendly machine is extremely reliable and exceedingly comfortable to
operate.
Quick-shift of attachments
Attachments can be changed quickly and easily. The new attachment system has a single lock
and release lever. Use the lever – one click and the attachment is on. In less than a minute. Hoses
and couplings are hidden (thus well-protected) and the hydraulics and water supply, power and
vacuum hoses connect automatically.
Maintenance
Open a single side cover to check the water, oil, air lter and battery. No need to remove
attachments.
Environment
The City Ranger 2250 is environmentally sound – today and tomorrow. Quiet when operating
and practically vibration-free. It is designed for use with an exhaust particle lter and catalytic
converter, and can use biological hydraulic oil. The machine is far less harmful to the environment
than the minimum levels set by the EU.
Comfort
The City Ranger 2250 is an ergonomically-designed outdoor utility machine. The cab is
spacious, with good visibility on all sides, and the entry-opening is low and wide. The wheel
and seat are fully-adjustable to suit the operator. The seat has suspension (with optional
pneumatic suspension) and is very comfortable. All the operating controls – including the
joystick for controlling the attachments – are positioned optimally for the operator. Optional air
conditioning.
Introduction
Operator’s Manual City Ranger 2250

5
Max. 10°
2
3
1
1.1 Safety
Make sure no one is standing close to
the machine while it is in use
Make sure that no one is near the machine
while it is in use as there is a danger of
crushing.
Attention
As it is articulated, the rear end of the
machine swings out when turning. Make
sure that no one is standing near the
machine while it is in use. (Picture 1)
Turn the steering wheel carefully
The City Ranger 2250 is articulated – it
turns sharply, immediately. (Picture 2)
Do not inhale exhaust gas
Engine vehicle exhaust gas is hazardous to
health and can even be fatal. If the machine
is run in a conned space, the exhaust gas
must be adequately ventilated out of the
room or area, using an exhaust hose, for
example. Otherwise doors and windows
must be opened, to allow fresh air inside.
Avoid roll-overs
Do not drive the machine in a place where it
can slide, tip or roll. Do not drive on slopes
with an incline of more than 10°. (Picture 3)
Make sure there is no one close to the machine when
it is running
Other hazards
There may be other circumstances and
situations than those mentioned above
where it may be dangerous to use the City
Ranger 2250.
!
!
!
!
!
!
Do not drive on slopes with an incline of more than 10°
Prevent people from standing in the working area
Hinged joint
General information
Operator’s Manual City Ranger 2250

6
1
2
1.1 Safety - continued
Avoid crushing ngers
Keep your hands and ngers away from areas where there
is a danger of crushing. (Picture 1)
A-frame
Keep ngers and hands away from the A-frame as there is
a danger of crushing.
Exhaust pipe
Do not touch the exhaust pipe as it becomes very hot
when the machine is running. (Picture 2)
Hydraulic components
Be aware that the hydraulic components may get hot
when the machine is in use.
General information
Avoid crushing ngers
Exhaust pipe
Operator’s Manual City Ranger 2250

7
General information
1.2 Attachments
City Ranger 2250 is designed to work with the following attachments:
Attachments Type
Suction Sweeper - Hopper FST2250
Suction Sweeper - Sweeper section 4FS2250
Suction Sweeper - Side brush FSS2250
Mulch mower/Rotary mower 1200 22DLM1200
Mulch mower/Rotary mower 1600 22LM16
Grass collector 22GOT
Flail mower / Verticutter 22SLK
Weed brush 22UKB2250
Dozer blade 22DZ13
Hedge trimmer HK1300MINI/2250
Lawn edger 22VKS1
Salt and sand spreader 22SG
Snow sweeper 22SK120
Tipping shovel 22VS200
Snow V-blade GMR
Snow blower Rapid 1565/1566
There is an operator’s manual for each attachment.
Operation with these attachments must follow the instructions outlined in the relevant operator’s manual. Do not
operate the City Ranger 2250 with the attachment unless all instructions have been followed.
Operator’s Manual City Ranger 2250

8
1.3 EC Declaration of Conformity
Manufacturer: Nilsk Outdoor Division
Nilsk A/S
Address: Transportvej 27 · DK-7620 Lemvig
Telephone: [phone]
hereby declares
that City Ranger 2250
Type: UHM 2250B0 XX (manufacturing year)
A XXXXX (serial number)
· has been manufactured in conformity with the provisions of
Directive 2003/37/EU
Place: Lemvig
Date:
Signature:
Knud Olsen, Senior Engineer
General information
Operator’s Manual City Ranger 2250

9
1.4 Technical data
Dimensions
Length (L) 2,400 mm
Width (W) 1,070 mm
Height with cab 1,960 mm
Height including roll bar 2,000 mm
Max. speed 20 km/h
Weight
Machine weight (including cab) 970 kg
Unladen weight - City Ranger 2250 with roll bar 910 kg
Max. permitted weight:
Utility machine 1,610 kg
Machine and trailer without brakes 2,050 kg
Machine and trailer with overrunning brakes 2,500 kg
Trailer without brakes 750 kg
Trailer with overrunning brakes 1,500 kg
Max. vertical load on coupling point 100 kg
Permitted axle load, front 900 kg
Permitted axle load, back 900 kg
Tyre
Tyre size 20 x 10-10
Tyre pressure 1.5 bar or 24 PSI
Tyre max. load 450 kg
Engine
Type/manufacturer Perkins
Type: 404D-15 - GM36/3000
Engine power 35 hp or 26.5 kW at 3,000 rpm
Cylinders 4
EU norm Stage 3A
Refer to the engine operator’s manual for further technical data.
General information
Operator’s Manual City Ranger 2250

10
1.4 Technical data - continued
General information
Fuel
Fuel Diesel
Fuel tank capacity 38 l diesel
Fuel consumption
in accordance with prEN 15429-2 approx. 4.8 L per hour
Lubricating system
Lubricating system Pressure-lubricating system with lter
Lubricants:
Engine oil: approx. 4.6 l, synthetic 5W-40 API CF, CF-4, CG-4, CH-4
Air lter Dry, replaceable lter
Cooling system Liquid coolant
Electrical system
Start system Electrical starter with glow plugs
Charging system Generator
Charging capacity 12 V, 65 A
Battery 12 V, 80 Ah battery
Hydraulic oil
Type Texaco Rando HDZ 68
Tank capacity 21 l
Brakes
Brakes Front-wheel drum brakes
Sound measurements
- in accordance with European Directive 2009/63/EC
- Stationary 77 dB(A)
- In motion 78 dB(A)
-in accordance with European Directive 2009/76/EC
- Operator seat, open windows 83 dB(A)
- Operator seat, closed windows 81 dB(A)
Vibration test
Whole body, EN 13059 0.7 m/s2
Hand/arm, EN 13059 1.0 m/s2
Operator’s Manual City Ranger 2250

11
1.4 Technical data - continued
Cab
Falling Object Protective Structure - FOPS
The City Ranger 2250 and its attachments do not operate with
processes where falling objects are a risk
Roll-Over Protective Structure - ROPS
Tested according to Directive 86/298/EEC and fullls OECD
Code7
Contact with Hazardous Substances
The air intake contains a lter to protect the driver against dust
inhalation. The ltration class, according to EN 779, is F8.
Cab classication according EN 15695-1 is Category 1.
This cab category does not provide protection against
hazardous substances.
City Ranger 2250 tted with this cab shall not be used under
conditions requiring protection against hazardous substances.
Turning radius
Turning circle inside/outside 600/1,640 mm
Information plate
Mounted on the right side of the front chassis
Operating City Ranger 2250
There is no need for special tools to operate the City Ranger
2250
Attention
Specications may change without notice.
General information
Operator’s Manual City Ranger 2250

12
1
2
3
1.5 Access to the cab
Access to the cab is from the left side door.
The door is opened by pressing the button on the handle.
(Picture 1)
To enter the cab, simply step directly in. (Picture 2)
To leave the cab, the door is opened by pressing the
internal handle. (Picture 3)
There is a similar door on the right side. This door is
operated in the same way as the left door and can be used
as an emergency exit.
Internal door handle
Button on door handle
Cab oor
General information
Operator’s Manual City Ranger 2250

13
3 2 1
1.6 Steering column
Ignition lock and light switch
1. Ignition lock.
2. Position light/light switch.
3. Instrument panel.
Automatic alarm
Turning the ignition key activates the alarm for three
seconds, to show that the alarm is working.
The alarm sound is repetitive
(three seconds –beep ; thirty seconds - pause etc.).
General information
Operator’s Manual City Ranger 2250

14
45
1/3
2/3
70
120
1
95
13
12
9
11
10
45
1/3
2/3
70
120
195
8
7
6
5
4
45
1/3
2/3
70
120
195
15
14 16 17
1.6 Steering column - continued

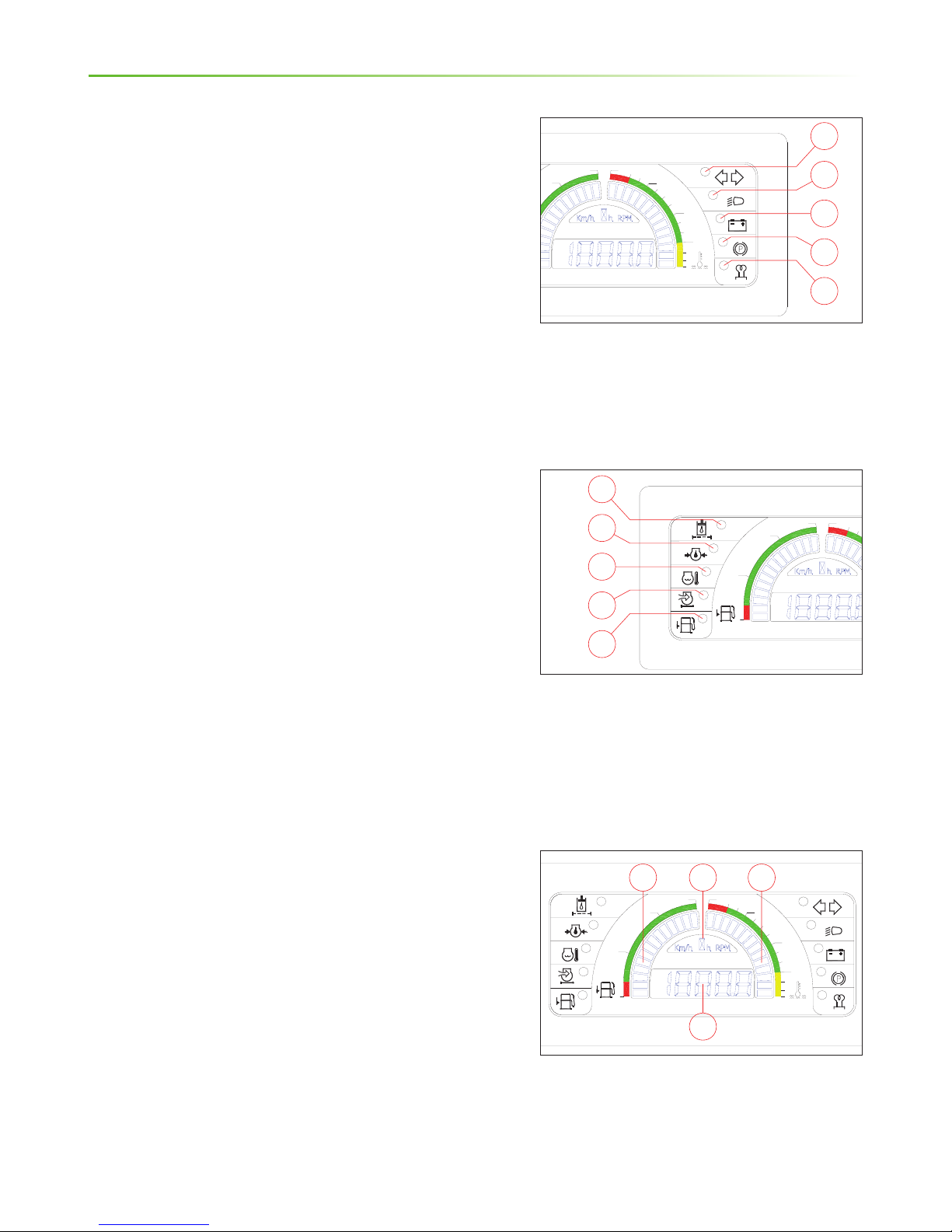

Instrument panel
4. The pre-heater light is activated when the ignition key is
turned, showing that the engine pre-heater is on. When the
light goes out, the ignition key can be turned all the way to
start the City Ranger 2250.
5. Handbrake indicator.
6. Charging light.
Normally lights on ignition or when the engine starts. If the
light stays on, stop the engine and nd the cause. Check the
generator belt.
7. Dimmed headlight indicator.
8. Indicator-light indicator.
9. Hydraulic lter alarm (when lit indicates lter must be
replaced). Hydraulic oil low: Hydraulic oil required.
Note that the alarm device may be activated when the
temperature falls to under +5 °C. Check oil level. If this is OK,
restart the machine. The alarm device must deactivated after
no more than 15 seconds.
10. Oil alarm.
If the light is on during operation, stop the
engine immediately and check the oil. If the oil is low,
it must be topped-up immediately
11. Temperature alarm.
If on it indicates the engine temperature is too high. Switch o
all attachments and let the engine run on half-power (rpm)
for approx. two minutes. If necessary, clean the radiator grills.
The operating hydraulics will automatically disconnect when
the overheating alarm device is activated.
12. Air lter blockage alarm (optional).
13. Fuel tank indicator. Lights up when there is less than ve
litres ouel left in the tank.
14. Fuel tank level.
15. Time/rpm/speed counter. Time shown on start-up
Automatically switches over to show rpm.
16. Shows rpm or km/h.
17. Engine temperature indicator.
Sound alarm activates in case of 6, 9, 10, 11, 12 and 13
Instrument panel – right
Instrument panel – left
Instrument panel – centre
General information
Operator’s Manual City Ranger 2250

15
19 20 21 2218 23
Steering column
18. Instrument panel switch to switch between rpm and km/h.
19. Indicator-light switch/arm.
20. Horn switch.
21. Transport lock (disengaged position).
ON: Handle must be moved up to the highest position. As the A-frame lifts, the transport lock is automatically activated.
OFF: Unhitch the handle and lift the A-frame to the uppermost position. The attachment can now be lowered again.
22. Handbrake.
The handbrake is engaged by: Press the brake pedal all the way down. Lift the handle up. Release the brake pedal again.
To disengage the handbrake: Press the brake pedal. This frees the handle.
23. Indicator-light, trailer.
General information
Operator’s Manual City Ranger 2250
1.6 Steering column - continued

16
5 6 7 8 92 3 41
1.7 Operational features
1. Work light, front.
2. Work light, rear.
3. Rotary light. (0 -1-2)*
4. Windscreen wipers / Interval wiper.
5. Washer.
6. Fan heater.
7. Air conditioning (option).
8. Hazard lights.
9. Bluetooth radio with cd player (option).
* In position 1 (the middle position), the switch turns the beacon on.
In position 2, the LED blitz front (option) turns on together with the beacon.
Attention! The LED blitz must not be on during transport on public roads.
Check the local regulations for use of LED blitz in working situations.
Operator’s Manual City Ranger 2250
General information

17
5 6 7 8 92 3 41
1. Throttle.
2. Front attachment speed adjustment
(attachment specic).
3. Lamp indicator (attachment specic).
4. Front PTO ON/OFF.
5. Function (F1), (attachment specic).
6. Rear PTO ON/OFF.
7. Function. (F2), (attachment specic).
8. Manual start-up:
To start-up an attachment while not sitting in
the cab, do the following:
A) Push the throttle all the way forward (full rpm).
B) Hold the switch (8) down, at the same time
turning on the attachment (4) and/or (6).
C) Release the switch after ve seconds.
9. 12 V connector.
1.8 Joystick console
General information
Operator’s Manual City Ranger 2250

18
11 12 13 1410 15
10. Joystick for A-frame.
To lift A-frame: move the joystick up.
To lower A-frame: move the joystick down.
Sideways movement of joystick is dependant on attachment.
11. Function-change switch for front attachment (attachment dependant).
12. Weight distribution ON/OFF switch.
13. Joystick for the rear attachment and hydraulics on the back end. The functions are attachment-dependant. See the
attachment operator’s manual.
14. Adjusting weight distribution.
15. Safety cover.
General information
1.8 Joystick consol - continued
Operator’s Manual City Ranger 2250

19
1 2 3
2
1
1.9 Pedals
1. Brake pedal
Depress to brake.
When the brake pedal is pushed all the way down, the
drive pedal is de-activated.Handbrake See section 1.6, point 22. (Picture 1)
2. Steering wheel pedal
Push pedal down to adjust steering wheel. (Picture 1)
3. Drive pedal
The speed of the machine is variably controlled by the throttle. When the
drive pedal is engaged acceleration is automatic (engine rpm).
Forward drive: Move the pedal forward.
Reverse drive: Move the pedal backwards.
The pedal automatically returns to the neutral position.
To drive at full speed, the throttle should be moved all the way forwards.
(Picture 1)
Adjustment of the heel support
The heel support on the drive pedal is adjustable to get the optimum drive position for the foot.
The spring pin is pulled back, the heel support is turned in the desired position and locked again with the spring pin. (Picture 2)
Advice when driving on a steep slope
Users of City Ranger 2250 have reported that, from time to time, they feel that the machine does not accelerate properly when
driving up an incline. The machine is designed to drive on an incline of no more than 22%. However, from experience we know that,
under certain conditions, this machine can in fact cope with a steeper incline. Nilsk has the following advice when driving up a steep
incline:
· Set the throttle to min. 2400.
· Then regulate the speed of the machine using the foot pedal.
· The function of the foot pedal can be compared to changing gear up or down. The more you press down on the pedal, the higher the
gear - the less you press down on the pedal, the lower the gear.
General information
Heel support Spring pin
Operator’s Manual City Ranger 2250

20
1
2
Operator’s Manual City Ranger 2250
Start /stop function - behind the left rear cover
Start/stop ON
General information
1.10 Start/stop function for salt and sand
spreader (extra equipment)
The start/stop function ensures that the spreading stops
while the machine is stationary, so that the salt and sand
spreader only spreads when the machine is in motion.
The start/stop switch is located behind the left rear cover.
(Picture 1)
Move the on/o switch to ’ON’ to activate it before starting
spreading. (Picture 2)
Remember to deactivate the on/o
switch when changing the salt and sand
spreader to another attachment.
!
