Nilfisk-Advance IVB 995-0H/M SD XC Type 22 User manual

IVB 995-0H/M SD XC Type 22
Operating Instructions
107400432 B (08. 2017)

1
1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
Contents
1 Important safety
instructions
2 Description
3 Before starting the
cleaner
4 Control / Operation
5 Applications and
methods
6 After using the cleaner
7 Maintenance
8 Troubleshooting
9 Further information
............................................................................................2
2.1 Operating elements ..............................................................9
2.2 Operating panel..................................................................10
3.1 Assembling the vacuum cleaner.........................................11
3.1.1 Taking accessories out of the packaging............................11
3.1.2 Before starting the cleaner .................................................12
3.1.3 Inserting the safety filter bag .............................................12
3.1.4 Inserting the disposal bag .................................................14
4.1 Connections .......................................................................16
4.1.1 Electrical connection ..........................................................16
4.2 Switching on the vacuum cleaner.......................................16
4.2.1 Switch „ I-0-II “ ....................................................................16
4.3 Check volume flow monitor ................................................16
4.4 Acoustic warning ................................................................16
4.5 Cleaning the filter element .................................................17
5.1 Techniques .........................................................................18
5.1.1 Picking up dry substances..................................................18
5.1.2 Picking up liquids................................................................18
6.1 Switching the vacuum cleaner off and storage...................19
7.1 Maintenance plan...............................................................20
7.2 Maintenance work ..............................................................20
7.2.1 Check the antistatic clamps................................................20
7.2.2 Emptying the dirt tank ......................................................21
7.2.3 Replacing the disposal bag ................................................22
7.2.4 Replacing the safety filter bag ............................................23
7.2.5 Replacing the filter element "H"..........................................24
7.2.6 Replacing the filter for air suppy to motor...........................25
..........................................................................................26
9.1 Recycling the vacuum cleaner ...........................................27
9.2 Guarantee ..........................................................................27
9.3 Tests and approvals............................................................27
9.4 EC declaration of conformity ..............................................27
9.5 Technical data ....................................................................28
9.6 Optional accessories..........................................................28

IVB 995-0H/M SD XC Type 22
21) OEL = Occupational Exposure Limit
Original Instructions
1 Important safety instructions
Symbols used to mark
instructions
Prior to using the appliance for the first time, be sure to read
this document through and keep it ready to hand.
DANGER
Danger that leads directly to serious or irreversible injuries,
or even death.
WARNING
Danger that can lead to serious injuries or even death.
CAUTION
Danger that can lead to minor injuries and damage.
The appliance must
• only be used by persons, who have been instructed in its correct
usage and explicitly commissioned with the task of operating it
• only be operated under supervision
• not be used by children
Before starting work, the operating staff must be informed on
• use of the vacuum cleaner
• risks associated with the material to be picked up
• safe disposal of the picked up materia
1. Do not use any unsafe work techniques.
2. Never use the vacuum cleaner without a filter.
3. Switch off the appliance and disconnect the mains plug in the
following situations:
- Prior to cleaning and servicing
- Prior to replacing components
- Prior to changing over the appliance
- If foam develops or liquid emerges
Besides the operating instructions and the binding accident preven-
tion regulations valid in the country of use, observe recognised regu-
lations for safety and proper use.
Purpose and intended use Since 1997, there is a new division of hazardous dusts and their as-
signed vacuum machines. These are regulated by IEC 60335-2-69
(world wide) and by EN 60335-2-69 (European wide).
The safety label on the machine warns:
This appliance contains dust hazardous to health. Emptying and
maintenance operations, including removal of the dust collecting
means, must only be carried out by authorised personnel wearing
suitable personal protection. Operate only after the full filtration sys-
tem has been fitted and checked.

IVB 995-0H/M SD XC Type 22
3
1) OEL = Occupational Exposure Limit
Original Instructions
Dust Class M (medium). The dusts which belong to this class
are: dusts with OEL values1) > 0.1 mg/m³ as well as saw dust.
The machine is tested in its entirety by vacuums for this dust
class. The maximum degree of permeability is 0.1% and the dis-
posal must be low dust.
Dust Class H (high). The dusts which belong to this class are:
dusts with OEL values1), all carcinogenic dusts and dusts
which are mixed with pathogenic agents. Vacuums for Dust
Class H are tested in their entirety and have a maximum degree of
permeability of 0.005%. The disposal must be dust free.
Machines to be used in Zone 22 are marked as Type 22 vacu-
ums.
• These machines may be used for picking up dust from
dust class L, M or H.
• Zone 22 is defined as environments where flammable dusts are
present for short periods only (e.g. less than 10 hours per year).
• Type 22 machines are suitable for use as dust extractors.
The air flow in safety vacuum systems has to be strictly controlled
to achieve a minimum flow rate of Vmin = 20 m/s in the suction hose.
The vacuum cleaner IVB 995-0H/M SD XC Type 22 is suitable for
picking up:
• Non flammable liquids (flashpoint 55 °C or higher).
• Sawdust and dusts hazardous to health, including dusts with
OEL values, carcinogenic dusts and dusts containing germs
and pathogens.
• Flammable, dry dust in Zone 22.
Use the cleaner only if it is certain that no active sources of ignition
can be sucked in.
Conductive extraction equipment, e.g. extraction hoods on machines
and conductive parts of machining equipment (e.g. equipment in
protective class II) that are not earthed through the cleaner, must be
earthed in some other way to prevent electrostatic charges.
When picking up flammable dust in Zone 22, the dirt tank must be
emptied as required, but always after use.
It must be assured that dust not accumulate on the appliance by
regular cleaning.
The vacuum cleaner must be used only, if all filters, as well as the
filter for the motor cooling air, are attached and without damage.
The cleaner is not suitable for extraction on machining equipment in
operation that could produce sources of ignition.
When dust removers are used, the rate at which air is exchanged

IVB 995-0H/M SD XC Type 22
41) OEL = Occupational Exposure Limit
Original Instructions
in the room must be adequate if the exhaust air from the vacuum
cleaner is blown into the room (please observe regulations valid in
your country).
The appliance is suitable for commercial use, such as e.g. in
• Hotels, Schools, Hospitals, Factories, Shops, Offices, Hire shops
Any other use is considered as improper use. The manufacturer ac-
cepts no liability for any damage resulting from such use.The risk for
such use is borne solely by the user.
Proper use also includes proper operation, servicing and repairs as
specified by the manufacturer.
1. As an extension lead, only use the version specified by the man-
ufacturer or one of a higher quality.
2. When using an extension lead, check the minimum cross-sec-
tions of the cable:
Cable length Cross section
< 16 A < 25 A
up to 20 m 1.5 mm22.5 mm2
20 to 50 m 2.5 mm24.0 mm2
Transport 1. Before transporting the dirt tank, close all the locks.
2. Make sure that both plugs are inserted in fittings.
3. Do not tilt the cleaner if there is liquid in the dirt tank.
4. Do not use a crane hook to lift the cleaner.
Storage 1. Store the appliance in a dry place, protected from frost.
Electrical connection 1. It is recommended that the vacuum cleaner should be connected
via a residual current circuit breaker.
2. When picking up flammable dust in zone 22, extension lines,
couplings and adapters must not be used.
3. Arrange the electrical parts (sockets, plugs and couplings) and
lay down the extension lead so that the protection class is main-
tained.
4. Connectors and couplings of power supply cords and extension
leads must be watertight.
Extension lead

IVB 995-0H/M SD XC Type 22
5
1) OEL = Occupational Exposure Limit
Original Instructions
Maintenance, cleaning and
repair
During the following work, ensure that dust is not unnecessarily
spread around. Wear a P2 breathing mask.
Only carry out maintenance work described in the operating instruc-
tions.
Always pull out the mains plug before cleaning and maintenance of
the vacuum cleaner.
During maintenance and cleaning, handle the vacuum cleaner in
such a manner that there is no danger for maintenance staff or other
persons.
In the maintenance area
1. Use filtered compulsory ventilation
2. Wear protective clothing
3. Clean the maintenance are so that no harmful substances get
into the surroundings.
Before removing the vacuum cleaner from the area contaminated
with harmful substances:
1. Clean the outside of the vacuum cleaner, wipe it clean or pack
the vacuum cleaner in well sealed packaging
2. and avoid spreading deposited harmful dust.
Warning: Do not reuse the essential filter element after removal out
of the appliance (only for class H appliances).
During maintenance and repair work all contaminated parts that
could not be cleaned satisfactorily must be:
1. packed in well sealed bags
2. disposed of in a manner that complies with valid regulations for
such waste removal.
At least once a year, a Nilfisk technician or an instructed person
must perform a technical inspection including filters, air tightness
and control mechanisms. According to AA.22.201.2 appliances in
class H must have their filtration efficiency checked once a year. If
the effiency of the filter does not fulfil the requirements for dust class
H, the filter must be replaced, and the new filter must be tested ac-
cording to AA.22.201.2.

61) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
Risks
Electrical components DANGER
Electric shock due to faulty mains connecting lead.
Touching a faulty mains connecting lead can result in
serious or even fatal injuries.
1. Do not damage the mains power lead (e.g. by driving
over it, pulling or crushing it).
2. Regularly check whether the power cord is damaged or
shows signs of ageing.
3. Have the faulty mains connecting lead replaced by your
Nilfisk service representative or a qualified electrician
prior to using the appliance again.
DANGER
The upper section of the vacuum cleaner contains live
components.
Contact with live components leads to serious or even fatal
injuries.
1. Never spray water on to the upper section of the vacuum
cleaner.
CAUTION
Damage due to unsuitable mains voltage.
The appliance can be damaged as a result of being connected
to an unsuitable mains voltage.
1. Ensure that the voltage shown on the rating plate corre-
sponds to the voltage of the local mains power supply.
Picking up liquids CAUTION
Picking up liquids.
Due to their construction vacuum cleaners with a removable
tank (SD) do not have an automatic level indicator. There is a
risk of damage to the vacuum cleaner due to overfilling or of
damage due to leakage of the picked up liquid.
1. Never pick up more than 40 litres at once.
2. Switch off the vacuum cleaner and empty the dirt tank.

7
1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
WARNING
Hazardous materials.
Vacuuming up hazardous materials can lead to serious or
even fatal injuries.
1. The following materials must not be picked up by the
vacuum cleaner:
- hot materials (burning cigarettes, hot ash, etc.)
- flammable, explosive, aggressive liquids (e.g. petrol,
solvents, acids, alkalis, etc.)
- mixtures of flammable dusts with liquids
- explosive substances or substances considered to be
similar in §1 of the law on explosives
- flammable dusts with an extremely low minimum igni-
tion energy <1 mJ (also observe national regulations).
- Highly reactive dusts or dusts with a high affinity to oxygen
WARNING
For dusts like titanium and magnesium additional
requirements apply, consult your national labour authorities
or the manufacturer of the vacuum cleaner.
WARNING
When the vacuum cleaner has been used with dust
classified as “H”, it is necessary to clean the machine
thoroughly before using the machine with dust classified
as “M” or lower.
Hazardous materials

81) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
Spare parts and accessories CAUTION
Spare parts and accessories.
For picking up flammable dust in Zone 22: Only use
accessories which are certified by the manufacturer of the
Type 22 machine. The use of other accessories can cause
danger of explosion.
The use of non-genuine spare parts and accessories can
impair the safety of the appliance.
1. Only use spare parts and accessories from Nilfisk.
2. Use only the brushes supplied with the vacuum cleaner
or specified in the operating manual.
Emptying dirt tank CAUTION
Picking up environmentally hazardous materials.
Materials picked up can present a hazard to the
environment.
1. Dispose of the dirt in accordance with legal regulations.

9
1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
2 Description
2.1 Operating elements
auto
1
2
3
4
5
6
15
14
13
12
11
10
9
8
7

10 1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
1 Handle
2 Outlet for waste air
3 Inlet for fresh air / Filter for air supply to motor
4 Retaining clamp
5 Grip to empty tank
6 Handle to remove dirt tank
7 Bracket for floor nozzle
8 Castor with brake
9 Dirt tank
10 Inlet fitting "H"
11 Inlet fitting "M"
12 Receptacle for electrical lead
13 Applicance switch "I-0-II"
14 Hose diameter setting
15 Accessory holder
2.2 Operating panel

11
1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
B B
C
3 Before starting the cleaner
3.1 Assembling the
vacuum cleaner
3.1.1 Taking accessories out
of the packaging

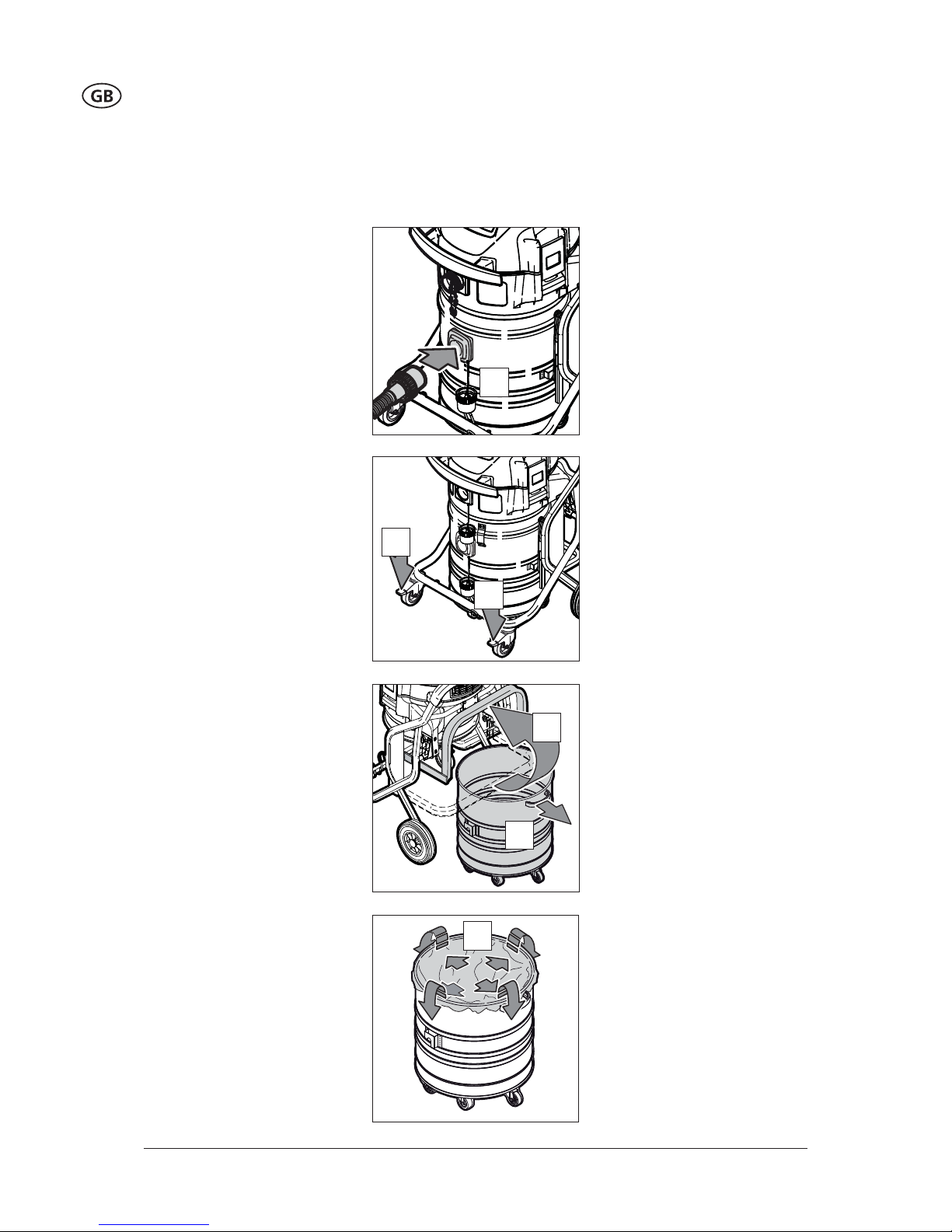

1. Take vacuum cleaner and
accessories out of the pack-
aging.
2. The mains plug should not
yet be inserted into a socket.
3. Apply parking brakes (A) on
both castors.
A
A
4. Open the retaining clamps
(B) and remove the upper
section of the vacuum clean-
er.
5. Take the accessories (C) out
of the dirt tank and the pack-
aging.

12 1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
3.1.3 Inserting the safety
filter bag
1. The mains plug should not
yet be inserted into a socket.
2. Apply parking brakes
(A) on both castors.
A
A
3.1.2 Before starting the
cleaner
Depending on how hazardous the dust is, the cleaner must be fitted
with appropriate filters:
Type of dust Filter bag/waste bag
• Non-hazardous dust
• Non-carcinogenic
dust with OEL values
>0.1 mg/m³ (observe
any additional national
regulations)
• Wood dust
• Explosive dust, dust ex-
plosion class St1, St2,
St3 in Zone 22
Waste bag (5 pcs.)
Order No. 302001480
• All dusts with OEL val-
ues
• Explosive dust, dust ex-
plosion class St1, St2,
St3 in Zone 22
Safety filter bag (5 pcs.)
Order No. 302003473
• All dusts with OEL values
• Explosive dust, dust ex-
plosion class St1, St2,
St3 in Zone 22
Filter element “H”
Order No. 107400564
• All dusts with OEL values
• Explosive dust, dust ex-
plosion class St1, St2,
St3 in Zone 22
Motor cooling filter “TYPE
22”
Order No. 107400041
Before picking up dust with occupational exposure limit values:
1. Check that all the filters are present and properly fitted.
2. Do not use the cleaner with damaged or missing antistatic clamp.
Risk of explosion due to static discharge in explosive atmospheres.
3. The hose diameter and the setting for the suction hose diameter
must be the same.
4. When the motor is running, hold the suction hose shut. For safety
reasons, an acoustic warning sounds if the air speed in the suction
hose drops to below 20 m/s.

13
1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
B
C
3. Swing the bar (B) upwards.
4. Use the handle (C) to pull the
dirt tank out of the vacuum
cleaner.
5. Insert the safety filter bag (D)
in the dirt tank.
6. Fold the top edge of the dis-
posal bag over the rim of the
dirt tank.
D
B
C
7. Push the dirt tank as far as
possible into the vacuum
cleaner.
8. Swing the bar (B) down-
wards without forcing it.
9. Close inlet fitting "M"
(top) with plug (E).
E

14 1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
3.1.4 Inserting the disposal
bag
1. The mains plug should not
yet be inserted into a socket.
2. Apply parking brakes (A) on
both castors.
3. Swing the bar (B) upwards.
4. Use the handle (C) to pull the
dirt tank out of the vacuum
cleaner.
A
A
B
C

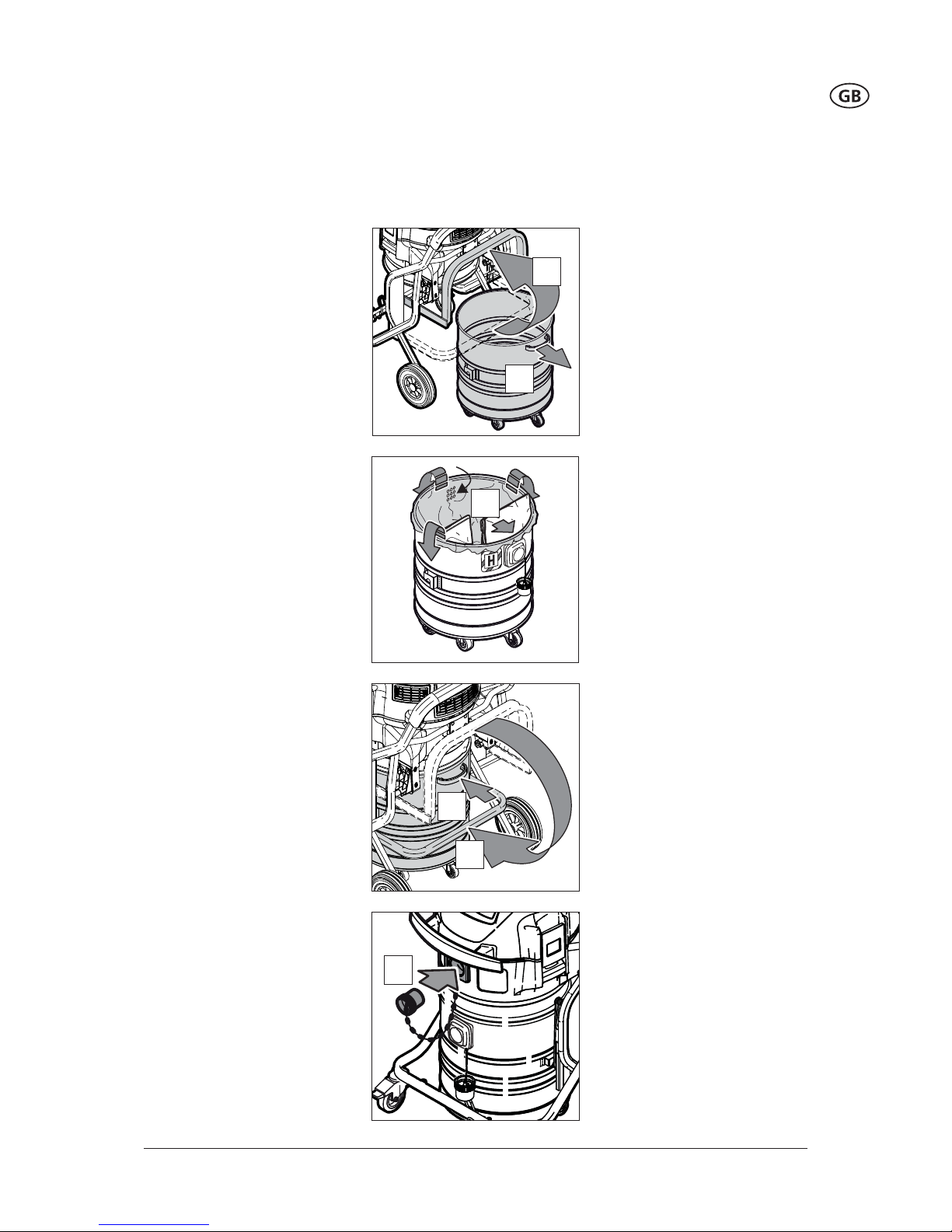

D5. Insert the disposal bag (D) in
the dirt tank.
6. Fold the top edge of the dis-
posal bag over the rim of the
dirt tank.
F

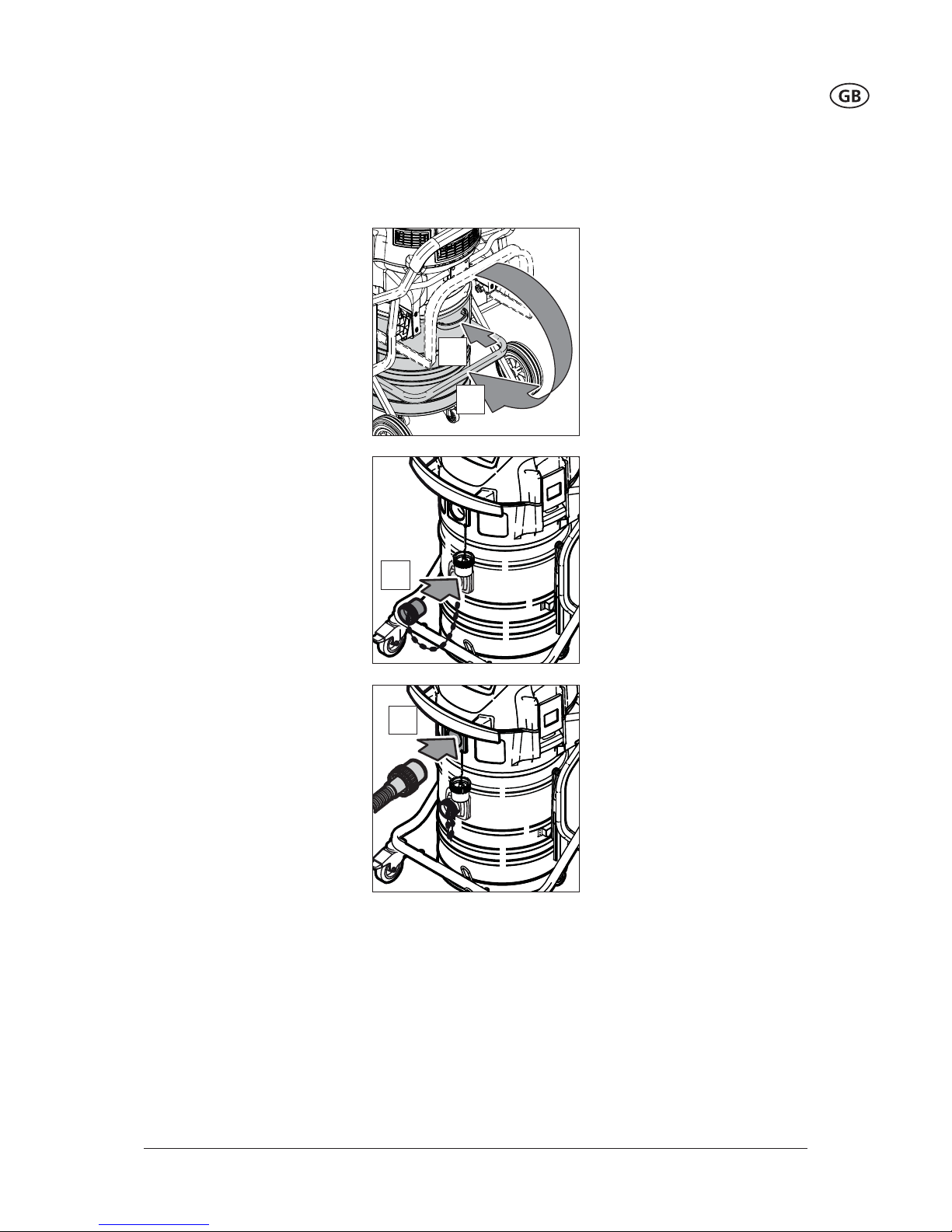

10.Connect suction hose to inlet
fitting "H" (down) (F).

15
1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
B
C
7. Push the dirt tank as far as
possible into the vacuum
cleaner.
8. Swing the bar (B) down-
wards without forcing it.
E
F
9. Close inlet fitting "H"
(down) with plug (E).
10.Connect suction hose to inlet
fitting "M" (top) (F).

16 1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
4 Operation
4.1 Connections
4.1.1 Electrical connection

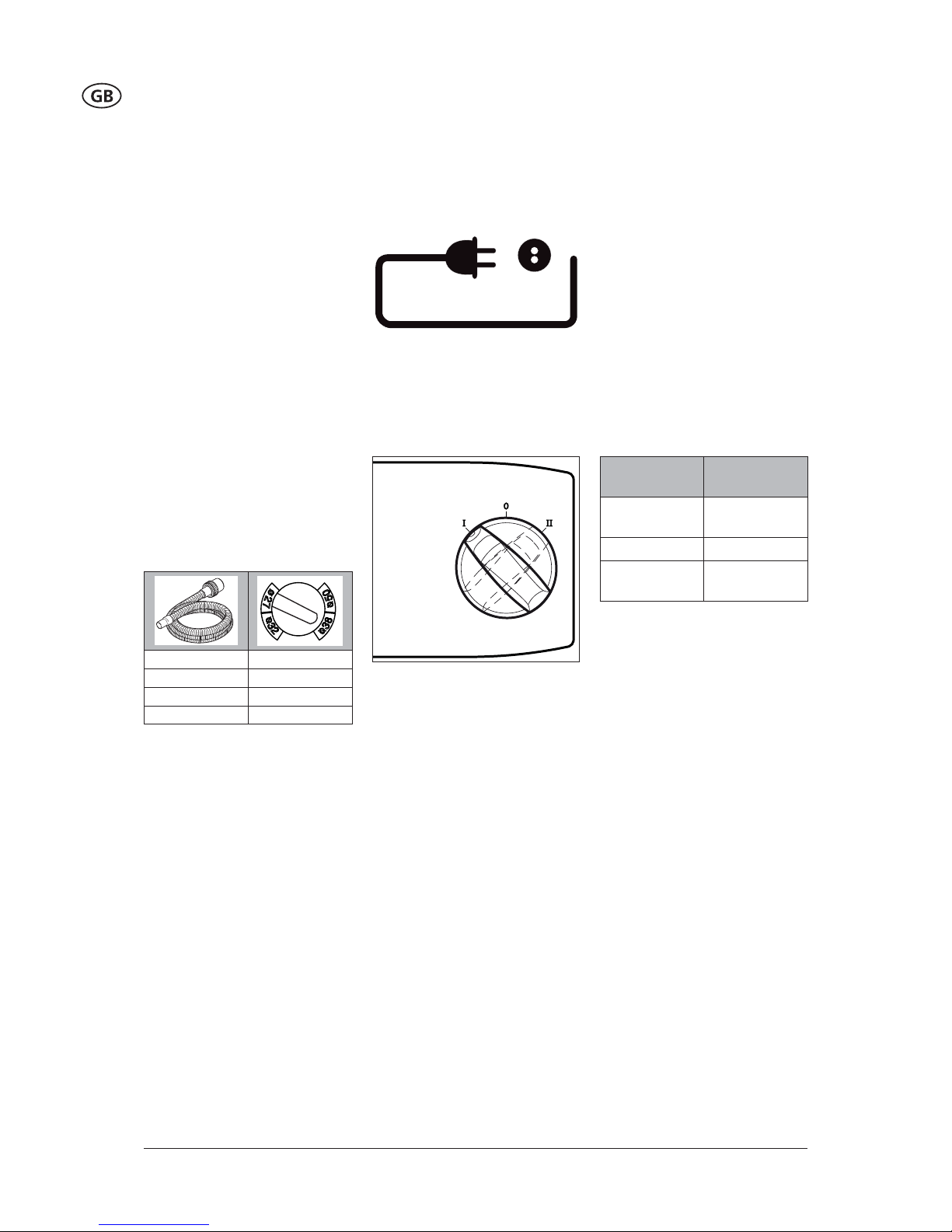

The operating voltage shown on the
rating plate must correspond to the
voltage of the mains power supply.
1. Ensure that the cleaner is
switched off.
2. Insert the power cord into a
properly installed and fused
socket with earthing contact.
4.2 Switching on the
vacuum cleaner

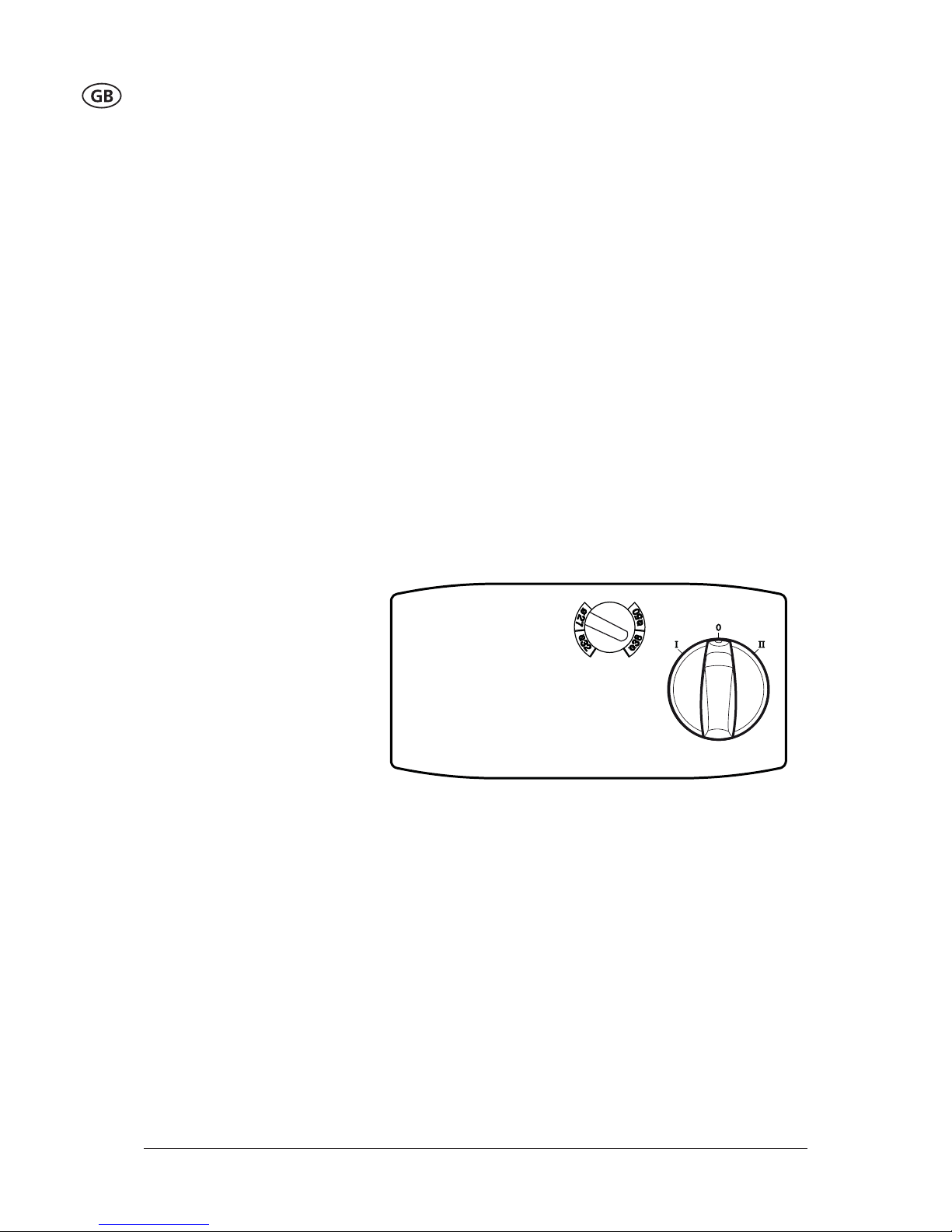

4.2.1 Switch „ I-0-II “
The hose diameter and the setting
for the suction hose diameter must
correspond.
ø27 ø27
ø32 ø32
ø38 ø38
ø50 ø50
Switch
position Function
IReduced
suction
0Off
II Maximum
suction
4.3 Check volume flow
monitor
Before picking up dust with maxi-
mum room concentration values:
1. Check that all the filters, in-
cluding the filter for supply
air to the motor, are present,
properly fitted and not dam-
aged.
2. When the motor is running,
hold the suction hose shut.
An acoustic warning sounds
after approx. 1 second.
4.4 Acoustic warning For safety reasons, an acoustic
warning sounds if the air speed
in the suction hose drops to be-
low 20 m/s. See section “Trou-
bleshooting”.

17
1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
4.5 Cleaning the filter
element
Only for vacuum cleaning without a
cloth insert filter.

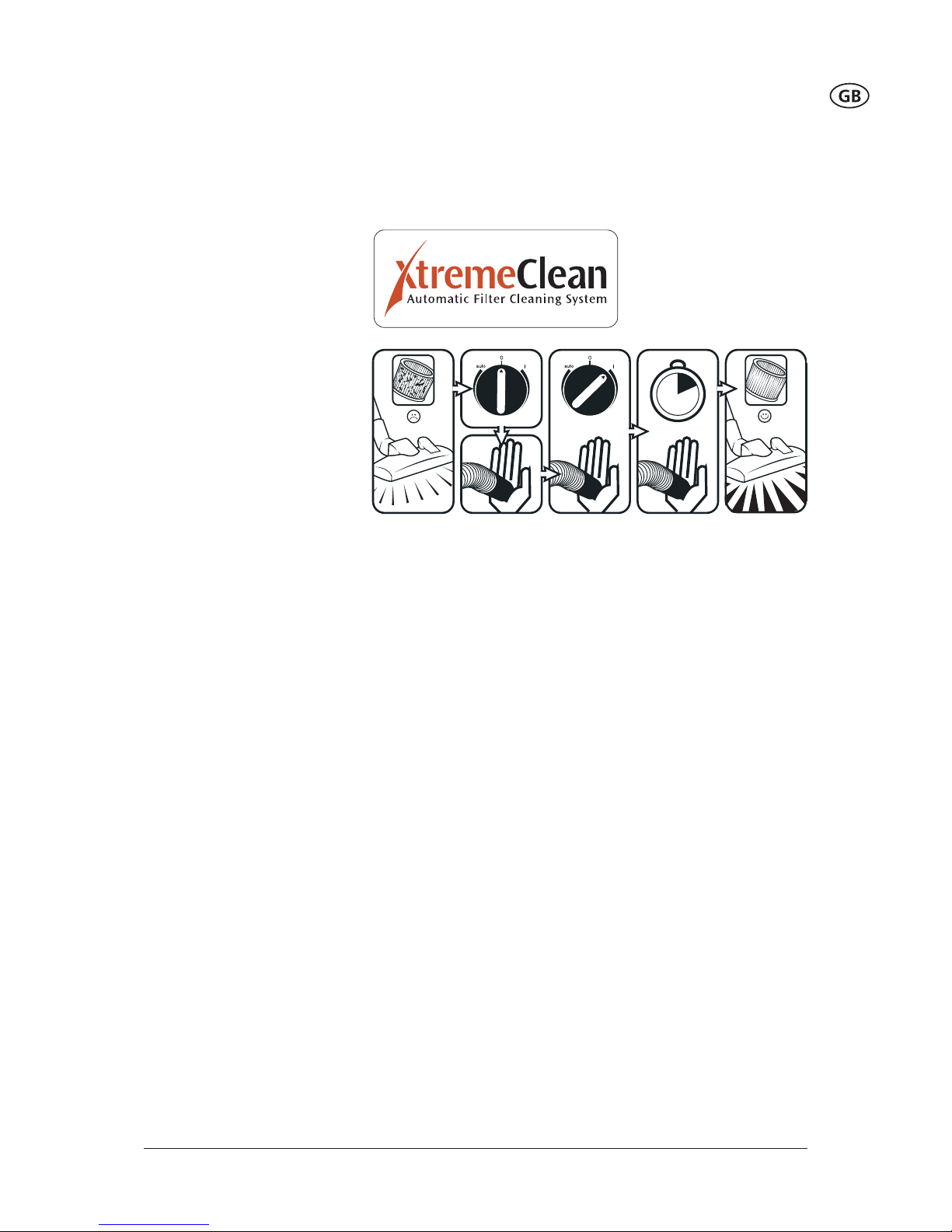

10 sec .
To ensure that suction performance is always at its best, the filter
element is automatically cleaned during operation. We recommend
complete cleaning if the filter element becomes extremely dirty.
1. Switch off the vacuum cleaner
2. Close the nozzles or suction hose opening with the palm of your
hand.
3. Turn the switch to position „I“ and let the cleaner operate for ap-
prox. 10 seconds with the suction hose opening closed.

18 1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
5 Applications and techniques
5.1 Techniques If used correctly, additional accessories, suction nozzles and suc-
tion hoses can enhance the cleaning action and reduce the cleaning
effort.
Effective cleaning is achieved if you follow just a few guidelines in
combination with your own practical experience in special fields.
Here are some basic tips.
5.1.1 Picking up dry
substances
There must always be a safety filter bag in the tank before dry sub-
stances with maximum room concentration values are picked up.
See section “Optional accessories” for ordering number.
To pick up harmless dust we recommend the use of a waste bag.
See section “Optional accessories” for ordering number. Disposal of
the picked up material is then simple and hygienic.
After picking up liquids, the filter element is wet. A damp filter ele-
ment clogs more quickly when dry substances are picked up. For this
reason the filter element should be washed and dried or replaced by
a dry element before dry substances are picked up.
5.1.2 Picking up liquids CAUTION!
Do not pick up flammable liquids.
Before liquids are picked up, always remove the filter bag/disposal
bag.
The use of a separate filter element or filter screen is recommended.
If foam appears, stop work immediately and empty the tank.
To reduce the amount of foam, use foam killer Nilfisk Foam Stop
(see section "Accessories" for order number).

19
1) Optional accessories / Option depending on model
Original Instructions
IVB 995-0H/M SD XC Type 22
6 After finishing work
6.1 Switching the vacuum
cleaner off and storage

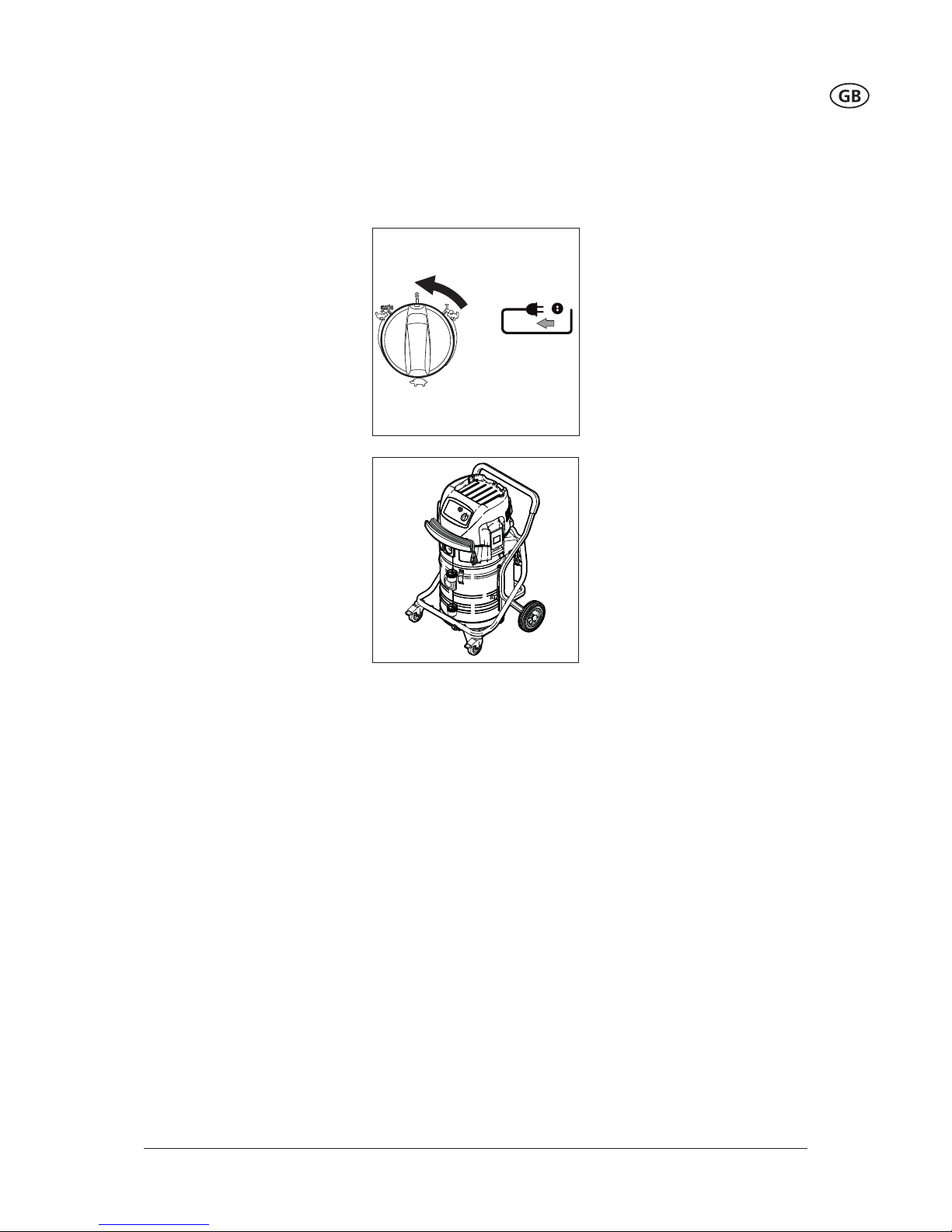

1. After picking up hazardous
dust, vacuum clean the out-
side of the cleaner.
2. Switch off the vacuum clean-
er and pull the mains plug
out of the socket.
3. Make sure that both plugs
are inserted in fittings.
4. Wind up the power cord and
hang it on the handle.
5. Empty the tank and clean the
vacuum cleaner.
6. After picking up liquids: Store
the upper section of the
cleaner separately so that
the filter element can dry.
7. Store the vacuum cleaner in
a dry room where it is pro-
tected from unauthorized
use.
ø
ø
0
ø
ø
3
3
6
5
2
2
7
