Nilfisk-Euroclean SC800 User manual

A-English
B-Türkçe
Instructions for Use
Original Instructions
Kullanim Talimatlari
7/10 revised 3/11
FORM NO. 56091000
Models: 56112034(SC800-71), 56112035(SC800-86), 56112036(SC800-71C)
SC800
INSTRUCTIONS FOR USE

A-2 / ENGLISH
A-2 - FORM NO. - 56091000 - SC800
TABLE OF CONTENTS
Page
Introduction..............................................................................A-3
Parts and Service ....................................................................A-3
Nameplate ...............................................................................A-3
Unpacking the Machine...........................................................A-3
Cautions and Warnings ...........................................................A-4
Know Your Machine.......................................................A-5 – A-6
Control Panel...........................................................................A-7
Preparing the Machine for Use
Batteries ..................................................................................A-8
Installing the Brushes .................................................. A-9 – A-10
Filling the Solution Tank.........................................................A-11
Squeegee Installation............................................................A-11
Detergent (EcoFlex™) System.................................. A-12 – A-13
Operating the Machine
Wet Scrubbing........................................................... A-14 – A-15
Wet Vacuuming .....................................................................A-15
After Using the Machine ........................................................A-16
Maintenance Schedule..........................................................A-16
Servicing the Vacuum Motor..................................................A-16
Lubricating the Machine ........................................................A-16
Maintenance
Charging the Batteries (Wet).................................................A-17
Charging the Batteries (Gel)..................................................A-17
Servicing the Squeegee ........................................................A-18
Adjusting the Squeegee ........................................................A-18
Troubleshooting.....................................................................A-19
Technical Specifications ........................................................A-20
Material Composition.............................................................A-20

ENGLISH / A-3
FORM NO. - 56091000 - SC800 - A-3
INTRODUCTION
This manual will help you get the most from your Nilfisk™ automatic scrubber/dryer. Read it thoroughly before operating the machine.
Note: Bold numbers in parentheses indicate an item illustrated on pages 5-8 unless otherwise noted.
This product is intended for commercial use only.
PARTS AND SERVICE
Repairs, when required, should be performed by your Authorized Nilfisk Service Center, who employs factory trained service personnel, and
maintains an inventory of Nilfisk original replacement parts and accessories.
Call Nilfisk for repair parts or service. Please specify the Model and Serial Number when discussing your machine.
(Dealer, affix service sticker here.)
NAMEPLATE
The Model and Serial Number of your machine are shown on the Nameplate in the battery compartment. This information is needed when
ordering repair parts for the machine. Use the space below to note the Model and Serial Number of your machine for future reference.
Model _________________________________________
Serial Number ___________________________________
UNPACKING THE MACHINE
When the machine is delivered, carefully inspect the shipping packaging and the machine for damage. If damage is evident, save the shipping
carton (if applicable) so that it can be inspected. Contact the Nilfisk Customer Service Department immediately to file a freight damage claim.
Refer to the unpacking instruction sheet included with the machine to remove the machine from the pallet.

A-4 / ENGLISH
A-4 - FORM NO. - 56091000 - SC800
CAUTIONS AND WARNINGS
SYMBOLS
Nilfisk uses the symbols below to signal potentially dangerous conditions. Read this information carefully and take the necessary
steps to protect personnel and property.
DANGER!
Is used to warn of immediate hazards that will cause severe personal injury or death.
WARNING!
Is used to call attention to a situation that could cause severe personal injury.
CAUTION!
Is used to call attention to a situation that could cause minor personal injury or damage to the machine or other property.
Read all instructions before using.
GENERAL SAFETY INSTRUCTIONS
Specific Cautions and Warnings are included to warn you of potential danger of machine damage or bodily harm.
WARNING!
*This machine should only be used by properly trained and authorized persons.
* While on ramps or inclines, avoid sudden stops when loaded. Avoid abrupt sharp turns. Use low speed down hills. Clean only while
ascending (driving up) the ramp.
*Keep sparks, flame and smoking materials away from batteries. Explosive gases are vented during normal operation.
*Charging the batteries produces highly explosive hydrogen gas. Charge batteries only in well-ventilated areas, away from open flame. Do
not smoke while charging the batteries.
*Remove all jewelry when working near electrical components.
*Turn the key switch off (O) and disconnect the batteries before servicing electrical components.
*Never work under a machine without safety blocks or stands to support the machine.
*Do not dispense flammable cleaning agents, operate the machine on or near these agents, or operate in areas where flammable liquids exist.
*Do not clean this machine with a pressure washer.
*Do not operate this machine on ramps or inclines of more than a 2 percent gradient.
*Only use the brushes provided with the appliance or those specified in the instruction manual. The use of other brushes may impair safety.
* Do not stare into laser. Class 1 Laser Product IEC 60825-1, 2007 AND 21CFR1040.10.
CAUTION!
*This machine is not approved for use on public paths or roads.
*This machine is not suitable for picking up hazardous dust.
*Use care when using scarifier discs and grinding stones. Nilfisk will not be held responsible for any damage to floor surfaces caused by
scarifiers or grinding stones.
*When operating this machine, ensure that third parties, particularly children, are not endangered.
*Before performing any service function, carefully read all instructions pertaining to that function.
*Do not leave the machine unattended without first turning the key switch off (O), removing the key and securing the machine.
* Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels.
*Take precautions to prevent hair, jewelry, or loose clothing from becoming caught in moving parts.
* Use caution when moving this machine in below freezing temperature conditions. Any water in the solution, recovery or detergent tanks or in
the hose lines could freeze, causing damage to valves and fittings. Flush with windshield washer fluid.
* The batteries must be removed from the machine before the machine is scrapped. The disposal of the batteries should be safely done in
accordance with your local environmental regulations.
*Do not use on surfaces having a gradient exceeding that marked on the machine.
*All doors and covers are to be positioned as indicated in the instruction manual before using the machine.
* Refer to the battery charger OEM product manual for additional specific battery charger warnings.
* Any use or adjustments of the Laser other than those specified herein may result in hazardous radiation exposure.
SAVE THESE INSTRUCTIONS

ENGLISH / A-5
FORM NO. - 56091000 - SC800 - A-5

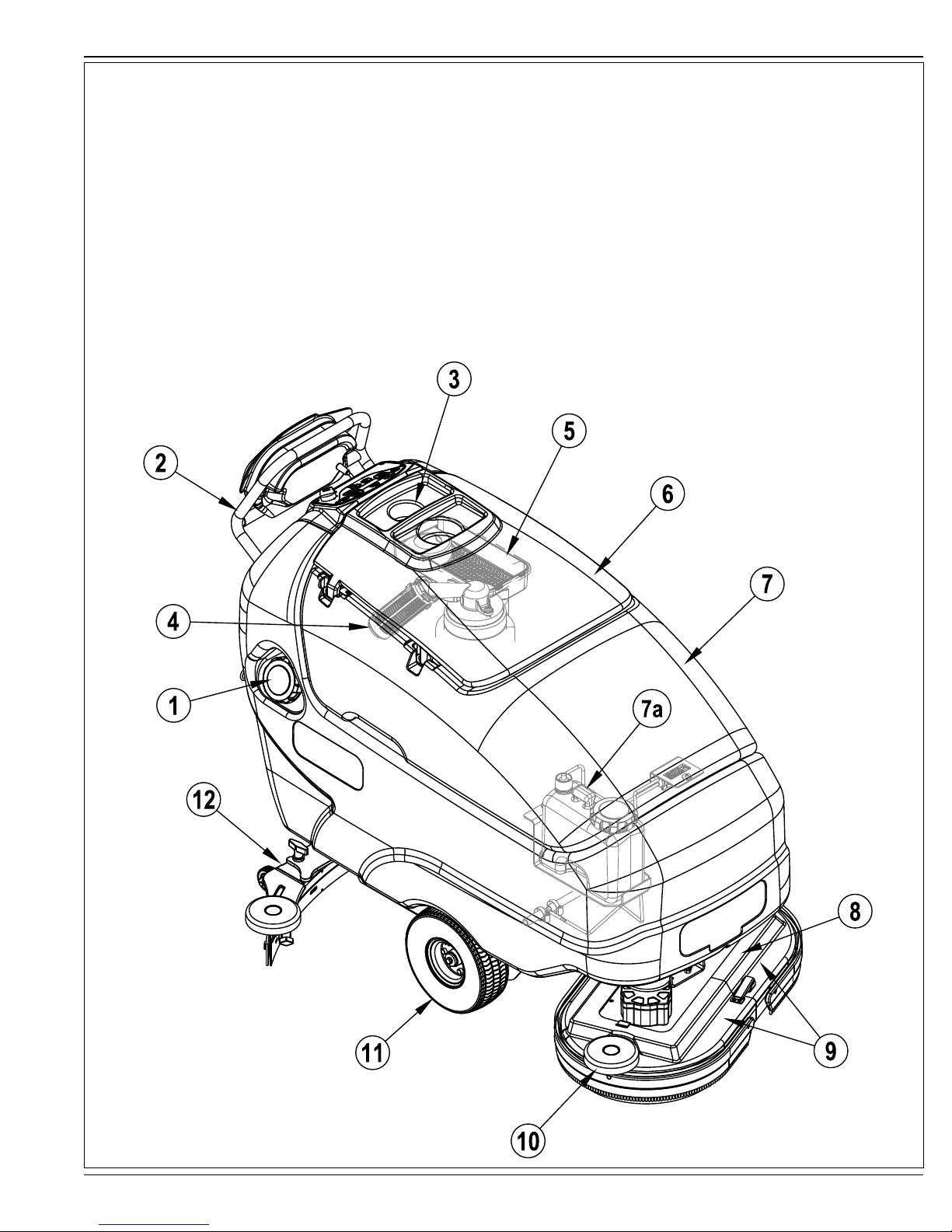

KNOW YOUR MACHINE
As you read this manual, you will occasionally run across a bold number or letter in parentheses - example: (2). These numbers refer to an item
shown on these pages unless otherwise noted. Refer back to these pages whenever necessary to pinpoint the location of an item mentioned in
the text. NOTE: Refer to the service manual for detailed explanations of each item illustrated on the next 4 pages.
1 Solution Tank Fill
2 Operator Control Handle
3 Bottle Holders
4 Recovery Tank Shutoff Float
5 Debris Tray
6 Recovery Tank Lid
7 Recovery Tank (Detergent Cartridge Access Cover)
7a Detergent Cartridge (EcoFlex models only)
8 Scrub Deck
9 Brush Housings (include Bristle Skirt)
10 Scrub Deck Bumper Wheel
11 Drive Wheel

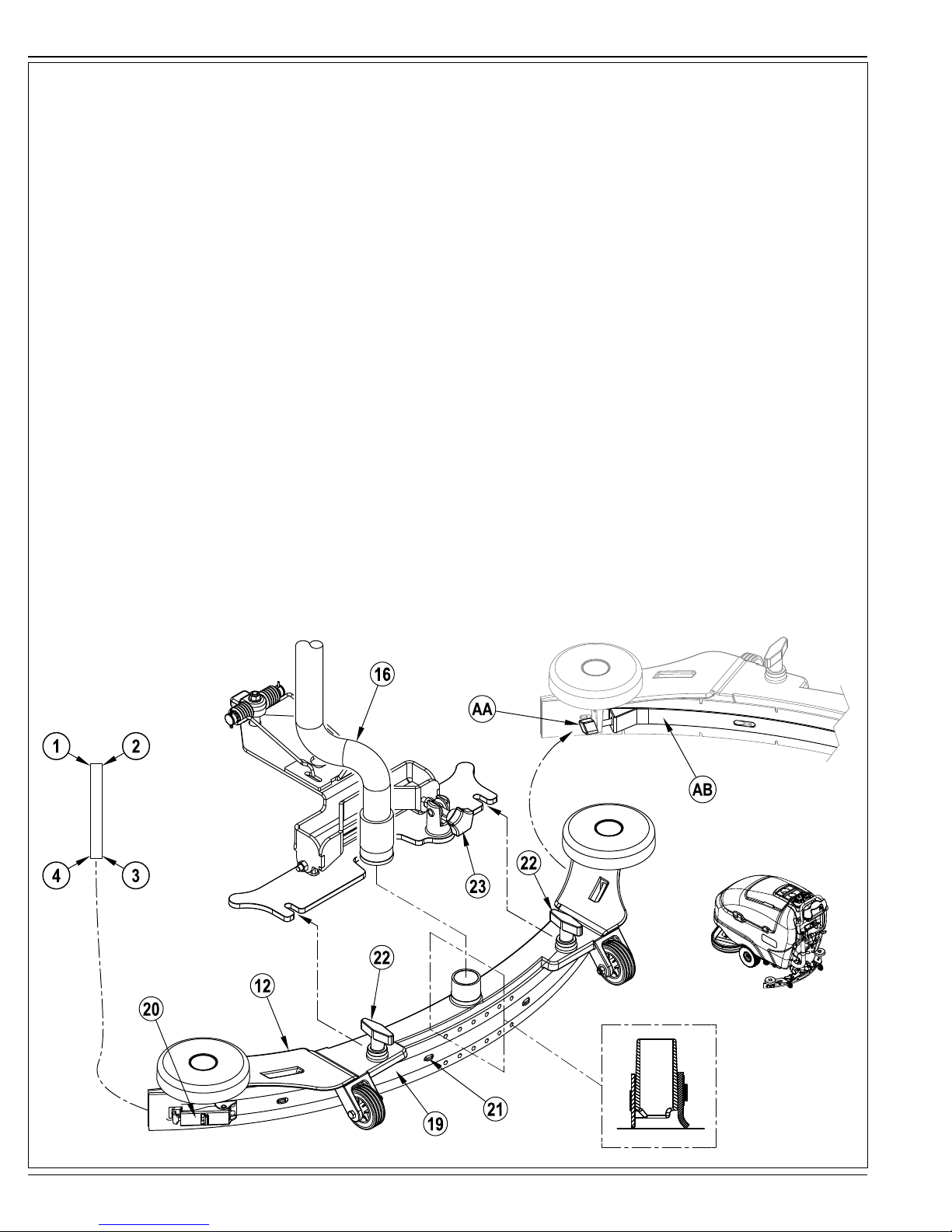

12 Squeegee Assembly

A-6 / ENGLISH
A-6 - FORM NO. - 56091000 - SC800
KNOW YOUR MACHINE
13 Solution Drain Hose / Level Indicator
14 Squeegee Raise / Lower Lever
15 Battery Pack Connector
16 Recovery Hose
17 Wheel Drive Circuit Breaker (30 Amp)
18 Control Circuit Circuit Breaker (10 Amp)
19 Squeegee Blade Tension Strap
20 Squeegee Blade Latch
21 Squeegee Blade Alignment Pins
22 Squeegee Mount Thumb Nut
23 Squeegee Adjustment Knob
24 Recovery Tank Drain Hose
25 Debris Hopper (Cylindrical Models Only)

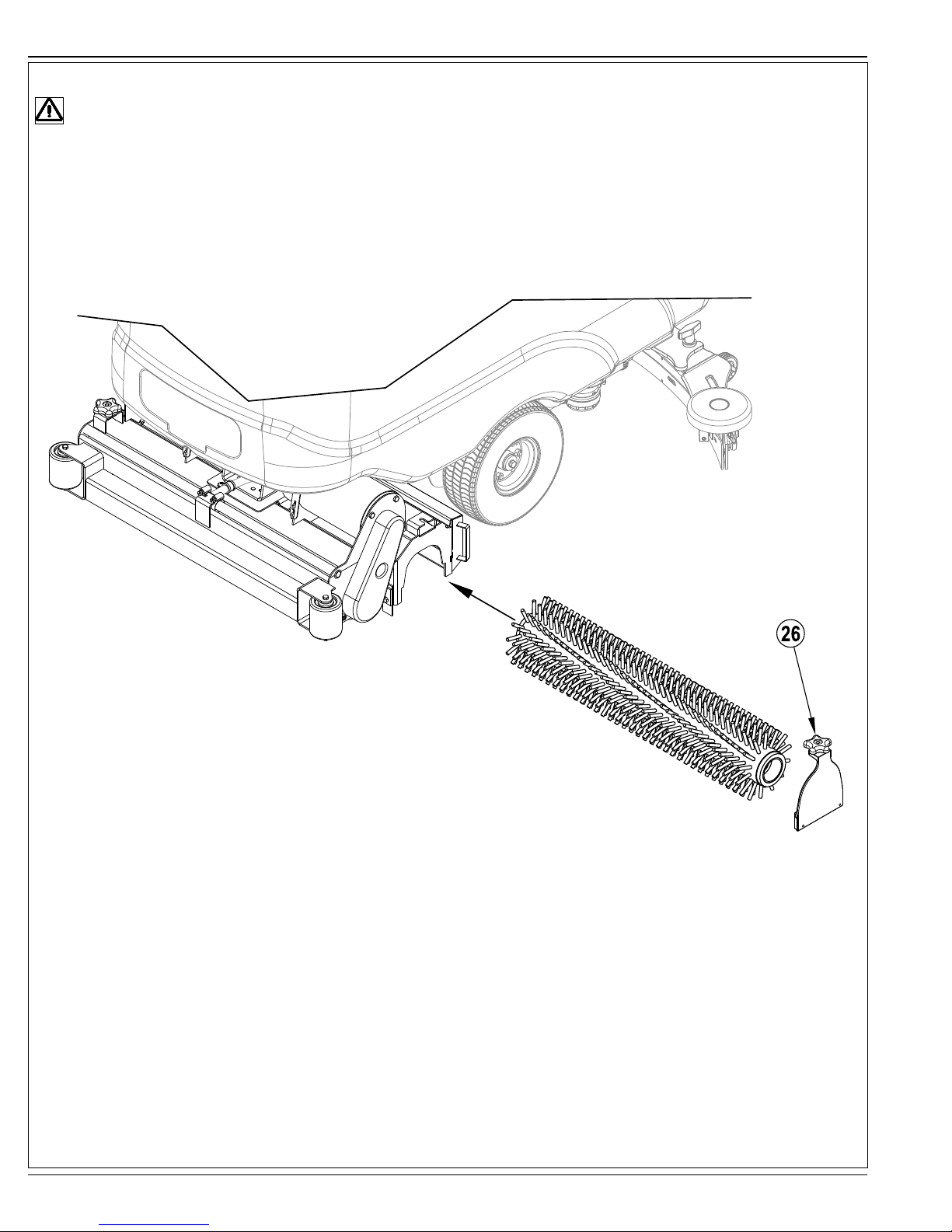

26 Idler Assembly (Cylindrical Models Only)
27 Solution Manifold (Cylindrical Models Only)
28 Control Panel (EcoFlex)
29 Drive Paddle
30 Speed Limit Control Knob
31 Onboard Battery Charger (Not found on all models)
32 Solution Filter
33 Solution Shut-Off Valve

ENGLISH / A-7
FORM NO. - 56091000 - SC800 - A-7
!
!
max.2%
E
FF
J
D
C1
H1
I
A
H
G
L
B
C
K
F1 F2 F3
F4 F5 F6
F7
F8

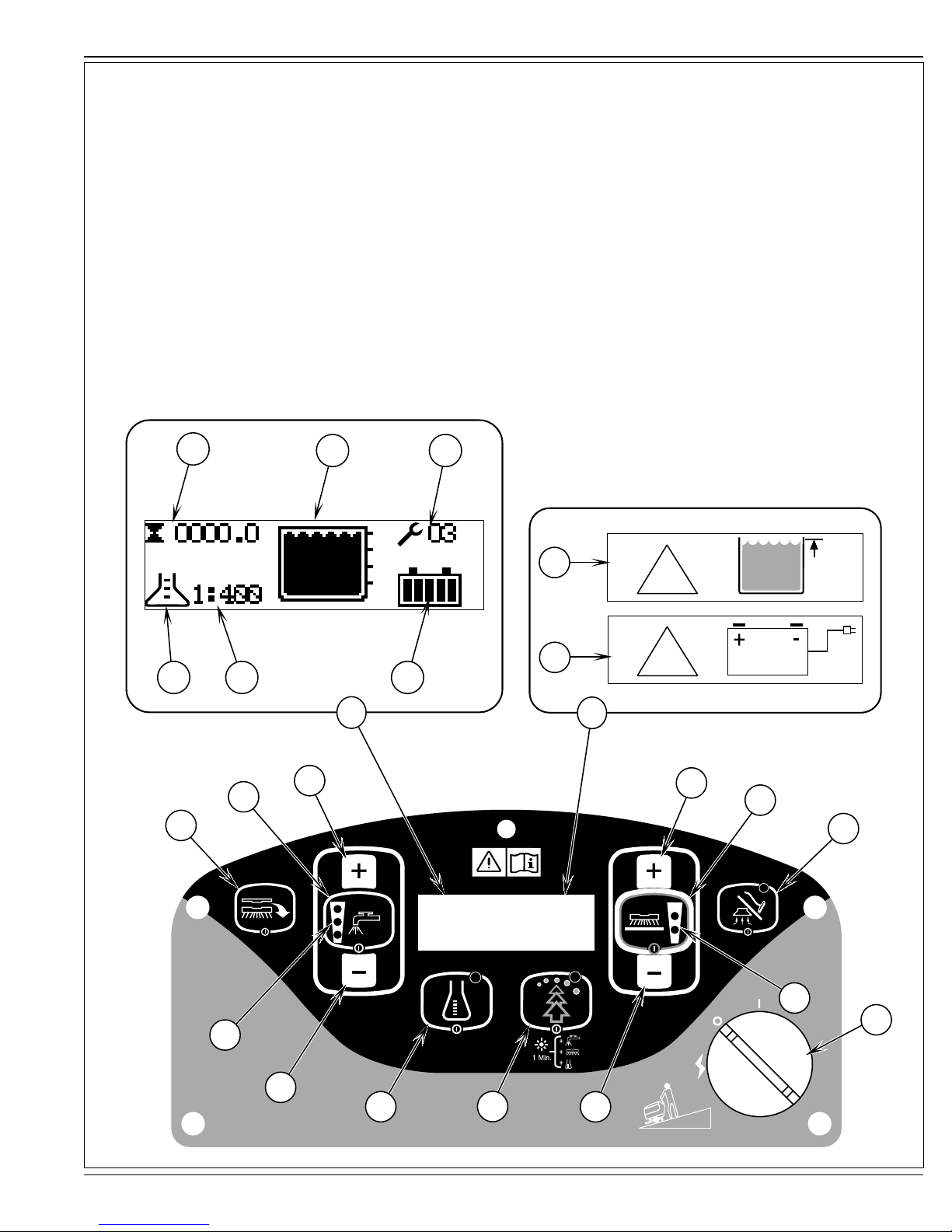

CONTROL PANEL
A Key Switch (Main Power)
B Solution Increase Switch
C Solution ON/OFF Switch
C1 Solution Flow Indicators (Normal, Heavy & Extreme)
D Solution Decrease Switch
E Detergent ON/OFF Switch
F Display Panel
F1 Hour Meter
F2 Solution Tank Level Indicator
F3 Fault Codes
F4 Detergent Indicator (if so equipped)
F5 Detergent Ratio Indicator
F6 Battery Indicator
F7 Recovery Tank FULL Indicator
F8 Battery Low Indicator
G Scrub Pressure Increase Switch
H Scrub ON/OFF Switch
(Disc System - Regular & Heavy)
(Cylindrical System - 1 Pressure Sensing)
H1 Scrub Pressure Indicator
I Scrub Pressure Decrease Switch
J EcoFlex Switch
K Brush Remove Switch (Disc Decks Only)
L Vacuum/Wand Switch

A-8 / ENGLISH
A-8 - FORM NO. - 56091000 - SC800
312 AH @ 20 HR RATE
(4) MAX 158KG/348LB
FIGURE 1
BATTERIES
If your machine shipped with batteries installed do the following:
Check that the batteries are connected to the machine (15).
Turn ON the Key Switch (A) and check the Battery Indicator (F6 or E). If the gauge is completely filled or the green light is ON, the batteries are ready for
use. If the gauge is less than full or the green light is OFF, the batteries should be charged before use. See the “Charging The Batteries” section.
IMPORTANT!: IF YOUR MACHINE HAS AN ONBOARD BATTERY CHARGER REFER TO THE OEM PRODUCT MANUAL FOR INSTRUCTIONS
REGARDING SETTING THE CHARGER FOR BATTERY TYPE.
See TSBUS2008-984 for the latest battery charger algorithms.
If your machine shipped without batteries installed do the following:
Consult your Authorized Advance dealer for recommended batteries.
Install the batteries by following the instructions below.
IMPORTANT!: IF YOUR MACHINE HAS AN ONBOARD BATTERY CHARGER REFER TO THE OEM PRODUCT MANUAL FOR INSTRUCTIONS
REGARDING SETTING THE CHARGER FOR BATTERY TYPE.
See TSBUS2008-984 for the latest battery charger algorithms.
WARNING!
Use extreme caution when working with batteries. Sulfuric acid in batteries can cause severe injury if allowed to contact the skin
or eyes. Explosive hydrogen gas is vented from the batteries through openings in the battery caps. This gas can be ignited by
any electrical arc, spark or flame. Do not install any lead-acid battery in a sealed container or enclosure. Hydrogen gas from
overcharging must be allowed to escape.
When Servicing Batteries...
*Remove all jewelry
*Do not smoke
*Wear safety glasses, rubber gloves and a rubber apron
*Work in a well-ventilated area
*Do not allow tools to touch more than one battery terminal at a time
* ALWAYS disconnect the negative (ground) cable first when replacing batteries to prevent sparks.
* ALWAYS connect the negative cable last when installing batteries.
CAUTION!
Electrical components in this machine can be severely damaged
if the batteries are not installed and connected properly. Advance,
a qualified electrician, or the battery manufacturer should install
batteries.
1 Remove the batteries from their shipping crate and carefully inspect them
for cracks or other damage. If damage is evident, contact the carrier that
delivered them or the battery manufacturer to file a damage claim.
2 Turn the Master Key Switch (A) OFF and remove the key.
3 Disconnect the Battery Pack Connector (15).
4 Tip the recovery tank to the side, locked position. Remove the battery cables
from inside the battery compartment.
5 Your machine comes from the factory with enough battery cables to install four
6 volt batteries. Carefully lift the batteries into the battery compartment and
arrange them exactly as shown in FIGURE 1. Secure the batteries as close to
the back of the machine as possible.
6 Install the battery cables as shown. Position the cables so the battery caps
can be easily removed for battery service.
7 Carefully tighten the nut in each battery terminal until the terminal will not turn.
Do not over-tighten the terminals, or they will be very difficult to remove for
future service.
8 Coat the terminals with spray-on battery terminal coating (available at most
auto parts stores).
9 Put one of the black rubber boots over each of the terminals and connect the
Battery Pack Connector (15).

ENGLISH / A-9
FORM NO. - 56091000 - SC800 - A-9
INSTALLING THE BRUSHES (DISC SYSTEM)
CAUTION!
Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels.
1 Make sure the Brush Deck (8) is in the RAISED position. Make sure the Key Switch (A) is off (O).
2 If using pads, install the pads on the pad holders.
3 See Figure 2. To mount the Brushes (AA) (or pad holders) align the Lugs (BB) on the brush with the holes on the mounting plate and turn to
lock in place (turn the outside edge of brush towards the rear of machine as shown (CC)).
FIGURE 2

A-10 / ENGLISH
A-10 - FORM NO. - 56091000 - SC800
INSTALL THE BRUSHES (CYLINDRICAL SYSTEM)
CAUTION!
Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels.
1 Make sure the Brush Deck is in the RAISED position. Make sure the Key Switch (A) is off (O).
2 See Figure 3. To access the brushes loosen the black knobs (one on each side) on top of the idler assemblies (26) and remove the idler
assemblies. Slide the brush into the housing, lift slightly, push and turn until it seats. Re-install the idler assemblies.
FIGURE 3

ENGLISH / A-11
FORM NO. - 56091000 - SC800 - A-11
FIGURE 4
FILLING THE SOLUTION TANK
Fill the solution tank with a maximum of 94.6 Liters (25 gallons) of cleaning solution. Do not fill the solution tank above 7.5 cm (3 inches) from the
bottom of the Solution Fill (1). The solution should be a mixture of water and the proper cleaning chemical for the job. Always follow the dilution
instructions on the chemical container label. NOTE: EcoFlex machines can either be used conventionally with detergent mixed in the tank or the
EcoFlex detergent dispensing system can be used. When using the EcoFlex detergent dispensing do not mix detergent in the tank, plain water
should be used.
CAUTION!
Use only low-foaming, non-flammable liquid detergents intended for machine application. Water temperature should not exceed 54.4
degrees celsius (130 degrees fahrenheit)
SQUEEGEE INSTALLATION
1 See Figure 4. Slide the Squeegee Assembly (12) onto the squeegee mount bracket and tighten the Squeegee Mount Thumb Nuts (22).
2 Connect the Recovery Hose (16) to the squeegee inlet.
3 Lower the squeegee, move the machine ahead slightly and adjust the squeegee tilt using the Squeegee Adjustment Knob (23) so that the
rear squeegee blade touches the floor evenly across its entire width and is bent over slightly as shown.

A-12 / ENGLISH
A-12 - FORM NO. - 56091000 - SC800
DETERGENT SYSTEM PREPARATION AND USE (ECOFLEX MODELS ONLY)
COMMON INSTRUCTIONS:
Pressing and releasing the Detergent Switch (E) while the solution system is active will cause the detergent system to alternately turn on and off.
The system should be purged of previous detergent when switching to a different detergent. SERVICE NOTE: Move machine over floor drain
before purging because a small amount of detergent will be dispensed in the process.
To Purge When Changing Chemicals:
1 Disconnect and remove the detergent cartridge.
2 Turn the Key Switch (A) ON. Press and hold the Solution Switch (C) and the Detergent Switch (E) down for 3 seconds. NOTE: Once
activated the purge process takes 10 seconds. See illustration on next page for Detergent System indicators. Normally one purge cycle is
adequate to purge the system.
To Purge Weekly:
1 Disconnect and remove the detergent cartridge. Install and connect a Cartridge filled with clean water
2 Turn the Key Switch (A) ON. Press and hold the Solution Switch (C) and the Detergent Switch (E) down for 3 seconds. NOTE: Once
activated the purge process takes 10 seconds. See illustration on next page for Detergent System indicators. Normally one purge cycle is
adequate to purge the system.
When the Detergent Cartridge is almost empty a Display Panel (F) indicator will come on. This “Low Detergent” indicator will remain on until you
reset the system. Once this indicator comes on you should be able to simply pour an entire gallon bottle of detergent into the Cartridge to refill
without worrying about measuring. NOTE: Only reset the system when the cartridge is full. When switching cartridges, the “Low Detergent”
indicator is only accurate if the replacement cartridge is at the same level as the cartridge being replaced.
To Reset:
1 Turn the Key Switch (A) ON. Press and hold together the Solution Increase Switch (B) and the Solution Decrease Switch (D) down for 3
seconds. See illustration on next page for Detergent System indicators.
Detergent Percentage:
1 The detergent percentage default is 0.25%. To change the percentage, the detergent system must be OFF, then press and hold the
Detergent ON/OFF Switch (E) for 2 seconds. The detergent indicator will flash and each press of the switch will cycle through the available
percentages (3%, 2%, 1.5%, 1%, 0.8%, 0.66%, 0.5%, 0.4%, 0.3%., 0.25%). Once the desired percentage is displayed on the screen (F5),
stop and it will lock in after 5 seconds.
CARTRIDGE SPECIFIC INSTRUCTIONS:
Fill the detergent cartridge with a maximum of 1.25 gallons (4.73 Liters) of detergent. SERVICE NOTE: Remove the detergent cartridge from the
detergent box prior to filling to avoid spilling detergent on the machine.
It is recommended that a separate cartridge be used for each detergent you plan to use. The detergent cartridges have a white decal on them so
you can write the detergent name on each cartridge to avoid mixing them up. When installing a new cartridge, remove the Cap (AA) and place the
cartridge in the detergent box. Install the Dry Break Cap (BB) as shown.

ENGLISH / A-13
FORM NO. - 56091000 - SC800 - A-13
max.2%
F
E
D
B
C
A
DETERGENT SYSTEM PREPARATION AND USE (ECOFLEX MODELS ONLY)
DETERGENT ENABLED DETERGENT DISABLED
FULL (RESET)
DETERGENT LOW
PURGE
Press and hold (C) & (E)
for 3 seconds to purge.
Press and hold (B) & (D)
for 3 seconds to reset.
Detergent system is ON
when indicator is ON.

A-14 / ENGLISH
A-14 - FORM NO. - 56091000 - SC800
WET SCRUBBING
WARNING!
Be sure you understand the operator controls and their functions. While on ramps or inclines, avoid sudden stops when loaded.
Avoid abrupt sharp turns. Use low speed down hills. Clean only while ascending (driving up) the ramp.
To Scrub…
1 Follow the instructions in the Preparing The Machine For Use section of this manual.
2 Turn the Master Key Switch (A) ON (I). This will display the control panel indicator lights, reference the Battery Condition Indicator (F6) and Hour Meter (F1) before proceeding.
3 To transport the machine to the work area, push the Drive Paddle (29) forward to go forward or pull the Drive Paddle (29) backward to move the machine in reverse. Vary the
pressure on the Drive Paddle (29) to obtain the desired speed.
NOTE: Speed Control Knob (30) is used to control the maximum speed in either forward or reverse.
4 Press and hold the Solution Switch (C) for 5 seconds to pre-wet the floor. NOTE: This must be done prior to pressing the Scrub ON/OFF Switch (H).
5 Press the Scrub ON/OFF Switch (H), the scrub pressure will default to Normal (one scrub pressure indicator lit). Use the Scrub Pressure Increase Switch (G) and Scrub
Pressure Decrease Switch (I) to change between Regular and Heavy Scrub modes. Only one pressure sensing is available for cylindrical machines.The solution flow rate will
automatically adjust to coincide with the scrub pressure.
NOTE: The solution flow rate can be changed independently of the scrub pressure by pressing the Solution Increase Switch (B) or Solution Decrease Switch (D). Any
subsequent scrub pressure adjustments will reset the solution flow rate to correspond with the scrub pressure.
NOTE: The scrub, solution, vacuum and detergent (EcoFlex models) systems are automatically enabled when the Scrub ON/OFF Switch (H) is pressed. Any individual system
can be turned OFF or back ON by simply pressing its switch at any time during scrubbing. No further action is required other than lowering the squeegee (12).
6 Lower the squeegee with the Squeegee Raise / Lower Lever (14).
7 When the Drive Paddle (29) is in the neutral position, the scrub, vacuum, solution and detergent (EcoFlex models) systems are activated but not running. Grip the Operator
Control Handle (2) and push the Drive Paddle (29) forward to start the scrub, vacuum, solution and detergent (EcoFlex models), and to move the machine forward. For best
results, move the machine at a slow walking speed. Press the Solution Switch (C) once to turn OFF while making sharp turns. Pull the Drive Paddle (29) backward to move the
machine in reverse. The brushes will run while moving the machine in reverse, but solution and chemical will not be dispensed.
CAUTION!
To avoid damaging the floor, keep the machine moving while the brushes are turning.
8 When scrubbing, check behind the machine occasionally to see that all of the waste water is being picked up. If there is water trailing the machine, you may be dispensing too
much solution, the recovery tank may be full, or the squeegee tool may require adjustment.
9 The machine defaults to the EcoFlex cleaning mode (EcoFlex Switch Indicator is lit GREEN) conserving solution and detergent. Press the EcoFlex Switch (J) to override the
EcoFlex cleaning mode and temporarily increase scrub pressure, solution flow and the detergent percentage. This will cause the indicator to flash (YELLOW) for one minute,
solution flow rate will increase to the next level, scrub pressure will increase to the next level and the detergent percentage will increase to the next larger percentage.
NOTE: Pressing and holding the EcoFlex Switch (J) for 2 seconds disables the EcoFlex system. The only way to re-enable is to push the EcoFlex Switch (J) again. Cycling the
Key Switch (A) does not re-enable the system. The EcoFlex system will only function if the Scrub System (H) has been enabled.
10 For extremely dirty floors, a one-pass scrubbing operation may not be satisfactory and a “double-scrub” operation may be required. This operation is the same as a one-pass
scrubbing except on the first pass the squeegee is in the up position. This allows the cleaning solution to remain on the floor to work longer. The final pass is made over the
same area, with the squeegee lowered to pick up the accumulated solution.
11 The recovery tank has a shut-off float (4) that causes ALL systems to turn OFF except the drive system when the recovery tank is full. When this float is activated, the recovery
tank must be emptied. The machine will not pick up water or scrub with the float activated.
NOTE: All other indicators vanish and a “Recovery Tank FULL” Indicator (F7) turns on in the Display Panel when the switch is activated on “EcoFlex” models.
12 When the operator wants to stop scrubbing or the recovery tank is full;
Press the Scrub ON/OFF Switch (H) once. This will automatically stop the scrub motors and the solution flow and the deck will raise to its upper limit. NOTE: The vacuum will
stop after a 10 second delay. This is to allow any remaining water to be picked up without turning the vacuum back on.
Raise the squeegee with the Squeegee Raise / Lower Lever13 (14). and drive the machine to a designated wastewater “DISPOSAL SITE” and empty the recovery tank. To empty,
pull the Recovery Tank Drain Hose (24) from its hanger and open the cap (hold the end of the hose above the water level in the tank to avoid sudden, uncontrolled flow of waste
water). The Recovery Tank Drain Hose (24) can be squeezed to regulate the flow. Refill the solution tank and continue scrubbing.
NOTE: Make sure the Recovery Tank Lid (6) and the Recovery Tank Drain Hose (24) cap are properly seated or the machine will not pick-up water correctly. When
the batteries require recharging the Battery LOW Indicator (F8) will come on (EcoFlex models) and the vacuum motor will shut off after 30 seconds. Transport the
machine to a service area and recharge the batteries according to the instructions in the Battery section of this manual.
WET VACUUMING
Fit the machine with optional attachments for wet vacuuming.
1 Disconnect the Recovery Hose (16) from the Squeegee (12).
2 Attach suitable wet pick-up tools to the hose (Available from Advance).
3 Turn the Master Key Switch (A) ON.
4 Press the Vacuum/Wand Switch (L) (EcoFlex models) once to turn ON the vacuum motor.
The vacuum motor will run continuously until the switch is pressed again to turn it OFF.
NOTE: The “Recovery Tank FULL” indicator is disabled when the wand mode is activated.
The float will stop the flow into the recovery tank.

ENGLISH / A-15
FORM NO. - 56091000 - SC800 - A-15
!
!
2
6
29
16
14
24
12
30
A
L
H
I
B
4
J
D
C
G
H1
F
F6
F5
F1
F7
F8
WET SCRUBBING
SERVICE NOTE: Refer to the service manual for detailed functional
descriptions of all controls and optional programmability.

A-16 / ENGLISH
A-16 - FORM NO. - 56091000 - SC800
AFTER USE
1 Raise the brushes (or pads) and raise the squeegee. Move the machine to a service area.
2 Turn the Master Key Switch (A) OFF and remove the key.
3 To empty the solution tank, pull the Solution Drain Hose (13) off the upper connector. Direct the hose to a floor drain or bucket. Rinse the tank with clean
water. Inspect the solution hoses; replace if kinked or damaged.
4 To empty the recovery tank, remove the Recovery Tank Drain Hose (24) from its hanger and remove the cap (hold the end of the hose above the water
level in the tank to avoid sudden, uncontrolled flow of waste water). The Recovery Tank Drain Hose (24) can be squeezed to regulate the flow. Rinse the
recovery tank and shut-off float (4) with clean water. Inspect the recovery and vacuum hoses; replace if kinked or damaged.
NOTE: After each use, drain and rinse the recovery tank thoroughly and then fill the recovery tank about 1/3 full with clean water.
5 Remove the brushes or pad holders. Rinse the brushes or pads with warm water and hang up to dry. Allow buffing pads to dry completely before using
again. NOTE: You can either remove the brushes manually or automatically by pressing the Brush Remove Switch (K) (EcoFlex disk models only).
6 Remove the squeegee, rinse it with warm water and hang it up to dry.
7 Check the maintenance schedule below and perform any required maintenance before storage.
MAINTENANCE SCHEDULE
MAINTENANCE ITEM Daily Weekly Monthly Yearly
Charge Batteries X
Check/Clean Tanks & Hoses X
Check/Clean/Rotate the Brushes/Pads X
Check/Clean the Squeegee X
Check/Clean Vacuum Shut-Off Float X
Empty/Clean Debris Tray In Recovery Tank X
Clean Hopper on Cylindrical System X
Check Each Battery Cell(s) Water Level (does not apply to gel cell batteries) X
Inspect Scrub Housing Skirts X
Inspect and clean Solution Filter X
Clean Solution Manifolds on Cylindrical System X
Purge Detergent System (EcoFlex only) X
Lubricate the Machine X
* Check Carbon Brushes X
* Have Nilfisk check the vacuum motor carbon motor brushes once a year or after 300 operating hours. The brush and drive motor carbon brushes check every
500 hours or once a year.
NOTE: Refer to the Service Manual for more detail on maintenance and service repairs.
8 Store the machine in a clean, dry place.
9 Turn the Master Key Switch (A) OFF (O) and remove the key.
SERVICING THE VACUUM MOTOR
Have your Nilfisk Dealer check the carbon motor brushes
once a year or after 300 operating hours.
IMPORTANT!
Motor damage resulting from failure to service the
carbon brushes is not covered under warranty.
See the Limited Warranty Statement.

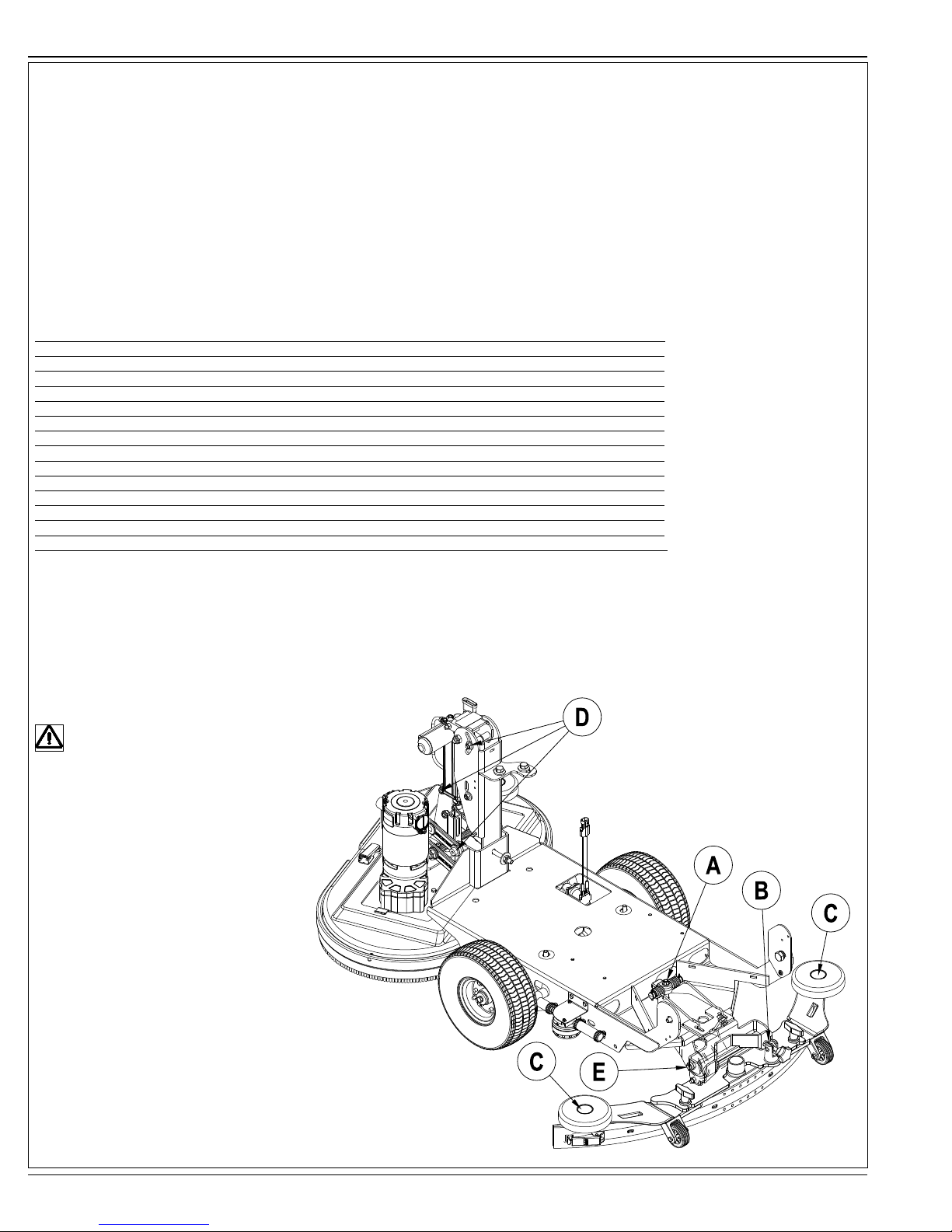

LUBRICATING THE MACHINE
Once a month, apply light machine oil to lubricate the:
• General Pivot Points For the Squeegee Linkage (A).
• Squeegee mount angle adjustment knob threads (B).
• Squeegee Tool end wheels (C).
• General Pivot Points For the Brush Linkage (D).
• Scrub deck bumper wheels.
Once per quarter, Grease the following
• Rear Caster Wheel Swivels (E).

ENGLISH / A-17
FORM NO. - 56091000 - SC800 - A-17
CHARGING WET BATTERIES
EcoFlex - Charge the batteries each time the machine is used or when the Battery Indicator (F6) is reading less than full.
WARNING!
Do not fill the batteries before charging.
Charge batteries in a well-ventilated area.
Do not smoke while servicing the batteries.
When Servicing Batteries...
*Remove all jewelry
*Do not smoke
*Wear safety glasses, rubber gloves and a rubber apron
*Work in a well-ventilated area
*Do not allow tools to touch more than one battery terminal at a time
* ALWAYS disconnect the negative (ground) cable first when replacing batteries to prevent sparks.
* ALWAYS connect the negative cable last when installing batteries.
If your machine shipped with an onboard battery charger do the following:
Turn the Key Switch (A) OFF. Unwind the electrical cord from the side of the onboard charger and plug it into a properly grounded outlet. Refer to the OEM product manual for more
detailed operating instructions.
If your machine shipped without an onboard battery charger do the following:
Disconnect the batteries from the machine and push the connector from the charger into the Battery Pack Connector (15). Follow the instructions on the battery charger. SERVICE
NOTE: Make sure you plug the battery charger into the connector with the handle attached to it.
CAUTION!
To avoid damage to floor surfaces, wipe water and acid from the top of the batteries after charging.
CHECKING THE BATTERY WATER LEVEL
Check the water level of the batteries at least once a week.
After charging the batteries, remove the vent caps and check the water level in each battery cell. Use distilled or demineralized water in a battery
filling dispenser (available at most auto parts stores) to fill each cell to the level indicator (or to 10 mm over the top of the separators). DO NOT
over-fill the batteries!
CAUTION!
Acid can spill onto the floor if the batteries are overfilled.
Tighten the vent caps. Wash the tops of the batteries with a solution of baking soda and water (2 tablespoons of baking soda to 1 liter of water).
CHARGING GEL (VRLA) BATTERIES
EcoFlex - Charge the batteries each time the machine is used or when the Battery Indicator (F6) is reading less than full.
WARNING!
Charge batteries in a well-ventilated area.
Do not smoke while servicing the batteries.
When Servicing Batteries...
*Remove all jewelry
*Do not smoke
*Wear safety glasses, rubber gloves and a rubber apron
*Work in a well-ventilated area
*Do not allow tools to touch more than one battery terminal at a time
* ALWAYS disconnect the negative (ground) cable first when replacing batteries to prevent sparks.
* ALWAYS connect the negative cable last when installing batteries.
CAUTION!
Your voltage regulated lead acid (VRLA) battery will deliver superior performance and life ONLY IF IT RECHARGED PROPERLY! Under or
overcharging will shorten battery life and limit performance. Be sure to FOLLOW PROPER CHARGING INSTRUCTIONS! DO NOT ATTEMPT
TO OPEN THIS BATTERY! If a VRLA battery is opened, it loses its pressure and the plates become oxygen contaminated. THE WARRANTY
WILL BE VOIDED IF THE BATTERY IS OPENED.
If your machine shipped with an onboard battery charger do the following:
Turn the Key Switch (A) OFF. Unwind the electrical cord from the side of the onboard charger and plug it into a properly grounded outlet. Refer to the OEM product manual for more
detailed operating instructions.
If your machine shipped without an onboard battery charger do the following:
Disconnect the batteries from the machine and push the connector from the charger into the Battery Pack Connector (15). Follow the instructions on the battery charger. SERVICE
NOTE: Make sure you plug the battery charger into the connector with the handle attached to it.
IMPORTANT: Make sure you have an appropriate charger for use on Gel cell batteries. Use only “voltage-regulated” or “voltage-limited” chargers. Standard constant
current or taper current chargers MUST NOT be used. A temperature-sensing charger is recommended, as manual adjustments are never accurate and will damage any
VRLA battery.

A-18 / ENGLISH
A-18 - FORM NO. - 56091000 - SC800
FIGURE 5
SERVICING THE SQUEEGEE
If the squeegee leaves narrow streaks or water, the blades may be dirty or damaged. Remove the squeegee, rinse it under warm water and
inspect the blades. Reverse or replace the blades if they are cut, torn, wavy or worn.
To Reverse or Replace the Rear Squeegee Wiping Blade...
1 See Figure 5. Raise the squeegee tool off the floor, and then unsnap the Rear Squeegee Blade Removal Latch (20) on the squeegee tool.
2 Remove the Tension Strap (19).
3 Slip the rear blade off the Alignment Pins (21).
4 The squeegee blade has 4 working edges. Turn the blade so a clean, undamaged edge points toward the front of the machine. Replace the
blade if all 4 edges are nicked, torn or worn to a large radius.
5 Install the blade, following the steps in reverse order and adjust the squeegee tilt.
To Reverse or Replace the Front Squeegee Blade...
1 Raise the squeegee tool off the floor, then loosen the (2) Thumb Nuts (22) on top of the squeegee tool. Disconnect the Recovery Hose (16)
and remove the squeegee tool (12) from the mount.
2 Loosen the Front Squeegee Blade Removal Knob (AA), then remove Tension Strap (AB) and blade..
3 The squeegee blade has 4 working edges. Turn the blade so a clean, undamaged edge points toward the front of the machine. Replace the
blade if all 4 edges are nicked, torn or worn to a large radius.
4 Install the blade, following the steps in reverse order and adjust the squeegee tilt.
ADJUSTING THE SQUEEGEE
Adjust the squeegee angle whenever a blade is reversed or replaced, or if the squeegee is not wiping the floor dry.
To Adjust the Squeegee Angle...
1 Park the machine on a flat, even surface and lower the squeegee.
2 While moving the machine forward slowly, turn the Squeegee Adjustment Knob (23) until the rear squeegee blade folds over evenly across
the entire width of the squeegee as shown below.

ENGLISH / A-19
FORM NO. - 56091000 - SC800 - A-19
GENERAL MACHINE TROUBLESHOOTING
Problem Possible Cause Remedy
Poor water pick-up Worn or torn squeegee blades Reverse or replace
Squeegee out of adjustment Adjust so blades touch floor evenly
across entire width
Recovery tank full Empty recovery tank
Recovery tank drain hose leak Secure drain hose cap or replace
Recovery tank cover gasket leak Replace gasket / Seat cover properly
Debris caught in squeegee Clean squeegee tool
Vacuum hose clogged Remove debris
Using too much solution Adjust solution flow at control panel
Foam filter cover not seated Seat cover properly
Poor scrubbing performance Worn brush or pad Rotate or replace brushes
Wrong brush or pad type Consult Advance
Wrong cleaning chemical Consult Advance
Moving machine too fast Slow down
Not using enough solution Increase solution flow at control panel
Inadequate solution flow
or no solution
Solution tank empty Fill solution tank
Solution lines, valves, filter or trough
clogged
Flush lines, trough and clean solution filter
Solution shutoff valve closed Open solution shutoff valve
Solution solenoid valve Clean or replace valve
Machine does not run Battery connector disconnected Reconnect battery connectors
Main system controller Check error fault codes
(see service manual)
Tripped 10 Amp circuit breaker Check for electrical short circuit & reset
No FWD/REV wheel drive Drive system speed controller Check error fault codes
(see service manual)
Tripped 30 Amp circuit breaker Check for drive motor overload
Emergency stop switch tripped Reset the Emergency Stop Switch
Vacuum shuts off and display
shows
“Recovery Tank FULL indicator”
when recovery tank is not full
Plugged squeegee hose Clear debris
Vacuuming large amounts of water
at a high travel speed
Slow down or disable auto shut-off feature
(see service manual)
Poor Sweeping Performance
(Cylindrical System)
Hopper Full Empty and clean hopper
Brushes worn Replace brushes
Bristles have taken a set Rotate brushes
No Detergent Flow (EcoFlex
models only)
Empty detergent cartridge Fill detergent cartridge
Plugged or kinked detergent flow line Purge system, straighten lines to
remove any kinks
Dry seal cap on detergent cartridge not
sealed
Reseat dry seal cap
Detergent pump wiring
disconnected or backwards
Connect or reconnect wiring

A-20 / ENGLISH
A-20 - FORM NO. - 56091000 - SC800
TECHNICAL SPECIFICATIONS (as installed and tested on the unit)
Model SC800-71 SC800-71C SC800-86
Model No. 56112034 56112036 56112035
Voltage, Batteries V 24V 24V 24V
Battery Capacity Ah 312 312 312
Protection Grade IPX4 IPX4 IPX4
Sound Pressure Level
(IEC 60704-1) dB(A) 61 61 61
Sound Pressure Level
(IEC 60704-1) Uncertainty dB(A) 3.0 3.0 3.0
Gross Weight lbs / kg 1045/474.0 1065/483.1 1050/476.3
Transport Weight lbs / kg 1035/469.5 1055/478.5 1040/471.7
Maximum Wheel Floor Loading (right front) psi N/mm273.5/.507 75.3/.519 74.0/.510
Maximum Wheel Floor Loading (left front) psi N/mm268.0/.469 69.9/.482 68.6/.473
Maximum Wheel Floor Loading (center rear) psi N/mm2287.6/1.983 287.6/1.983 287.6/1.983
Vibrations at the Hand Controls
(ISO 5349-1) m/s2.09 .09 .09
Vibrations at the Hand Controls
(ISO 5349-1) Uncertainty m/s2.02 .02 .02
Gradeability Transport 2% (1.15º) 2% (1.15º) 2% (1.15º)
Gradeability Cleaning 2% (1.15º) 2% (1.15º) 2% (1.15º)
MATERIAL COMPOSITION
LBS KG
Aluminum 13.58 6.16
Rubber 15.888 7.21
Plastic 23.037 10.45
Polyethylene 116.4 52.79
Ferrous Metal & Copper
Transaxle 23 10.43
Brush Motor 17.25 7.82
Vac Motor 6 2.72
Other Electric 19.41 8.80
