NINGBO LONGMA VEHICLE INDUSTRY LM228 User manual

INSTRUCTION FOR USE
Congratulations on your purchase of the child seat.Please read this instruction
manual carefully before use.If you have any questions concerning the use of this
child seat,please do not hesitate to contact us.
CHILD RESTRAINT LM228
WITH ISOFIX
SUITABLE FOR CHILDREN
9 months to 12 years old
9~36KG
GROUP ,II I,III
NINGBO LONGMA VEHICLE INDUSTRY CO.,LTD.
Add:#25-29 Kandun east Road, Cixi Avenue, Cixi City,
Ningbo, China.
Tel:[phone] 23670083
Fax:[phone]
Http://www.loma-cardle.com
E-mall:[e-mail]
P.C:315303

1
1.Vital information-READ NOW................................................................4-5
2.Safety instruction..................................................................................6
3.Using safety seat in this way....................................................................6
4.Parts and interior equipment..................................................................7
5.Scope of application for children.............................................................. 8
6 .Steps of backrest and base assembly......................................................9-10
7.Using the buckle....................................................................................10
8.How to place the safety seat.................................................................. 11
9.Adjust the harness.................................................................................11
10.How to use the isofix guide...................................................................12
11.Instructions for use of cushion..............................................................12
12.Installing the safety (Instalation 1)
12.1 Installing the safety car seat............................................................13-15
12.2 Securing the child in the safety car seat...........................................15-16
13.Installing the safety (Instalation 2)
13.1 Installing the safety car seat.......................................................... 17-19
13.2 Securing the child in the safety car seat.......................................... 1 9 -21
14.Installing the safety .......................................................... ...21-24
15.Unlock ISOFIX......................................................................................2 4
16.Remove the cover................................................................................25-28
17.Maintenance and cleaning
17.1 Daily maintenance.........................................................................28
17.2 Washing instruction.......................................................................28
18.List of approved cars............................................................................29-32
group I
group I
group II,III
Contents
LMSM22820060101

This child restraint is classified for”(Semi-universal) for group II, III
with ISOFIT, ”use and is suitable for fixing into the seat positions of
the following cars:
CAR FRONT REAR
Outer Outer Centre
Yes NO NO
Seat positions in other cars may also be suitable to accept this child restraint.If
in doubt,consult either the child restraint manufacturer or the retailer.
*
“*” Please see the list of approved cars
This is an ISOFIX CHILD RESTRAINT SYSTEM for group I with ISOFIX and
top tether.It is approved to Regulation NO.44,04 series of amendments
for general use in vehicles fitted with ISOFIX anchorages systems.
It will fit vehicles with positions approved as ISOFIX positions(as detailed
in the vehilce handbook),depending on the category of the child seat and
of the fixture.
The mass group and the ISOFIX size ciass for which this device is intended
is:9-18kg,class B1
NOTICE
2 3
1. This is a universal”and semi-uni versal child restraint,it is app roved to
Reg ulation NO.4 4,04 series of amendments,for general use in vehicles and
it will fit most,but not all,car seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a “Universal”child restraint
for this age group.
3. This child restraint has been classified as“Universal”under more stringent
conditions than those which applied to earlier designs which do not carry this
notice.
4. If in doubt,consult either the child restraint manufacturer or the retailer.
“ “ ”
Notice
!
On l y s u i ta b le i f t h e v eh i c l e i s f i t t ed wi t h 3- p o i nt sa f e ty be l t s , Ap p ro v ed to
UN / EC E Re g u l at i o n N o .1 6 o r o th er eq u i v a l e nt sta n da rds .
GROUP METHOD OF INSTALLATION TYPE
I ISOFIX+TOP TETHER UNIVERSAL
I, , II III 3-point safety belt UNIVERSAL
, +ISOFIT SEMI-II III 3-point safety belt UNIVERSAL
PRODUCT DESCRIPTION
ISOFIT :FIX attachment for the connection between CRS and vehicle seats which
has two rigid anchorages according to UN ECE 14, but use only for Group II, III.

1. Vital information-READ NOW
For your child’s safety,please read these instructions carefully before use and keep
them for future reference.Failure to follow the instructions contained in this manual
could result in serious injury to your child.
This child safety seat can only be used with the harness for children 9kg to 18kg
in weight(group I:9 - 18 kg ; group I, 15-36 kg).
This instruction manual can be retained in the special space of the child seat for its
life period.
1.
2.
I III:
Do not use this child safety seat at the home. It has not been designed for home use
and should only be used in your car.
The child safety seat should be changed when it has been subject to violent stresses
in an accident.
Always make sure that any straps holding the seat restraint to the vehicle shall
be tight,any straps restraining the child should be adjusted to the child’s body,and
check that the straps shall not be twisted.
IMPORTANT!Ensuring that any lap straps is worn low down,so that the pelvis is
firmly engaged.
Do not use any load bearing contact points other than those described in the
instructions and marked in the child restraint ,when in doubt ,please contact the
child restraint manufacturer..
Any luggage or other objects liable to cause injuries in the event of a collision
shall be properly secured.
The rigid items and plastic parts of a child restraint must be so located and installed
that they are not liable,during everyday use of the vehicle to become trapped by a
moveable seat or in a door of the vehicle.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Never leave your child unattended in the child restraint system even for a short time.
This child restraint should be securely belted in the vehicle even when not in use.
In a crash or sudden stop,an unsecured child safety seat may injure other occupants.
5
To prevent from the risk of fall,your child should always be fastened.12.
13.
14.
15.
16.
17.
18.
19.
20.Notice:
21.
22.
It is dangerous to make any alteration or additions to the device without the
approval of the competent authority,and a danger of not following closely the
installation instructions provided by the child restraint manufacturer.
This child safety seat is designed for children from 9 to 36 kg.Never overload
the child safety seat more than one child or with other loads.
The child restraint must not be used without the cover.
The seat cover should not be replaced with any other than the one recommended
by the manufacturer,because the cover constitutes an integral part of the restraint
performance.
Before you adjust any movable or adjustable parts of your child safety seat,you
must remove your baby from the child safety seat.
The child safety seat should be kept away from sunlight if the seat is not provided
with a textile,otherwise it may be too hot for the child’s skin.
Never use a second-hand product,as you can never be certain what was happened
to it.
Do not use in any configuration not shown in the instructions.
Please identify unsatisfactory position of the adult safety belt buckle relative to
the correct point of the child safety seat, if in doubt, please contact the child seat
manufacturer.
Please also read the car manufacturer's handbook before use.
Importance! Before using ISOFIX child restraint system,please read carefully the
manuel of automobile manufacturer about the instruction of ISOFIX fix point.
23.
4

2. Safety instruction
Only suitable if the approved vehicles are fitted
with 3 point safety-belts,approved to UN /EC E
Re gu lat ion No. 16 or o the r equivalent
standards.

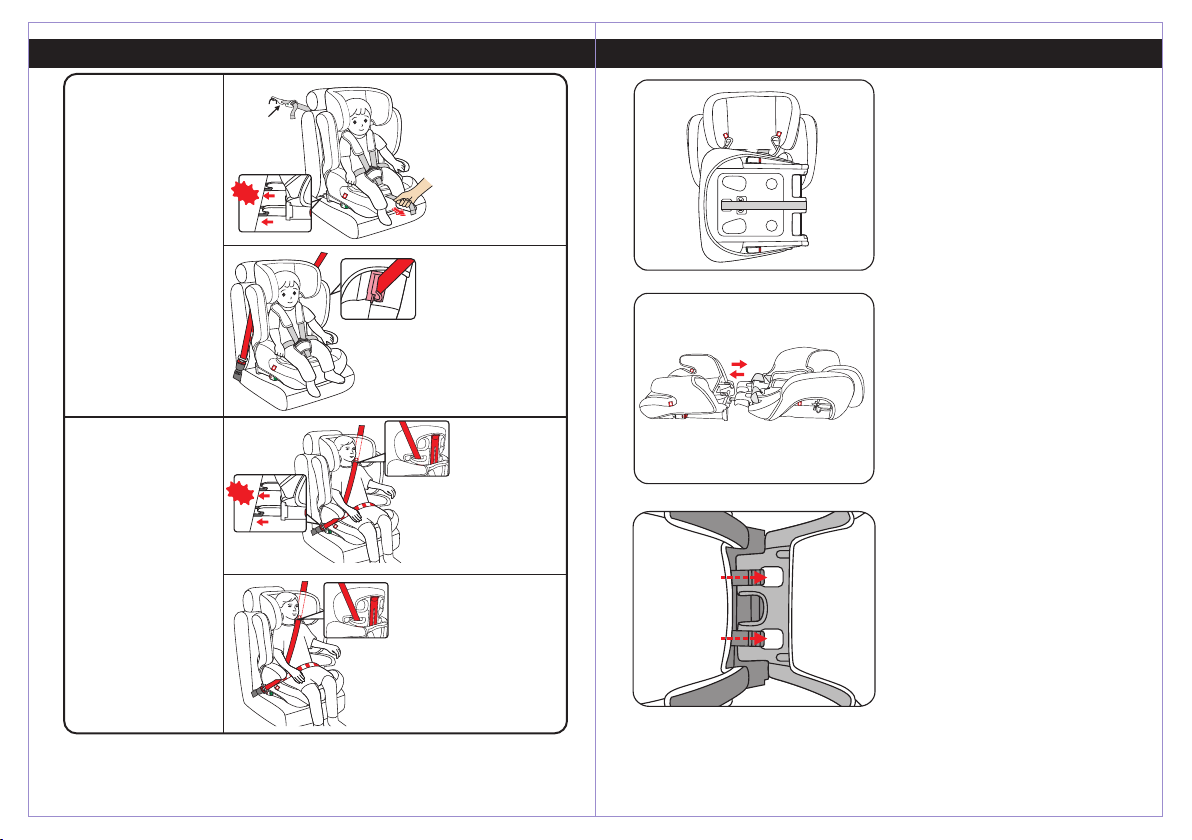

Forward facing traffic direction
Back facing traffic direction Error
Vehicle is only fitted with 2-point safety belt Error
Vehicle is fitted with 3-point safety belt Correct
Seat beside the driver Error
Rear seat Correct
Rear middle seats Three-point Belt Correct
Correct
3.1 Please carefully implement the Country Traffic Safety Regulations
●Do not install the child safaty seat at the front seat with airbag.
● Please read the instruction manual carefully that how to use the airbag.
NOTICE
You can install this position
Unable to install the position
Do not install the child safaty seat
at the front seat with air bag.
Only with the three point
safety belt,can this location.
DIAGONAL BELT DIAGONAL BELT
LAP BELT LAP BELT
3. Using safety seat in this way
NOTICE:If the buckle strap of car seat is too
long, the child restraint system can not be
installed firmly. It is very dangerous. If any
doubt, please consult the child restraint
system manufacturer.
67
Headrest
Chest pad
Head belt guide
group II,III
Comfortable cushion
Adjuster
(Under the cover)
Harness adjuster strap
ISOFIX unlock button
Buckle
Harness
Height adjuster
Look-off clip
Top tether
ISOFIX connector
Harness connector
ISOFIX Unlock button
Safety belt route slot
Adult belt route slots
Isofix guide
Comfortable cushion
Belt slot
Belt slot

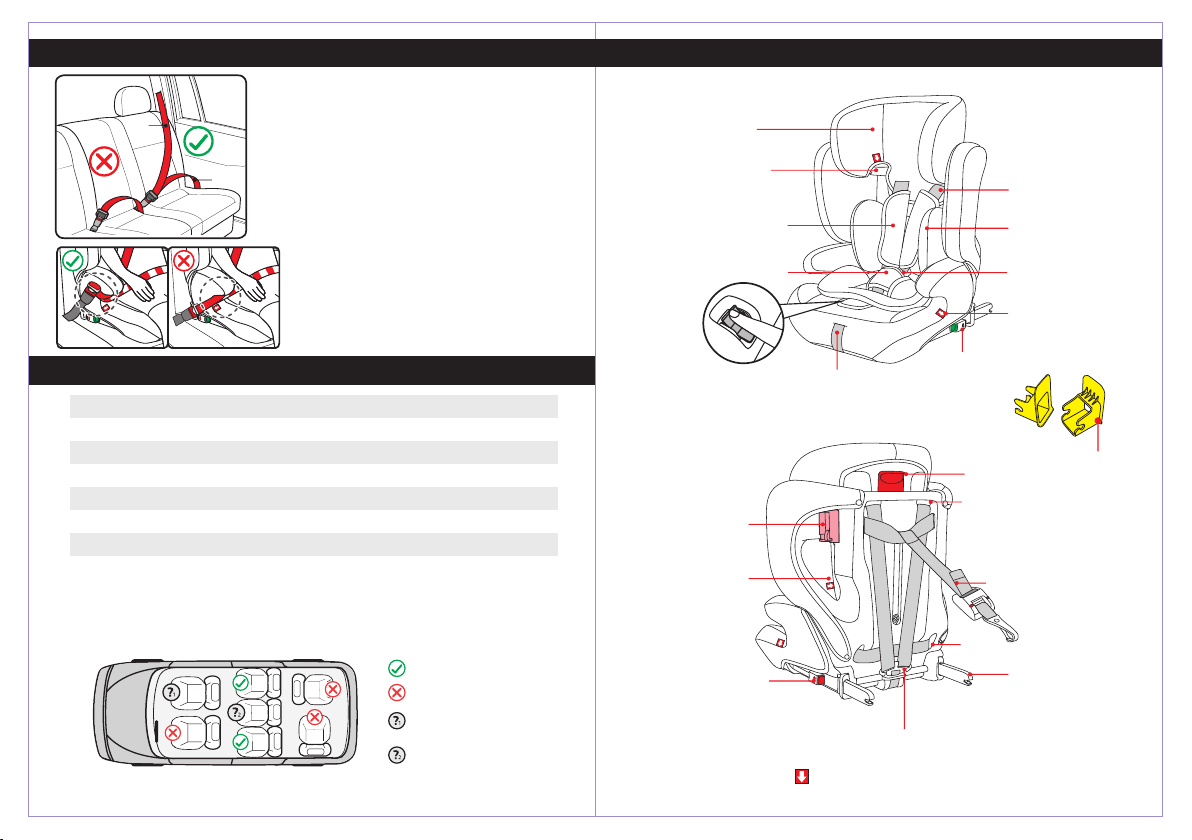

4.Parts and interior equipment
：routing label

GROUP I
It is suitable for
the weight 9-18 kgs,
given to children about
9 months-4 years old.
Instalation 1:
isofix+top tether
Securing the child:
5-point harness
Instalation 2:
3-point safety belt
Securing the child:
5-point harness
GROUP II,III
It is suitable for the
weight 15-36 kgs,
given to children
about 4-12 years old.
Instalation 1:
3-point safety belt+isofit
Securing the child:
3-point safety belt
Instalation 2:
3-point safety belt
Securing the child:
3-point safety belt
5. Scope of application for children
Step 2:Align base and backrest in a
straight line.
Step 1:Slide seat out of box
Step 3:Place backrest hooks inside base
securely.
8 9
6 Steps of backrest and base assembly
A1
A2
A3
Slot alignment
Slot alignment
CLICK
top tether
CLICK

!
Note:In order to keep safety,please put the restraint system on the back seat,
and ensure that the backrest and the car seat nicely.
-Loosening the shoulder harness
Press the adjuster button under the cover
and at the same time pull both shoulder
straps forward.
Pull the adjuster strap until the harness
is fully tightened.
-Tightening the harness
9.Adjust the harness
8.How to place the safety seat
Step 4:Gently keep pressure on hooks
as you lift backrest up.
WARNING:DO NOT FORCE MAY CAUSE
DAMAGE.
①②③
Locking Method
Locking Method：
Align the left and right buckle tongues to one tongue
and insert into the buckle until you hear a“Click”.
Unlocking Method：

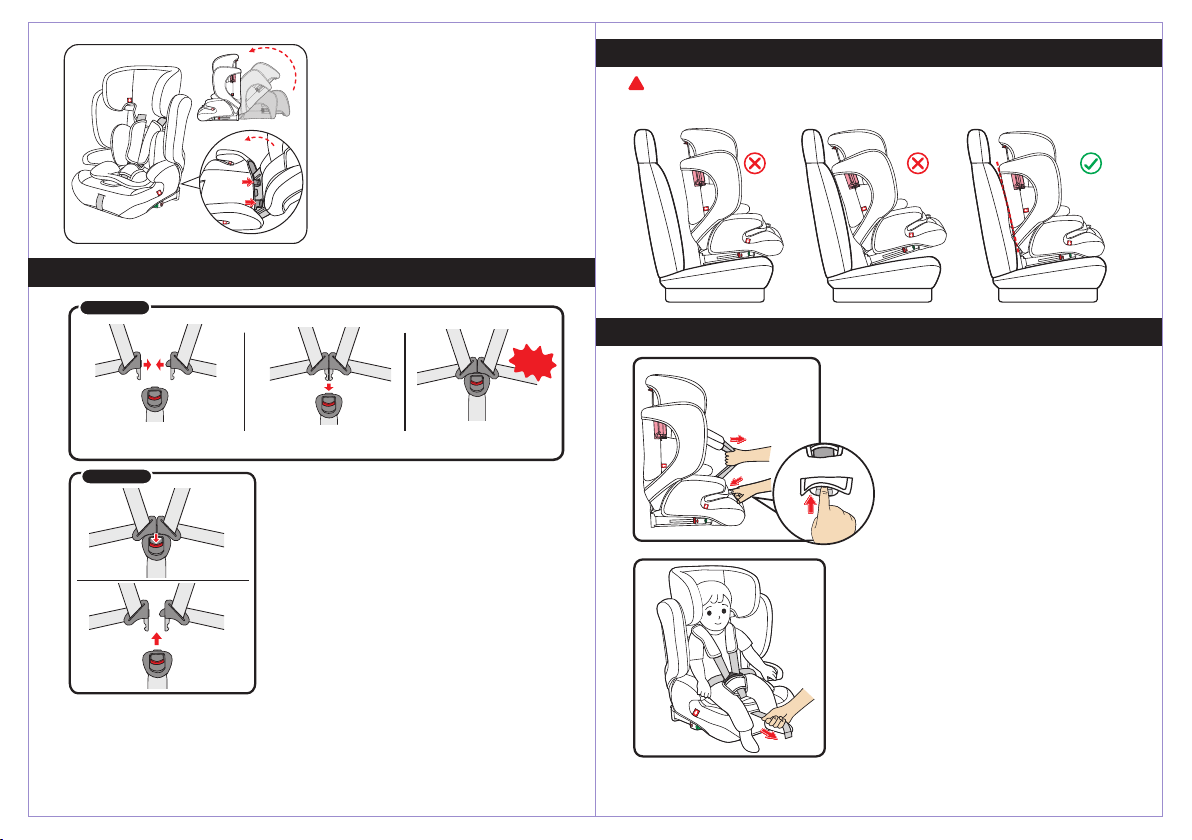

7. Using the buckle
You can press the red button of the buckle
downwards,the two metal sections will be
pop up.
Unlocking Method
①
②
CLICK
A4
10 11

12. Installing the safety group I ( )Instalation 1
It is suitable for the weight 9-18 kg,given to
children about 9months-4 years old.

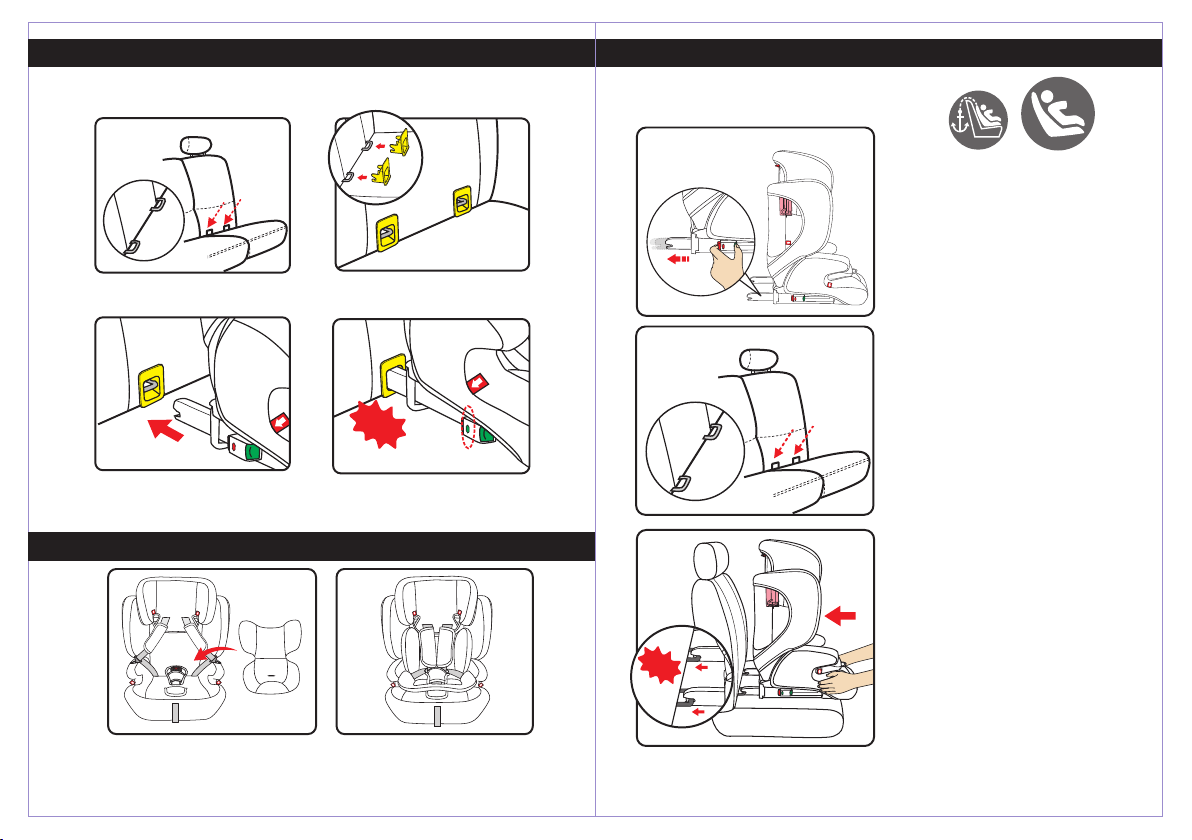

Step 2:Find out isofix connection
in the car.
Step 1: Press both button and push out
the isofix connector
B1
12.1 Install the baby car seat
C2
C1
CLICK
PUSH Step 3: Push child seat follow the
direction and insert isofix connector
into isofix guide(C3）.
B1
CLICK
10. How to use the isofix guide
B2
B3 B4
Step 1:Find out isofix connection
in the car.
Step 2: Insert isofix guide into
isofix connection
Step 3:Push child seat follow the direction and insert isofix connector into isofix
guide(B3、B4），Check if isofix locking system turns to green and make sure child
seat is firmly connected(B4).
C3
12 13
In order to lock the isofix connector to the steel point successfully,
it can use isofix guide.
Instalation: isofix+top tether
Securing the child: 5-point harness
11. Instructions for use of cushion
Notice: Please use cushion for the child less than 15 kgs
Put cushion in child restraint system, and then adjust harness and cushion
following the picture

Step 4: Check if isofix locking system
turns to green and make sure child
seat is firmly connected(C4).
C5
C6
C7
Step 5: Press the adjusting button
and adjust the belt of top tether to the
longest(C5).
Step 6: Connect top tether with the
fixing point on the car(C6).
Step 7: String the belt of top tether
until the adjuster shows green(C7).
Notice: Top tether is only for group I
!
Fixed point 2
Fixed point 1
Fixed point 3
1514
NOTICE:Child safety seat must be against
the car seat firmly.

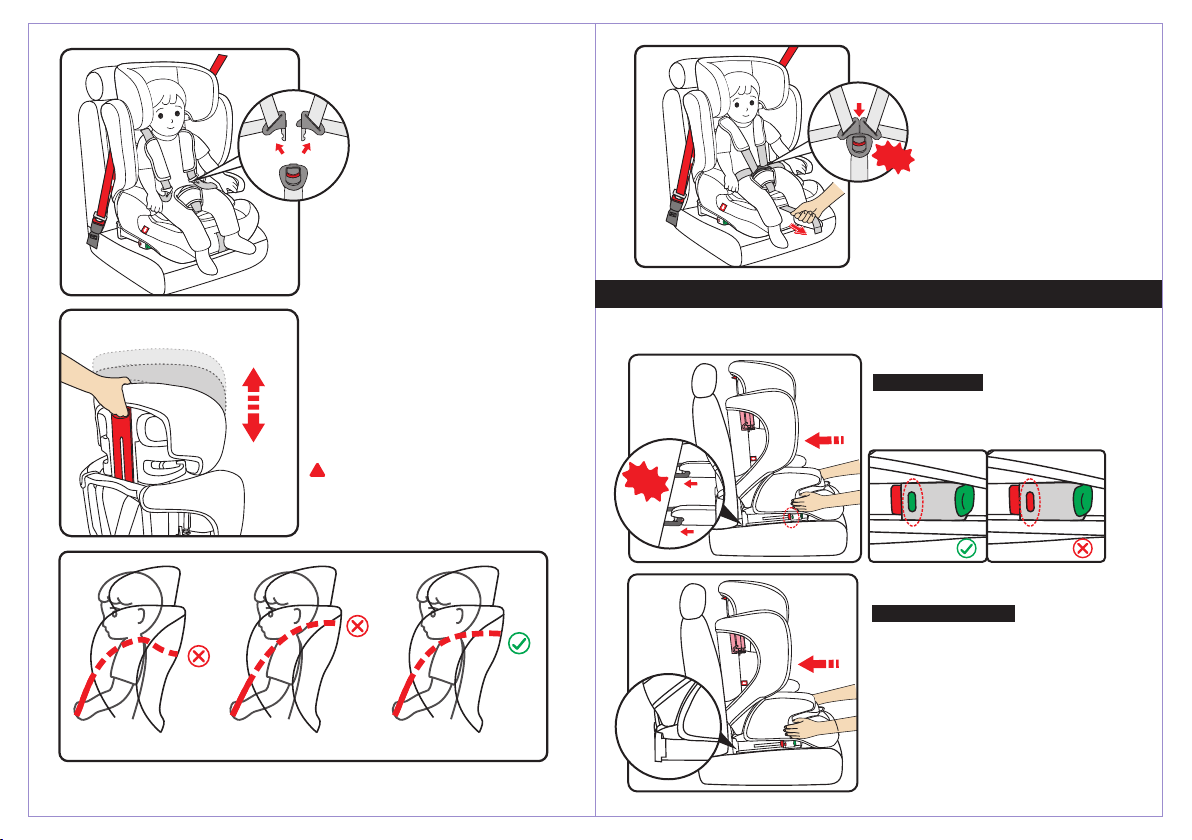

Step 1. Loosen the harness(C8)
Step 2:Release the buckle,and put the
child into the safety car seat(C9).
12.2 Securing the child in the
safety car seat.
C8
PUSH
C9
C4

!
Step 4.Align the left and right buckle
tongues to one tongue and insert into
the buckle until you hear a “Click”(C12).
RightToo high
Too low
Step 3:
(C10).
Pull the height adjuster to adjust
the height of the harness and the headrest
according to the child's height
The height for the harness is
adjusted by lifting the headrest
Note!
(C11).
C10
C11
1716
Step 5:Pull the shoulder straps upwards to
remove the slack from the lap sections of
the harness then pull the adjuster strap
until the harness is fully tightened(C12).
C12
13. Installing the safety group I ( )Instalation 2
Step 1:Hide isofit in the booster(D1).
It is suitable for the weight 9-18 kg,given to children about 9months-4
years old.
13.1 Install the baby car seat
PUSH
CLICK
Step 3:Pull out the diagonal belt together
with lap belt, through the belt route slot
of backrest(D3) .
D3
D1
D2

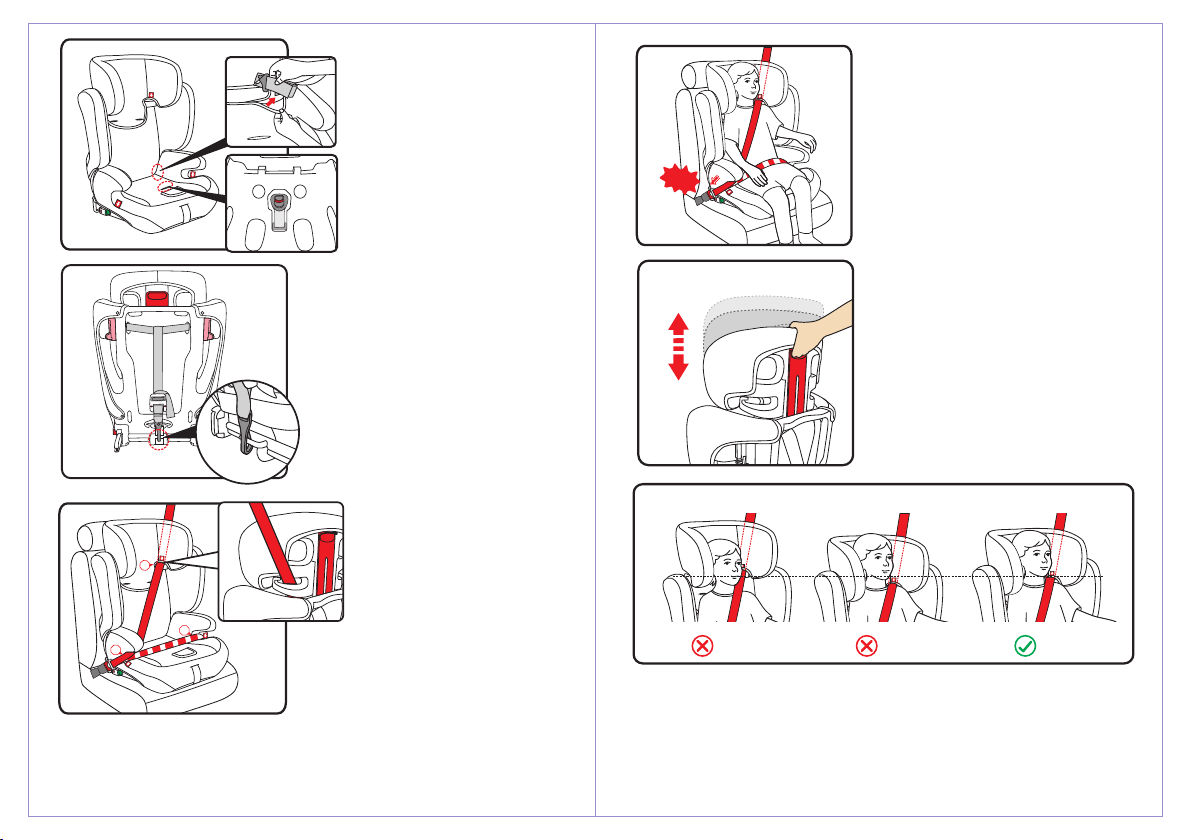

Step 2:Put the Child safety seat against the car
seat(D2)
Instalation: 3-point safety belt
Securing the child: 5-point harness

Step 4:Insert into car seat belt buckle
hear a“CLICK”(D4).
Step 5: Clip the diagonal belt into
the locking clip.(D5,D6,D7) .
1918
CLICK
D5
D4
! Note!Please refer to the following
picture,clip the safety belt into the
locking clip in the right way(C6,C7)

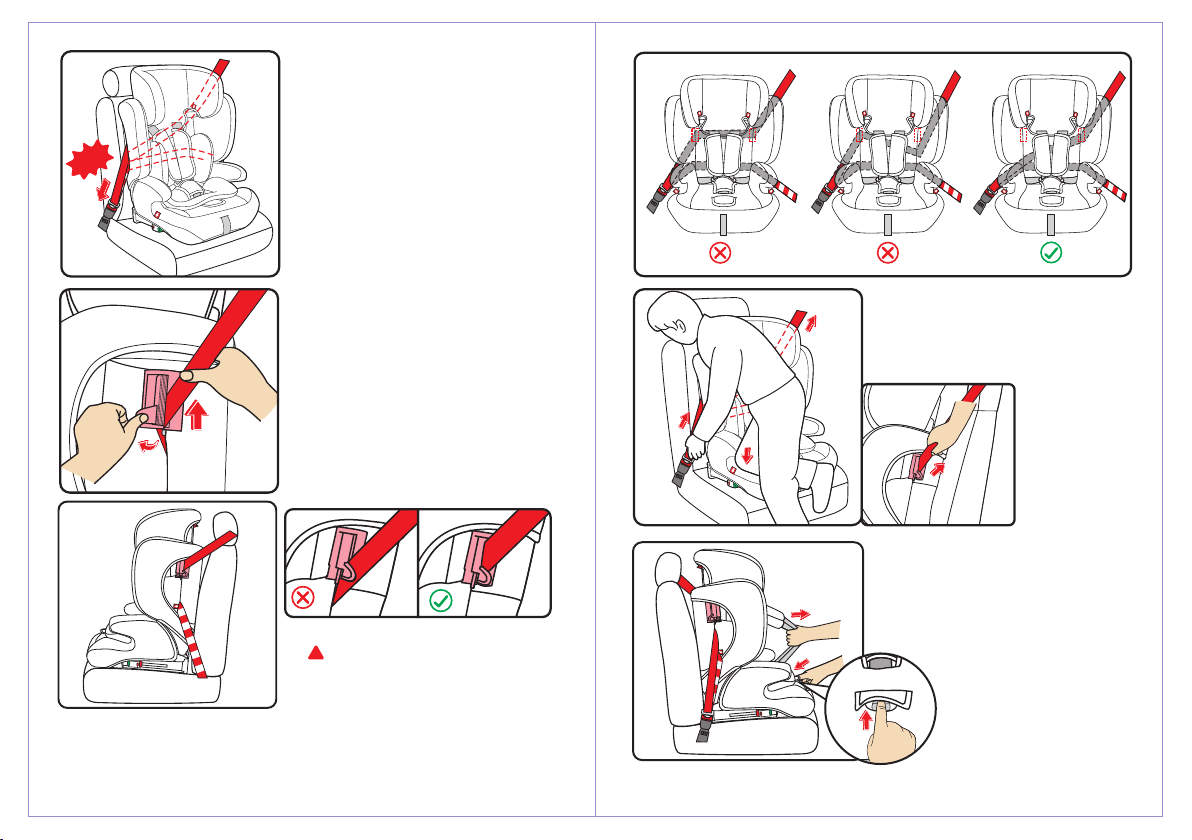

Step 6:Pull car seat belt follow
the direction of red arrow and
make sure the belt is tight
enough(D8).
D8
D7
Step 1. Loosen the harness(D9)
13.2 Securing the child in the
safety car seat.
D9
D6

21
20
!
Step 4.Align the left and right buckle
tongues to one tongue and insert into
the buckle until you hear a “Click”(D13).
RightToo high
Too low
Step 3:
(D11).
Pull the height adjuster to adjust
the height of the harness and the headrest
according to the child's height
The height for the harness is
adjusted by lifting the headrest
Note!
(D12).
D11
D12
Step 5:Pull the shoulder straps upwards to
remove the slack from the lap sections of
the harness then pull the adjuster strap
until the harness is fully tightened(D13).
D13
CLICK
D10

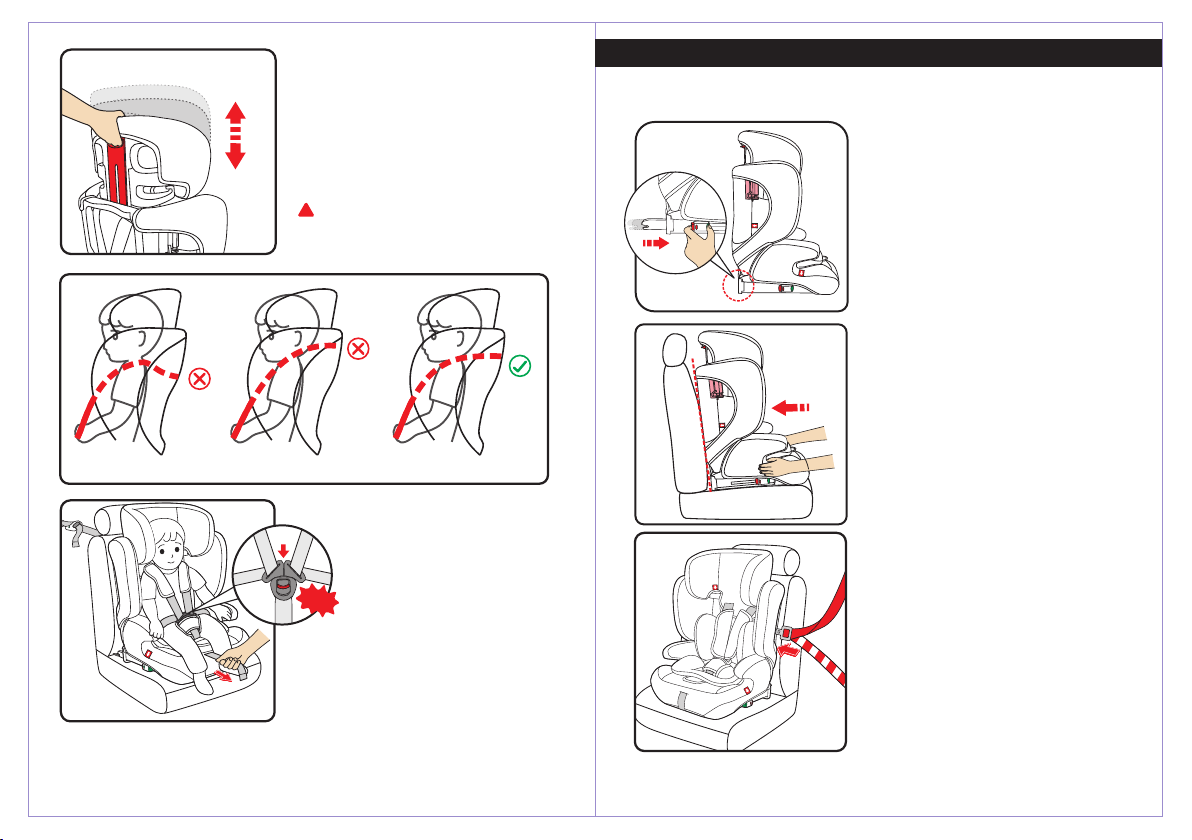

14. Installing the safety group II,III
It is suitable for the weight 15-36 kg,for children about 4-12 years old Approx.
Group II,III installation can choose to use ISOFIT or not.
1.Using ISOFIT:
Connect ISOFIT with anchorage
point on the car seat(E1)
2.Not using ISOFIT:
Hide ISOFIT in the booster. Put the
seat against the car seat(E2)
PUSH
CLICK
PUSH
Step 2:Release the buckle,and put the
child into the safety car seat(D10).
E1
E2

22 23
Step 2:Follow the E5 routine to install
the baby car seat.
Stock the baby car seat in a
safe place or ensure the baby car seat
is firmly installed when not using it.
Notice 4:
Securing the child
Step 1:Follow the part 15 (see
picture F1~F9)routine to remove
car seat pad.
A
C
B
E3
E5
NOTICE 3:No need to take off the
top tether. Click it onto the booster.
NOTICE 1:Fold the strap of both
sides and hide under the booster
cover
NOTICE 2:Place the buckle in the
booster(under the cover).
E4
Step 4:Use the height adjuster to adjust
the height of the headrest according to
the child's height.The gap between head
belt guide and baby is 2 finger width.The
harness straps should be level with or just
above the child's shoulders
(E7,E8).
E7
Too high Right
Too low
E8
Step 3: Put the child in the seat and
follow E5 routine.
CLICK
E6

24 25
Step 5:Fasten car seat belt and make
sure, it is tight enough(E9).
Important:Ensuring that any lap straps is
worn low down,so that the pelvis is firmly
engaged,shall be stressed.
Press the green button first and then red
button to release the isofix connector
and take away the seat
15. Unlock ISOFIX
1
2
1
2
E9
Step 2:Release the buckle
Step 3:Slide both of the harness
straps off the harness connector.
16. Remove the cover
Step 1. Loosen the harness(F1)
①
②
F1
F2
F3

Step 4:Pull out the shoulder belt .
Step 5:
the slot which under the safety
car seat.
Pull out the harness from
Step 6:
and accessories well.
Keep the removed cushion
2726
F4
F6
F5
Step 7:Place the buckle in the
booster(under the cover).
F7
Step 10:Turn the seat to the back and
unlock the snap fastener.
F10
F8
F9
Step 8:Fold the strap of both sides
and hide under the booster cover
Step 9:Click the top tether onto
the booster

Saloon No.of doors
Before you purchase the vehicle,
check that it is equipped with the
appropriate anchorages
* Year of manufacture
②④ Approved seats
Estate
Convertible
Hatchback
MPV
Coupe
No.of seat
Maximum body height
The following vehicle list is only for reference. If your vehicle
does not in the list, before using, please consult with the retailer
or manufacturer.
18. List of approved cars
17.1 Daily maintenance
1.In daily use,check periodically the child seat.The child seat should be replaced
after an accident.
2.Please keep this child seat in dry and ventilated place to avoid damp moldy.
3.If the child seat becomes dusty,clean the seat belt and the plastic pieces by
swiping them with a damp sponge and let it dry naturally.
4.If food or drink drop accidently on the buckle,disassemble the seat belt from
the child seat and rinse it gently by warm water.Leave it dry naturally.
5.For cleaning the entire child seat fabric cover,please refer to the 17.2 washing
instructions.
17.2 Washing instruction
Never use any solvant,chemical detergent or lubricant on any part of your
child seat.
Hand wash,
water
temperature
below 30℃
Do not bleach Dryclean,any
solvent except
trichloroethylene
Do not tumble dry Do not iron
17. Maintenance and cleaning
Step 11:
cover
Pull all directions to take out the
(F11).
※
procedure to put on the fabric cover
Follow in reverse order and repeat the
F11
2928

31
30

32
