nino robotics ONE User manual

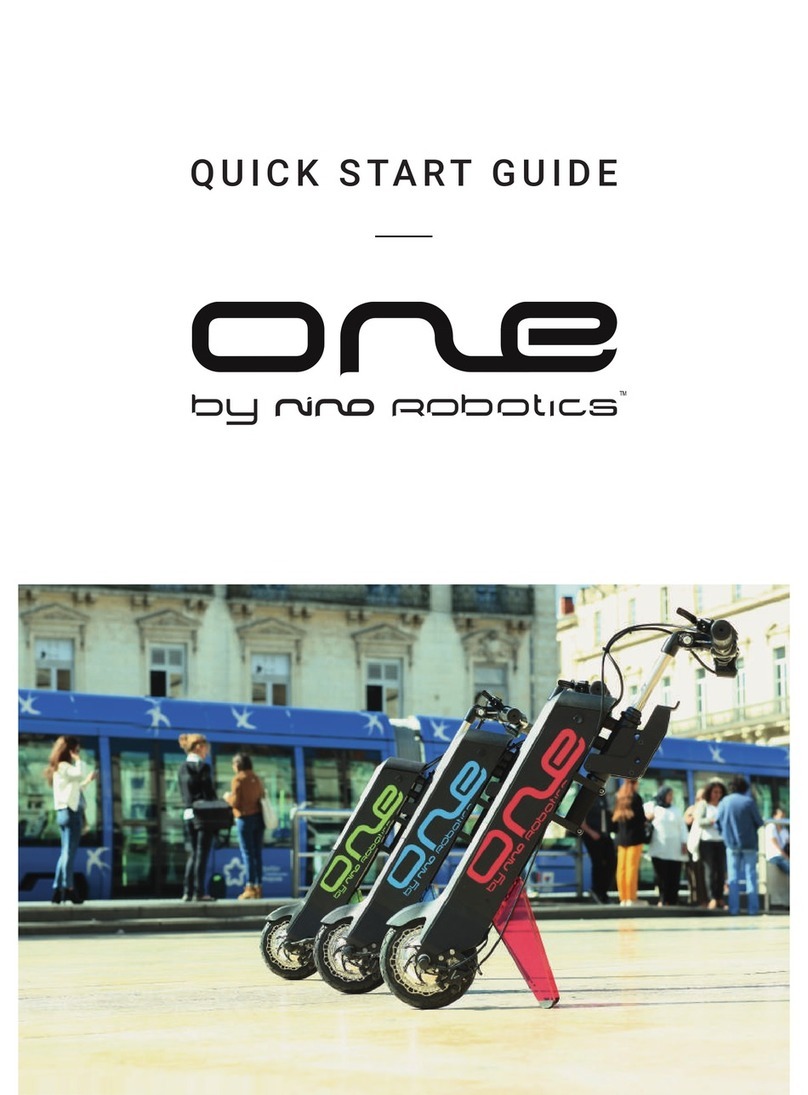

QUICK START GUIDE

Step 1 2
1
4
5
6
7
8
9
10
Clamping the clamps
Accessories
Summary
Step 2 Creating the hook bar
Step 3 Installing the catch bar
Step 4 Mounting the hook
Step 5 Adjusting the angle of the
hook
Step 6
Step 7
Option
Mounting the One on the Chair
Disconnecting One from
armchair
Foldable handlebar
Accessories
Clamps x2 Spacers of clamps x4
Hook x1
Tube B (l ou L) x1Tube clamp x1
Positioning rings x2
Tube A x1
1

Chair
Clamps x2
Step 1
2
Clamping the clamps
Top view of the
armchair
12nw de serrage
90°
1
3
Top view of the
armchair
Front view of the
armchair
12nw de serrage
90°
2
3
0°
7cm
X
38cm
Measure X to be calculated
90°90°

Step 2 Creating the hook bar
Tube B (l ou L)
Tube A
Tube clamp
>70mm
Tube clamp
Tube A
Tube B (l ou L)
4
Positioning ring
1
Measure X
of step 1 to
be reported
Lock the
tube ring A
Pre-tighten
the tube,
slide several
times
Clamping
the tube at
12nw
234
Step 3 Installing the catch bar
Bar
Positioning ring
5
X

Step 4 Mounting the hook
Hook
Bar
6
1
Attach the
hook
Front of the
hook
2nd positioning
ring
Insert the 2nd `
positioning ring
2
Tube A
Tube B
= =
7
Step 5 Adjusting the angle of the hook
90°
Tightening 12nw
entre 1,5 cm et 3 cm

Step 6 Mounting the One on the Chair
8
1
Push upwards
Hooks
Locking ngers
open
Locking ngers
closed
5cm minimum
Put the safety
clamps (x2)
2
9
2
1
Push and
keep dropping
gently
Remove
locking
ngers
Step 7 Disconnecting One from the Chair

10
Foldable handlebar
Folding
Option
Unfolding
