Nitto Fantasy Forest Bowling User manual

Fantasy Forest Bowling
User Manual
（Please read this User Manual carefully before you installing this product.）

Content
Ⅰ．Features and description of games...................................................... 1
Ⅱ． DIMENSION AND TECHNICAL PARAMETER.......................... 2
Ⅲ. ENCLOSED LIST OF THE MACHINE.............................................. 3
Ⅳ．METHODS OF PUT ,FIXED AND MOVED....................................4
V、Power connection method.................................................................. 5
VI. Power box description........................................................................... 6
VII. Use and maintenance guide................................................................. 6
VIII. Error and Trouble shooting.................................................................9
IX. Sensors Introduction and Repair Instruction................................... 10
X. IO connecting

1
Ⅰ．Features and description of games
Features
1．Carnival machine of lottery
2．The methods of playing the games are new, exciting and full of leisure
entertainment
3．The shape design are elegant, colorful patterns, delicate and use
exquisite materials
4．Using large-scale integrated circuits, which built-in programs. The
functionality are stable and reliable
5. Using the import lottery machine
6．Meet the general type of lottery
7．Using the imported coin machine, the diameters of coins can adjust
from 20mm to 28mm, which is in high accuracy, stable and reliable
8．Game programming and revenue ratio are easily to adjust
How to Play：
1Insert coins, choose the game level, the game begins；
2Choose 1P or 2P, and press OK, the ball will roll out, you
can bowl the ball out.
3Bowl over the pins in the screen and you can get score.
The more pins you bowl over, the more tickets you will get.

2
Ⅱ． DIMENSION AND TECHNICAL PARAMETER
1．Working voltage: AC220V ± 5%50Hz (or AC 110V ± 5%,60Hz,
specific voltage, please refer to the nameplate of the machine);
2. Maximum power consumption: 500 W；

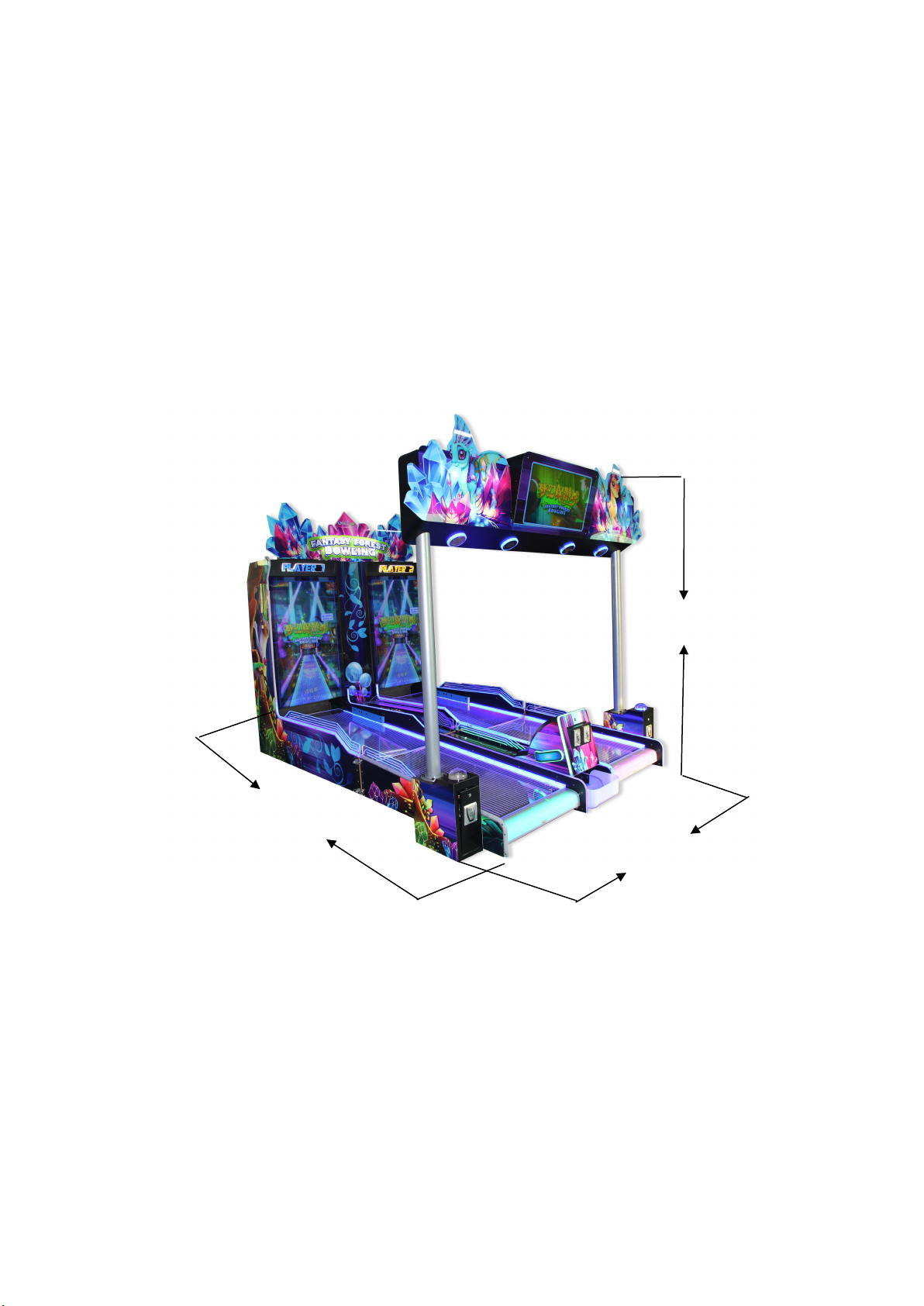

3. Overall dimensions: ：W2500*D3600*H2500 （mm）;
2500
3600
2500
4. Weight:：About 400 kg;
5. <environmental conditions: (indoor) temperature: -10~+40 ° c
temperature: ≤ 90%;Atmospheric pressure: 86Pa~106Pa.>:

3
Ⅲ. ENCLOSED LIST OF THE MACHINE
FOR USING THE MACHINE SATELY, PLEASE CHECK WHETHER
IT INCLUDS ALL THE PARTS BELOW BEFORE YOU USE.
ONE MAINFRAME
SPART PARTS, LIST OF THE TABLE BELOW:
NO
NAME
SIZE
PC
UNITE
REMARK
1
POWER WIRE
1．8m
1
PC
2
Insurance tube
5XΦ20mm
2
PC
10A
3
MANUAL
1
PC
4
KEY OR THE COIN
SELECTOR
AH78
2
PC
5
KEY OF THE DOOR
AH57
3
PC
INDOOR AND
BACK DOOR

4

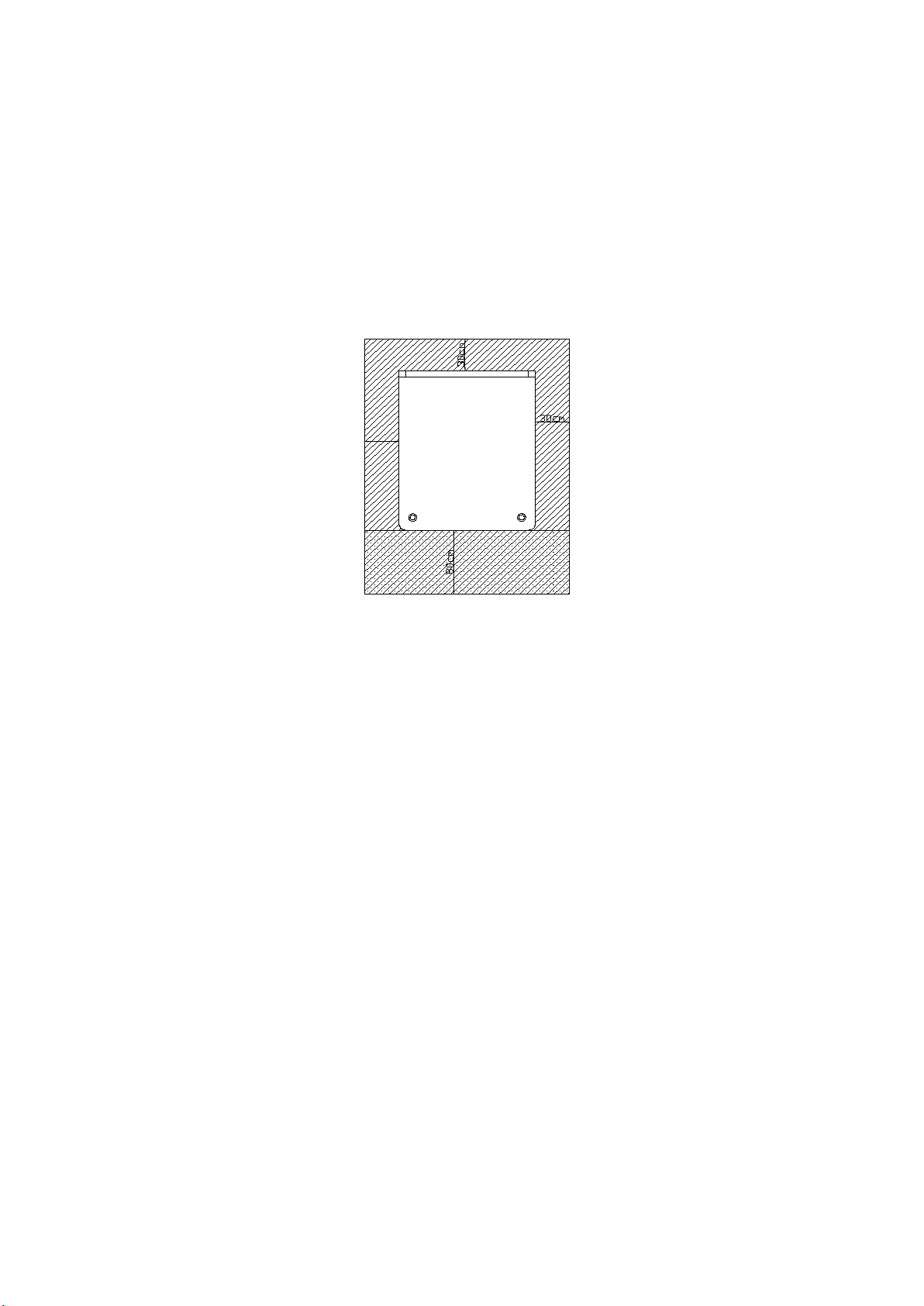

30cm
P la y Z o n e
M ach ine Z on e
Ⅳ．METHODS OF PUT ,FIXED AND MOVED
1. This machine is suitable for indoor use, they are not allowed for
outdoor use.
Outdoor use will affect the performance of the machine.
2． Mounted range size:Machines should be placed, there is enough
space to allow air to flow, cooling of the machine will be better
3．Do not use the machine in the following areas：
(1)The places which will make the machine produce condensate water or
the areas of large condensation temperature;
(2)Places near hot objects;
(3)Places near the dangerous goods;
(4)The smooth or unstable places;
(5)Near the equipment which is easy to produce sparks;
(6)Place in a serious shock;
(7)In the dusty environment.
(8) When move it , you must pay attention to the following:
①When you move it, you must turn off the power and pull the power
connection out.
②If the caster can not move when you moving, please replace the castors.
③Any moving, turning and transport artificial random could damage the
device and destroyed the mechanical properties .
④Confirmed the process of moving , flipping and transportation meet the
manufacturers requirements.

5
V、Power connection method
Attention
1. the power cord cannot be heavy pressure, which can damage the
wires easily to short circuit, and in severe cases may cause fire.
2. When you unplug the power cord from outlet, grasp the plug has
been removed, can not catch wires to unplug.
3. no direct mains plug with wet hands.
4. does not stretch, distortion, power lines, high-temperature objects
cannot be exposed near the power cord.
5. power cord cannot easily be kicked or have access to
6. to use the correct voltage and fuses (refer to technical parameters)

6

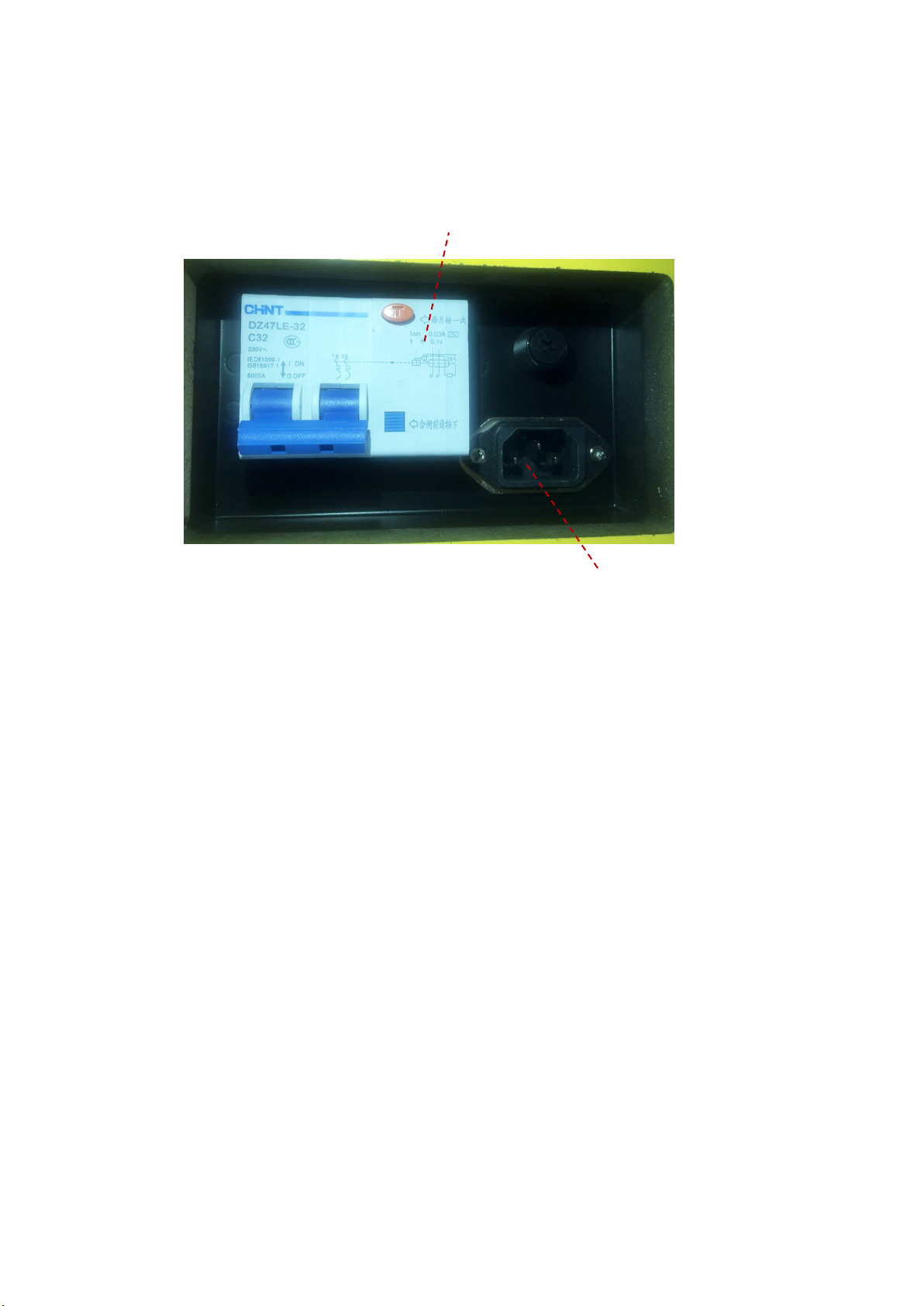

VI. Power box description
电源开关
Power supply
电源插座
Power socket
1. This machine uses“220V±5% 50HZ（or 110V±5% 60HZ）。
2. insurance device installed the exchange insurance，the size is“220V
5A diameter is 20mm（or 110V 10A diameter 20mm）。
3. power switches are used to connect/shut off connection.
4. a grounding wire with special ground wire.
VII. Use and maintenance guide
1．Machines for maintenance and repairs, you must turn off the power
source.
In order to avoid short circuit, the persons concerned access to machine
internal components before you turn off the power source. If it requires
power, shall meet the requirements of operating instructions
2．When you replace a component determines when the appropriate
choice of accessories.
Use of incorrect parts can result in fire or electrical short circuit, damage

7
to the Board, and no device
3．Don't arbitrarily split the Royal, Assembly, alter equipment. This can
cause fire or an electrical short circuit, mechanical failures, and so on.
4．Confirm the move, flip, transport and so on to meet manufacturers
request. Random people-moving, can damage equipment such as flip,
transport, destruction of machinery performance.
5．This machine is suitable for indoor use, should not be used outdoors.
Outdoor use will affect the performance of the machine.
6．Not in the following places
★Place where leakage or high humidity
★Close to the places of high temperature objects
★Close to dangerous goods.
★Slippery or unstable place.
★Equipment close to the spark
★Shock serious place
★Dusty environment
7．Do not place a vase filled with water in the above, cups. container, or
placing chemicals above and very heavy.
Liquid overflow will cause electrical short circuit damage devices,
chemical corrosion machine, will harm the human body falling from
a height and destruction of the machine.
8．Do not place objects at the vent being blocked will cause the
temperature rise, affect the functioning of machines or even damage the
device..
9．Power cord cannot be load down.
That this might damage the wires and cause short circuits and fire
10．When you unplug the power cord from outlet, grasp the plug-talk,
cannot grasp the wire has been removed. This can damage the wires,
causing short circuits and fires.
11．No direct mains plug with wet hands.
Otherwise it may cause electric shock injury the body.

8
12．Does not stretch, distort, hard folding power line, power line exposed
to high humidity cannot be object.
These practices have damaged wires, causing short circuits and fires.
13．Power cord can not be kicked or contact easily. This will harm the
human body and damage the machine
14．Power cord cannot easily be kicked or have access to.
This will harm the human body and damage to the machine.
15．Not at liberty to runaway fires or operation faults.

9

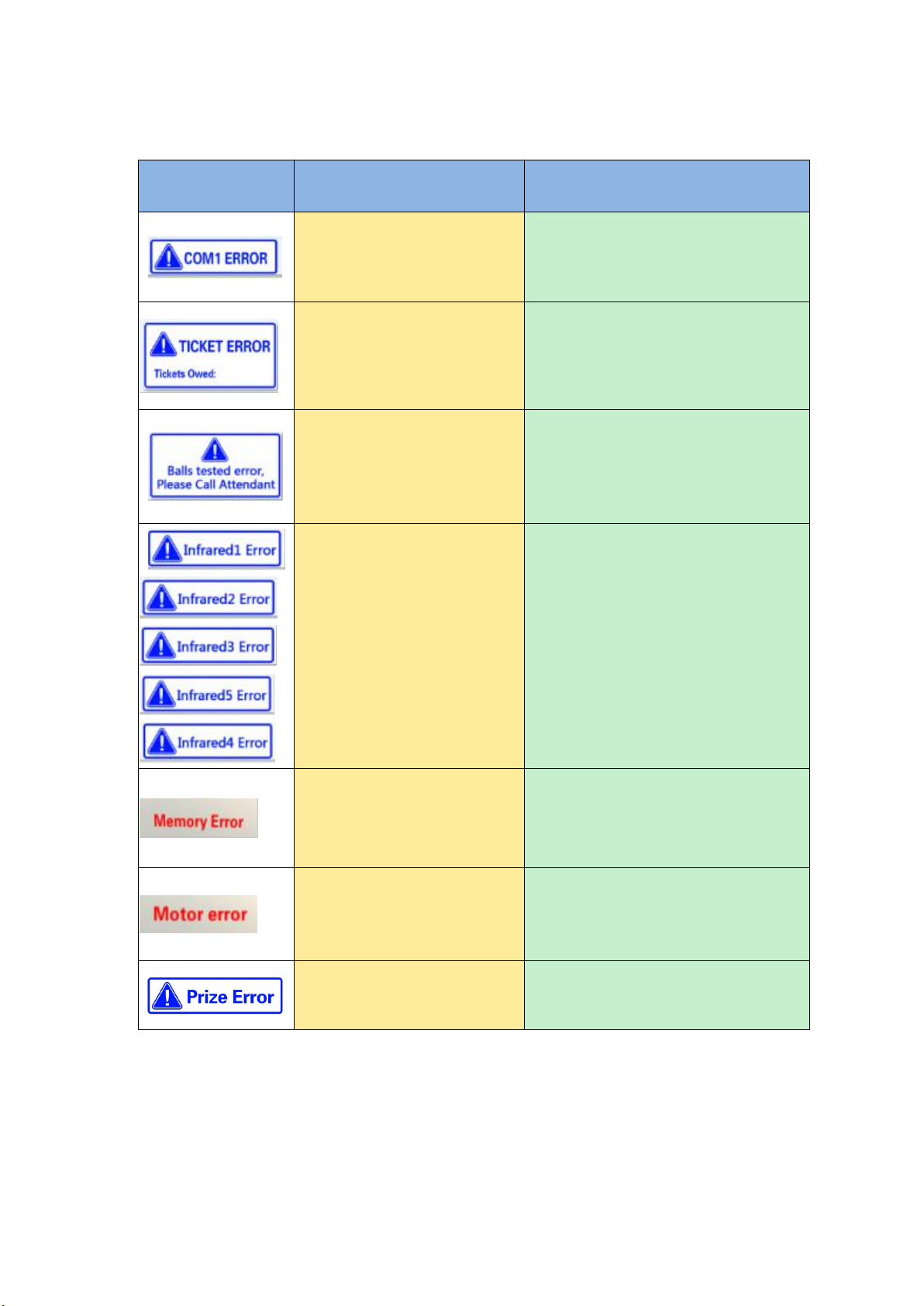

VIII. Error and Trouble shooting
Error
solution
1.The computer and IO board are
disconnected.
2.The IO board is broken.
1.Please check the COM line, and pull it
out and re-plug it.
2.Please contact after-sell.
1.Ticket dispenser error.
2.No ticket.
1.Press the restore button of ticket
dispenser.
2.Add tickets.
1.No ball.
2.Testing sensor error.
1. Please check the COM line, and pull it
out and re-plug it.
2.If the sensor is broken, please contact
after-sell.
1.The infrared sensors of lane
are with error.
1.Please check if the corresponding
sensors are blocked by something；
2. The sensors are not aligning. Please
take apart the installation and adjust the
direction;
3.If the sensor is broken, please contact
after-sell to change it.
1.Can not read the memory,
which would cause running
error.
1.Please check if the memory stick of
computer is normal or not.
1.There are errors with the
sensor of motor, the ball would
not come out.
1.Please check if the sensor of motor is
broken.
1.Machinism error.
2.No prize.
1.Press the restore button.
2.Add prize.

10

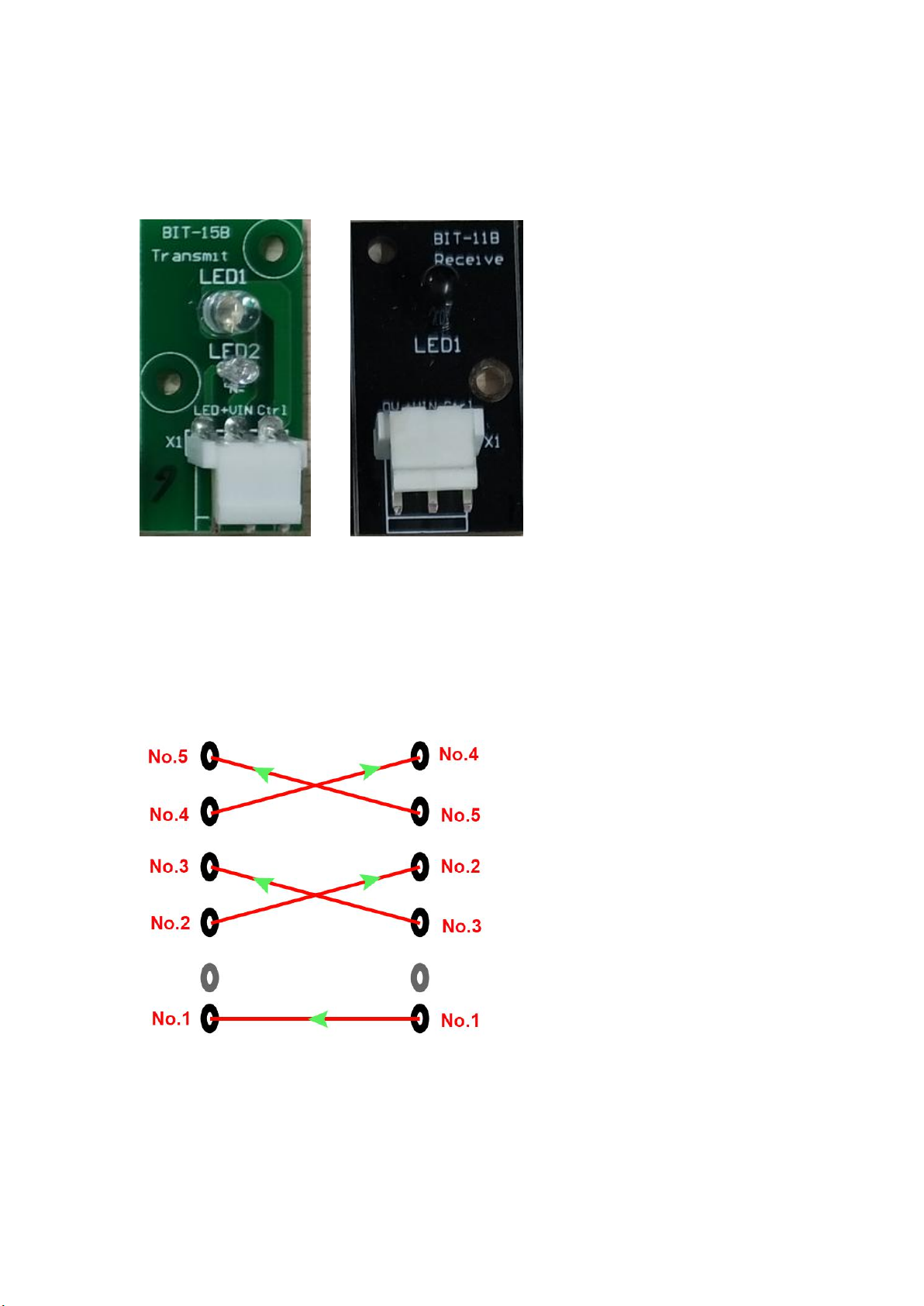

IX. Sensors Introduction and Repair Instruction
Sensor：transmitter and receiver.
Normally, the transmitter lights up all the time, and the receiver would
not light up. If the receiver lights up, it means that it is not aligning to the
corresponding transmitter or it is blocked by something.
There are five pairs of sensors of each lane. The no. and transmit
direction of each pair of sensors are as shown as above.

Jungle Fantasy Bowling IO connecting V1.0
Input：ADC:
INPUT Content INPUT Content INPUT Content Item Content Content
IN1 1P ray input 1 purple IN9 1P ray of ball check blue IN17 2P ray input 3 orange
AD1-2
(J3)
+3.3V
IN2 1P ray input 2 grey IN10 1P ray of ball delivery purple IN18 2P ray input 4 green AD1 1P choose button white
IN3 1P ray input 3 white IN11 2P inset coin brown white IN19 2P ray input 5 blue AD2 2P choose button purple
IN4 1P ray input 4 green white IN12 IN20 2P feedback of ticket dispenser green white GND
IN5 1P ray input 5 blue white IN13 2P ray of ball check grey K1 Test Button blue
AD3-4
(J4)
+3.3V
IN6 1P feedback of ticket dispenser green IN14 2P ray of ball delivery white K2 Service Button purple AD3 1P feedback of prize machine pink
IN7 1P inset coin brown IN15 2P ray input 1 brown K3 Ticket dispenser restore grey AD4 2P feedback of prize machine green
IN8 IN16 2P ray input 1 pink K4 white GND
AD5-6
(J5)
+3.3V
Remark：IN1-20 are standard inputs, 21-24 are connecting the backstage button AD5
AD6
Output GND
OUTPUT
Content OUTPUT Content
OUTPUT
Content
AD7-8
(J6)
+3.3V
OUT1 P1 ball delivery motor grey OUT9 1P flash light 1 brown OUT17 AD7
OUT2 P2 ball delivery motor white OUT10 1P flash light 2 pink OUT18 AD8
OUT3 RGB color wash light 1_R brown OUT11 2P flash light 1 green OUT19 1P ticket dispenser drive white GND
OUT4 RGB color wash light 1_G pink OUT12 2P flash light 2 blue OUT20
OUT5 RGB color wash light 1_B orange OUT13 tricoloured light_R brown white OUT21 COM:
OUT6 RGB color wash light 2_R green OUT14 tricoloured light_G green white OUT22 2P ticket dispenser drive white Item Content
OUT7 RGB color wash light 2_R blue OUT15 middle flash light grey OUT23 1P prize machine drive brown COM1
OUT8 RGB color wash light 2_R purple OUT16 tricoloured light_B blue white OUT24 2P prize machine drive orange USB
RF
Remark: OUT1-16 are MOS tubes, the max output electric current is 2A; Serial output
17-24 are ULN2803 output, the max output current is 50MA. Item Content Content
COM:
S1-5
(J18)
GND
Item Content Content S1 Coin counter brown
COM1
(J12)
TX S2 Ticket counter pink
RX S3
GND S4
COM2
(J13)
TX S5
RX 5V
GND 12V
