Homing Bed Monsters User manual

Owner’s Manual
The Operator of this equipment is responsible for maintaining customer safety
at all time. Details set forth in this document must be followed at all times.
NOTICE
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]
Homing Amusement & Game Machine Co.,Limited

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
SAFETY WARNING
In order to use this game safely, be sure to read this Operator’s Manual thoroughly
before installation, adjustment or use of this game.
Whenever the owner of this game or his authorized representative disassembles,
install, adjusts, repairs or performs periodic maintenance on this game, the owner
should ensure that the person performing the work has read the appropriate
precautions and the relevant section of this manual prior starting work.
In order to prevent accidents while this game is in operation, make sure that the
safety notes described below are followed.
This game is intended for indoor use only and should be for the purpose intended.
Hyper Entertainment bears no responsibility for accidents, injury or damage
resulting from unauthorized arranges to, or improper use of this game.
SAFETY NOTES
These safety notes are to be used throughout this manual. Anyone working on this
machine should realiarize themselves with each of these notes and their meanings prior
to installing, adjusting, repairing, performing periodic maintenance.
-1- Owner’s manual
`
Warning
WARNING: This denotes a hazard that could result in injury, death, or damage to the game.
CAUTION: This denotes a hazard that could result in damage to the game. Do not proceed beyond a
warning note until the indicated conditions are fully understood and conformed to.
CAUTION
GENERAL SAFETY CONDITIONS
--- Only operate this game after checking that the unit has been installed properly and
in accordance with this manual.
---All warning notices must always be visible and in good condition. Warning labels,
which are worn, or illegible, should be replaced immediately.
--- Only qualified personnel should be perform the installation, adjustment, repair
and/or periodic maintenance of this game.
---To prevent the possibility of electrical shock, the game MUST be plugged into AC
power receptacle using an appropriate three prong GROUNDED plug.
If at any time the AC power cord if damaged, it MUST be replaced immediately.
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]

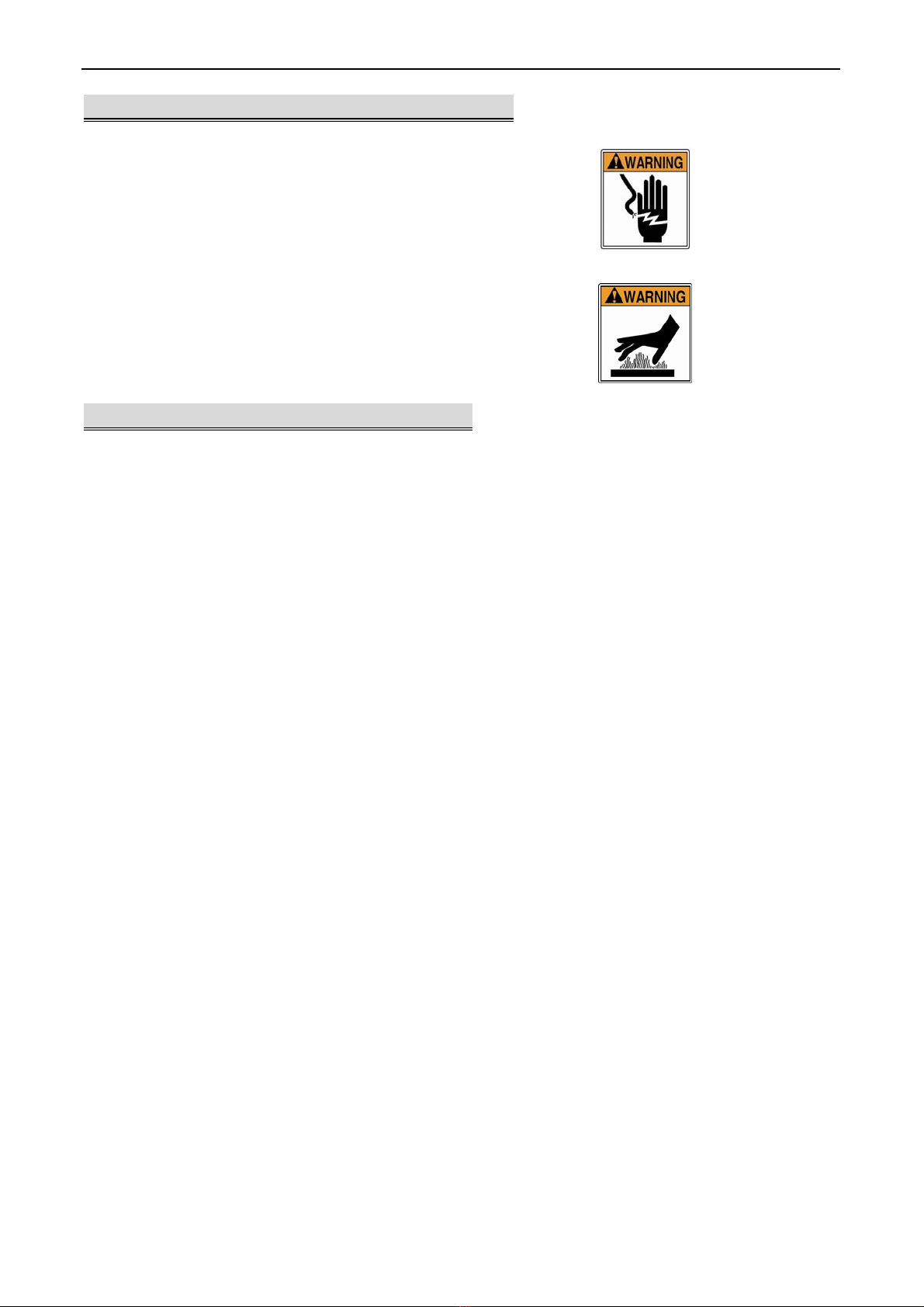

Be careful of the identifier in the machine.
-2- Owner’s manual
It is the warning of HIGH VOLTAGE.
It means high voltage can cause an electric
shock, turn off power before serving.
Be careful of the identifier in the machine.
It is the warning of HIGH TEMPERATURE.
It means high temperature can cause burning.
INTRODUCTION OF THE MANUAL
This owner’s Manual is intended to provide detailed descriptions together with all
the necessary information covering the general operation of electronic assemblies,
servicing control, spare parts, etc. as regards the product.
This manual is intended for the owner, personnel and managers in charge of
operation of the product. Operate the product after carefully reading and sufficiently
understanding the instructions. If the product fails to function satisfactorily,
non-technical personnel should no circumstances touch the internal system.
Non-technical personnel who do not have technical knowledge and expertise should
refrain from performing such work that this manual requires the location’s maintenance
man or a serviceman to carry out, or work which is not explained in this manual. Failing
to comply with this instruction can cause a severe accident such as electric shock.
Ensure that parts replacement, servicing & inspections, and troubleshooting are
performed by the locations maintenance man or the serviceman. It is instructed herein
that particularly hazardous work should be performed by the serviceman who has
technical expertise and knowledge.
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
-3- Owner’s manual
CONTENTS
1. Specifications…………………………………….…………………………………………………..4
2. Package Contents…….…………………………………………………..………………..…..…..5
3. Major Components………………………………………………………………………………….6
4. Playing Instruction…………………………………………………………………………………7
5. Connecting the power cord and grounding……………………………………….8
6. Installation……….…………….…………………………………….………………………………..10
7. Movement………………………………………………………………………………………………..12
8. Game adjustment…………………………………………………………………………………..13
9. Maintenance and Troubleshooting……………………………………………………..18
I/O chart
e company
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
1.Specification
¾1 Rated power supply：AC220V±10% 50Hz or AC 110V±10% 60Hz;
(Note: As the actual voltage, please refer the label of the machine.)

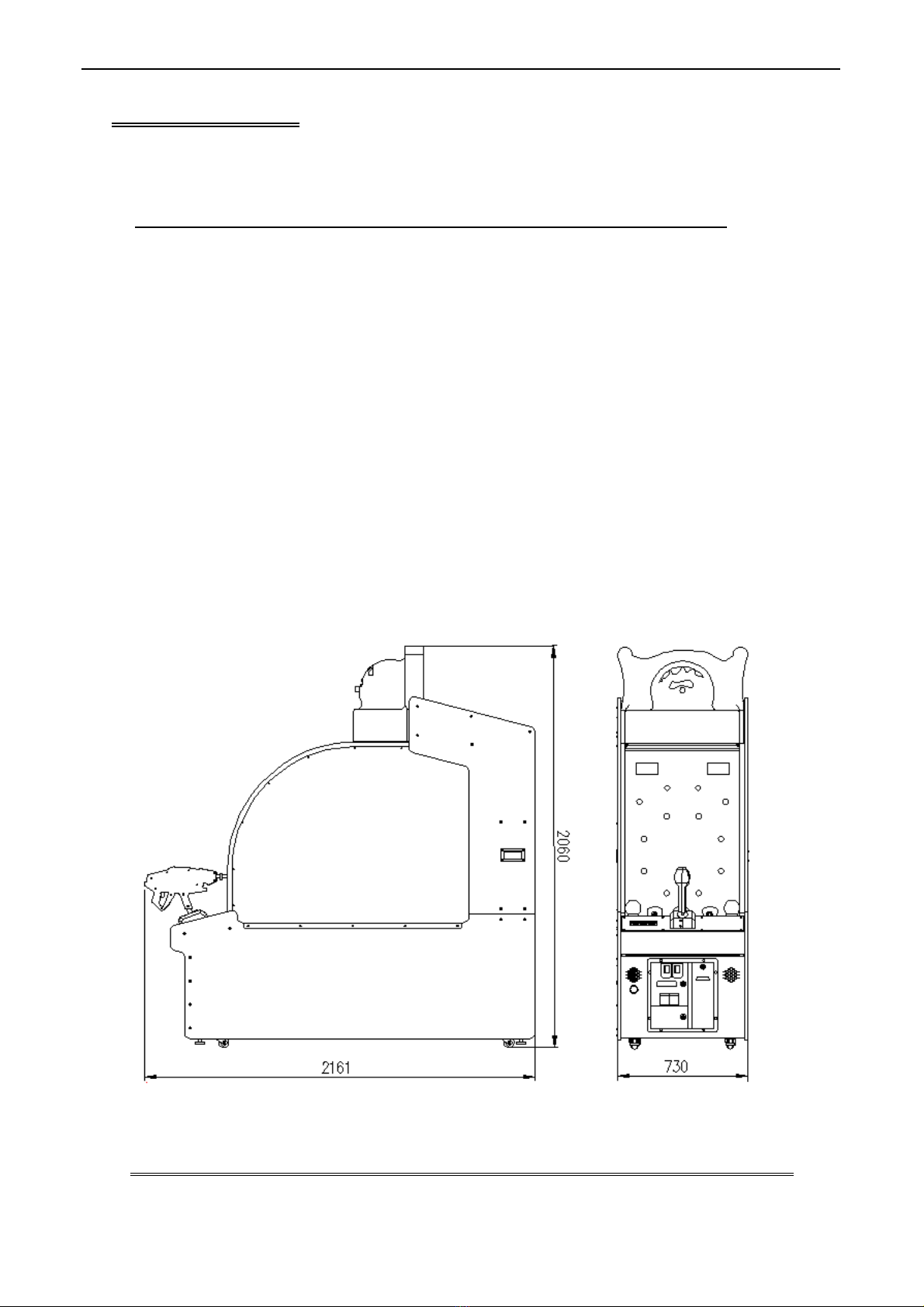

¾2 Dimensions：W730×W2161×H2060 (mm)
¾3 Weight：about180 Kg
¾4 Power rate: 600W
¾5 Environment Condition: Temperature(indoor): -10℃～+40℃
Humidity:≤90%
Atmosphericpressure:86Pa～106Pa
Note: Game parameters are subject change without notice.※
-4- Owner’s manual
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
2.Package Content
Body Assembly: 1 unit
●Make sure that all the parts shown below are included in product package.
●If any parts are missing, contact your distributor.
Accessories
Illustration
-5- Owner’s manual
No Component Specification Qty Note
1 Power wire 1.5M 1
2 Fuse 6A Φ5-20mm 3
3 Operation Manual 1
4 Key 6026 1
5 Key 6029 1 For Cash Box
6 Spot Lamp DC12V 20W 1
7 Score SW 1
Note: Game parameters are sub※ject change without notice.
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]

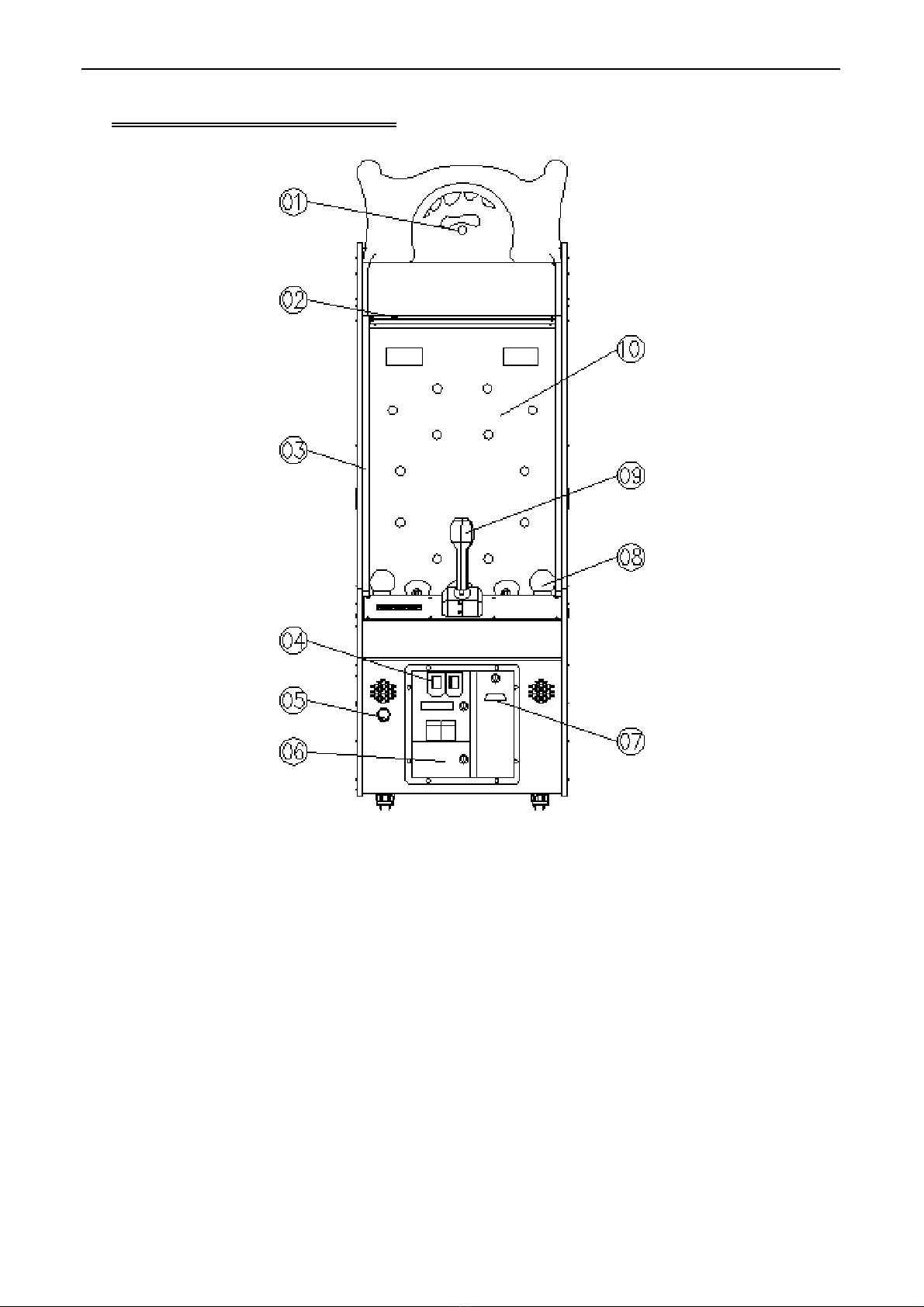

3.Major Components
1.Big Monster；
2.Top Acrylic；
3.Side Acrylic；
4.Coin Acceptor；
5.Water Warning；
6.Coin Box Door;
7.Ticket Dispenser；
8.Target(3 Small Monsters);
9.Gun Assy;
10.PlayField(Target8 + 4).
-6- Owner’s manual
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]

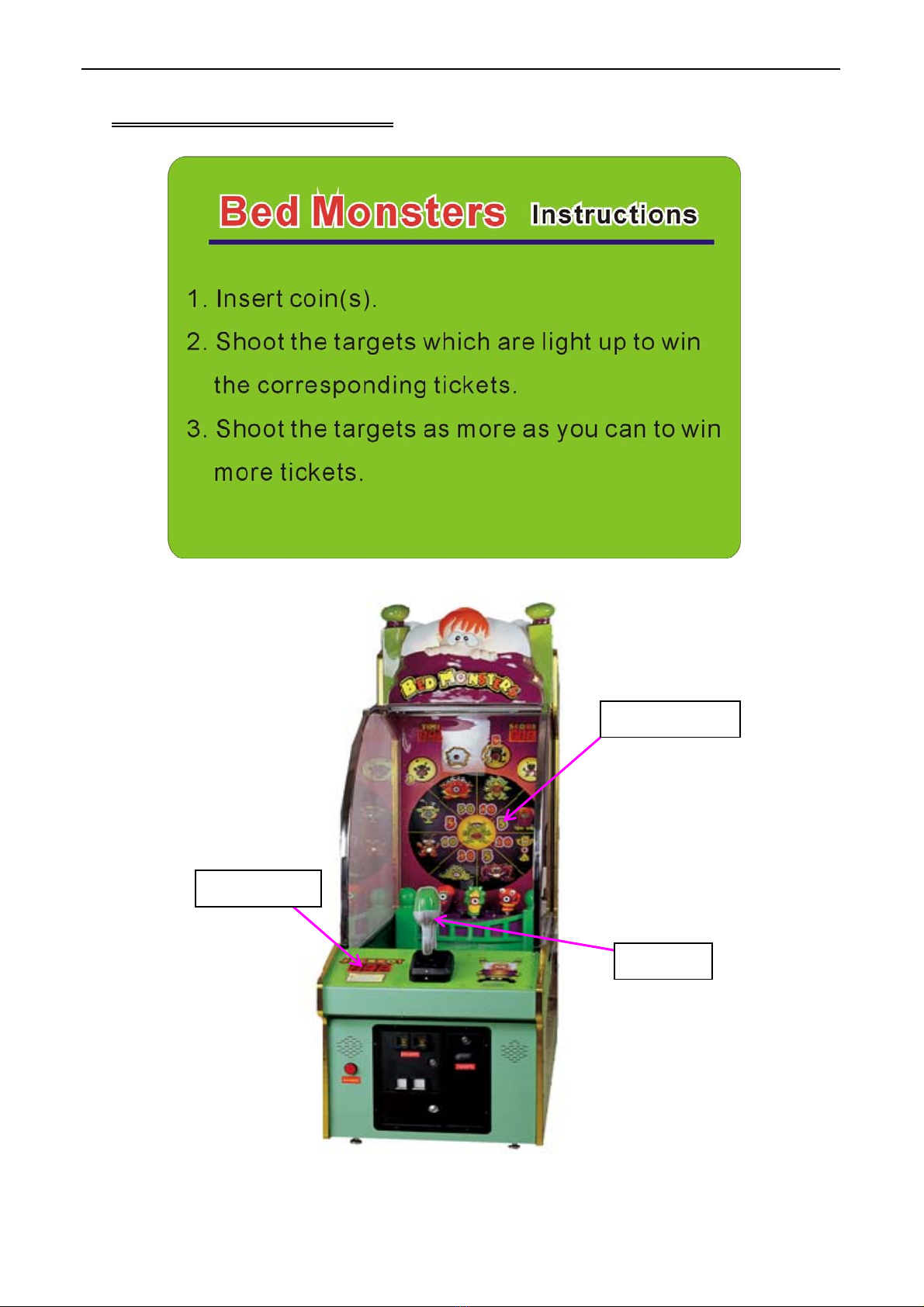

4.Playing Instruction
The Target panel
Water Gun
Score Display
-7- Owner’s manual
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
5.Connecting the power cord and grounding
1. Insert the plug of power cord into the power socket of the machine.
2. Insert the power cord plug into a service outlet.
This machine’s supply voltage is 110V 60Hz , or 220V 50Hz . For actual supply voltage, please
refer the label of the machine.
Fuse specifications：
110V60Hzuse110V 10A Φ5-20mm
220V 50Hz use 220V 5A Φ5-20mm
Power switch: Main game power
Ground terminal: Use to connect the ground cord.
P
ow
e
r
sw
i
tch
Power box
Ground terminal
Power socket
Fuse socket
-8- Owner’s manual
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
-9- Owner’s manual
Warning:
★ Do not put heavy items on power cord.
★ Do not touch the power plug with a wet hand.
★ Do not draw or twist the cord.
★ Do not place the cord near a heat source.
★ Do not place the cord where the player can easy to touch or kick.
★ Run this machine with the correct power configuration.
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
-10- Owner’s manual
6.Installation
This product is an indoor game machine. Do not install it outside. Even indoors, Avoid installing
in places mentioned below so as not to cause a fire, electric shock, injury and or malfunctioning.
¾Place subject to rain or water leakage, or places subject to high humidity in the proximity of an
indoor swimming pool and or shower, etc.
¾Place subject to direct sunlight, or places subject to high temperatures in the proximity of
heating units, etc.
¾Places filled with inflammable gas or vicinity of highly inflammable/volatile chemicals or
hazardous matter.
¾Dusty places.
¾Sloped surfaces.
¾Places subject to any type of violent impact.
¾Vicinity of anti-disaster facilities such as fire exits and fire extinguishers.
¾The operating (ambient) temperature range is from -10℃to +40℃.
LIMITATIONS OF USAGE REQUIREMENTS
¾Be sure to check the Electrical Specifications. Ensure that this product is compatible with the
location’s power supply, voltage and frequency requirement. A plate describing Electrical
Specifications is attached to the product. Non-compliance with the Electrical Specifications
can cause a fire and electric shock.
¾Putting many loads on one electrical outlet can cause generation of heat and a fire resulting
from overload.
Location to avoid installing
WARNING: Do not leave the machine on a slope, otherwise the machine may topple or cause
unforeseen accidents.
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
Playing zone:
This machine requires space for playing the game (play zone) and for maintenance (maintenance
zone) as shown below. Be sure to leave enough space when installing the machine.
Game leveling
Install this machine on a flat surface. Adjust levelers to lift casters off the ground and level
game.
Make sure that the machine is level with the floor. If the machine is not level medals may not
be play well.
Level adjuster Caster
5mm
Move Fix
-11- Owner’s manual
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
-12- Owner’s manual
7.Movement
WARNING:
¾Be careful not to damage the machine during transport.
¾Do not give a shock to the molded parts. These parts are fragile.
¾Be careful not to give a shock to the machine when bringing it down from a higher level.
¾Unplug game before moving.
¾Do not lay game on side during transport.
Before move, please follow the below steps.
1. Turn off the power switch.
2. Unplug the power.
3. Adjust the levels in high before moving it.
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
8. Adjustment
The mainboard:
POWER MUSIC AMP
OUT01-04
IN 1-40
OUT22-27
OUT15-21
OUT 28-32
OUT 33-40
OUT41-48
Service
U34
CPU
Volume
Speaker
TEST
U26 Music-Eprom
OUT05-14
7-SEG
LED-OUT
SW1 - DIP
SW2 - DIP
SW3 - DIP
MB003a.PCB
Speaker
Press the "TEST" button (in the board) for 2 seconds enter "Test Mode"
(Press 1 time again, Quit the "TEST MODE")
1. 7_Seg display "t01" 3 Seconds, stop at "8.7.6.5.4.3.2.1."& "87654321".
(Test 7_Seg display)
2. Press the "SERVICE" button 1 time, 7_Seg display "t02" 3 seconds,
stop at "22222xxx/22222xxx", (Test SW DIP 1-3 State),
the Dip SW1-SW3 State Display at "xxx";
3. Press the "SERVICE" button 1 time, 7_Seg display "t03" 3 seconds,
stop at "3333xxxx/3333xxxx", (Test INPUT),
the input which is on will be display at <1>1-2,<1>3-4,<2>1-2,<2>3-4
4. Press the "SERVICE" button 1 time, 7_Seg display "t04" 3 seconds,
-13- Owner’s manual
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
stop at "4444xxxx/4444xxxx", (Test OUTPUT-1),
the input which is on will be display at <1>1-2,<1>3-4,<2>1-2,<2>3-4
and the OUTPUT will ON when the INPUT is on;
5. Press the "SERVICE" button 1 time, 7_Seg display "t05" 3 seconds,
stop at "555555xx/55555555", (Test OUTPUT-2),
the output 1-48 will ON one by one;and display the output number at <1>1-2
6. Press the "SERVICE" button 1 time, 7_Seg display "t06" 3 seconds,
stop at "666666xx/66666666", (Test Sound),
Press the I02, the sound will be play, and the Number will be display at <1>1-2
7. Press the "TEST" again when in the "TEST MODE",Quit the "TEST Mode".

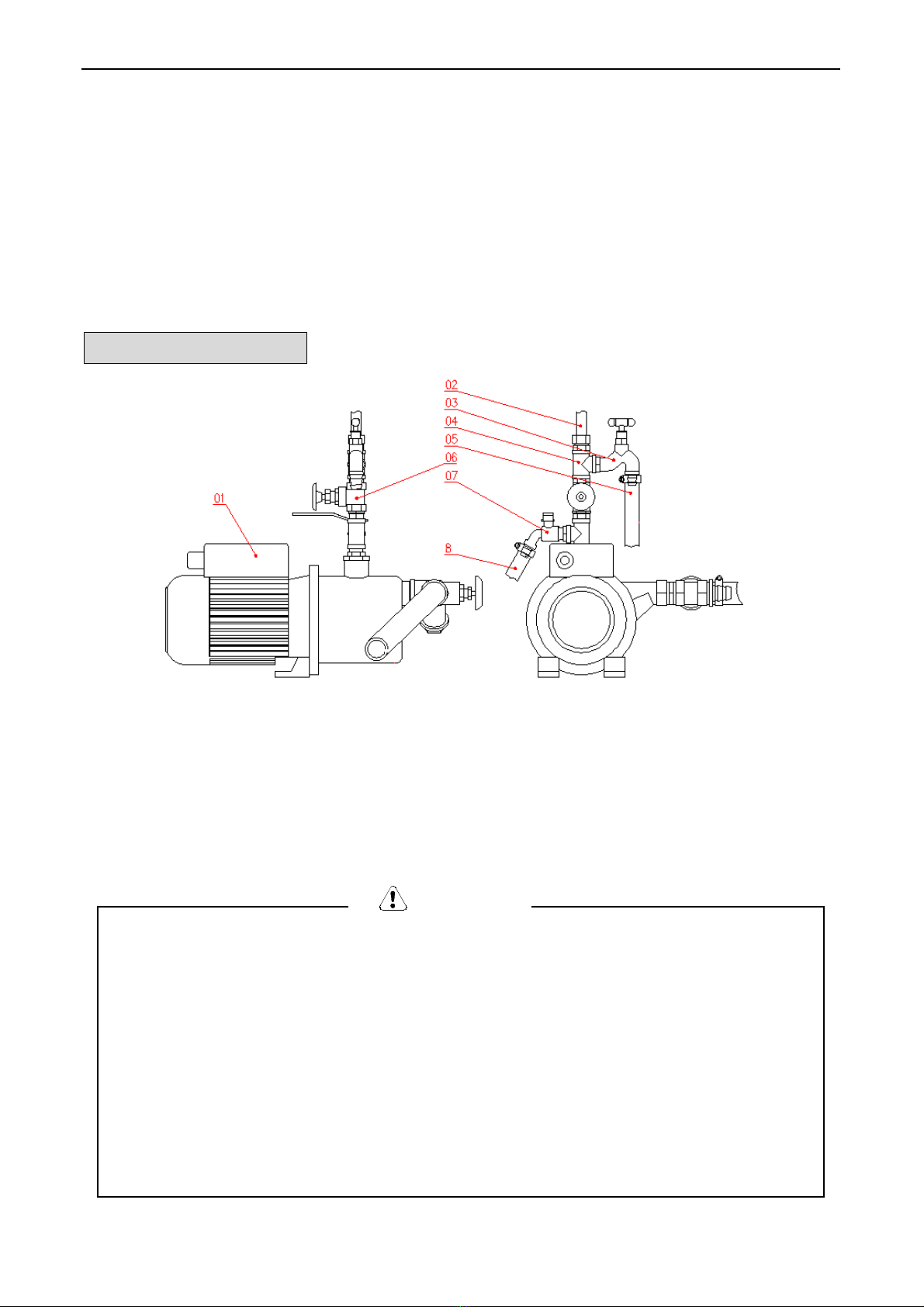

How to Change Water
1).WaterPump；
2).PipetoGunAssy；
3).Value for Reduce Pressure；
4).Triple-Dir Pipe For Reduce Pressure；
5).PipeBacktoTool；
6).ValueforShoot；
7).Value for drain；
-14- Owner’s manual
8).Pipefordrain．
This machine is designed for indoor only. When in Transport，Please:
●Remove the WATER in the pool：
Open (7)Value for drain
Close (6)Value for Shoot
Put in a Coin , Start the Game, The water will come out from (8) Pipe for drain .
●After RE_ASSY the Machine , Please add water From the Front,(About 28 L), Until the
Button_Lamp is Off.
WARNING
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
-15- Owner’s manual
The adjustment of game.
1. Credit
Adjust it to setting how many coins per credit. There are 4 options for user to select. It is
controlled by SW 11~ SW12.
Credit Content SW11 SW12 Note
1 ON ON
2 off on
3 on off
SW11~ SW12
4 off off
2. Playing Time.
Adjust it to setting the playing time per credit. There are 8 options for user to select. It is
controlled by SW13~SW15.
Playing Time Content SW13 SW14 SW15 Note
45 on on on
60 off on on
75 on off on
90 OFF OFF ON
120 on on off
150 off on off
180 on off off
SW13~ SW15
240 off off off
3. Scores/ticket
Adjust it to setting how many scores per ticket. There are 8 options for user to select. It is
controlled by SW16~SW18.
Playing Time Content SW16 SW17 SW18 Note
10 on on on
20 off on on
30 on off on
40 off off on
50 on on off
100 off on off
200 on off off
SW16~ SW18
no off off off
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
-16- Owner’s manual
4. The default value of JP.
Adjust it to setting the default value of JP. There are 4 options for user to select. It is
controlled by SW21~SW22.
The default value of JP Content SW21 SW22 Note
30 ON ON
50 off on
100 on off
SW21~ SW22
200 off off
5. JP+
Adjust it to setting the JP+. There are 4 options for user to select. It is controlled by
SW23~SW24.
JP+ Content SW23 SW24 Note
0 on on
1/3 OFF ON
1/2 on off
SW23~ SW24
1 off off
6. The difficulty setting
Adjust it to setting the difficulty of the game. There are 4 options for user to select. It is
controlled by SW25~SW26.
Difficulty Content SW25 SW26 Note
Easy on on
Mid OFF ON
Hard on off
SW25~ SW26
Hardest off off
7. The score of target.
Adjust it to setting the scores of target. There are 4 options for user to select. It is controlled
by SW27~ SW28.
The scores of target Content SW27 SW28 Note
5 on on
10 OFF ON
20 on off
SW27~ SW28
30 off off
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
8. Mercy Ticket.
Adjust it to setting the mercy ticket per credit. There are 8 options for user to select. It is
controlled by SW31~SW33.
Content SW31 SW32 SW33 Note
Playing Time
on on on
-17- Owner’s manual
0
OFF ON ON
1
on off on
2
off off on
3
SW31~ SW33
on on off
4
off on off
5
on off off
6
off off off
8
9. Score group.
Adjust it to setting the score group. There are 8 options for user to select. It is controlled by
SW34~SW36.
Content SW34 SW35 SW36 Note
Score Group
on on on
1
off on on
2
on off on
3
OFF OFF ON
4
SW33~ SW36
on on off
5
off on off
6
on off off
7
off off off
8
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
-18- Owner’s manual
9. Maintenance and Troubleshooting
Safty check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation.
1 Are the warning labels legible?
2 Is there sufficient play zone around the machine?
WARNING
¾Before performing work, be sure to turn power off. Performing the work without turning power
off can cause an electric shock or short circuit. In the case work should be performed in the
status of power on, this manual always states to that effect.
¾To avoid electric shock or short circuit, do not plug in or unplug quickly.
¾Do not expose Power Cords and Earth Wires are susceptible to damage.
¾Damaged cords and wires can cause electric shock or short circuit.
¾When or after installing the product, do not unnecessarily pull the power cord. If damaged, the
power cord can cause a fire or electric shock.
¾In case the power cord is damaged, ask for replacement through where the product was
purchased from or the office herein stated. Using the cord as is damaged can cause fire,
electric shock or leakage.
¾Be sure to perform grounding appropriately. In appropriate grounding can cause an electric
shock.
¾Be sure to use fuses meeting specified rating. Using fuses exceeding can cause an electric
shock.
OPERATION WARNING
¾Should a problem occur, switch OFF the power immediately and stop operating the machine.
Then unplug the power cord the service outlet. Operating the machine without correcting the
problem may cause a fire or accident.
¾Dust accumulated on the power plug may cause a fire. Check the plug regularly and remove any
dust.
¾Insert the power plug securely into the service outlet. Poor contact may cause overheating,
resulting in fire or burns.
¾Before operating the machine, always check that the machine has been installed according to
the instructions and procedures in this Operation Manual. Failure to install correctly may
result in a fire, electric shock, injury, or equipment malfunction.
¾The warning labels describe important safety precautions. Observe the points below.
¾To make sure that the warning labels attached to the machine are easily legible, install the
machine in a well-lit location, and keep the labels clean at all times. Also make sure that the
labels are not behind other game machines.
¾Do not remove to alter the warning labels.
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]

Ocean Amusement Machine Co.,Ltd. Tel: [phone]; Fax: [phone]
-19- Owner’s manual
¾If the warning labels become dirty or damaged, replace with new labels. To order replacement
warning labels, contact your distributor.
¾Always turn off the power first to protect other personnel from electric shock, accidents and
injury, and to prevent damage to electrical circuits.
¾If a fault occurs, first check that all the connectors are firmly connected.
¾Contact your distributor if none of the cases below applies to the problem, or if the action
listed does not appear to resolve the problem.
※ Contact your distributor if none of the cases below applies to the problem, or if the action
listed does not appear to resolve the problem.
Fault Display：
The screen will display “OUT OF TICKET”when the ticket bin is out of ticket.
Place the tickets.
Install the ticket, and press the Ticket reset button. The game will payout the spare tickets that
haven’t payout.
Troubleshooting:
PROBLEM PROBABLE CAUSE SOLUTION
The game can’t start 1．No power
2．Fault of power supply
1．Check the power
2．Check the power supply.
No sound
1．Fault of speaker
2．Fault of AMP.
3．Fault of the connection
1．Check the speaker
2．Check the AMP
3．Check the connection
No video
1．Loosen of cable
2．Fault of LCD
3．Fault of computer。
1．Check the signal
2．Check the LCD
3．Check the computer
Payout ticket(Non-stop) 1．Fault of ticket dispenser
2．Fault of Ticket PCB
1．Check the ticket dispenser
2．Check the PCB
Can’t dispenser ticket 1．Ticket stick
2．Out of tiket
1．Clean the ticket jam.
2．Place tickets.
http://www.hominggame.com/ Hot-line:[phone] E-mail: [email protected]
Homing Amusement & Game Machine Co.,Limited
www.hominggame.com
E-mail: [email protected]
skype: comminghui
