Jennison Entertainment Technologies Wile E.Coyote's Rocket Wheel User manual

ROCKET WHEEL SERVICE MANUAL
VERSION 1.0
Fax Number: 1-386-255-1589
Information Email: [e-mail]
Phone Number: 1-855-JET-GAME
Service Email: [e-mail]
Phone Number: 1-386-255-1599
www.JENNISONGAMES.com
For Additional Information or for an Electronic Copy of This Manual Visit Our Website
Jennison Entertainment Technologies Corporation
822 South Nova Road •Daytona Beach, Florida 32114 •U.S.A.

Score State
I/O board inputs
I/O board outputs
Trouble Shooting
Program Setup Instructions
Electrical Requirements
Installation Instructions
38
32
7
8
9
RoHS Compliance
Cabinet Dimensions
4
Section
Page
Safety Notifications
Epilepsy Warning
30
4
2
3
Table of Contents
TABLE OF CONTENTS
31
Warnings, Cautions, & Notices
FCC Compliance
10
11
19
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 2

Through out the use of this manual, certain areas require special attention for the
safety of service personal. Please take note of the following notifications and be
certain to read the information contained within. Failure to follow the given
information could lead to personal injury or property damage. Follow all
instructions contained within this manual and do not make any modifications to
the game without first contacting Jennison Entertainment Technologies.
ATTENTION
Attention boxes are in BLUE. These messages are provided in
cases where service personal must follow directions provided
by J.E.T.
NOTICE
Notices are given in GREEN boxes. These messages are
provided for the operator's convenience.
CAUTION
Caution messages are marked in YELLOW boxes. Failure to
follow these caution messages could result in damaging the
unit.
WARNING
All warnings will be marked in ORANGE boxes. Failure to
follow these warnings could lead to damage to the unit and
or personal property.
DANGER
All danger messages are marked in RED boxes. Failure to
adhere to these messages could result in personal injury or
injury to others.
SAFETY NOTIFICATIONS
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 3

A very small percentage of people may experience a seizure when
exposed to certain visual images, including flashing lights or patterns that
may appear in video games. Even people who have no history of seizures
or epilepsy may have an undiagnosed condition that can cause these
"photosensitive epileptic seizures" while watching video games.
These seizures may have a variety of symptoms, including
lightheadedness, altered vision, eye or face twitching, jerking or shaking of
arms or legs, disorientation, confusion, or momentary loss of awareness.
Seizures may also cause loss of consciousness or convulsions that can lead
to injury from falling down or striking nearby objects.
Immediately stop playing and consult a doctor if you experience any of
these symptoms. Parents should watch for or ask their children about the
above symptoms - children and teenagers are more likely than adults to
experience these seizures.
The risk of photosensitive epileptic seizures may be reduced by taking the
following precautions:
Play in a well-lit room
Do not play when you are drowsy or fatigued
EPILEPSY DANGER
EPILEPSY WARNING
If you or any of your relatives have a history of seizures or epilepsy,
consult a doctor before playing.
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 4

DO NOT move the game without the help of another adult.
Only pull or push the main cabinet while moving. Never
attempt to move the game with the control center.
DO NOT attempt to move the game by pushing on the
transparent monitor. Only move the cabinet by pulling or
pushing on the side of the main cabinet.
DANGER
DO NOT remove the game from its shipping pallet or skid
without first reading the entire installation guide in this
manual!
DANGER
DO NOT attempt to assemble Ocean Pearls without another
adult to assist in the assembly. JET recommends at least three
people for assembly.
DANGER
DO NOT attempt to remove OR replace the transparent
display without first contacting JET Games service
department.
DANGER
OCEAN PEARLS SAFETY, CAUTIONS, & NOTICES
DANGER
DO NOT perform repairs or maintenance on the game with
the power ON. Always turn the power OFF and unplug the
unit from the wall before servicing.
DANGER
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 5

WARNING
CAUTION
Only qualified service personal should service Rocket Wheel.
Contact JET first with any questions before replacing any part.
WARNING
If the power cord is damaged - replace it with a new one. DO
NOT attempt to use a damaged or repaired power cord.
WARNING
Always plug the game into a grounded circuit and verify the
total voltage draw on the circuit does not exceed its capacity.
CAUTION
Use appropriate care when servicing the game and ensure
that all removed components are away from facility guests
and children.
Rocket Wheels SAFETY, CAUTIONS, & NOTICES
Set the 115/230 VAC selector switch on all power supplies for
the correct line voltage at the installation site. Check that all
power supplies, fans, and fluorescent lamps are rated for the
same line voltage.
WARNING
This unit is suitable for INDOOR use only. The should not be
placed in damp environments or in areas within close
proximity to the ocean.
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 6

This equipment has been tested and found to comply with the limits for a
Class “A” digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
Canadian Emissions Statement
(According to Industry Canada Notice ICES-003, Issue 4)
This Class “A” digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique da la classe “A” respecte toutes les
exigences du Réglement sur le matériel brouilleur du Canada.
The Federal Communications Commission requires that all amusement
machine devices used in commercial applications comply with guidelines
for the amount of interference the internal components produce. Rocket
Wheel complies with this requirement and the following statement is
posted on all units.
FCC COMPLIANCE
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 7

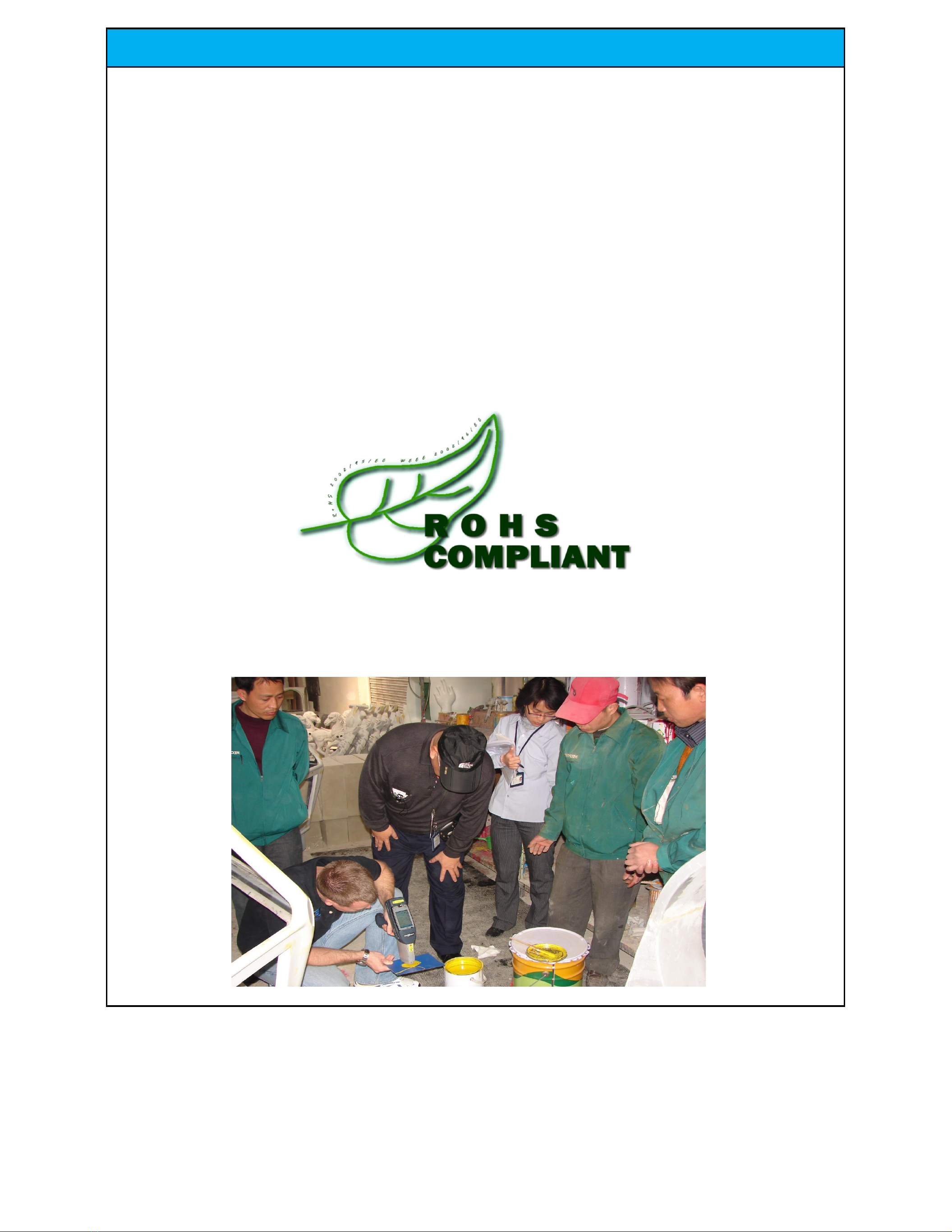

The RoHS Directive stands for "the restriction of the use of certain hazardous substances in electrical and
electronic equipment". This Directive bans the placing on the European Union market, new electrical and
electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium,
polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.
Jennison Entertainment Technologies has taken steps to comply with this directive while sourcing the parts
for all machines. If available to the industry, these certified components were used in the construction on
Rocket Wheel™.
As of November 2014, Jennison Entertainment Technologies has tested all components used in the
manufacturing of Rocket Wheel™. All components have been found to be within the standards set forth for
RoHS compliance by the European Union. Test reports are available and will be provided upon request.
To verify that your machine has RoHS Compliant parts, look for the following logo on the information sticker
on the back of all our units.
With our unique testing equipment, Jennison Entertainment Technologies can test components from ANY
SUPPLIER from ANY COUNTRY where we source our parts. The tools we utilize allow us to spot check
suppliers who have also self declared their components to be compliant, ensuring you and your guest's
safety.
RoHS COMPLIANCE
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 8

204.2
Rocket Wheel SHIPPING DIMENSIONS - 1 SKID
Rocket Wheel ships on one 8' x 4' skid within the United States, Canada, and Mexico. The skid that the main
cabinet is on has been designed so that a forklift can lift the unit off. There is enough clearance under the
game, where forks can comfortably fit. Do not push on the front of the main cabinet as there is a large Acrylic
cover over the wheel and monitor!
96"
2439
48"
DO NOT ALLOW ANYONE TO GET UNDER THE UNIT WHILE IT
IS BEING LIFTED.
WEIGHT
HEIGHT
WIDTH
LENGHTH
Rocket Wheel CABINET DIMENSIONS (ASSEMBLED)
INCHES
MM
INCHES
MM
INCHES
MM
POUNDS
KG
61.2"
1554.5
58.5"
1486
114"
2895.5
450
1219
89.5"
2273.5
550
249.5
LENGHTH
WIDTH
HEIGHT
WEIGHT
INCHES
MM
INCHES
MM
INCHES
MM
POUNDS
KG
DANGER
DIMENSION INFORMATION
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 9

FOREIGN
POWER
VOLTS
DANGER
DO NOT OVERLOAD ANY CIRCUIT WITH THE ADDITION OF
ROCKET WHEEL. ENSURE THAT THE OUTLET HAS PROPER
VOLTAGE BEFORE TURNING ON THE UNIT
DANGER
IF YOU CHOOSE TO CONVERT YOUR UNIT TO A DIFFERENT
LINE VOLTAGE THAT IT WAS AT INITIAL TIME OF DELIVERY,
YOU MUST ALSO SELECT THE NEW INPUT AC VOLTAGE ON
ALL POWER SUPPLIES AND SPEAKER AMPLIFER.
Rocket Wheel ELECTRICAL REQUIREMENTS
HERTZ
AMPS
WATTS
60 HZ
50 HZ
7.3 AMPS (MAX)
4 AMPS (MAX)
876 WATTS
1000 WATTS
120 VAC
250 VAC
DOMESTIC
POWER
ELECTRICAL REQUIREMENTS
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 10

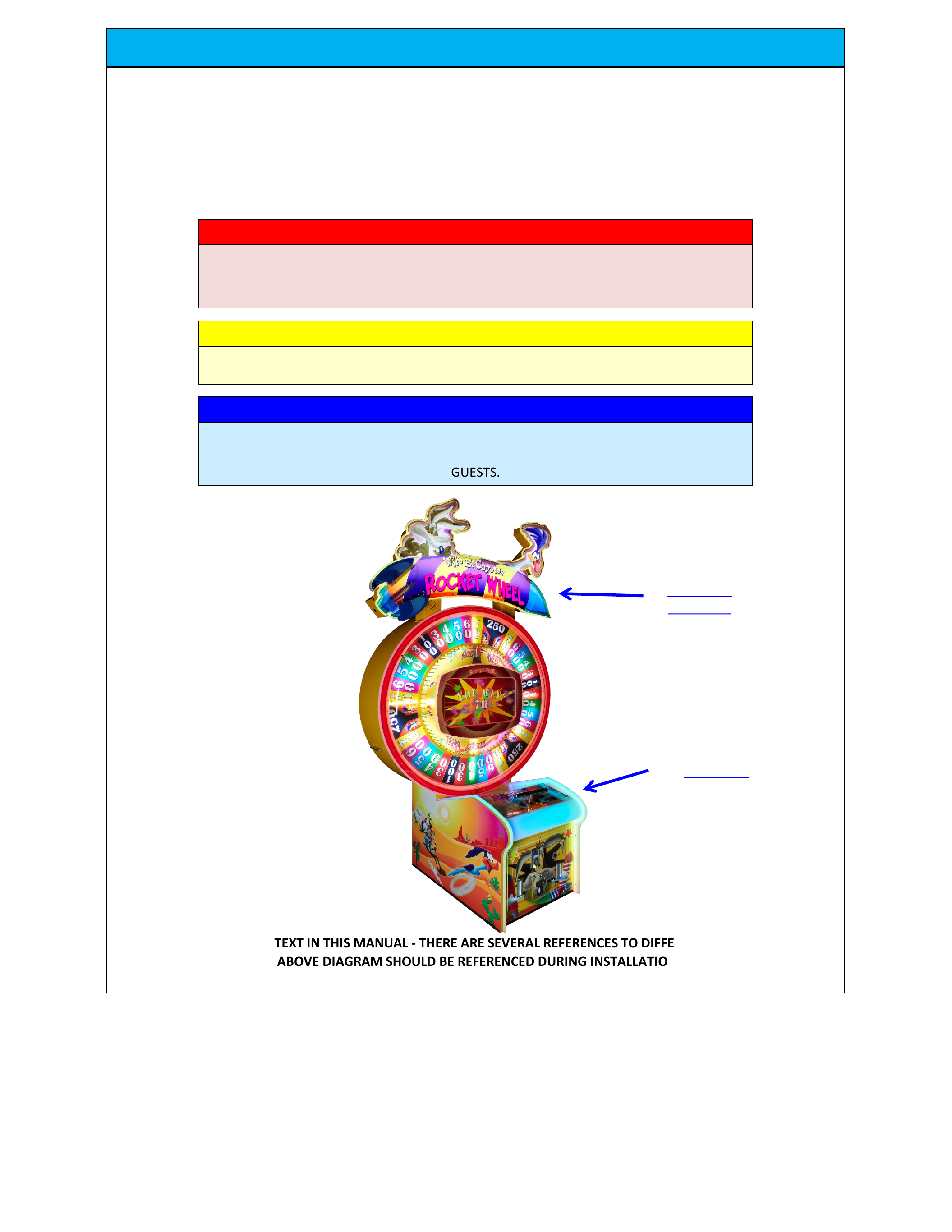

INSTALLATION
THROUGHOUT THE TEXT IN THIS MANUAL - THERE ARE SEVERAL REFERENCES TO DIFFERENT PARTS OF THE
CABINET. THE ABOVE DIAGRAM SHOULD BE REFERENCED DURING INSTALLATION IN ORDER TO
DETERMINE WHAT SECTION THE INSTRUCTIONS ARE REFERENCING.
THIS INSTALLATION MANUAL HAS BEEN DESIGNED IN COLOR COORDINATED SECTIONS. EACH COLOR HAS
A DIFFERENT MEANING AS SEEN IN THE FOLLOWING CHART. FAILURE TO FOLLOW THIS MANUAL IN ITS
ENTIRITY COULD LEAD TO SERIOUS BODILY INJURY. IF THERE IS ANY DOUBT DURING THE INSTALLATION OF
THIS UNIT - CONTACT JENNISON ENTERTAINMENT TECHNOLOGIES OR YOUR DISTRIBUTOR PRIOR TO
CONTINUING. NEITHER J.E.T. NOR YOUR DISTRIBUTOR IS RESPONSIBLE FOR ANY DAMAGE CAUSED
DURING IMPROPER INSTALLATION PROCEDURES.
RED SECTIONS
RED SECTION AREAS REQUIRE 2 OR MORE PEOPLE MINIMUM TO SAFELY COMPLETE - EACH
PERSON SHOULD BE ABLE TO LIFT 170 POUNDS EASILY. THESE SECTIONS SHOULD NEVER BE
ATTEMPTED TO BE COMPLETED BY LESS THAN 2 PEOPLE.
YELLOW SECTIONS
YELLOW SECTION AREAS REQUIRE CAUTION TO SAFELY COMPLETE.
BLUE SECTIONS
BLUE SECTION AREAS CAN BE SAFELY COMPLETED BY ONE PERSON WORKING BY
THEMSELVES. THE INSTALLER SHOULD STILL EXERCISE CAUTION WHEN WORKING AROUND
GUESTS.
Section # 1
(Main Cabinet)
Section # 2
(Marquee)
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 11

INSTALLATION INSTRUCTIONS
Step # 1
UNLOADING THE GAME FROM THE PALLET
Wile E Coyote's Rocket Wheel Will ship on one 4' X 8' pallet once the
game is removed from the shipping pallet the game should be able to
roll to the desired location to be unwrapped.
NOTICE
PACKAGING AND PALLET MAY BE SLIGHTLY
DIFFERENT THAN SEEN IN PHOTO
Check Box When This Step is Complete
Step # 2
UNWRAPPING THE GAME
When unwrapping the game, cut the shrink wrap from the back side
fo the game to prevent any damage to the graphics or acrylics that are
on the fron side fo the game.
NOTICE
PACKAGING AND PALLET MAY BE SLIGHTLY
DIFFERENT THAN SEEN IN PHOTO
Check Box When This Step is Complete
Step # 3
Ensuring you received all components
Once the game has been unwrapped please look over all included
items. You should have a spare parts box that includs keys, power
cord, extra sensors, the upper fin for the header marque, and tools for
assembly. Also you will notice the hearder marque is bolted onto the
front of the game for shipping.
NOTICE
PACKAGING AND PALLET MAY BE SLIGHTLY
DIFFERENT THAN SEEN IN PHOTO
Check Box When This Step is Complete
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 12

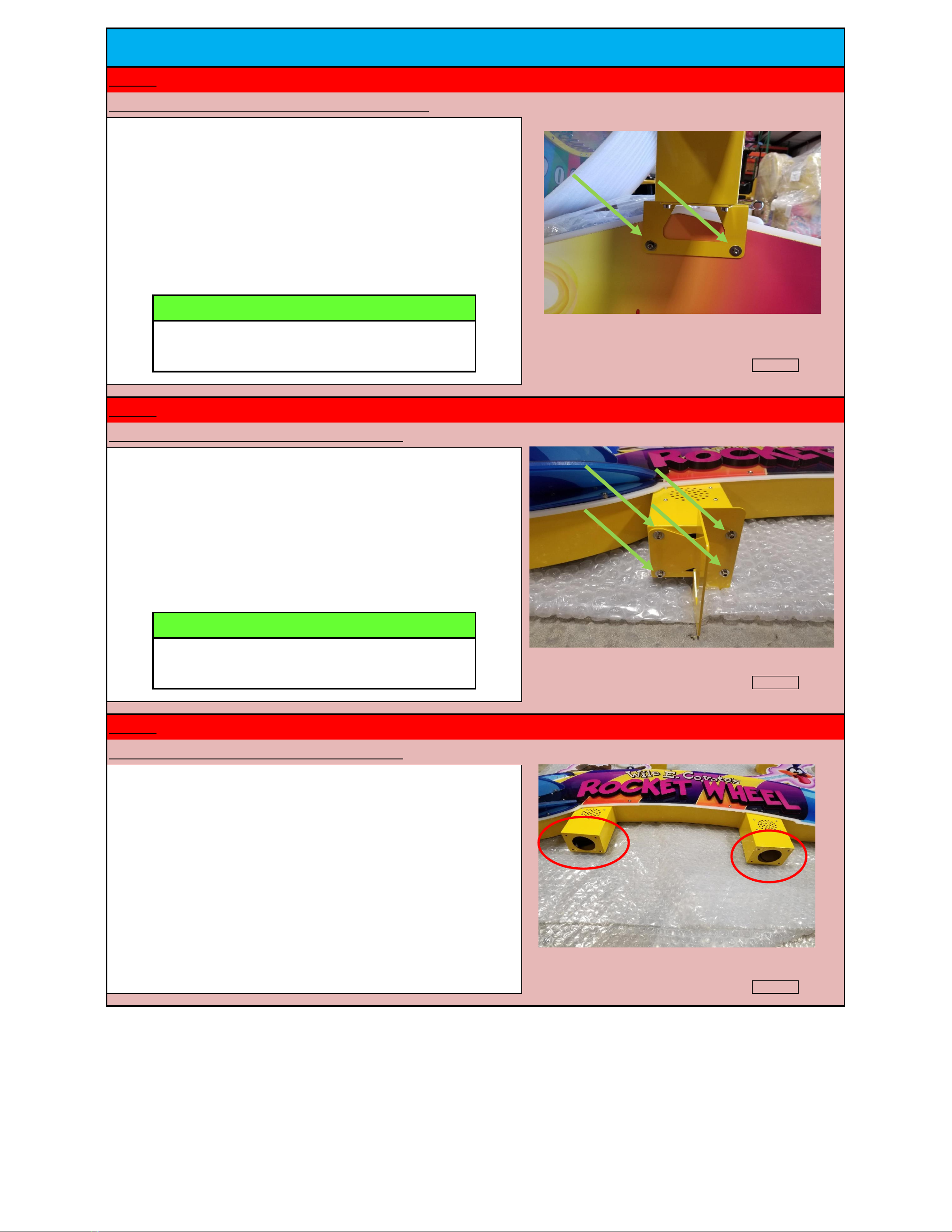

INSTALLATION INSTRUCTIONS
Step # 4
Unboltging the header marque from the main cabinet
The Header Marque is bolting to the front of the cabinet for shipping.
With the help of a Coworker please remove the 4 hex headed bolts (2
on each side of the game) and lift the Marque from the main cabinet
leaving the shipping brackets attached to the header.
NOTICE
PACKAGING AND PALLET MAY BE DIFFERENT THAN
SEEN IN PHOTO
Check Box When This Step is Complete
Step # 5
Unbolting Shipping brackets from header marque
After unbolting the header marque from the main cabinet lay the
marque down flat on it's back so you have access to the bolts holding
the shipping brackets to the margue. There are 8 bolts in total (4 on
the bottom of each header foot). Using a hex headed allen wrench
remove the bolts and keep them for installing the header marque to
the game.
NOTICE
PACKAGING AND PALLET MAY BE DIFFERENT THAN
SEEN IN PHOTO
Check Box When This Step is Complete
Step # 6
Unbolting Shipping brackets from header marque
Once both shipping brackets are removed please make sure all wires
coming from the marque header are inside the feet to keep from
having any issues when installing the header to the main cabinet.
Check Box When This Step is Complete
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 13

INSTALLATION INSTRUCTIONS
Step # 7
Locating Margue Rocket Fin and mounting location
The back access door for the main cabinet can be removed by
unbloting the 4 lower machine screws from the dorr. These 4 screws
are shown with the green arrows to the picture to the right. Once
those 4 machine screws are removed you can loosen the upper two
machine screws (Marked with red arrows), and then lift the back
access dorr up off the two top screws and the door can be removed.
Step # 8
Step # 9
Removing The back door
Check Box When This Step is Complete
The upper Margue fin for the rocket is installed using 3, 4mm machine
screws. To install you need to use a 2.5mm Hex headed allen key. Be
sure to not to damage the LED light strip that runs under the newley
installed fin. Also the LED lights need to be pointed toward the fin to
light the fin up like the rest. If the LED are installed up side down the
Fin will not iluminate.
Locate the Upper Marque fin for the Rocket in the spare parts box.
This Fin is attached to the Marque before you mount the Header onto
the main cabinet for ease of installation. Even thought it is
recommended to install first this step can be accomplished after the
marque is installed. The bottom picture to the right shows the
location to mount the Fin.
Mounting the Marque Rocket fin
Check Box When This Step is Complete
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 14

INSTALLATION INSTRUCTIONS

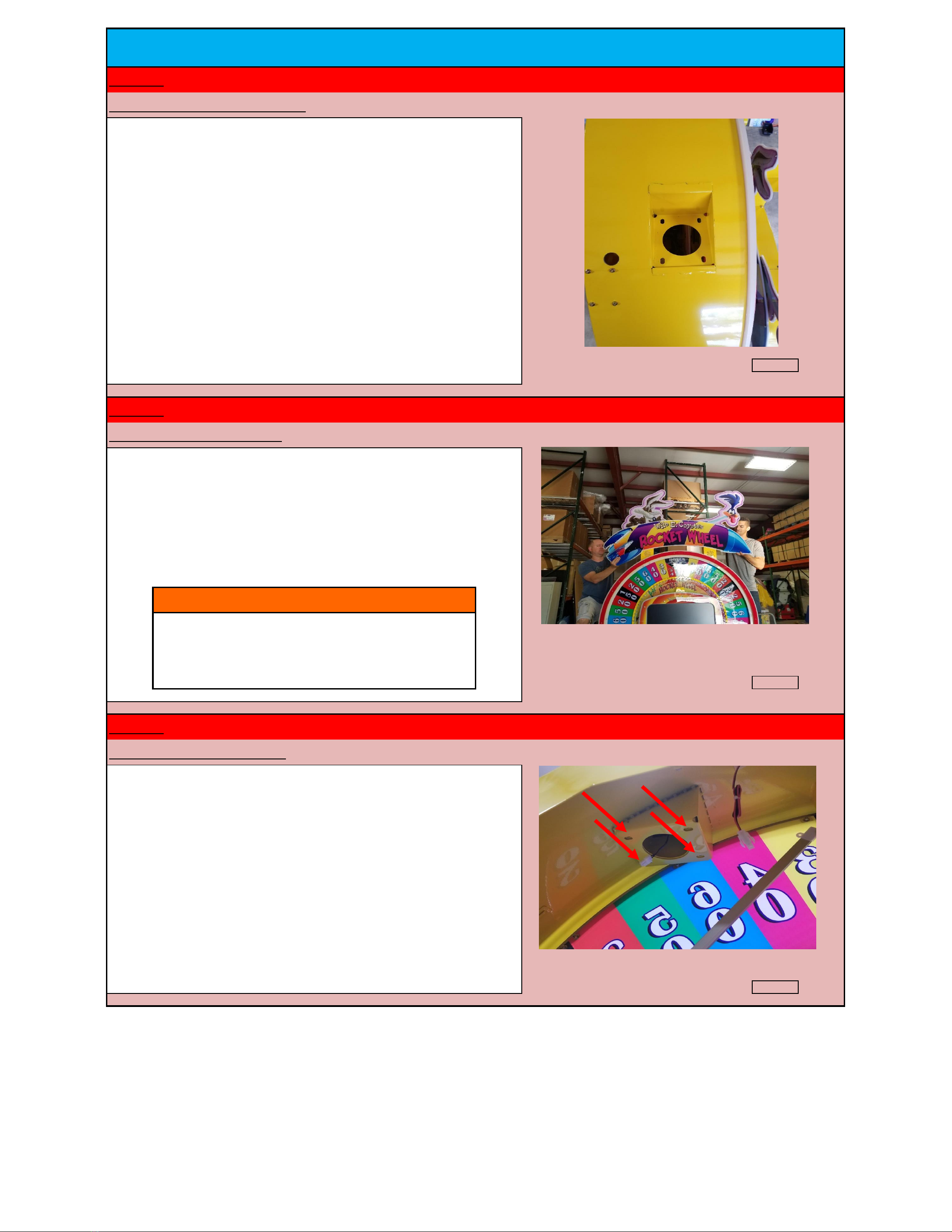

Step # 10
Locating the Header foot mounts
One the top of the main cabinet are 2 pockets for the header marque
feet to fit into. Please see the picture to the right to confirm their
location before lifting the header into place.
Check Box When This Step is Complete
Step # 11
Lifting the Marque into place
Carefully lift the Rocket Marque into place making sure to have a
Coworker help lift the unit. Do a test lift so you know the weight of
the unit and both parties are able to do the job. Once you have the
ladders in place lift the unit and make sure the feet of the marque go
into the foot mount pockets found in the last step.
WARNING
The Rocket Marque is Very heavy, You should not try
lifting this alone! Have Ladders ready and use a
Coworker for help.
Check Box When This Step is Complete
Step # 12
Bolting the marque into place
Bolt the Rocket Marque to the main cabinet from the inside of the
main cabinet. You are going to reuse the bolts removed from the
Marque mounting brackets in step #5. There will be 4 bolts for each
marque foot for a total of 8 bolts.
Check Box When This Step is Complete
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 15

INSTALLATION INSTRUCTIONS

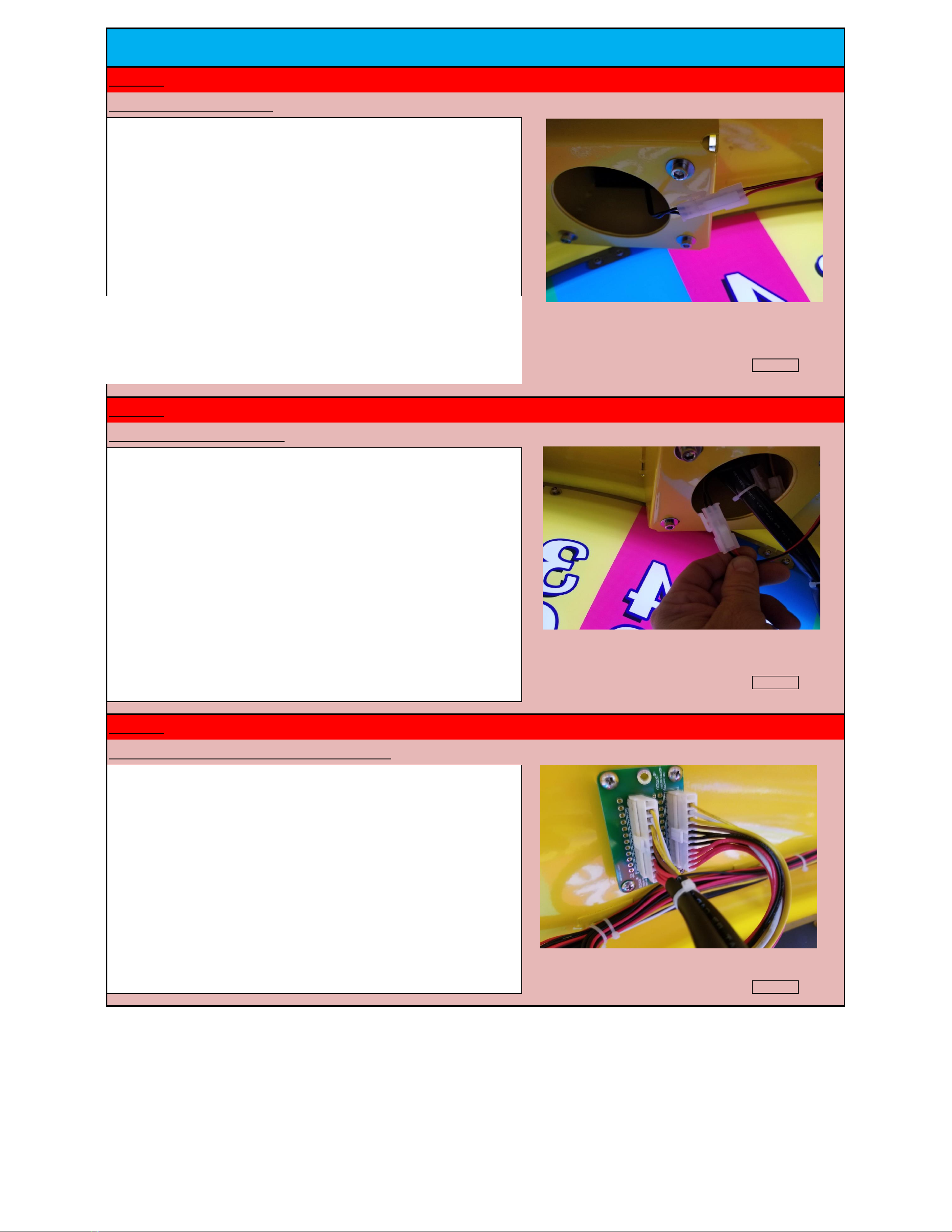

Step # 13
Connecting the left speaker
To connect the speakers on the left side of the game (while looking at
it from the back) connect the wires with the two pin molex
connection making sure not to push out a pin when connecting the
two sides. This is the only connection needed for this side of the
game.
Check Box When This Step is Complete
Step # 14
Connecting the Right Speaker
To connect the right side speaker (while looking at it from the back)
you will connect the wires with the two pin molex connectors making
sure not to push out a pin when connecting the two sides.
Check Box When This Step is Complete
Step # 15
Connecting the Marque LED's and control wires
Other than thespeaker connection on the right side of the cabinet you
will need to connect the power and signal wires for the Marque's LED
lights. This is the large 12 pin molex connector which you will plug into
the interface board located just under and to the right of the marque
foot mount. Please make sure that all pins are properly seat as is the
white molex to the interface board.
Check Box When This Step is Complete
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 16

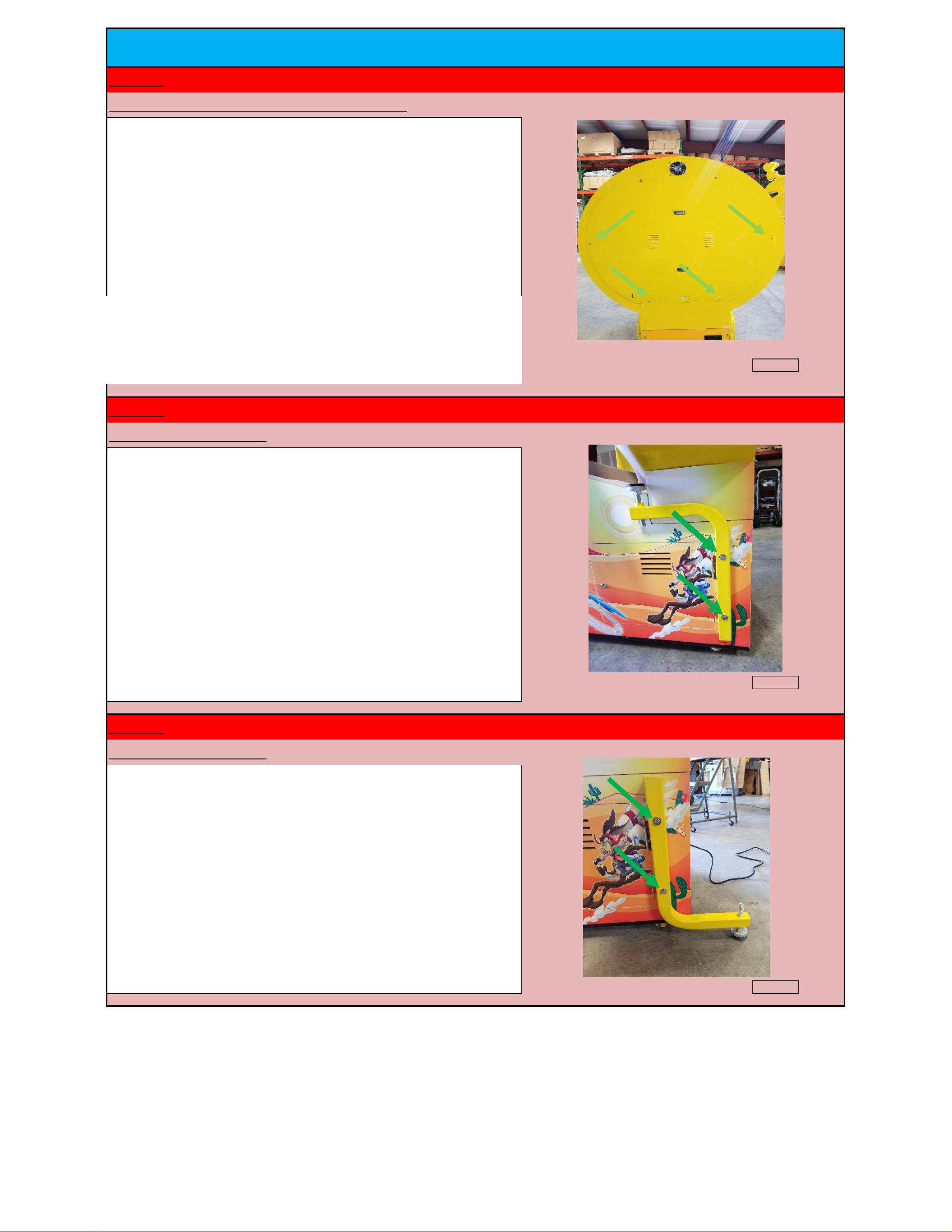

Reinstall the Back access door to the main cabinet
To reinstall the back door place the door back on the two bolts
loosened in step # 9. This will allow the door to hang in place while to
screw in the other 4 machine screws to hold the door in place. Once
the 4 bottom screws have been installed then you can tighten the two
upper screws.
Check Box When This Step is Complete
Step # 17
Installing the Support Feet
Once the game has been moved into the location in the game room
you can unbloat and install the support feet. These feet are to keep
the game from rocking back and supply extra stubility to the game. To
do this you will need a 14mm end wrench or socket. Unbolt the two
bolts that are holding the support leg to the main cabinet. This will
have to be done on both side for a total of 4 bolts.
Check Box When This Step is Complete
Step # 18
Installing the Support Feet
Once the support legs have been removed from the main cabinet they
can be reinstalled in the down position as shown in the picture to the
right. You will reuse the same bolts that held the leg to the main
cabinet from the last step. Please note you may need to adjust the
feet by turning them in order to properly mount them and have
themproperly support the game. This will be done on both sides for a
total of 4 bolts.
Check Box When This Step is Complete
INSTALLATION INSTRUCTIONS
Step # 16
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 17

INSTALLATION INSTRUCTIONS
Step # 19
Connecting the Game to AC outlet
Locate the power cable in the spare parts box and insert it into the
power switch of the game. Insert the other end into a properly rated
and grounded outlet.
DANGER
Check Box When This Step is Complete
Step # 20
Powering On the Game
Turn the power switch to ON. The game should start and run after the
computer goes thought its diagnostic process. This could take up to
two minutes while Windows loads.
Check Box When This Step is Complete
Step # 21
Adjusting the Volume
Once the game is loaded and running you can adjust the sound output
by opening the access door to the right of the player station. Inside
you will find the volume control. Please note that moving the dial in
the clockwise direction will increase the volume and the opposite will
decease the volume. If no sound is comming out please press the
mute button (circled) as the amplifier may be muted.
Check Box When This Step is Complete
ALWAYS INSPECT AND REPLACE DAMAGED
ELECTRICAL CORDS. DO NOT ATTEMPT TO USE OR
FIX A DAMAGED CORD
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 18

Step # 1
Open the front access or ticket door
Step # 2
Locate the coin / ticket meter assembly
Locate the Coin / Ticket meter assembly mounted to the rear
of the access door above the cash box
Push and hold the green "ENTER" button on the right of the
assebly to enter the program mode / menu.
PROGRAM SETUP INFORMATION
Locate and open the front "Ticket" door.
Step # 3
Enter the programming mode / menu
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 19

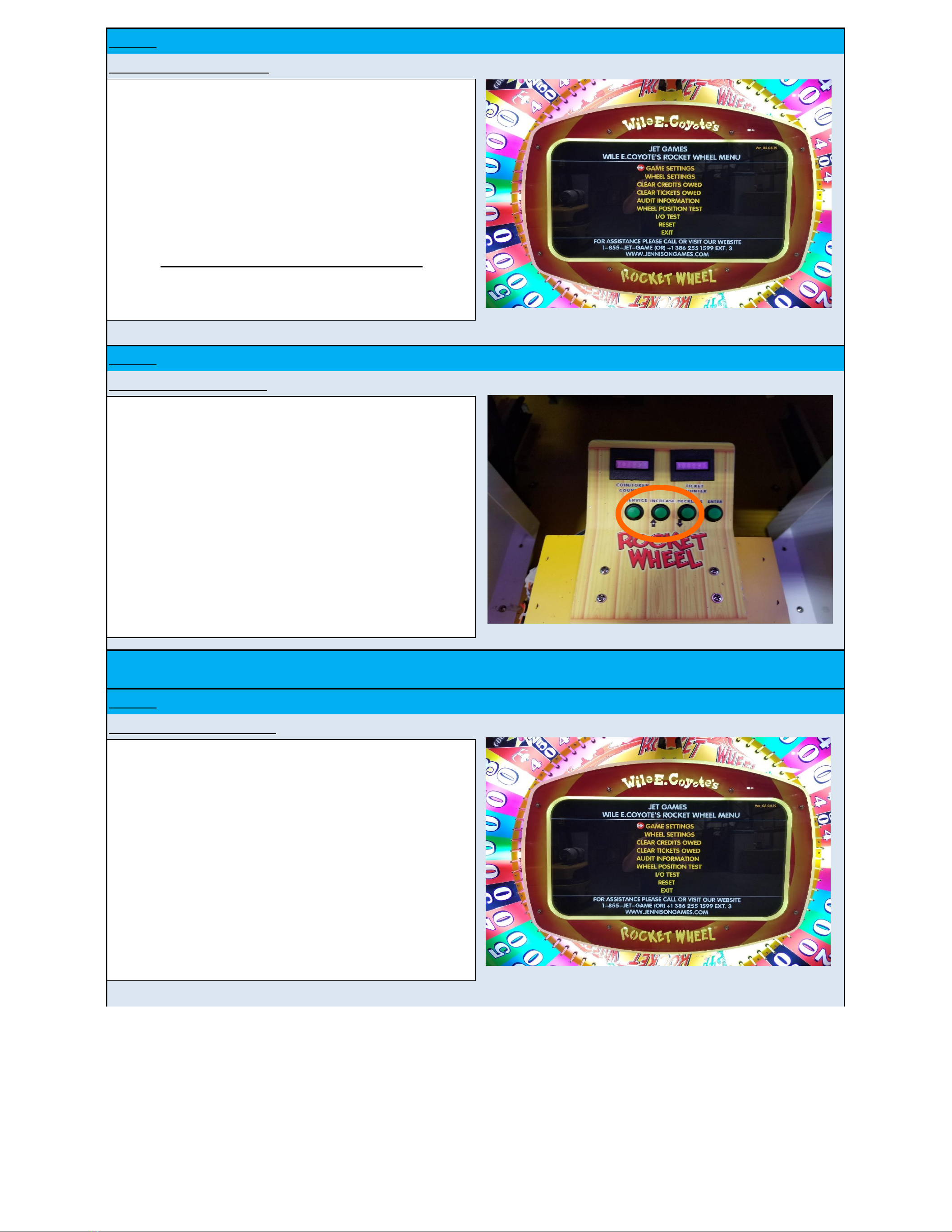

Current Game Software Version
20190404
Notice: Always check our website for the most current software version available.
You will recognize that you have entered the software by
looking at the monitor. At this point, you should see the
Rocket Wheel main menu. Note: Some versions of the
software will display the software or version number on this
page.
Step # 5
Navigating the main menu
You will use the UP "INCREASE" / DOWN "DECREASE" buttons
to move between selections and the "ENTER" button to
record your selections.
PROGRAM SETUP INFORMATION
Step # 6
Changing the Game settings
Move the arrow to "GAME SETTINGS" and press the "ENTER"
button
Step # 4
Program Mode main menu
Jennison Entertainment Technologies Rocket Wheel Service Manual Page 20
