Nixzen NX-N-UTP3-MC01-DS20KM User manual

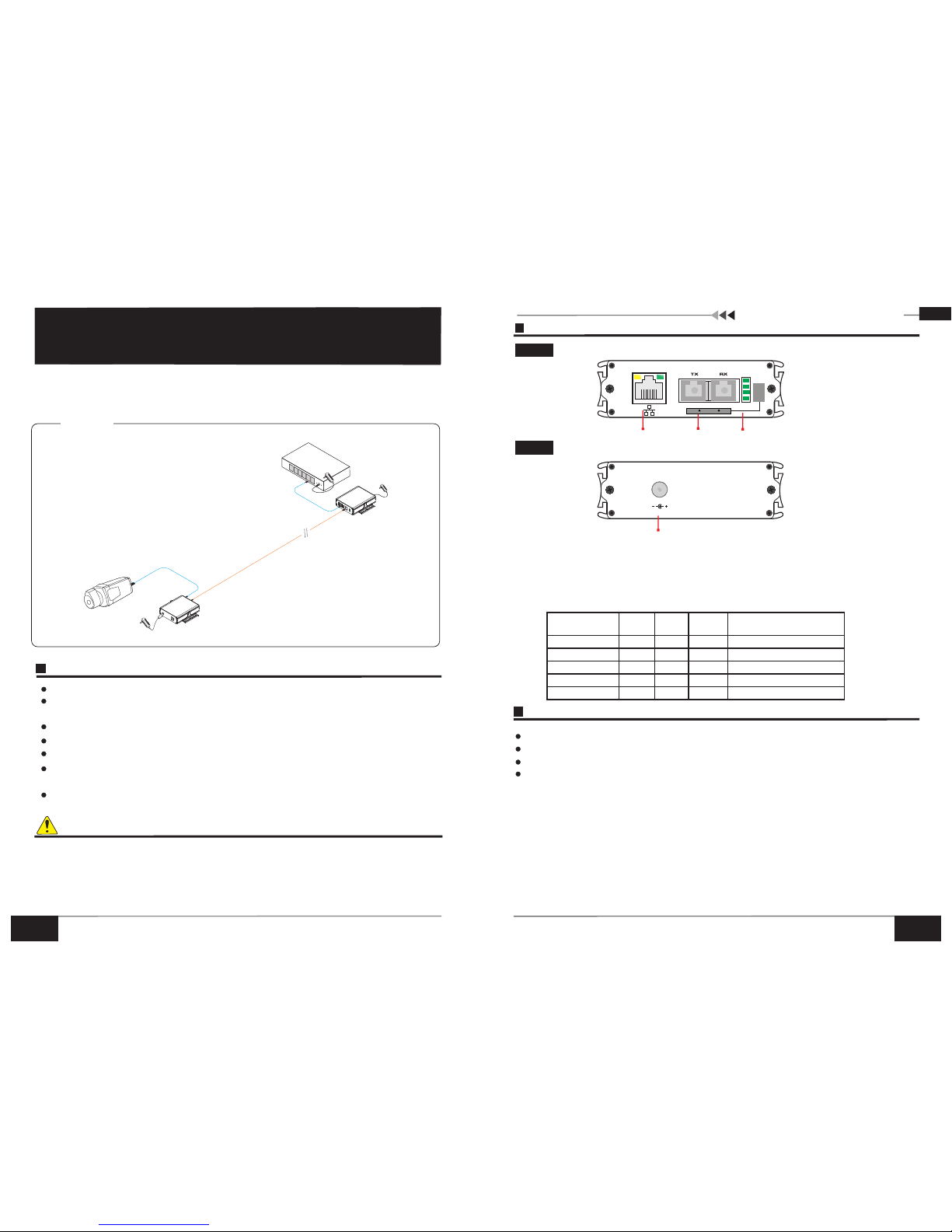

Board Diagram
Please follow the following installation steps
Please check the following items before installation, if any missing, please contact your dealer.
Fast Ethernet Converter 1pc
Power Adapter 1pc
Hangers 2pcs
User Manul 1pc
1) Please turn off the signal source and the device's power, installation with power on may damage the
device;
2) Please check if the network cable and other transmission line are occupied by other device;
3) Use a network cable to connect with fast ethernet converter's LAN port and NVR or computer;
4) Use two single mode double optical fibers to connect with two fast Ethernet convert's optical port, attention
the fiber connect with RX and TX need to be cross connection. That means to use one fiber to connect with
optical transceiver's TX, and the other side to connect with the RX;
5) Check if the installation is correct and device is good, make sure all the connection is reliable and power
for the system;
6) Make sure the network is normal.
Installation Step
This is the fast Ethernet optical transceiver which can convert two different transmission medium between
network cable and optical fiber. It supports 10/100Mbps bandwidth. This product can use in pair or work
with other device, it's widely used in surveillance monitor, FTTH and other situation.
Feature
Provide 100Mbps optical port and Ethernet port, network data can
Adopts X9 optical transceiver, SC connector, use single mode double fibers, transmission distance up to
20km;
Compatible with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX Ethernet standard;
Support 10/100Mbps full/half duplex auto adaptive, support auto MDI/MDIX;
Power adapter use aviation connector, more stable and resalable;
Dynamic LED indicator, real-time show the working status, provide simple working status indication and
trouble shooting;
Delicate aluminum structure design, convenient for desktop and wall installation.
switch between Ethernet and optical;
Fast Ethernet Converter
Note
12
Please attention two optical fibers need to cross-linking two fast Ethernet converters's optical ports;
Fast Ethernet Converter
1 ; FED, SD, LINK is optical fiber port indicator, they mean:
Link: indicate optical port connection status, On: connection ok; Off: connection failed; flash: connection OK and data
switching.
SD: optical port signal detection, On: Optical fiber connection right; Off: Without optical fiber connection.
FED: remote failure mode receive, On: 80ms Off: 20ms Always off: no receive.
2) LED failure indication function, please refer to the below table:
) Power is power indicator
Description
Application
Right
Left
Power Input
Ethernet LED
Optical Port
Link
Optical Port
SD
Optical Port
FED
Status
On
On
On
Off
Connection good
Flash
Flash
On
Off
Connection Good and has data switch
Off
Off
On
Off
Remote Ethernet port can't connect
Off
Off
Off
Off
Fiber RX off line, fiber TX/RX off line
Off
Off
On
Flash
Fiber TX off line
Fiber
SD
FED
Link
Power
SD
FED
Link
Ethernet PortOptical PortPower and Optical
Indicator
Optical Fiber
IP Camera
Fast Ethernet Converter
Ethernet Switch
Optical Fiber
Fast Ethernet Converter
POWER
5V DC
连接接口
Specification
连接接口
Item
Description
Power
Power Supply
Power Adapter
Voltage Range
DC5V
Consumption
＜5W
Ethernet Port
Ethernet Port
LAN Port:10/100Mbps
Transmission Distance
LAN Port: 0～100m
Optical Port
Optical Port
Double Fiber SC Port
Wavelength
1310nm
Bandwidth
155Mbps
Transmission Distance
Single Mode: 20km; Multi-mode: 2km
Network Switch
Network Standard
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX
Status
Indicator
Power LED
1 (Green)
Network LED
1 (Green) on the RJ45 socket
Optical LED
FED, SD, LINK 3 (Green)
Protection
ESD
Contact Discharge 6KV; Air Discharge 8KV
Environmental
Working Temperature
0 ~55℃℃
Storage Temperature
-40 ~85℃℃
Humidity (Non-condensing)
0~95%
Mechanical
Size (L×W×H)
83mm×90mm×25mm
Material
Aluminum Alloy
Color
Black
Weight
100g
Stability
MTBF
>30000h
连接接口
Trouble Shooting
Product are subject to change without prior notice
34
Fast Ethernet Converter
Fast Ethernet Converter
Please find the following solution when the device doesn't work
Please confirm if the installation is correct;
Please confirm if the RJ45 cable order in accordance with the EIA/TIA568A or 568B industry
standards;
The maximum transmission distance depend on the signal source and cable's quality, please don't
exceed device's maximum transmission distance;
Please replace a normal device with a failure one to check if the device is broken;
If the problem still exist, please contact the factory.
RJ 45 Making Method
Instruments to be used: wire crimper, network tester. Wire sequence of RJ45 plug should conform with
EIA/TIA568A or 568B.
1) Shuck off about 2cm long the insulating layer, and bar the 4 pairs UTP cable;
2) Depart the 4 pairs UTP cable and straighten them;
3) Line up the 8 pieces of cables per EIA/TIA 568A or 568B;
4) Cut out 1.5 cm cable wrap and leave the bare wire;
) Plug 8 cables into RJ45 plug, make sure each cable is in each pin;
5
6) Then use wire crimper to crimp it;
7) Follow the 5 steps above to make the another end, following the same sequence of the first plug;
8) Using network tester to test the cable whether is working.
pin color
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
1
2
3
4
5
6
7
8
pin color
1
2
3
4
5
6
7
8
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
EIA/TIA 568A EIA/TIA 568B
Notice
When choose RJ-45 make sure if one end is EIA/TIA568B,the other end should also be EIA/TIA568B.
When choose RJ-45 make sure if one end is EIA/TIA568A,the other end should also be EIA/TIA568A.
