ADF Web HD67B38-B2 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 1 of 23
User Manual
Revision 1 000
English
OPC UA Server / EtherNet/IP Master -
Converter
(Order Code: HD67B38-B2)
for Website information:
http://www adfweb com/?Product=HD67B38
for Price information:
http://www adfweb com/?Price=HD67B38-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others OPC UA Server devices, see also the following links:
OPC UA Server from/to …
www adfweb com?Product=HD67B26 (Seria )
www adfweb com?Product=HD67B27 (Modbus Master)
www adfweb com?Product=HD67B28 (Modbus S ave)
www adfweb com?Product=HD67B29 (Modbus TCP Master)
www adfweb com?Product=HD67B30 (Modbus TCP S ave)
www adfweb com?Product=HD67B31 (Bacnet Master)
www adfweb com?Product=HD67B32 (Bacnet S ave)
www adfweb com?Product=HD67B33 (CAN)
www adfweb com?Product=HD67B34 (CANopen)
www adfweb com?Product=HD67B35 (DeviceNet Master)
www adfweb com?Product=HD67B36 (DeviceNet S ave)
www adfweb com?Product=HD67B37 (DMX)
www adfweb com?Product=HD67B39 (EtherNet/IP S ave)
www adfweb com?Product=HD67B40 (J1939)
www adfweb com?Product=HD67B41 (KNX)
www adfweb com?Product=HD67B42 (MQTT)
www adfweb com?Product=HD67B43 (NMEA0183)
www adfweb com?Product=HD67B44 (NMEA2000)
www adfweb com?Product=HD67B45 (PROFINET Master)
www adfweb com?Product=HD67B46 (PROFINET S ave)
www adfweb com?Product=HD67B47 (SNMP Manager)
www adfweb com?Product=HD67B48 (SNMP Agent)
Do you have an your customer protocol?
See the following links:
www adfweb com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www adfweb com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 2 of 23
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 10
USE OF COMPOSITOR SW67B38 11
NEW PROJECT / OPEN PROJECT 12
SOFTWARE OPTIONS 13
SET COMMUNICATION 15
OPC UA ACCESS 16
ETHERNET/IP ACCESS 17
UPDATE DEVICE 18
MECHANICAL DIMENSIONS 20
ORDERING INFORMATIONS 21
ACCESSORIES 21
DISCLAIMER 22
OTHER REGULATIONS AND STANDARDS 22
WARRANTIES AND TECHNICAL SUPPORT 23
RETURN POLICY 23
Pagina 2 di 23
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document
With this “Document Code” go to web page www adfweb com/download/
and search for the corresponding code on the page Click on the proper
“Document Code” and download the updates
REVISION LIST:
Revision Date Author Chapter Description
1 000 13/03/2019 Tf All First release version
WARNING:
ADFweb com reserves the right to change information in this manual about
our product without warning
ADFweb com is not responsible for any error this manual may contain
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 3 of 23
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and
safety regulation are required for each individual application The same applies also when using accessories
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e
independent limit switches, mechanical interlocks, etc )
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job
R ESIDUAL R ISKS
The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage
CE CONFORMITY
The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 4 of 23
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 5 of 23
CONNECTION SCHEME:
Figure
1
: Connection scheme for HD67
B
38
-
B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 6 of 23
CHARACTERISTICS:
The HD67B38-B2 is a OPC UA Server / EtherNet/IP Master converter
It allows the following characteristics:
Up to 1500 bytes in reading and 1500 bytes in writing;
Two-directional information between EtherNet/IP and OPC UA;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F]
CONFIGURATION:
You need Compositor SW67B38 software on your PC in order to perform the following:
Define the parameter of the OPC UA;
Define the parameter of the EtherNet/IP;
Define the list of OPC UA servers connected to the converter;
Update the device

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 7 of 23

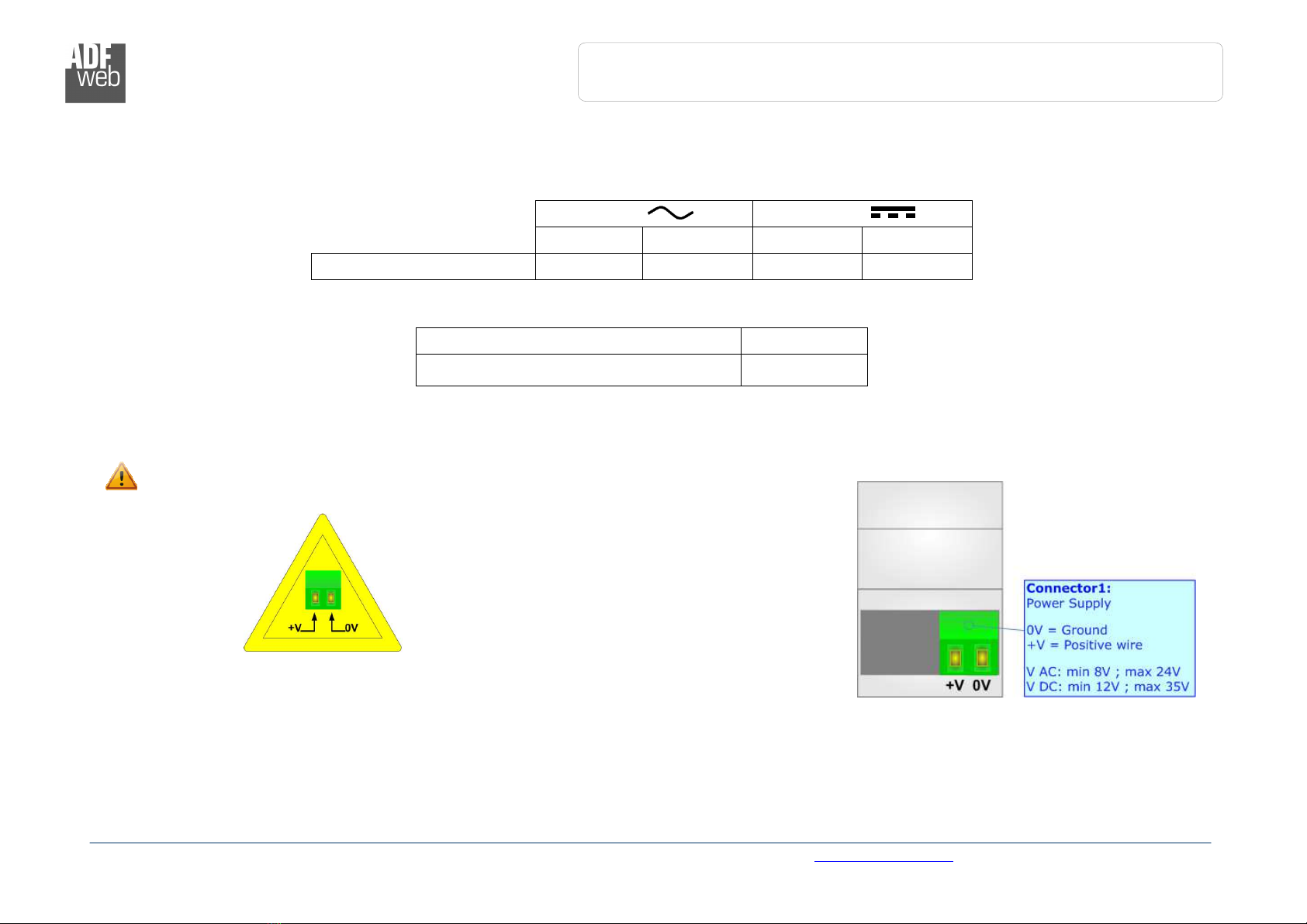

POWER SUPPLY:
The devices can be powered between a wide range of tensions For more details see the two tables below
VAC
VDC
Vmin Vmax Vmin Vmax
HD67B38-B2 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67B38-B2 4
Cauti
on: Not reverse the po arity power
HD67B38-B2

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 8 of 23

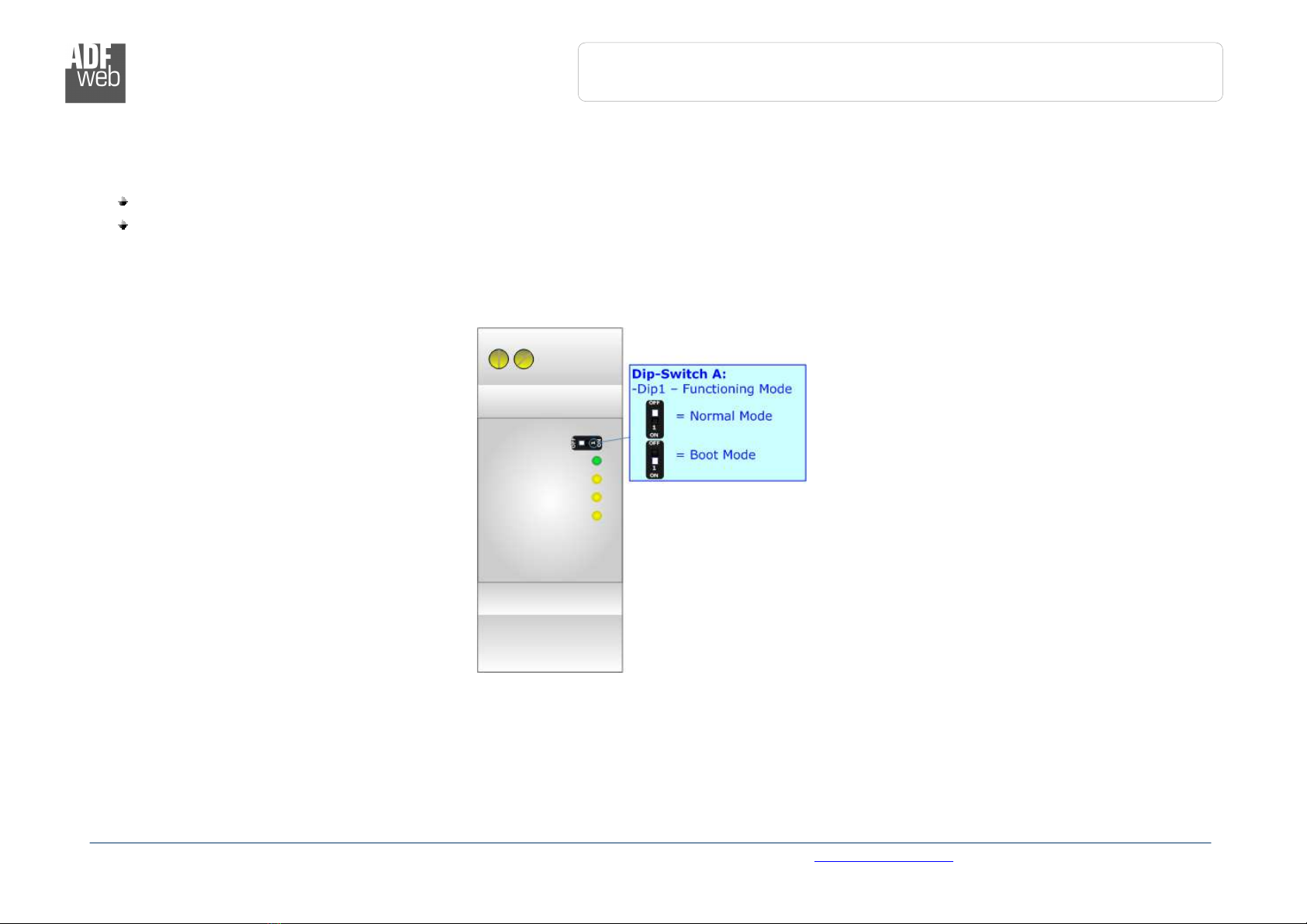

FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device
The second, with Dip1 in On position, is used for upload the Project/Firmware
For the operations to follow for the updating (see ‘UPDATE DEVICE’ section)
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section)

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 9 of 23
LEDS:
The device has got six LEDs that are used to give information of the functioning status
The various meanings of the LEDs are described in the table below
LED Norma Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
2: OPC UA comm (yellow) F ashing: OPC UA request
OFF: No OPC UA request
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
3: Ethernet/IP comm
(yellow)
F ashing: EtherNet/IP communication
OFF: No EtherNet/IP communication
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4: OPC UA error (yellow) ON: At least one OPC UA Server is disconnected
OFF: all OPC UA Servers are connected
B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
5: Link Ethernet (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 10 of 23

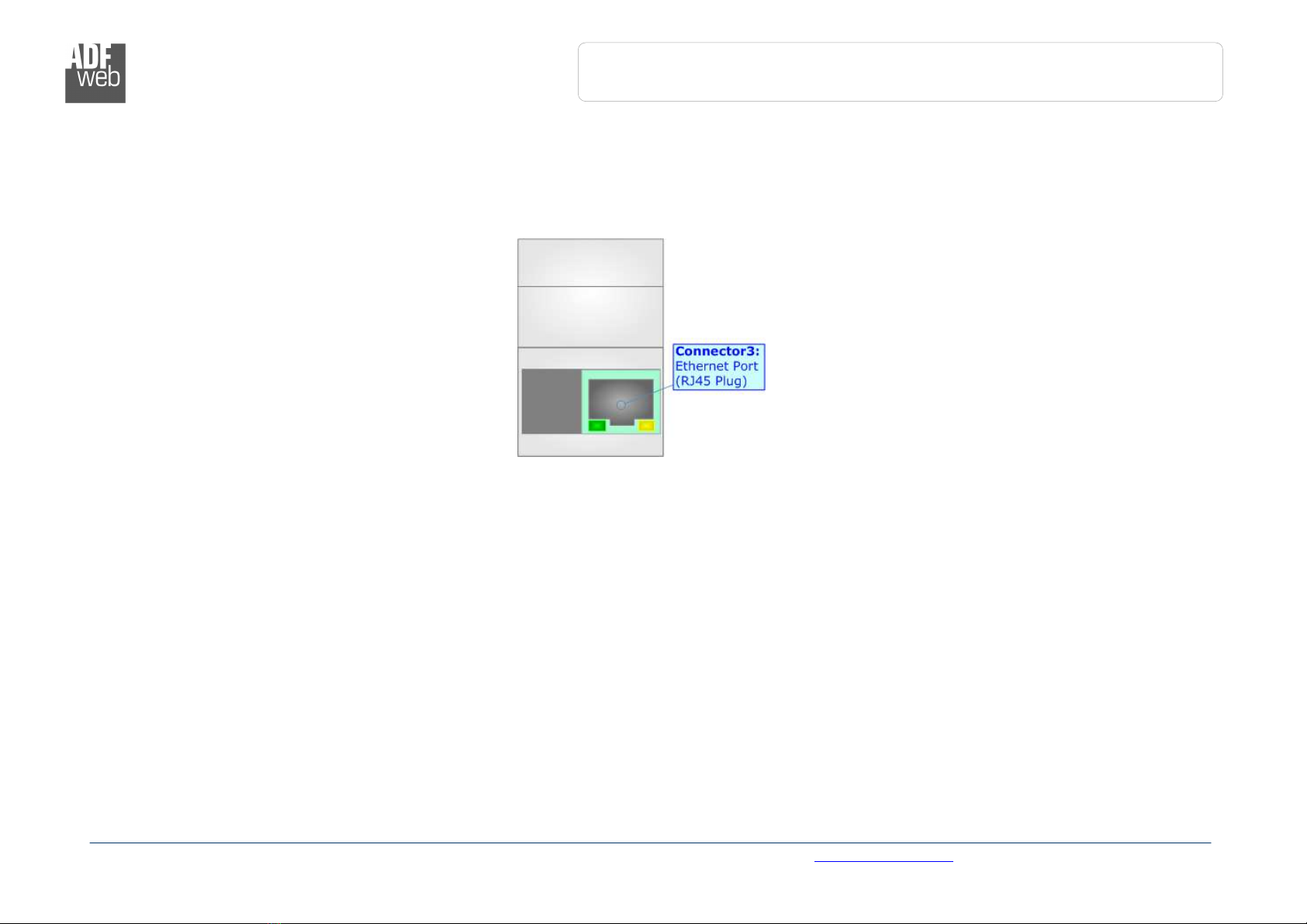

ETHERNET:
The Ethernet connection must be made using Connector3 of HD67B38-B2 with at least a Category 5E cable The maximum length of the
cable should not exceed 100m The cable has to conform to the T568 norms relative to connections in cat 5 up to 100 Mbps To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 11 of 23
USE OF COMPOSITOR SW67B38:
To configure the Converter, use the available software that runs with Windows called SW67B38 It is downloadable on the site
www adfweb com and its operation is described in this document (This manual is referenced to the last version of the software present on
our web site) The software works with MSWindows (XP, Vista, Seven, 8, 10; 32/64bit)
When launching the SW67B38, the window below appears (Fig 2)
Note:
It is necessary to have installed Net Framework 4
F
igure 2: Main window for SW67B38

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 12 of 23
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “OPC UA Server / EtherNet/IP Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 13 of 23

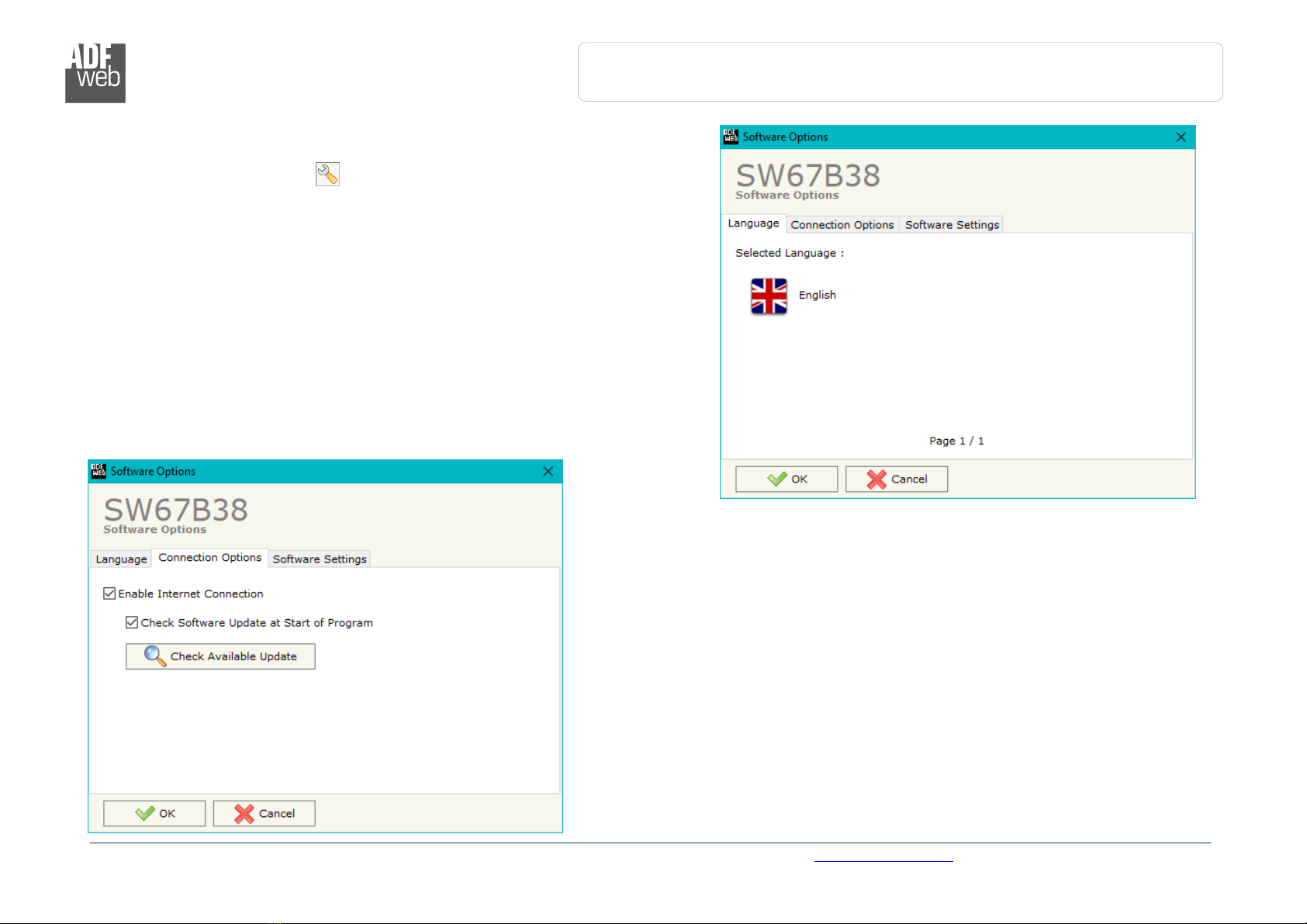

SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the
language of the software and check the updatings for the compositor
In the section “Language” it is possible to change the language of the
software
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb com website
Checking the option “Check Software Update at Start of Program”, the
SW67B38 check automatically if there are updatings when it is launched

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 14 of 23

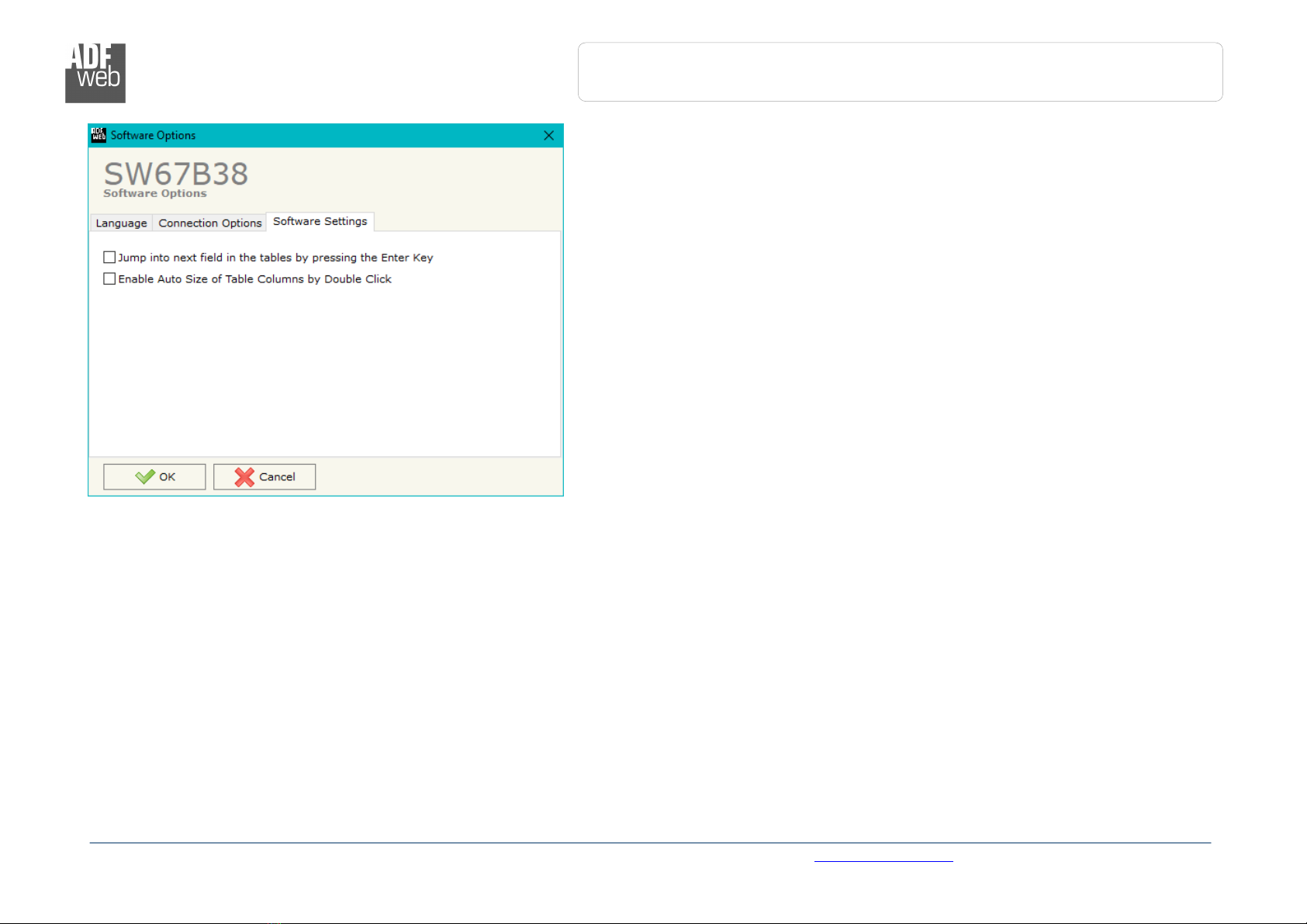

In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 15 of 23
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, OPC UA
Server and Ethernet/IP Master
By Pressing the “Set Communication” button from the main window for SW67B38
(Fig 2) the window “Set Communication” appears (Fig 3)
The means of the fields for “OPC UA Server” are:
In the field “IP Address” the IP address of the converter is defined;
In the field “Subnet Mask” the SubNet Mask of the converter is defined;
In the field “GATEWAY” the default gateway of the net is defined This feature
can be enabled or disabled pressing the Check Box field This feature is used for
going out of the net;
In the field “DNS” the DNS address is defined This field is required if the server
address is define by URL and not IP Address
In the field “Port” the port used for OPC UA communication is defined
The means of the fields for “EtherNet/IP Master” are:
In the field “IP Address” the IP address for EtherNet/IP side of the converter is
defined;
In the field “SubNet Mask” the SubNet Mask for EtherNet/IP side of the
converter is defined;
In the field “Gateway” the default gateway of the net is defined This feature
can be enabled or disabled pressing the Check Box field This feature is used for
going out of the net;
In the field “Port” the port used for EtherNet/IP communication is defined
The means of the fields for “NTP (Network Time Protocol)” are:
In the field “Server URL” the URL or the IP Address of the NTP Server is
defined;
In the field “Po Time (seconds)” the polling time for the time synchronization
is defined Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 16 of 23
Figure 4: “O C UA Server Access” window
OPC UA ACCESS:
By Pressing the “OPC UA Access” button from the main window for SW67B38 (Fig 2) the window “OPC UA Server Access” appears (Fig 4)
This section is used to define the list of OPC UA variables to read/write
The means of the checkboxes inside the table are:
If the field “Enab e” is checked, the OPC UA variable is enabled;
In the field “Type” the data format of the OPC UA variable is defined;
In the field “Position” the starting byte of the internal memory arrays where getting the value is defined;
In the field “Length” the byte length of the OPC UA variable is defined;
In the field “Name” the name of the OPC UA variable is defined;
In the field “R/W” the access type of the OPC UA variable is defined;
In the field “Mnemonic” a description of the OPC UA variable is defined

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 17 of 23
Figure 5: “Set EtherNet/I Slave Access” window
ETHERNET/IP ACCESS:
By Pressing the “EtherNet/IP Access” button from the main window for SW67B38 (Fig 2) the window “Set EtherNet/IP Master Access”
appears (Fig 5)
This section is used to define the list of the EtherNet/IP Slave to read/write with the OPC UA Client
The means of the fields are:
If the field “Enab e” is checked, the polling to the EtherNet/IP Slave is enabled;
In the field “IP Address” the IP Address of the EtherNet/IP Slave is defined;
In the field “Start Input” the starting Input byte of the EtherNet/IP Slave to map on OPC UA side is defined;
In the field “Num Input” the number of consecutive Input byte to map on OPC UA side is defined;
In the field “Start Output” the starting Output byte of the EtherNet/IP Slave to write from OPC UA side is defined;
In the field “Num Output” the number of consecutive Output byte to write from OPC UA side is defined;
In the field “Time Po ” the polling time in ms is defined;
In the field “Instance T > O” the instance of the assembly for the Target to Originator data direction is defined;
In the field “Conn. Point T > O” the connection point of the assembly for the Target to Originator data direction is defined;
In the field “Instance O > T” the instance of the assembly for the Originator to Target data direction is defined;
In the field “Conn. Point O > T” the connection point of the assembly for the Originator to Target data direction is defined;
In the field “Dim Header T > O” the dimension of the header for the Target to Originator data direction is defined;
In the field “Dim Header O > T” the dimension of the header for the Originator to Target data direction is defined;
In the field “Mnemonic” a brief description is defined

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 18 of 23
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created
Configuration into the device; and also the Firmware, if necessary This by using the
Ethernet port
If you don’t know the actual IP address of the device you have to use this procedure:
Turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip1 of ‘Dip-Switch A’ in OFF position;
Turn ON the device
If you know the actual IP address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode
At this point the configuration/firmware on the device is correctly updated
Figure 6: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 19 of 23
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67B38 device
Warning:
If Fig 7 appears when you try to do the Update try these points before seeking
assistance:
Check if the serial cable is connected between the PC and the device;
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 10 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you
have to cancel the ARP table every time you connect a new device on Ethernet For
do this you have to launch the "Command Prompt" and write the command "arp -
d" Pay attention that with Windows Vista, Seven, 8, 10 you have to launch the
"Command Prompt" with Administrator Rights;
Pay attention at Firewall lock
Warning:
In the case of HD67B38 you have to use the software “SW67B38”: www adfweb com\download\filefold\SW67B38 zip
Figure
7
:
“
Error
” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
OPC UA
Server
/
EtherNet/IP
Master
Document code: MN67B38_ENG Revision 1 000 Page 20 of 23
MECHANICAL DIMENSIONS:
Figure
8
: Mechanical dimensions scheme
for H
D67B38
-
B2
