OPERATION MANUAL
Portable Gasoline Generator
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USE

2
PREFACE
Thank you for choosing our gasoline generator.
Based on the latest technology at home and abroad, our Co. has successfully developed the gasoline
generator set. The unit is characterized by advanced design, compact structure, reliable performance,
convenient service, low fuel consumption and noise as well as a fashionable design. The manual gives
information with respect to operating and maintaining of the gasoline generator. Please be sure to read
the manual carefully before operating it. If any problem occurs, call your dealer who will provide you with
the best after sale service.
All the materials and diagrams of this manual are in accordance with the newest products at the
publishing time. Due to revision and other changes, the information described in this manual may be a
little different from the actual condition. The copyright of this manual belongs to our Co., any group or
individual is forbidden to reprint or copy it without permission. The manual is subject to change without
notice.

3
IMPORTANT NOTICE
Please pay special attention to statements preceded by the following words:
WARNING:
•Read this manual carefully, Follow all operational notes and restrictions, and take note
of possible hazards for generators.
•Place the generator on stable surface only.
•The load must not exceed the power marked on the rated power sticker on the
generator. Overloading may result in damage to the generator or a shorter lifespan of
the generator.
•The motor must not be operated with excessive rotary speed. The operation of the
motor with excessive rotary speed can result in injury. Parts that affect the rotary speed
must not be altered or replaced.
•Do not operate or store generator in wet or humid surroundings or on highly conductive
surfaces such as metal coatings or steel constructions.
DANGER: POISONOUS GAS. Engine exhaust gas is poisonous; don’t operate in an
unventilated room. When installed in a ventilated room, additional requirements for fire and
explosion protection must be adhered to.

4
WARNING: Gasoline is highly flammable and easily ignited.
•Do not refuel during operation;
•Do not refuel while smoking or near open flames;
•Do not spill fuel;
•Store fuel in containers specifically designed for this purpose;
•Refuel outdoors only and don’t smoke while refueling;
•Add fuel before starting the engine. Never remove the cap of the fuel tank or add
gasoline while the engine is running or when the engine is hot;
•If gasoline is spilled, don’t attempt to start the engine but move the machine away from
the area of spillage and avoid creating any source of ignition until petrol vapors have
dissipated;
•Replace all fuel tank and container caps securely;
•Always turn generator off before refueling. Allow generator to cool for at least 2 minutes
before removing fuel cap. Loosen cap slowly to relieve pressure in tank.
•Do not overfill gas tank. Gas may expand during operation. Do not fill to the top of the
tank.
•Always check for spilled gas before operating.
•Empty gasoline tank before storing or transporting the generator.
•Before transportation, turn fuel valve off and disconnect spark plug.

5
WARNING: This generator produces a powerful voltage, which can result in
electrocution.
•ALWAYS ground the generator before use (see the “Ground the Generator” portion of
the “PREPARING THE GENERATOR FOR USE” section).
•Generator should only be plugged into electrical devices, either directly or with an
extension cord. When using extension lines or mobile distribution networks the total
length of lines for a cross section of 1.5 mm2should not exceed 60m; for a cross section
of 2.5 mm2this should not exceed 100m.
•NEVER connect to other power sources.
•Do not use in rain or wet conditions.
•Do not touch bare wires or outlets.
•Protect children by keeping them at a safe distance from the generator set. Do not allow
children or non-qualified persons to operate the generator.
•Electrical equipment (including lines and plug connections) should not be defective.
•The generator set must not be connected to other power sources, such as the power
company supply mains.
•Protection against electrical shock depends on circuit breakers specifically matched to
the generator set. If the circuit breakers require replacement they must be replaced with
a circuit breaker with identical ratings and performance characteristics.

6
Only tough rubber-sheathed flexible cable or the equivalent should be used due to
high mechanical stresses.
WARNING: This generator produces heat when running.
•Some parts of the internal combustion engine are hot and may cause burns if touched.
Do not touch hot surfaces. Pay attention to the warnings on the generator set.
•Allow generator to cool down before touching engine or areas that are hot during use.
CAUTION: Misuse can result in damage to the generator or a shortened lifespan.
•Use generator only for its intended purposes.
•Operate only on dry, level surfaces.
•Allow generator to run for several minutes before connecting electrical devices.
•Shut off and disconnect any malfunctioning devices from the generator.
•Do not exceed the load capacity of the generator by plugging in more electrical devices
than the unit can handle.
•Do not turn on electrical devices until they are connected to the generator.
•Turn off all connected electrical devices before stopping the generator.
This manual should be considered as a permanent part of the unit and should
remain with the unit when resold.

7
Contents
1. Generator Safety………………………………………………………………………………………….. 7
2. Introduction to Parts and Components ………………………………………………………………… 9
3. Pre-Operating Inspection ………………………………………………………………………………..10
4. Starting the Generator……………………………………………………………………………………14
5. Service …………………………………………………………………………………………………….16
6. Stopping the Engine …………………………………………………………………………………..…21
7. Maintenance ………………………………………………………………………………………………22
8. Storage …………………………………………………………………………………………….………26
9. Troubleshooting……………………………………………………………………………………………28
10. Wiring Diagram ……………………………………………………………………………………………30

8

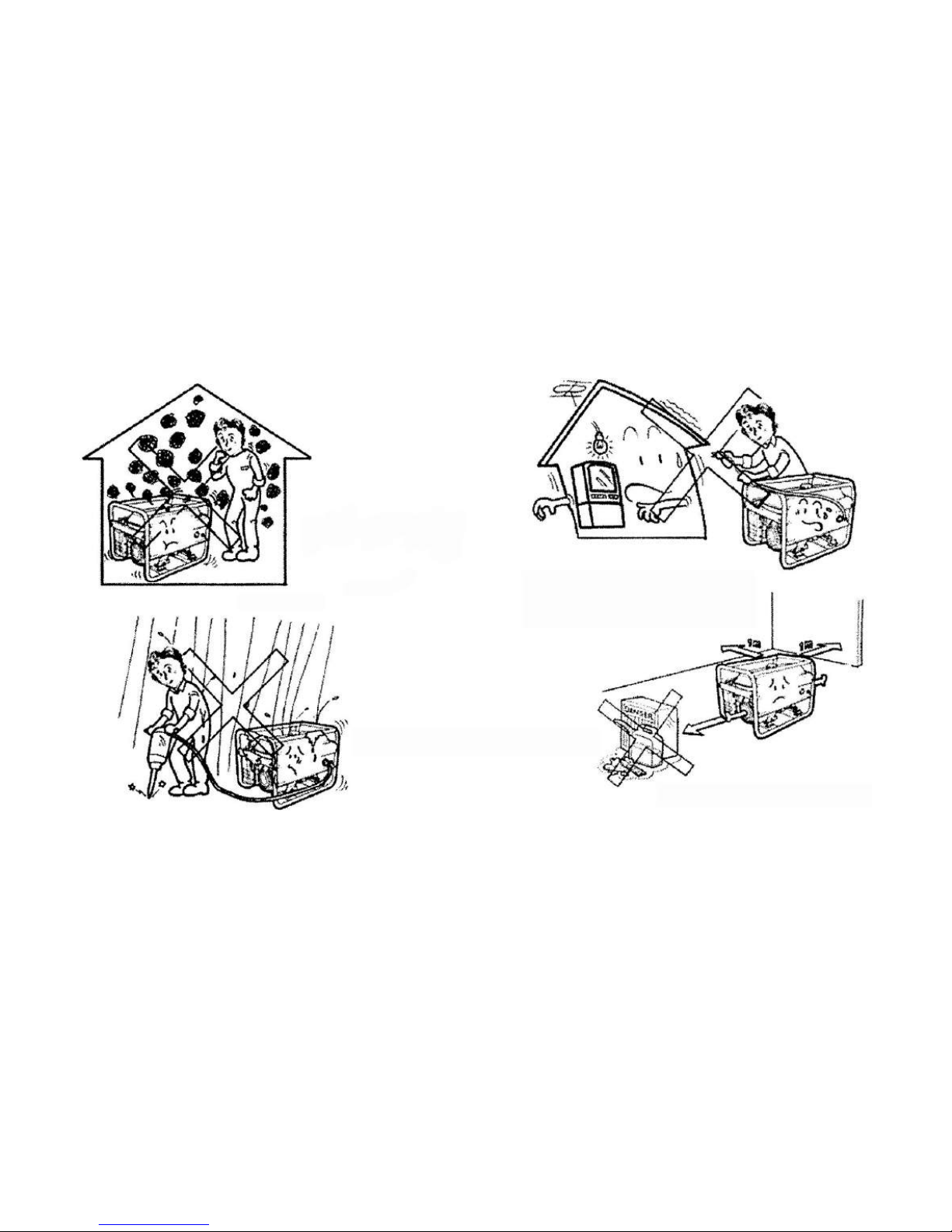

1. GENERATOR SAFETY
1.1 Never operate the
generator in an enclosed
room.
Fig.1 Fig.3
1.2 Never connect to your home circuit.
Fig.4
Fig.2 1.4 Move inflammables at least 1 meter
1.3 Do not operate the generator in wet conditions. away from the generator.

9

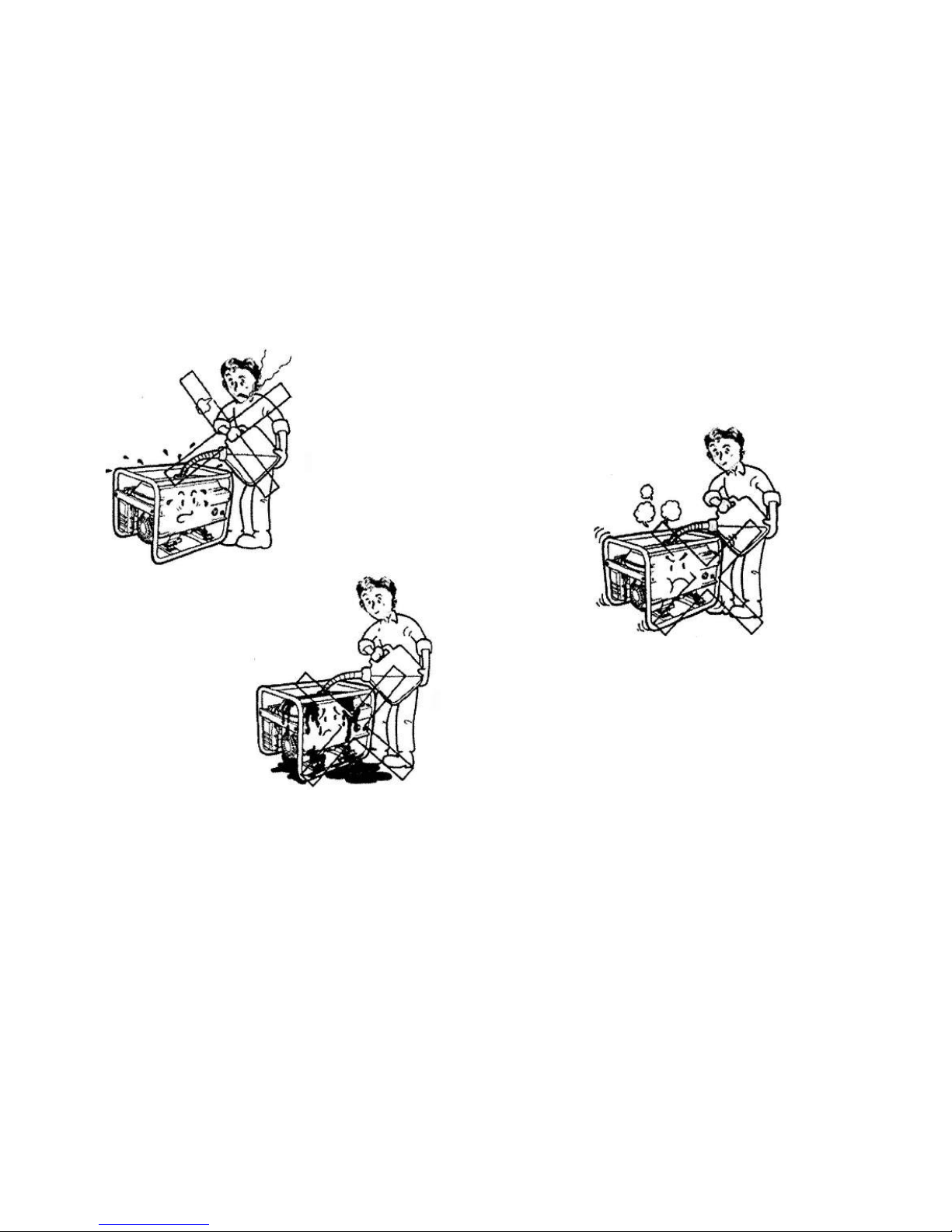

1.5 No smoking when filling the generator with fuel.
Fig.5
Fig.6
1.6 Always stop the generator before
filling it with fuel.
Fig.7
1.7 Do not spill when filling with fuel.

10
2. INTRODUCITON TO PARTS AND COMPONENTS
Main components of the unit are located as below.
1. Fuel sensor
2. Fuel filler cap
3. AC plug socket
4. AC breaker
5. Voltmeter
6. Dipstick
7. Engine switch
8. Drain plug
9. Starting handle
10. Fuel cock
11. Air cleaner
12. Choke lever
13. Ground terminal
14. Muffler
15. Spark plug

11
Fig.8
Electric
Start

12
3. PRE-OPERATING INSPECTION

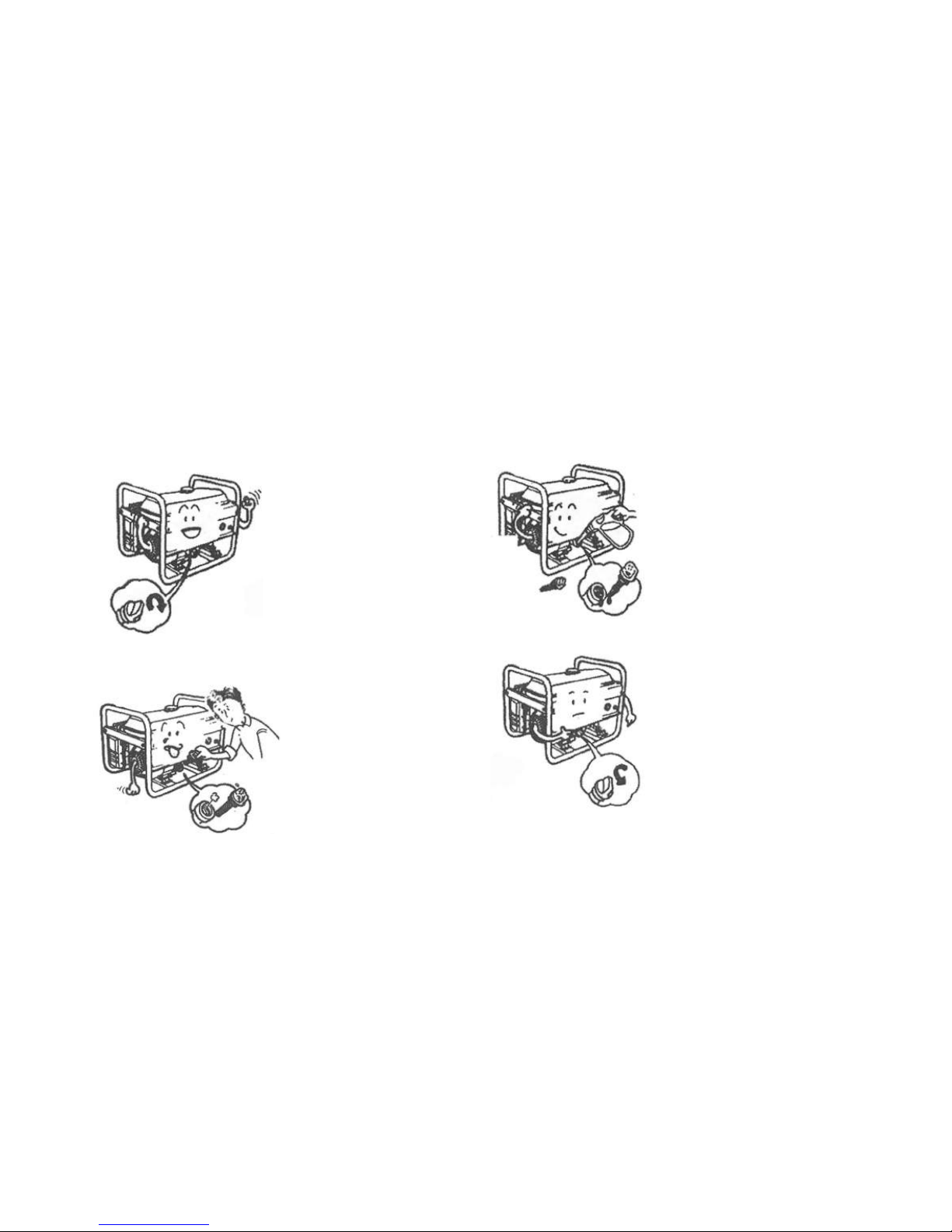

3.1 ENGINE-OIL LEVEL
NOTE: always check the generator in the case of stopping the generator on a level ground.
1. Turn out the oil
filler cap and clean
the dipstick with
a clear cloth.
Fig.9
2. Insert the dipstick
back into the oil filler
hole without turning
it in.
Fig.10
3. In the case that the oil
ever is below the lower
level mark of the dipstick,
fill oil to the upper level
mark of the dipstick.
Fig.11
4. Reinstall the oil filler
cap well.
Fig.12

13
3.2 FUEL LEVEL
1. Open the fuel filler cap.
Fig.13
2. Fill fuel to the shoulder of the filter.
Fig.14
3. Check the fuel level, and fill fuel if necessary.
Fig.15
4. Reinstall the fuel filler cap well.
Fig.16

14
3.3 AIR CLEANER
1. Remove the clip and dismantle the air housing
2. Check and make sure the air cleaner core is
intact and clean. If it is broke, replace it with a
new one.
Fig.17
4. Put the filter element into the original position,
install the cover and secure it well.
3. If the core is filthy, clean it in the following
sequence.
a) Clean the core in the cleansing solvent.
b) Dry it up
c) Dip a few drops of engine oil into it.
.
Fig.19
d) Squeeze excess oil
Fig.18

15
3.4 BATTERY (Electric)
Check and make sure that the electrolyte level of each battery cell is between upper and lower level
marks.
Fig.20
1. Upper level mark
2. Lower lever mar

16
4. STARTING THE GENERATOR
4.1. Remove all load from the AC socket(s).
4.2. Switch off the AC circuit breaker.
Fig.21
4.3. Turn on the fuel lever.
Fig.22
4.4 Set the choke lever to ON position.
Do not open the choke when starting the
engine in hot conditions.
Fig.23

17

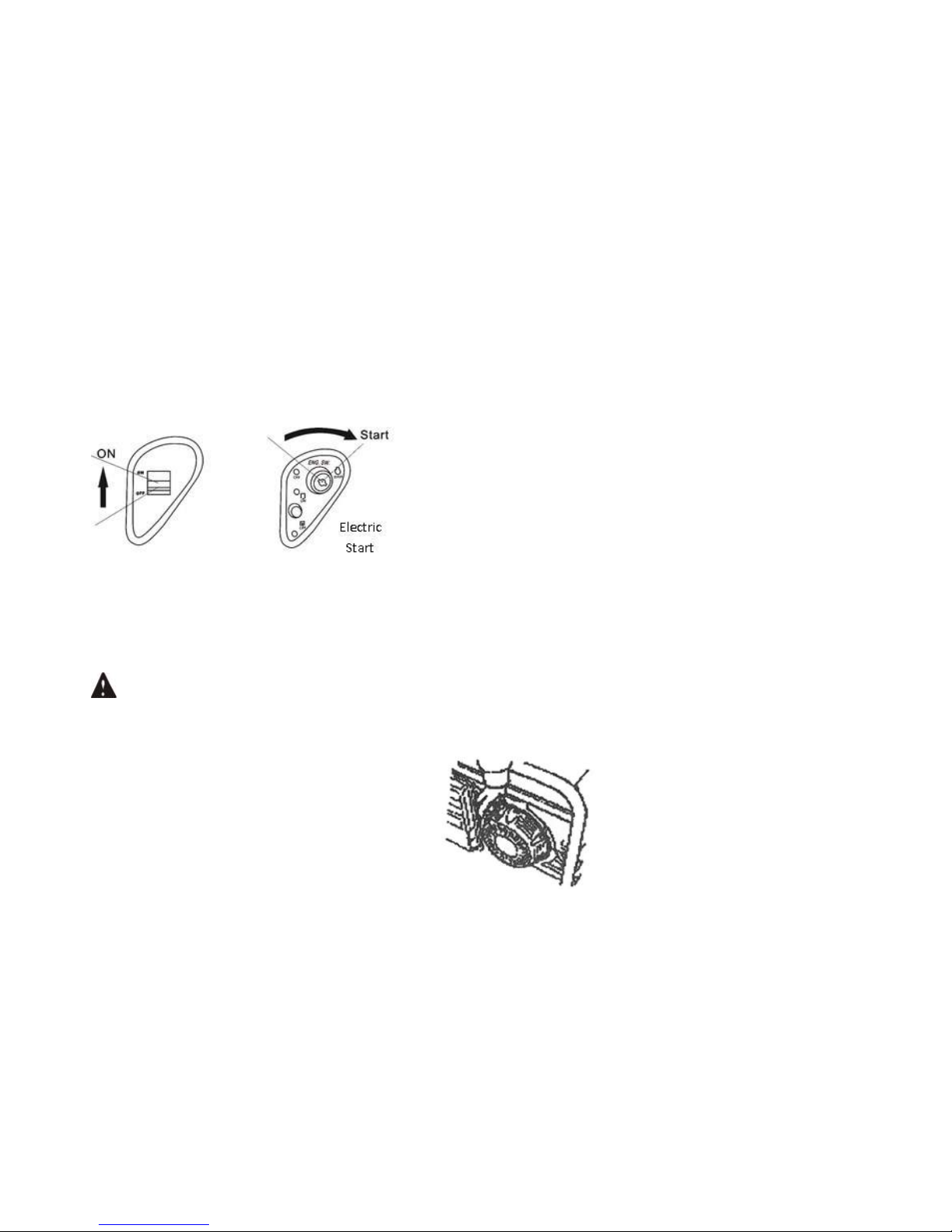

4.5. Turn on the ignition switch.
Fig.24
4.6 Pull the start handle gently until you feel resistance, and then firmly pull it up.
4.7 Once the engine is warmed up, set the choke lever to the OFF position.
WARNING
After starting up, release the starter lever slightly to avoid personnel injury or damage to
equipment due to the recoil.
Fig.25

18
5. SERVICE
Always do the below so as to keep the generator in a good condition.
WARNING
5.1. Always connect the generator to the earth to prevent misuse.
Fig.26

19
5.2. The following table gives reference information for connecting electric appliances to the generator.
Description
Wattage
Typically
Example
Start
Rating
Electric device
Start
Rating
●Incandescent
lamp
●Heating device
×1
×1
Incandescent lamp
TV
Incandescent
lamp
100W
100VA
(W)
100VA
(W)
●Fluorescent
lamp
×2
×1.5
Fluorescent lamp
Fluorescent
lamp
40W
80VA
(W)
60VA
(W)
●Motor drive
device
×3~5
×2
Refrigerator
Electric fan
Refrigerator
150W
450~750VA
(W)
300VA
(W)
