JBL VerTec VT4889 User manual

JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.
JBLVT4889 REV AAC
PACKAGE
07-09
Technical Manual
JBLVT4889
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Frequency Response: 45 Hz-16 kHz (±3 dB)
• Max Peak Output: 136 dB to 146 dB @ 1M
(Frequency/Bandpass Dependent)
• Recommended Signal Digital System Controller:
Processing: dbx 480, BSS 366, XTA 226 Supported
• Horiz Coverage Angle: 90 deg Nominal,
250 Hz-16 kHz (-6 dB)
• Vert Coverage Angle: Varies With Array Size and
Configuration
SYSTEMS COMPONENTS:
• Cabinet: Enclosure Assembly C4889
• Grille: Grille, Left (337763-002)
Grille, Right (337763-001)
• Low Frequency (2) x 2255HPL, 380 mm (15 in.)
Transducer: 76 mm (3 in.) Dual Coil Differential
Transducer, Direct Cooled
• Nominal Impedance: 8 ohms
(Each Driver)
• Input Power Rating: System Bandpass (600 W per Driver)
(Per Driver)
• Bandpass Sensitivity: 99 dB, *SPL (System Bandpass)
DC Resistance: 5.0 ohm ±10%
• Mid Range (4) x 2250HPL, 203 mm (8 in.)
Transducer: 76 mm (3 in.) Dual Coil Differential
Transducer, Direct Cooled
• Nominal Impedance: 8 ohms, Wired Series Parallel
(Driver, Bandpass)
SYSTEM COMPONENTS: (CONT’D)
• Input Power Rating: System Bandpass (300 W Per Driver)
(Bandpass, Driver)
• Bandpass Sensitivity: 102 dB, 1 Watt @ 1 Meter SPL
(System Bandpass)
• DC Resistance: 5.2 ohm ±10%
• High Frequency (3) x 2435 HPL, 76 mm (3 in.)
Transducer: Beryllium Diaph Voice Coil,
38 mm (1.5 in.) Throat Diameter
• Nominal Impedance: 16 ohm, Wired in Series
(Bandpass)
• Input Power Rating: System Bandpass (75 W Per Driver)
(System Bandpass)
• Bandpass Sensitivty: 116 dB, *SPL (System Bandpass)
• DC Resistance: 4.0 ohm ±10%
• Input Panel: NL8MPR (2 Each)
Panel P/N 338647-001
AURAL SWEEP TEST SPECIFICATIONS:
A. LF. Aural Sweep Test: 10.0V Input, 20 Hz to 200 Hz
B. MF. Aural Sweep Test: 7.0V Input, 20 Hz to 1 kHz
C. HF. Aural Sweep Test: 0.75V Input, 1 kHz to 16 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 489 mm x 1213 mm x 546 mm D
(19.25 x 47.75 x 21.0 in. D)
• Net Weight: 159 lbs. (72 kg)
Incl. rigging frames and hinge bars
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Soft Cover
229-00024-00
Carton VT4889
990-00224-00
Filler, Top and Bottom (2)
364680-001
Filler, Bottom (2)
991-00239-00
Microfoam Packaging (8)
49790P
Specification Sheet
337845-001
JBL VT4889-SF
Carton
990-00232-00
Filler (2)
337616-001
Specification Sheet
336890-001
JBL VT4889-AF
Carton
990-00233-00
Filler (2)
991-00258-00
Specification Sheet
336890-001
910-00035-01 (1)
Ferro fluid vial w/
blotter paper and
instruction sheet
910-00035-02 (12)
Ferro fluid vials w/
blotter paper and
instruction sheet

JBLVT4889
JBLVT4889
WIRING DIAGRAM
NO. 1
YEL
YEL/BLK
YEL
YEL/BLK
PCB
NL8MPR (2 EA)
1± LF, RIGHT
2± LF, LEFT
3± MF
4± HF
Input Connector
Assembly
352052-003
YEL
GRN
GRN/BL
GRN
BLK RED
WHT/BLK
RIGHT LEFT
WHT/RED
Driver, Low Freq(2)
2255HPL
Cone Repl
C8R2255
Driver, Mid Freq (4)
2250HPL
(124-31005-01X)
Cone Repl
C8R2250
Compression Driver, High Freq.
2435 HPL (3)
Diaph Repl
D8R2435
BL
BL/WHT
BL
BL/WHT
GRN/BLK
YEL/BLK
NO. 1
NO. 2
NO. 2
NO. 3
NO. 3
NO. 4

JBLVT4889
JBLVT4889
Connector Assembly
350971-001
Wire Assembly
350994-001
SCHEMATIC DIAGRAMS

JBLVT4889

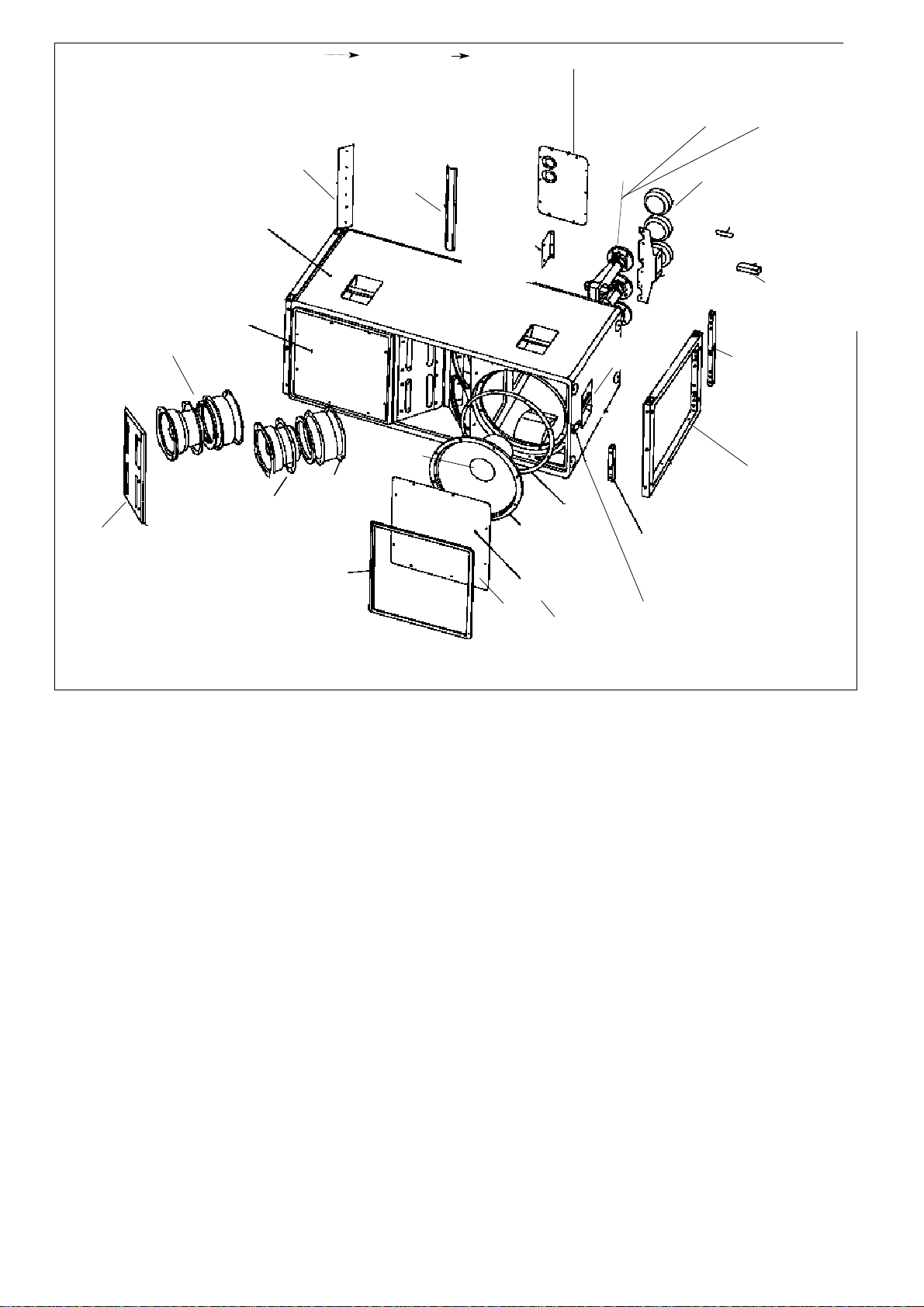

COMPONENT EXPLODEDVIEW
Enclosure Assembly
C4889
(Available to VerTec
Dealers and
Servicing Center)
Futr Coating BLK
910-00015-00
34
JBLVT4889
Grille, Left
337763-002
Gasket,H/F Horn Side (2)
359-00237-00 Horn Support
Base
336981-001
Screw (2)
803-12113-12
8-32 x 1
FLT,TORX,
BLK ZINC,LCS
Nut (2)
883-30100-00
KEPS,CLR ZINC
LCS,RIGHT
Mid Driver Can (4)
382-00361-00
Gasket, Rear Can (4)
359-00236-00
Driver, Mid Freq (4)
2250HPL
(124-31005-01X)
Cone Repl
C8R2250
Dome
31385-03
RBI Assembly (2)
338020-001
Screw (16)
338882-001
10-32 x 1/4
TORX HEAD STRIP
Gasket, Rear 15” (4)
360-60002-01
Gasket Vinyl 8 in (4)
21769
Grille, Frame (2)
389-00041-00
Grille,
Right
337763-001
Standoff (16)
885-00082-01
3/8 HEX x 1/4
SS
Driver, Low Freq (2)
2255HPL
Cone Repl
C8R2255
Screw (16)
804-01110-16
PH,BLK ZINC,LCS
Gasket, Rear (2)
360-70002-01 Dolly Lock Pin (2)
351797-002
Nut (2)
836-36110-00
3/8-24
NYLON, BLK
ZINC,LCS,RIGHT
Front Hinge Assembly
(2)
364596-001
Slider Knob (2)
350839-001
R.A.P.
354965-001
Handle,
Logo (8)
950-00045-01
Rigging Frame (2)
338978-001
Quick Release Pin
Assembly (8)
361344-001
Screw (4)
338884-001
1/4 x 3/4
FLT HD SCKT GR8
Screw (4)
338885-001
1/4 x 1
FLT HD SCTK GR8
Screw (8)
804-41110-06
10-32 x 3/8
PAN,PH, BLK ZINC
Loctite, Adh 242
69437
Dolly Retainer Pin (2)
351696-001
Rear Hinge Assembly (2)
364597-001
Gasket, Waveformer (2)
337119-001
Top/Bottom
Horn Support
336980-001
H/F Horn Mid Gasket (2)
359-00225-00
Driver, H/F Freq (3)
2435HPL
Diaph Repl
D8R2435
Horn, Waveformer (2)
337055-001
Screw (12)
705-90002-14
1/4-20 x 7/8
SCKT SET
Nut (12)
804-30010-00
1/4-20
KEPS,BLK
ZINC,LCS,
RIGHT
Bolt (12)
854-00003-08
1/4-20 x 1/2
HEX
Loctite,
Adh 242
69437
Washer (12)
844-01110-07
1/4 ,SAE,REG.
BLK,ZINC,LCS
Washer (12)
844-10100-06
1/4 x .06
EXTTTH,REG,
CLR ZINC,CS
Input Connector Assembly
352052-003
Gasket, Input Plate
359-00231-00
Screw (10)
338883-001
8-32 x 1/2
TORX HEAD STRIP
Connector Assembly
350971-001
Input Label
350974-003
Wire Assembly
350994-001
Grille, H/F
128-00430-00
Screw (24)
338886-001
10-32 x 5/8
PN HD,TORX
NYLOC STRIP
Dome
71646-03
Nut (8)
801-30000-00
6-32, K Lock
ZINC, LCS
Screw (8)
702-11110-08
6-32 x 1/2
FL,PH,BLK

JBLVT4889

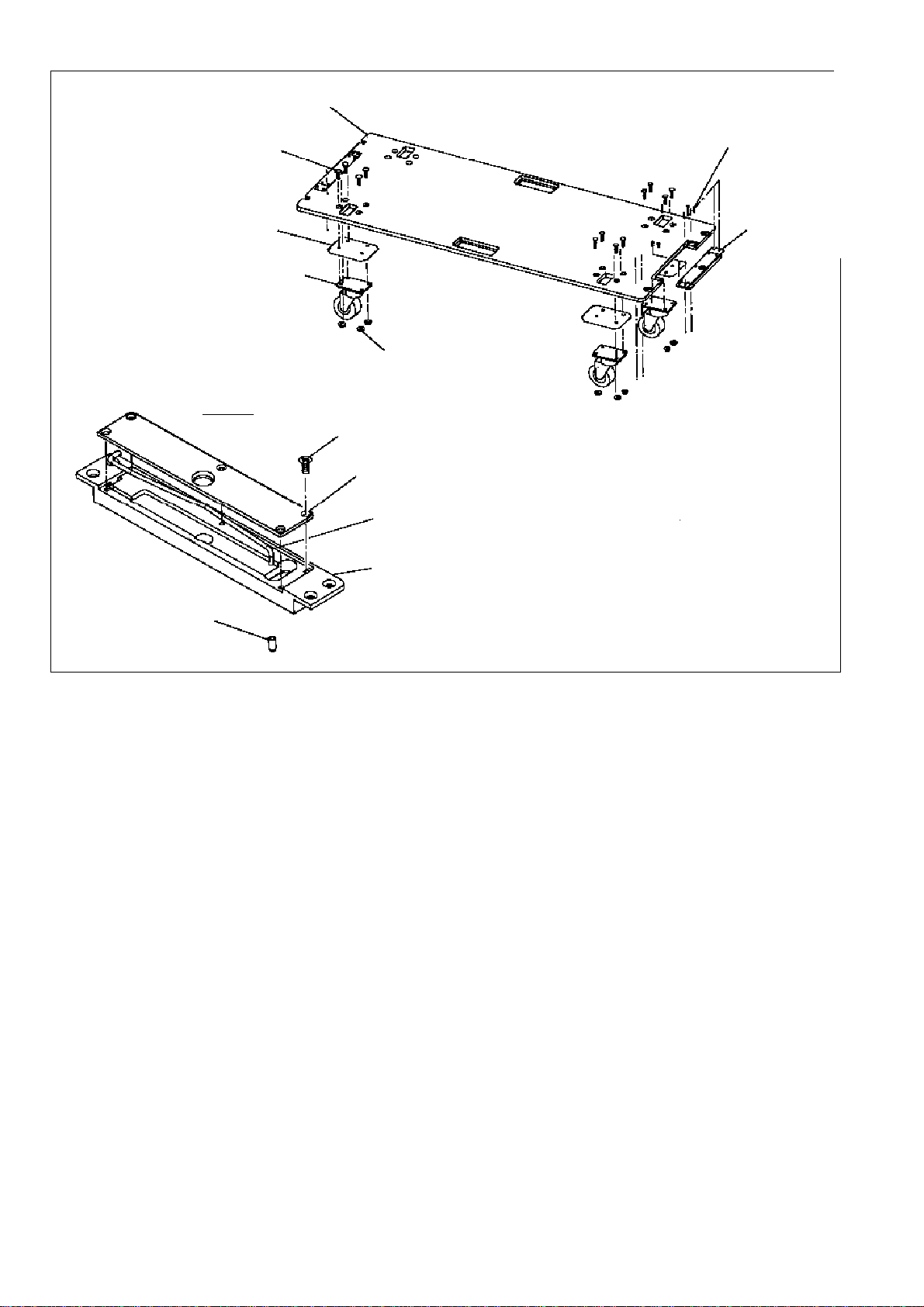

DOLLY ASSEMBLY
Nut (10)
833-36100-00
10-32
NYLON, CLR ZINC
LCS, RIGHT
SEE DETAIL A
Washer, (16)
845-00100-00
5/16 FLT
Nut (16)
352018-001
5/16-18,
NYLOCK SPECIAL
Doly Platform
924-00028-00
Screw (16)
706-13000-20
5/16-18 X 1-1/4 LG
FLT HD SCKT
Caster Plate (4)
909-00052-00
Caster Wheel 3” (4)
924-00005-00
Screw, (10)
802-11000-08
6-32 X 1/2 LG
FLT PH,CLR ZINC,LCS
Cover, Dolly Lock Housing (2)
337089-001
Dolly Retainer Spring Assembly (2)
885-00090-00
Dolly lock Housing Assembly (2)
351371-01
CAP
336879-001
FIT 1/8,.110 I.D.
x 13/32 LG BLK
(included with spring)
351563-001
DETAIL A
JBLVT4889
Dolly Lock Housing
Assembly (2)
350875-001
229-00029-01

JBLVT4889
JBLVT4889
REV B
DOLLY ASSEMBLY
Dolly Platform
351894-003
229-00029-02
Caster Wheels (4)
924-00005-00
Caster Plate (4)
909-00052-01
Nut (16)
Nylock Special
352018-001
Spring Assembly (2)
Vertec Dolly
351899-001
Cover (2)
Dolly Housing
351893-001
Screws (12)
8-32 x 1/2
FLT, PH, CLR ZINC, UNC
803-11000-08
Insert (10)
350015-003
8-32 x 0.4
Screws (16)
807-13000-20
5/16-18 x 1 1/4
FLT, HEX,CLR ZINC,
LCS
T NUT (2)
21749
CP, 8-32 x 1/4

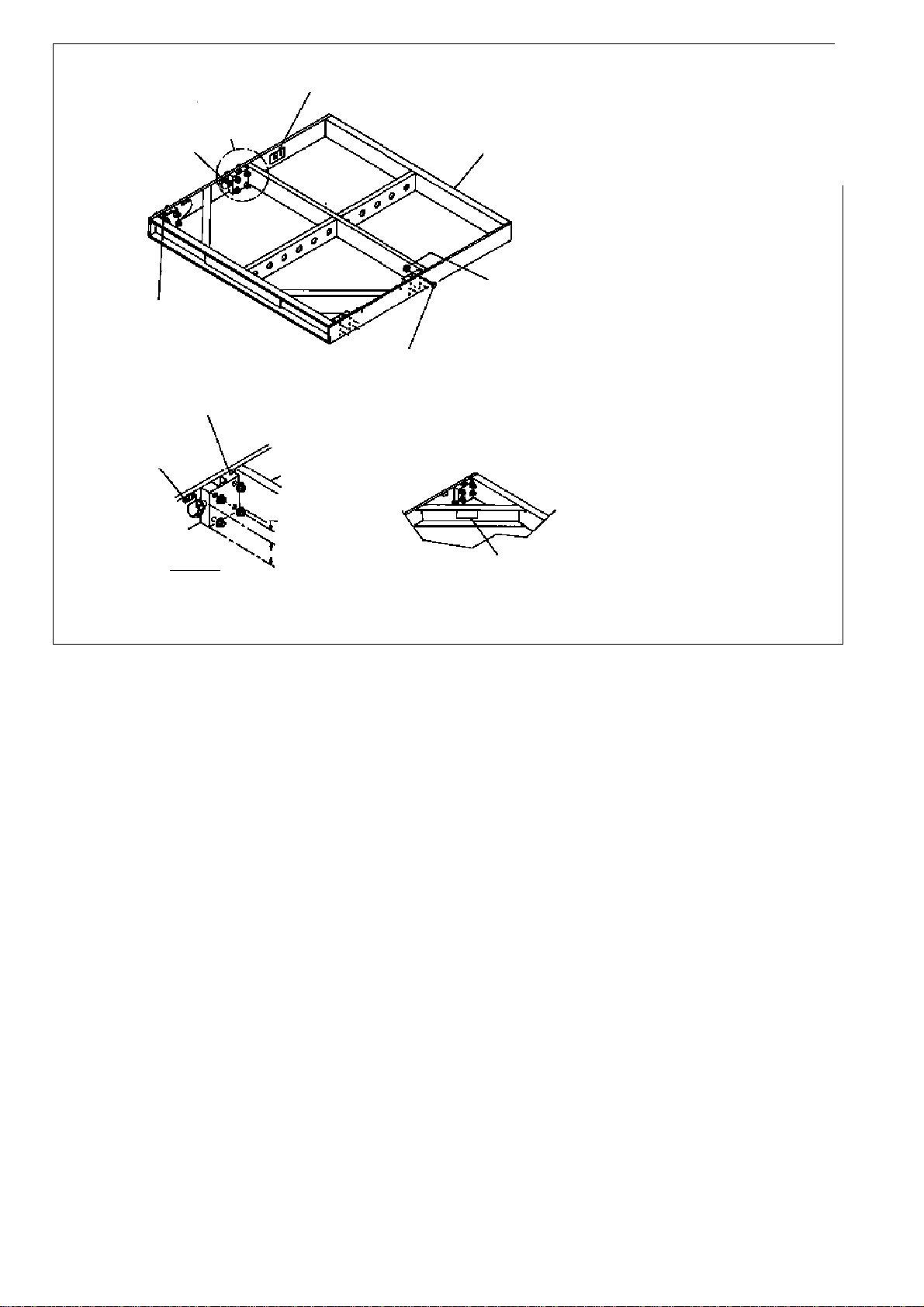

JBLVT4889-AF
ARRAY FRAME
Array Frame
337036-001
VT4889 AF
DETAIL A
Nut, (16)
836-36113-00
3/8-16
Nylon Lock,BLK ZINC,
MCAS,RT
Washer, Flat (16)
846-00410-08
3/8 x .08
FLTPL,EX DT, BLK ZINC, CS
Label, Array Frame
955-00154-00
Screw (4)
804-31110-08
10-32 x 1/2,
TRUSS, PH, BLK ZINC,
LCS
Bolt (16)
856-00013-44
3/8-16 X 2 3/4
HEX,CAP,BLK ZINC,MCA
Specification Tag
VT4889 AF
337080-001
Hinge Block, Front (2)
352963-001
Hinge Block, Rear (2)
352964-001
Short
Long
The VT4889-AF array suspension frame
is crafted of 6061 Grade heat-treated
aluminum. It includes 11 (eleven)
attachment holes for fitting 6.5-ton
shackles.Each of these holes is fitted
with a bronze bushing for longer life.
These holes are set on approximately
102mm (4”) centers. Each hole has an
I.D. (Inner Diameter) of 25.4mm (1”).
The frame includes four receiver blocks,
designed to attach Hinge Bars from the
VT4889 enclosures.These blocks are
made of 7075 Grade aluminum.They
are coupled with Grade 8 bolts, and the
attached steel quick release pins are
secured with stainless steel restraining
lanyards.
The VT4889-AF weighs 45 kilograms
(100 lbs.) It measures approximately
1257mm x 1129mm x 102mm
(49.5” x 44.45” x 4”).
DETAIL A
VT4889-AF (Array Frame)
JBLVT4889-AF
VT4889 Manual
336890-001
Pin, Ball Locking Assembly (2)
361345-001
4 in.

JBLVT4889-SF
ARRAY FRAME (Short Frame)
Short Frame
888-00106-00
VT4889-SF
DETAIL A
Nut, (16)
836-36113-00
3/8-16
Nylon Lock, BLK ZINC,
MCAS,RT
Washer, Flat (32)
846-00410-08
3/8 x .08
FLTPL,EX DT, BLK ZINC, CS
Label, Array Frame
955-00154-00
Pin,Ball Locking Assembly (4)
361345-001
4 in
Screw (4)
804-31110-08
10-32 x 1/2
TRUSS, PH,BLK
ZINC, LCS
Bolt (16)
856-00013-40
3/8-16 x 2-1/2
HEX,CAP, BLK ZINC,
MCA
Specification Tag
VT4889-SF
337080-001
Hinge Block, Front (2)
352963-001
Short
Long
DETAIL A
Like the larger VT4889-AF, the Short
Frame is crafted of 6061 Grade heat-
treated aluminum. It includes 6 (six)
attachment holes. Each hole is fitted
with a bronze bushing for longer life.
These holes are set on approximately
102mm (4”) centers. Each hole has an
I.D. (Inner Diameter of 25.4mm (1”).The
frame includes four receiver blocks,
designed to attach Hinge Bars from the
VT4889 enclosures.These blocks are
made of 7075 Grade aluminum.They
are coupled with Grade 8 bolts, and the
attached steel quick release pins are
secured with stainless steel restraining
lanyards.
The VT4889-SF weighs only 23.6 kilo-
grams (52 lbs.).It measures approxi-
mately 1257mm x 660mm x 102mm
(49.5” x 26” x 4”).
VT4889-SF (Short Frame)
JBLVT4889-SF
Hinge Block, Rear (2)
352964-001

JBLVT4889-ASP/MSP/RIG
COMPONENT PARTS LIST
JBLVT4889-ASP/MS/RIG
Acoustical Spare Parts, VT4889-ASP
ITEM
NO.
PART NO. QTY DESCRIPTION
1 2255HPL 1 S/M 2255HPL
2 2250HPL 2 S/M 2255HPL
3 D8R2435 1 S/M Diaphragm Repl. 2435
4 336890-001 1 SPECIFICATION SHEET VT4889
5 990-00160-00 1 CARTON
Mechanical Spare Parts, VT4889-MSP
1 364596-001 2 FRONT HINGLE ASSY
2 364597-001 2 REAR HINGLE ASSY
3 336890-002 1 SPECIFICATION SHEET VT4889
4 338978-001 1 FRAME, RIGGING
5 337186-002 1 KIT, LF GRILLE SCREWS
6 337187-001 1 KIT, MF COVER SCREWS
7 337188-001 1 KIT, INPUT PLACE SCREWS
8 337189-001 1 KIT, DOLLY MOUNT ASSY
9 337190-001 1 KIT, PIN ASSY
10 337191-001 1 KIT, CASTER WHEEL ASSY
11 337192-001 1 KIT, SLIDER KNOBS
13 337194-001 1 FILLER, VT4889-MSP
14 337195-001 1 CARTON
15 338884-001 16 SCR, 1/4 X 3/4 FLT HD SOCKET GR8
16 338885-001 16 SCR, 1/4 X 1 FLT HD SOCKET GR8
17 950-00045-00 8 LOGO, HANDLE
18 354965-001 R.A.P.
Rigging Spare Parts, VT4889-RIG
1 364596-001 2 FRONT HINGE ASSY
2 364597-001 2 REAR HINGLE ASSY
3 350839-001 2 SLIDER KNOBS
4 336919-001 1 CARTON VT4889-RIG
6 354965-001 1 R.A.P.
