Nobles 9004200--120V User manual

®
9006288
Rev. 02 (03-2012)
FLOOR SCRUBBER
*9006288*
®
www.nobles.com
PARTS MANUAL
SPEED SCRUB
Model 9004200--120V
(S/N 10000000--20000000)

Ref Part No. Serial Number Description Qty.
1 82681 (000000--- ) Bracket Wldt, Lpg Mount 1
o2 63810 (000000--- ) Latch Assy, Lpg Tank Mtg, W/Nut 4
Y3 51839 (000000--- ) Nut Adjustable, Lpg Tank Mtg 2
4 49263 (000000--- ) Tie, Cable 3
5 82556 (000000---001039 ) Bracket, Vaporizer 1
6 54930 (000000--- ) Vaporizer, LPG 1
B
A
C
D
HOW TO ORDER PARTS -- See diagram above
Only use TENNANT Company supplied or equivalent parts. Parts and supplies may be ordered online,
by phone, by fax or by mail.
Follow the steps below to ensure prompt delivery.
1. (A) Identify the machine model.
2. (B) Identify the machine serial number from the data label.
3. (C) Ensure the proper serial number is used from
the parts list.
4. Identify the part number and quantity.
Do not order by page or reference numbers.
5. Provide your name, company name, customer ID number,
billing and shipping address, phone number and
purchase order number.
6. Provide detail shipping instructions.
(D) -- identifies an assembly
Y-- identifies parts included in assembly
Please fill out at time of installation for
future reference.
Model No. --
Serial No. --
Machine Options --
Sales Rep. --
Sales Rep. phone no. --
Customer ID Number --
Installation Date --
Tennant Company
PO Box 1452
Minneapolis, MN 55440
Phone: [phone] or (763) 513--2850
www.nobles.com
Specifications and parts are subject to change without notice.
Copyright E2009--2012 TENNANT Company, Printed in U.S.A.

STANDARD PARTS
Nobles Speed ScrubR(03--2012) 3
TABLE OF CONTENTS
RECOMMENDED MAINTENANCE ITEMS 4.....
HANDLE GROUP 6...........................
FRAME GROUP 8............................
TANKS AND SHROUD GROUP 10...............
TANK COVER GROUP 12......................
VACUUM FAN GROUP 14......................
SOLUTION GROUP 16.........................
SCRUB HEAD GROUP
(S/N 10507590-- ) 18...................
SCRUB HEAD GROUP
(S/N 10000000--10507589) 20.................
SCRUB HEAD LIFT GROUP 22.................
SQUEEGEE GROUP, FRONT AND REAR 24.....
ELECTRICAL DIAGRAM 26.....................

RECOMMENDED MAINTENANCE ITEMS
Nobles Speed Scrub15 Battery (03--2012)
4
RECOMMENDED MAINTENANCE ITEMS
Ref. Part No. Serial Number Description Qty.
1014918 (10000000--20000000 )Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr 3
601443 (10000000--20000000 )Caster, Swivel, 3.0d 1.3w, .50--13 Stem 2
9004283 (10000000--20000000 )Belt Kit, W/ Installation Tool 1
1037197 (10000000--20000000 )Brush, Scrub, 89mm Od X 386mm, Nylon (Standard) 1
1037277 (10000000--20000000 )Brush, Scrub, 89mm Od X 386mm, Poly (Optional) 1
1037278 (10000000--20000000 )Brush, Scrub, 89mm Od X 386mm, Grit (Optional) 1
9008581 (10000000--20000000 )Wheel Kit, Sqge, W/ Hdwr 1
1057241 (10000000--20000000 )Blade Assy, Sqge, Inner, Ure 2
1050943 (10000000--20000000 )Blade Assy, Sqge, Outer, Ure 2
1052876 (10000000--20000000 )Gasket, Tank 2

RECOMMENDED MAINTENANCE ITEMS
Nobles Speed Scrub15 Battery (05--2011) 5

STANDARD PARTS
Nobles Speed ScrubR(03--2009)
6
HANDLE GROUP
355054
1
4
5
67
8
9
10
11
12
13
14
12
15
16 17
18
19
20 21
22
23
24
25
26
27
28
29
30
31
32
32
29
28
27
26
30
16
8
2
3
33

STANDARD PARTS
Nobles Speed ScrubR(03--2012) 7
HANDLE GROUP
Ref. Part No. Serial Number Description Qty.
9005511 (10000000--20000000 )Handle, Nobles Speed Scrub 15” 1
Y19004323 (10000000--20000000 )Cover, Handle Front/Rear Nobles Ss Kit 1
YY 21039088 (10000000--20000000 )Label, Logo, Handle [Nobles] 1
YY 31037324 (10000000--20000000 )Label, Opertnl, Instrmt Panl, Scrubber 1
Y4602919 (10000000--20000000 )Switch, Rocker, Dpdt, On / On 2
Y542368 (10000000--20000000 )Nut, Hex, Std, M4 X 0.70, 8 2
Y6140061 (10000000--20000000 )Washer, Lock, Ext, 08, Pl 2
Y71034952 (10000000--20000000 )Screw, Hex, M4 X 0.7 X 12, Dbl Thrd 1
Y81043573 (10000000--20000000 )Screw, #10--14 X 0.675, Spl[Shcs,Selftap] 7
Y9130166 (10000000--20000000 )Grip, Cord, Strainrelief Pg--11 W/Nut Bk 1
Y10 1042410 (10000000--20000000 )Cord, 14ga /3, 16.0l, W/ Receptacle, Yel 1
Y11 1037147 (10000000--20000000 )Clip, Cord, Strainrelief, Black 1
Y12 1033893 (10000000--20000000 )Lever, Cntrl, Switch [Trex] 2
Y13 9008568 (10000000--20000000 )Switch Kit, W/ Washers, Fr/ F/1063165 1
Y14 1034945 (10000000--20000000 )Lever, Adjmt, Handle 1
Y15 1036599 (10000000--20000000 )Cover, Handle, Nobles [Trex] 1
Y16 1043572 (10000000--20000000 )Screw, #10--14 X 01.5, Spl[Shcs Selftap] 2
Y17 1034176 (10000000--20000000 )Bushing, Flng, 5mmb 12mmd 8mml, Pa6 1
Y18 1034180 (10000000--20000000 )Rod, Release [Trex] 1
Y19 603104 (10000000--20000000 )Hook, Cord, Blk [Quick--Release] 1
Y20 603108 (10000000--20000000 )Spring, Cmpr, Switch 1
Y21 140239 (10000000--20000000 )Bolt, Shld, .38d X 1.75, .31--18 1
Y22 1045239 (10000000--20000000 )Tube, Assy, Handle 1
Y23 1013295 (10000000--20000000 )Spring, Cmpr [2100 Series] 1
Y24 9006059 (10000000--20000000 )Plunger Kit, Handle 1
Y25 1034924 (10000000--20000000 )Pin, Roll, 04mmd X 40mml 1
Y26 1016399 (10000000--20000000 )Screw, Hex, M8 X 1.25 X 30, Nl, Ss 4
Y27 140027 (10000000--20000000 )Washer, Flat, 0.35b 0.75d .04, Ss 4
Y28 49609 (10000000--20000000 )Screw, Soc, M8 X 1.25 X 16, 12.9 4
Y29 1000307 (10000000--20000000 )Handle, Pivot, Half 2
Y30 1034155 (10000000--20000000 )Pin, Roll, 06mmd X 36mml 2
Y31 1034872 (10000000--20000000 )Gear, Lock, Handle 1
Y32 612422 (10000000--20000000 )Seal, Org, Gear Seat 2
33 1042403 (10000000--20000000 )Cord, Power, 1.5mm /3 Yel[2x15m 50ft Us] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Nobles Speed ScrubR(03--2012)
8
FRAME GROUP
355056
1
2
34
5
7
6
8
9
10
11
12
13 14
14
15 16
17
16
15
18
19
20
21
22
23
24
22
25

STANDARD PARTS
Nobles Speed ScrubR(03--2012) 9
FRAME GROUP
Ref. Part No. Serial Number Description Qty.
11064038 (10000000--20000000 )Gauge, Hourmeter, 05--277 Volt, Ac / Dc 1
286726 (10000000--20000000 )Grommet, Rbr, 0.44id, F/0.5h, .19 Matl 1
3383720 (10000000--20000000 )Circuitbreaker, 05.0a, Resetable 1
4383722 (10000000--20000000 )Circuitbreaker, 15.0a, Resetable 1
574027 (10000000--20000000 )Screw, Pan, Phl, M6 X 1.00 X 12, Nl, Pl 1
69004277 (10000000--20000000 )Cover Kit, Column, W/ Label [3gal 120v] 1
Y71039105 (10000000--20000000 )Label,Warning,Ac Scrb/Extr [En/Fr/Es/Jp] 1
Y8NA (10000000--20000000 )Label, Safety, 120vac [Etl] 1
91044427 (10000000--20000000 )Nut, Hex, Lock, #8--32, Nl, Ss 1
10 41578 (10000000--20000000 )Washer, Flat, 06, Ss 1
11 02938 (10000000--20000000 )Washer, Lock, Int, 08, Ss 1
12 9004276 (10000000--20000000 )Column Kit, Sppt, W/ Label [3 Gal] 1
13 1030718 (10000000--20000000 )Cover, Frame, Rear [Trex] 1
14 02931 (10000000--20000000 )Nut, Hex, Lock, .50--13, Nl, Ss 2
15 1035137 (10000000--20000000 )Pin, Clevis, Grvd 0.31d X 2.00l, Ss 2
16 1014918 (10000000--20000000 )Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr 2
17 1035139 (10000000--20000000 )Ring, Retaining, Ext, 0.31d, E--Type 2
18 1020341 (10000000--20000000 )Screw, Hex, M8 X 1.25 X 20, Ss, Sems 4
19 601443 (10000000--20000000 )Caster, Swivel, 3.0d 1.3w, .50--13 Stem 2
20 1034013 (10000000--20000000 )Frame (Machined) 1
21 08713 (10000000--20000000 )Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
22 140027 (10000000--20000000 )Washer, Flat, 0.35b 0.75d .04, Ss 3
23 1014918 (10000000--20000000 )Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr 1
24 49826 (10000000--20000000 )Screw, Hex, M8 X 1.25 X 16, Nl, Ss 2
25 1034805 (10000000--20000000 )Bracket, Bumper Wheel 1
N/S 1033825 (10000000--20000000 ) Harness, Chassis, Ele, Scrbr, [T--Rex] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY
N/S = NOT SHOWN

STANDARD PARTS
Nobles Speed ScrubR(05--2011)
10
TANKS AND SHROUD GROUP
355074
3
10
4
11
1
2
5
7
8
9
12
13
14
14
12
15
6
12

STANDARD PARTS
Nobles Speed ScrubR(05--2011) 11
TANKS AND SHROUD GROUP
Ref. Part No. Serial Number Description Qty.
19004313 (10000000--20000000 )Tank, Rec W/ Labels Nobles 3 Gal Kit 1
Y21039498 (10000000--20000000 )Label, Side, Speed Scrub 1
Y39004285 (10000000--20000000 )Handle, Tank Kit 1
YY 424265 (10000000--20000000 )Screw, Pan, Phl, M4 X 0.70 X 16, Ss 2
59004315 (10000000--20000000 )Tank, Sol W/ Labels Nobles 3 Gal Kit 1
Y61044865 (10000000--20000000 )Label, Solution, Tank, Max. Fill, 3 Gal. 1
Y71039138 (10000000--20000000 )Label, Tank, Soltn, 3.0gal 1
Y81040112 (10000000--20000000 )Label, Oper, Instr [Scrubber] 1
Y91039498 (10000000--20000000 )Label, Side, Speed Scrub 1
Y10 9004285 (10000000--20000000 )Handle, Tank Kit 1
YY 11 24265 (10000000--20000000 )Screw, Pan, Phl, M4 X 0.70 X 16, Ss 2
12 1019349 (10000000--20000000 )Screw, Trs, M6 X 1.00 X 16, Ss, Sems 3
13 9004302 (10000000--20000000 )Shroud, W/ Labels Nobles 3 Gal Kit 1
Y14 578769 (10000000--20000000 )Decal, Moving Parts Textless 2
Y15 1034636 (10000000--20000000 )Label, Front, 3.00 [Nobles Icon] 1
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Nobles Speed ScrubR(05--2011)
12
TANK COVER GROUP
355055
1
2
3
2
3
4
5
6
4
5
7
8
8
9
10
11
8
8
12 13
14
15
8
16
17
18
8
19
20
21
16
22
11

STANDARD PARTS
Nobles Speed ScrubR(03--2012) 13
TANK COVER GROUP
Ref. Part No. Serial Number Description Qty.
11037759 (10000000--20000000 )Cover , Tanks, Upper, Nobles [Trex] 1
2 1035358 (10000000--20000000 ) Pin, Grvd, 0.375d, 1.25l 2
3 24555 (10000000--20000000 ) Ring, Retaining, Ext, 0.38d, [E--Ring] 2
4 1016399 (10000000--20000000 ) Screw, Hex, M8 X 1.25 X 30, Nl, Ss 4
5 140027 (10000000--20000000 ) Washer, Flat, 0.35b 0.75d .04, Ss 4
61034346 (10000000--20000000 ) Bracket, Pivot, Cover, Mtg 1
71036078 (10000000--20000000 )Hose, Soltn, .25 Id, .453 Od, 39.25 L 1
8140340 (10000000--20000000 )Screw, Pan, Phl, 10--24 X 0.62, Ss[Typ25] 13
91042715 (10000000--20000000 )Fitting, Brs, Str, Bm04/Pm02 1
10 1032556 (10000000--20000000 )Filter, Soltn Tube, 80 Mesh 1
11 140011 (10000000--20000000 )Washer, Flat, 0.21b 0.45d .03, Ss 2
12 1051274 (10000000--20000000 )Gasket, Shield, Float 1
13 1042277 (10000000--20000000 )Shield, Float 1
14 1044370 (10000000--20000000 )Ball, Float, W/O Cage 1
15 9005924 (10000000--20000000 )Cover, Tank, Inner W/ Seals, Kit 1
Y16 1036090 (10000000--20000000 )Seal, Vacuum [Trex] 2
Y17 1052876 (10000000--20000000 )Gasket, Tank 2
Y18 602849 (10000000--20000000 )Strainrelief, Cord, Ele, Pm08, Blk Nyl 1
19 1035866 (10000000--20000000 )Hose, Recvy, Formed [Trex] 1
20 1037756 (10000000--20000000 )Hose, Vacuum, 1.5od, 18.0l [Wire--Reinf] 1
21 140308 (10000000--20000000 )Clamp, Hose, Wormdrive, 1.31--2.25d, .50w 4
22 1054345 (10000000--20000000 )Clip, Retaining, Seal 2
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Nobles Speed ScrubR(03--2009)
14

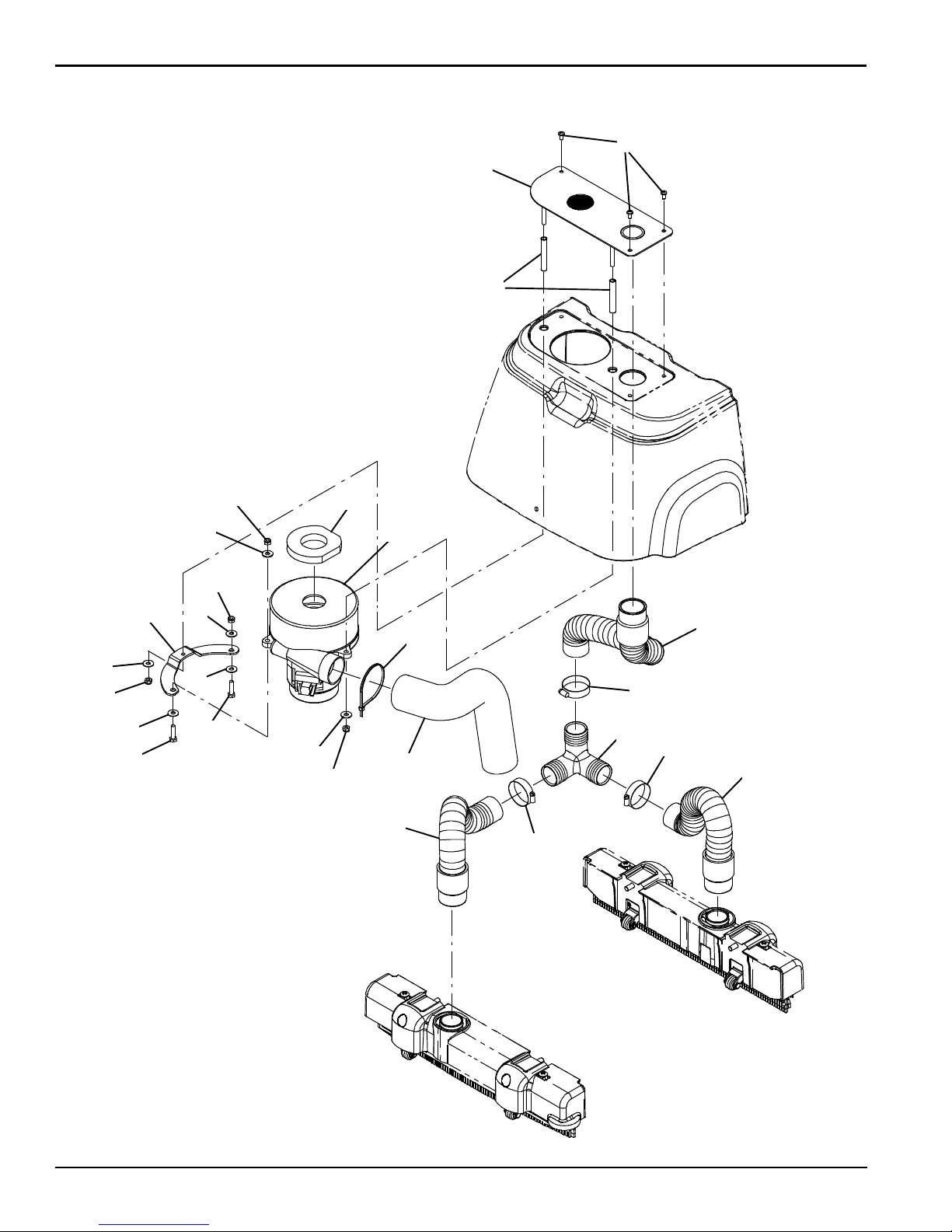

VACUUM FAN GROUP
355061
1
2
3
4
5
65
7
7
5
8
9
10
12
11
13
12
11
12
11
11
14
14
11
12
11
15

STANDARD PARTS
Nobles Speed ScrubR(03--2009) 15
VACUUM FAN GROUP
Ref. Part No. Serial Number Description Qty.
11031960 (10000000--20000000 )Plate, Mtg, Vacuum 1
2 1026454 (10000000--20000000 ) Screw, Pan, Phl, M5 X 0.80 X 10, Ss 3
3 610144 (10000000--20000000 ) Spacer, Fan 2
4 1038394 (10000000--20000000 ) Hose, Vacuum, 38.0id X 380.0l, 1cuff 1
5 79381 (10000000--20000000 ) Clamp, Hose, Wormdrive, 1.25--2.00d, .50w 3
61031965 (10000000--20000000 )Fitting, Brb, Pvc, 1.5in 3 Way X 90 1
7 1038391 (10000000--20000000 ) Hose, Vacuum, 38.0id X 330.0l, 1cuff 2
8 390677 (10000000--20000000 ) Muffler, Exhaust, Vacfan, Long 1
9 130773 (10000000--20000000 ) Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 1
10 1037541 (10000000--20000000 ) Fan, Vacuum, 5.7d, 120 Vac, 2 Stage 1
11 01684 (10000000--20000000 )Washer, Flat, 0.27b 0.69d .05, Ss 6
12 08708 (10000000--20000000 ) Nut, Hex, Lock, M6 X 1.00, Nl 4
13 630010 (10000000--20000000 ) Gasket, 12.7mm Th, 43mmid 73mmod 1
14 09007 (10000000--20000000 ) Screw, Hex, M6 X 1.00 X 25, Ss 2
15 1034069 (10000000--20000000 )Plate, Vac Mounting 1

STANDARD PARTS
Nobles Speed ScrubR(03--2009)
16
SOLUTION GROUP
355060
1
2
3
4
2
3
5
5
6
57
8
9
10
11
10
12
13
14
15
16
17
14
13
12
3
3

STANDARD PARTS
Nobles Speed ScrubR(03--2009) 17
SOLUTION GROUP
Ref. Part No. Serial Number Description Qty.
106933 (10000000--20000000 )Screw, Pan, Phl, M5 X 0.80 X 16, 4.8 4
2 1036121 (10000000--20000000 ) Mount, Pump, Cp6 2
3 07789 (10000000--20000000 ) Nut, Hex, Flng, M5 X 0.80 4
4 1035850 (10000000--20000000 ) Pump, Solution, Solenoid 120v 1
543844 (10000000--20000000 )Clamp, Hose, Wormdrive, 0.25--0.62d, .31w 3
6613435 (10000000--20000000 )Hose, Pvc, Brd, 0.25id 0.50od 25.9l,Gray (160204) 1
7 1028773 (10000000--20000000 ) Fitting, Brs, E90, Bm04/Pf04 1
8 1035296 (10000000--20000000 ) Washer, Flat, Belleville, .567 1
9 1042714 (10000000--20000000 ) Washer, Wavy, 0.59b 1.01d .02 1
10 140262 (10000000--20000000 ) Rivet, Plstc, .250d, Blk [Xmas Tree] 3
11 1037573 (10000000--20000000 ) Shield, Access [Trex] 1
12 579237 (10000000--20000000 ) Screw, Pan, Phl, M4 X 0.70 X 12, Ss 2
13 02938 (10000000--20000000 ) Washer, Lock, Int, 08, Ss 2
14 41579 (10000000--20000000 ) Washer, Flat, 08, Ss 2
15 1034395 (10000000--20000000 ) Shroud, Splash, Nozzle [Trex] 1
16 1034582 (10000000--20000000 )Nozzle Adapter, Qppm 1
17 1033942 (10000000--20000000 ) Nozzle [Qmvv 110--015] 1

STANDARD PARTS
Nobles Speed ScrubR(05--2011)
18
SCRUB HEAD GROUP (S/N 10507590-- )
355156
1
2
3
4
1
2
3
5
6
17 7
8
910
11
12
13
14
15
16
18
19
20
23
24
21
22
28
30
31
3233
29
34 27
26
25

STANDARD PARTS
Nobles Speed ScrubR(05--2011) 19
SCRUB HEAD GROUP (S/N 10507590-- )
Ref. Part No. Serial Number Description Qty.
11045325 (10000000--20000000 ) Screw, Hex, M6 X 1.00 X 45, Ss 4
207515 (10000000--20000000 )Washer, Lock, Int, 0.25, Ss 4
301684 (10000000--20000000 )Washer, Flat, 0.27b 0.69d .05, Ss 4
41034380 (10000000--20000000 )Housing, Brush, Sngl, 40cm 1
51034457 (10507590--20000000 )Motor, .25hp, 115vdc, 2.5a, 2400 Rpm 1
Y61045234 (10000000--20000000 )Brush, Carbon (Pk=2) Ref Part 1034457 2
709162 (10000000--20000000 ) Screw, Set, Soc, M6 X 1.00 X 8, Nl 2
81063530 (10507590--20000000 )Sheave, 07grv, 25.8pd [Ph] 1
901684 (10000000--20000000 )Washer, Flat, 0.27b 0.69d .05, Ss 2
10 07515 (10000000--20000000 )Washer, Lock, Int, 0.25, Ss 2
11 34323 (10000000--20000000 )Screw, Hex, .25--20 X 0.75, Nl 2
12 1033197 (10000000--20000000 )Screw, Pan, Phl, M4 X 0.70 X 25, Ss 1
13 1007109 (10000000--20000000 )Nut, Hex, Lock, M4 X 0.70, Kep, Ext 1
14 9004283 (10000000--20000000 )Belt Kit, W/ Installation Tool 1
15 1019349 (10000000--20000000 )Screw, Trs, M6 X 1.00 X 16, Ss, Sems 2
16 1064397 (10000000--20000000 )Cover, Belt, Spg (Single Roller) 1
17 9008296 (10507590--20000000 )Bracket, Motor Mount W/ Bearing/Seal Kit 1
Y18 08713 (10451589--20000000 )Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
Y19 41186 (10000000--20000000 )Washer, Flat, Belleville, .31 1
Y20 1030625 (10507590--20000000 )Sheave, 07grv, 49.3pd 1
Y21 1057482 (10451589--20000000 )Washer, Flat, 0.328b 0.571d 0.063, Ss 1
Y22 1057476 (10451589--20000000 ) Screw, Soc, M8 X 1.25 X 55, Ss 1
23 15678 (10000000--20000000 ) Screw, Hex, M6 X 1.00 X 16, Ss 3
24 08712 (10000000--20000000 )Nut, Hex, Lock, M6 X 1.00, Nl, Ss 3
25 140946 (10000000--20000000 )Screw, Rnd, Sltd, 06--32 X 1.00, Nyl 1
26 130288 (10000000--20000000 )Rectifier, Bridge, Rnd, 12a 1000volt, Ce 1
27 140534 (10000000--20000000 )Nut, Hex, #06--32, Nyl 1
28 1037197 (10000000--20000000 )Brush, Scrub, 89mm Od X 386mm, Nylon (Standard) 1
28 1037277 (10000000--20000000 )Brush, Scrub, 89mm Od X 386mm, Poly (Optional) 1
28 1037278 (10000000--20000000 )Brush, Scrub, 89mm Od X 386mm, Grit (Optional) 1
29 9007962 (10000000--20000000 )Door Kit, Brush, W/ Hdwr 1
Y30 1042312 (10000000--20000000 )Seal, Org, .070 X .875 Id, 020 1
Y31 1030680 (10000000--20000000 )Hub, Idler, Brush 1
Y32 01543 (10000000--20000000 )Ring, Retaining, Ext, 0.39d, Basic 1
Y33 1030682 (10000000--20000000 )Shaft, Idler Plug 1
Y34 1019349 (10000000--20000000 )Screw, Trs, M6 X 1.00 X 16, Ss, Sems 1
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Nobles Speed ScrubR(05--2011)
20
SCRUB HEAD GROUP (S/N 10000000--10507589)
355058
1
2
3
4
1
2
3
5
6
17 7
8
910
11
12
13
14
15
16
18
19
20
23
24
21
22
28
30
31
32
33
29
34 27
26
25
