PARTS MANUAL
SPEED SCRUB ORBITAL
Model Part No:
9010476 Conventional Scrubber
9010475 ec-H2O Scrubber

Ref Part No. Serial Number Description Qty.
1 82681 (000000- ) Bracket Wldt, Lpg Mount 1
o2 63810 (000000- ) Latch Assy, Lpg Tank Mtg, W/Nut 4
Y3 51839 (000000- ) Nut Adjustable, Lpg Tank Mtg 2
4 49263 (000000- ) Tie, Cable 3
5 82556 (000000- 001039) Bracket, Vaporizer 1
6 54930 (000000- ) Vaporizer, LPG 1
C
B
D
A

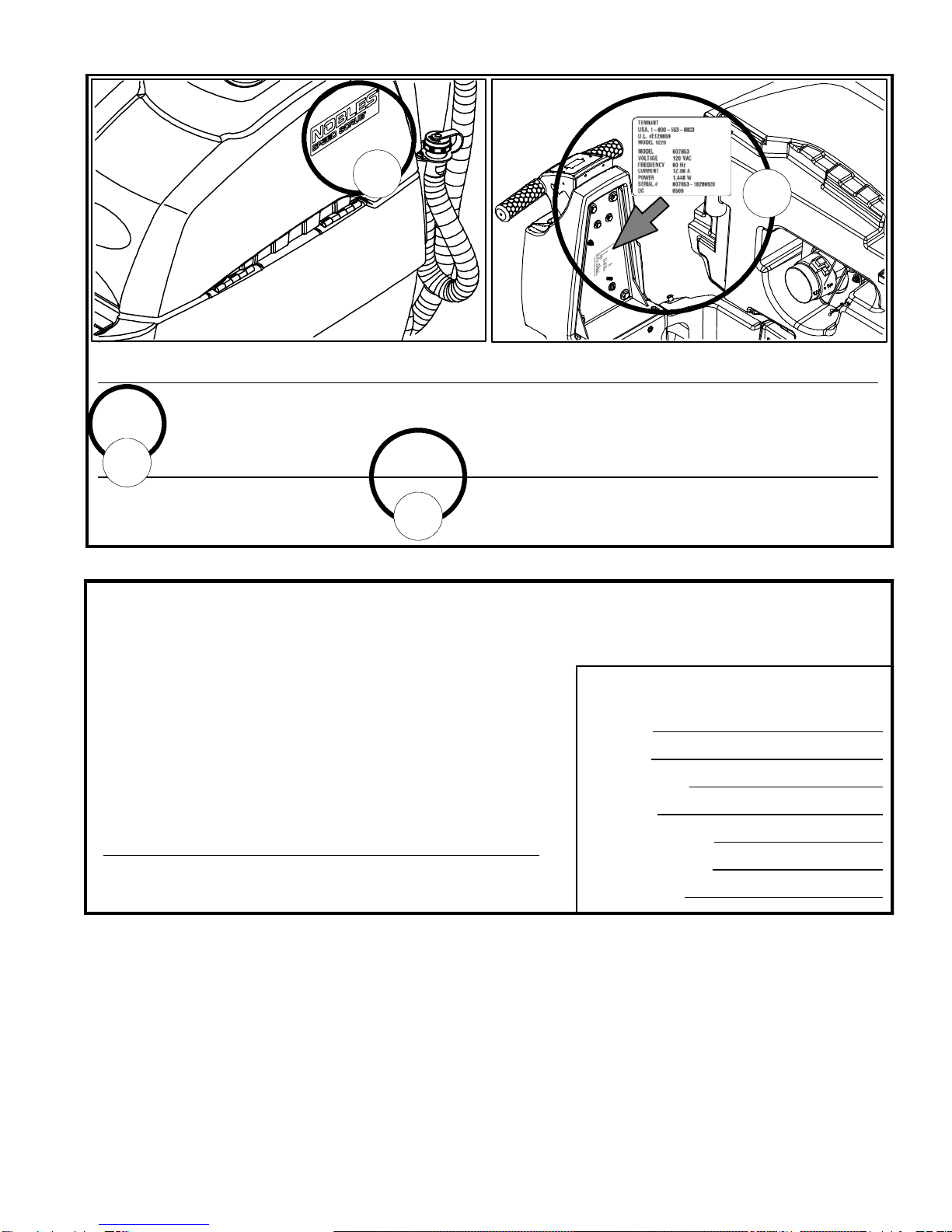

HOW TO ORDER PARTS - See diagram above
Only use TENNANT Company supplied or equivalent parts. Parts and supplies may be ordered online,
by phone, by fax or by mail.
Follow the steps below to ensure prompt delivery.
1. (A) Identify the machine model.
2. (B) Identify the machine serial number from the data label.
3. (C) Ensure the proper serial number is used from
the parts list.
4. Identify the part number and quantity.
Do not order by page or reference numbers.
5. Provide your name, company name, customer ID number,
billing and shipping address, phone number and
purchase order number.
6. Provide detail shipping instructions.
(D) - identifies an assembly
Y- identifies parts included in assembly
Please fill out at time of installation for
future reference.
Model No. -
Serial No. -
Machine Options -
Sales Rep. -
Sales Rep. phone no. -
Customer ID Number -
Installation Date -
Tennant Company
PO Box 1452
Minneapolis, MN 55440 USA
Phone: [phone] or (763) 513- 2850
www.nobles.com
Specifications and parts are subject to change without notice.
Copyright E2013 TENNANT Company,
Printed in U.S.A.

TABLE OF CONTENTS
Nobles Speed Scrub Orbital (06- 2013) 3
STANDARD PARTS
GENERAL RECOMMENDED MAINTENANCE
ITEMS 4...................................
ORBITAL HEAD REPLACEMENT PAD GROUP 5.
RECOVERY TANK GROUP 6..................
VACUUM MOTOR GROUP 8...................
SOLUTION TANK GROUP 10...................
LOWER CONTROL CONSOLE GROUP 12.......
UPPER CONTROL CONSOLE GROUP 14........
COMPONENT PANEL GROUP 16...............
WHEEL GROUP, DRIVE MODEL 18.............
ORBITAL HEAD GROUP 20.....................
ORBITAL HEAD ECCENTRIC DRIVE ASSEMBLY
GROUP 22..................................
ORBITAL HEAD WATER DISTRIBUTION ASSEMBLY
GROUP 24..................................
ORBITAL HEAD WHEEL ASSEMBLY GROUP 25..
ORBITAL HEAD LIFT GROUP 26................
SQUEEGEE GROUP, 500 mm 28................
SOLUTION GROUP, STANDARD MODEL 30.....
SOLUTION GROUP, ec-H2O MODEL 32.........
ec-H2O MODULE ASSEMBLY BREAKDOWN,
9007970 36.................................
BATTERY AND CABLE GROUP, 12V/155 AH 38...
ELECTRICAL DIAGRAM STANDARD 40.........
ELECTRICAL DIAGRAM, ec-H2O MODEL 41.....
WIRE HARNESS GROUP, ec- H2O OPTION 42...
WIRE HARNESS GROUP, CONSOLE 44.........
WIRE HARNESS GROUP, MAIN 46..............
WIRE HARNESS GROUP, FRAME, DRIVE
MODEL 49..................................
OPTIONS
ON-BOARD BATTERY CHARGER GROUP,
STANDARD MODEL 50......................
ON-BOARD BATTERY CHARGER GROUP,
ec-H2O MODEL 52..........................
PARKING BRAKE GROUP 54...................
EMERGENCY STOP BUTTON GROUP 56.......
DOCUMENTATION GROUP 57..................

RECOMMENDED MAINTENANCE ITEMS
Nobles Speed Scrub Orbital (06- 2013)
4
GENERAL RECOMMENDED MAINTENANCE ITEMS
Part No. Serial Number Description Qty.
9001178 (00000000- )Squeegee Assy Kit, 500mm, Ci 1
Y1010560 (00000000- ) Wheel, Bmpr, 80d X 25w, Non- Marking 2
Y1006343 (00000000- ) Caster, Swivel, 50mmd, M10 X 30 Stem, Pl 2
1011232 (00000000- ) Blade, Sqge, Front, 500mml Linatex
(Linatex Red Standard)
1
1014091 (00000000- ) Blade, Sqge, Front, 500mml, Gum
(Gum Rubber Tan Optional)
1
1014092 (00000000- )Blade, Sqge, Front, 500mml, Oil- Rstn
(Polyurethane Natural Optional)
1
Y1011456 (00000000- ) Blade, Sqge, Rear, 32.7l, Linatex[500mm]
(Linatex Red Standard)
1
1014093 (00000000- ) Blade, Sqge, Rear, 32.7l, Gum [500mm]
(Gum Rubber Tan Optional)
1
1014094 (00000000- ) Blade, Sqge, Rear, 32.7l,Oil- Rstn[500mm]
(Polyurethane Natural Optional)
1
1014079 (00000000- ) Clip, Hose, Gripper, 1.50id, Dbl, Blk Pp 1
1014026 (00000000- )Hose, Vacuum, 1.5d X 57l, 2- Short Cuffs 1
1043538 (00000000- )Hose Assy, Drain, 1.50id X 29.5l, Blk 1
Y1008639 (00000000- )Cap, Drain Assy 1
YY 1019563 (00000000- )Strap, Cap, Drain 1
YY 1008637 (00000000- )Seal, Org, 1.48id 1.76 od 1
630367 (00000000- )Seal, .50, .50w 33.9l, Adh [D Shape] 1
630052 (00000000- )Float, Shut- Off, (2)Ball, 1.75d 1
1013628 (00000000- )Gasket, Mtg, Float, .125th, Neo, Adh 1
1024602 (00000000- )Gasket, Adapter, Hose .13, Neo, Adh 1
100038 (00000000- ) Gasket, Vacuum Mtr 5.7 Epdm W/Psa 1
1012965 (00000000- )Cap, Port, Soltn Fill 1
1029829 (00000000- )Hose, Drain, Soltn Tank [Ss3] 1
1060173 (00000000- ) Cover Assy, Tank, Soltn Fill 1
1026345 (00000000- )Caster, Swivel, 80mm D, M12 X 25 Stem 2
1014283 (00000000- )Pad, Adh, Non- Slip, 28mm X 36mm, Blk 1
1047470 (00000000- )Fuse, Blade, 010a, 32vdc, Red (ec- H2O Model) 1
1016040 (00000000- )Fuse, Blade, 025a, 32vdc (Main Brush Assist Model) 1
1016040 (00000000- )Fuse, Blade, 025a, 32vdc (Main Drive Model) 1
762516 (00000000- )Fuse, Blade, 030a, 32vdc (Main Drive Model) 1
1059370 (00000000- )Brush, Motor, Replmt [Bag of 4] 1
1205512 (00000000- )Pad, Polish, 20” X 14”, White (Pack of 10) 1
1205513 (00000000- )Pad, Buff, 20” X 14”, Red (Pack of 10) 1
1205514 (00000000- )Pad, Scrubbing, 20” X 14”, Blue (Pack of 10) 1
1205515 (00000000- )Pad, Surface Prep, 20” X 14”, Maroon (Pack of 10) 1
9010674 (00000000- )Backer Pad Assy Kit (Includes Pad with Velcro Strips) 1
9010696 (00000000- )Isolator Kit, Vib Assy, Primary (Includes Hardware) 1
9010697 (00000000- )Isolator Kit, Vib Assy, Secondary (Includes Hardware) 1
9010699 (00000000- )Wheel Assy Kit (Includes Hardware) 1
9010704 (00000000- )Water Distribution Assembly (Includes Hardware) 1
9011656 (00000000- )Drive Assy Kit, Eccentric Complete 1
Y9010700 (00000000- )Drive Assy Kit, Eccentric (Includes Hardware) 1
Y9011655 (00000000- )Eccentric Bearing Assembly (Includes Hardware) 1

STANDARD PARTS
Nobles Speed Scrub Orbital (06- 2013) 5

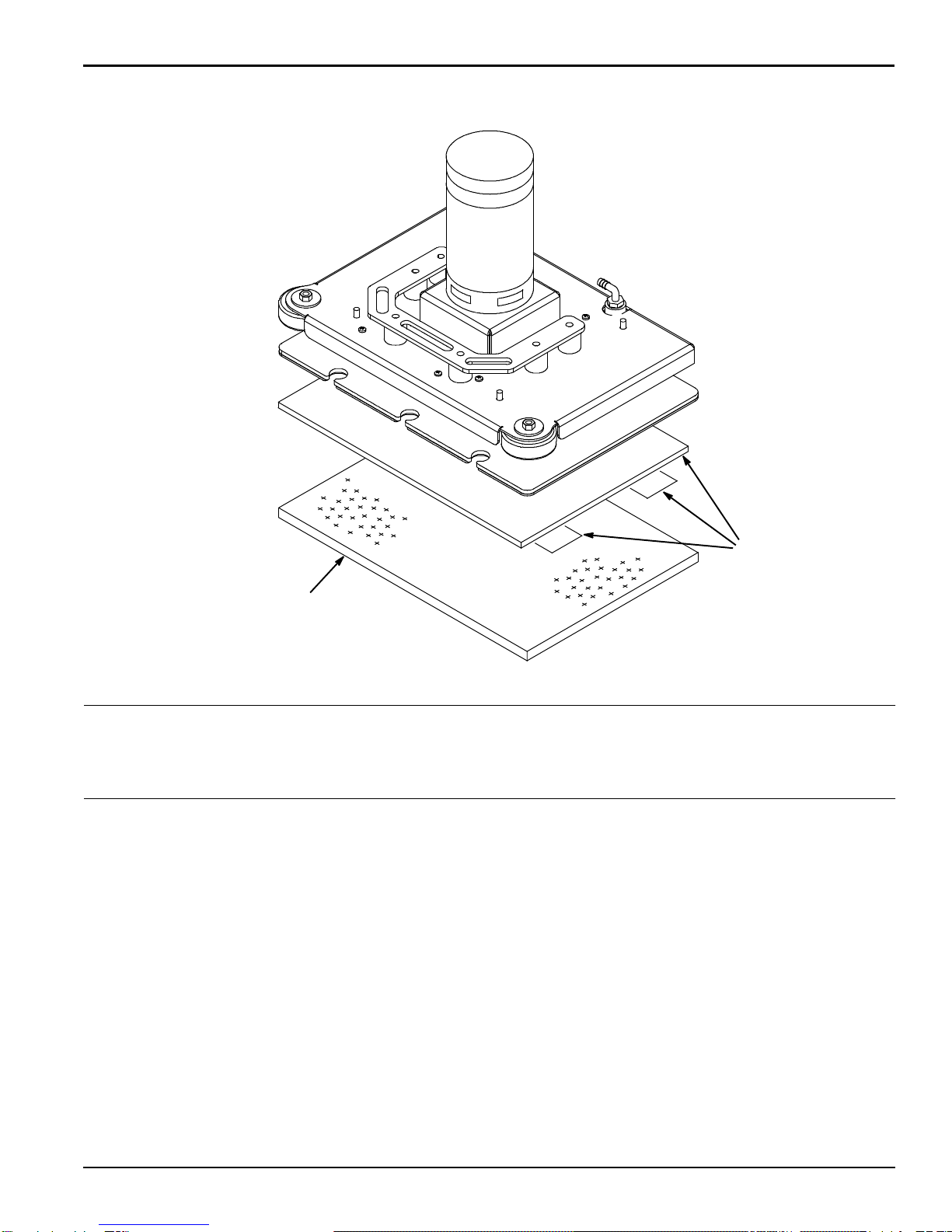

ORBITAL HEAD REPLACEMENT PAD GROUP
1
356284_01
2
Ref. Part No. Serial Number Description Qty.
11205512 (00000000- )Pad, Polish, 20” X 14”, White (Pack of 10) 1
11205513 (00000000- )Pad, Buff, 20” X 14”, Red (Pack of 10) 1
11205514 (00000000- )Pad, Scrubbing, 20” X 14”, Blue (Pack of 10) 1
11205515 (00000000- )Pad, Surface Prep, 20” X 14”, Maroon (Pack of 10) 1
29010674 (00000000- )Backer Pad Assy Kit (Includes Pad with Velcro Strips) 1

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012)
6

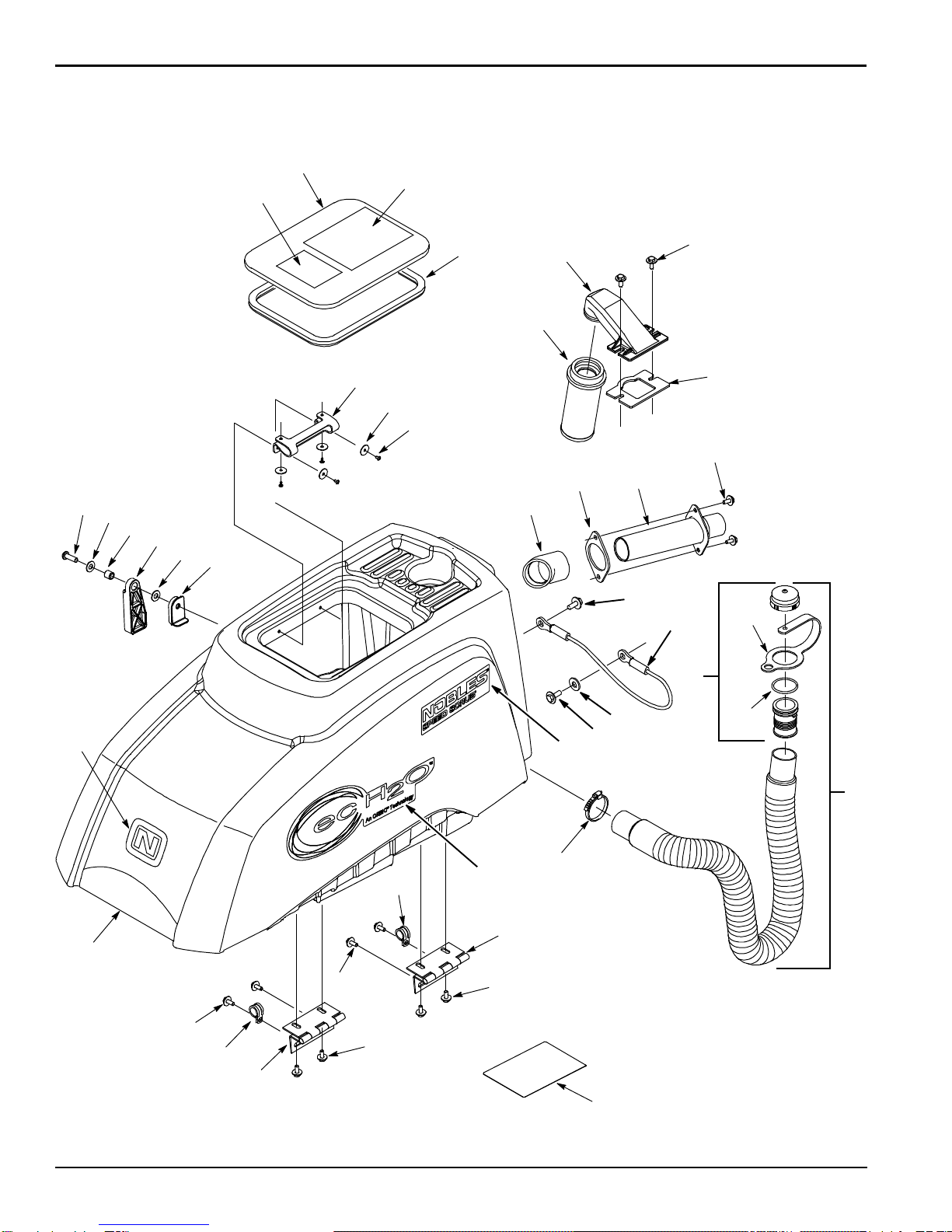

RECOVERY TANK GROUP
910
6
12
21
22
24
25
26
27
29
28
27
11
8
7
23
31
313
14
15
17 18
19
8
5
4
2
26
27
28
27
30
16
20
34
33
33
36
32
13
2
1
35

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012) 7
RECOVERY TANK GROUP
Ref. Part No. Serial Number Description Qty.
19003396 (00000000- )Lid Assy, W/ Label [En/Es/Fr/Jp] 1
Y2 1036679 (00000000- ) Label, Warning [Exp,Fre,Shk En/Fr/Es/Jp] 1
Y3630367 (00000000- )Seal, .50, .50w 33.9l, Adh [D Shape] 1
4 630056 (00000000- ) Hinge, Cover, Tank Lid 1
5 1009168 (00000000- ) Washer, Flat, 0.17b 0.75d .04, Ss 4
63701.6 (00000000- )Screw, Pan, #06- 32 X 0.38, Phl Ss Shtmtl 4
71039118 (00000000- ) Screw, Btn, M8 X 1.25 X 30, Blk 1
8140027 (00000000- )Washer, Flat, 0.35b 0.75d .04, Ss 2
9222460 (00000000- )Sleeve, P/M, 0.31b 0.50d 0.5l 1
10 1022399 (00000000- )Support, Tank, Prop, Blk, Nyl 1
11 1022904 (00000000- )Bracket, Sppt, Stop, Blk, Nyl 1
12 630052 (00000000- )Float, Shut- Off, (2)Ball, 1.75d 1
13 1011777 (00000000- )Mount, Float, Mold 1
14 1034731 (00000000- )Screw, Hex, M6 X 1.00 X 16, Sems, Ss 2
15 1013628 (00000000- )Gasket, Mtg, Float, .125th, Neo, Adh 1
16 1028801 (00000000- )Fitting, Plstc, E45, 1.25 1
17 1024602 (00000000- )Gasket, Adapter, Hose .13, Neo, Adh 1
18 1021214 (00000000- )Tube, Hose, Adapter, 1.5d 1
19 1034731 (00000000- )Screw, Hex, M6 X 1.00 X 16, Sems, Ss 2
20 140960 (00000000- )Cable, Glv .13d 014.5l .34eye /.34eye 1
21 1043538 (00000000- )Hose Assy, Drain, 1.50id X 29.5l, Blk 1
Y22 1008639 (00000000- )Cap, Drain Assy 1
YY 23 1019563 (00000000- )Strap, Cap, Drain 1
YY 24 1008637 (00000000- )Seal, Org, 1.48id 1.76od 1
25 11531 (00000000- )Clamp, Hose, Wormdrive, 1.06- 2.00d, .56w 1
26 1012540 (00000000- )Hinge, 6mmpin 2.5mm Th 73.5mmw 100mml 2
27 1034731 (00000000- )Screw, Hex, M6 X 1.00 X 16, Sems, Ss 8
28 1016354 (00000000- )Clamp, Cable, Ss, 0.50d X 0.50w [Insul] 2
29 9007890 (00000000- )Tank, Recovery, Afmkt [Ss3] 1
Y30 1034637 (00000000- )Label, Front, 3.50 [Nobles Icon] 1
Y31 1014154 (00000000- )Label, Instr, Battery 1
Y32 1064991 (00000000- )Label, Model [Speed Scrub] 2
33 1034731 (00000000- )Screw, Hex, M6 X 1.00 X 16, Sems, Ss 2
34 01684 (00000000- )Washer, Flat, 0.25 Ss 1
35 1068925 (00000000- )Label, Do Not Add Detgt[Ec- H20] 1
36 1064823 (00000000- )Label, Logo, 12.3l 4color [Ech2o Nobles] 2
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012)
8

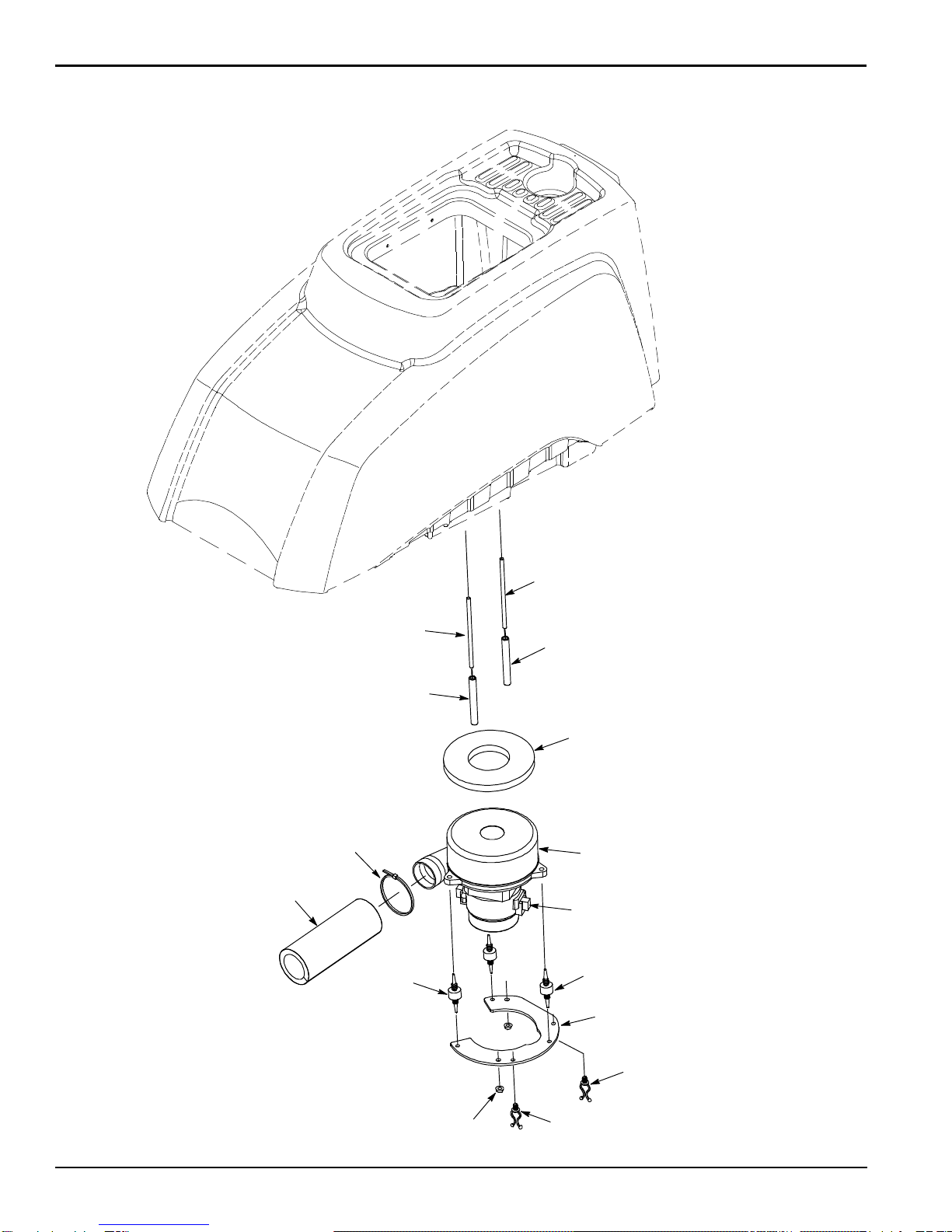

VACUUM MOTOR GROUP
1
5
3
9
10
11
8
7
9
4
2
1
2
11
6

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012) 9
VACUUM MOTOR GROUP
Ref. Part No. Serial Number Description Qty.
11015412 (00000000- )Rod, Thrd, Full, M6x1.0, 140l 2
2 1024575 (00000000- ) Tube, 0.43d 0.28b 03.3l, Pl 2
3 1023271 (00000000- ) Fan, Vacuum, 5.7d 2stage 024vdc [Bpt,Pk] 1
Y4 372883 (00000000- ) Vr, Brush Kit, Motor, Ele 1
5100038 (00000000- )Gasket, Vacuum Mtr 5.7 Epdm W/Psa 1
61040381 (00000000- )Nut, Hex, Flng, M6 X 1.0, Ss [Serrated] 2
7130773 (00000000- )Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 1
81068577 (00000000- )Muffler, Exhaust, Vacfan, 150mml [T2/T3] 1
91062016 (00000000- )Isolator, Vib, .75d 3
10 1011962 (00000000- )Bracket, Mtg, Vacuum 1
11 30406 (00000000- )Clip, Keeper 2
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Nobles Speed Scrub Orbital (06- 2013)
10

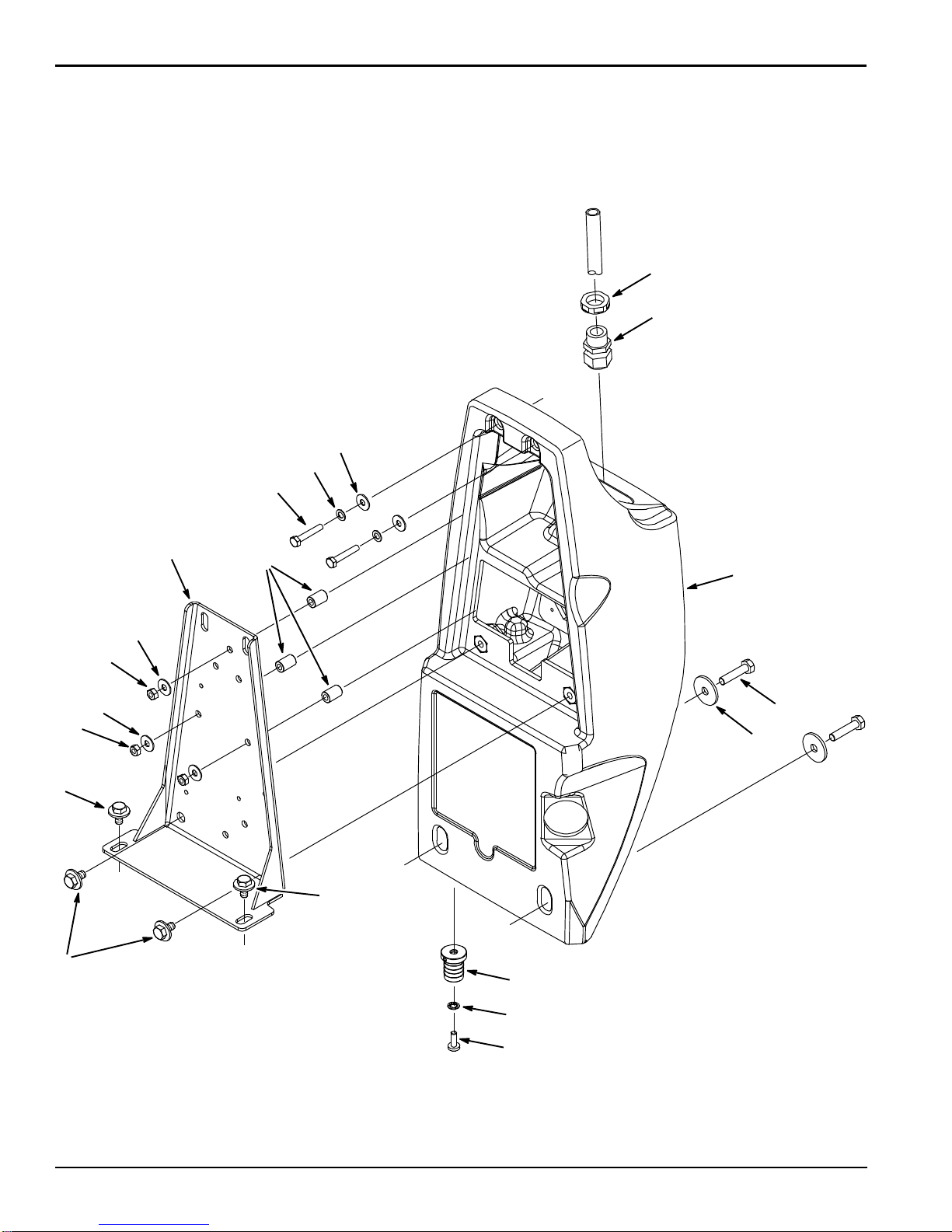

SOLUTION TANK GROUP
37
36
6
18
5
13
38
12
7
8
9
10
19
20
21
22
23
20
24 21
25
26
29
30
31
32
33
34
35
17
14
11
27
1
15
16
28
2
3
4
40
39

STANDARD PARTS
Nobles Speed Scrub Orbital (06- 2013) 11

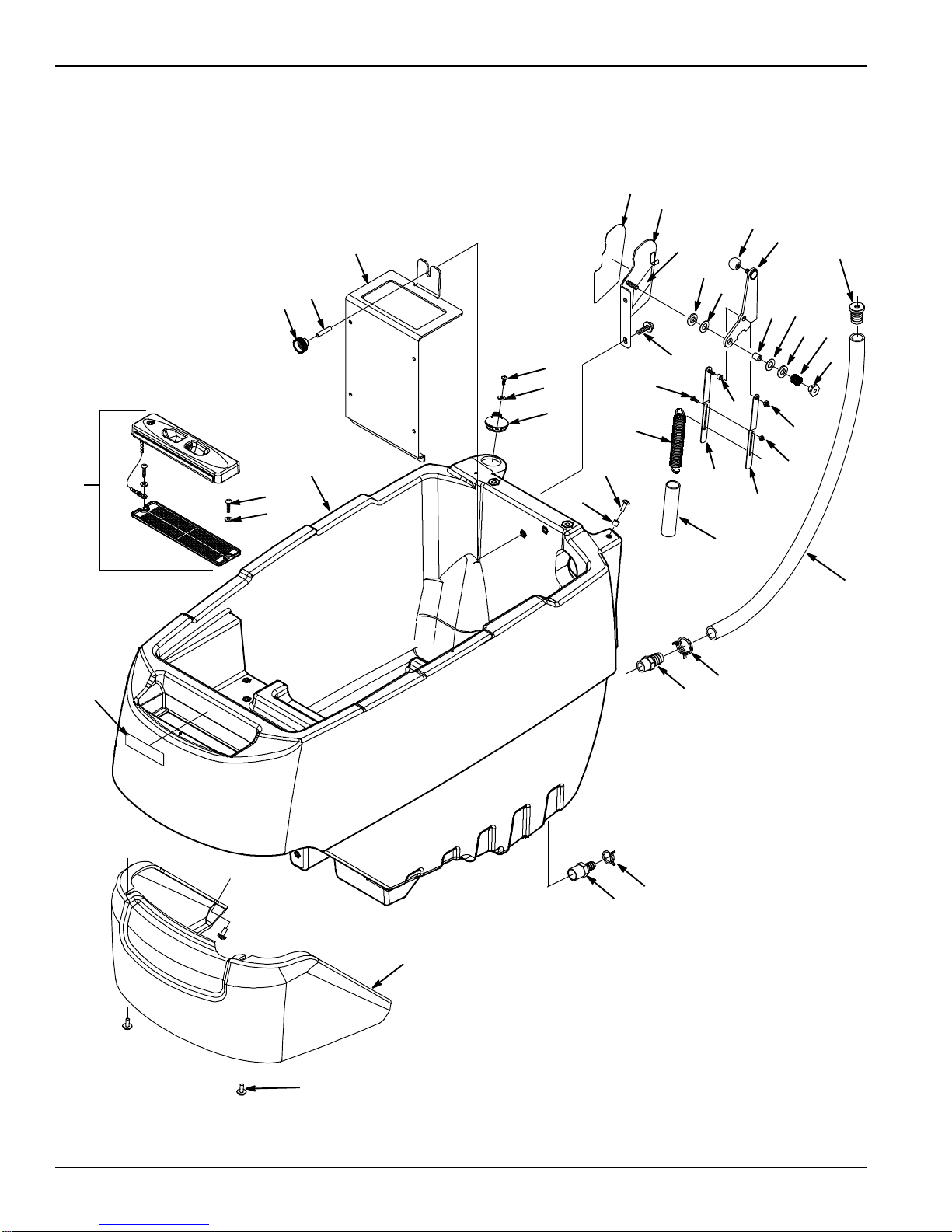

SOLUTION TANK GROUP
Ref. Part No. Serial Number Description Qty.
11060173 (00000000- ) Cover Assy, Tank, Soltn Fill 1
21050003 (00000000- )Label, User, Attention, Ec- H2o (ec-H2O Model) 1
3140826 (00000000- )Screw, Pan, #06- 32 X 0.75, Phl Ss Shtmtl 2
441578 (00000000- )Washer, Flat, #06, Ss 2
5140154 (00000000- )Sleeve, P/M, 0.25b 0.38d 0.3l, Pl 1
61012965 (00000000- )Cap, Port, Soltn Fill 1
7607776 (00000000- )Clamp, Hose, Wir, .73 - .77, Silver 1
81023581 (00000000- )Fitting, Plstc, Str, Bm08/Pm08, Nyl 1
91028710 (00000000- )Cover, Head, Rm- Blk, Trimmed [Ss3] 1
10 1034731 (00000000- )Screw, Hex, M6 X 1.00 X 16, Ss, Sems 6
11 9007891 (00000000- )Tank, Solution, Afmkt [Ss3] 1
12 78398 (00000000- )Fitting, Plstc, Str, Bm12/Pm08, Nyl 1
13 608322 (00000000- ) Screw, Trs, M6 X 1.0 X 16, Phl, Ss 1
14 1018155 (00000000- )Screw, Pan, M5 X 0.8 X16, Ss, Tcut 1
15 1040598 (00000000- )Bracket, Mtg, Chrgr [Ss3] 1
16 1018559 (00000000- ) Screw, Set, M6 X 1.00 X 30, Ss [Fltpt] 1
17 01683 (00000000- )Washer, Flat, #10, Ss 1
18 1018389 (00000000- )Label, Lever, Dual Down Press 1
19 1018020 (00000000- )Bracket Wldt, Mtg, Dual Dp Lever 1
20 140127 (00000000- )Bearing, Thrust,0.51b X 1.0 X .12, Brz 2
21 89710 (00000000- )Washer, Flat, 0.51b 1.00d .03, Nyl 2
22 1017156 (00000000- )Knob, Ball, M8 Insert, 40mmd, Plstc 1
23 1017493 (00000000- )Lever, Lift, Dual Down Press 1
24 1014336 (00000000- )Sleeve, P/M, 08.4b 12.6d 14.5l, Pl 1
25 1018756 (00000000- )Spring, Cmpr, 0.7od .080wir 00.7l,Pl[Mw] 1
26 1018181 (00000000- )Nut, T, M8 X 1.25 X 0.50od X 0.4l 1
27 1020341 (00000000- )Screw, Hex, M8 X 1.25 X 20, Ss, Sems 2
28 578439 (00000000- )Nut, Thumb, M6 X 1.0, 24mm Od 1
29 09738 (00000000- ) Screw, Hex, M5 X 0.8 X 12, Ss 1
30 1031783 (00000000- )Spring, Extn, 1.00od 0.12wir 06.3l 1
31 1017884 (00000000- )Bushing, Sleeve, 6mmb 10mmd 7mml 1
32 1017882 (00000000- )Link Wldt, Spring, Lever 1
33 1017805 (00000000- )Link, Spring, Lever 1
34 09739 (00000000- )Nut, Hex, Lock, M5 X 0.8, Nl, Ss 1
35 08708 (00000000- )Nut, Hex, Lock, M6 X 1.0, Nl 1
36 1035469 (00000000- )Fitting, Plastic, Bm12 [Sight Tube] 1
37 1029829 (00000000- )Hose, Drain, Soltn Tank [Ss3] 1
38 608915 (00000000- )Clamp, Hose, Wir, 1.03 - 1.09 1
39 1206458 (00000000- )Sleeve, Nylon 1
40 1206461 (00000000- )Velcro, Strip 1

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012)
12
LOWER CONTROL CONSOLE GROUP
16
15
14
3
12
11
10
9
2
1
6
8
7
13
9
9
11
10 4
5

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012) 13
LOWER CONTROL CONSOLE GROUP
Ref. Part No. Serial Number Description Qty.
1140638 (00000000- )Nut, Hex, Pf08, Blk Nyl [Conduit] 1
2 130181 (00000000- ) Grip, Cord, Strainrelief, .50npt 1
3 1031071 (00000000- ) Console, Lower, Rm- Spg, Trimmed [Ss3] 1
459658 (00000000- )Screw, Hex, M8 X 1.25 X 35, Ss, Nl 2
51016331 (00000000- )Washer, Flat, 0.34b 1.25d .11, Ss 2
61035469 (00000000- )Fitting, Plstc, Bm12 [Sight Tube] 1
707515 (00000000- )Washer, Lock, Int, 0.25 Ss 1
8367770 (00000000- )Screw, Pan, M6 X 1.0 X 16, Ss 1
91020341 (00000000- )Screw, Hex, M8 X 1.25 X 20, Ss, Sems 4
10 41359 (00000000- )Nut, Hex, Std, M6 X 1.00, 8 3
11 01684 (00000000- )Washer,Flat 0.25, Ss 3
12 1054129 (00000000- )Bracket, Hsng, Cntrl, Alm [T3, Ss3] 1
13 1031025 (00000000- )Bushing, Sleeve, 6.5mmb 12mmd 18mml 3
14 07805 (00000000- ) Screw, Hex, M6 X 1.0 X 35, Ss 2
15 07515 (00000000- )Washer, Lock, Int, 0.25, Ss 2
16 01684 (00000000- )Washer,Flat 0.25, Ss 2
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012)
14

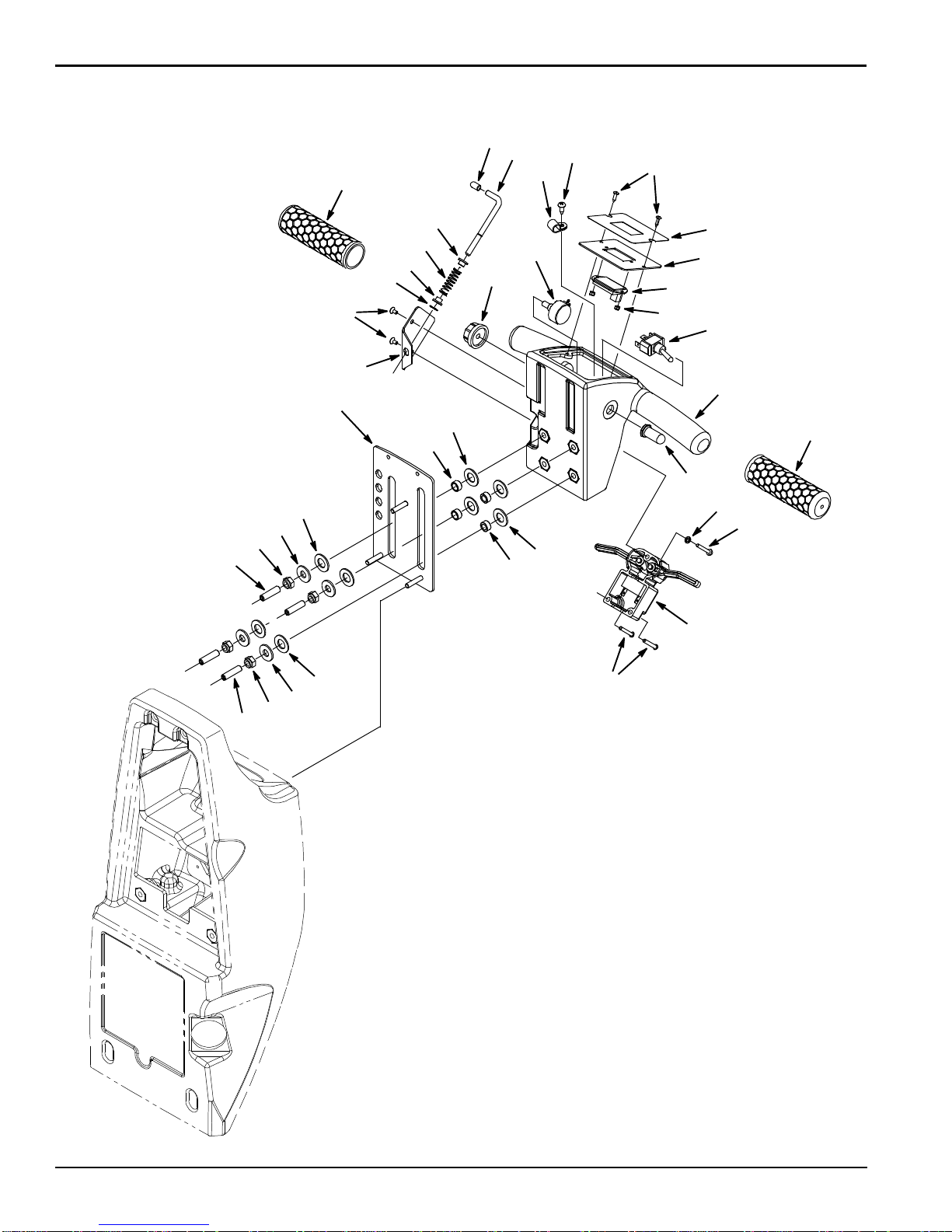

UPPER CONTROL CONSOLE GROUP
1
23
4
5
4
6
7
8
1
9
10
11
12 13
14
15
16
17
18
19
20
21
22
23
24
25
26
28
25
29
30
31
25
27
25
29
30
31

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012) 15
UPPER CONTROL CONSOLE GROUP
Ref. Part No. Serial Number Description Qty.
11026407 (00000000- )Grip, Handle, 31.75mm Dia. X 117mm L 2
2 630094 (00000000- ) Cap, Vinyl, 2.26 Id X 12.7lg, Blk 1
3 630081 (00000000- ) Lever, Latch, Console Adjust 1
4 630083 (00000000- ) Bushing, Latch 2
5 630082 (00000000- ) Spring, Cmpr, 0.42od .04wir 01.8l, Pl,Mw 1
6630084 (00000000- )Ring, Retaining, Ext, 4.62mm, [E- Ring] 1
749697 (00000000- )Screw, Pan, Phl, M4 X 0.70 X 10, Ss 2
8630087 (00000000- )Plate, Latch, Retainer 1
91028037 (00000000- )Knob, 1.25d 1
10 1042687 (00000000- ) Harness, Pot, Wire Assy [45k Ohm] 1
11 140328 (00000000- )Clamp, Cable, Nyl, 0.38d, Blk 1
12 1009324 (00000000- )Screw, Pan, #10- 16 X 0.50,Phl,Blk[Ty- 17] 1
13 140825 (00000000- )Screw, Pan, #06 X 0.50, Phl, Blk,Fmg[Ab] 2
14 1031582 (00000000- )Label, Panel, Cntrl, Upper 1
15 1031162 (00000000- )Panel, Cntrl, Upper, Battery Indicator 1
16 392894 (00000000- )Gauge, Discharge, Battery, 36vdc, Rt,Led 1
17 579211 (00000000- ) Nut, Hex, Lock, M3 X 0.50, Ss 2
18 601108 (00000000- )Switch, Toggle, Mom / On / On 1
19 1031000 (00000000- )Console, Upper, Rm- Spg, Trimmmed (Ss3) 1
20 130753 (00000000- )Boot, Switch 1.00l Blk 1
21 02938 (00000000- )Washer, Lock, Int, #08, Ss 1
22 33931 (00000000- )Screw, Pan, Phl, M4 X 0.70 X 30, Ss 1
23 1063203 (00000000- )Controlbox, Assy, Trigger 1
24 1032889 (00000000- )Screw, Pan, #8- 18 X 1.12, F/ Plstc 2
25 608562 (00000000- )Washer, Flat, 0.51b 0.94d .06, Nyl 8
26 607783 (00000000- )Bearing, Sleeve, .31id X .50od X .25,Bnz 2
27 630259 (00000000- )Bearing, 9.5id 12.7od 6.4l,Brz 2
28 1030879 (00000000- )Plate, Slide, Console [Ss3] 1
29 01685 (00000000- )Washer, Flat, 0.38b 0.88d .08, Ss 4
30 08709 (00000000- )Nut, Hex, Lock, M8 X 1.25, Nl 4
31 607461 (00000000- ) Screw, Set, M8 X 1.25 X 35, Nl 4

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012)
16

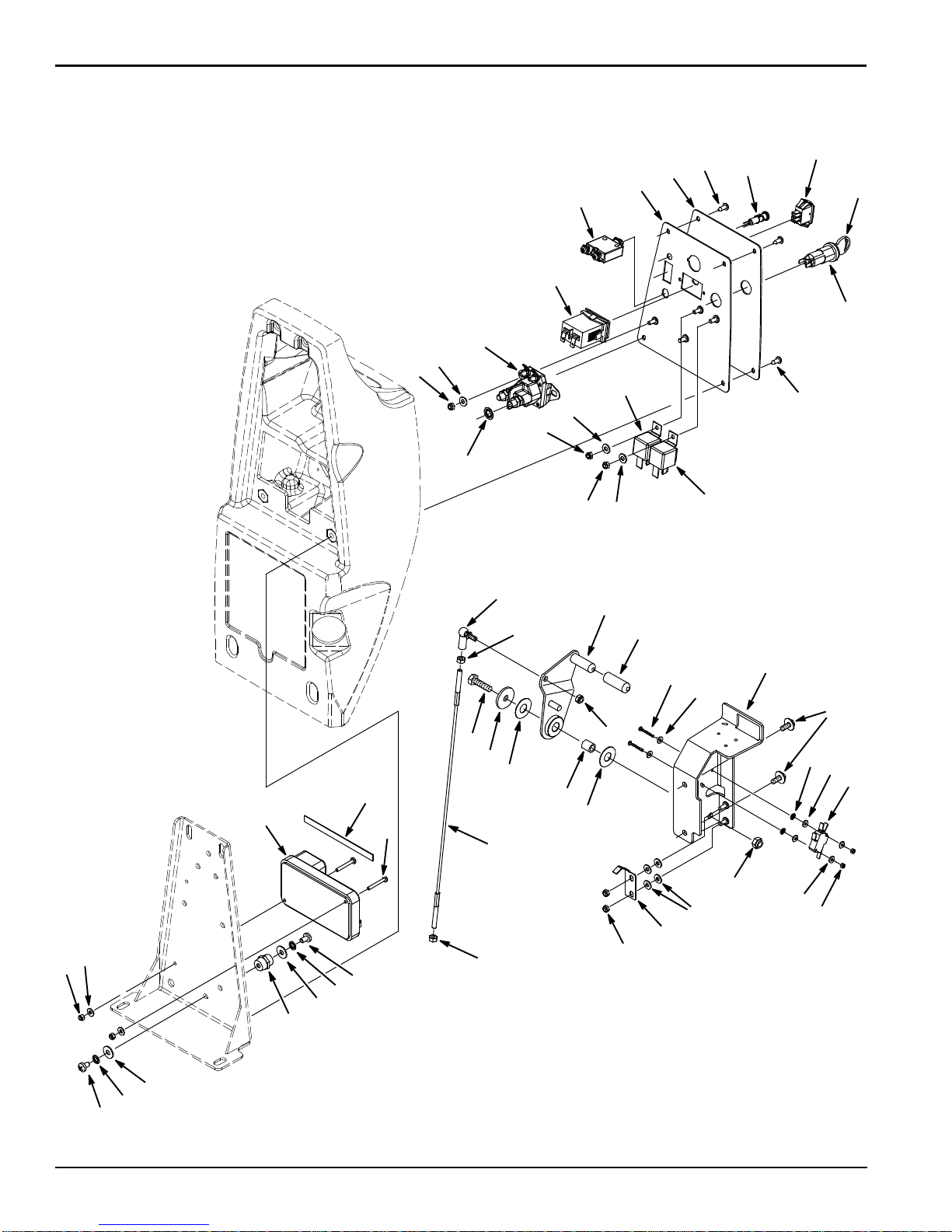

COMPONENT PANEL GROUP
1234
6
7
3
8
9
12 11
10
11
12
13
18
37
29
29
30
34
19
31
31
32
36
35
33
20
22
21
40
41
42
43
44
38
44
43
39 17
11
28
27
12
15
16 14
23
24
25
26
23
23
18
5
45

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012) 17
COMPONENT PANEL GROUP
Ref. Part No. Serial Number Description Qty.
11012134 (00000000- )Panel, Cntrl, Lower 1
21016628 (00000000- )Label, Panl, Instmt, Lower [T3/T3e/Ss3] 1
21049998 (00000000- )Label, Console, Lower Ec- H2o [T3 Na/Aej]
(ec-H2O Model)
1
31009324 (00000000- )Screw, Pan, #10- 16 X 0.50,Phl,Blk[Ty- 17] 4
41041822 (00000000- )Light, Panel, Mgt, .312” Dia. (ec-H2O Model) 1
5130787 (00000000- )Switch, Rocker, Spdt (ec-H2O Model) 1
61011402 (00000000- )Switch, Key 1
Y71017696 (00000000- )Key Set, Replmt [F/ Keyswitch 1011402] 1
81057902 (00000000- )Circuitbreaker, 35.0a 1
91064038 (00000000- )Gauge, Hourmeter, 05- 277 Volt, Ac / Dc 1
10 1038490 (00000000- )Relay, 24vdc, 100a, No [Trombetta] 2
11 01683 (00000000- )Washer, Flat, #10, Ss 7
12 09739 (00000000- )Nut, Hex, Lock, M5 X 0.80, Nl, Ss 4
13 1012216 (00000000- )Relay, 24vdc, 070a, Spst No, Plug- In 1
14 1012216 (00000000- )Relay, 24vdc, 070a, Plug- In (ec-H2O Model) 1
15 01683 (00000000- )Washer, Flat, #10, Ss (ec-H2O Model) 1
16 09739 (00000000- )Nut, Hex, Lock, M5 X 0.80, Nl (ec-H2O Model) 1
17 41579 (00000000- )Washer, Flat, #08, Ss 2
18 01684 (00000000- )Washer, Flat, 0.27b 0.69d .05, Ss 2
19 1016331 (00000000- )Washer, Flat, 0.34b 1.25d .11, Ss 1
20 1012850 (00000000- )Bracket Wldt, Lever, Sqge 1
21 1034731 (00000000- )Screw, Hex, M6 X 1.00 X 16, Sems, Ss 2
22 02938 (00000000- )Washer, Lock, Int, 08, Ss 2
23 41578 (00000000- )Washer, Flat, #06, Ss 6
24 1012568 (00000000- )Switch, Snap, 10a, Short 1
25 579211 (00000000- ) Nut, Hex, Lock, M3 X 0.50, Ss 2
26 1042062 (00000000- ) Screw, Hex, M3 X 0.5 X 25, Ss 2
27 08713 (00000000- )Nut, Hex, Lock, M8 X 1.25, Nl, Ss 1
28 1015459 (00000000- )Spring, Lever, Sqge 1
29 07785 (00000000- )Nut, Hex, Std, M6 X 1.00, A2, Ss 2
30 1013479 (00000000- )Cable, Glv 3.18mmd 0412l M06/ M06 1
31 1013397 (00000000- )Washer, Flat, M13 X 30 X 0.8, Nyl 2
32 1014336 (00000000- )Sleeve, P/M, 8.40b 12.60d 14.5l, Pl 1
33 08712 (00000000- ) Nut, Hex, Lock, M6 X 1.00, Ss, Nl 1
34 09011 (00000000- ) Screw, Hex, M8 X 1.25 X 30, Ss 1
35 1016895 (00000000- )Cap, Handle, Sqge Lift 1
36 1013329 (00000000- )Lever Wldt, Sqge 1
37 1012747 (00000000- )Balljoint, M06 X 1.0 Fem, M06 X 1.0 Mal 1
38 1013523 (00000000- )Stand- Off, Wir, M6, 18 Hex, 20l, Insul 1
39 33932 (00000000- )Nut, Hex, Lock, M4 X 0.70, Nl, Ss 2
40 1020280 (00000000- )Seal, Afmkt, Rbr, Clsd, Adh, 01ft (C410217) 1
41 33931 (00000000- )Screw, Pan, M4 X 0.7 X 30, Ss 2
42 1071983 (00000000- )Module, Drive 1
43 48732 (00000000- )Screw, Pan, M6 X 1.0 X 10, Ss 2
44 07515 (00000000- )Washer, Lock, Int, 0.25, Ss 2
45 43952 (00000000- )Washer, Lock, Int, 0.31, Ss 1
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012)
18

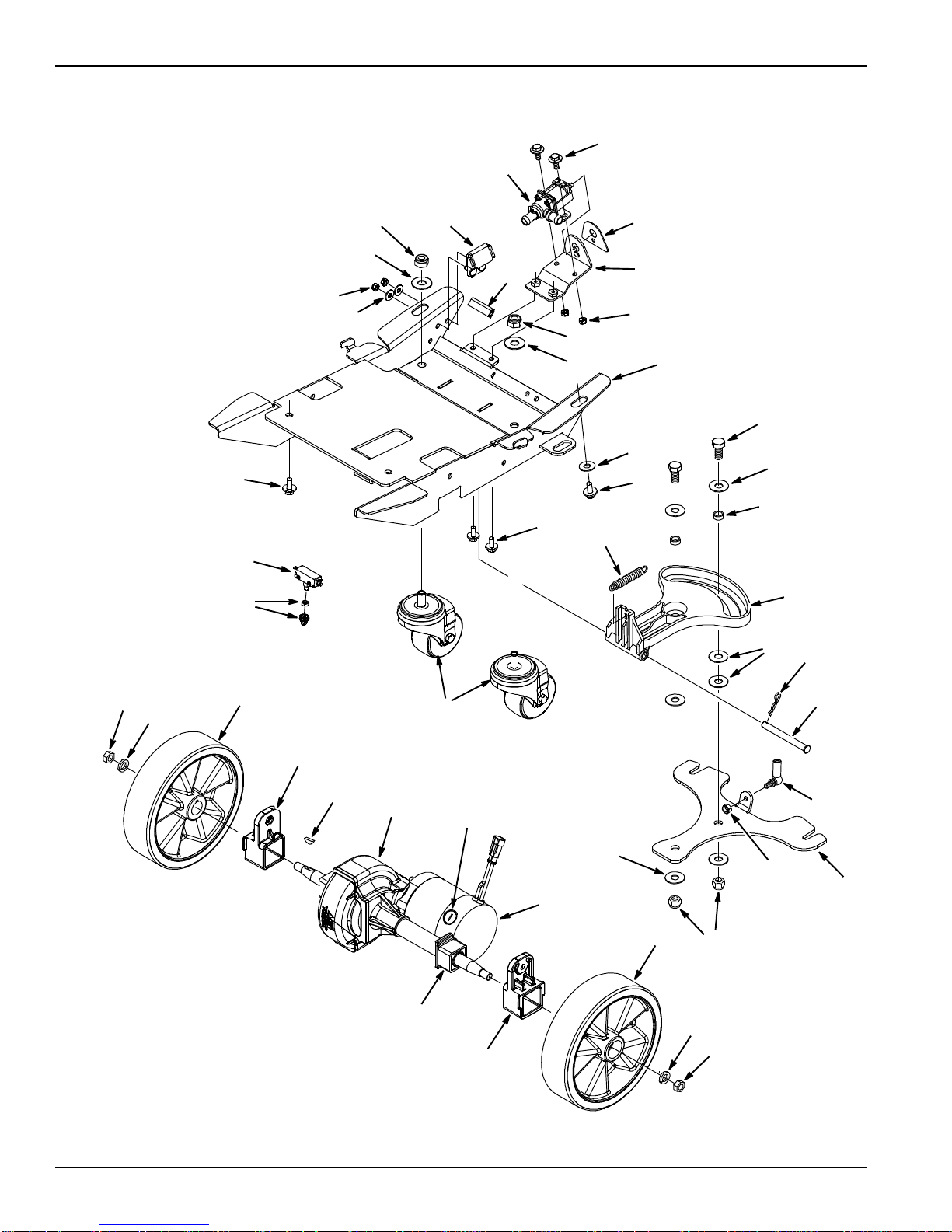

WHEEL GROUP, DRIVE MODEL
8
5
7
2
6
33
35
11
10
11
12
13
14
15
13 17
18
16
34
24
27
28
27
26
24
25
25
31
32
30
3
5
4
36
1
26
29
20
21
22
21
22
19
37
23
13
9

STANDARD PARTS
Nobles Speed Scrub Orbital (12- 2012) 19
WHEEL GROUP, DRIVE MODEL
Ref. Part No. Serial Number Description Qty.
11034731 (00000000- )Screw, Hex, M6 X 1.00 X 16, Ss, Sems 2
21062385 (00000000- )Valve, Water, Solenoid, 24vdc Bm10/Bm10 1
Y614265 (00000000- )Valve Kit, Water [Viton Diaphram] 1
31014156 (00000000- )Label, Opertnl, Lower, Soltn Flow 1
41037292 (00000000- )Bracket, Mtg, Valve, Soltn 1
508712 (00000000- )Nut, Hex, Lock, M6 X 1.0, Ss, Nl 4
61013946 (00000000- )Bracket, Locking, Pedal, Foot Ylw 1
71034551 (00000000- )Trim, Plstc, Edge, .12 X .56 X 1.75 1
801684 (00000000- )Washer, Flat, 0.25 Ss 2
908712 (00000000- )Nut, Hex, Lock, M6 X 1.00, Nl, Ss 1
10 1016331 (00000000- )Washer, Flat, 0.34b 1.25d .11, Ss 2
11 1020341 (00000000- )Screw, Hex, M8 X 1.25 X 20, Ss, Sems 4
12 12309 (00000000- )Screw, Hex, M12 X 1.75 X 30, Ss 2
13 140045 (00000000- )Washer, Flat, 0.51b 1.25d .06, Ss 7
14 1013662 (00000000- )Bushing, Sleeve, 12mm 16mm 6.5mml, Pm Yw 2
15 1023389 (00000000- )Bracket, Sqge, Lift, Mold Blk, Nyl 1
16 1008721 (00000000- )Spring, Extn, 0.75od 0.09wir 03.5l 1
17 44906 (00000000- )Pin, Cotter, Hair, 0.69d .092 Wir 1
18 1013610 (00000000- )Pin, Clevis, 10mmd X 100mml 1
19 1012747 (00000000- )Balljoint, M6 X 1.0 Fem, M6 X 1.0 Mal 1
20 9008680 (00000000- )Frame Kit, Main, W/ Caster Fastenrs [T3] 1
Y21 140045 (00000000- )Washer, Flat, 0.51b 1.25d .06, Ss 2
Y22 09741 (00000000- )Nut, Hex, Lock, M12 X 1.75, Nl, Ss 2
23 09741 (00000000- )Nut, Hex, Lock, M12 X 1.75, Nl, Ss 2
24 07788 (00000000- )Nut, Hex, Std, M12 X 1.75, Ss 2
25 140024 (00000000- )Washer, Lock, Split, 0.50, Ss 2
26 1039655 (00000000- )Wheel, Scrbr, 198.00mm, W/ Taper [T3] 2
27 1028292 (00000000- )Adapter, Mtg, Axle, Alm 2
28 1039475 (00000000- )Transaxle, Ele, 24vdc, 112rpm, Pkrd,Dfma 1
Y1017782 (00000000- )Coupling Kit, Transaxle, Replmt [11057] 1
Y29 1021167 (00000000- )Key, Woodruff, 5mm 2
Y30 612880 (00000000- )Sleeve, Transaxle, Replmt 2
Y31 1019916 (00000000- )Motor, Transaxle, 24vdc, Replmt 1
YY 32 614166 (00000000- )Brush Kit, Carbon [Qty 4] 1
33 1026345 (00000000- )Caster, Swivel, 80mm D, M12 X 25 Stem 2
34 1035711 (00000000- )Boot, Switch, Hex Nut, .38- 32 Thd 1
35 606292 (00000000- )Switch, Push, Actuator, 20a 1
36 08716 (00000000- ) Screw, Hex, M6 X 1.00 X 20, SS 2
37 1066505 (00000000- )Bracket, Mtg, Sqge, Stl [T3] 1
N/S 130773 (00000000- )Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D 4
ASSEMBLY
YINCLUDED IN ASSEMBLY

STANDARD PARTS
Nobles Speed Scrub Orbital (06- 2013)
20

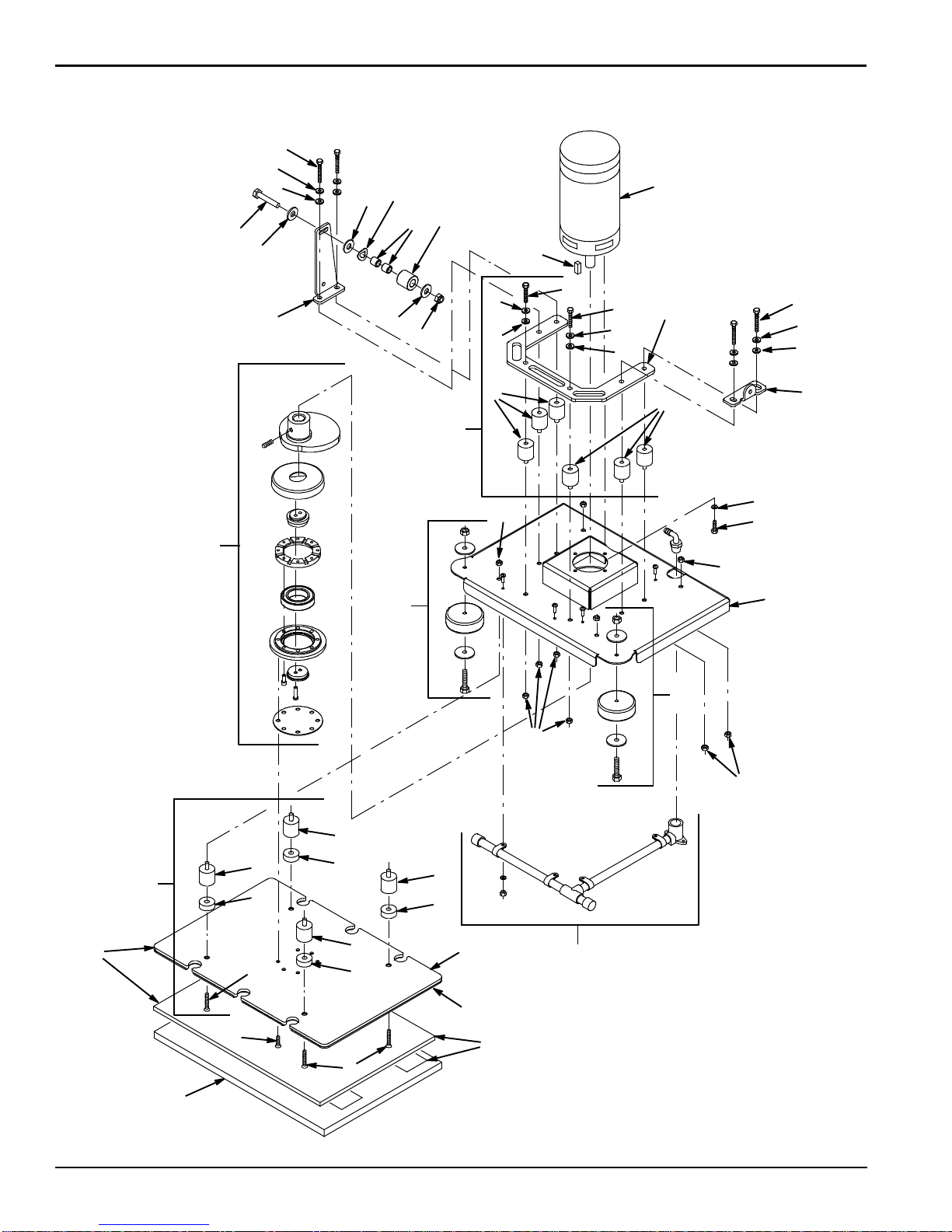

ORBITAL HEAD GROUP
356279_01
1
2
3
4
10
11
15
16
13
16
15
11
12
12
14 13
14
13
14
13
14
17
17
18
5
6
6
7
8
7
8
7
8
7
8
9
22
9
19
20 21
23
24
25
27
28
29
30
31
31 32
33 34
31
26
35
