Nobles Frontier 608549 Product manual

Self–Contained Carpet Extractor
Aspirador para moquetas con depósito incorporado
Frontiert
Model No.:
608549
609236
Operator and Parts Manual
Manual del Operador y Piezas
608550
Rev. 01 (06-01)
CUSTOMER SERVICE: 1-800-365-6625
FAX: [phone]
OUTSIDE U.S. : 1-616-786-2330
NOBLES
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.

OPERATION
2Frontier Carpet Extractor (06–01)
This manual is furnished with each new machine. It
provides necessary operation and maintenance
instructions and an illustrated parts list.
Read this manual completely to understand the
machine before operating or servicing it.
When ordering replacement parts use the Parts Lists
in this manual. Before ordering parts or supplies, be
sure to have your machine model number and serial
number handy. Parts and supplies may be ordered by
phone or mail from any Authorized Service Center or
Distributor.
This machine will provide excellent service. However,
the best results will be obtained at minimum costs if:
The machine is operated with reasonable care.
The machine is maintained regularly - per the
machine maintenance instructions provided.
The machine is maintained with manufacturer
supplied or equivalent parts.
MACHINE DATA
Please fill out at time of installation for future
reference.
ModelNo.-
Install. Date -
Serial No.-
2001 Tennant Company Printed in U.S.A
Nobles is a registered United States trademark of Tennant Company. Frontier
is a registered United States trademark of Tennant Company.
Specifications and parts are subject to change without notice.
TABLE OF CONTENTS
SAFETY PRECAUTIONS 3. . . . . . . . . . . . . . . . . . . .
GROUNDING INSTRUCTIONS 3. . . . . . . . . . .
MACHINE COMPONENTS 4. . . . . . . . . . . . . . . . . . .
MACHINE SETUP 4. . . . . . . . . . . . . . . . . . . . . . . . . .
MACHINE OPERATION 5. . . . . . . . . . . . . . . . . . . . .
PRE–OPERATION 5. . . . . . . . . . . . . . . . . . . . . . .
CLEANING CARPETS 5. . . . . . . . . . . . . . . . . . .
WHILE OPERATING 5. . . . . . . . . . . . . . . . . . . . .
CLEANING WITH ACCESSORY TOOLS 5. . .
ADJUSTING BRUSH HEIGHT 6. . . . . . . . . . . . . . . .
DRAINING TANKS 6. . . . . . . . . . . . . . . . . . . . . . . . . .
DRAINING RECOVERY TANK 6. . . . . . . . . . . .
DRAINING LEFTOVER CLEANING
SOLUTION 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MACHINE MAINTENANCE 7. . . . . . . . . . . . . . . . . .
DAILY MAINTENANCE
(Every 4 Hours of Operation) 7. . . . . . . . . . . . . .
WEEKLY MAINTENANCE
(Every 20 Hours of Operation) 7. . . . . . . . . . . . .
MONTHLY MAINTENANCE
(Every 80 Hours of Operation) 7. . . . . . . . . . . . .
QUARTERLY MAINTENANCE
(Every 250 Hours of Operation) 7. . . . . . . . . . . .
SERVICING MACHINE 8. . . . . . . . . . . . . . . . . . .
STORING MACHINE 8. . . . . . . . . . . . . . . . . . . . . . . .
RECOMMENDED STOCK ITEMS 8. . . . . . . . . . . . .
TROUBLE SHOOTING 9. . . . . . . . . . . . . . . . . . . . . .
SPECIFICATIONS 10. . . . . . . . . . . . . . . . . . . . . . . . . .
ELECTRICAL DIAGRAMS 21. . . . . . . . . . . . . . . . . . .
PARTS LIST 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RECOVERY TANK GROUP 22. . . . . . . . . . . . . . .
CONTROL CONSOLE GROUP
(120V MODEL) 24. . . . . . . . . . . . . . . . . . . . . . . . . .

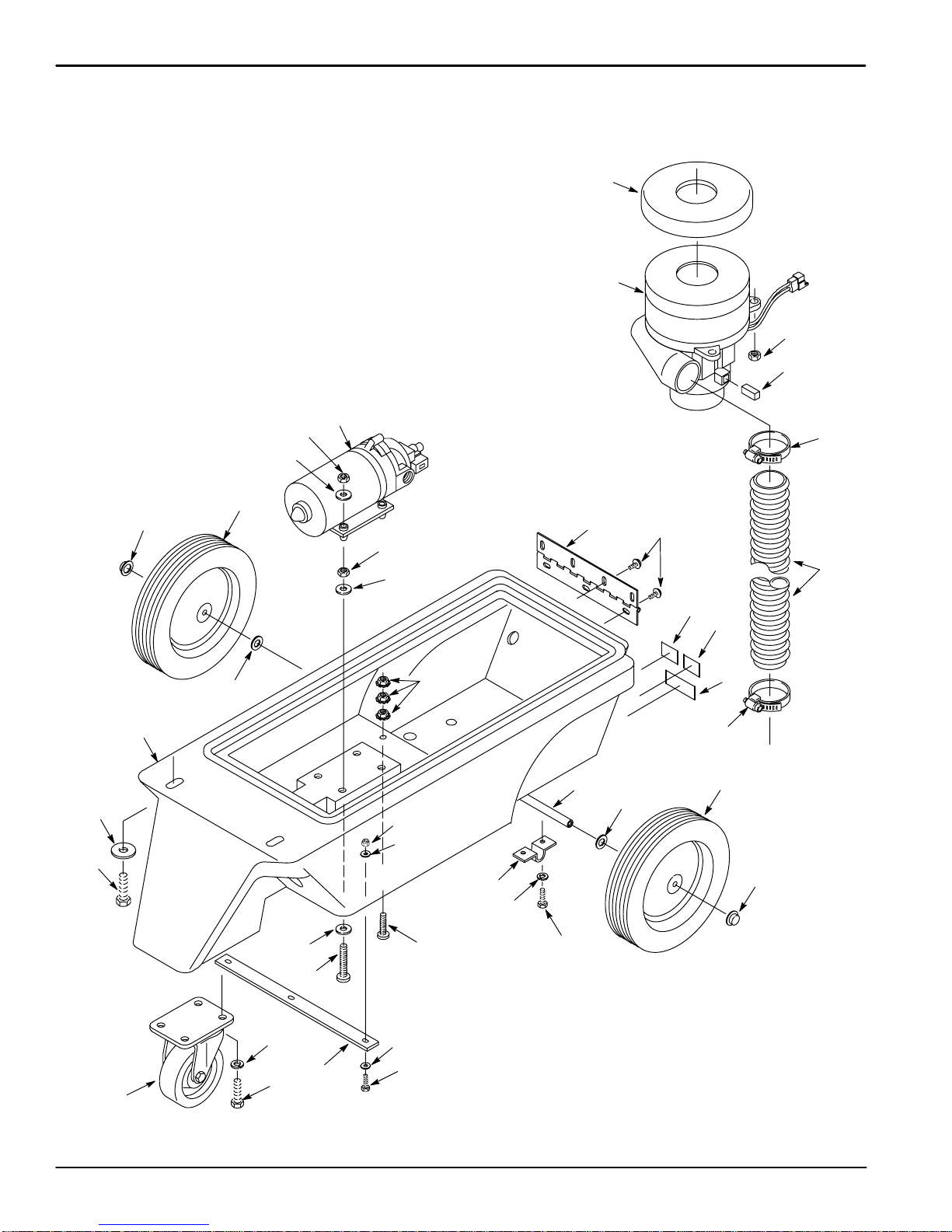

CHASSIS GROUP 26. . . . . . . . . . . . . . . . . . . . . . .
BRUSH HOUSING GROUP 28. . . . . . . . . . . . . . .

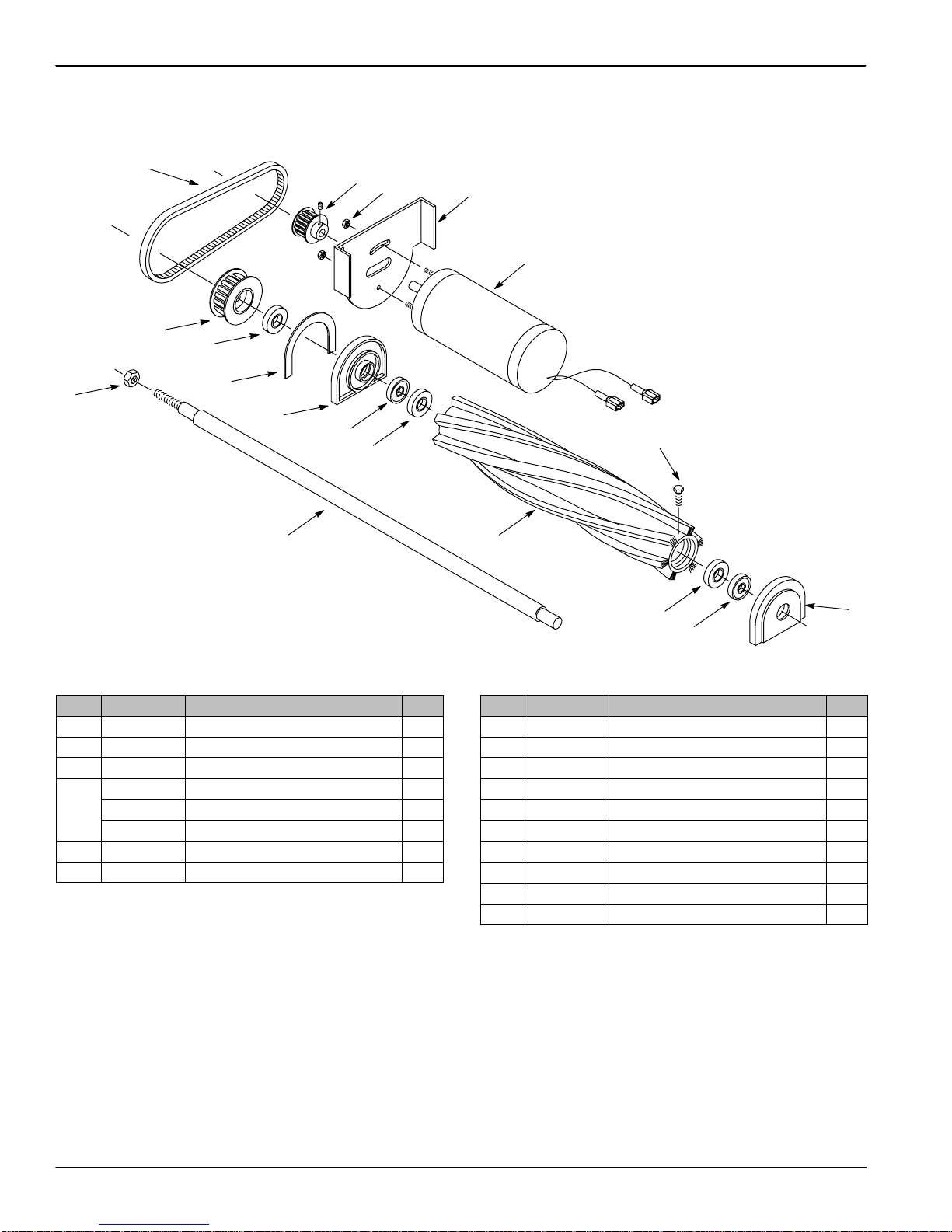

BRUSH BREAKDOWN 30. . . . . . . . . . . . . . . . . . .
BRUSH HOUSING LIFT LEVER GROUP 31. . .
PLUMBING GROUP 32. . . . . . . . . . . . . . . . . . . . .
PUMP BREAKDOWN 33. . . . . . . . . . . . . . . . . . . .
OPTIONS 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
127mm (5 in.) HAND TOOL 34. . . . . . . . . . . . . . .
SOLUTION AND VACUUM HOSES 34. . . . . . . .
330mm (13 in.) FLOOR TOOLS 35. . . . . . . . . . .

OPERATION
3
Frontier Carpet Extractor (06–01)
SAFETY PRECAUTIONS
This machine is intended for commercial use. It is
suited to clean carpet and upholstery in an indoor
environment and is not constructed for any other use.
Use only recommended cleaning solutions and
accessory tools.
All operators must read, understand and exercise the
following important Safety Precautions.
The following safety alert symbols are used throughout
this manual as indicated in their description.
WARNING: To warn of hazards or unsafe
practices which could result in severe personal
injury or death.
FOR SAFETY: To identify actions which must be
followed for safe operation of equipment.
The following information signals potentially dangerous
conditions to the operator or equipment:
FOR SAFETY:
1. Do not operate machine:
–Unless trained and authorized.
–Unless operator manual is read and
understood.
–In flammable or explosive areas.
–With damaged cord or plug.
–If not in proper operating condition.
–In outdoor areas.
–In standing water.
–Unless cord is properly grounded.
–With the use of additional extension cords.
Only use manufacturer’s extension cord
equipped with machine which has proper
capacity and is grounded (120V Model).
2. Before operating machine:
–Make sure all safety devices are in place
and operate properly.
3. When using machine:
–Do not run machine over cord.
–Do not pull machine by plug or cord.
–Do not pull cord around sharp edges or
corners.
–Do not unplug by pulling on cord.
–Do not stretch cord.
–Do not handle plug with wet hands.
–Keep cord away from heated surfaces.
–Report machine damage or faulty
operation immediately.
–Follow mixing and handling instructions
on chemical containers.
4. Before leaving or servicing machine:
–Turn off machine.
–Unplug cord from wall outlet.
5. When servicing machine:
–Unplug cord from wall outlet.
–Avoid moving parts. Do not wear loose
jackets, shirts, or sleeves.
–Use manufacturer supplied or approved
replacement parts.
WARNING: Hazardous Voltage. Shock or
electrocution can result. Always unplug machine
before servicing.
WARNING: Flammable materials can cause
an explosion or fire. Do not use flammable
materials in tank(s).
WARNING: Flammable materials or reactive
metals can cause an explosion or fire. Do not pick
up.
GROUNDING INSTRUCTIONS
Machine must be grounded. If it should
malfunction or breakdown, grounding provides a
path of least resistance for electrical current to
reduce the risk of electrical shock. This machine
is equipped with a cord having an
equipment–grounding conductor and grounding
plug. The plug must be plugged into an
appropriate outlet that is properly installed in
accordance with all local codes and ordinances.
Do not remove ground pin; if missing, replace
plug before use.
Grounded
3 Hole Outlet
Ground Pin
(120V)

OPERATION
4Frontier Carpet Extractor (06–01)
MACHINE COMPONENTS
13
9
14
12
6
4
12
7
8
3
10
11
5
1. Solution Tank Lid
2. Recovery Tank Dome
3. Main Power Switch
4. Brush/Spray Switch
5. Circuit Breakers (under switchbox)
6. Recovery Tank Drain Hose
7. Brush/Vacuum Head Lift Lever
8. Power Cord Pigtail (120V Model)
9. Power Cord Storing Hook
10. Detachable Power Cord (120V Model)
11. 254 mm (10 in) Stair Climbing Wheels
12. Vacuum Head
13. Brush Housing
14. Spray Bar
MACHINE SETUP
1. Carefully check carton for signs of damage.
Report damages at once to carrier. The machine
is shipped fully assembled and is ready for
operation.
2. Remove solution tank lid and fill tank with 38 liters
(10 gallons) of hot water, 60°C (140°F) maximum
(Figure 1).
WARNING: Flammable materials can cause
an explosion or fire. Do not use flammable
materials in tank(s).
FIG. 1
NOTE: When using a bucket to fill tank, make sure it
is clean. Always use separate buckets when filling and
emptying machine.
3. Add a recommended cleaning solution. Follow
bottle’s mixing instructions.
FOR SAFETY: When using machine, follow mixing
and handling instructions on chemical containers.
NOTE: If desired, hot water alone achieves excellent
cleaning results.
ATTENTION: If using powdered cleaning
chemicals, mix prior to adding.
4. Replace lid securely after filling.
5. Connect the detachable power cord to machine,
use cord restraint strap provided (120V Model).
6. Plug power cord into a grounded wall outlet
(Figure 2).
Grounded
3 Hole Outlet
Ground Pin
(120V)
FOR SAFETY: Do not operate machine unless
cord is properly grounded.
FOR SAFETY: Do not operate machine with the
use of additional extension cords. Only use
manufacturer’s cord equipped with machine
which has proper capacity and is grounded
(120V Model).

OPERATION
5
Frontier Carpet Extractor (06–01)
MACHINE OPERATION
FOR SAFETY: Do not operate unless operator
manual is read and understood.
PRE–OPERATION
1. Vacuum carpet to remove particles and other
debris.
2. Inspect power cord for damage.
CLEANING CARPETS
1. Turn on main power switch.
2. Lower brush/vacuum head lift lever (Figure 2).
FIG. 2
3. To begin cleaning, hold down the brush/spray
button and push machine forward at a pace of
approximately 23 m (75 ft) per minute. For heavily
soiled areas, push machine at a slower pace
(Figure 3).
WARNING: Flammable materials or reactive
metals can cause explosion or fire. Do not pick
up.
FIG. 3
4. Release button at end of path and continue to
push machine forward to pick up excess solution.
5. After cleaning, perform the daily maintenance
instructions.
NOTE: Allow up to one hour for carpet to dry. Use air
movers to reduce drying time.
WHILE OPERATING
1. If necessary, adjust brush height to accommodate
type of carpet (See ADJUSTING BRUSH
HEIGHT).
2. Overlap each path by 51 mm (2 in).
3. Work away from wall outlet and power cord to
prevent cord damage.
4. When turning machine around, release
spray/brush button, push down on handle and
pivot machine on rear wheels.
5. Check for excessive foam buildup in recovery
tank. Use a recommended foam control solution to
prevent motor damage.
ATTENTION: Foam will not activate the float
shut-off screen. Motor damage due to foam or
water is not covered by warranty.
6. When the float shut-off screen is activated, water
pickup will stop. Drain recovery tank at this point
and refill solution tank (See DRAINING TANKS).
7. If brush or vacuum motor should stop, circuit
breaker may have tripped. Shut off machine,
unplug power cord and check for any obstructions.
Let motor cool and manually reset circuit breaker
button, located on switch box.
8. Raise brush/vacuum head when transporting
machine to draining area.
CLEANING WITH ACCESSORY TOOLS
See Options.
1. Disconnect vacuum hose from recovery dome and
connect accessory vacuum hose (Figure 4).
2. Connect accessory solution hose to quick coupler,
located in front of handle (Figure 4).
FIG. 4
3. Attach desired accessory tool to hoses.
4. Turn on main power switch.

OPERATION
7
Frontier Carpet Extractor (06–01)

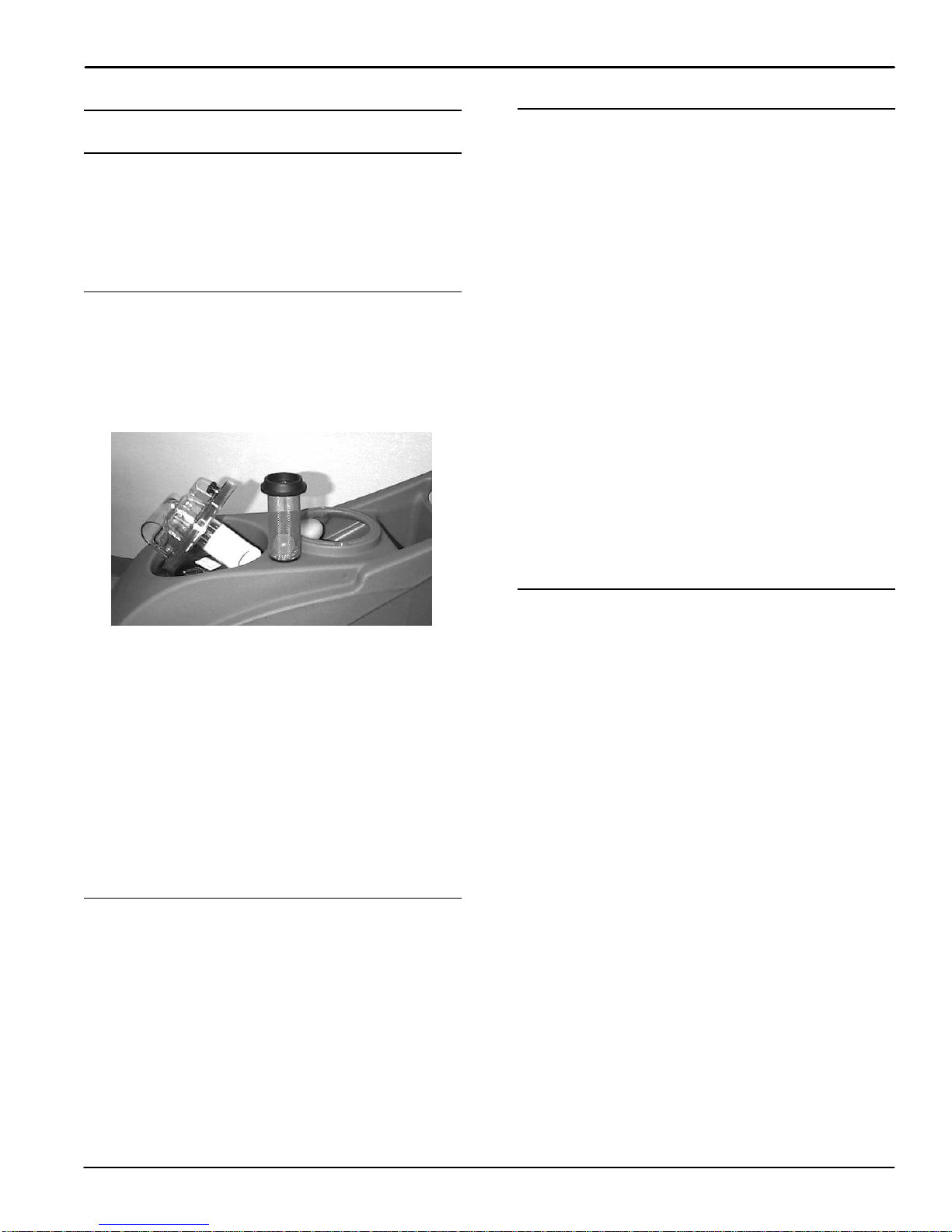

MACHINE MAINTENANCE
To keep machine in good working condition, simply
follow machine’s daily, weekly and monthly
maintenance procedures.
FOR SAFETY: When servicing machine, unplug
cord from wall outlet.
DAILY MAINTENANCE
(Every 4 Hours of Operation)
1. Rinse out recovery tank and recovery dome
thoroughly after every use.
2. Remove float shut-off screen and clean. Screen is
located in recovery tank (Figure 10).
FIG. 9
3. Vacuum out any leftover solution from solution
tank, using the 1 m (3 ft) clean-out hose.
4. Remove and rinse off bladder tank screen.
5. Remove any entangled carpet fibers and debris in
brush.
6. Remove any clogged debris in vacuum head.
7. Check power cord for damage, replace if
necessary. Coil cord neatly after each use.
8. Clean machine with a nonabrasive, nonsolvent
cleaner.
WEEKLY MAINTENANCE
(Every 20 Hours of Operation)
1. Inspect vacuum hose for holes and loose cuffs.
2. Inspect spray pattern for plugging. If plugged,
remove spray tips and soak in acetic acid solution
for up to six hours. Do not use pointed objects to
unplug tips, damage will occur.
FOR SAFETY: When using machine, follow mixing
and handling instructions on chemical containers.
3. Inspect power cord and cord grip for damage.
Replace immediately if damaged.
MONTHLY MAINTENANCE
(Every 80 Hours of Operation)
1. Flush pump system with an acetic acid solution to
dissolve normal alkaline chemical buildup. Follow
instructions below:
FOR SAFETY: When using machine, follow mixing
and handling instructions on chemical containers.
a. Premix .5 L (16 oz) of an acetic acid solution
with 7.5 L (2 gal) of hot water, 60C (140F)
maximum, and pour into solution tank.
b. Turn on main power switch.
c. Position brush/vacuum head over floor drain
and activate the brush/spray button for one
minute.
d. Shut off machine and allow remaining solution
to break down alkaline buildup overnight.
e. Next day, spray out remaining solution and
flush system with 11 L (3 gal) of clean water.
2. Lubricate wheels and caster with a water
resistant oil.
3. Inspect machine for water leaks.
4. Inspect machine for loose screws.
QUARTERLY MAINTENANCE
(Every 250 Hours of Operation)
Inspect vacuum motor for carbon brush wear. Replace
brushes when worn to a length of 10 mm (0.38 in) or
less. Contact Service Center for carbon brush
inspection.

OPERATION
6Frontier Carpet Extractor (11–99)
5. Begin operating accessory tool (Figure 5).
FIG. 5
NOTE: When cleaning upholstery, always check
cleaning instructions sewn in furniture by
manufacturer.
6. After operating accessory tool, relieve water
pressure from tool before disconnecting hose.
Squeeze trigger for five seconds after turning off
switches.
ADJUSTING BRUSH HEIGHT
1. Turn off machine and unplug power cord from wall
outlet.
FOR SAFETY: Before leaving or servicing
machine, turn off machine and unplug cord from
wall outlet.
2. To adjust brush height, use a standard screwdriver
and turn brush height adjustment lever in 1/4 turn
increments, 4 settings (Figure 6).
FIG. 6
DRAINING TANKS
FOR SAFETY: Before leaving or servicing
machine, turn off machine and unplug cord from
wall outlet.
NOTE: Always use separate buckets when draining
and filling machine.
DRAINING RECOVERY TANK
1. Turn off power switch and unplug power cord.
Raise brush lift handle and transport machine to
draining area.
2. Turn drain hose knob counterclockwise and pull
plug out to drain (Figure 8).
FIG. 7
3. After draining, replace drain hose knob securely.
DRAINING LEFTOVER CLEANING SOLUTION
1. Connect 1 m (3 ft) pump-out hose, supplied with
machine, to machine’s solution coupler (Figure 8).
FIG. 8
2. Direct the hose into a bucket or floor drain.
3. Turn on main power switch.
NOTE: You can also use the pump-out hose to rinse
out recovery tank when there’s leftover water.

OPERATION
8Frontier Carpet Extractor (06–01)
SERVICING MACHINE
ATTENTION: Machine repairs must be performed
by Authorized Personnel only.
WARNING: Hazardous Voltage. Shock or
electrocution can result. Always unplug machine
before servicing.
FOR SAFETY: When servicing machine, use
manufacturer supplied or approved replacement
parts.
To access internal components for repair:
1. Remove screw from lift handle linkage as shown,
0.5 inch wrench required (Figure 10).
FIG. 10
ATTENTION: Make sure tanks are empty before
opening.
2. Remove two hex-head bolts at front of machine,
9/16”wrench required.
3. Hinge tank backwards away from chassis
(Figure 11).
FIG. 11
4. When closing machine, be careful not to pinch
internal hoses or wiring.
STORING MACHINE
1. Before storing machine, be certain to flush tanks
and drain machine of all water.
2. Store machine in a dry area in the upright position
with brush/vacuum head raised off floor.
3. Remove recovery dome to promote air circulation.
ATTENTION: Do not expose to rain. Store indoors.
ATTENTION: If storing machine in freezing
temperatures, be sure that machine, pump and
spraying system are completely drained and dry.
Damage due to freezing temperatures is not
covered by warranty.
RECOMMENDED STOCK ITEMS
Refer to Parts List section for recommended stock
items. Stock Items are clearly identified with a bullet
preceding the parts description. See example below:

OPERATION
9
Frontier Carpet Extractor (06–01)
TROUBLE SHOOTING
PROBLEM CAUSE SOLUTION
Machine does not operate. Faulty main power switch or wiring. Contact Service Center.
Tripped machine circuit breaker. Reset circuit breaker.
Faulty power cord. Contact Service Center.
Building circuit breaker tripped. Reset breaker.
Solution pump does not operate. Overheated pump. Determine cause, wait 20 minutes for
pump to cool and reset breaker.
Faulty solution pump. Contact Service Center.
Faulty solenoid. Contact Service Center.
Faulty brush/spray switch. Contact Service Center.
Loose or broken wiring. Contact Service Center.
Vacuum motor does not operate. Vacuum motor thermal overload
tripped. Check air flow for obstruction and wait 20 minutes for motor to cool.
Loose or broken wiring. Contact Service Center.
Faulty main power switch. Contact Service Center.
Defective vacuum motor. Contact Service Center.
Worn carbon brushes. Replace brushes or call for service.
Brush motor does not operate. Brush motor circuit breaker tripped. Remove brush obstruction. Reset
brush breaker button on switch box.
Brush/spray button not pressed. Push brush/spray button.
Faulty brush motor. Contact Service Center.
Loose or broken brush belt. Contact Service Center.
Faulty switch or wiring. Contact Service Center.
Poor pick up. Loose drain hose plug. Cap drain hose securely.
Full recovery tank. Drain recovery tank.
Clogged float shut–off screen. Remove recovery dome and clean lint
off screen.
Air leakage around recovery dome. Tighten recovery dome knobs or
replace gaskets.
Loose vacuum hose connections. Secure connections.
Defective vacuum hose. Replace hose.
Loose vacuum hose cuffs. Secure cuffs to hose.
Clogged vacuum head. Dislodge debris from vacuum head.
Pushing machine too fast. Slow down cleaning process.
Uneven or no spray. Dirty or plugged spray tips. Clean or replace tips.
Improper spray tip size or spray angle. Replace with proper tips.
Worn spray tips. Replace spray tips.
Solution tank low or empty. Refill solution tank.
Faulty solution pump. Contact Service Center.
Plugged solution tank filter. Clean filter.

OPERATION
10 Frontier Carpet Extractor (06–01)
SPECIFICATIONS
Model FrontiertCarpet Extractor
LENGTH 1180mm (46.5 in)
WIDTH 510mm (20 in)
HEIGHT 940mm (37 in)
WEIGHT 54 Kg (120 lbs)
CLEANING PATH WIDTH 510mm (20 in)
SOLUTION TANK CAPACITY 38 ltr (10 gal)
RECOVERY TANK CAPACITY 55 ltr (14.5 gal)
SOLUTION PUMP 120V, 6.9 bar (100 psi), 1 amp
SPRAY NOZZLES 5–80015 Quickjet
VACUUM MOTOR 120 V, 3–stage, 1.8 hp, 13 amp,1560 watts
SEALED WATER LIFT 3.5m (137 in)
BRUSH MOTOR 120V, .1 hp, 1800 rpm, .75 A, 90 W
POWER CORD LENGTH 120 V –23 m (75 ft.)
TOTAL POWER CONSUMPTION 120V, 14.2 A, 1710 W
DECIBEL RATING AT OPERATOR’S EAR, INDOORS ON CARPET 80dB(A)

ELECTRICAL DIAGRAMS
DIAGRAMAS ELECTRICAS
21
Frontier Carpet Extractor (06–01)
SPRAY/BRUSH SWITCH
MAIN
SWITCH
POWER CORD
CONDUIT
SOLENOID
CORD 18/3 (Chassis to Br sh Ho sing)
SOLUTION
PUMP
AC
AC
PUMP
1.5 AMPS
BRUSH
1.5 AMPS
VACUUM
12 AMPS
BRUSH
MOTOR
VACUUM
MOTOR
WHT/ORG
BLK
RED
GRN
BLU
ORG
WHT
WHT/ORG
WHT/RED
WHT/BLK
BLU
RED
BLK
GRN
BLK
BLK
BLK
WHT
BLK
BLK
BLK
WHT
GRN
BLU
WHT
BLK
RED
GRN
ORG
GRN
WHT
BLK
WHT/RED
WHT/BLK
RED
BLK
WHT/GRN
GRN/YLW
GRN
GRN/YLW
GRN
WHT
BLK
WHT
BLK
120V
–+

PARTS LIST
LISTA DE PIEZAS
22 Frontier Carpet Extractor (06–01)
RECOVERY TANK GROUP
CONJ. DESPOSITO RECUPERAR
16
17
18
19
20
21
2
3
1
4
5
6
7
8
9
10
11 15
12
39
13
14
22
23
35
25
26
24
32
31
30
29
28
31 32
33
34
36
37
27
40
41
38
32
44
43
42

PARTS LIST
LISTA DE PIEZAS
23
Frontier Carpet Extractor (06–01)
RECOVERY TANK GROUP
CONJ. DESPOSITO RECUPERAR
REF PART # DESCRIPTION QTY.
∇100103 ASSEMBLY, LID 1
1 600812 LID, OUTER RING ONLY (BLACK) 1
2 100105 LID, CENTER ONLY (CLEAR) 1
3 140900 SCREW, 10–24 X 3/4 6
4 602715 BLADDER, 10 GAL. MODEL 1
5 578729 DECAL, READ MANUAL 1
6 602448 STANDPIPE, 10 GAL. MODEL 1
7 180613 FLOAT, SHUT–OFF 1
8 606088 NIPPLE 1
9 230159 O–RING, STANDPIPE 1
10 210240 NUT, FLANGED METAL 1
∇11 701005 ASM., DOME 1
12 240217 KNOB, DOME 2
13 140037 WASHER, NYLON 2
14 100042 GASKET, RECOVERY DOME 1
15 120399 DECAL, DO NOT ALLOW FOAM 1
∇701061 ASM., DRAIN HOSE 1
16 230831 KNOB, DRAIN HOSE 1
17 230882 STRAP 1
18 140056 WASHER, FENDER 1
19 140955 PLUG 1
20 140921 SLEEVE, DRAIN HOSE 1
21 140072 CLAMP 2
22 160416 HOSE, DRAIN 1
∇ASSEMBLY / CONJUNTO
INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA
MANTENER EN EXISTENCIA
REF PART # DESCRIPTION QTY.
23 140307 CLAMP 1
24 230696.BK BRACKET, DRAIN HOSE 1
25 140825 SCREW, #6X3/4 2
26 230843 BRACKET, TANK BRACE
W/THREADS 1
27 230844 BRACKET, TANK BRACE W/HOLES 1
28 140259 SCREW, 1/4–20X5/8 1
29 230955 CLAMP 1
30 140553 SCREW, 1/4–20X1/2 1
31 140016 WASHER, LOCK 2
32 140000 WASHER, 1/4 FLAT 8
33 102569 TANK, GASKET 2
34 140227 STUD, 1/4–20X5 3
35 608472 DECAL, FRONTIER 2
36 608186 DECAL, “NOBLES”1
37 608532 TANK, RECOVERY, GREEN 1
38 630420 DECAL, FLAMMABLE MATERIAL 1
39 603547 HOSE, VAC 1–1/2 X 46”W/CUFFS 1
40 120906 DECAL, IMPORTANT DRAIN 1
41 120907 DECAL, IMPORTANT ALWAYS
CLOSE 1
42 140637 NUT, WELL 10–32 2
43 140887 SCREW, 1024X3/8 PANPHL 2
44 230755.BK BRACKET, CORD HANGER BLACK 1

PARTS LIST
LISTA DE PIEZAS
24 Frontier Carpet Extractor (06–01)
CONTROL CONSOLE GROUP (120V MODEL)
CONJUNTO CONSOLA DE CONTROLES (120V MODELO)
9
5
67
8
1
14
15
11
12
13
10
16
11
4
2
3
17

PARTS LIST
LISTA DE PIEZAS
25
Frontier Carpet Extractor (06–01)
CONTROL CONSOLE GROUP (120V MODEL)
CONJUNTO CONSOLA DE CONTROLES (120V MODELO)
REF PART # DESCRIPTION QTY.
1 608458 ASM, SWITCHBOX, GREEN 1
608538 SWITCHBOX ONLY, GREEN 1
2 130304 RECTIFIER, MINIBRIDGE 600V 1
3 140534 NUT, NYLON 1
4 140879 SCREW, 6–32X3/4 1
5 578337000 BREAKER, CIRCUIT 1.5AMP
(120V) 2
6 606713 SWITCH, ALTERNATING (120V) 1
7 130717 SWITCH, ROCKER (120V) 1
8 120619 DECAL, WARNING EXTRACTOR 1
RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA
MANTENER EN EXISTENCIA
REF PART # DESCRIPTION QTY.
9 140824 SCREW 1/4–20X5/8 4
10 140044 WASHER 13/16 INT 1
11 140504 NUT, CONDUIT 2
12 130670 BREAKER, CIRCUIT 12AMP
(120V) 1
13 130977 HARNESS, WIRE 1
14 130166 GRIP, CORD 1
15 130237 CORD, 16/3X18”YELLOW (120V) 1
16 130229 CORD, 14/3 X 75’YELLOW
SMOOTH (120V) 1
17 604393 STRAP, CORD, STRAIN RELIEF 1

PARTS LIST
LISTA DE PIEZAS
26 Frontier Carpet Extractor (06–01)
CHASSIS GROUP
CONJUNTO TELAIO
1
2
3
4
5
6
78
910
12
1314
15
18
17
16
17
19
20
22
21
27
26
28
5
32
30
29 31
25
24
23
11
12
10
11
29
22
33 34
35

PARTS LIST
LISTA DE PIEZAS
27
Frontier Carpet Extractor (06–01)
CHASSIS GROUP
CONJUNTO TELAIO
REF PART # DESCRIPTION QTY.
1 100118 GASKET, VAC MOTOR (120V) 1
100038 GASKET, VAC MOTOR
(230V/240V) 1
2 130996 MOTOR, VAC (120V) 1
603042 COVER, VAC FAN (120V) 1
3 140501 NUT 1/4–20 NYLOCK 4
4 600177 BRUSH, CARBON 2/PK (120V) 2
190158 BRUSH, CARBON 2/PK
(230V/240V) 2
5 140308 CLAMP, HOSE 1–5/16 TO 2–1/4 2
6 606160 HOSE, EXHAUST 2”X 24”1
7 230390 HINGE, TANK 1
8 140885 SCREW, 1/4–20X1/2 TRSPHL 7
9 230739 AXLE 1
10 140008 WASHER, 1/2 FLAT 2
11 103068 WHEEL, 10”X 1.75”2
12 103019 CAP, HUB 2
13 230746 BRACKET, AXLE OFFSET 2
14 140016 WASHER, 1/4 LOCK 4
15 140259 SCREW, 1/4–20X5/8 HXHDCP 4
RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA
MANTENER EN EXISTENCIA
REF PART # DESCRIPTION QTY.
16 140804 SCREW, 10–24X1 1
17 140000 WASHER, 1/4 FLAT 6
18 140501 NUT, 1/4–20 NYLOCK 3
19 140208 SCREW, 1/4–20X1 3
20 604640 BRACKET, CHASSIS SUPPORT 1
21 140899 SCREW, 10–24X1–1/4 4
22 140011 WASHER, 3/16 FLAT 8
23 140226 SCREW, 5/16–18X3/4 HXHDCP 4
24 140015 WASHER, 5/16 SPLITLOCK 4
25 103065 CASTER, SWIVEL 4”1
26 140256 SCREW, 3/8–16XX2–1/2 2
27 140028 WASHER, FLAT 2
28 608831 CHASSIS, GREEN 1
29 140519 NUT, 10–24 KEP 8
30 140012 WASHER, 3/16 FLAT 4
31 180103 PUMP, 100PSI (120V) 1
32 140519 NUT, 10–24 KEP 3
33 N/A DECAL, CE (240V MODEL) 1
34 N/A DECAL, KEMA (240V MODEL) 1
35 N/A DECAL, EMC APPROVED
(240V MODEL) 1

PARTS LIST
LISTA DE PIEZAS
28 Frontier Carpet Extractor (06–01)
BRUSH HOUSING GROUP
GRUPO DEL BASTIDOR DEL CEPILLO
7
39
1
4
10
8
36
512
11
13
35
27
34
33
31
30
32
28
27
26
25
29
29
15
20
21 22
14
14
14
23
18
24
37
6
3
38
2
238
16
17
29
9
44 41
44
42
43
40
19

PARTS LIST
LISTA DE PIEZAS
29
Frontier Carpet Extractor (06–01)
BRUSH HOUSING GROUP
GRUPO DEL BASTIDOR DEL CEPILLO
REF PART # DESCRIPTION QTY.
1 603175 BRACKET, MOUNT 1
2 140226 SCREW, 5/16–18X5/8 HXHDCP 3
3 140136 BUSHING, 3/8ID X 1/2OD 2
4 140898 SCREW, 3/8–16X3/4 TRSPHL 2
5 140017 WASHER, 3/8 SPLITLOCK 2
6 140028 WASHER, 3/8 FLAT 2
7 603184 TOOL, PICKUP W/LEVER 1
8 603448 SPRING, TOOL PRESSURE 1
9 150520 FITTING, 1/8FX1/4H BARB 1
10 603547 HOSE, VACUUM 1–1/2X46”1
11 603178 CAM ADJUSTER 1
12 140859 SCREW, SET 1/4–20X1/4 1
13 603177 LEVER, CAM ADJUSTER 1
∇606844 ASM, SPRAYBAR, 20”1
14 150208 FITTING, 1/8M PLUG 3
15 150430 FITTING 1/8MX1/4F ELBOW 1
16 150921 FITTING 1/8M QD CPLR, BRS 1
17 230379 MANIFOLD, SPRAYBAR, 20”1
18 201011 NOZZLE, BRASS 5
19 201013 REPLACEMENT FITTING TIP
80015 FOR 201011
20 150915 FITTING, 1/8 QD CPLR BRASS 1
21 140325 CLAMP, EAR, 1/2”1
22 606453 HOSE, 1/4”X 1.25’LP, GRAY 1
∇ASSEMBLY / CONJUNTO
INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA
MANTENER EN EXISTENCIA
REF PART # DESCRIPTION QTY.
23 140887 SCREW, 10–24X3/8 12
24 140900 SCREW, 10–24X3/4 1
25 230367.BK PLATE, BRUSH BASE, 20”1
26 100115 GASKET, 20”PWR BRSH BASE 1
27 140028 WASHER, 3/8 FLAT 2
28 140233 SCREW, 3/8–16X1–3/4 HXHDCP 1
29 140519 NUT, KEP 3
30 603561 CORD, 18/3 X 24”, BLACK 1
31 130181 CORD GRIP (FOR SERVICE ONLY) 1
32 140504 NUT, CONDUIT 1
33 604494 BASE, BRUSH, 20”BLACK 1
34 606712 LATCH, SPRAYBAR 1
35 140515 NUT, 3/8–16 NYLOCK 1
36 140407 SPRING, .845OD 1
37 140201 SCREW, 3/8–16X3/4 2
38 140015 WASHER, 5/16 SPLTLCK 3
39 140914 SPACER, .38X.50X.25 2
40 600692 CABLE, STRAIN RELIEF
(240V MODEL) 1
∇604628 ASM., FILTER, RFI (240V MODEL) 1
41 600694 FILTER, RFI (240V MODEL) 1
42 600693 CHOKE (240V MODEL) 2
43 140350 SCREW (240V MODEL) 1
44 140031 WASHER #10 EXT (240V MODEL) 2

PARTS LIST
LISTA DE PIEZAS
30 Frontier Carpet Extractor (06–01)
BRUSH BREAKDOWN
CONJUNTO DE CEPILLO
56
7
8910
11
10 9
8
14
13
123
4
12
15
REF PART # DESCRIPTION QTY.
1 230507 BELT, BRUSH DRIVE 1
2 230506 PULLEY, MOTOR 1
3 230366 BRACKET, MOTOR (120V/230V) 1
4 130471 MOTOR, BRUSH DRIVE (120V) 1
190150 BRUSH, CARBON (120V) 1
575782 BRUSH, CARBON (240V) 1
∇700094 ASSEMBLY, BRUSH 1
5 230505 PULLEY, BRUSH 1
∇ASSEMBLY / CONJUNTO
INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO
RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA
MANTENER EN EXISTENCIA
REF PART # DESCRIPTION QTY.
6 230363 SPACER 1
7 100005 GASKET, BEARING BLOCK 1
8 230261 BLOCK, BEARING 2
9 140125 BEARING, BRUSH 2
10 100049 SEAL, BRUSH BEARING 2
11 240050 BRUSH, CYLINDER 1
12 140554 SCREW, 1/4–20X3/4 4
13 230362 SHAFT, BRUSH 1
14 140548 NUT, 5/16 FINJAM 1
15 140518 NUT, KEP 10–32 2
