Nokia 109 User manual

Nokia 109 User Guide
Issue 1. EN1

Contents
Keys and parts.................................................................................................5
Insert a SIM card and battery..........................................................................7
Insert a memory card......................................................................................8
Charge the battery........................................................................................10
Lock the keys ................................................................................................10
Attach a strap................................................................................................11
Explore your phone.......................................................................................11
Indicators on your phone..............................................................................12
Make or answer a call....................................................................................13
Call the last dialled number..........................................................................14
View your missed calls..................................................................................14
Change the volume........................................................................................15
Save a name and phone number...................................................................15
Make calls quickly..........................................................................................17
Send a message.............................................................................................18
Write text.......................................................................................................19
Check your voicemail....................................................................................20
Personalise your home screen......................................................................21
2

Add shortcuts to your home screen.............................................................22
Change your ringtone....................................................................................23
Set an alarm...................................................................................................24
Add an appointment......................................................................................25
Listen to the radio.........................................................................................26
Play a song.....................................................................................................27
Browse the web.............................................................................................28
Add a bookmark............................................................................................29
Set up your mail account...............................................................................29
Send a mail.....................................................................................................30
Chat with your friends...................................................................................32
Lock your phone............................................................................................33
Change the security code..............................................................................34
Restore original settings...............................................................................35
Troubleshooting............................................................................................36
Update phone software using your phone...................................................37
Back up content to a memory card...............................................................38
Access codes..................................................................................................39
3

General information......................................................................................41
4

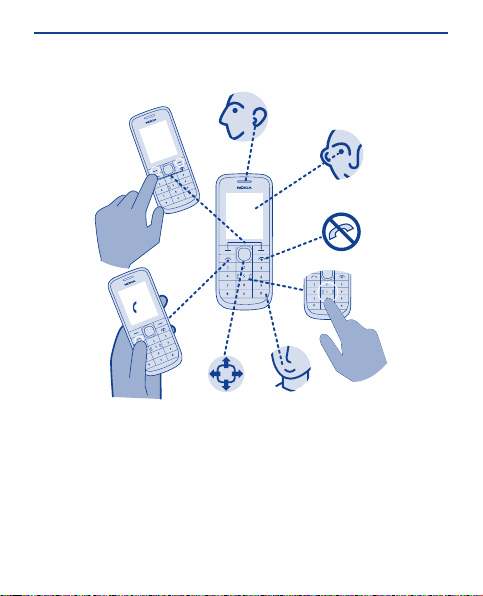

Keys and parts
1
2
3
4
5
6
7
8
1Selection keys
2 Earpiece
3 Screen
4 End/Power key
5 Keypad
6 Microphone
7 Scroll key
8 Call key
5

9
11
10
12
9 Charger connector
10 Headset connector (3.5 mm)
11 Loudspeaker
12 Antenna area (highlighted). See
1 in "Feature-specific
instructions".
Your phone uses S40 software.
6

Insert a SIM card and battery
You can use the SIM card to copy
contacts from your old phone.
Switch the phone off, and remove the
back cover.
1
If the battery is in the phone, lift it
out.
2
Slide the SIM under the holder,
contact area face down. See 3.
3
Line up the battery contacts, and
push the battery in.
4
Slide the back cover down until it
locks into place.
5
7

To switch on, press and hold until
the phone vibrates.
6
Tip: To remove the SIM, press the
tongue down, and slide the SIM out.
Insert a memory card
Switch the phone off, and remove the
back cover.
1
If the battery is in the phone, lift it
out.
2
Slide the memory card holder
towards the top of the phone.
3
8

Lift the holder.
4
Put a compatible memory card in with
the contact area face down.
5
Lower the holder.
6
Slide the holder to its original
position.
7
Line up the battery contacts, and
push the battery in.
8
Slide the back cover down until it
locks into place. See 2.
9
9

Charge the battery
Plug the charger into a wall outlet.
1
Connect the charger to the phone.
See 4.
2
Battery full? Unplug from the phone,
then from the wall outlet.
3
Lock the keys
Lock the keys when not using your
phone.
Select Menu, then press *.
1
To unlock, select Unlock, then press
*.
2
10

Attach a strap
Switch the phone off, and remove the
back cover.
1
Loop the strap around the peg.
2
Slide the back cover down until it
locks into place.
3
Explore your phone
Menu
To see the features and apps in your
phone, press Menu.
1
Back
To go back to the previous view, press
Back.
2
Exit
To go back to the home screen, press
.
3
11

Select
To go to an app or feature, press the
scroll key up, down, left, or right.
4
Select
To open the app or select the feature,
press Select.
5
Indicators on your phone
— You have unread messages.
— You have unsent, cancelled, or
failed messages.
— The keys are locked.
— The phone doesn't ring when
somebody calls or sends a message.
— An alarm is set.
/ — The phone is connected to a
GPRS or EGPRS network.
/ — A GPRS or EGPRS
connection is open.
/ — The GPRS or EGPRS
connection is on hold.
— All incoming calls are
forwarded to another number.
— A headset is connected to the
phone.
12

Make or answer a call
Call your friend. See 12.
Clear
456789
0123
Options Save
Type in the phone number, then press
.
1
Loudsp.
0123456789
In call
Options
To end the call, press .
2
9876543210
calling
Answer
When your phone rings, press to
answer. See 13.
3
13

Call the last dialled
number
Go to NamesMenu
On the home screen, press .
1
Call
0123456789
Today, 08:29
9876543210
Today, 07:29
Select the number, then press .
2
View your missed calls
ExitView
1 missed call
On the home screen, select View. See
5.
1
0123456789
Today, 14:29
Call
To call back, select the number, then
press .
2
Options Exit Back
All calls
Received
calls
Missed calls
Select Select
Tip: To view missed calls later, select
Menu > Log > Missed calls.
14

Change the volume
Is the volume too loud during a call or
when listening to the radio?
Scroll up or down.
1
Better.
2
Save a name and phone
number
Add new contacts to your phone.
Exit
Options Select
Select Menu > Contacts.
1
Back
Synchronise all
Names
Add new
Select
Select Add new.
2
15

Clear
OK
Number:
9876543210
Options
123
Type in the phone number, then
select OK.
3
Clear
Save
Jim Brown
Send message
Send mail
Last name:
Brown
Options
Call
9876543210
Options Select Back
Write the first and last name, then
select Save.
4
BackSelect Back
Options
Synchronise
all
Add new
Names Anna
Dad
Mum
Jim Brown
Select
To edit details, select Names and a
contact.
5
Clear
Select
Options
Jim Brown
Jim
To search for a contact, start writing
the contact's name in the search box.
6
Back
Select
Jim Brown
Back
Send message
Send mail
Options
Call
9876543210
Add image
Delete contact
Copy contact
Add detail
Contact details
Select
Select Options > Contact details.
7
16

Make calls quickly
987654321
Mike
Found:
Call someone often? Set their
number as a speed dial.
Exit
Options Select
Select Menu > Contacts.
1
Back
Select Back
Settings
Groups
Speed dials
Assign
2. (empty)
4.(empty)
7. (empty)
6. (empty)
3. (empty)
5. (empty)
Select More > Speed dials and a free
slot, then select Assign.
2
Options Search
Phone number: Dad
Anna
Mum
Mike
BackSelectBack
Select Search and a contact.
3
End call
9876543210
Mike
Found:
To call, press and hold a number key
on the home screen.
4
Delete
Call
2. (empty)
4.(empty)
7. (empty)
6. (empty)
3. (empty)
Mike
5. Change
Select
Options
Tip: To change a speed dial, select
Options > Change.
17

Send a message
Hi Mike!
Keep in touch with people through
messages. See 7.
Exit
Options Select
Select Menu > Messaging.
1
Inbox
Mail
Create
message
BackOptions Select
Select Create message.
2
Hi Anna, how are
you?
Clear
Options Send to
Write your message.
3
BackSelect
Your message:
Hi Anna, how are
you?
Insert symbol
Prediction
Writing language
Save as draft
Back
Options Send to
Insert object
Tip: To add an attachment, select
Options > Insert object. See 8,
9.
Back
Hi Anna, how are
you?
Image:
Number or mail
Recently used
Log
Contacts
Contact groups
1 2 3
Mum
Options Send to Close Options Select
To add a recipient, select Send to >
Contacts.
4
18

Send
To:
Anna
123456789
ClearAdd
Select Send. See 10, 9.
5
Write text
Press a key repeatedly until the letter
is shown.
To type in a punctuation mark, press 1
repeatedly.
To type in a special character, press *,
then select the character.
To switch between character cases,
press #.
To use number mode, press and hold
#, then select Number mode. To go
back to letter mode, press and hold #.
If you want to quickly type in a single
number, just press and hold the
number key.
To switch predictive text on or off,
select Options > Prediction, then
select On or Off. Not all languages are
supported.
To change the writing language, select
Options > Writing language.
19

Check your voicemail
When you can't answer, you can
forward calls to your voicemail.
Exit
Options Select
Select Menu > Messaging.
1
Back BackSelect Select
Voice mailbox
number
Info
messages
Message
settings
Voice
messages
Options
Listen to voice
messages
123456789
Select More > Voice messages >
Listen to voice messages.
2
Mailbox number:
OK
123456789
Clear
Options
When setting up voicemail, type in
your voice mailbox number.
3
Calling
Voice mailbox
End call
Tip: To quickly call your voicemail,
press and hold 1 on the home screen.
20
