USERʼS MANUAL
Visit our website
www.iconsupport.eu
Model No. NTEVEX74612.1
Serial No. : ___________
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
QUESTIONS ?
If you have questions, or if there are
missing parts, please contact us:
UK
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
Write the serial number in the
space above for reference.
Serial No
Decal

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
HOW TO OPERATE THE BIKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
HOW TO MEASURE YOUR PULSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
CONSOLE FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EXERCISE GUIDELINES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
EXPLODED DRAWINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
MAINTENANCEANDTROUBLESHOOTING........................ .......... ....................................... 15
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Last page
WARNING DECAL PLACEMENT
This drawing shows the location(s) of
the warning decal(s). If a decal is miss-
ing or illegible, call the telephone num-
ber on the front cover of this manual
and request a free replacement decal.
Apply the decal in the location shown.
Note: The decal(s) may not be shown
at actual size.

3
IMPORTANT PRECAUTIONS
WARNING : To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your bike before using it. ICON assumes no
responsibility for personal injury or property damage sustained by or through the use of this
product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are adequa-
tely informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a commer-
cial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface,
with a mat beneath it to protect the oor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 275 lbs.
(125 kg).
11. Always keep your back straight while using
the exercise bike; do not arch your back.
12. The exercise bike does not have a
freewheel; the pedals will continue to move
until the ywheel stops. Reduce your pedaling
speed in a controlled way.
13. To stop the ywheel quickly, press the
brake lever downward.
14. When the exercise bike is not in use, tighten
the resistance knob completely to prevent
the ywheel from moving.
15. To avoid damaging the brake pads, do not
lubricate the brake pads.
16. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising,

4
BEFORE YOU BEGIN
Thank you for purchasing the NordicTrack® GX
5.2. The bike provides an array of features de-
signed to make your workouts at home more ef-
fective and enjoyable.
For your benet, read this manual carefully be-
fore you use the bike. If you have questions after
reading this manual, please see the front cover of
this manual. To help us assist you, note the prod-
uct model
number and serial number before contacting us.
The model number is NTEVEX74612.1 and the
location of the serial number decal are shown on
the front cover of this manual.
Seat
Adjustment Knob
Pedal/Strap
Levelling Foot
*Water bottle is not included
Resistance Knob
Brake Lever
Console
Handlebar
Adjustment Handle
Adjustment Knob
Water bottle Holder*
Wheel
Levelling Foot

5
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and re-
move the packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and
an adjustable wrench.
As you assemble the exercice bike, use the drawings below to identify small parts. The number in
parentheses below each drawing is the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly.
Note: If a part is not in the hardware kit, check to see if it has been preassembled.
STEP 1
To make assembly easier, read the
information above before you begin.
Remove the two screws, the two washers, and
the shipping bracket (not shown) from the rear
of the Frame (1). Discard the screws, washers,
and shipping bracket.

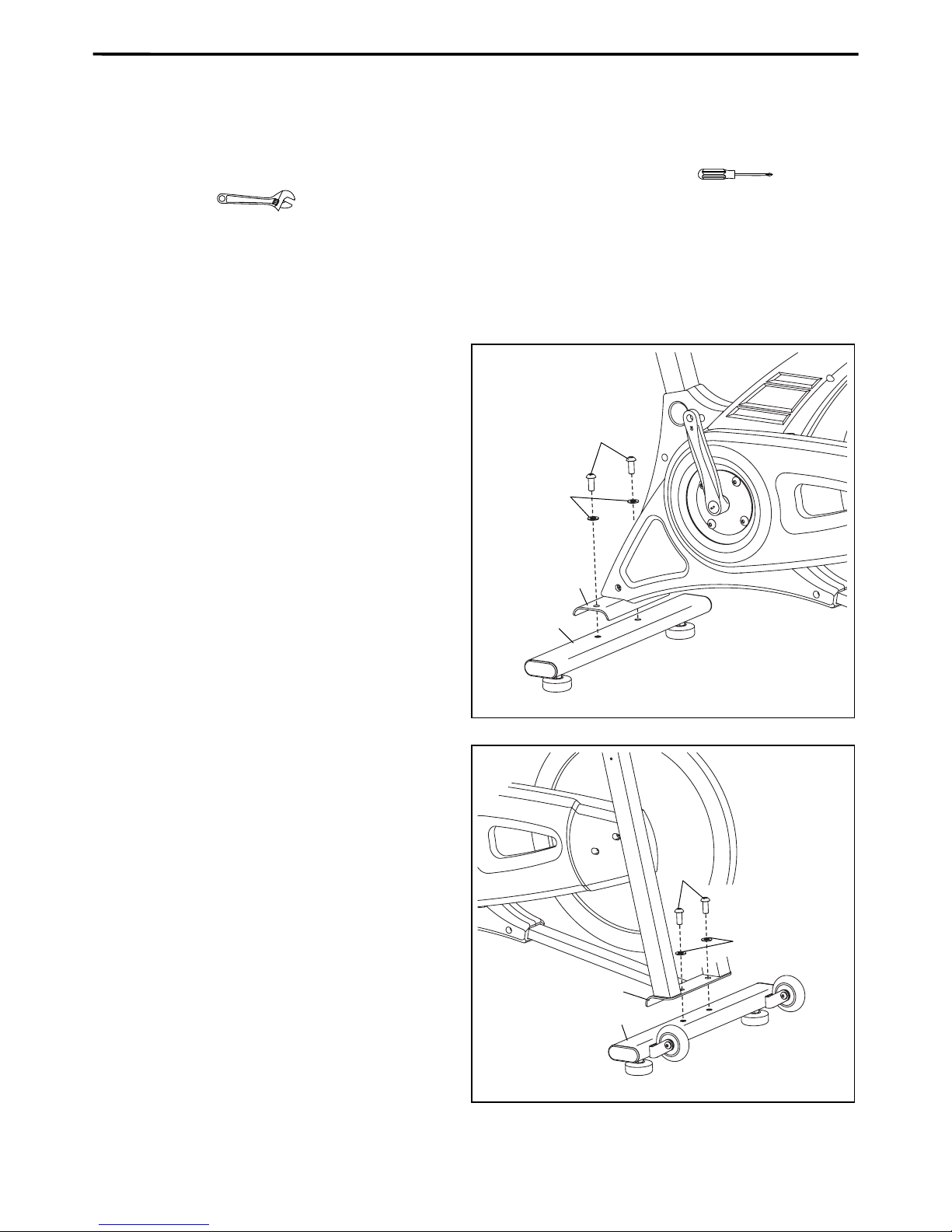

Identify the Rear Stabilizer (7), which does not
have wheels.
Attach the Rear Stabilizer (7) to the Frame (1)
with two M10 x 25mm Screws (34) and two
Stabilizer Washers (33).
STEP 2
Remove the two screws, the two washers, and
the shipping bracket (not shown) from the front
of the Frame (1). Discard the screws, washers,
and shipping bracket.
Attach the Front Stabilizer (8) to the Frame (1)
with two M10 x 25mm Screws (34) and two
Stabilizer Washers (33).
5
To hire an authorized service technician to assemble the exercise bike, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires an adjustable wrench , a Phillips
screwdriver , and a tape measure .
Note: If a part is not in the hardware kit, check to see if it has been preattached.
ASSEMBLY
1.
Remove the two screws, the two washers, and
the shipping bracket (not shown) from the rear of
the Frame (1). Discard the screws, washers, and
shipping bracket.
Identify the Rear Stabilizer (7), which does not
have wheels.
Attach the Rear Stabilizer (7) to the Frame (1)
with two M10 x 25mm Screws (34) and two
Stabilizer Washers (33).
2. Remove the two screws, the two washers, and
the shipping bracket (not shown) from the front
of the Frame (1). Discard the screws, washers,
and shipping bracket.
Attach the Front Stabilizer (8) to the Frame (1)
with two M10 x 25mm Screws (34) and two
Stabilizer Washers (33).
1
34
33
8
1
1
7
34
33
2
To make assembly easier, read the
information above before you begin.

6
STEP 3.
Identify the Right Pedal (35), which is marked
with an “R.”
Using an adjustable wrench, rmly tighten the
Right Pedal (35) clockwise into the Right Crank
Arm (26).
Tighten the Left Pedal (not shown) counterclock-
wise into the Left Crank Arm (not shown).
STEP 4
Orient the Handlebar Post (4) as shown.
Locate the Adjustment Knob (23) on the front of the
Frame (1). Loosen the Adjustment Knob and pull it
outward. Then, insert the Handlebar Post (4) into
the Frame.
Move the Handlebar Post (4) upward or downward
to the desired position, release the Adjustment
Knob (23) into an adjustment hole in the Handlebar
Post, and then tighten the Adjustment Knob. Make
sure that the Adjustment Knob is rmly engaged in
an adjustment hole.
STEP 5
Attach the Handlebar (5) to the Handlebar Post (4)
with the Handle (31) and the Handle Washer
(32).
Note: The Handle (31) functions like a ratchet. Turn
the Handle clockwise, pull the Handle outward,
turn the Handle counterclockwise, push the Handle
inward, and then turn the Handle clockwise again.
Repeat this process until the
Handle is tight.
6
4. Orient the Handlebar Post (4) as shown.
Locate the Adjustment Knob (23) on the front of
the Frame (1). Loosen the Adjustment Knob and
pull it outward. Then, insert the Handlebar Post
(4) into the Frame.
Move the Handlebar Post (4) upward or
downward to the desired position, release
the Adjustment Knob (23) into an adjustment
hole in the Handlebar Post, and then tighten
the Adjustment Knob. Make sure that the
Adjustment Knob is firmly engaged in an
adjustment hole.
3
4
3. Identify the Right Pedal (35), which is marked
with an R.
Using an adjustable wrench, firmly tighten the
Right Pedal (35) clockwise into the Right Crank
Arm (26).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
35
4
23
1
26
7
5. Attach the Handlebar (5) to the Handlebar Post
(4) with the Handle (31) and the Handle Washer
(32).
Note: The Handle (31) functions like a ratchet.
Turn the Handle clockwise, pull the Handle
outward, turn the Handle counterclockwise, push
the Handle inward, and then turn the Handle
clockwise again. Repeat this process until the
Handle is tight.
5
6
6. Orient the Seat Post (2) as shown.
Locate the Adjustment Knob (23) on the rear of
the Frame (1). Loosen the Adjustment Knob and
pull it outward. Then, insert the Seat Post (2) into
the Frame.
Move the Seat Post (2) upward or downward
to the desired position, release the Adjustment
Knob (23) into an adjustment hole in the Seat
Post, and then tighten the Adjustment Knob.
Make sure that the Adjustment Knob is firmly
engaged in an adjustment hole.
4
2
123
5
32
31
6
4. Orient the Handlebar Post (4) as shown.
Locate the Adjustment Knob (23) on the front of
the Frame (1). Loosen the Adjustment Knob and
pull it outward. Then, insert the Handlebar Post
(4) into the Frame.
Move the Handlebar Post (4) upward or
downward to the desired position, release
the Adjustment Knob (23) into an adjustment
hole in the Handlebar Post, and then tighten
the Adjustment Knob. Make sure that the
Adjustment Knob is firmly engaged in an
adjustment hole.
3
4
3. Identify the Right Pedal (35), which is marked
with an R.
Using an adjustable wrench, firmly tighten the
Right Pedal (35) clockwise into the Right Crank
Arm (26).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
35
4
23
1
26

7
STEP 6
Orient the Seat Post (2) as shown.
Locate the Adjustment Knob (23) on the rear of
the Frame (1). Loosen the Adjustment Knob and
pull it outward. Then, insert the Seat Post (2) into
the Frame.
Move the Seat Post (2) upward or downward to the
desired position, release the Adjustment Knob (23)
into an adjustment hole in the Seat Post, and then
tighten the Adjustment Knob.
Make sure that the Adjustment Knob is rmly
engaged in an adjustment hole.
STEP 7
Orient the Seat (22) and the Seat Carriage (3) as
shown.
Attach the Seat (22) to the Seat Carriage (3) with
two M8 Hex Nuts (71). Make sure that the nose of
the Seat is pointing straight ahead before
you tighten the Hex Nuts.
Locate the Adjustment Knob (23) on the Seat Post
(2). Loosen the Adjustment Knob and pull it out-
ward. Then, insert the Seat Carriage (3) into the
Seat Post.
Slide the Seat Carriage (3) to the desired position,
release the Adjustment Knob (23) into one of the
adjustment holes in the Seat Carriage, and then
tighten the Adjustment Knob. Make sure that the
Adjustment Knob is rmly engaged in an adjust-
ment hole.
STEP 8
Attach the Water Bottle Holder (74) to the Frame
(1) with two M5 x 12mm Screws (63) and two M5
Washers (60).
8
7
3
271
22
7. Orient the Seat (22) and the Seat Carriage (3) as
shown.
Attach the Seat (22) to the Seat Carriage (3) with
two M8 Hex Nuts (71). Make sure that the nose
of the Seat is pointing straight ahead before
you tighten the Hex Nuts.
Locate the Adjustment Knob (23) on the Seat
Post (2). Loosen the Adjustment Knob and pull it
outward. Then, insert the Seat Carriage (3) into
the Seat Post.
Slide the Seat Carriage (3) to the desired posi-
tion, release the Adjustment Knob (23) into one
of the adjustment holes in the Seat Carriage, and
then tighten the Adjustment Knob. Make sure
that the Adjustment Knob is firmly engaged
in an adjustment hole.
8
23
1
74
60
63
8. Attach the Water Bottle Holder (74) to the Frame
(1) with two M5 x 12mm Screws (63) and two M5
Washers (60).
7
5. Attach the Handlebar (5) to the Handlebar Post
(4) with the Handle (31) and the Handle Washer
(32).
Note: The Handle (31) functions like a ratchet.
Turn the Handle clockwise, pull the Handle
outward, turn the Handle counterclockwise, push
the Handle inward, and then turn the Handle
clockwise again. Repeat this process until the
Handle is tight.
5
6
6. Orient the Seat Post (2) as shown.
Locate the Adjustment Knob (23) on the rear of
the Frame (1). Loosen the Adjustment Knob and
pull it outward. Then, insert the Seat Post (2) into
the Frame.
Move the Seat Post (2) upward or downward
to the desired position, release the Adjustment
Knob (23) into an adjustment hole in the Seat
Post, and then tighten the Adjustment Knob.
Make sure that the Adjustment Knob is firmly
engaged in an adjustment hole.
4
2
123
5
32
31

8
STEP 9

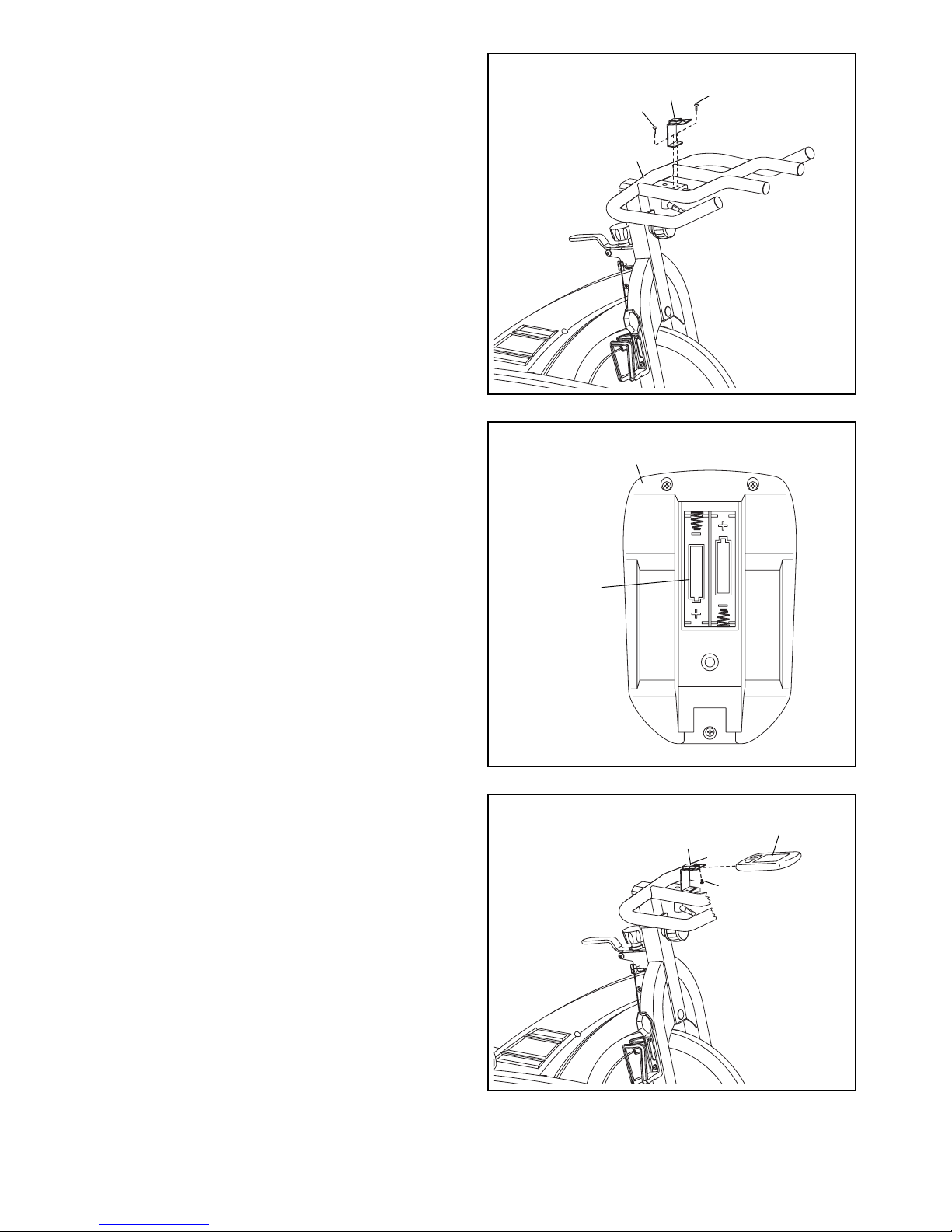

Attach the Console Bracket (78) to the Handlebar
(5) with two Bracket Screws (76).
STEP 10
The Console (75) requires two AAA batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you insert batteries. Otherwise,
you may damage the console display or other
electronic components.
Remove the battery cover from the back of the
Console (75), and insert batteries into the battery
compartment. Make sure that the batteries are ori-
ented as shown by the diagrams inside the battery
compartment. Then, reattach the battery cover.
STEP 11
Attach the Console (75) to the Console Bracket
(78) with a Console Screw (77).
9
9
9. Attach the Console Bracket (78) to the
Handlebar (5) with two Bracket Screws (76).
5
78 76
76
10
10. The Console (75) requires two AAA batteries
(not included); alkaline batteries are recom-
mended. IMPORTANT: If the Console has
been exposed to cold temperatures, allow
it to warm to room temperature before you
insert batteries. Otherwise, you may dam-
age the console display or other electronic
components.
Remove the battery cover from the back of the
Console (75), and insert batteries into the battery
compartment. Make sure that the batteries are
oriented as shown by the diagrams inside the
battery compartment. Then, reattach the bat-
tery cover.
75
Battery
Compartment
11
11. Attach the Console (75) to the Console Bracket
(78) with a Console Screw (77).
77
75
78

9

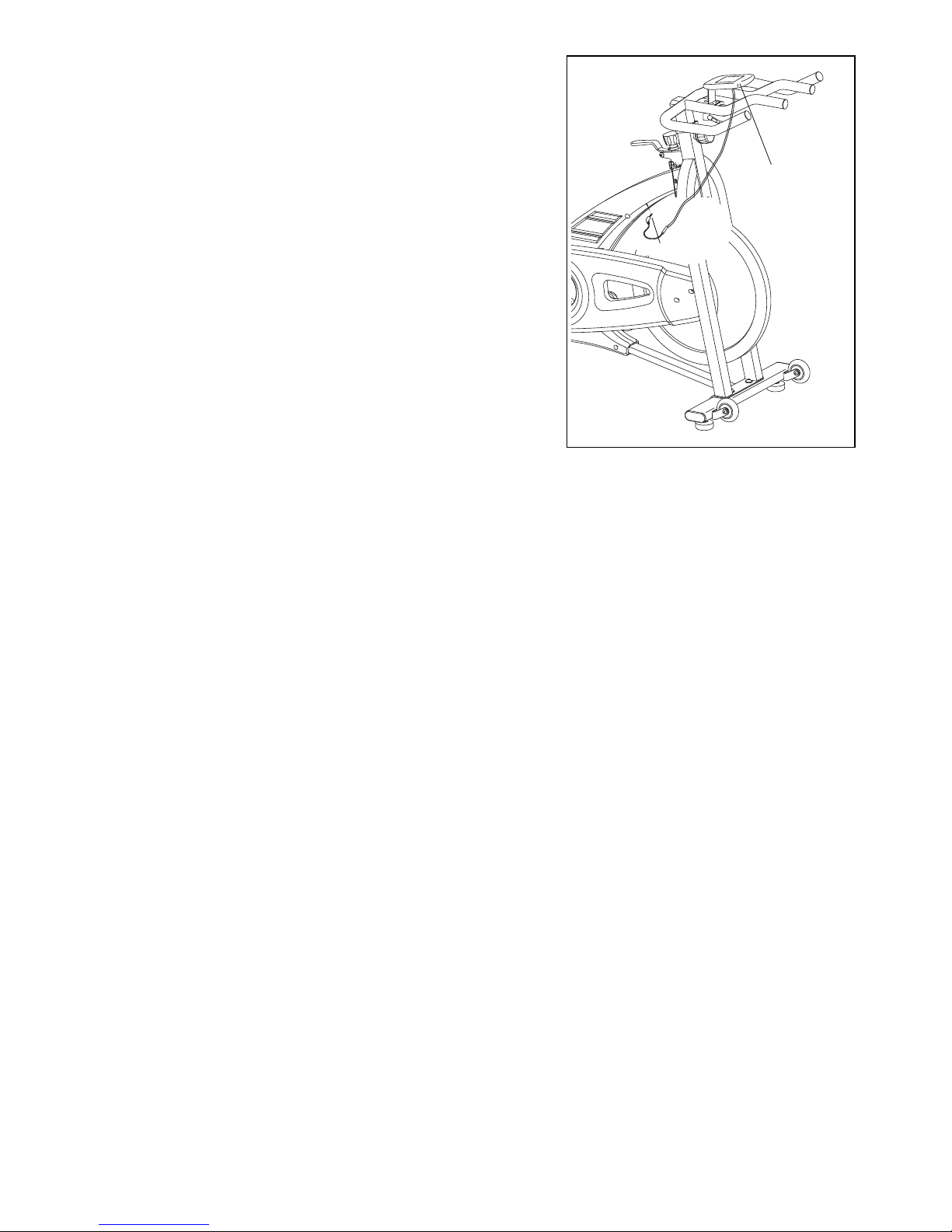

STEP 13
Plug the cable wire (79) into the console (75).
Insert the other end of the cable wire (79) into the
plug below the frame tube as show on the drawing.
Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise bike to protect the oor.
12
Cable Wire (79)
Console (75)

10
HOW TO ADJUST THE ANGLE OF THE SEAT
You can adjust the angle of the seat to the position
that is most comfortable. You can also slide the seat
forward or backward to increase your comfort or to
adjust the distance to the handlebar. To adjust the
seat, see the drawing in assembly step
7 on page 8. Loosen the nuts on the seat clamp a
few turns, and then tilt the seat upward or downward
or slide the seat forward or backward to the desired
position. Then, retighten the nuts.
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE SEAT
To adjust the horizontal
position of the seat, rst
loosen the adjustment
knob and pull it
downward. Then, move
the seat forward or
backward, release the
adjustment knob into
an adjustment hole in the seat carriage, and rmly
tighten the adjustment knob. Make sure that the
adjustment knob is engaged in an adjustment
hole.
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat should be at the proper
height. As you pedal,
there should be a slight
bend in your knees
when the pedals are in
the lowest position. To
adjust the height of the
seat post, rst loosen the
adjustment
knob and pull it outward.
Then, move the seat
post upward or downward, release the adjustment knob
into an adjustment hole in the seat post, and rmly
tighten the adjustment knob. Make sure that the
adjustment knob is engaged in an adjustment
hole.
HOW TO ADJUST THE HORIZONTAL POSITION OF
THE HANDLEBAR
To adjust the horizontal
position of the
handlebar, loosen
the handle, move the
handlebar forward or
backward to the desired
position, and then
tighten the handle.
Note: The handle functions like a ratchet. To loosen
the handle, turn the handle counterclockwise, pull
the handle outward, turn the handle clockwise,
push the handle inward, and then turn the handle
counterclockwise again. Reverse this process to
tighten the handle installed in accordance with all local
codes and ordinances.
HOW TO ADJUST THE HANDLEBAR POST
To adjust the
height of the
handlebar post,
rst loosen the
adjustment
knob and pull
it outward.
Then, move
the handlebar
post upward
or downward,
release the
adjustment knob
into an adjustment hole in the handlebar post, and
rmly tighten the adjustment knob.
Make sure that the adjustment knob is engaged in
an adjustment hole.
HOW TO USE THE EXERCISE BIKE
Adjustment
Knob
Handlebar
Post
Adjustment
Knob
Seat
Seat
Post
Adjustment
Knob
Handlebar
Handle

11
HOW TO ADJUST THE PEDAL STRAPS
To tighten the pedal straps (see the drawing on page
4), simply pull the ends of the pedal straps. To
loosen the pedal straps, press and hold the tabs on
the buckles, adjust the pedal straps to the desired
position, and then release the tabs.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of
the pedals, turn
the resistance
knob clockwise;
to decrease the
resistance, turn the
resistance knob
counterclockwise.
To stop the
ywheel, push
the brake lever
downward. The ywheel should
quickly come to a complete stop.
IMPORTANT: When the exercise bike is not in use,
tighten the resistance knob completely.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike rocks slightly on your oor during
use, turn one or both of the leveling feet on the front
or rear stabilizer (see the drawing on page 4) until the
rocking motion is eliminated.
HOW TO MAINTAIN THE EXERCISE BIKE
Inspect and tighten all parts of the exercise bike
regularly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
HOW TO ADJUST THE HANDLEBAR POST
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, see the drawing in assembly step 13 on
page 10.
Rotate the ywheel until the magnet is aligned with
the reed switch. Slide the reed switch slightly toward
or away from the magnet. Then, rotate the ywheel
for a moment. Repeat these actions until the console
displays correct feedback.
Brake
Lever
Resistance
Knob

12
Measure your heart rate if desired.
You can measure you heart rate using the chest pulse
sensor.
When your pulse is detected, your heart rate will be
shown in the display. If your heart rate is not shown,
please read troubleshooting
Never use alcohol, abrasives, or chemicals
to clean the sensors.
HOW TO PUT ON THE HEART RATE MONITOR
The heart rate monitor has two components: a chest
strap and a sensor unit (see the drawing below).
Insert the tab on one end of the chest strap into one
end of the sensor unit, as shown in the inset drawing.
Press the end of the sensor unit under the buckle on
the chest strap.
The tab should be ush with the front of the sensor
unit. Next, wrap the heart rate monitor around your
chest and attach the other end of the chest strap to
the sensor unit. Adjust the length of the chest strap, if
necessary. The heart rate monitor should be under
your clothes, tight against your skin, and as
high under the pectoral muscles or breasts as is
comfortable. Make sure that the logo on the sensor
unit is facing forward and is rightside-up.
Pull the sensor unit away from your body a few
centimeters and locate the two electrode areas on
the inner side (the electrode areas are covered by
shallow ridges). Using saline solution such as saliva
or contact lens solution, wet both electrode areas.
Return the sensor unit to a position against your
chest.
CARE AND MAINTENANCE
• Dry the heart rate monitor after each use. The heart
rate monitor is activated when you wet the electrode
areas and put on the heart rate monitor; the heart
rate monitor shuts off when it is removed and the
electrode areas are dried. If the heart rate monitor is
not dried after each use, the battery may be drained
prematurely.
• Store the heart rate monitor in a warm, dry place.
Do not store the heart rate monitor in a plastic bag
or other container that may trap moisture.
• Do not expose the heart rate monitor to direct
sunlight for extended periods of time or to
temperatures above 122° F (50° C) or below 14° F
(-10° C).
• Do not excessively bend or stretch the sensor unit
when using or storing the heart rate monitor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. Hand wash
and air dry the heart rate monitor.
TROUBLESHOOTING
If the heart rate monitor does not function properly,
try the suggestions below.
• Make sure that you are wearing the heart rate
monitor as described at the left. Note: If the heart rate
monitor does not function when positioned as
described, move it slightly lower or higher on your
chest.
• Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the sensor
unit. If heart rate readings do not appear until you
begin perspiring, re-wet the electrode areas.
• Position yourself near the console. For the console
to display heart rate readings.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical
conditions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference caused by high
power lines or other sources. If it is suspected that this
is a problem, try relocating the bike.
HOW TO USE THE HEART RATE MONITOR
Tab
Sensor Unit
Chest Strap
Tab
Sensor
Unit Buckle

13
The console offers a selection of features designed
to provide instant exercise feedback and make your
workouts more effective.
Before using the console, make sure that batteries
are installed in the console and the transmitter (see
assembly step 10 on page 9 and assembly step
12 on page 10). If there is a sheet of plastic on the
display, remove the plastic.
Follow your progress with the display.
The console has seven displays that show the
following workout information:
RPM—This display shows your pedaling speed,
in revolution per minute (rpm) or in (Km/h) and
switch to another display every 6 seconds.
Time—This display shows the elapsed time.
Note: When a smart program is selected, the display
will show the time remaining in the program
instead of the elapsed time.
Distance—This display shows the distance you
have pedaled, in total revolutions.
Calories—This display shows the approximate
number of calories you have burned.
SCAN—This display all the fucntion TIME ->
DISTANCE -> CALORIES -> PULSE -> RPM/
SPEED in sequence.
HOW TO USE THE CONSOLE
Make sure that the product is correctly plug (see
page MAINTENANCE AND TROUBLESHOOTING).
If there is a sheet of clear plastic on the face of the
console, remove it.
1. Turn on the console
To turn on the console, press any button on the
console or simply begin pedaling.
2. Press the buttons :
RESET:
Press this button to clear the set-up value enter into
the computer. Press RESET button and hold for 2
seconds to reset all function gures.
SET :
Press this button to set up the value of Time,
Distance, Calories and Pulse. You can hold the button
to increase the value faster. (The computer need to
be in a stop condition).
MODE :
Press this button to conrm all settings and or to
switch from one value to another one.
RECOVERY :
Press this button to activate the recovery test.
3. Start pedaling and follow your progress with
the display :
While you exercise, the console will display the
selected mode.
4. When you are nished exercising, the console
will automatically turn off.
The console has an “auto-off” feature. If the pedals
do not move and the console buttons are not
pressed for a few minutes, the power will turn off
automatically to save the batteries.
How to use the Pulse Recovery Test :
It is a function to check the condition of pulse
recovery that is scaled from F1 to F6 while F1
means the best and F6 means the worst. In order to
get rated correctly, users must test it right after the
workout nished by pressing “TEST(RECOVERY)
” key and then stop exercising. After the key is
pressed, please also apply the heart rate detector
appropriately, the test will last for 1 minute and
the result will show in the display. If the computer
does not detect your current heart rate, pressing
“TEST(RECOVERY) ” will not enter into pulse
recovery test. During the pulse recovery test, press
“TEST(RECOVERY) ” to exit the test and return to
the stop status.
Warning : These Data do not have any medical
value. This test can only give a rough idea of
your changing shape after exercise.
CONSOLE FEATURES

14
HOW TO PERSONALIZE CONSOLE SETTINGS
1. Turn on the console.
Press any button to turn on the console.
2. Set a goal if desired.
When the console is on, press the mode button until
ashing the function you want to set up.
Press the Set button until you reach the value you want to
target during your workout.
Press again the MODE Button, if you want to add another
target.
3. Start to workout.
The console displays the elapsed time and the distance
you’ve pedaled.
4. Follow your progress with the display.
The console displays the elapsed time and the distance
you’ve pedaled. Note: When a smart program is selected,
the display will show the time remaining in the program
instead of the elapsed time.It also displays your pedaling
speed (in RPM or Km/h), the calories you’ve burnt and
also your heart rate when you use the chest belt sensor.
5. Measure your heart rate if desired.
see HOW TO MEASURE YOUR HEART RATE page 12
6. When you are nished exercising, the console will
automatically turn to sleeping mode
If the pedals do not move for a few seconds, the console
will turn to sleeping mode. If the pedals do not move and
the console buttons are not pressed for a few minutes
then the console will automatically turn off.

15
Inspect and tighten all parts of the exercise bike
regularly.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap.
IMPORTANT: To avoid damage to the console,
keep liquids away from the console and keep the
console out of direct sunlight.
MAINTENANCE AND TROUBLESHOOTING

16
EXERCISE GUIDELINES
WARNING:
Before beginning this or any exercise pro-
gram, consult your physician. This is espe-
cially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device. Vari-
ous factors may affect the accuracy of heart
rate readings. The pulse sensor is intended
only as an exercise aid in determining heart
rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper in-
tensity is the key to achieving results. You can use
your heart rate as a guide to nd the proper intensity
level. The chart below shows recommended heart
rates for fat burning and aerobic exercise.
To nd the proper intensity level, nd your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age dene your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is
the heart rate for maximum fat burning, and the high-
est number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the rst few minutes of exercise, your
body uses carbohydrate calories for energy. Only af-
ter the rst few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exer-
cise until your heart rate is near the lowest number in
your training one. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in prepara-
tion for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
he rst few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as
you exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the exibility of your
muscles and helps to prevent post-exercise prob-
lems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular ex-
ercise, you may complete up to ve workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.

17
SUGGESTED STRETCHES

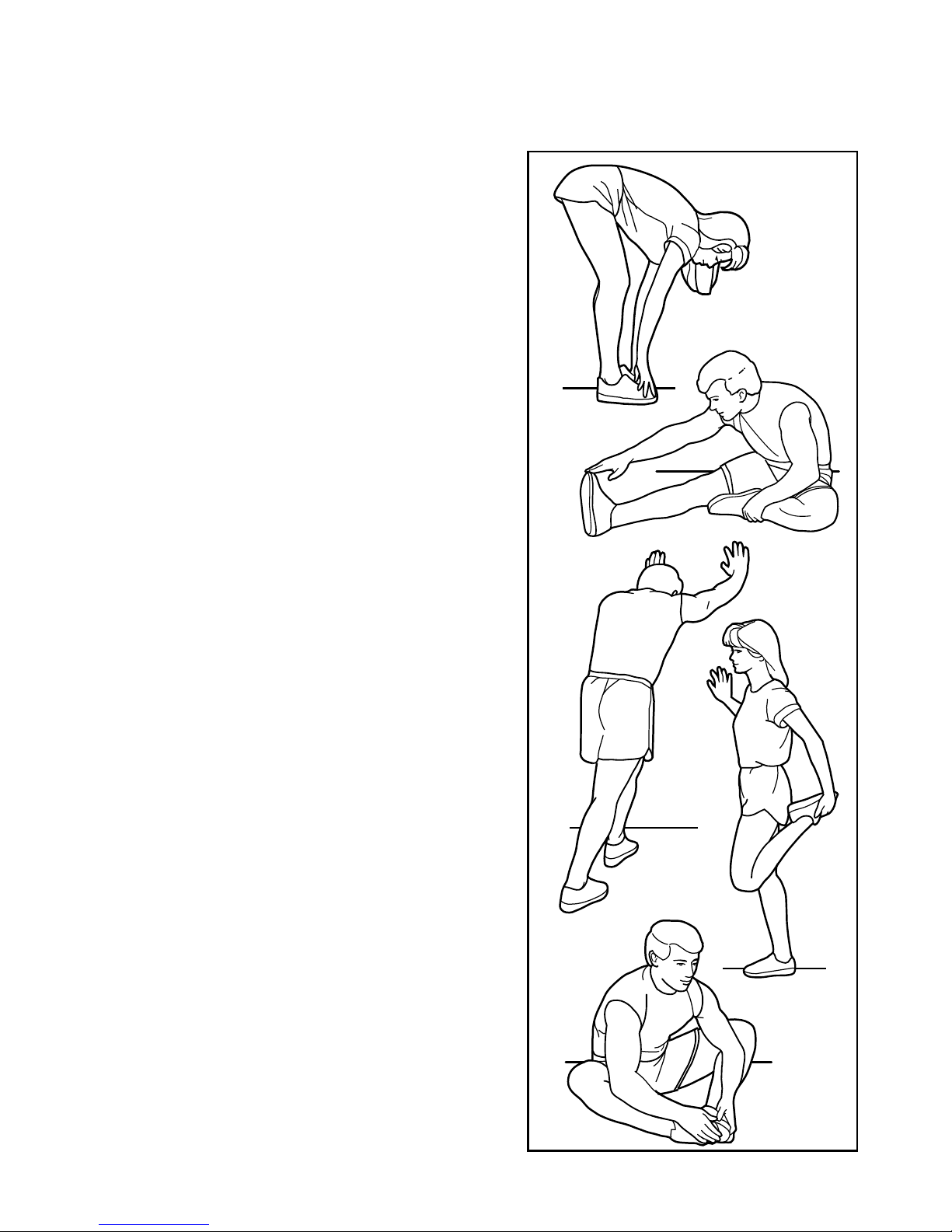

The correct form for several basic stretches is shown at the right. Move slowly as you stretch—
never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly
bend forward from your hips. Allow your back and
shoulders to relax as you reach down toward your
toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back
of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the
opposite foot
toward you and rest it against the inner thigh of
your extended leg.Reach toward your toes as far
as possible. Hold for 15 counts, then relax. Repeat
3 times for each leg. Stretches: Hamstrings, lower
back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward
and place your hands against a wall. Keep your
back leg straight and your back foot at on the
oor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then
relax. Repeat 3 times for each leg. To cause further
stretching of the achilles tendons, bend your back
leg as well. Stretches: Calves, achilles tendons and
ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back
and grasp one foot with your other hand. Bring your
heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3
times
for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your
knees outward. Pull your feet toward your groin area
as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
2
3
4
5

18
EXPLODED DRAWING—Model No. NTEVEX74612.1

19
PART LIST—Model No. NTEVEX74612.1
Item
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
Description
Flywheel Bearing
Crank Bearing
Wheel Bearing
Flywheel Snap Ring
Crank Snap Ring
T1 Nut
Self-tapping Screw
Flange Nut
Acorn Nut
Crank Nut
Caliper Brake
M12 Thin Hex Nut
M6 Flange Nut
Tension Nut
M10 Locknut
M5 x 10mm Screw
M5 Washer
M8 Hex Nut
Brake Cable
M5 x 12mm Screw
Seat Post Bushing
M10 x 16mm Bolt
Left Crank Arm
Left Pedal/Strap
M6 x 30mm Bolt Set
M6 x 40mm Bolt
Brake Pad Mount
M8 Hex Nut
Flat Washer
M10 x 25mm Bolt
Water Bottle Holder
Console
Bracket Screw
Console Screw
Console Bracket
Cable Wire
Reed Switch
Transmitter
Clamp
Clamp Screw
Magnet
* – Assembly Tool
* – User’s Manual
Qty.
2
2
4
1
2
1
15
1
1
2
1
3
1
1
1
2
4
4
2
4
2
4
1
1
3
1
2
2
1
1
1
1
2
1
1
1
1
1
1
1
1
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
Description
Frame
Seat Post
Seat Carriage
Handlebar Post
Handlebar
Tension Bracket
Rear Stabilizer
Front Stabilizer
Brake Lever
Felt Washer
Resistance Knob
Right Cover
Left Cover
Right Shield
Left Shield
Leveling Foot
Handlebar Post Bushing
Stabilizer Cap
Post Cap
Shield Cover
Wheel
Seat
Adjustment Knob
Brake Cap
Frame Cap
Right Crank Arm
Crank Cap
Drive Belt
Tension Spring
Crank
Handle
Handle Washer
Stabilizer Washer
M10 x 25mm Screw
35 1 Right Pedal/Strap
Flywheel
Flywheel Axle
Pulley
Flywheel Sleeve
Idler Pulley
Brake Pad
Brake Clamp
Knob Washer
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
4
3
1
2
1
3
1
1
1
2
1
1
1
1
1
4
1
4
1
1
1
1
1
2
1
1
Note: Specications are subject to change without notice. For information about ordering replacement
parts, see the back cover of this manual. *These parts are not illustrated.

ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
IMPORTANT RECYCLING INFORMATION FOR E. U. CUSTOMERS
This electronic product must not be disposed of in municipal waste. To preserve
the environment, this product must be recycled after its useful life as required by
law. Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information about
safe and correct disposal methods, please contact your local city ofce or the
establishment where you purchased this product.
SPECIFICATION :
Open Dimension : (L x l x h): 133 x 50,5 x 121 cm
Product Weight : 51 Kg
Printed in China © 2013 Icon Health & Fitness, Inc.
