USER’S MANUAL
Model No. NTEVEX78915.0
Serial No.
Write the serial number in the
space above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference. www.iconeurope.com
Serial Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 1D, The Gateway
Fryers Way, Silkwood Park
OSSETT
WF5 9TJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA

2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE EXERCISE BIKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE AND TROUBLESHOOTING.....................................................22
EXERCISE GUIDELINES ....................................................................24
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS .................................................. Back Cover
RECYCLING INFORMATION ......................................................... Back Cover
TABLE OF CONTENTS
The BLUETOOTH®word mark and logos are registered trademarks of
Bluetooth SIG, Inc. and are used under license. Google Maps is a trademark of Google Inc.
NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc.

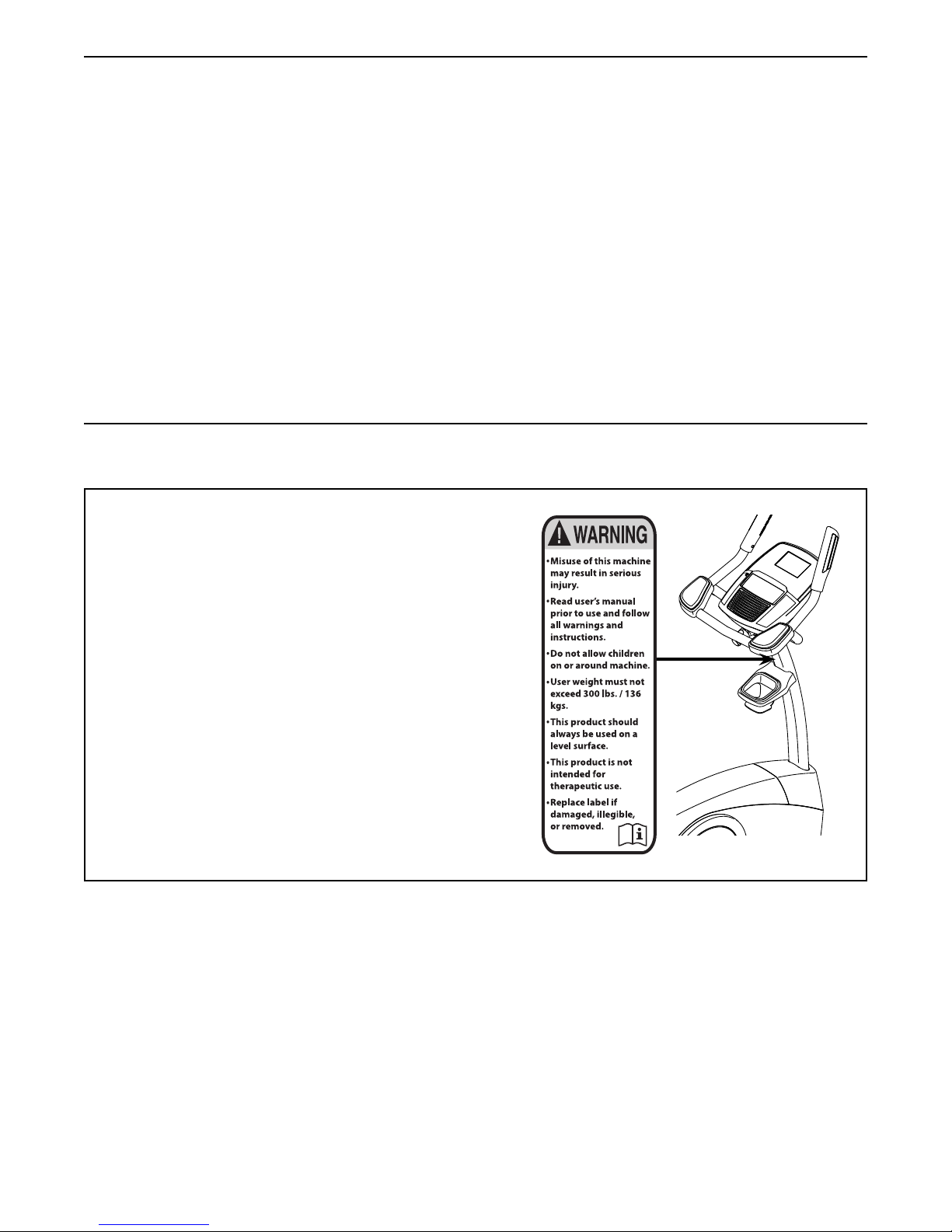

This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover
of this manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.

3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. Use the exercise bike only as described in
this manual.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
7. Inspect and properly tighten all parts each
time the exercise bike is used. Replace any
worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used
by persons weighing more than 300 lbs.
(136 kg).
11. Be careful when mounting and dismounting
the exercise bike.
12. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.

4
Thank you for selecting the revolutionary
NORDICTRACK®U 60 exercise bike. Cycling is one of
the most effective exercises for increasing cardiovas-
cular fitness, building endurance, and toning the entire
body. The U 60 exercise bike provides an impressive
selection of features designed to make your workouts
at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

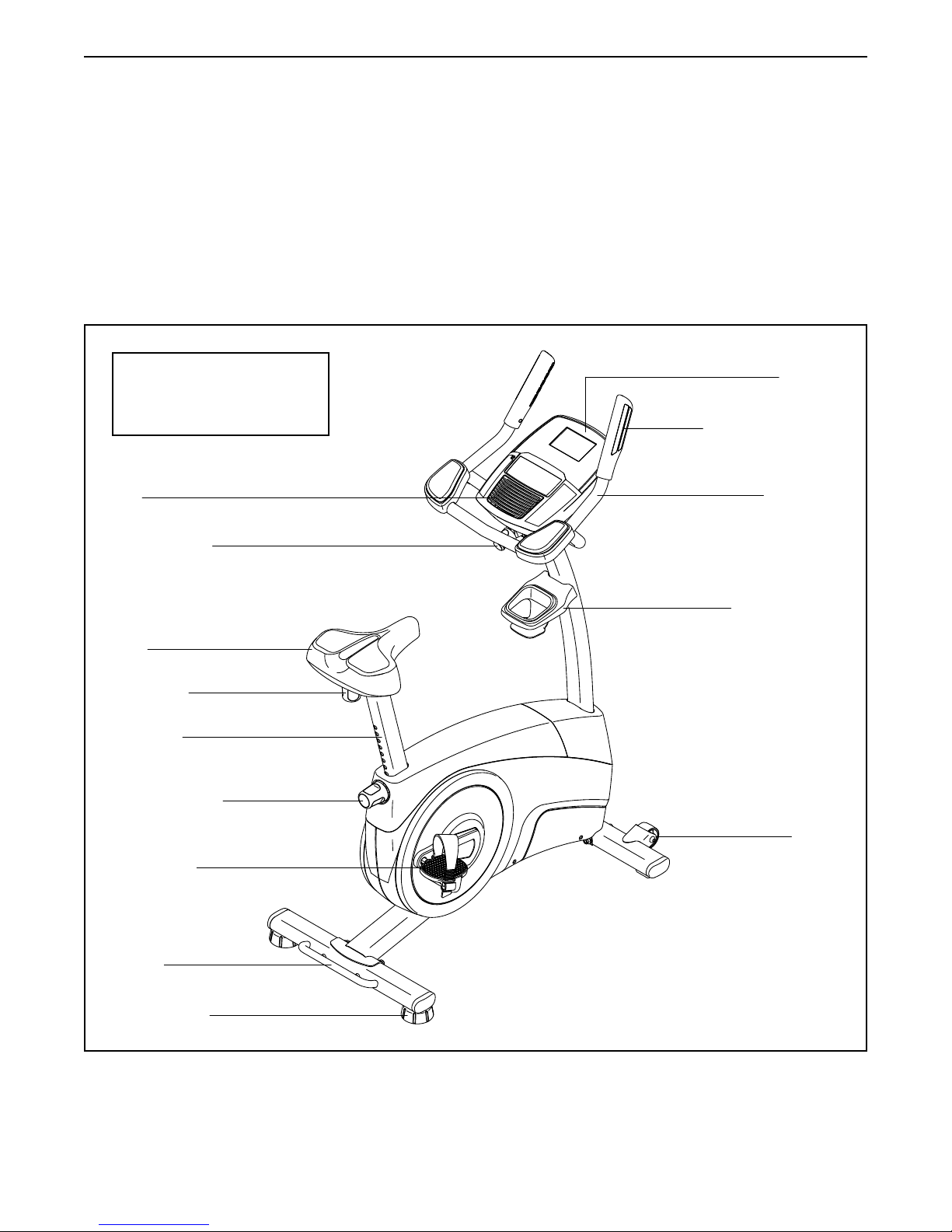

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Heart Rate Monitor
Seat
Seat Post
Seat Knob
Leveling Foot
Handle
Wheel
Pedal/Strap
Fan
Console Knob
Handlebar
Console
Seat Post Knob
Accessory Tray
BEFORE YOU BEGIN
Length: 3 ft. 6 in. (107 cm)
Width: 1 ft. 11 in. (58 cm)
Weight: 116 lbs. (53 kg)

5
M10 x 98mm
Screw (53)–4
M8 Locknut
(43)–2
M8 x 20mm
Screw (65)–4
M6 x 50mm Screw
(89)–1
M8 x 50mm Bolt
(70)–2
M4 x 16mm
Screw (72)–4
M4 x 22mm
Screw (84)–2
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see
whether it has been preassembled. Extra parts may be included.

6
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 5.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
2. Set a sturdy piece of packing material under the
rear of the Frame (1).
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 98mm Screws (53).
Then, remove the packing material.
2
53
1
3
1. Go to www.iconsupport.eu on your computer
and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Service (see the front cover of this
manual) and register your product.

7
3. Set a sturdy piece of packing material under the
front of the Frame (1).
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 98mm Screws (53).
Then, remove the packing material.
3
53
2
1
4
4
1
9
65
10, 11
4. Raise the Upright (4) to the vertical position.
Have a second person hold the Upright until
you complete this step.
Attach the Upright (4) to the Frame (1) with four
M8 x 20mm Screws (65); start all the Screws,
and then tighten them.
Next, orient the Front Shield Cover (9) as shown,
and slide it downward onto the Upright (4). Then,
press the Front Shield Cover onto the Right and
Left Shields (10, 11).

8
5
84
89
5. Attach the Accessory Tray (8) to the Upright (4)
with an M6 x 50mm Screw (89).
6
6. Have a second person hold the Handlebar (5)
near the Upright (4).
See the inset drawing. Route the Upper Wire
(87) through the Pivot Post (78) and the Pivot
Bracket (71) as shown.
Tip: Avoid pinching the wires. Insert the Pivot
Post (78) into the Upright (4).
Attach the Pivot Post (78) with two M8 x 50mm
Bolts (70) and two M8 Locknuts (43); make sure
that the Locknuts are in the hexagonal holes.
4
71
43
70
78
87
87
71
78
5
Hexagonal
Holes
Avoid pinching
the wires

9
7
87
61
13
72
71
72
72

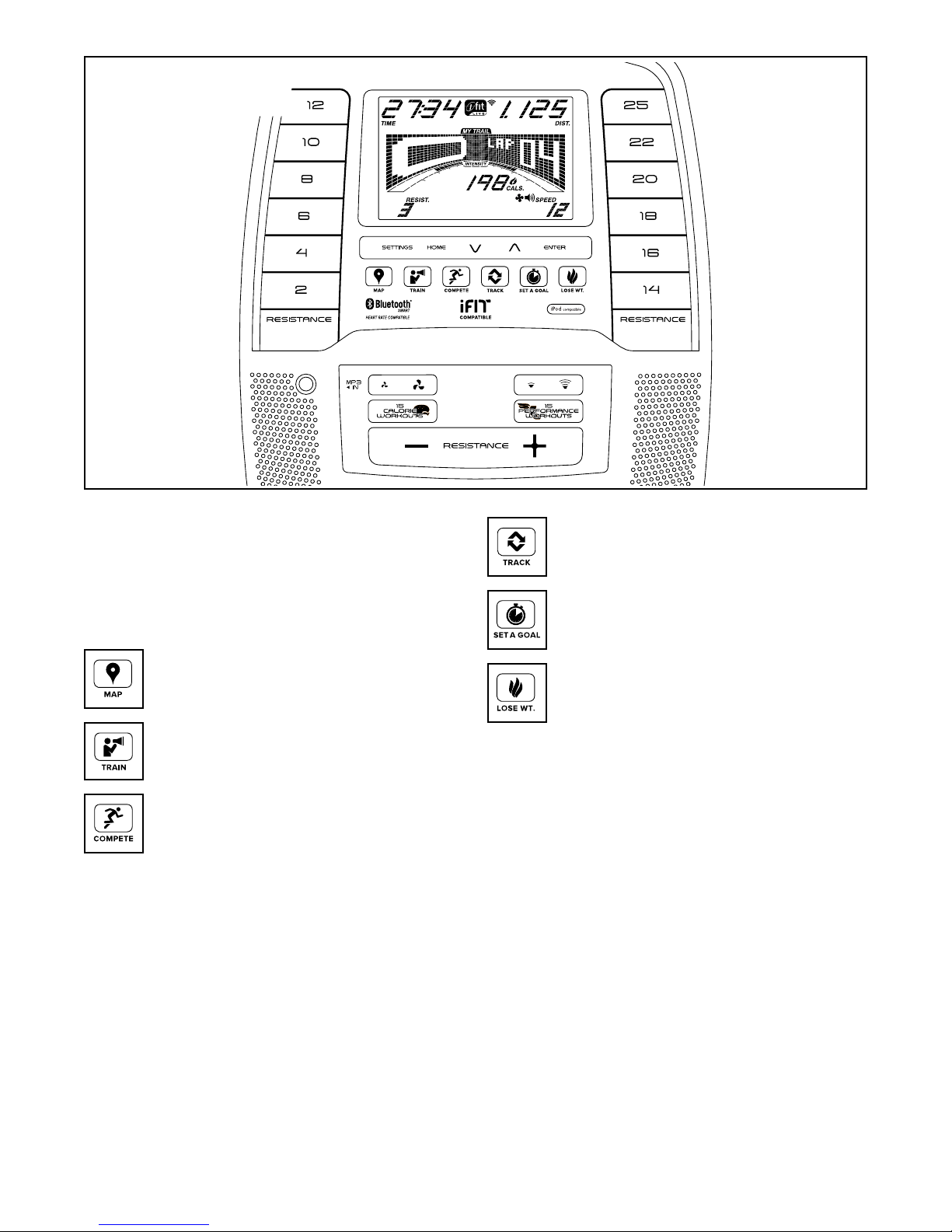

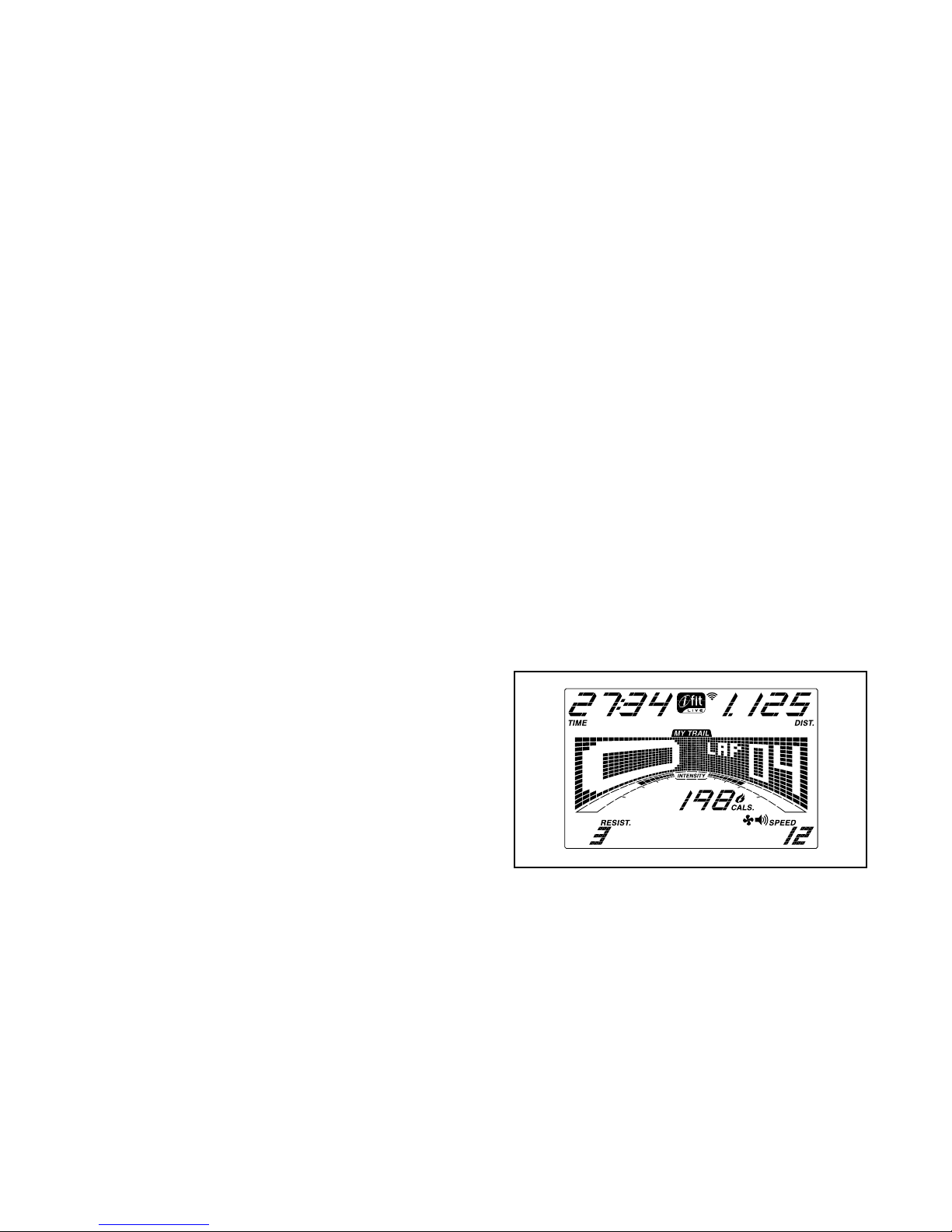

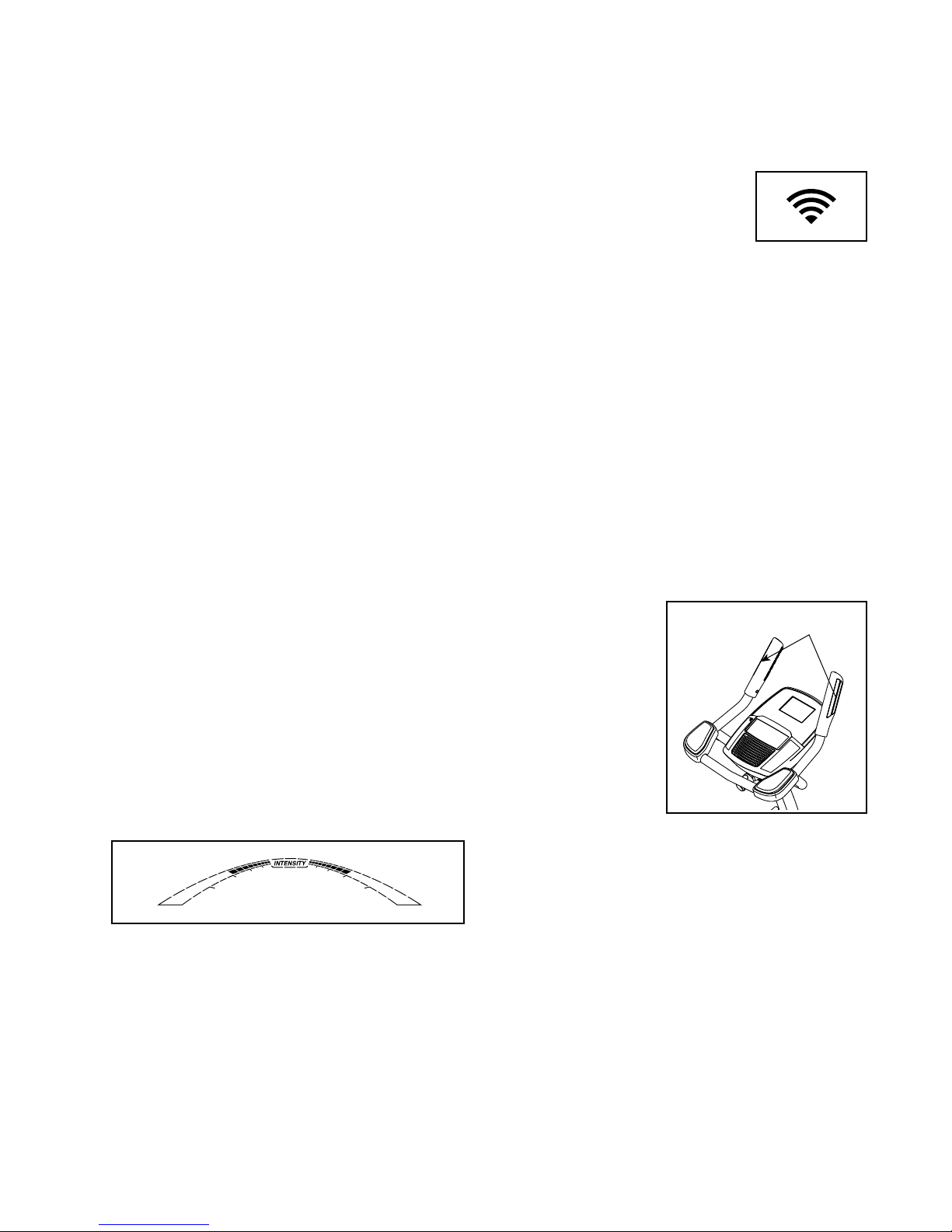

7. While a second person holds the Console (13)
near the Pivot Bracket (71), plug the Upper Wire
(87) and the two Pulse Wires (61) into the recep-
tacles on the Console.
IMPORTANT: The connectors on the Wires
(61, 87) should slide easily into the recep-
tacles and snap into place. If a connector does
not slide easily, turn the connector and try again.
If you do not insert the connectors properly,
the Console (13) may become damaged when
you use the exercise bike.
Insert the excess wire into the Pivot Bracket (71).
Tip: Avoid pinching the wires. Attach the
Console (13) to the Pivot Bracket (71) with four
M4 x 16mm Screws (72); start all the Screws,
and then tighten them.
884
12
15
8. Tip: Avoid pinching the wires. Press the Front
Pivot Cover (12) and the Rear Pivot Cover (15)
together around the Pivot Bracket (71).
Attach the Front and Rear Pivot Covers (12, 15)
to the Pivot Bracket (71) with two M4 x 22mm
Screws (84).
Avoid pinching
the wires
71
71
Avoid pinching
the wires

10
10
9. Remove the Seat Knob (26) from the Seat
Bracket (30) inside the Seat Carriage (24).
Next, hold the Seat Carriage (24) on the Seat
Post (6). Insert the Seat Knob (26) upward into
the Seat Post, and tighten the Seat Knob into the
Seat Bracket (30) inside the Seat Carriage.
9
26
24
6
28
27
6
10. Loosen the Seat Post Knob (27), pull it out-
ward, insert the Seat Post (6) into the Seat Post
Sleeve (28), and then release the Seat Post
Knob. Move the Seat Post upward or down-
ward slightly to make sure that the Seat Post
Knob is engaged in one of the adjustment
holes in the Seat Post. Then, tighten the Seat
Post Knob.
30
