Nordyne S5BMX-018E User manual

SPLIT SYSTEM AIR CONDITIONER - FOR EXPORT ONLY
USER’S INFORMATION / INSTALLATION INSTRUCTIONS
NOTE: Unit style may appear different depending on model.
DO NOT DESTROY. PLEASE READ CAREFULLY & KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
IMPORTANT
ATTENTION INSTALLERS:
It is your responsibility to know this product better than your customer. This includes being
able to install the product according to strict safety guidelines and instructing the customer on
how to operate and maintain the equipment for the life of the product. Safety should always be
the deciding factor when installing this product and using common sense plays an important
role as well. Pay attention to all safety warnings and any other special notes highlighted in the
manual. Improper installation of the furnace or failure to follow safety warnings could result in
serious injury, death, or property damage.
Theseinstructionsareprimarilyintendedtoassistqualifiedindividualsexperiencedintheproper
installation of this appliance. Some local codes require licensed installation/service personnel
for this type of equipment.Please read all instructions carefully before starting the installation.
Return these instructions to the customer’s package for future reference.
HIGH AMBIENT
1.5, 2, 2.5, & 3TON, SINGLE PHASE, R-22 MODELS
3, 3.5, 4, 4.5, & 5TONTHREE PHASE, R-22 MODELS
NOTE: Unit style may appear different depending on model.

2
IMPORTANT SAFETY INFORMATION
Safety markings are used frequently throughout this manual
to designate a degree or level of seriousness and should
not be ignored. WARNING indicates a potentially hazardous
situation that if not avoided, could result in personal injury or
death. CAUTION indicates a potentially hazardous situation
that if not avoided, may result in minor or moderate injury or
property damage.
USER'S INFORMATION
OPERATING INSTRUCTIONS
NOTE: Thermostat styles vary. Some models may not include
the AUTO mode and others will have the AUTO in place of the
HEAT and COOL. Others may include all three. Please refer
to the thermostat manufacturer’s User manual for detailed
programming instructions.
Cooling Operation
1. Set the thermostat’s system mode to COOL or AUTO and
change the fan mode to AUTO. See Figure 1
2. Setthetemperatureselectortothedesiredtemperaturelevel.
The outdoor fan, compressor, and blower motor will all cycle
on and off to maintain the indoor temperature at the desired
cooling level.
NOTE: If the temperature level is re-adjusted, or the system
mode is reset, the fan and compressor in the outdoor unit
may not start immediately. A protective timer circuit holds the
compressorandtheoutdoorfanoffforapproximately5minutes
following a previous operation or the interruption of the main
electrical power.
Heating Operation
1. Set the thermostat’s system mode to HEAT or AUTO and
change the fan mode to AUTO. See Figure 1.
2. Setthetemperatureselectortothedesiredtemperaturelevel.
The optional heating equipment (furnace or electric heat)
will cycle on & off to maintain the indoor temperature at the
desired heating level.
cooling unit or the indoor heating unit (furnace or electric
heat) automatically.
Operating the Indoor Blower Continuously
The continuous indoor blower operation is typically used to
circulatetheindoorairtoequalizeatemperatureunbalancedue
toasunload,cooking,orfireplaceoperation.Setthethermostat
fanmodetoON(Figure1).Theindoorblowerstartsimmediately,
and will run continually until the fan mode is reset to AUTO.
The continuous indoor blower operation can be obtained with
thethermostat system mode set in any position, includingOFF.
Turning the Air conditioner Off
Changethethermostat’ssystemmodetoOFFandthefanmode
to AUTO (See Figure 1). NOTE: The system will not operate,
regardless of the temperature selector setting.

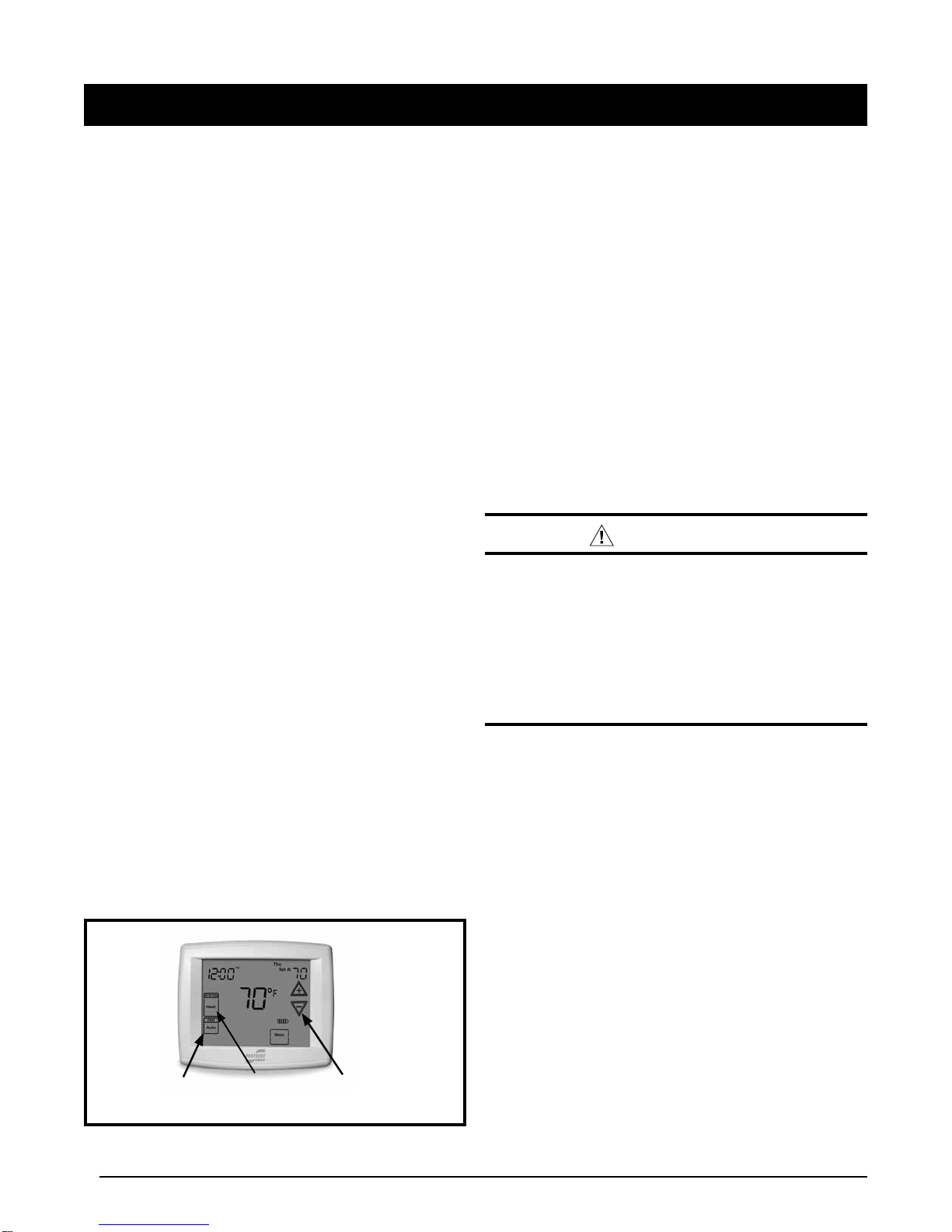

Figure 1. DigitalThermostat
Fan
Mode Temperature
Selector
System
Mode
AIR CONDITIONER MAINTENANCE
Proper maintenance is most important to achieve the best
performance from the appliance and should be performed
frequently at the beginning of each air conditioning season.
WARNING:
Thisairconditionercontainsliquidandgaseous
refrigerant under pressure. Installation and
servicing should only be attempted by qualified,
trained personnel thoroughly familiar with the
equipment and safe responsible refrigerant
handling procedures. Failure to comply with
this warning could result in equipment damage,
personal injury, or death.
• Keeptheoutdoorunitclean.Hoseoffperiodicallyandkeep
unit fins clear of leaves and grass clippings.
• Keeptheoutdoorunitclearofobstructions.DONOTobstruct
airowwithtallplantsorshrubs.DONOTstoregasolineor
other flammable materials on or near the outdoor unit.
• Neveroperatetheappliancewithoutalterinstalledinthe
return air duct. Inspect filters frequently and replace when
necessary with filter of same dimensional size.
• Thisapplianceisnotintendedforusebypersons(including
children)withreducedphysical,sensoryormentalcapabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
TROUBLESHOOTING
• Checkthethermostatsetting.Makesurethesystemmode
and temperature settings are correct.
• Checktheelectricalpanelfortrippedcircuitbreakers.
• Checktheltersfordustaccumulation.
• Checktheoutdoorunitandmakesureitiscleanandnot
covered with grass or leaves.
Operating the AC for Automatic Cooling &
Heating
1. SetthethermostatsystemmodetoAUTOandthethermostat
fan mode to AUTO. See Figure 1.
2. Set the thermostat temperature selector to the desired
temperature level.The thermostat will maintain the desired
temperature level by switching between either the outdoor

3
IMPORTANT SAFETY INFORMATION .......................4
AIR CONDITIONER INSTALLATION ..........................5
General Information...................................................5
BeforeYou Install this Unit.........................................5
Locating the Air conditioner.......................................5
Packaging Removal...................................................5
Rooftop......................................................................5
Ground Level.............................................................5
Connecting Refrigerant Tubing between the
Indoor & Outdoor Unit................................................6
ELECTRICALWIRING.................................................6
Pre - Electrical Checklist............................................6
Line Voltage...............................................................6
Grounding..................................................................7
Thermostat Connections ...........................................7
Unbalanced 3-Phase Supply Voltage ........................7
OptionalElectricHeaterKits......................................8
REFRIGERANT CHARGING.......................................8
Charging Units in AC Mode when Outdoor
Temperature is Above 12.8° C (55° F).......................8
STARTUP & ADJUSTMENTS .....................................9
Pre - Start Checklist...................................................9
Start-up Procedures ..................................................9
Air Circulation - Indoor Blower ...............................9
Anti-Short Cycle Timer Protection..........................9
System Cooling......................................................9
System Heating......................................................9
AIR CONDITIONER MAINTENANCE....................... 10
COMPONENT FUNCTIONS..................................... 10
FIGURES &TABLES................................................ 11
Figure3.-UnitDimensions ................................ 11
Table2.-UnitDimensionalData ........................ 11
WiringDiagrams .................................................... 12
Figure 4. - Single Phase Units............................ 11
Figure 5. - Three Phase Units............................. 13
Single Phase Charging Charts.............................. 14
Figure 6. - S5BMX-018E Charging Chart........... 14
Figure 7. - S5BMX-024E Charging Chart........... 15
Figure 8. - S5BMX-030E Charging Chart........... 15
Figure 9. - S5BMX-036E Charging Chart........... 16
Three Phase Charging Charts............................... 16
Figure 10. - S5BMX-036G Charging Chart......... 16
Figure 11. - S5BMX-042G Charging Chart......... 17
Figure 12. - S5BMX-048G Charging Chart......... 17
Figure 13. - S5BMX-054G Charging Chart......... 18
Figure 14. - S5BMX-060G Charging Chart......... 18
INSTALLATION / PERFORMANCE CHECKLIST.... 20
WARRANTY INFORMATION.................................... 20
REPLACEMENT PARTS........................................... 20
INSTALLER INFORMATION ONLY

4
IMPORTANT SAFETY INFORMATION
Pleasereadallinstructionsbeforeservicingthisequipment.
Payattentiontoall safety warnings and any other special
notes highlighted in the manual. Safety markings are
used frequently throughout this manual to designate a
degreeorlevelofseriousnessandshouldnotbeignored.
WARNINGindicatesapotentiallyhazardoussituationthat
if not avoided, could result in personal injury or death.
CAUTIONindicatesapotentiallyhazardoussituationthat
if not avoided, may result in minor or moderate injury or
property damage.
WARNING:
Shut off all electrical power to the unit before
performing any maintenance or service on the
system.Failuretocomplymayresultinpersonal
injury or death.
WARNING:
Unless noted otherwise in these instructions,
only factory authorized parts or accessory
kits may be used with this product. Improper
installation,service,adjustment,ormaintenance
may cause explosion, fire, electrical shock or
other hazardous conditions which may result in
personal injury or property damage.
WARNING:
These split system air conditioners leave
the factory with a nitrogen holding charge.
Follow all charging instructions for maximum
unit performance and efficiency. Some local
codes require licensed installation/service
personnel to service this type of equipment.
Refrigerant charging must be done by qualified
personnelfamiliarwithsafeandenvironmentally
responsible refrigerant handling procedures.
Under no circumstances should the owner
attempt to install and/or service this equipment.
Failure to comply with this warning could result
in property damage, personal injury, or death.
CAUTION:
This unit uses R-22 refrigerant. DO NOT use
any other refrigerant in this unit.Use of another
refrigerant will damage the unit.
WARNING:
The information listed below must be followed
during the installation, service, and operation
of this unit. Unqualified individuals should
not attempt to interpret these instructions or
install this equipment. Failure to follow safety
recommendations could result in possible
damage to the equipment, serious per
sonal
injury or death
.
• Theinstallermustcomply with all nationalandlocal
codes and regulations which govern the installation of
this type of equipment. Local codes and regulations
takeprecedenceoveranyrecommendationscontained
in these instructions. Consult local building codes and
the National Electrical Code for special installation
requirements.
• Allelectricalwiringmustbecompletedinaccordance
withlocal,stateandnationalcodesandregulationsthat
take precedence.
• Thisequipmentcontainsliquidandgaseousrefrigerant
underhighpressure.DONOTUSEANYPORTIONOF
THECHARGEFORPURGINGORLEAKTESTING.
Installation or servicing should only be performed by
qualified trained personnel thoroughly familiar with this
type equipment.
• Fullyannealed,refrigerantgradecoppertubingshould
beusedwheninstallingthesystem.Refrigerantsuction
line tubing should be fully insulated.
• Thisunitisdesignedforoutdoorinstallationsonlyand
should be located in a position as shown on page 5.
• Follow all precautions in the literature, on tags, and
on labels provided with the equipment. Read and
thoroughly understand the instructions provided with
the equipment prior to performing the installation and
operational checkout of the equipment.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mentalcapabilities,orlackofexperienceandknowledge,
unless they have been given supervision or instruction
concerninguseoftheappliancebyapersonresponsible
for their safety.
Children should be supervised to ensure that they do
not play with the appliance.

5
AIR CONDITIONER INSTALLATION
General Information
These air conditioners are designed only for outdoor
rooftop or ground level installations. The unit has been
testedforcapacityandefficiencyinaccordancewithAHRI
210/240 standards and will provide many years of safe
and dependable comfort, providing it is properly installed
and maintained. Abuse, improper use, and/or improper
maintenance can shorten the life of the appliance and
create unsafe hazards.
Toachieveoptimumperformanceandminimizeequipment
failure, it is recommended that periodic maintenance be
performed on this unit. The ability to properly perform
maintenance on this equipment requires certain
mechanical skills and tools.
Before you install this unit
√The cooling load of the area to be conditioned must be
calculatedandasystemofthepropercapacityselected.
It is recommended that the area to be conditioned be
completely insulated and vapor sealed.
√Checkthe electricalsupplyand verifythepower supply
isadequateforunitoperation.Thesystemmustbewired
and provided with circuit protection in accordance with
localbuildingcodes.Ifthereisanyquestionconcerning
the power supply, contact the local power company.
√Always install a unit disconnect switch within sight of
the unit or in accordance with local codes.
√Theindoorsection (air handler, furnace, etc) should be
installed before routing the refrigerant tubing. Refer to
the indoor unit's installation instructions for installation
details. Verify the proper refrigerant metering orifice
size is installed for you matched system. See Table 2
(page 11)
√Allunitsaresecurelypackedatthetimeofshipmentand
upon arrival should be carefully inspected for damage
prior to installing the equipment at the job site. Verify
coil fins are straight. If necessary, comb fins to remove
flattenedorbentfins.Claimsfordamageshouldbefiled
immediately with the carrier.
√Pleaseconsultyourdealerformaintenanceinformation
and availability of maintenance contracts. Please read
all instructions before installing the unit.
Locating the Air Conditioner
• Surveythejobsitetodeterminethebestlocationfor
mounting the outdoor unit.
• Overhead obstructions (Figure 2), poorly ventilated
areas, and areas subject to accumulation of debris
should be avoided.
• Sufcientclearanceforunobstructedairowthroughthe
outdoorcoilmustbemaintainedinordertoachieverated
performance. See Figure 2 for minimum clearances to
obstructions.
• Itisrecommendedthattheoutdoorunitnotbeinstalled
any closer than 46cm (18 in.) from the outside walls
of the facility and in an area free from overhead
obstructionstoensureunrestrictedairflowthroughthe
outdoor unit. Figure 2. Minimum Clearance Requirements
5 cm (2 in.)
Mounting Pad
61 cm (24 in.)
for Service Access
30.5 cm or 46 cm
(12 in. or 18 in.)
See Note
DO NOT
OBSTRUCT
TOP OF UNIT
NOTE: Units require full perimeter clearances.
Installer must maintain 46 cm (18 in.) between two
units or 30.5 cm (12 in.) between single unit and structure.
15.2 cm (6 in.) from
Building or Structure
30.5 cm or 46 cm
(12 in. or 18 in.)
See Note
122 cm
(48 in.)
• Considerationshouldbegiventoavailabilityofelectric
power, service access, noise, and shade.
• Carefullyremovethecartonanduser’smanual from
theequipment.Discardtheshippingcarton.
• SeeFigure3&Table2(page11)forunitdimensions.
Rooftop
Rooftop installations must be located according to local
building codes or ordinances and these requirements:
• UnitsmaybeinstalledonClassA,B,orCroofcovering
material.Fullperimetersupportisrequiredundertheunit.
Support must be made of weather resistant materials
and installed prior to unit installation.
• The method of mounting should be designed so that it
does not overload roof structures or transmit noise to
theinteriorofthestructure.Theroofmustbestructurally
capable of handling the weight of the unit (see Table 2,
page 11). Reinforce the roof if necessary.
• Secureoptionalmountingpadorframetoroofusing
acceptable mechanical methods per local codes.
Ground Level
Ground level installations must be located according to
localbuildingcodesorordinancesandtheserequirements:
• Clearancesmustbeinaccordancewiththoseshown
in Figure 2.
• Asuitablemountingpad(Figure2)mustbeprovided
and be separate from the building foundation. The pad
must be level and strong enough to support the unit’s
weight. The slab height must be a minimum of 5 cm
(2”) above grade and with adequate drainage.

6
ConnectingRefrigerantTubingBetweenthe
Indoor & Outdoor Unit
CAUTION:
This system uses R-22 refrigerant with mineral
oil. When servicing, cover or seal openings to
minimize the exposure of the refrigerant system
to air to prevent accumulation of moisture and
other contaminants.
After outdoor and indoor unit placement has been
determined, route refrigerant tubing between the
equipmentinaccordancewithsoundinstallationpractices.
• When connecting refrigerant line sets together, it is
recommended that dry nitrogen be flowing through the
jointsduringbrazing.Thiswillpreventinternaloxidation
and scaling from occurring.
• Refrigeranttubingshouldberoutedinamannerthat
minimizesthelengthoftubingandthenumberofbends
in the tubing.
• Refrigeranttubingshould be supportedina manner
that the tubing will not vibrate or abrade during system
operation.
• Tubingshouldbekeptcleanofforeigndebrisduring
installation.
• Everyeffortshouldbemadebytheinstallertoensure
thatthefieldinstalledrefrigerantcontainingcomponents
of the system have been installed in accordance with
these instructions and sound installation practices to
insure reliable system operation and longevity.
• The maximum vertical elevation difference between
the indoor and outdoor sections should not exceed 20
feet.
• Ifpreciseformingofrefrigerantlinesisrequired,acopper
tubingbenderisrecommended.Avoidsharpbendsand
contact of the refrigerant lines with metal surfaces.
• Itisrecommendedalterdryerbeinstalledintheliquid
lineofthesystemifcleanlinessofthetubingoradequacy
of system evacuation is unknown or compromised. If
the installation replaces a system with a filter dryer
already present in the liquid line, the filter dryer must
bereplaced with a new one ofequalcapacity.Thefilter
dryer must be installed in strict accordance with the
manufacturer’s installation instructions.
• Optionalequipmentsuchasliquidlinesolenoidvalves,
lowambient,etc.,shouldbeinstalledinstrictaccordance
with the manufacturer’s installation instructions.
ELECTRICALWIRING
WARNING:
To avoid risk of electrical shock, personal
injury, or death, disconnect all electrical power
to the unit before performing any maintenance
or service. The unit may have more than one
electrical supply.
Label all wires prior to disconnection when
servicing the unit. Wiring errors can cause
improper and dangerous operation.
• Allelectricalconnectionsmustbeincompliancewithall
applicablestate,national,orlocalcodesandordinaces
that take precedence.
Pre-Electrical Checklist
√Verify that the voltage, frequency, and phase of the
supplysourcematchthespecificationsontheunitrating
plate.
√Verifythattheserviceprovidedbytheutilityissufficient
tohandletheadditionalloadimposedbythisequipment.
Refer to the unit wiring label for proper high and low
voltage wiring.
√Verifyfactorywiringisinaccordancewiththeunitwiring
diagram (Figures 4 & 5, pages 12 & 13). Inspect for
loose connections.
√Phase balance on 3 phase units must always be
checked. See Unbalanced 3-Phase Supply Voltage
section (page 7).
Line Voltage
• Awiringdiagramislocatedontheinsidecoverofthe
electrical box of the outdoor unit. The installer should
becomefamiliar with the wiring diagram beforemaking
any electrical connections to the outdoor unit.
• An electrical disconnect must be located within
sight of and readily accessible to the unit. This
switch shall be capable of electrically de-energizing
the outdoor unit.
• Line voltage to the unit should be supplied from a
dedicated branch circuit containing the correct fuse
or circuit breaker for the unit. Incoming field wiring
and minimum size of electrical conductors and circuit
protectionmustbeincompliancewithinformationlisted
ontheoutdoorunitdatalabel.Anyotherwiringmethods
must be acceptable to authority having jurisdiction.
• Theoutdoorunitrequiresbothpowerandcontrolcircuit
electrical connections. Refer to the wiring diagram /
schematicfor identification and location of outdoorunit
field wiring interfaces. See Figures 4 & 5 (pages 12 &
13).Make all electrical connections in accordancewith
all applicable codes and ordinances.
• Overcurrentprotectionmustbeprovidedatthebranch
circuitdistributionpanelandsizedas shownontheunit
rating label and according to applicable local codes.

7
See the unit rating plate for minimum circuit ampacity
and maximum overcurrent protection limits.
• Providepowersupplyfortheunitinaccordancewiththe
unit wiring diagram, and the unit rating plate. Connect
the line-voltage leads to the terminals on the contactor
inside the control compartment.
• Useonlycopperwireforthelinevoltagepowersupply
to this unit. Use proper code agency listed conduit and
a conduit connector for connecting the supply wires to
the unit. Use of rain tight conduit is recommended.
• Optionalequipmentrequiringconnectiontothepoweror
control circuits must be wired in strict accordance of all
applicablenationalandlocalcodesandtheinstructions
provided with the equipment.
Grounding
WARNING:
The unit cabinet must have an uninterrupted or
unbrokenelectricalgroundtominimizepersonal
injury if an electrical fault should occur. Do not
use gas piping as an electrical ground!
This unit must be electrically grounded in accordance
withallapplicable state, national, or local codes that take
precedence.Usethegroundinglugprovidedinthecontrol
box for grounding the unit.
Thermostat Connections
• Thermostatconnectionsshouldbemadeinaccordance
with the instructions supplied with the thermostat and
the indoor equipment.
• Single stage thermostats are recommended for use
withthisequipmentdependingonoptionalaccessories
installedwiththeunit.Selectathermostatthatoperates
in conjunction with the installed accessories.
• Theoutdoorunitisdesignedtooperatefroma24VAC
Class II control circuit. The control circuit wiring must
comply with applicable local codes having jurisdiction.
• Thelowvoltagewiresmustbeproperlyconnectedto
the units low voltage terminal block. Recommended
wire gauge and wire lengths for typical thermostat
connections are listed in Table 1 (page 8)
• Thethermostatshouldbemountedabout5feet(1.52m)
abovetheooronaninsidewall.DONOTinstallthe
thermostat on an outside wall or any other location
whereitsoperationmaybeadverselyaffectedbyradiant
heat from fireplaces, sunlight, or lighting fixtures, and
convective heat from warm air registers or electrical
appliances. Refer to the thermostat manufacturer’s
instruction sheet for detailed mounting and installation
information.
Example:
AB = 236V
BC = 240V
AC = 237V
3.Determinethemaximumdeviation:
4.Determine percent of
voltage imbalance by
using the results from
steps2&3inthefollowing
equation.
maxvoltage deviation
fromaverage voltage
=100 x averagevoltage
% Voltage Imbalance
2
238
100 x= 0.84%
Example:
2.Determinetheaveragevoltageinthepowersupply.
Unbalanced 3-Phase Supply Voltage
Voltageunbalanceoccurswhenthevoltagesofallphases
of a 3-phase power supply are no longer equal. This
unbalance reduces motor efficiency and performance.
Some underlying causes of voltage unbalance may
include: Lack of symmetry in transmission lines, large
single-phase loads, and unbalanced or overloaded
transformers. A motor should never be operated when a
phase imbalance in supply is greater than 2%.
Perform the following steps to determine the percentage
of voltage imbalance:
1.Measurethelinevoltages
of your 3 phase power
supplywhereitentersthe
buildingandat alocation
thatwillonlybededicated
to the unit installation (at
theunitscircuitprotection
or disconnect).
In this example, the measured line voltages were
236,240,and237.Theaveragewouldbe228volts
(236 + 240 + 237 = 713 / 3 = 238).
The amount of phase imbalance (0.84%) is satisfactory
since the amount is lower than the maximum allowable
2%. Please contact your local electric utility company if
your voltage imbalance is more than 2%.
Example:
Fromthevaluesgiven instep 1,theBCvoltage
(240V) is the greatest difference in value from
the average:240 - 238 = 2
238 - 236 = 2
238 - 237 = 1
Highest Value

8
Table 1.Thermostat Wire Gauge
Thermostat
Wire Gauge
RecommendedT-Stat Wire
Length (Unit toT-Stat)
2-Wire
cm (in.) 5-Wire cm (in.)
24 140 (55) 64 (25)
22 229 (90) 114 (45)
20 356 (140) 178 (70)
18 572 (225) 279 (110)
Optional Electric Heater Kits
Optional field-installed electric heater kits may be
availableinmultipleheatingcapabilitiesuptoamaximum
of 36kw. Split System Air conditioners are designed to
allow optional auxiliary electric heat to be field installed
as required by the building’s particular heating load. The
options available for each unit are shown in the heater
kit installation instructions or the air handlers Technical
Service Literature.
Install the heater kits as directed by the instructions
supplied with the heater kit. Follow all cautions and
warnings as directed.
beingpulleddowntolevelsbetween350-500microns
for 30 minutes.
• To achieve rated capacity and efficiency the
compressormustbeexposedtorefrigerantforatleast
24 hours prior to running and then the compressor
must be run for a minimum of 12 hours.
• Figures 6-14 (pages 14-18) are applicable only
to matched assemblies of NORDYNE equipment
and listed airflows for the indoor coil.Outdoor units
with indoor coils not listed are not recommended
and deviations from rated airflows or non-listed
combinations may require modification to the
expansion device and refrigerant charging
proceduresforproperandefficientsystemoperation.
• Therefrigerantchargecanbecheckedandadjusted
through the service ports provided external to the
outdoor unit. Use only gage line sets which have a
“Schrader”depressiondevicepresenttoactuatethe
valve.
2.Indoorunitsareshippedwithfactoryauthorizedorifices.
One is installed in the distributor assembly. Some
models which cover multiple tonnage equipment will
have additional orifices included. Ensure the correct
orifice size is installed in the distributor assembly for
your specific matched system. All R-22 export units
must be charged with refrigerant as specified in the
supplied addendum (709154).
3.Weigh-Intheproperamountofnew(orreclaimed)R-22
refrigerant. Refer to the unit Rating Label or Table 2,
Page11ofthismanualforthecorrectamountofcharge
that matches your specific system and connecting line
lengths.
Charging Units in AC mode when Outdoor
Temperature is above 12.8° C (55° F)
(optimized sub-cooling of 6.1° C - 7.8° C (11°
F - 14° F)
1.Withthesystemoperatingatsteady-state,measurethe
liquid refrigerant pressure in kPa (PSIG) at the outdoor
unit service valve.
2.Measure the liquid refrigerant temperature in Celsius (
Fahrenheit) at the service valve.
3.Determinetherequiredliquidrefrigerantpressurefrom
Figures 6-14 (pages 14-18).
• IfthepressuremeasuredinStep1isgreaterthan
therequiredliquidrefrigerantpressuredeterminedin
Step3, then there is too muchcharge in the system.
Remove refrigerant and repeat Steps 1 through 3
until the system is correctly charged.
• IfthepressuremeasuredinStep1islessthanthe
required liquid refrigerant pressure determined in
Step 3, there is too little charge in the system. Add
refrigerant and repeat Steps 1 through 3 until the
system is correctly charged.
REFRIGERANT CHARGING
WARNING:
These split system air conditioners leave the
factory with a nitrogen holding charge. Follow
these charging instructions for maximum
unit performance and efficiency. Some local
codes require licensed installation/service
personnel to service this type of equipment.
Refrigerant charging must be done by qualified
personnelfamiliarwithsafeandenvironmentally
responsible refrigerant handling procedures.
Under no circumstances should the owner
attempt to install and/or service this equipment.
Failure to comply with this warning could result
in property damage, personal injury, or death.
After refrigerant line connections are completed, it is
required that you properly leak check and evacuate the
outdoor and indoor units and all line connections (using
propermethods)beforefinalizingthefullsystemrefrigerant
charge.
1. Removal of the outdoor section factory nitrogen
chargecanbe used to purge non-condensablesout
of the system prior to conducting your leak check.
Use standard industry practices for leak checking
priortoevacuatingthesystem.Whensystemisready
for evacuation, make sure the system is capable of

9
START UP & ADJUSTMENTS
Pre-Start Check List
√Verify the outdoor coil and top of the unit are free from
obstructions and debris, and all equipment access/
control panels are in place.
√Verify that the refrigerant tubing is properly connected
and leak checked.
√Verify that the the unit is properly charged with the
refrigerant listed on the rating label.
√Verify that the line voltage power leads are securely
connected and the unit is properly grounded.
√Verifythatthelowvoltagewiresaresecurelyconnected
to the correct leads on the low voltage terminal strip.
√Verify that the power supply branch circuit overcurrent
protection is sized properly.
√Verify that the thermostat is wired correctly.
√Verify that the air filters are installed and clean.
Start-Up Procedures
WARNING:
Ifthis unitisequippedwith acrankcaseheater,
allow 24 hours prior to continuing the start up
procedurestoallowforheatingoftherefrigerant
compressor crankcase. Failure to comply may
result in damage and could cause premature
failure of the system. This warning should be
followedatinitialstartupandanytimethepower
has been removed for 12 hours or longer.
Thethermostat'sfunctionmodeshouldbesettoOFFand
the fan mode should be set to AUTO. Close all electrical
disconnects to energize the system.
Air Circulation - Indoor Blower
1.Set the thermostat system mode on OFF and the fan
mode to ON.
2.Verifytheblowerrunscontinuously.Checktheairdelivery
at the supply registers and adjust register openings for
balanced air distribution. If insufficient air is detected,
examine ductwork for leaks or obstructions.
3.Set the thermostat fan mode to AUTO and verify the
blower stops running.
NOTE: On 3 phase air handler models only - If blower
isspinningoppositeofarrowdirection,shutoffthemain
power to the unit and switch any two field wires at the
disconnect. DO NOT alter unit wiring.
Anti-Short Cycle Timer Protection
(Single Phase Models Only)
1.Set the thermostat system mode to COOL. Note the
temperaturesettingofthethermostatandgraduallyraise
the set-point temperature until the unit de-energizes.
2.Immediately lower the set point temperature of the
thermostat to its original setting and verify that the
indoor blower is energized and outdoor unit remains
de-energized.
3.Afterapproximately5minutes,verifythecompressorand
fanenergizeandthetemperatureofthedischargeairis
coolerthantheroomtemperature.NOTE:Threephase
airconditionersDONOThaveshortcycleprotection.
System Cooling
1.Set the thermostat’s system mode to COOL and the
fan mode to AUTO. Gradually lower the thermostat
temperature setpoint below room temperature and
verify the outdoor unit and indoor blower energize.
2.Verifyblowerwheelis spinning indirectionindicated by
arrow.Feelthe airbeingcirculatedbythe indoorblower
and verify that it is cooler than ambient temperature.
Listen for any unusual noises.If unusual sounds occur,
determine the source of the noise and correct as
necessary.
3.Verify HI and LO refrigerant pressures.
NOTE:On3phasemodelsonly-Ifrefrigerantpressures
areabnormalandthecompressorisrotatingbackwards,
shut off main power to the unit and switch any two field
wires at the disconnect. DO NOT alter unit wiring.
4.Allowthesystemtooperateforseveralminutesandthen
set the temperature selector above room temperature.
Verify the fan and compressor cycle off with the
thermostat.NOTE:The blower should also stop unless
fan mode is set to the ON position.
System Heating (optional)
1.Set the thermostat's system mode to HEAT and the
temperature mode above room temperature.
2.Verify the optional heating equipment (furnace or
electric heat) and indoor blower energize. Feel the air
being circulated by the indoor blower and verify that
it is warmer than ambient temperature. Listen for any
unusualnoises.Ifunusualsoundsoccur,determinethe
source of the noise and correct as necessary.

10
COMPONENT FUNCTIONS
High Pressure Switch (HPS) - Factory-installed and
located in the liquid line internal to the outdoor unit. The
switch is designed to protect the system when very high
pressuresoccurduringabnormalconditions.Undernormal
conditions,theswitchisclosed.Iftheliquidpressurerises
above3102 kPa (450 psig), then the switchwillopenand
de-energize the outdoor unit. The switch will close again
once the liquid pressure decreases to 2413 kPa (350
psig).Pleasenotethattheswitchinterruptsthethermostat
inputs to the unit. Thus, when the switch opens and then
closes,there will be a 5 minute shortcyclingdelaybefore
the outdoor unit will energize.
Low Pressure Switch (LPS) - Factory-installed and
locatedin thesuctionlineinternal totheoutdoorunit. The
switch is designed to protect the compressor from a loss
of charge. Under normal conditions, the switch is closed.
If the suction pressure falls below 34.4 kPa (5 psig), then
the switch will open and de-energize the outdoor unit.
The switch will close again once the suction pressure
increases above 138 kPa (20 psig). Please note that the
switch interrupts the thermostat inputs to the unit. Thus,
when the switch opens and then closes, there will be a
5 minute short cycling delay before the outdoor unit will
energize.
AIR CONDITIONER MAINTENANCE
WARNING:
To prevent electrical shock, personal injury, or
death,disconnect all electrical power to the unit
before performing any maintenance or service.
Theunitmayhavemorethanoneelectricalsupply.
Proper maintenance is important to achieve optimum
performancefromtheairconditioner.Theabilitytoproperly
perform maintenance on this equipment requires certain
mechanical skills and tools. If you do not possess these
skills, contact your dealer for maintenance. Consult your
localdealerabouttheavailabilityofmaintenancecontracts.
Routine maintenance should include the following:
• Inspectandcleanorreplaceairltersatthebeginning
ofeachheating andcooling season,ormorefrequently
if required.
• Inspectthecondensatedrainandoutdoorcoilatthe
beginningofeachcooling season.Removeanydebris.
Cleantheoutdoorcoilandlouversasnecessaryusinga
mild detergent and water. Rinse thoroughly with water.
• Inspecttheelectricalconnectionsfortightnessatthe
beginningof each heating andcoolingseason.Service
as necessary.
CAUTION:
The unit should never be operated without a
filterinthereturnairsystem.Replacedisposable
filters with the same type and size.
• Donotattempttoaddadditionaloiltomotorsunequipped
with oil tubes. The compressor is hermetically sealed
at the factory and does not require lubrication.

11
FIGURES &TABLES
Model Number - 018E 024E 030E 036E 036G 042G 048G 054G 060G
ElectricalData:Volts-Cycles-Phase 220/240-1-50 (1a) 380/420-3-50 (1b) 3-Phase w/ Neutral
UnitDimensions
cm (in.)
Height 59.7
(23.5) 59.7 (23.5) 80.0 (31.5) 90.2 (35.5) 69.8 (27.5) 80.0 (31.5) 80.0 (31.5) 80.0 (31.5) 80.0 (31.5)
Width 57.8
(22.75) 57.8 (22.75) 57.8 (22.75) 57.8 (22.75) 78.1 (30.75) 78.1 (30.75) 78.1 (30.75) 78.1 (30.75) 78.1 (30.75)
Depth 57.8
(22.75) 57.8 (22.75) 57.8 (22.75) 57.8 (22.75) 78.1 (30.75) 78.1 (30.75) 78.1 (30.75) 78.1 (30.75) 78.1 (30.75)
Refrigerant suction line:
Length-M(Ft.)/O.D.-mm(in)
Liquid Line:
Alllengths-9mm(3/8in.)O.D.
0-7.6 M
(0-25 Ft.) 19 (3/4) 19 (3/4) 19 (3/4) 22 (7/8) 22 (7/8) 22 (7/8) 22 (7/8) 22 (7/8) 22 (7/8)
7.9-11.9 M
(26-39 Ft.) 19 (3/4) 19 (3/4) 22
(7/8) (2) 22
(7/8) 22 (7/8) 22 (7/8) 22 (7/8) 22 (7/8) 28.6
(1-1/8) (3)
12.2-22.9 M
(40-75 Ft.) 19 (3/4) 19 (3/4) 22
(7/8) (2) 22
(7/8) 22 (7/8) 29
(1-1/8) (3) 29
(1-1/8) (3) 29 (1-1/8) (3) 29 (1-1/8) (3)
RefrigerantMeteringDevice-(Inches)I.D. 0.052 0.056 0.065 0.070 0.070 0.072 0.082 0.090 0.092
R-22 Refrigerant charge: Kg (Ounces):
(Outdoor unit, Matched Indoor Unit, &
4.6M (15 Ft.) Line Set)(4)
2.41
(85) 2.61 (92) 2.87 (101) 3.01 (106) 3.38 (119) 3.92 (138) 4.2 (148) 3.1 (110) 3.1 (109)
ApproximateWeight: Kg (lbs.) Net 45
(100) 45 (100) 58 (128) 63 (139) 74 (164) 79 (173) 79 (173) 81 (179) 81 (179)
NOTES:
1a. Operating Voltage Range: 198v min. — 264v max.
1b. Operating Voltage Range: 342v min. — 462v max.
2. Requires a 19mm to 22mm (3/4 in. to 7/8 in.) reducer from lineset to unit.
3. Requires a 22mm to 29 mm (7/8 in. to 1-1/8 in.) to reducer from lineset to unit.
4. Additional refrigerant charge for line sets above original 15 Ft. lineset total system charge.
Values based on suction line size as follows with 3/8 in.(9mm) liquid line.
a. 19mm (3/4 in.) = 0.6 oz. per additional foot
b. 22mm (7/8 in.) = 0.7 oz. per additional foot
c. 29mm (1-1/8 in.) = 0.8 oz. per additional foot
Figure 3. Unit Dimensions
DW
H
DO NOT OBSTRUCTTOP OF UNIT
Allow adequate clearance for airflow
Table 2. Unit Dimensional Data
NOTE: Unit style may appear
different depending on model.

12
ASCT
T2
K1
T1
T3
SEE NOTE 6
CRANKCASE
HEATER
(OPTIONAL)
C
S
R
COMPRESSOR
NL1 GRND
(1 PHASE FIELD SUPPLY)
GROUNDING
SCREW
L1 L2
T1 T2
CONTACTOR
DUAL
CAPACITOR
F
C
H
S
R
C
BLACK or
BLACK WHITE
RED or
RED BLACK
ORANGE
BLUE
BLACK
OUTDOOR
FAN MOTOR
YELLOW or
YELLOW BLACK
HIGH
PRESS
SWITCH
LOW
PRESS
SWITCH
BLACK
BLACK
YELLOW YELLOW
BLACK
BLACK
START
CAPACITOR
(OPTIONAL)
START
RELAY
(OPTIONAL)
32
1
BLACK
YELLOW
RED
YELLOW
BLACK
BLACK
YELLOW
YELLOW
RED
(SEE NOTE 7)
Split System Air Conditioner (Outdoor Section) Single Phase - 50 Hz NOTES: 1. Disconnect all power before servicing. 2. For supply connection use copper coductors only. 3. Not suitable on systems that exceed 150 volts to ground. 4. For replacement wires use conductors suitable for 105° C & 600V. 5. For ampacities and overcurrent protection, see unit rating plate. 6. Connect to 24 vac/40va/class 2 curcuit. See furnace/air handler installation instructions for control circuit and optional relay/transformer kits. 7. Anti-Short Cylce Timer (ASCT) may or may not be installed in the unit. If desired, ASCT is factory installed on select models only or may be field installed as shown using manufacturer’s approved kit. If not present, connectYellow and Black wires per Note 6.
1. Couper le courant avant de faire letretien. 2. Employez uniquement des conducteurs en cuivre. 3. Ne convient pas aux installations de plus de 150 volt a la terre.
7110960
07/11
FIELD WIRING
LEGEND:
LOW VOLTAGE
HIGH VOLTAGE
220/240V
H
C
F
CCH (OPTIONAL)
R
C
S
S
C
R
L2
T2
COMPRESSOR
CONTACTS
L1
L1
N
T1
COMPRESSOR
OUTDOOR FAN MOTOR
WIRING DIAGRAM
HPS
LPS
COM
Y
CC
ASCT
24V
CC - CONTACTOR COIL CCH - CRANKCASE HEATER HPS - HIGH PRESSURE SWITCH LPS - LOW PRESSURE SWITCH
WIRING DIAGRAMS
Figure 4.Wiring Diagram for Single Phase Units

13
OUTDOOR FAN
MOTOR
CONTACTOR
C
CAPACITOR
TERMINAL
BLOCK
THREE PHASE
FIELD SUPPLY
L1
YC
GRNDL2 NL3
T1 T2
L1 L2
T3
L3
COMPRESSOR
CCH (IF EQUIPPED)
T3
T1
T2
S
R
HIGH
PRESS
SWITCH
LOW
PRESS
SWITCH
CCH RELAY
BLACK BLACK
YELLOW YELLOW
ORANGE
LOW VOLTAGE
SUPPLY
BLACK
BLACKBLACK
YELLOW
BLUE
RED
BLACK
BLACK
YELLOW
Split System Air Conditioner (Outdoor Section) 380-420V/50 Hz/3 PHASEWITH NEUTRAL (3N )
WIRING DIAGRAM
NOTES: 1. Disconnect all power before servicing. 2. For supply connection use copper coductors only. 3. For replacement wires use conductors suitable for 105° C & 600V. 4. For supply wire ampacities and overcurrent protection, see unit rating plate. 5. Connect to 24 VAC/class 2 curcuit. See furnace/air handler installation instructions for control circuit and optional relay/transformer kits. 6. 24VAC, low voltage supply must be rated 40 VA minimum and provide overcurrent protection of 4 amps maximum.
1. Couper le courant avant de faire letretien. 2. Employez uniquement des conducteurs en cuivre.
FIELD WIRING
LEGEND:
LOW VOLTAGE
HIGH VOLTAGE
T1
T2
C
R
SOutdoor Fan
Motor
CCH
(IF EQUIPPED)
Capacitor
Compressor
T3
Compressor Contacts
HPS
LPS
COM
Y
NG
CC - CONTACTOR COIL CCH - CRANKCASE HEATER HPS - HIGH PRESSURE SWITCH LPS - LOW PRESSURE SWITCH
N
L3
L2
L1
CCCCH
24V
YELLOW
BLACK
RED
YELLOW
YELLOW
711114A
01/12
GN/YE
Figure 5.Wiring Diagram forThree Phase Units

14
689 (100)
862 (125)
1034 (150)
1207 (175)
1379 (200)
1551 (225)
1724 (250)
1896 (275)
2068 (300)
2241 (325)
2413 (350)
2586 (375)
Liquid Temperature
Liquid Pressure [kPa (psig)]
10
(50) 13 (55) 16 (60) 18 (65) 21 (70) 24 (75) 27 (80) 29 (85) 32 (90) 35 (95) 38 (100)41 (105)43 (110)46 (115) 49 (120) 52 (125) 54 (130) 57 (135) 60 (140)63 (145)66 (150)
Add refrigerant when below curve
Remove refrigerant when above curve
2758 (400)
°C
(°F)
Figure 6. Charging Chart for 1.5Ton Units (-018E Series)
APPLICATION NOTES FOR USING R22 REFRIGERANT
Application Notes on the Use of Charging Charts
• This equipment’s cooling system contains refrigerant under high pressure. Always use safe and
environmentally sound methods when handling refrigerant handling or servicing the unit. Review the
factory literature and safety warnings prior to servicing.
• Whenrepairingsystemleaks,alwaysuseanitrogen(inert)gastoprotecttherefrigerantsystemandpressure
checktherepairbeforere-charging.Alwaysreplacethefilter-dryerswhenperforminganyrepairtotherefrigeration
system with one capable of acid removal.After completing the repairs, evacuate the system to 350 - 500 microns
and weigh in the refrigerant to the amount specified on the unit rating label.
• Theserefrigerantchargingchartsarevalidforawidevarietyofindoorreturnairconditions(temperatureandairow)
and are most influenced by the outdoor ambient temperature, outdoor fan operation, and unit operating voltage.
Before using these charging charts, make sure the unit is in a steady operating mode.As shown in Figures 6-14
(pages 14-18) the ideal sub-cooling can vary over the range of operation. Reference these charts to determine
the ideal amount of sub-cooling for a given liquid pressure. Units charged to other values will not perform at the
rated unit capacity and/or efficiency (EER).
• Toinspectasystemsoperationusingqualityinstruments,matchthemeasuredliquidtemperaturetotheunits
chart.The measured liquid pressure reading should be within 3% of the charts value for most installations.
• Forsystemsthatareoperatingwithmorethana5%deviation,inspecttheunitforthepropervoltageandphase
balance and the refrigeration system for leaks.
• Unitsthatareoperatingatlessthen95%ofthenominalvoltageorwitha2%phaseimbalancemayseeamore
significant deviation than the amount stated above.
• DO NOT use the charts in systems that have a fan cycling under low-ambient control. Refer to the low-ambient
kit instructions for more information. (If applicable)
SINGLE PHASE CHARGING CHARTS

15
Add refrigerant when below curve
Remove refrigerant when above curve
689 (100)
862 (125)
1034 (150)
1207 (175)
1379 (200)
1551 (225)
1724 (250)
1896 (275)
2068 (300)
2241 (325)
2413 (350)
2586 (375)
Liquid Temperature
Liquid Pressure [kPa (psig)]
10
(50) 13 (55) 16 (60) 18 (65) 21 (70) 24 (75) 27 (80) 29 (85) 32 (90) 35 (95) 38 (100)41 (105)43 (110)46 (115) 49 (120) 52 (125) 54 (130) 57 (135) 60 (140)63 (145)66 (150)
2758 (400)
°C
(°F)
Figure 7. Charging Chart for 2Ton Units (-024E Series)
Add refrigerant when below curve
Remove refrigerant when above curve
689 (100)
862 (125)
1034 (150)
1207 (175)
1379 (200)
1551 (225)
1724 (250)
1896 (275)
2068 (300)
2241 (325)
2413 (350)
2586 (375)
Liquid Temperature
Liquid Pressure [kPa (psig)]
10
(50) 13 (55) 16 (60) 18 (65) 21 (70) 24 (75) 27 (80) 29 (85) 32 (90) 35 (95) 38 (100)41 (105)43 (110)46 (115) 49 (120) 52 (125) 54 (130) 57 (135) 60 (140)63 (145)66 (150)
2758 (400)
°C
(°F)
Figure 8. Charging Chart for 2.5Ton Units (-030E Series)

16
Add refrigerant when below curve
Remove refrigerant when above curve
689 (100)
862 (125)
1034 (150)
1207 (175)
1379 (200)
1551 (225)
1724 (250)
1896 (275)
2068 (300)
2241 (325)
2413 (350)
2586 (375)
Liquid Temperature
Liquid Pressure [kPa (psig)]
10
(50) 13 (55) 16 (60) 18 (65) 21 (70) 24 (75) 27 (80) 29 (85) 32 (90) 35 (95) 38 (100)41 (105)43 (110)46 (115) 49 (120) 52 (125) 54 (130) 57 (135) 60 (140)63 (145)66 (150)
2758 (400)
°C
(°F)
Figure 10. Charging Chart for 3Ton Units (-036G Series)
Add refrigerant when below curve
Remove refrigerant when above curve
689 (100)
862 (125)
1034 (150)
1207 (175)
1379 (200)
1551 (225)
1724 (250)
1896 (275)
2068 (300)
2241 (325)
2413 (350)
2586 (375)
Liquid Pressure [kPa (psig)]
13
(55) 16 (60) 18 (65) 21 (70) 24 (75) 27 (80) 29 (85) 32 (90) 35 (95) 38 (100)41 (105)43 (110)46 (115) 49 (120) 52 (125) 54 (130) 57 (135) 60 (140)63 (145)66 (150)
2758 (400)
Liquid Temperature°C
(°F)
68
(155)
Figure 9. Charging Chart for 3Ton Units (-036E Series)
THREE PHASE CHARGING CHARTS

17
Add refrigerant when below curve
Remove refrigerant when above curve
689 (100)
862 (125)
1034 (150)
1207 (175)
1379 (200)
1551 (225)
1724 (250)
1896 (275)
2068 (300)
2241 (325)
2413 (350)
2586 (375)
Liquid Temperature
Liquid Pressure [kPa (psig)]
10
(50) 13 (55) 16 (60) 18 (65) 21 (70) 24 (75) 27 (80) 29 (85) 32 (90) 35 (95) 38 (100)41 (105)43 (110)46 (115) 49 (120) 52 (125) 54 (130) 57 (135) 60 (140)63 (145)66 (150)
2758 (400)
°C
(°F)
Figure 11. Charging Chart for 3.5Ton Units (-042G Series)
Add refrigerant when below curve
Remove refrigerant when above curve
689 (100)
862 (125)
1034 (150)
1207 (175)
1379 (200)
1551 (225)
1724 (250)
1896 (275)
2068 (300)
2241 (325)
2413 (350)
2586 (375)
Liquid Temperature
Liquid Pressure [kPa (psig)]
10
(50) 13 (55) 16 (60) 18 (65) 21 (70) 24 (75) 27 (80) 29 (85) 32 (90) 35 (95) 38 (100)41 (105)43 (110)46 (115) 49 (120) 52 (125) 54 (130) 57 (135) 60 (140)63 (145)66 (150)
2758 (400)
°C
(°F)
Figure 12. Charging Chart for 4Ton Units (-048G Series)

18
Add refrigerant when below curve
Remove refrigerant when above curve
689 (100)
862 (125)
1034 (150)
1207 (175)
1379 (200)
1551 (225)
1724 (250)
1896 (275)
2068 (300)
2241 (325)
2413 (350)
2586 (375)
Liquid Temperature
Liquid Pressure [kPa (psig)]
10
(50) 13 (55) 16 (60) 18 (65) 21 (70) 24 (75) 27 (80) 29 (85) 32 (90) 35 (95) 38 (100)41 (105) 43 (110)46 (115) 49 (120) 52 (125) 54 (130) 57 (135) 60 (140)63 (145)66 (150)
2758 (400)
°C
(°F)
Figure 14. Charging Chart for 5Ton Units (-060G Series)
Add refrigerant when below curve
Remove refrigerant when above curve
689 (100)
862 (125)
1034 (150)
1207 (175)
1379 (200)
1551 (225)
1724 (250)
1896 (275)
2068 (300)
2241 (325)
2413 (350)
2586 (375)
Liquid Temperature
Liquid Pressure [kPa (psig)]
10
(50) 13 (55) 16 (60) 18 (65) 21 (70) 24 (75) 27 (80) 29 (85) 32 (90) 35 (95) 38 (100)41 (105)43 (110)46 (115) 49 (120) 52 (125) 54 (130) 57 (135) 60 (140)63 (145)66 (150)
2758 (400)
°C
(°F)
Figure 13. Charging Chart for 4.5Ton Units (-054G Series)

19

INSTALLATION / PERFORMANCE CHECK LIST
INSTALLATION ADDRESS:
CITY ________________________ STATE ________________
UNITMODEL# ________________________________________
UNITSERIAL# _______________________________________
UnitInstalledMinimumclearancesper
Figure 2 (page 5)? YES NO
Has the owner’s information been
reviewed with the customer? YES NO
Has the Literature Package been left
with the unit? YES NO
INSTALLER NAME:
CITY _______________________ STATE ________________
REFRIGERATION SYSTEM
Was unit given 24 hr warm up period
forcrankcase heaters (ifapplicable)? YES NO
Stage-1 Liquid Pressure (high side) ________________________
Stage-1 Liquid Temperature ______________________ (°C or °F)
Stage-1 Suction Pressure (low side)________________________
Final Unit Charge_______________________________________
7093640 (NEW)
Specifications & illustrations subject to change without notice or incurring obligations.
O’Fallon, MO | Printed in U.S.A. (01/12)
ELECTRICAL SYSTEM
Electrical connections tight? YES NO
Line voltage polarity correct? YES NO
Rated Voltage: ___________________________________ VOLTS
L1-L2 Volts: _____________________________________VOLTS
L1-L3 Volts: _____________________________________ VOLTS
L2-L3 Volts: ____________________________ VOLTS (If Applicable)
Avg.Volts: _____________________________ VOLTS (If Applicable)
Max. deviation of voltage
from avg. volts:___________________________________VOLTS
% Volt imbalance: ________________________________ VOLTS
Blower Motor HP:________ Sheave Setting ___________#Turns
Has the thermostat been calibrated? YES NO
Is the thermostat level? YES NO
Istheheatanticipatorsettingcorrect?
(If Applicable) YES NO
REPLACEMENT PARTS
Replacement parts are available through all Nordyne distributors.
Please have the complete model and serial number of the unit when
ordering replacement parts.
Electrical
Capacitors Temperature Limit Switches
Compressors Thermostats
Contactors TimeDelayRelays
Pressure Switches Transformers
Relays
Motors
Blower Motor Fan Motor
Components
Blower Assembly Fan Grille
Cabinet Panels Filter/Driers
Expansion Valves
WARRANTY INFORMATION
A warranty certificate with full details is included with the
airconditioner.Carefullyreviewtheseresponsibilitieswith
yourdealerorservicecompany.Themanufacturerwillnot
be responsible for any costs found necessary to correct
problems due to improper setup, improper installation,
adjustments, improper operating procedure on the part
of the user, etc. Some specific examples of service calls
which are not included in the limited warranty are:
•Correcting wiring problems in the electrical circuit
supplying the air conditioner.
•Resetting circuit breakers or other switches.
•Adjusting or calibrating of thermostat.
