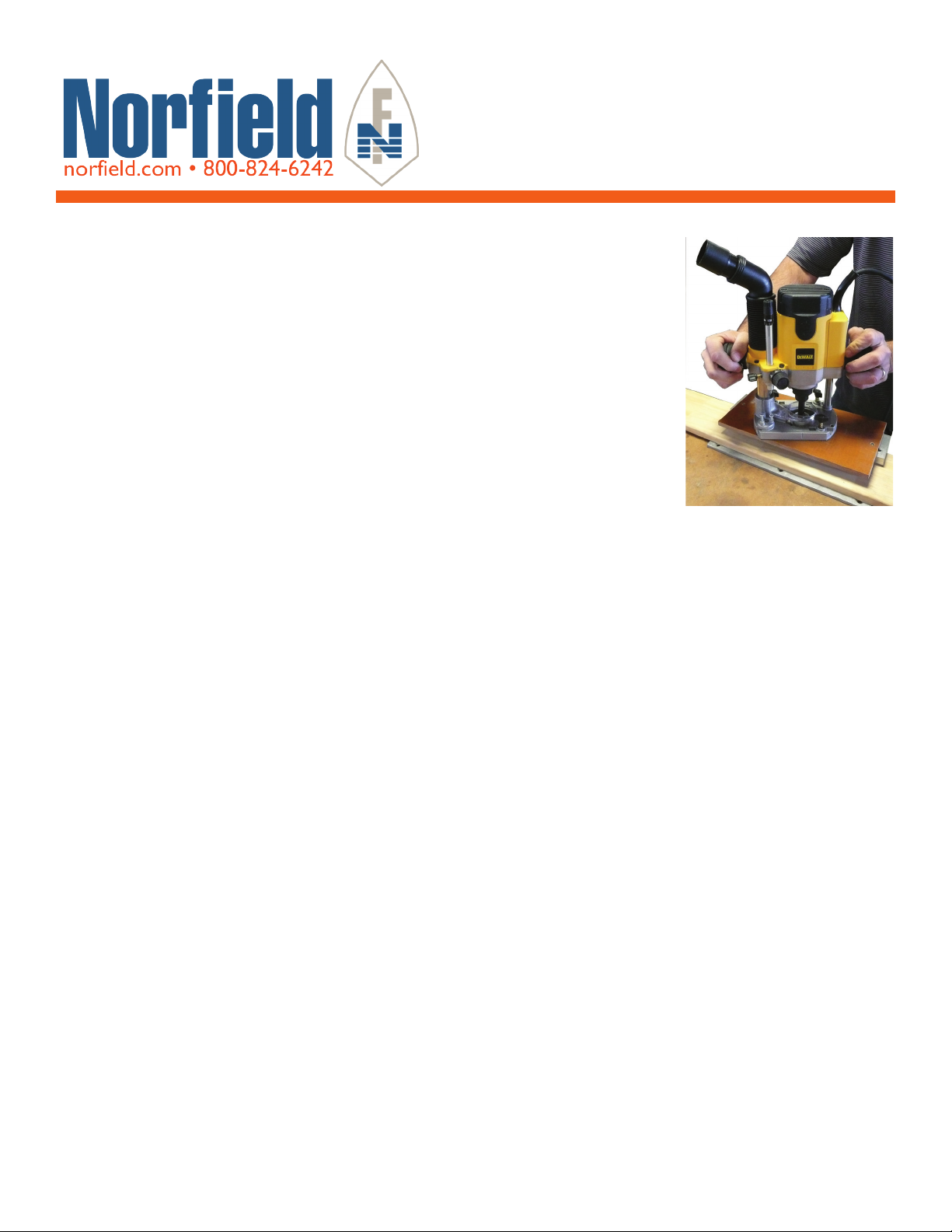

Norfield STRIKE MASTER MFG 600 Quick start guide

STRIKE MASTER - MFG 600
1. INSTALLATION
A. Attach strike master
Attach the Strike Master to your workbench or tabletop using three (3) flat head fasteners.
#14 flat head wood screws, or ¼” flat head machine screws with nuts and washers on the
bottom side are recommended. Note in Figure B the 2-3/4” dimension from the edge of
the base plate to the edge of the tabletop.
B. Adjust clamp pads
Adjust the clamp pads for jamb thickness. Loosen the two jamb nuts on the threaded
spindle and position the pad for correct clamping pressure on the size jamb you will be
machining.
C. Adjust reveal adjustment knobs
Adjust the reveal adjustment knobs for proper strike plate positioning in the jamb.
1. Determine the location of the center of the strike pocket in the jamb (usually 11/16” from the edge for
interior jambs and 7/8” from the edge for exterior jambs).
2. Draw a centerline on a jamb 13” to 14” long, corresponding to the center of the strike pocket.
3. Clamp the jamb in the Strike Master with the strike pocket centerline aligned with the reference lines on the reference
blocks (see Figure A).
4. Set the adjustment knobs so the edge of the jamb contacts the end of the threaded stop bolt and retighten wing nuts.
2. OPERATION AND ADJUSTMENTS
Most strike plates require the use of two templates; one for the pocket and one for the plate itself. Once the jamb has been clamped
into position in the Strike Master, templates can be exchanged to do the required machining without readjustment.
The templates are designed to be used with a plunge router using a ½” diameter bit and a 5/8” outside diameter template guide. One
exception exists however:T-strike plates require the use of a special ½” diameter router bit with a ½” diameter “top” bearing in place
of a template guide.
A. Jamb positioning
Place pencil marks on the face and edge of the jamb at the location of the center of the latch pocket. Align the jamb in the
Strike Master using the reference line on the base plate and clamp it into position. Optional positioning rails with stops
(MFG 100) are available that can be preset for different lock heights.
B. Router bit depth
With a template snapped into position (see Figure A for correct template orientation) adjust the router bit depth for the plate
first. If you are machining for T-strikes and are using the ½” bit with the ½” diameter top bearing, the bearing should be in
contact with the edge of the template. Set the router’s turret stop so this depth can be repeated. Set a second plunge depth
equal to the depth required for the pocket.
C. Jamb machining
We suggest that you route for the plate first and then the pocket. If you are machining for a T-strike pocket, the 5/8” diameter
template guide must be installed on the router for pocket machining. On all other plates and pockets (excluding T-shaped
mortises) leave the 5/8” diameter guide in place at all times.
OPERATIONAL INSTRUCTIONS

Figure A
Figure B

Diag# Part# Description Qty
1 * * * * * 1/4-20 x 2-1/2” Phillips Flat Head Screw 2
2 * * * * * 10-24 x 1” SHCS 8
3 * * * * * 1/4-20 Wing Nut 4
4 * * * * * 3/8-16 Wing Nut 2
5 12-535 KNOB 2
6 13-578 Clamp 2
7 13-579 Pin 2
8 7706-001 Adjuster Bolt 2
9 7706-003 Base PlateE 1
10 7706-004 Ref. Block 1
11 7706-005 Ref. Block 1
12 8305-001 Label, Norfield 1
13 DPM 0.25x1 2

AS A REMINDER:
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using electric tools, basic precautions should be followed to reduce the risk of fire, electric shock and personal injury.
READ & FOLLOW ALL INSTRUCTIONS: This tool was designed for specific applications. Norfield Industries strongly recom-
mends that this tool NOT be modified and/or used for applications other than those for which it was designed.
If you have any questions about additional applications or uses, DO NOT attempt those uses or modifications until you have been ad-
vised by a qualified Norfield Representative. Any and all modifications to or misuses of the tool will void all warranties.
A. Avoid dangerous environments
Do not expose equipment to rain or use in damp conditions.
Do not use tool in presence of flammable liquids or gases.
B. Dress properly
Do not wear loose clothing or jewelry. Loose clothing, drawstrings and jewelry can be caught in moving parts.Wear
protective hair covering to contain long hair.
C. ALWAYS use safety glasses
D. Maintain machine tools properly
Keep cutters sharp and clean for better and safer performance.
Always use correct-size cutters.
Inspect all electrical cords periodically and replace if damaged.
E. Disconnect electrical supply cord
Always disconnect cord before servicing, cleaning, changing cutters or adding accessories.
F. Stay alert
Watch what you are doing. Use common sense. Do not operate equipment when you are tired or under the influence
of medication, alcohol or drugs.
SAVE THESE INSTRUCTIONS
