Norpro Sauce Master 1951 Quick guide

Sauce MasterTM
Operating Instructions
& Recipe Guide
1951

2
See page 3 for assembly.
See pages 4-5 for basic operations, hints
& recipes.
See pages 6-10 for delicious recipes!
See page 10 for Cleaning and Storage.

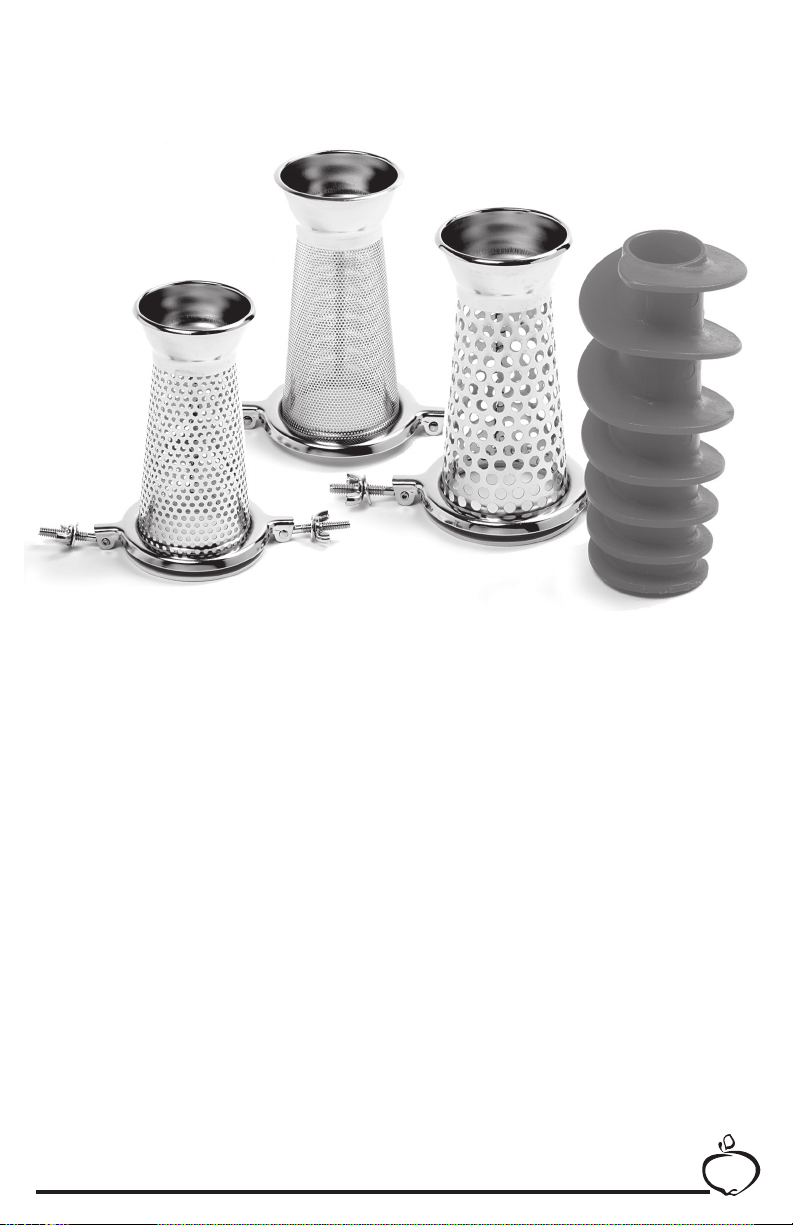

See page 11 for accessories.
See page 12 Parts Lists and Diagram
Everything you need to know to
operate your Sauce Master™!

A
B
C
D
E
3
Assembly Instructions
BeforeassemblingyourSauceMaster
TM
forthersttime,washanddryall
components thoroughly. Coat the crankshaft and bushing of the body with
a little vegetable oil.
1. Clampthebodyrmlytoyourcountertop
or table.
2. Assemble the crankshaft, spring, and
cup(Fig.A),makingsurespringtsinto
open end of the cup.
3. Placethethinatrubbergasketinthe
inside collar of the screen assembly.
(Fig. B)
4. Insert the square end of the crankshaft
assembly into the square hole inside the
spiral assembly.
5. Nowtthescreen,spiral,andshaft
assembly into the body, inserting the
threaded end of the shaft through the
bushing in the body. (Fig. C)
6. Place the screen screws into the slotted
lugs on the body and begin to tighten the
wing nuts. Fit the guard around screen
assembly, slip the slot on guard over
screen screws, completely tighten
wingnuts until the screen assembly is
attached securely to the body. (Fig. D)
7. Attach the handle onto the threaded shaft
protruding from the back of the body and
tighten the handle securely to the shaft by
using the wing nut.
8. Insert the hopper into the top opening
of the body until snug.
9. View looking through hopper opening
when assembled correctly. (Fig. E)

4
Basic Operations & Hints
WashyourfruitorvegetablesbeforeyoubeginprocessingwiththeSauceMaster™.
You will need two bowls, one to collect the puree, and one for the seeds, stems, and skins.
SincetheSauceMaster™workssoquicklyandwithsolittlewaste,alargebowlunderthe
tray to catch the puree and a small one for the waste works best!
DO NOT OPERATE THE SAUCE MASTER™ EMPTY.
The juice from the fruits and vegetables act as a lubricant for the mechanism, and reduces
wear on the components. Cranking the handle before food is placed in the strainer can
cause damage to the spiral.
Cutfruitorvegetablesintosmallpieces.Piecesshouldbesmallenoughtotintothe
opening at the base of the hopper. Remove all large pits and stems. The strainer will re-
move peels, cores, seeds and small stems.
Do not force foods into the spiral. Guide them in with the large end of the plunger.
This will help eliminate jamming and squirting.
You may need to occasionally remove the squirt guard tray and scrape pulp from the
screenoftheSauceMaster™,dependingonthetypeoffoodyouareprocessing.Arubber
spatula works best for this.
The squirt guard tray may also need to be removed when straining dry ingredients such as
beans and potatoes, as they tend to get stuck between the screen and the guard.
To get the most out of your fruits and vegetables; you can re-strain the skins from the
waste bowl a second time.
If you are straining foods to can, freeze or dehydrate, consult a good food guide to home
preserving. Proper methods are important!
TROUBLESHOOTING
Ifthehandlebecomesdifculttoturnwhileprocessing,turnacompleteturncounter
clockwise, then forward again slowly. This will help clear any obstructions and allow the
strainer to operate normally. If the jam does not clear, you will need to disassemble and
clean out the jam.
TIP: It may also help by slightly loosening the wing nuts that attach the screen. Over-tight-
ened wing nuts can put too much pressure on the spiral, making it harder to turn.
If the juice is backing up into the hopper and not going through the screen, the screen may
be clogged up with pulp. Simply remove the squirt guard tray and scrape the pulp off the
outside of the screen with a rubber spatula.
When processing juicy fruits like tomatoes, there may be slight leaking from the handle.
If there is excessive leaking, check to make sure the clear silicone gasket (1951-17) is in
place. Replacing the gasket periodically may be necessary.
Replacement parts are available to order if needed.

5
Basic Operations & Recipes
Tomato Puree
QuarterripetomatoesandlltheSauceMaster’sTM spacious hopper. No need to
peelorcore,theSauceMasterTM does it all for you! Then just push the plunger as
you turn the handle in a clockwise direction. In moments thick, tangy puree will be
pouringfromthetraytoquicklyllyourbowl.Meanwhile,dryskins,seeds,and
cores fall out the end of the screen into a second bowl with absolutely no juice
wasted.Injustminutes,you’llhavegallonsofpureereadytoputupas
velvety-smooth tomato juice. Or simmer it with your favorite seasonings for the
mostavorfulspaghettisauceyou’veevertasted!Foraneventhickertextured
tomato sauce with seeds, but no skins, try using the optional pumpkin screen
(available separately) in place of the standard screen.
Applesauce
Simply cut apples into quarters and simmer in boiling water until tender. No need
to peel or core! Drain and let cool slightly. Fill the hopper and push the plunger
while you crank in a clockwise direction. If jamming occurs, apples are too hard
and need to be cooked a little longer. For a thicker, chunky-style apple sauce, use
the optional pumpkin screen (available separately) in place of the standard screen.
Berry Juice
By using the optional berry screen (available separately), you can remove even
the tiny seeds found in blueberries, blackberries, raspberries, and currants. Hull
and juice gallons of strawberries fast for jelly or syrup. Add some crushed whole
berries for delicious jam!
Pumpkin, Squash, or Potato Purees
The optional pumpkin screen (available separately) creates the smoothest
pumpkin,squash,orsweetpotatopiellingsormashedIrishpotatoes(nopeeling
needed). Before processing, simply dice into 1 inch squares and steam or bake
until tender. Allow to cool.
Baby Food
Withtoday’sconcernoveradditivesandexcesssugarinourchildren’sfood,the
SauceMasterTM is an ideal alternative to store bought baby food. It can easily
puree fresh vegetables, fruits, or cooked meats and poultry. And by using the three
differentsizedscreens,youcantailorthetextureofthefoodtomeetyourbaby’s
needs!
Grape Juice
The optional grape spiral (available separately) is specially designed to let you
make gallons of delicious grape juice! Wash the grapes and remove from the stem.
AssembleyourSauceMasterTM with the standard screen and the optional grape
spiral in place of the standard spiral.

6
Recipes
YourSauceMasterTMcan help you make many other delicious treats! Simply
spreadoutathinlayerofanyfruitpureeonwaxpaperanddehydrateforterric
fruit roll-ups! You can puree cranberries for fresh cranberry sauce, or prunes for
authentic Hungarian Lekvar. Steamed carrots and zucchini run through the Sauce
MasterTM with the pumpkin screen (available separately) to make wonderful cakes
andbreads.OrtrycookedpintoorkidneybeansforthebeginningofMexican
refried beans.
Using your tomato puree!
Italian Spaghetti Sauce
2 Tbsp. (30 ml) olive oil 1-1/2 tsp. (7.5 g) salt
1 onion, chopped 1 Tbsp. (15 g) basil
2 cloves garlic, minced 1 tsp. (5 g) sugar
2 lbs. (.9 kg) ground beef 1/2 tsp. (2.5 g) ground pepper
8 C (1.9 kg) tomato puree
Heat oil in large sauce pan. Cook onion and garlic for 3 minutes. Add meat and
continue cooking until meat begins to brown. Stir in tomato puree and remaining
ingredients. Simmer uncovered for about 45 minutes or until thickened. Serve
with cooked pasta.
Basic Tomato Sauce
1onion,nelychopped 1C(.23L)beefbroth
2 cloves garlic, minced 1/2 tsp. (2.5 g) oregano
2 Tbsp. (15 g) butter 1/2 tsp. (2.5 g) basil
1 Tbsp. (15 ml) olive oil 1/2 tsp. (2.5 g) sugar
1-1/2 C (.35 L) tomato puree salt and pepper to taste
Sauté onion and garlic in butter and oil until soft. Add tomato puree, broth, herbs,
andspices.Boiluntilreducedto2cups.Serveovervegetablesorpasta.Maybe
refrigerated or frozen for later use.

7

8
Vegetable Juice
For tomato juice just add water and your favorite seasoning to tomato
puree-or try this!
8qt.(7.57L)ripetomatoes 1cup(227g)carrots,nelychopped
8stalksofcelery 1cup(227g)greenpepper,nelychopped
3smallonion,nelychopped 1Tbsp.(15g)salt
1leek,whitepartnelychopped 1/2tsp.(2.5g)groundallspice
1/4 cup (57 g) parsley 1 Tbsp. (15 ml) Worcestershire sauce
Juice of one lemon fresh ground pepper to taste
Wash tomatoes and cut into quarters. Put tomatoes, celery, onion, leek, parsley, lemon
juice, carrot and green pepper into large non-aluminum cooking pot. Cook over medium
heatfor30minutesuntilvegetablesaresoft.PutmixturethroughtheSauceMasterTM.
Season with salt, allspice, Worcestershire sauce and pepper. Chill and serve.
Yields approximately 6 quarts.
Recipes
Spicy Applesauce
8 lbs. (3.63 kg) apples - quartered 1/4 cup (60 ml) honey
12 whole cloves ground nutmeg
1 cinnamon stick
Place apples in a large kettle with a small amount of water, cloves and cinnamon stick. Cover
and steam until tender over medium heat, about 15 minutes. Remove the cloves and cinnamon
andputthemixturethroughtheSauceMasterTM. Add remaining ingredients to taste.
Danish Apple Cake
2cups(.454g)nelycrushedzwiebackcrumbs
1 cup (227 g) melted butter 1/2 tsp. (2.5 g) ground cardamon
3/4 cup (150 g) sugar 3 cups (680 g) unsweetened applesauce
1-1/2 tsp. (7.5 g) cinnamon whipped cream
Preheatovento350ºF/177ºC.Mixcrumbsandmeltedbutter.Inaseparatebowlmix
sugar and spices. Put thin layer of crumbs on bottom of buttered 9" tube pan. Sprinkle
with sugar mixture. Add thin layer of applesauce. Repeat layers until ingredients are used
up. Bake for 1 hour. Cool and turn out.
Frost with whipped cream.

9
Pumpkin-Apple Pie
Pastry for a single 10 inch pie crust 1-1/2 C (.36 L) light cream
2 medium size apples 1 tsp. (2.5g) ground cinnamon
1 tsp. (5g) sweet butter 1/2 tsp. (2.5g) ground nutmeg
2 C (455g) pumpkin puree 1/4 tsp. (1.25g) ground cloves
2 large eggs 1/4 tsp. (1.25g) ground ginger
1 C (230g) brown sugar
Preheatovento425ºF/220ºC.Greasea10inchpieplate.Rolloutthepastryandtit
intothepieplate.Trimandutetheedges.Refrigerate.Peel,core,andslicetheapples
into 1/4 inch pieces. Place in a skillet with 1 tsp. butter, cover and cook for 5 minutes.
Remove from the heat and drain. Place the remaining ingredients in a medium size
mixing bowl. Beat together until smooth. Arrange the apple slices in the bottom of the
chilled pastry shell and pour over the pumpkin mixture. Bake in oven for 15 minutes.
Reduce the heat to 375ºF/190ºC and continue baking for 35-40 minutes, or until a knife
inserted into the center comes out clean. Allow to cool before serving.
Recipes
Using your pumpkin puree!
Pumpkin Cheesecake
8 oz (230g) cream cheese
1 cup (230g) cottage cheese
2 eggs
1/2 cup (115g) pumpkin puree
1/2 tsp. (2.5g) ground mace
1 cup (230g) sugar, divided
1 tsp. (5ml) vanilla
1 Tbsp. (15g) grated lemon rind
1-1/2 cups (.35kg) graham cracker crumbs
1/4 cup (60g) butter, melted
Beat together the cheeses. Beat in eggs. Add
pumpkin puree, mace, 1/2 cup sugar, vanilla,
andlemonrind.Mixwell.Mixtogetherthe
cracker crumbs,
butter and
1/2 cup sugar.
Press all but 1/4 cup of crumb mixture onto
bottom and sides of 8" springform pan. Pour
pumpkin mixture into crust. Sprinkle with
remaining crumbs.
Bake at 325º F/165º C for 45 minutes.
Turn off heat and open oven door.
Leave cake in oven for 1 hour.
Remove and cool. Refrigerate for several
hours before cutting.

10
Carrot Cake
3 C (690g) carrots, pureed 1/2 tsp. (2.5g) salt
4 eggs 2 tsp. (2.5g) baking powder
1-1/4 C (300ml) vegetable oil 1-1/4 C (460g) walnuts, chopped
2 C (460g) sugar 1 tsp. (5ml) vanilla
2C(460g)our 1/2tsp.(2.5g)groundginger
Preheat oven to 350°F/177°C. In large bowl mix together carrot puree and eggs. Add
oilandblend.Graduallystirinsugar,our,saltandbakingpowdermixingwell.Add
nuts, vanilla and ginger. Combine and scoop into greased loaf pan. Bake for 1-1/2
hours until cake sets. Test by inserting toothpick or knife into the center of cake,
when you pull it out clean, your cake is done. Remove from oven and allow
to cool before icing.
Recipes Using a Salsa Screen Insert
Fresh Raw Salsa
4 medium tomatoes, cored and quartered 1/2 cup cilantro, chopped
1/2 red onion, quartered Salt and Pepper to taste
1 red bell pepper, stems ribs, seeds removed 1 lime, juiced
1 jalapeño, stems, ribs, seeds removed
Optional: Parsley or chilli powder.
Because the holes in the salsa screen are large, all stems and seeds to peppers must be
removedrst.CutallofthevegetablessmallenoughtotintotheSaucerMaster™.
Alternate putting tomatoes, onion, pepper and jalapeño into hopper. This will help mix
everything together. Put mixture in a bowl and add chopped cilantro, lime juice, salt and
pepper. Stir together and refrigerate for 1 to 2 hours for the best results. If too watery,
drain excess liquid.
Serve with tortilla chips, tacos, burritos and tostadas.
Makeapproximately4cups.
Cleaning and Storage
DisassembletheNorproSauceMaster™andhandwashallpartsinhot,soapywater.
Do not put in the dishwasher. Rinse and dry thoroughly right after use. You may need
to use a stiff bristled brush to clean the screens.
The white plastic parts may become discolored after straining cooked foods, such as
tomatoes and berries.
Applying a drop of vegetable oil to the clear silicone gasket (part 1951-17) is
recommended to keep it from drying and becoming brittle.
Spray cooking oil on the screen assembly prior to storing to prevent screen from
rustingandeventualdifcultyinoperation.Werecommendyoukeeptheoriginal
boxtostoretheSauceMaster™whenit’snotbeingused.

11
Attachments that can be purchased separately:
#1953 is the Berry Screen. It is best used for removing seeds from blackberries, blueberries,
raspberries,andstrawberries.Greatformakingjams,jellies,piellingandbabyfood.
#1954 is the Pumpkin Screen. It can be used to make a thicker sauce because the holes are
larger. A chunkier apple sauce, a chunkier tomato sauce and of course potatoes, pumpkin,
squash and zucchini for baking bread, pies and baby food.
#1954SS is the Salsa Screen. This is our coarse screen. It has holes that are 1/4". Best used
for making your favorite salsa. Can be used by putting onions, peppers and tomatoes through
all at the same time.
#1955 is the Grape Spiral. This spiral is 1" shorter than the standard spiral. It is specially
designed to let you make grape juice using the Standard Screen.
Attachments that come with the original purchase:
#1951-12 is the Standard Screen. It can be used to puree apricots, tomatoes, apples, peaches,
plums, pears, prunes, and just about any fruit. Great for beans, chicken and peas.
#1951-8 is the Standard Spiral. This spiral does almost everything. It is used with all the
screens listed above.
Clean and dry after use.
Optional Screens & Spiral
Purchase Separately
1954
Pumpkin Screen
1953
Berry Screen 1954SS
Salsa Screen 1955
Grape Spiral

Parts List
Part # Description
1951-1 Body including clamp assembly
1951-2 Hopper (funnel)
1951-3 Plunger
1951-4 Handle wing nut
1951-5 Handle
1951-6 Crank shaft
1951-7 Cup
1951-8 Spiral-Standard 6.75"
1951-9 Wing nut (for screen)
1951-11 Squirt Guard Tray
1951-12 Screen - standard
1951-14 Thinatgasket
1951-15 Spring
1951-17 Clear silicone gasket
1953 Fine 3/64" mesh berry screen assembly
1954 Coarse 1/8" mesh pumpkin screen assembly
1954SS Salsa Screen
1955 Grape Spiral 5.5"
