Norsat Median User manual

Median
16/25/40 Watt KU BUC
User Manual
Copyright © Norsat International Inc. All rights reserved.
INS001218_r1.0

NOTICE: Norsat International Inc. ("Norsat") assumes no responsibility for errors or
omissions that may appear in this publication. Norsat reserves the right to change this
publication at any time, without notice.
NORSAT Median –Manual. Copyright © 2016. Norsat
International Inc. All rights reserved.
All materials contained in this user guide are the property of Norsat International Inc.
except as noted here below:
All materials in this user guide are protected by United States and international copyright
laws. The compilation of all content in this user guide is the exclusive property of Norsat.
110 –4020 Viking Way | Richmond | British Columbia | Canada V6V 2L4
[e-mail] | Tel: [phone] | Toll Free: +1.800.644.4562
www.norsat.com
Printed in Canada

- 2 -
PREFACE........................................................................................................................................ 3
Purpose and Scope of the User Guide............................................................................... 4
Audience............................................................................................................................. 4
Revision History.................................................................................................................. 4
1SUMMARY................................................................................................................................ 5
2MAINTENANCE & SERVICE................................................................................................... 7
3SAFETY INSTRUCTIONS........................................................................................................ 9
4FUNCTION INSTRUCTIONS ................................................................................................. 12
4.1 Working Principle................................................................................................... 13
4.2 Interface................................................................................................................. 14
5CONFIGURATION INSTRUCTIONS...................................................................................... 21
5.1 Configuration ......................................................................................................... 21
5.2 GUI......................................................................................................................... 23

- 3 -
Preface

Preface
- 4 -
Purpose and Scope of the User Guide
The user guide explains the system specifics of the Norsat Median 16/25/40 Watt KU
BUC.
This user guide is specifically written for the Median 16/25/40 Watt KU BUC
Audience
The guide will be of interest to the following personnel:
Field users
Systems administrators (or IT; Lifecycle/Sustainment Managers)
Revision History
Date
Nature of Revision
Release
Initial Release
1.0
READ THE MANUAL BEFORE YOU INSTALL OR OPERATE THE
Product Line™

Preface
- 5 -
1 Summary

Summary
- 6 -
This document is the user manual for Norsat’s Median block up converter (BUC). It
describes the safety instructions, application scenarios, working principles,
mechanical structure, product type and other information for the BUC.

Preface
- 7 -
2 Maintenance & Service

2 Maintenance & Service
- 8 -
If the equipment appears inconsistent with the guide when using, please contact
Norsat customer service.
NORSAT INTERNATIONAL, INC.
110-4020 Viking Way
Richmond, BC, Canada
V6V 2L4
Tel: [phone]
Email: [email protected]
During the warranty period manufacturing, performance and operational deficiencies
will be addressed and repaired at an authorized repair facility. The warranty does
not apply and is not limited to incorrect installation, unintended use, accident, acts of
god (lightning, flooding, etc…), improper storage, transportation, and etc.
Please contact our customer service department listed below for warranty service.
EMAIL
TOLL-FREE
[e-mail]
[phone]
TEL
[phone]

- 9 -
3 Safety Instructions

3 Safety Instructions
- 10 -
This product contains components and assemblies susceptible to electrostatic
discharge (ESD) and produces high RF energy. Please read the safety
instructions carefully in this section before installation and operation.
Please use a proper protective bag and store the product in a clean and dry
environment.
WARNING!
Repair work is to be performed by authorized repair and return locations only.
Any unauthorized repair behavior will void any remaining warranty.
DANGEROUS HIGH POWER RF!
The equipment’s RF Out port emits high power RF energy that can cause
physical injury. Ensure that the RF Out port is connected to an antenna system
or a high power load before powering and operating the equipment.
HIGH SPEED FANS! DO NOT TOUCH！
The equipment’s fan speed is high during operation. Do not touch or move it
by hand.
HOT SURFACE! DO NOT TOUCH！
The equipment’s surface temperature is high during operation.
Do not touch or move it by hand.

3 Safety Instructions
- 11 -
Do not turn on power supply before the equipment is connected to an antenna
system or a high power load, avoiding high power RF energy injury.
Wrap the connection ports (IF Input, RF Output, power supply, and monitoring
interface) with high temperature, UV resistant and waterproof tape.
The installation location must be ventilated to ensure optimum fan cooling.
Ensure the supply voltage range and polarities are correct.
The equipment is an outdoor product. Proper grounding techniques are
required to reduce the potential impact of lighting-produced surge signal.
The equipment casing is not to be opened unless instructed by authorized
Norsat personnel. Personal injury may occur; equipment may be damaged by
ESD and warranty will be void.

- 12 -
4 Function Instructions

4 Function Instructions
- 13 -
4.1 Working Principle
4.1.1 Ku-Band BUC function and working principle
L-band signal from the modem is converted to Ku-band RF signal, at the same time
the power from the waveguide output port is amplified, transmitted to the
communication satellite through the satellite antenna system.

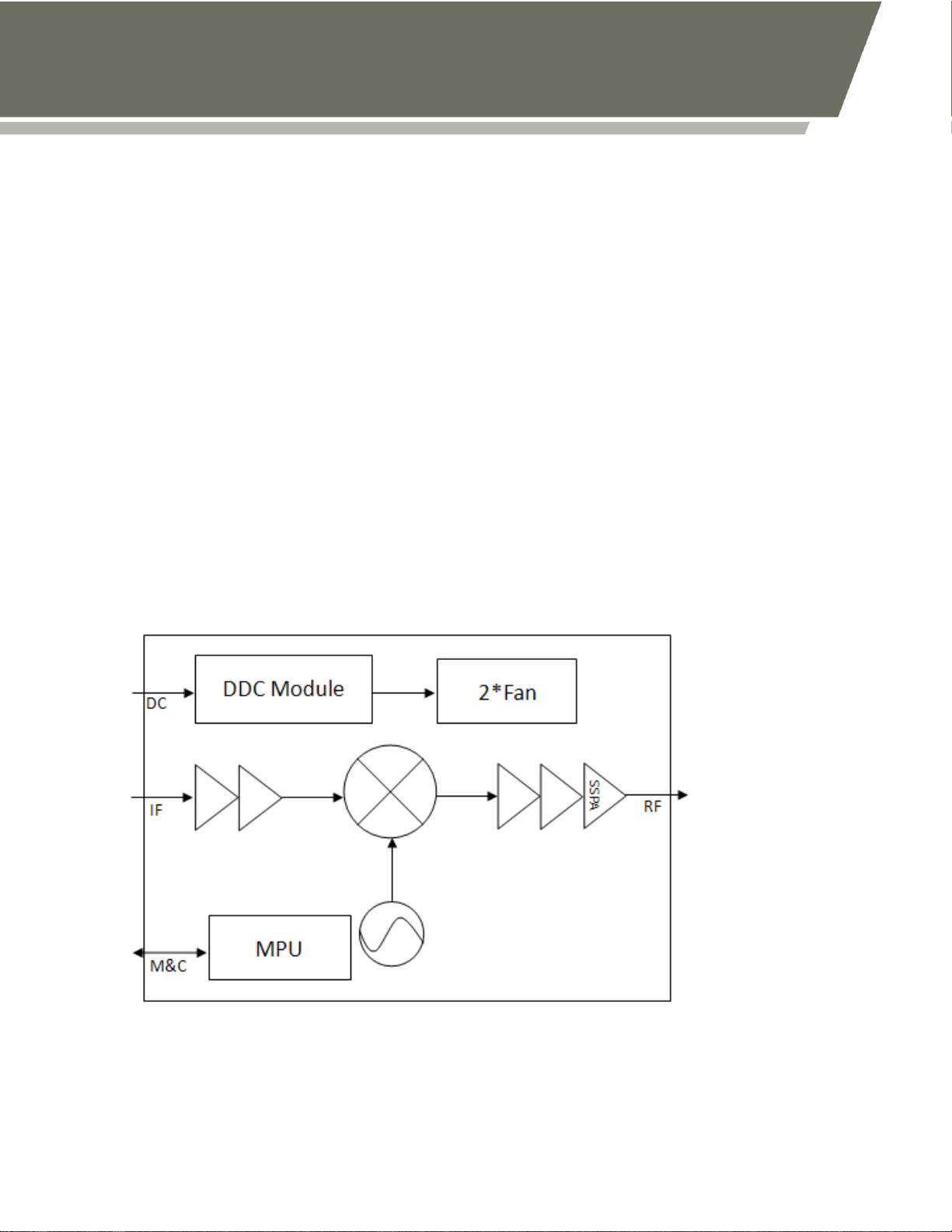

4.1.2 BUC block diagram of the composition
The main modules of the Ku-Band BUC are Up Converter, Power Amplifier,
Frequency Synthesizer, DC converter, Monitor module and other components.

4 Function Instructions
- 14 -
4.2 Interface

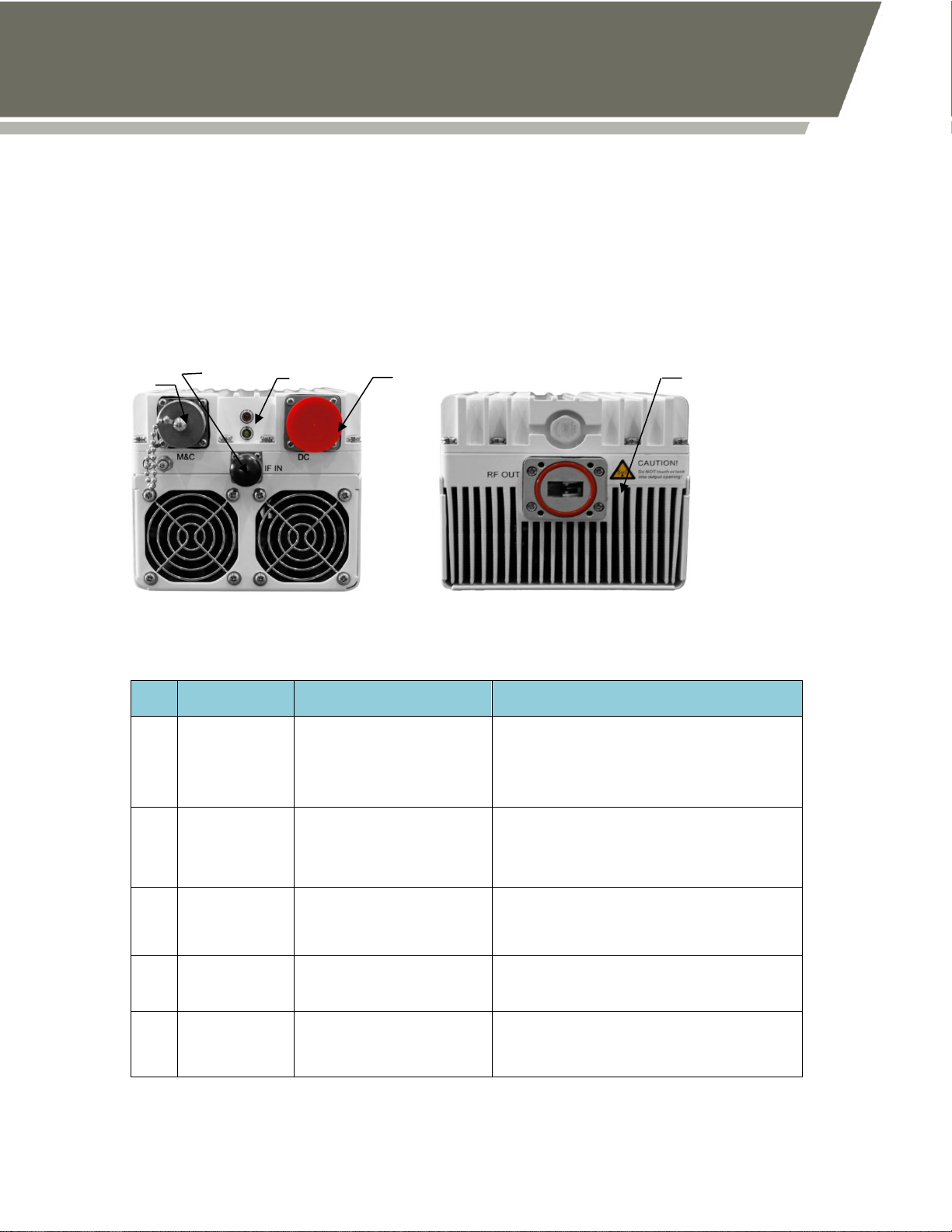

4.2.1 BUC Interface Description
Table 1 BUC Interface Parameters
NO
Interfaces
Model
Parameters
J1
IF INPUT
N Type –Female
Standard Frequency：950 to 1450
MHz
Extended Frequency：950 to 1700
MHz
J2
RF OUT
WR75 waveguide
flange (Grooved)
14.0 to 14.5 GHz (Standard)
13.75 to 14.5 GHz (Extended)
J3
DC INPUT
ACS02E16-11P
+36 to +72 V
J4
M&C
PT02E-14-19P
RS-485/ RS-232/ Ethernet
J5
LED
N/A
Yellow/ Red
J4
J
5\
J2
J1
J3

4 Function Instructions
- 15 -
Table 2 PIN Description
PIN
Protocol
Signal
19 PIN Connector
A
RS-485
TX+
L
K
J
H
G F E
D
C
B
A
M
P
N
U
TS
R
V
B
TX-
C
RX+
D
RX-
E
RS-232
TX
F
RX
G
232_GND
H
ETHERNET
ETX+
J
ETX-
K
ERX+
L
ERX-
M
E_GND
N
N/A
P
N/A
R
N/A
S
N/A
T
N/A
U
N/A
V
RS485_GND
LED:
The equipment provides two LED indicator lights (yellow and red) that provide
information on the following operational conditions of the BUC:
1) LEDs off: Equipment is functioning properly;
2) Yellow LED on: PLL alarm;
3) Yellow LED flashing: High temperature alarm;
4) Red LED on: HPA (high output PA) alarm;
5) Red LED flashing: Fan alarm.

4 Function Instructions
- 16 -
LED Indicators
4.2.2 BUC Power and Monitor Interface Cable
M&C Interface Type
Positive Pole: Red; Negative Pole: Black
M&C
PT06SE-14-19S

4 Function Instructions
- 17 -
Independent DC Supply
4.3 Mechanical Structure
BUC 3D Structure

4 Function Instructions
- 18 -
BUC Interface Type
UNIT: mm
Tolerance: ¡ À0.5
M&C
PT02E-14-
19P
LED
Indicators
IF INPUT
Type N
(Female)
DC INPUT
ACS02E16-11P

4 Function Instructions
- 19 -
BUC Width, Height Dimensions
UNIT: mm
Tolerance: ¡ À0.5
RF OUTPUT
WR 75
grooved
