NORSELIGHT HR 250 R20 User manual

Norselight HR 250 R20 Page 1 of 18
__________________________________________________________________________________________
NT 2560E– A(04.05)
aqua signal Teterow GmbH & Co. KG
Glasower Weg 5, 17166 Teterow, Germany Doc.: 7SL1001005; Rev: 03
www.glamox.com/gmo DCN: 22914
Date: 2018-07-17
This manual belongs to the product
Serie no.: ______________
Controlled by: ______________
Date: ______________
Technical Manual
for searchlight
HR 250 R20
24V DC 115V AC 230V AC
Lamp 24V DC / 250W

Norselight HR 250 R20 Page 2 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)
Introduction
For more than half a century, Norselight have designed and manufactured
lighting products for marine vessels. Through on- going customer focussed
product development, Norselight continue to deliver quality products as
demanded both at sea and on the rugged coastlines as the Norwegian.
This commitment to quality and expertise provides the foundation for
Norselight to be possibly the world’s leading supplier of maritime lighting.
However, in order to stay in front, Norselight would very much appreciate all
comments that you may have regarding our quality products or services.
Therefore, if you have any technical or other questions, our Technical
Department can be contacted as follows:
Aqua signal Teterow GmbH & Co. KG
Glasower Weg 5, 17166 Teterow, Germany
www.glamox.com/gmo
We would also like to use this opportunity to thank you for choosing
Norselight.

Norselight HR 250 R20 Page 3 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)
Table of contents
1. General description / Guarantee .......................................……. page 4
2. Technical data .............................................………………….. page 5
3. Installation.........................................................................……. page 6
3.1. Mechanic installation..................................................…… page 6
3.2. Electric installation...................................................…….. page 6
4. Operation...........................................................................……. page 7
4.1. Start up procedure………………………………………… page 7
4.2. Change of the Lamp......................................................….. page 7
4.3. Maintenance.................................................................…... page 7
5. Spare parts..................................................................…….….. page 8
5.1. Spare parts for Lamp and motor housing……..............…. page 8
5.2. Spare parts for panel.....………..................................…… page 8
6. Drawings...........................................................................……. page 9-17
6.1. Assembly Drawings....................................................…… page 9-10
6.2. Electric Drawings.....................................................….…. page 11-16
6.3. Cut-out Drawing………………………………………… page 17
6.4. Cable Diagram..........................................…………….… page 18
Reclamation or trouble shooting formula............................…. page 19
Norselight is a registered trade name.
Norselight AS reserve all rights to this document.
Norselight AS operates a policy of continuous development. On this basis we
reserve the right to make changes and improvements to all of our products and
documentation.

Norselight HR 250 R20 Page 4 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)
1. General description
Searchlight HR 250 R20 consisting of:
1. The searchlight is made from seawater resistant aluminium, cast and
finished in white silicon top coat. The lamp housing contains a 250W
Lamp, glassreflector covered with silver and a focus-motor for adjustment
of the Lightbeam.
2. The motor housing R20 is made from seawater resistant aluminium, cast
and finished in white corrocoat polyester.The motor housing contains
basically one motor for vertical and one motor for horizontal movement,
and a thermostat driven heating element.
3. The control panel is designed for console or bulkhead mounting.
It contains the following functions:
•Main power on/off
•Lamp on/off
•Joystick for panning and tilting
•Speed regulator for panning and tilting
•Focus adjustment switch
•Indication lights for searchlight position
4. Guarantee:
The guarantee is only valid against production faults. It do not cover damage
caused by transportation, damage due to disregard of this technical Manual
or adverse external effects.

Norselight HR 250 R20 Page 5 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)
2 Technical data
Properties Value
Dimensions Height
Width
Weight
520 mm
375 mm
25 kg
Power supply 24V DC / 230 / 115V AC
Vertical movement Speed:
Range: 1-10 °/sek
+22°/-22°
Horizontal movement Speed:
Range: 1-20 °/sek
±161 °
Lamp type Halogen 250W
Lifetime of lamp 230V/115V Appr. 300 hours
Working voltage 24V DC
Luminous flux 4500 lumen
Divergence 2-7°
Range at 1 lux 2453 m
Reflector Parabolic silverplated
Focal distance (70 m.m)
Drum and motor housing
materiale Seawater resistant aluminium 57S
Surface treatment Corrocoat polyester
Protection class IP 56

Norselight HR 250 R20 Page 6 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)
3. Installation
3.1. Mechanical installation
The searchlight must be mounted on a straight plate using 4 stainless screws.
See drawing D-R20-06.

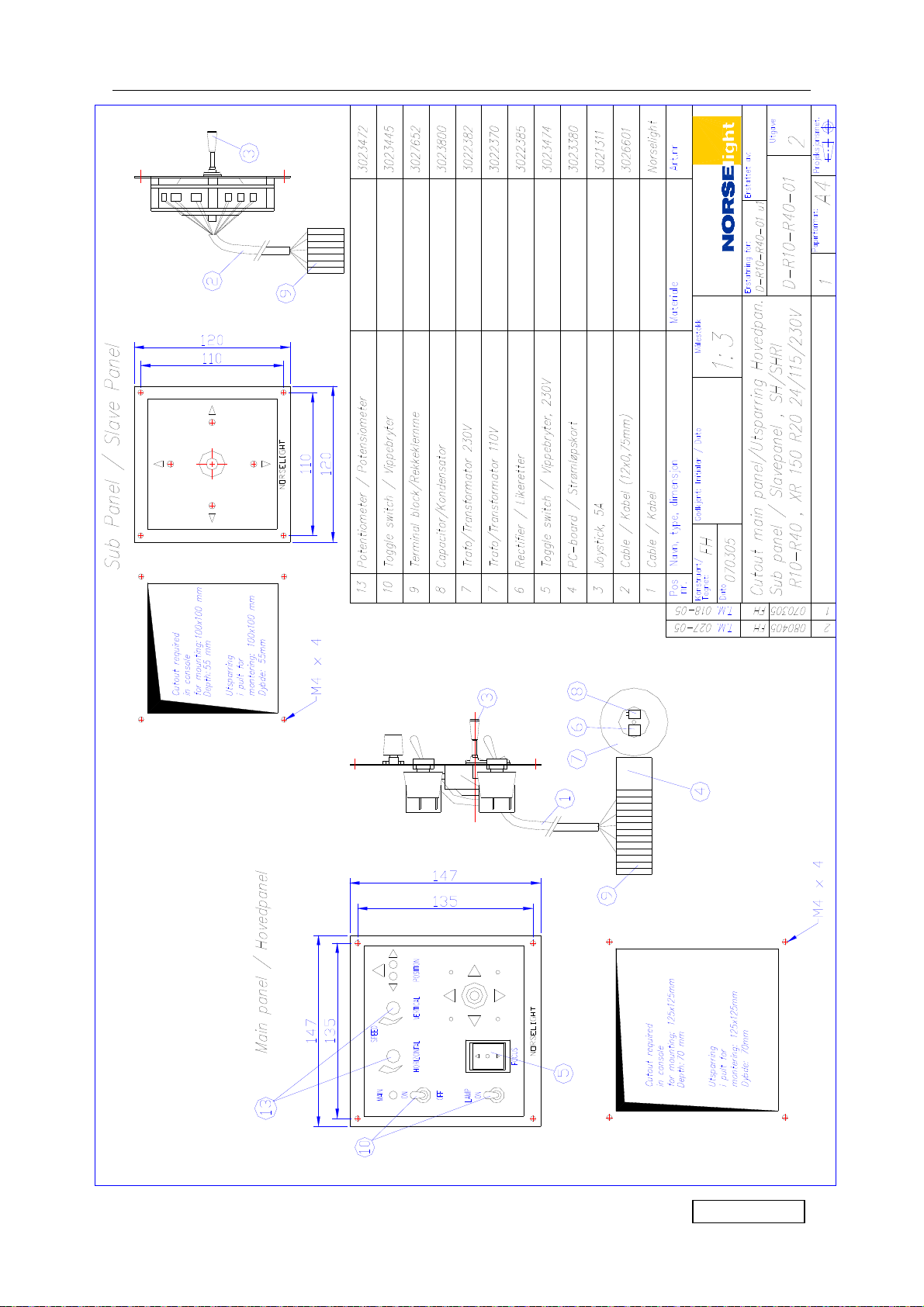

The main control panel is constructed for installation indoors on the bridge. See
drawing D-R10-R40-01.
The sub control panel where applicable is constructed for console or bulkhead
mounting and it is supplementary equipment, see drawing D-R10-R40-01. Both
mainpanel and subpanel can be delivered in protected cabinet as addition.
3.2. Electric installation.

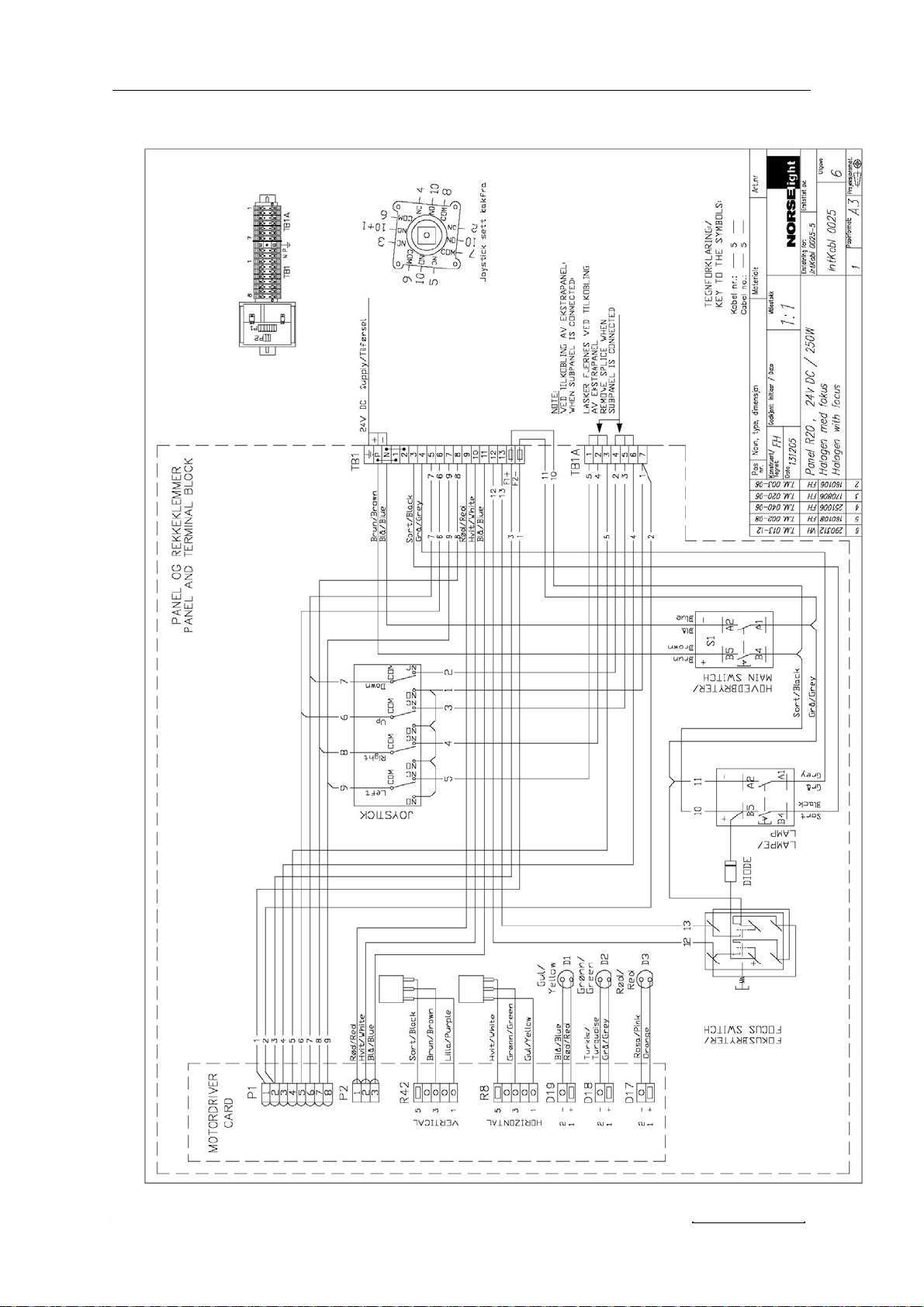

Power supply to the control unit 24V DC (drawing E-R20-51), 115/230V AC
(drawing E-R20-50)
Power supply to the lamp unit-24V DC according to drawing: E-R20-24
Before one or more subpanels are connected, remove the two straps on the
connection block TB1A. Look at drawing E-R20-06, E-R20-07, E-R20-24,
E-R20-50 and E-R20-51 to identify the correct block.

Norselight HR 250 R20 Page 7 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)
4. Operation
4.1. Start up procedure (Look at drawing D-R10-R40-01 )
•"Main" (pos. 10) On / Off switch, will give power to the
lamp house. The motors may be operated
when the switch is On.
•"Lamp" (pos.10) On / Off switch will light the bulb.
•“Speed” (pos. 13) Adjust the motor speed vertically and
horizontally in the range 1 and 20º/sec.
•“Focus” (pos.5) Adjust the lamp focus.
4.2. Change of the lamp (Look at drawing D-R20-03)
•Turn off the main and the lamp switch on the control panel.
•Change the bulb.
Be careful, to not damaged any parts. Check the lamp housing gasket for
leakage.
4.3. Maintenance
Performed at intervals not exceeding 6 months:
•Control of all gaskets and cable glands.
•Control of all screw and nut connections.
•Reflector and front glass to be cleaned with a soft cloth and alcohol.
Note: Do not touch the bulb with bare hands or anything greasy.
The bulb must be clean.

Norselight HR 250 R20 Page 8 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)
5. Spare Parts
5.1. Spare Parts for lamp and motor housing (Look at draw: D-R20-03)
Spare Part Type Article nr.
Reflector Silver plated glass 3020021
Front Glass 5 mm hardened glass 3028711
Lamp 24V, 250W, G 6,35 1701009
Vertical motor 24V DC 3021260
Transmission 16 AT5/305 3021175
Horizontal motor 24V DC 3021261
Thermostat Bimetallic 3023446
Stripper VS 95 3029762
Focus Motor 24V DC 3021262
Heating element in
motorhousing 230V AC / 115V AC / 24V DC 3023390/3023391/ 3023392
5.2. Spare parts for panel (Look at draw: D-R10-R40-01)
Spare Parts Type Article nr.
Joystick Norselight 3021311
Main card Norselight 3023380

Norselight HR 250 R20 Page 9 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)

Norselight HR 250 R20 Page 10 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)

Norselight HR 250 R20 Page 11 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)
1%
127(

Norselight HR 250 R20 Page 12 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)

Norselight HR 250 R20 Page 13 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)

Norselight HR 250 R20 Page 14 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)

Norselight HR 250 R20 Page 15 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)

Norselight HR 250 R20 Page 16 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)

Norselight HR 250 R20 Page 17 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)

Norselight HR 250 R20 Page 18 of 18
__________________________________________________________________________________________
NT 2560E – A(04.05)

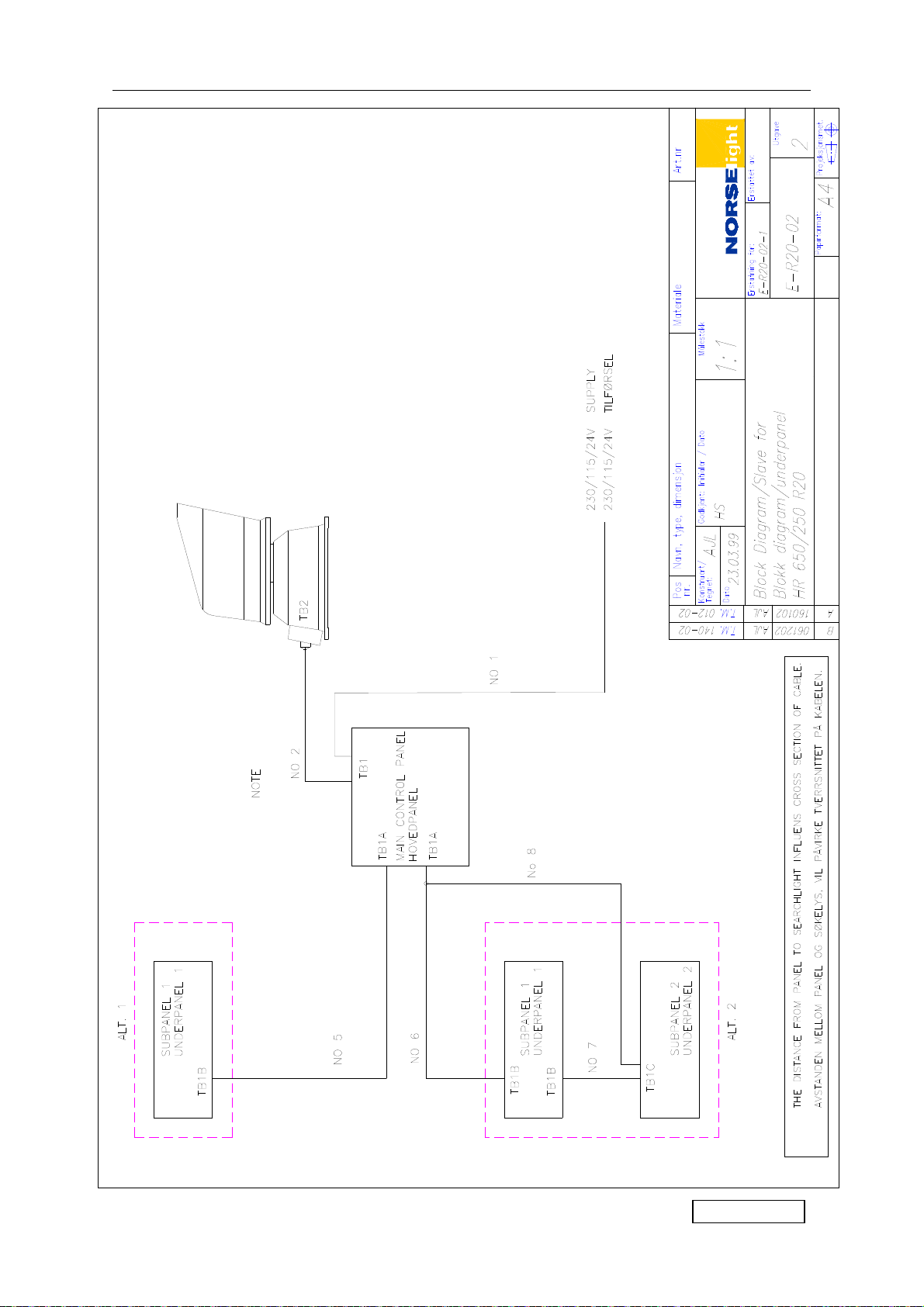

Cabel diagram for HR 250 R20 24V DC / 230/115V AC
NO.
NR. CABLE KABEL INSTRUCTION INSTRUKS CONNECTION FROM TILKOBLING FRA CONNECTION TO TILKOBLING TIL
TYPE DIM.
1
Marine grade braided cable.
3 x approved
cross section POWER
SUPPLY 230/115V AC 24V DC TB1 ( P , N , ) TB1 ( + , - , )
2 14 x approved
cross section EXT.CONN. TB1 / 1-13 - TB2 / 1-13 -
5 8 x approved
cross section EXT.CONN. TB1 A / 1-7 - TB1 B / 1-7 -
6 6 x approved
cross section EXT.CONN. TB1 A / 1,2,4,5,7 - TB1 B / 1-5 -
7 5 x approved
cross section EXT.CONN. TB1 B / 6-9 - TB1 C / 1-4 -
8 3 x approved
cross section EXT.CONN. TB1 A / 3,6,7 TB1 C / 5,6,8
NOTE: THE DISTANCE FROM PANEL TO SEARCHLIGHT INFLUENS CROSS
SECTION OF CABLE.
