Nortek JET User manual

Manuale Utente
User's Guide

Capitolo 1: Introduzione .....................................................2
Nozioni sull’ ADSL ............................................................................2
Protocolli e selezione driver. .............................................................2
Specifiche ........................................................................................3
Capitolo 2: installazione del modem e del software ..............4
Installazione del modem ..................................................................4
Installazione del software ................................................................4
Capitolo 3: personalizzazione dei parametri di comunicazione.
..........................................................................................11
Capitolo 4: Pannello di controllo GlobespanVirata...............12
Capitolo 5: Assistenza gratuita via email e via web.............14
Dichiarazione di Conformità.........................................................14
Marchi registrati .............................................................................14

Capitolo 1: Introduzione
Nozioni sull’ ADSL
Asymmetric Digital Subscriber Line (ADSL) è una tecnologia in grado di trasferire dati ad alta
velocità tramite la comune linea telefonica voce su rame. ADLS è infatti in grado di far
coesistere la tradizionale voce su linea telefonica e il trasferimento dati. ADSl è la migliore
scelta per l’uso domestico e di piccolo uffici in quanto non necessità di costosi impianti
addizionali.
Esistono numerosi standard di modulazione ADSL. Il modem da lei acquistato è in grado di
supportare i seguenti standard: ANSI T1.413 Issue 2, ITU G.992.1 (G.DMT), ITU G.992.2
(G.lite), and CAP (T1 TR-59) and ITU G.992 Annexes A,B and C doce applicabile.
Protocolli e selezione driver.
Il modem ADSL Nortek Jet è facilmente installabile su qualsiasi PC tramite una tradizionale
porta USB (Universal Serial Bus) ed è in qualsiasi momento aggiornabile con nuovi firmware
rilasciati per standard futuri
Il modem Jet include la funzionalità ATM (Asynchronous Transfer Mode). ATM è un protocollo
in grado di suddividere I pacchetti internet in piccole dimensioni prefissate per una
trasmissione ancora più rapida sulla rete ad alta velocità. ATM è in grado di supportare
diverse tipologie di traffico (es: data, voce, video) in modo sicuro ed efficiente.
Sono disponibili differenti protocolli per l’suo di ATM. Questi protocolli sono normalmente
richiesti dal providers di servizi internet.
Le possibilità sono:
1. Point to Point Protocol (PPP) Over ATM (RFC 2364)
2. Bridged/Routed Ethernet/IP over ATM (RFC 1483)
3. RFC 1577.
4. Point to Point Protocol Over Ethernet (PPPoE) – RFC 2516
Il modem ADSL Nortek jet è in grado di funzionare in tre diverse modalità: WAN, LAN, e ATM.
Nota: tutte e tre le modalità sono in grado di lavorare con il protocollo ATM ma la modalità
ATM supporta anche il servizio ATM disponibile con i nuovi sistemi operativi. La scelta più
appropriata è dipendente dal sistema operativo e dal protocollo utilizzato dall’ISP (Internet
Service Providers)
1. LAN driver (RFC 1483 / RFC 1577) – questa modalità fa si che il modem appaia
come una periferica LAN o Ethernet. La connessione è stabilita automaticamente.
Questa modalità supporta: RFC 1483 and RFC 1577 con cnnessione PVC. La
connessione PPPoE è gestita solo tramite software di terze parti. E’ utilizzabile tramite
sistemi operativi Windows 98, Windows 98 SE, Windows Me, Windows 2000 e
Windows XP.
2. WAN driver (RFC2364 / RFC2516) – questa modalità gestisce il modem tramite una
2

connessione di tipo dial-up network. La modalità supporta: RFC 2364 and RFC 2516
con connessione PVC. E’ utilizzabile tramite sistemi operativi Windows 98, Windows
98 SE, Windows Me, Windows 2000 and Windows XP.
3. ATM driver (RFC2364) –questa modalità è utilizzabile unitamente ai servizi ATM di
Windows. La modalità ATM usa Dial-Up Networking per creare una connessione PVC
O SVC e stabilire una connessione PPP (RFC 2364). La modalità è utilizzabile tramite
sistemi operativi: Windows 98 SE, Windows Me, Windows 2000 and Windows XP.
Tabella riassuntiva delle modalità operative
Modalità operativa Protocollo Windows OS
LAN RFC 1483
RFC 1577
Windows 98
Windows 98 SE
Windows Me
Windows 2000
Windows XP
WAN RFC 2364
RFC 2516
Windows 98
Windows 98 SE
Windows Me
Windows 2000
Windows XP
ATM RFC 2364 Windows 98 SE
Windows Me
Windows 2000
Windows XP
Specifiche
Il modem ADSL Jet Nortek è conforme alle seguenti specifiche:
•Conferme alle specifiche Universal Serial Bus (USB) Revisione 1.1
•Autoalimentato da porta USB (non è richiesta alimentazione esterna)
•Supporto er tre differenti device: Microsoft NDIS 4.0 WAN Miniport, NDIS 4.0 LAN
Miniport or NDIS 5.0 ATM Miniport
•Compatibile con T1.413, G.DMT, e G.lite
•Software aggiornabile
•ATM driver supporta fino a 16 connessioni virtuali ATM
•Include pannello di controllo Microsoft per una precisa e rapida configurazione
•Provvisto di connettore telefonico RJ-11
•Downstream dati oltre 8 Mbps e upstream dati rates oltre 1024 Kbps
3

Capitolo 2: installazione del modem e del
software
Prima di procedere all’installazione del modem assicurarsi che il sistema operativo in uso
supporti il protocollo che si desidera installare in base alla tabella sopra riportata.
Contattare il proprio ISP per conoscere il protocollo da utilizzare
Installazione del modem
1. Inserire il cavo rettangolare del cavo USB nella porta
approritata del proprio PC
2. Inserire la parte trapezioidale del cavo USB nella
porta appropriata del modem.
Installazione del software
Attenzione, per configurare il modem con sistema operativo windows 98 e 98 SE
assicurarsi di avere a portata di mano il CD Rom di installazione del sistema
operativo.
Chiudere tutte le applicazioni attive sul proprio PC.
4

1. il sistema
riconoscerà
automaticamente
una nuova
periferica sul
vostro PC.
Cliccare su cancel.
(Windows 98/98SE)
(Windows 2000)
(Windows Me)
(Windows XP)
2. inserire il dico CD Rom in dotazione e cliccare su
Setup.exe per iniziare la procedura di installazione.
Una schermata avvertirà dell’inizio della procedura
guidata.
3. Cliccare su next dopo essersi assicurati di aver
terminato tutti i programmi attivi.
5

Capitolo 3: personalizzazione dei parametri
di comunicazione.
1. Dal proprio PC cliccare su Start – Programmi –
GlobespanVirata DSL Modem – Configure.
Una notifica avvertirà che la procedura sta
iniziando.
2. Da questo programma effettuare le necessarie
configurazioni di VPI, VCI, Encapsulation type e
Modulation type per terminare cliccare su next.
3. Un messaggio chiederà conferma per il riavvio del
PC.
Selezionare “Yes, reboot the computer now” e
cliccare su Close.
11

Capitolo 4: Pannello di controllo
GlobespanVirata
Il pannello di controllo GlobespanVirata USB ADSL è il metodo più rapido per configuare e
verificare la funzionalità del proprio modem. All’apertura del pannello attendere almeno 2
secondi per verificarne la funzionalità.
1. Esistono 2 metodi per accedere al pannello di
controllo:
Dal pannello di controllo di Windows (Start –
Impostazioni – pannello di controllo),
fare doppio cick sull’icona GlobespanVirata
DSL Modem.
Dal desktop del PC fare doppio click sull’icona
GlobespanVirata Control Panel a fianco
dell’orologio in basso a sinistra
Nota: per accedere al pannello di controllo il modem deve essere collegato
al PC.
2. La cartella “Physical Link” del pannello di controllo
“GlobespanVirata DSL Modem” fornisce
informazioni sullo stato corrente del modem. Se
una luce verde è accesa in Link status indica che è
stata effettuata una connessione. Se la luce
lampeggia indica che si sta inizializzando una nuova
connessione. Data Activity fornisce invece
visivamente i trasferimenti dati della connessione
tramite il lampeggiamento degli indicatori gialli.
12

3. la cartella “System Info” fornisce importanti
informazioni sulla release del driver, del firmware e
del pannello di controllo.
4. La cartella “Configuration” permette di vedere o
modificare il tipo di modulazione in uso.
13

14
Capitolo 5: Assistenza gratuita via email e
via web
Visitate il sito Nortek www.nortekonline.com. Entrare nell’area assistenza
dove potrete reperire tutte le informazioni sul vostro prodotto come i driver più
aggiornati, le guide e FAQ. In alternativa potete chiedere informazioni
scrivendo all’indirizzo mail do[email protected].
Nortek Customer Care
Nortek S.p.A.
Via degli Orti, 1
40050 Funo di Argelato (BO)
Italy
Tel. : [phone]
Fax : [phone]

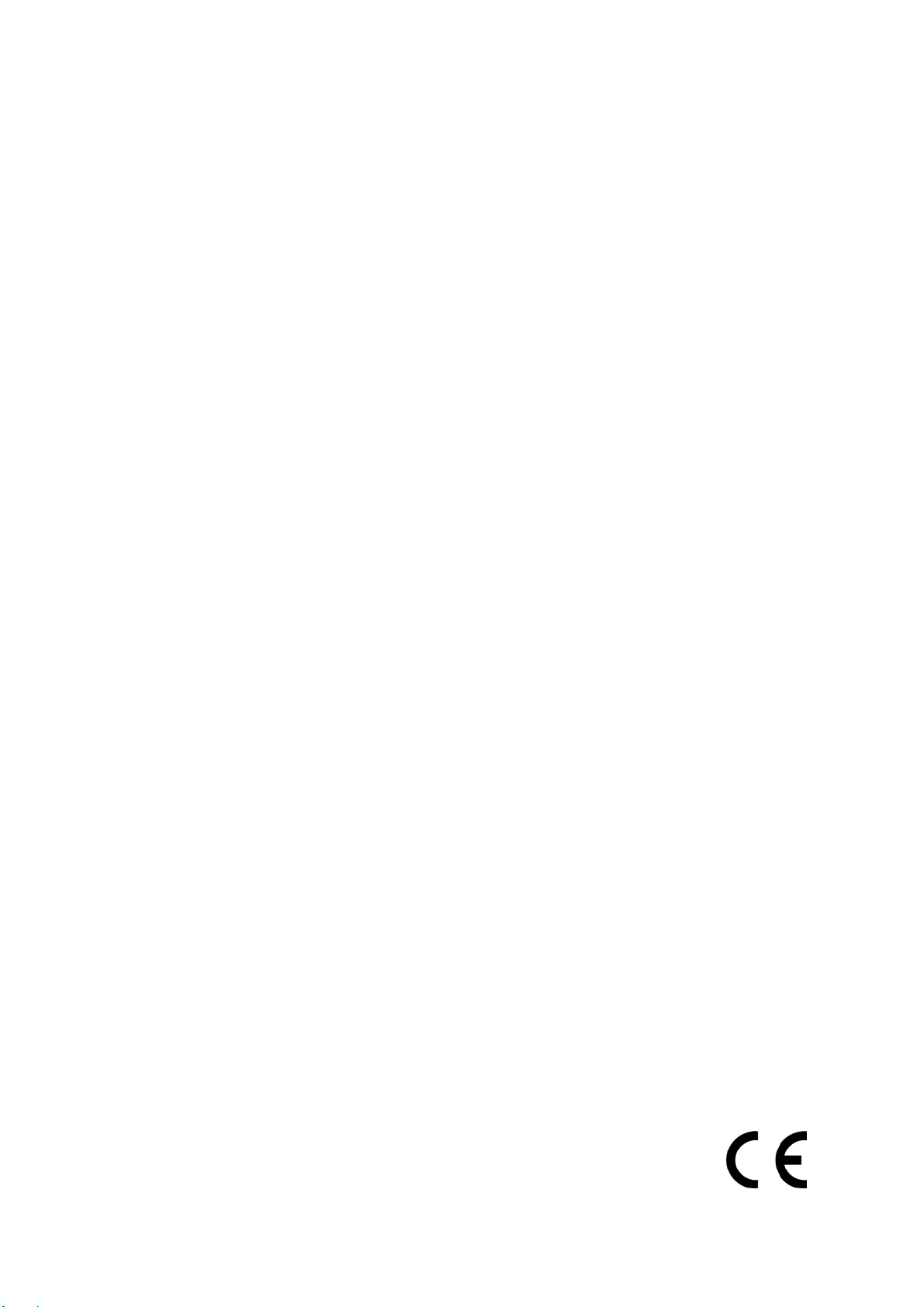

Dichiarazione di Conformità
Nortek Spa attesta che i prodotti distribuiti a marchio NORTEK sono
conformi alle Direttive Europee :
99/5/CE del 9 Marzo 1999 riguardante le apparecchiature radio e le
apparecchiature terminali di comunicazione e il reciproco riconoscimento della
loro conformità
89/336/CE del 3 Maggio 1989 relativa alla compatibilità elettromagnetica
73/23/CE del 19 Febbraio 1973 relativa alla sicurezza
Marchi registrati
Windows, Windows 98, Windows Me, Windows 2000, Windows XP and
Microsoft sono prodotti registrati della Microsoft Corporation. Tutti gli altri
marchi sono proprietà dei legittimi titolari.
Nortek si riserva di cambiare le specifiche del prodotto senza preavviso.

Chapter 1: Overview ............................................................. 16
About ADSL.......................................................................................................16
Protocol and Device Driver Selection ........................................................16
Features .............................................................................................................18
Chapter 2: ADSL Nortek jet ModemInstallation and Software
Setup ....................................................................................... 19
Modem Installation.........................................................................................20
Software Setup ................................................................................................20
Chapter 3: Customizing Communication Settings................. 26
Chapter 4: GlobespanVirata Control Panel Application......... 27
Chapter 5: Free Support through Email & Web..................... 29
Trademarks .......................................................................................................29
CE Conformity Statement .............................................................................29
15

Chapter 1: Overview
About ADSL
Asymmetric Digital Subscriber Line (ADSL) technology provides high-speed data access across
regular phone lines (copper wires) by making use of previously unused frequency bandwidth
above the voice band. By placing the ADSL signal above the frequency of the voice signal,
ADSL service is able to coexist on the same line with your telephone service. ADSL is
asymmetric in the sense that it provides a higher data rate in the downstream (receive)
direction than in the upstream (transmit) direction. Asymmetric operation is ideal for typical
home and small office use where files and information are downloaded more frequently than
uploaded.
There are several standard types of ADSL modulation techniques including Discrete Multitone
(DMT) and Carrierless Amplitude and Phase (CAP). The ADSL Nortek jet Modemis capable of
supporting the following DSL standards: ANSI T1.413 Issue 2, ITU G.992.1 (G.DMT), ITU
G.992.2 (G.lite), and CAP (T1 TR-59) and ITU G.992 Annexes A,B and C as applicable.
Protocol and Device Driver Selection
The ADSL Nortek jet Modemcan be easily connected to a USB port on the PC via a standard
USB cable. The ADSL Nortek jet Modemis fully software upgradeable so that new features
and updates may be added by simply loading a new version of the device driver onto your
PC.
ADSL modems employ ATM (Asynchronous Transfer Mode) framing. ATM is a protocol that
divides packets into small fixed sized cells for rapid transmission over high-speed networks.
The ATM protocol allows various types of traffic (e.g. data, voice, and video) to be securely
and efficiently carried over the same network. ATM is being widely deployed by
telecommunications carriers in their backbone networks. Two type of ATM connections are
possible, PVC (Permanent Virtual Circuit) and SVC (Switched Virtual Circuit).
Several different protocols are used on top of ATM. The protocol required in your
configuration depends on the equipment deployed by your DSL service provider. There are
several possibilities:
1. Point to Point Protocol (PPP) Over ATM (RFC 2364) - PPP provides session setup,
user authentication (login), and encapsulation for upper layer protocols such as IP
(Internet Protocol). The use of PPP makes the modem appear as a dial modem to
the operating system. Dial-Up Networking is used to establish a connection. PPP is
supported by either the WAN (Wide Area Network) driver, or the ATM driver.
2. Bridged/Routed Ethernet/IP over ATM (RFC 1483) – This protocol makes the modem
appear as a local area network (LAN) device to the operating system.
3. RFC 1577 – this is another local area network like protocol for IP address and ATM
address mapping.
4. RFC 2516 - Point to Point Protocol Over Ethernet (PPPoE) - This protocol is a
specification for connecting multiple computer users on an Ethernet to a remote site
through common customer premises equipment. PPPoE can be used to have an office
or building-full of users share a common DSL (Digital Subscriber Line) connection to
16

the internet. PPPoE combines the Point-to-Point Protocol commonly used in dialup
connections, with the Ethernet protocol, which supports multiple users in a local area
network. The PPP Protocol information is encapsulated within an Ethernet frame.
Three types of device drivers are provided for the GlobespanVirata ADSL USB modem, WAN,
LAN, and ATM. Note that all three drivers support ATM protocol. In addition, the ATM driver
works with ATM services that are available in recent Windows operating systems. The proper
choice of driver depends on the combination of Windows operating system and protocol.
1. LAN driver (RFC 1483 / RFC 1577) – this driver makes the modem appear as a LAN
or Ethernet device. Connection establishment is automatic. This driver supports both
RFC 1483 and RFC 1577 with PVC connections. Additionally, PPPoE is supported by
third party software. It can be used with Windows 98, Windows 98 SE, Windows Me,
Windows 2000 and Windows XP.
2. WAN driver (RFC2364 / RFC2516) – this driver causes the modem to resemble a
dial-up modem. Call establishment is performed through Dial-Up Networking. This
driver supports both RFC 2364 and RFC 2516 with PVC connections. It can be used
with Windows 98, Windows 98 SE, Windows Me, Windows 2000 and Windows XP.
3. ATM driver (RFC2364) – this driver works in conjunction with ATM services provided
by Windows. The ATM driver uses Dial-Up Networking to create a PVC or SVC
connection to establish a PPP (RFC 2364) connection. This driver can be used with
Windows 98 SE, Windows Me, Windows 2000 and Windows XP.
The device driver choices are summarized in the table below:
Driver Type Protocol Windows OS
LAN RFC 1483
RFC 1577
Windows 98
Windows 98 SE
Windows Me
Windows 2000
Windows XP
WAN RFC 2364
RFC 2516
Windows 98
Windows 98 SE
Windows Me
Windows 2000
Windows XP
ATM RFC 2364 Windows 98 SE
Windows Me
Windows 2000
Windows XP
17

Features
The ADSL Nortek jet Modemprovides the following features:
•Compliant with Universal Serial Bus Specification Revision 1.1
•USB bus-powered; an external power supply is not required
•Supports three device drivers: Microsoft NDIS 4.0 WAN Miniport, NDIS 4.0 LAN Miniport
or NDIS 5.0 ATM Miniport
•Compatible with all T1.413, G.DMT, and G.lite compliant CO DSLAM equipment as well as
the vast majority of deployed CAP RADSL CO equipment
•Software upgradeable
•ATM driver supports up to sixteen simultaneous ATM virtual connections
•Includes a Microsoft Windows control panel monitoring program for configuring the
adapter and checking the status of the connection
•Provides an RJ-11 connector for connection to the telephone line
•Supports DSL downstream data rates up to 8 Mbps (125 times faster than standard 56K
modems)
•Supports DSL upstream data rates up to 1024 Kbps
18

Chapter 2: ADSL Nortek jet
ModemInstallation and Software
Setup
WAN, LAN and ATM software drivers are supported. WAN and LAN applications support the
Microsoft Windows 98 First Edition, Windows 98 Second Edition, Windows Me, Windows 2000
and Windows XP operating systems. ATM applications support the Microsoft Windows 98
Second Edition, Windows Me, Windows 2000 and Windows XP operating systems.
Be sure to follow the instructions provided for your PC’s operating system.
The following information may be required for software installation. Contact your DSL service
provider before proceeding with software installation.
•Type of Driver to be Installed – WAN, LAN and ATM software drivers are supported.
The choice depends upon your DSL service provider.
•IP Address Settings – the Nortek software installation process allows the server to
dynamically assign IP Address settings. If your application requires static setting of
specific address information you will need to know:
IP Address
Subnet Mask (for Bridged Ethernet applications only)
Default Gateway (for Bridged Ethernet applications only)
•Name Server Information – the Nortek software installation process allows the server
to dynamically assign Name Server Address settings. If your application requires
static setting of specific address information you will need to know:
Primary DNS Address
Secondary DNS Address
Primary WINS Address
Secondary WINS Address
•ATM Virtual Path ID (VPI)
Note: Required if not using default values for driver type
•ATM Virtual Circuit ID (VCI)
Note: Required if not using default values for driver type
•Encapsulation type
Note: Required if not using default values for driver type
•Modulation type
Note: Required if not using default values for driver type
•User Name & Password (for PPP applications only)
19

Modem Installation
1. Insert the rectangular end of a USB cable into the
USB port of your PC.
2. Insert the square end of the USB cable into the USB
port of the Modem.
Software Setup
Note: For Windows 98/98SE applications, you may need the Windows 98/98SE CD
ROM to complete the installation.
Before starting the software setup process, close all Windows programs previously running on
your PC.
1. System will
automatically find
a New Hardware
after hardware
installation
finished.
Click on Cancel.
(Windows 98/98SE)
(Windows 2000)
(Windows Me)
(Windows XP)
20

2. Insert the installation CD into the CD drive and
double click Setup.exe to start the installation
procedure. A notification message will appear
indicating that the setup process has begun.
3. The “Welcome!” window provides an opportunity to
quit the setup process to exit all Windows
programs before continuing. If the Windows
programs were previously closed, click on Next.
4. The “Select Service Provider” window allows you to
specify your DSL service provider. A list of service
providers is displayed. Default values for the Type
of Driver, ATM Virtual Path ID (VPI), ATM Virtual
Circuit ID (VCI), Encapsulation type and Modulation
type are provided for each DSL service provider
listed in the window.
If your DSL service provider is listed and you would
like to accept the default values, highlight the
provider’s name and click Next. Continue with Step
5 below.
If your DSL service provider is listed and you would
like to change the default values, highlight the
provider’s name and click Customize. Continue
with Step 4a below.
If your DSL service provider is not listed select
Other Service Provider and click Next. Continue
with Step 4a below.
4a)
Select the type of driver to be installed from the
“Select Driver Type” window and click Next to
continue with Step 4b.
21

4b)
Enter the VPI, VCI, Encapsulation type and
Modulation type from the “Communication Settings”
window and click on Next.
Note: Encapsulation types vary depending
upon the application.
5. The “Ready to Install” window will be displayed.
You may review the current settings and click on
Next or Back to change the settings. Click on
Next to accept the current settings; a message will
be displayed indicating that files are being copied.
[For Windows 98/98SE applications]
6. Insert Windows System CD-ROM disc into CD-ROM
drive and then click on OK.
7. To Specify the directory of Windows 98/98SE like as
“F:\Win98” (“F” is CD-ROM Drive letter), then
click OK.
8. A message will be displayed confirming reboot of
the system.
Select “Yes, reboot the computer now” and then
click Close.
9. After system rebooting, windows will ask you to
insert Windows system CD-ROM disc into
CD-ROM drive again. Then click on OK.
22

10. To Specify the directory of Windows 98/98SE like
as “F:\Win98” (“F” is CD-ROM Drive letter), then
click OK.
11. A message will be displayed confirming reboot of
the system and then click Yes.
[For WAN&LAN applications]
12. After reboot system, the “Location information”
window will appear, then enters your
country/region and telephone number.
Click Close.
[For Windows Me applications]
6. A message will be displayed confirming reboot of
the system, click Yes.
7. A message will be displayed confirming reboot of
the system, click Yes.
23

[For Windows 2000 applications]
6. A message will be displayed confirming reboot of
the system.
Select “Yes, reboot the computer now” and then
click Close.
7. After reboot system, the “Digital Signature Not
Found” window may appear warning that the
installation software is not a digitally signed
version. A digital signature is not necessary;
GlobespanVirata has tested the software with
Windows 2000. Click on Yes to allow the
installation to continue. (GlobespanVirata will be
releasing a digitally signed version of the driver in
the near future)
8. Windows system has installed the device, then click
Finish.
9. A message will be displayed confirming reboot of
the system, click Yes.
24
