Chapter 1 - Introduction and Description

User Guide
6MT5634ZPX-PCI
Introduction
Congratulations on your purchase of one of the finest internal data/fax/voice modems
available today - the MultiModemZPX™from Multi-Tech Systems.
Product Description
One Modem, Worldwide Use. The MultiModemZPX MT5634ZPX-PCI is designed for
global applications with approvals in more than 22 countries. This means one modem
can ship around the world. The global modem is ideal for businesses with global
operations that want to standardize on one modem and are looking to simplify the
ordering process. Go to www.multitech.com/ to see a complete list of all the countries
for which this modem has approvals.
The MultiModemZPX-PCI is an internal, half-length, fax modem card that can be
plugged into any PCI slot. Your MultiModemZPX-PCI incorporates
V.90/K56flex
TM
modem technology, which enables Internet connections at data rates up to 56 Kbps
over standard telephone lines. V.90/K56flex technology is able to propel data
downstream from the Internet to your computer at speeds of up to 56 Kbps because
data is digitally encoded instead of modulated. Upstream transmission, mostly
keystroke and mouse commands from your computer to the central site, continues to
flow at the conventional data rate of 33.6 Kbps.
Note: Though this modem is capable of 56 Kbps download performance, line impairments,
public telephone infrastructure, and other external technological factors currently prevent
maximum 56 Kbps connections.
Your MultiModemZPX-PCI offers interactive automatic dialing, as well as command
mode option configuration. You can store two command line/telephone numbers, of up
to 40 characters each, in the modem’s nonvolatile memory. The modem pulse or tone
dials and recognizes dial tones and busy signals for reliable call-progress detection. The
modem can detectAT&T calling card tones. It is FCC-Registered for connection to
telephone networks without any DataAccess Arrangements (DAAs).
The MultiModemZPX-PCI is a full-featured internal data/fax/voice modem designed for
Pentium computers in Windows Plug and PlayTM environments.
Peripheral Component Interconnect (PCI)
First developed by companies such as IntelTM,AT&TTM and Digital Equipment
CorporationTM, the Peripheral Component Interconnect (PCI) bus used by your
MT5634ZPX-PCI provides high performance and is easy to use. Because PCI devices
contain registers with the device information required for configuration, full auto
configuration of PCI Local Bus add-in boards and components is supported.
Performance factors include a bus data path of 64 bits, clock speeds of 66 MHz, and
bandwidth of 264 Mbs.

1 Introduction and Description
MT5634ZPX-PCI 7
Manual Organization
This User Guide will help you to install, configure, use, and troubleshoot your modem.
The manual is divided into seven chapters and four appendices:
Chapter 1: Introduction and Description. This chapter Introduces the MT5634ZPX-
PCI, briefly describing features and technical specifications.
Chapter 2: Hardware Installation. Chapter 2 contains information about unpacking your
MultiModemZPX-PCI adapter. It also provides information on safety warnings and
describes how to install the modem in your computer and connect it to a telephone,
telephone line, microphone, and speaker.
Chapter 3: Software Installation. Chapter 3 describes how to install the modem’s
drivers under various operating systems. This chapter also describes the process for
configuring your modem’s initial setup for operation within your country.
Chapter 4: Using your Modem. In this chapter, instructions are provided for configuring
your communications software and Windows Dial-up Networking. The chapter also
describes several tests which can assist you in confirming that your modem is installed
properly. The tests, which include step-by-step instructions for various modem-related
tasks, also serve as mini-tutorials for those new to online communications concepts.
Chapter 5: AT Commands, S-Registers and Result Codes. Chapter 5 contains
descriptions of theAT commands that control your modem, S-registers that affect how
the commands work, and Result Codes that provide you with operational feedback.
Chapter 6: Troubleshooting. The troubleshooting chapter describes common problems
you may have with your modem and how to solve them.
Chapter 7: Warranty, Service and Technical Support. This chapter provides
information on the terms of your warranty and describes how to get help with your
modem from Multi-Tech Systems Technical Support group.
Appendices
AppendixA: Regulatory Compliance
Appendix B: Updating Your Modem’s Firmware
Appendix C: Global Wizard Configuration Utility
Appendix D:ASCII Conversion Chart

User Guide
8MT5634ZPX-PCI
Features
•Compliance with major ITU-T, TIA, and EIAinternational standards to ensure
compatibility with other modems
•Distinguishes data, fax, and voice calls
•Easy Windows Plug and Play (PnP)
•Compliance with the V.80 standard, allowing video conferencing over analog
telephone lines with any H.324 video phone system
Data
•Supports V.90/K56flexTM for data transmission speeds up to
56 Kbps while maintaining compatibility with lower-speed modems
Note: The V.9 /K56flex standard asymmetrically transfers dataclient downloads at speeds up to
56 Kbps; client uploads at speeds up to 33.6 Kbps
•Supports the enhanced ITU-T V.34 standard with data transmission speeds to 33.6
Kbps while also maintaining compatibility with lower-speed modems
•Supports V.90/K56flex speeds plus 33.6K, 31.2K, 28.8K, 26.4K, 24K, 21.6K, 19.2K,
16.8K, 14.4K, 12K, 9.6K, 7.2K, 4.8K, 2.4K, 1.2K, and 0–300 bps
•Automatic fallback to slower speeds in noisy line conditions and fall-forward to faster
speeds as conditions improve (line quality monitoring)
•ITU V.42 LAP-M and MNP Class 3 and 4 error correction
•ITU V.42bis (4-to-1) and MNP 5 (2-to-1) data compression
•H.324 compliant (videophone ready)
•Automatic disabling of compression when transferring already compressed files
•Autodial, redial, pulse (rotary), and touch-tone dial
•Dial tone and busy signal detection for reliable call-progress detection
•Distinctive ring support to route voice, data, or fax calls on a single phone line
•Plug and Play ( PnP ) support
•FlashROM upgradable (customer upgradable in a Windows environment)
•Compatibility with the standardAT command set used by most communication
programs
•Stores up to two telephone numbers
Fax
•Supports V.17, Group 3 fax communication standards, allowing it to communicate
with other fax modems as well as with fax machines
•Responds to Class 1 and Class 2 fax commands, enabling it to exchange editable
and encrypted faxes with other Windows computers
•Sends and receives faxes from your computer at 14,400 bps, 9600 bps, 7200 bps,
4800 bps, 2400 bps, or 300 bps
Voice
•Full duplex speakerphone support with adjustable speaker volume control; can
record and play back answering machine messages using optional microphone and
speaker
•Remote/local telephone answering machine (TAM) capabilities include voice mail
control, record/playback, and call screening
•Supports the TIA/EIAIS-101AT+V voice command set

1 Introduction and Description
MT5634ZPX-PCI 9
Technical Specifications
Trade Name MultiModemZPX
Model Number MT5634ZPX-PCI
Client-to-Server
Data Rates V.90/K56flex* speeds when accessing an ISP-type V.90/
K56flex server (actual speed depend on server capabilities
and line conditions)
Client-to-Client
Data Rates Enhanced V.34 speeds to 33,600 plus 31,200, 28,800,
26,400, 24,000, 21,600, 19,200, 16,800, 14,400, 12,000,
9600, 7200, 4800, 2400, 1200, 0-300 bps
Fax Rates 14,400, 12,000, 9600, 7200, 4800, 2400, and 300 bps
Data Format Serial, binary, asynchronous
Data Compatibility V.90/K56flex, ITU V.34 extended, V.34, ITU V.32bis, V.32,
V.22bis, V.21, V.22, V.23; Bell 212 and 103; ITU V.42,
V.42bis
Fax Compatibility ITU Group 3, T.4, T.30, V.21, V.27ter, V.29, V.17, and TIA/EIA
578 Class 1, Class 2
Voice Compatibility TIA/EIAIS-101, H.324 (V.8, V.25ter), V.80
Voice Mode Sampling Up to 44.100 kHz (down-sampled to 11.025 kHz)
Error Correction ITU V.42 (LAP-M and MNP Classes 2–4)
Data Compression ITU V.42bis (4:1 compression) and MNP 5 (2:1 compression)
Speed Detection Automatic speed detection and switching between available
speeds
*Although V.9 /K56flex technology is capable of downloads of up to 56 Kbps, FCC regulations
currently restrict ISP modems to downloads of 53 Kbps
Fallback In adverse line conditions, the modem falls back from its
current operating speed to the next reliable slower speed in
2400 bps decrements (V.34 mode). If conditions improve, the
modem falls forward to the fastest reliable speed in 2400 bps
increments. In V.90/K56flex mode, modem falls back and
falls forward in increments of 2000 bps
Modes of Operation Full-duplex operation over dial-up lines, automatic dialing,
automatic or manual answer
Flow Control Software (XON/XOFF), hardware (RTS/CTS)
Intelligent Features FullyAT command compatible, autodial, redial, pulse or tone
dial, dial pauses, call status display, auto-parity and data rate
selection, keyboard-controlled modem options, and
nonvolatile memory and on-screen displays for modem
parameters
Command Buffer 40 characters

User Guide
10 MT5634ZPX-PCI
Data Modulations FSK at 300 bps, DPSK at 1200 bps, QAM at 2400, 4800,
and 9600 bps (non-trellis), QAM with trellis-coded
modulation (TCM) at 9600, 12,000, 14,400, 16,800, 19,200,
21,600, 24,000,26,400, 28,800, 31,200, 33,600 and 56,000
bps
Fax Modulations V.21 CH2: FSK at 300 bps
V.27ter: DPSK at 4800 and 2400 bps
V.29: QAM at 9600 and 7200 bps
V.17: TCM at 14400, 12000, 9600, and 7200 bps
Carrier Frequencies: 1600, 1646, 1680, 1800, 1829, 1867,
V.34/V.90/K56flex 1920, 1959, 2000 Hz
Carrier Frequencies: 1800 Hz
V.32terbo/V.32bis/V.32
Carrier Frequencies: Transmit Originate: 1200 Hz
ITU-T V.22bis/V.22 or TransmitAnswer: 2400 Hz
Bell 212A Standard Receive Originate: 2400 Hz
(2400 & 1200 bps) ReceiveAnswer: 1200 Hz
Carrier Frequencies: Transmit Originate: 1270 Hz mark
Bell 103 1070 Hz space
(300 bps) TransmitAnswer: 2225 Hz mark
2025 Hz space
Receive Originate: 2225 Hz mark
2025 Hz space
ReceiveAnswer: 1270 Hz mark
1070 Hz space
Fax Carrier Frequencies V.21 CH2 (half duplex):
1650 Hz mark, 1850 Hz space for Transmit Originate
1650 Hz mark, 1850 Hz space for Transmit Answer
V.27ter: 1800 Hz Originate/Answer
V.29 QAM: 1700 Hz Originate/Answer
V.17 TCM: 1800 Hz Originate/Answer
Diagnostics Power-on self-test (POST) and local analog loop
Transmit Level -10dB
Frequency Stability ±0.01%
Receiver Sensitivity -43 dB under worst-case conditions
AGC Dynamic Range 43 dB
Serial Interface ITU-T V.24/V.28
Bus Type PCI Local Bus Rev.2.1
Connectors Two RJ-11 phone jacks and two plugs for microphone, and
speakers
Cables One RJ-11 phone cable
Environmental Temperature range 0°to 50°C (32°to 120°F), humidity
range 20–90% (non-condensing)
Power Requirements 150 mA @ 5 VDC; 5 mA @ ±12 VDC

1 Introduction and Description
MT5634ZPX-PCI 11
Dimensions 0.7" W ×4.8" H ×5.8" L
1.8 cm ×12.2 cm ×14.7 cm
Operating Systems At the time of this printing, the MT5634ZPX-PCI has been
tested for use with Windows 95, 98, NT and 2000, Linux
(2.2.x kernal) and SCO OpenServer 5.0.x.
Limited Warranty 10 years
V.90 Support/Functions
V.90 is the ITU designation for what formerly was called V.pcm. V.90 replaces K56flex
and other proprietary solutions for PCM connections. Dual-mode client modem code will
be important until all central-site digital modems are upgraded to V.90 and all
interoperability problems are resolved. Until that time, the Dual-mode client code
provides reliable connections in K56flex mode to the central-site modems currently
deployed.
V.90 functions/features include:
•V.90/K56flex A-law and µ-law support
•Downstream data rates (S-Register S38)
•Optional V.8bis sequence
•V.90 Mode Selection (S-Register S109) support
•Auto-rate speeds to 50,666 (downstream) support
•Automatic adapting to digital loss and robbed-bit signaling
•V.90 rate result codes
Downstream Rates
Where K56flex provided rates of 32,000 to 56,000 in 2,000 bps increments, V.90
provides rates of 28,000 to 56,000 bps in increments of 1,333 bps.
Upstream Data Rates
Upstream V.90 data rates are 4800 to 33600 bps in 2400 bps increments.
Optional V.8bis Sequence
The V.8bis sequence that precedes K56flex connections is optional for V.90. Dual-mode
servers indicate this capability using V.8bis. Dual-mode clients complete the V.8bis
exchange and then proceed to either the K56flex mode or V.90 mode. V.90-only clients
can skip the V.8bis exchange as a way to shorten the start-up time.
Auto-rate Speeds
Auto-rate speeds to 50,666 Kbps are supported for downstream transfers.
Digital Loss and Robbed-bit Signaling Auto Adapt
The modem automatically adapts to digital loss and robbed-bit signaling on a PSTN
connection.

Chapter 2 - Hardware Installation

MT5634ZPX-PCI 13
2 Hardware Installation
Installation Overview
This chapter describes how to install the MultiModemZPX-PCI hardware into your
computer.
Installing the MultiModemZPX-PCI consists of five steps:
1. Installing the modem in the computer.
2. Connecting the modem to the telephone line and, optionally, to an external speaker
and microphone.
3. Installing the modem’s drivers.
4. Configuring your modem for country-specific operation.
5. Configuring your communications software.
Unpacking your MultiModemZPX-PCI
Your MultiModemZPX-PCI package should contain:
•One MultiModemZPX-PCI internal fax modem card.
•One telephone cable.
•One MultiModemZPX-PCI driver CD-ROM.
- Including this MultiModemZPX-PCI User Guide inAdobe .pdf and .html format.
•One Quick Start Guide.
•Communications software.
•One brochure with a warranty card.
If any one of these items is missing, please contact Multi-Tech Systems or your dealer/
distributor.
What You’ll Need
Before you start, make sure you have everything you need:
•The contents of your MultiModemZPX-PCI package (as listed above).
•A100-MHz or faster Pentium PC. We recommend a 166-MHz or faster PC for video
conferencing.
•Windows 95, 98, NT, 2000, Linux (2.2.x kernal) or SCO OpenServer (5.0.x)
operating system installed.
•CD-ROM drive.
•An empty PCI expansion slot.
•Tools to open your computer.
•The computer’s manual.
•A nearby telephone line jack.
•An external speaker or headphone (optional).
•An external microphone (optional).

14 MT5634ZPX-PCI
User Guide
Safety Warnings
•Never install telephone wiring during a lighting storm.
•Never install telephone jacks in wet locations unless the jack is specifically designed
for wet locations.
•This product is to be used with UL and cUL listed computers.
•Never touch uninsulated telephone wires or terminals unless the telephone line has
been disconnected at the network interface.
•Use caution when installing or modifying telephone lines.
•Avoid using a telephone (other than a cordless type) during an electrical storm.
There may be a remote risk of electrical shock from lightning.
•Do not use the telephone to report a gas leak in the vicinity of the leak.
•To reduce the risk of fire, use only No. 26 AWG or larger Telecommunication line
cord.
Installing the MultiModemZPX-PCI

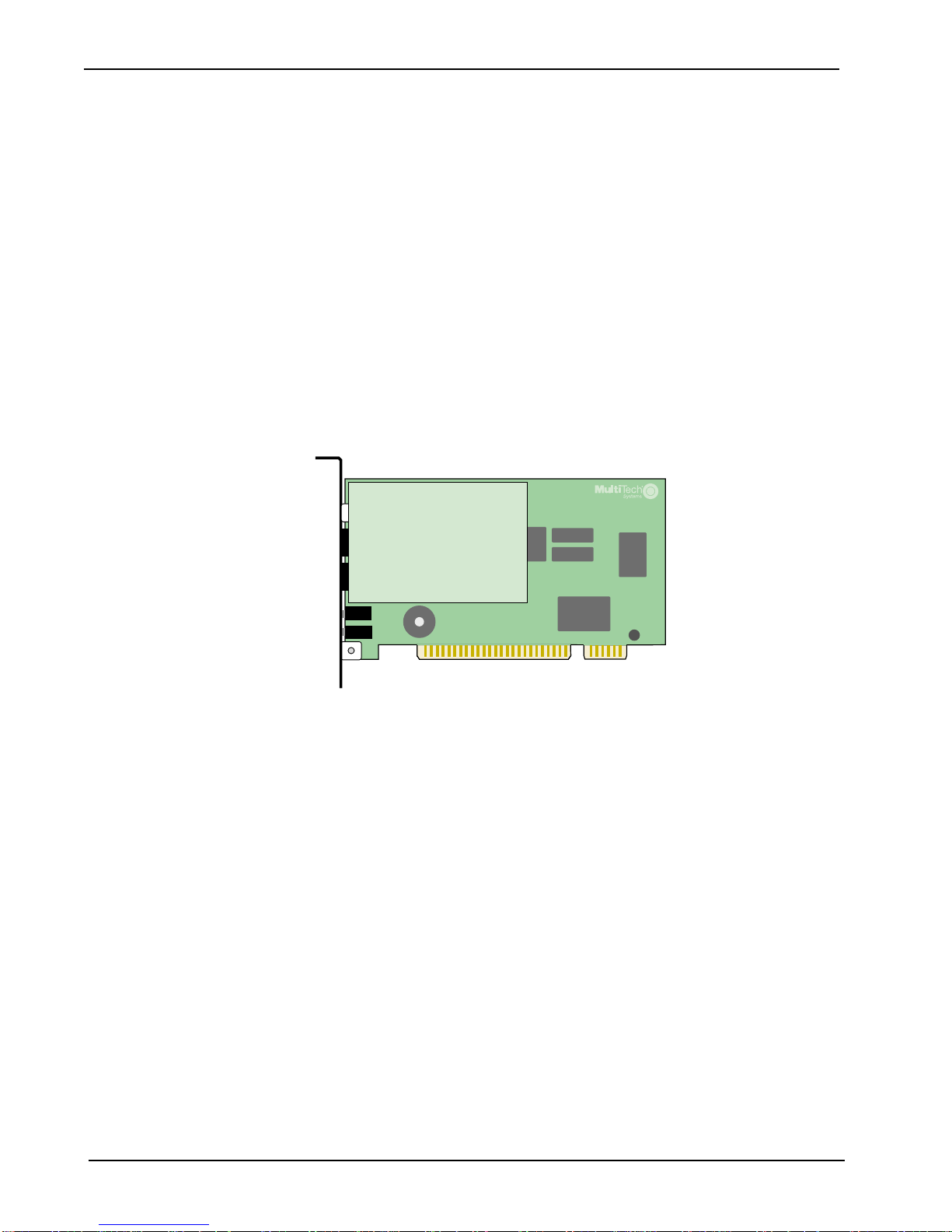

The MultiModemZPX-PCI
Installing the MultiModemZPX-PCI requires you to open your computer. Please consult
your computer manual in addition to the following instructions:
1. Turn off the computer and unplug it. Failure to do so may result in damage to both
the MultiModemZPX-PCI and the computer. Do not turn on the computer until the
instructions tell you to do so.
2. Remove the cover from the computer as instructed in the computer manual.
3. Select an empty PCI expansion slot. Remove the expansion slot cover and save the
retaining screw.
4. Before handling the MT5634ZPX-PCI, discharge static in your body by touching a
metal piece of the computer chassis. Carefully remove the MultiModemZPX-PCI
from its antistatic bag, handling it only by the mounting bracket and edges. Do not
touch the gold-plated connectors along the bottom edge.
5. Place the MultiModemZPX-PCI directly above the expansion slot and gently, but
firmly, push it into the connector until the card’s retaining bracket is flush against the
computer chassis.
6. Fasten the retaining bracket to the computer chassis with the screw saved in step 3.
7. Replace the cover of the computer.

MT5634ZPX-PCI 15
2 Hardware Installation
Connecting your modem
The MultiModemZPX-PCI communicates over public-switched telephone network lines.
Use the modular telephone cable provided with the modem to connect the
MultiModemZPX-PCI to your telephone wall jack. If you don’t have a standard modular
wall jack near your computer, install one or have one installed for you by your telephone
company. In the U.S., installation kits and adapters are available wherever telephones
are sold.
The MultiModemZPX-PCI offers a voice port which allows you to connect your adapter to
a microphone and speaker. The microphone can be used for recording answering
machine messages or for speakerphone use. The speaker can be used for playing back
messages or as a speakerphone.
LINE OUT
MIC IN
LINE
PHONE
MT5634ZPX-PCI
1. Plug one end of the supplied modular telephone cable into the LINE jack.
2. Plug the other end of the telephone cable into a working wall jack.
3. You may connect a telephone to the modem’s PHONE jack.
Note: The LINE jack is not interchangeable with the PHONE jack. Do not plug a
phone into the LINE jack or the line cable into the PHONE jack.
4. To use a microphone with your adapter, insert the microphone plug into the MIC IN
jack.
5. To use a speaker or headphone with the modem, insert the speaker or headphone
plug into the LINE OUT jack.

16 MT5634ZPX-PCI
User Guide
Sound Card Considerations
If you want speakerphone functions and the ability to record sound or .WAV files through
the sound card at the same time, you need:
•Two stereo PC microphones
•One stereo male-to-male patch cord
•One sound card and optional speakers
To connect a third party sound card:
1. Obtain a stereo male-to-male patch cord at a local PC retail store.
2. Place one end of the stereo male-to-male patch cord into the LINE OUT jack of the
MultiModemZPX-PCI and the other end into the LINE IN jack of the sound card. This
allows you to hear the activity of the modem whether it is originating or answering a
call, or playing a recorded message.
3. Place the stereo microphones (do not use mono microphones) far enough apart
from each other to eliminate feedback (e.g., one on each side of the monitor). Make
sure speakers are amplified with a power source (either a battery or electrical
source). Plug the connector of both microphones into the MIC IN jack of the Sound
Card and the MT5634ZPX-PCI.

Chapter 3 - Software Installation

User Guide
18 MT5634ZPX-PCI
Installing Drivers
Windows 95
After installing the MT5634ZPX-PCI in your computer, turn the computer power on and
allow Windows 95 to start up. As your computer boots, it automatically detects the
MultiModemZPX-PCI, and the New Hardware Found dialog box displays.
1. Insert the MultiModemZPX-PCI System CD into your computer’s CD-ROM drive and
click Next>. Windows begins searching for the driver.
2. Windows indicates it has found an updated driver for Multi-Tech System’s
MT56434ZPX-PCI. Click Finish to complete the modem driver installation.
3. The New Hardware Found Wizard displays, indicating it has found the Wave
Device for Voice Modem. Click Next> to allow Windows to search for the driver.
After installing the voice modem drivers, click Finish to complete the installation and
return to the Windows 95 desktop.
4. Once you’ve completed your hardware and driver installation, you must configure
your modem for country-specific operation. Refer to “Initial Setup & Country
Selection”on page 32 for configuration instructions.
5. After setting up your modem for country-specific operation, you’ll want to configure
your communications software or Windows Dial-Up Networking. Information about
configuring your communications software can be found in “Chapter 4 - Using Your
Modem”.

3 Software Installation
MT5634ZPX-PCI 19
Windows 98
After installing the MT5634ZPX-PCI modem in your computer, you are ready to turn the
computer power on and allow Windows 98 to start up. Windows 98 automatically
detects the MultiModemZPX-PCI modem, and the New Hardware Found message box
appears.
1. The Add New Hardware Wizard dialog box displays indicating the Wizard is
searching for new drivers for the PCI Communications device. Click Next> to begin
the installation.
2. The next Wizard dialog box requests a response to the question, “What do you
want Windows to do?”Select Search for the best driver for your device, and
click Next>.
3. The Add New Hardware Wizard indicates that “Windows will search for new drivers
in its driver database on your hard drive and in any of the following selected
locations”.
4. Insert the MT5634ZPX-PCI System CD into your computer’s CD-ROM drive and
select CD-ROM drive. Click Next>.
5. When prompted, choose to install the updated driver for Multi-Tech System’s
MT5634ZPX-PCI and click Next>.
6. The Insert Disk dialog box displays indicating the file
56ZPX.CAT cannot be found.
Click Skip File to continue the installation.
7. When prompted, click Finish to complete the modem driver installation.
8. The Add New Hardware Wizard dialog box displays indicating the Wizard will
search for new drivers for the Wave Device for the Voice Modem. Click Next>.
9. Select Search for the best driver for your device and click Next>.
10. Select CD-ROM drive and click Next>.
11. Windows indicates it has found the driver for the Voice Modem. Click Next> to
continue.
12. When prompted, click Finish to complete the installation and display the Windows
98 desktop.
13. Once you’ve completed your hardware and driver installation, you must configure
your modem for country-specific operation. Refer to “Initial Setup & Country
Selection”on page 32 for configuration instructions.
14. After setting up your modem for country-specific operation, you’ll want to configure
your communications software or Windows Dial-Up Networking. Information about
configuring your communications software can be found in “Chapter 4 - Using Your
Modem”.

User Guide
20 MT5634ZPX-PCI
Changing your Windows 95/98 COM port assignment
Unlike an external modem, the MT5634ZPX-PCI contains its own serial port. When
Windows detects the MultiModem adapter, it assigns the next available COM port to it.
Since COM1 through COM4 are standard serial ports in Windows computers,
Windows 95/98 typically assigns COM5 to the modem’s serial port.
If Windows assigns the modem to a COM port higher than 4, then certain legacy software
applications will not recognize the modem. To correct this situation, Multi-Tech Systems
provides two additional driver files on the System CD which may be used to reassign the
modem to either COM3 or COM4. To reassign the COM port:
1. Insert the MT5634ZPX-PCI System CD into your computer’s CD-ROM drive.
2. Click Start | Settings | Control Panel. Double click the System icon.
3. Select the Device Manager tab and double-click the Modem icon.
4. Select the MT5634ZPX-PCI and double-click to bring up the Properties sheet.
5. Select the Driver tab. Click the Update Driver button and follow the Update Device
Driver Wizard prompts. The Wizard requests you to specify the path of the new
driver. If you’d like to reassign your modem to COM3, type
D:\COM-3\pcicom3.inf (where D: is the drive letter associated with your computer’s
CD-ROM drive). If you want to reassign your modem to COM4, type
D:\COM-4\pcicom4.inf and continue with the Wizard instructions.
6. When the Wizard completes its installation, your modem should be reassigned to the
new COM port.
Verifying the Windows 95/98 Configuration
Windows also assigns the interrupt request (IRQ) number. Because the number of
IRQs is limited, a computer with several accessories may not have an available IRQ
for your new modem. In that case, you may have to decide which of your other
accessories you can modify or do without.
Be aware that resource settings should be changed only by users with expert knowledge
of computer hardware and hardware configurations.
Note: Changing resource settings improperly can disable your hardware and can
cause your computer to malfunction or be inoperable.
Use the following procedure to check the assignments Windows has made for your
modem:
1. Click Start | Settings | Control Panel. Double-click the System icon.
2. When the System Properties dialog box displays, click the Device Manager tab. A
list of device types appears.
3. Double-click Modem to display a list of modems installed in your computer.
4. Double-click Multi-Tech MT5634ZPX-PCI. The Modem Properties dialog box
displays.
5. Click the Resources tab and note the Conflicting Device list. If there is a conflict
between your modem and another device in your computer, the information appears
here. For help in resolving a conflict, click Start | Help, and then search the Help
