North Star 1572214 User manual

M1572214A
Owner's Manual
Instructions for Assembly, Testing, Operation, Servicing, and Storage
Soft wash system with bleach pump: For connecting to external tank for outdoor
use with bleach soft wash solutions**
WARNING
READ and UNDERSTAND this Owner's Manual completely before using this sprayer.
Assemble, test, and use only in accordance with this Owner's Manual instructions.
EXERCISE CAUTION when mixing chemicals as incorrect ratios or mixtures could release
harmful gases.
READ and FOLLOW chemical label instructions.
KNOW emergency procedures BEFORE handling chemicals. Sprayer leaks, bodily chemical
contact, poisoning, and spills require immediate response.
AVOID inhaling, ingesting, or coming into contact with any chemicals.
WEAR personal protective gear when filling, using, cleaning, and servicing the sprayer.
KEEP sprayer and spray materials away from children and pets. Some chemicals are especially
toxic to them.
DO NOT TURN ON POWER to sprayer until ready to spray in order to avoid unintentional
spray release.
SOAK vegetation in the area surrounding the work zone well prior to and after spraying bleach.
Bleach can kill vegetation if not rinsed thoroughly.
ALWAYS keep a fire extinguisher rated “ABC” nearby.
Improper use of the sprayer or handling of chemicals could result in serious injury or illness
to the operator or nearby persons/animals or could cause damage to the environment.
**This sprayer is recommended for use in spraying bleach concentrations of 3% or less. The sprayer will be damaged, and
warranty voided if used to apply any petroleum-based product (gasoline, diesel, kerosene, or oil). The sprayer should not be used
to transfer any product intended for human consumption. WE RECOMMEND THAT THE SPRAYER NOT BE USED FOR
OTHER PURPOSES ONCE IT HAS BEEN USED FOR SPRAYING BLEACH. Any chemical will leave some residual in the tank
liner or sprayer components, even after the sprayer has been properly cleaned. These residual chemicals can have unexpected
effects on future uses. This sprayer should not be used by people with reduced physical, sensory or mental capabilities or lack of
experience and knowledge.
Any Questions, Comments, Problems, or Parts Orders
Call NorthStar Product Support at 1-800-270-0810
ITEM NUMBER: 1572214
SERIAL NUMBER: _____________

Hazard Signal Word Definitions
2

Table of Contents
3
Intended Use .............................................................................................................................................. 4
Summary of Important Safety Information..........................................................................................5-6
During Assembly
During Operation
•General Chemical Safety
•Chemical Application Safety
•Chemical Accident Procedures
Warning Label Locations...........................................................................................................................7

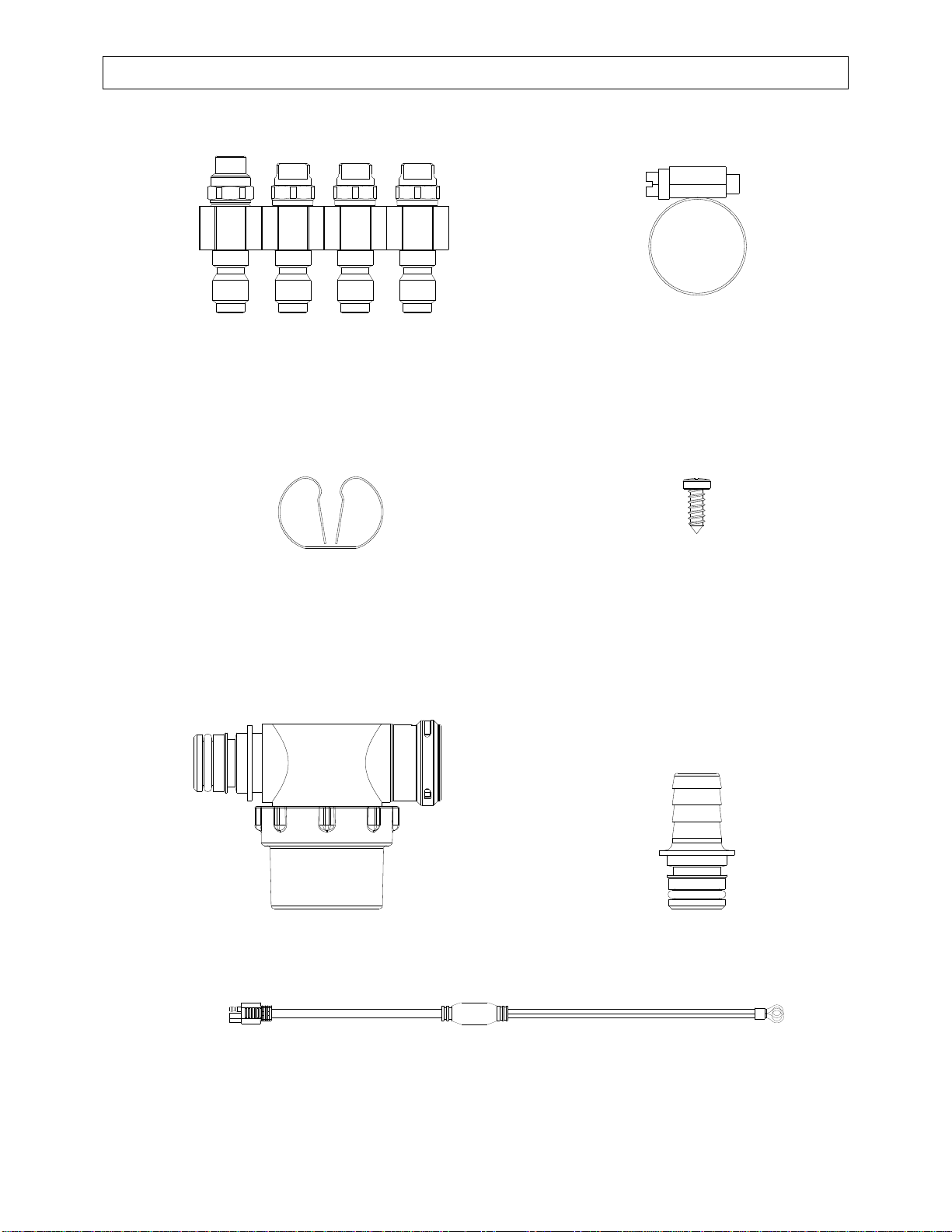

Component Inventory

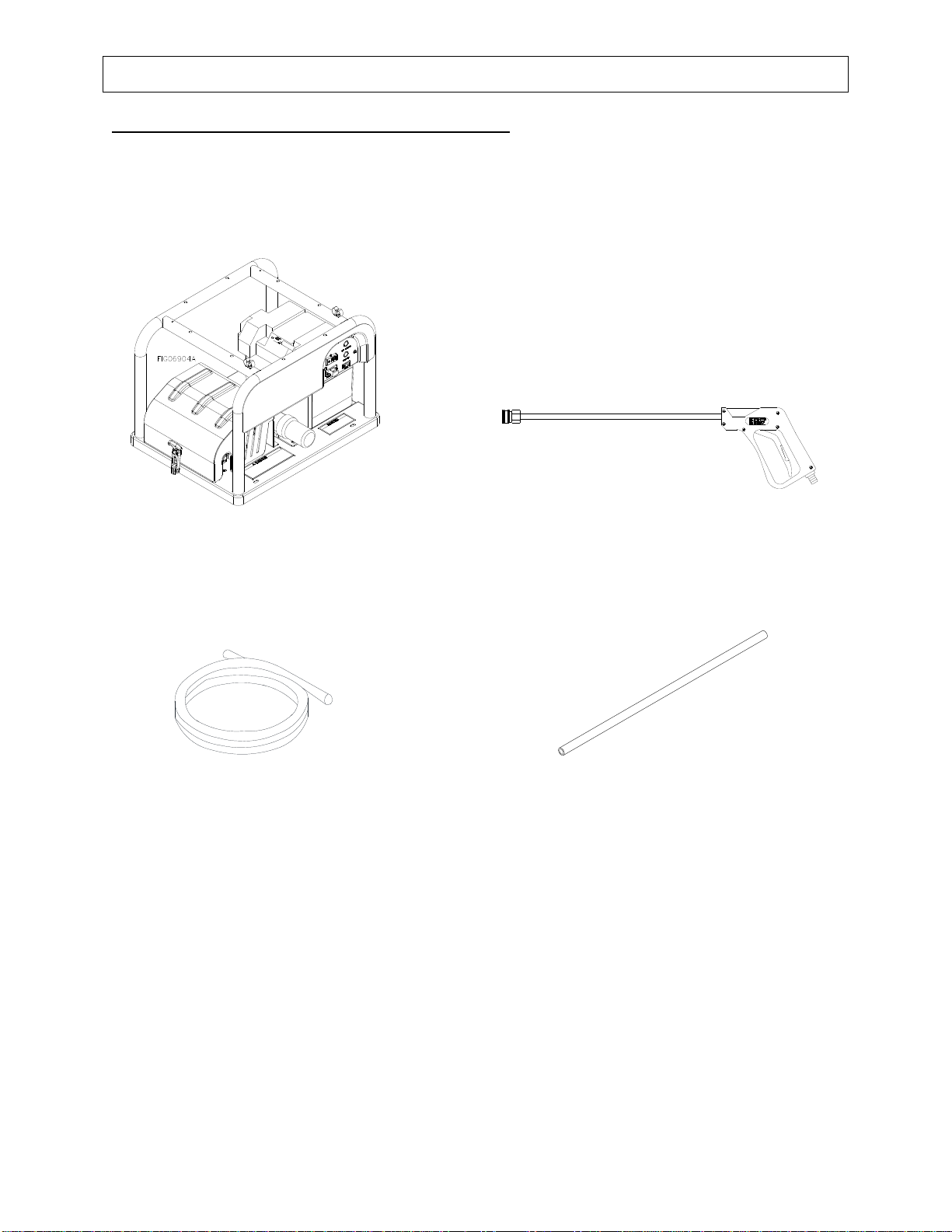

Unpacking................................................................................................................................................8
Unpacking the Manual Bag .....................................................................................................................9

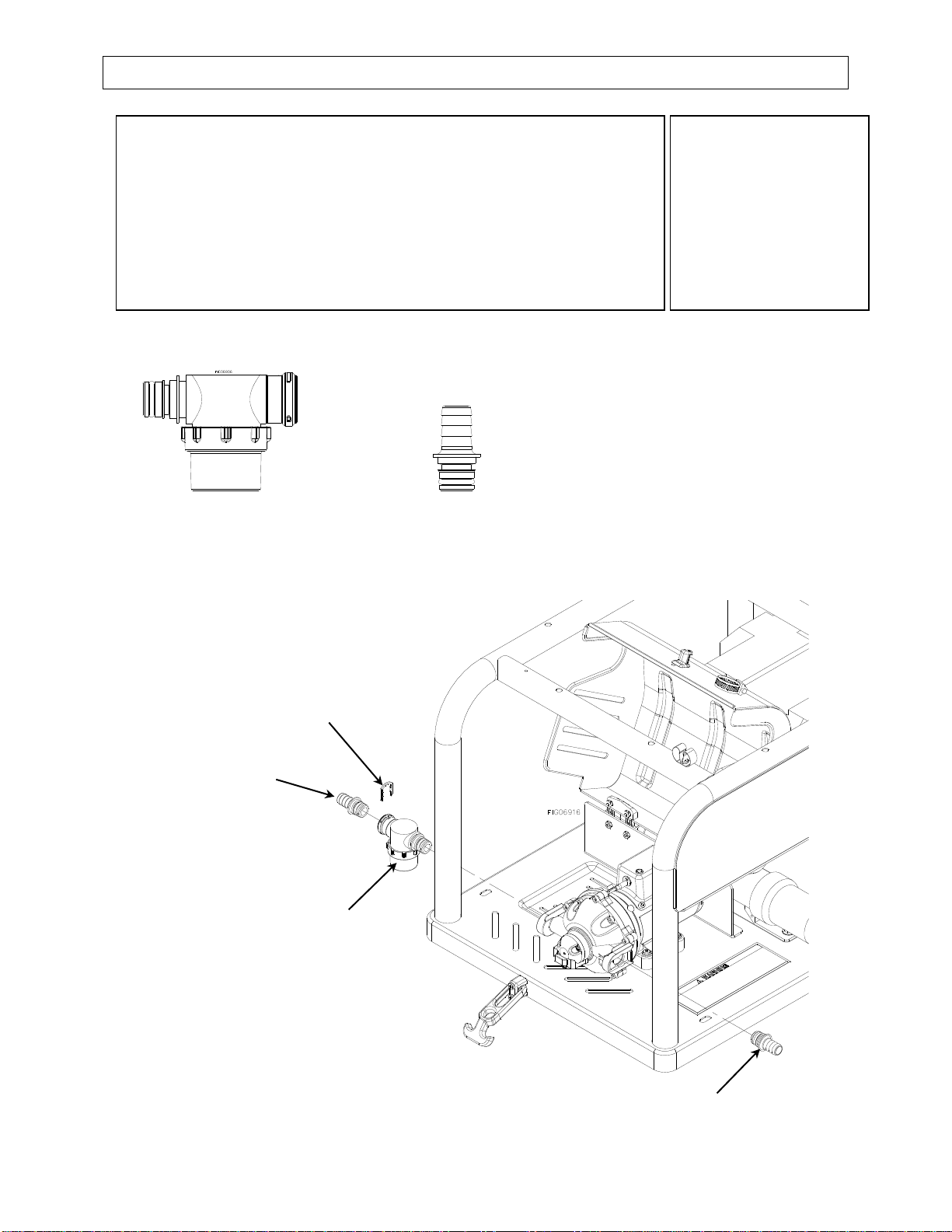

Assembly...............................................................................................................................................10-14
Machine Features......................................................................................................................................15
Operation
Important Safety Information - Operation ..................................................................................16-19
•General Chemical Safety
•Chemical Application Safety
•Chemical Accident Procedures
Preparing the Sprayer for Each Use..................................................................................................20
Using the Sprayer
Step One: Assess wind conditions and clear work area ...................................................................21
Step Two: Mixing chemicals............................................................................................................22
Step Three: Operate the sprayer ..................................................................................................23-25
Step Four: Clean sprayer and decontaminate after use.....................................................................26
Step Five: Connect to battery charger ..............................................................................................27
Storage .......................................................................................................................................................28
Preparing for storage
Removing from storage
Troubleshooting ........................................................................................................................................29
Maintenance ..............................................................................................................................................30
Specifications.............................................................................................................................................31
Exploded View and Parts Breakdown ...............................................................................................32-33
Pump Exploded View ...............................................................................................................................34
Limited Warranty..................................................................................................................................... 35

Intended Use
4
This soft wash system is intended for use in spraying bleach concentrations of 3% or less.
SPRAYING CHEMICALS:
Hazardous chemicals must be handled with caution as directed throughout this manual and on
the chemical label.
The sprayer is intended for use in spraying chemicals in liquid form only. The sprayer is NOT
intended for use in spraying chemicals in dry or aerosolized form, or for use with fumigants.
Always flush the sprayer after each use to clean the chemical out of the pump, hoses, and spray
gun. The life of the sprayer will be shortened if it is not flushed after each use.
WE RECOMMEND THAT THE SPRAYER NOT BE USED FOR OTHER PURPOSES.
Any chemical will leave some residual in the tank liner or sprayer components, even after the
sprayer has been properly cleaned. These residual chemicals can have unexpected effects on
future uses.
NOTE: The sprayer will be damaged, and warranty voided, if used to apply any petroleum-
based product (gasoline, diesel, kerosene, or oil).
NOTICE: Not for use on painted wood surfaces. Use only on hard, non-porous surfaces.
Contact NorthStar Product Support at 1-800-270-0810 for any questions
about the appropriate use of the sprayer and/or optional accessories.

Summary of Important Safety Information
5
WARNING
Read and understand this owner's manual completely before using the sprayer.
Read each chemical label's instructions before handling the chemical.
Improper use of the sprayer or handling of chemicals could result in serious injury
or illness for the operator or nearby persons/animals, or cause damage to the
environment.
LISTED BELOW is a summary of safety information of particular importance. See
individual sections of this owner's manual for more details.
-------------------------------------- DURING ASSEMBLY -------------------------------
•EXERCISE CAUTION when attaching wire harness to battery terminals. Follow the steps listed in the
Assembly section of this manual in exact sequence when connecting the sprayer's wire harness to the battery
terminals. Caution must be exercised to avoid contact with battery acid and to prevent sparking.
•CHECK and TEST completed assembly as directed in this manual. Serious injury could result from chemical
leaks if sprayer is improperly assembled.
•DO NOT MODIFY sprayer's design.
------------------------------------- DURING OPERATION ------------------------------
General Chemical Safety
•READ and FOLLOW all chemical label instructions and warnings.
•AVOID inhaling, ingesting, or coming into contact with any chemicals.
•KNOW applicable licensing and regulatory requirements for the chemical you plan to use.
•KNOW emergency procedures before handling chemicals. Carefully review Chemical Accident Procedures
listed below and later in this manual. Also see First Aid instructions on the chemical label.
•WEAR protective clothing, eye protection, and chemical resistant gloves when filling, using and cleaning
the sprayer. Wear additional protective gear, such as facemask or apron, as recommended on the chemical label.
•EXERCISE EXTRA CAUTION around children and pets. Some chemicals are especially toxic to them.
Keep sprayer and spray materials away from them at all times.
•DO NOT MIX OR POUR chemicals in an enclosed, unventilated area.
•DO NOT USE flammable chemicals in the sprayer.
•STORE chemicals in a correctly labeled container and in a secure location.
•MONITOR the health of operators frequently exposed to chemicals, as recommended by the chemical label
or local/federal regulations.
Chemical Application Safety
Before Spraying
•INSPECT and PREPARE sprayer before each use as directed in this manual.
•DO NOT TURN ON POWER to sprayer until ready to spray in order to avoid unintentional spray release.
•DO NOT SPRAY when wind speed exceeds 5 MPH in order to minimize spray drift.
•CLEAR work area of people/ pets and POST warning notices to restrict access for the period recommended
on chemical label.
•SOAK vegetation in the area surrounding the work zone prior to spraying bleach. Bleach can kill vegetation if
not soaked thoroughly.
•KEEP sprayer and spray materials away from children/pets. Some chemicals can be especially toxic to
children and animals.
•DO NOT ALLOW anyone younger than 16 to operate sprayer since some chemicals are especially toxic to
children.
During Spraying
•DO NOT OVERAPPLY chemicals. Apply at rate recommended by chemical manufacturer. Excess chemicals
can be dangerous to humans and animals, damage desirable plants, and contaminate soil and water sources.
•DO NOT EAT, DRINK, SMOKE, RUB YOUR EYES, or TOUCH YOUR BARE SKIN while handling
chemicals and spraying.
•NEVER POINT THE SPRAY GUN at people or animals.
•EXERCISE EXTRA CAUTION when spraying near areas accessible to children and pets.
