North Star A1573001 User manual

Owner’s Manual
Pressure Washer Pump: For high pressure cleaning
machines
Pump is shipped with oil.
Must check oil level before use.
- Remove shipping tape and black vent plug (if present) from oil fill cap
(Models A1573021,A1573011, A1573001, A157306).
- Remove shipping plug and install red vented fill cap. (Model 1575581).
- See pump oil cap section of this manual.
Closely inspect all components.
-If you have damaged components: Contact the freight company that
delivered the unit and file a claim.
-If you have missing components: Contact Customer Service at
1-800-270-0810.
Read this manual.
Serious injury or death can result if safety instructions are not followed.
WARNING
Any Questions, Comments, Problems or Parts Orders
Call NorthStar Product Support 1-800-270-0810
MA1573001K.1
Item Numbers: A1573001, A1573011,
A1573021, A157306,
A1575581, A1571101
A1571104

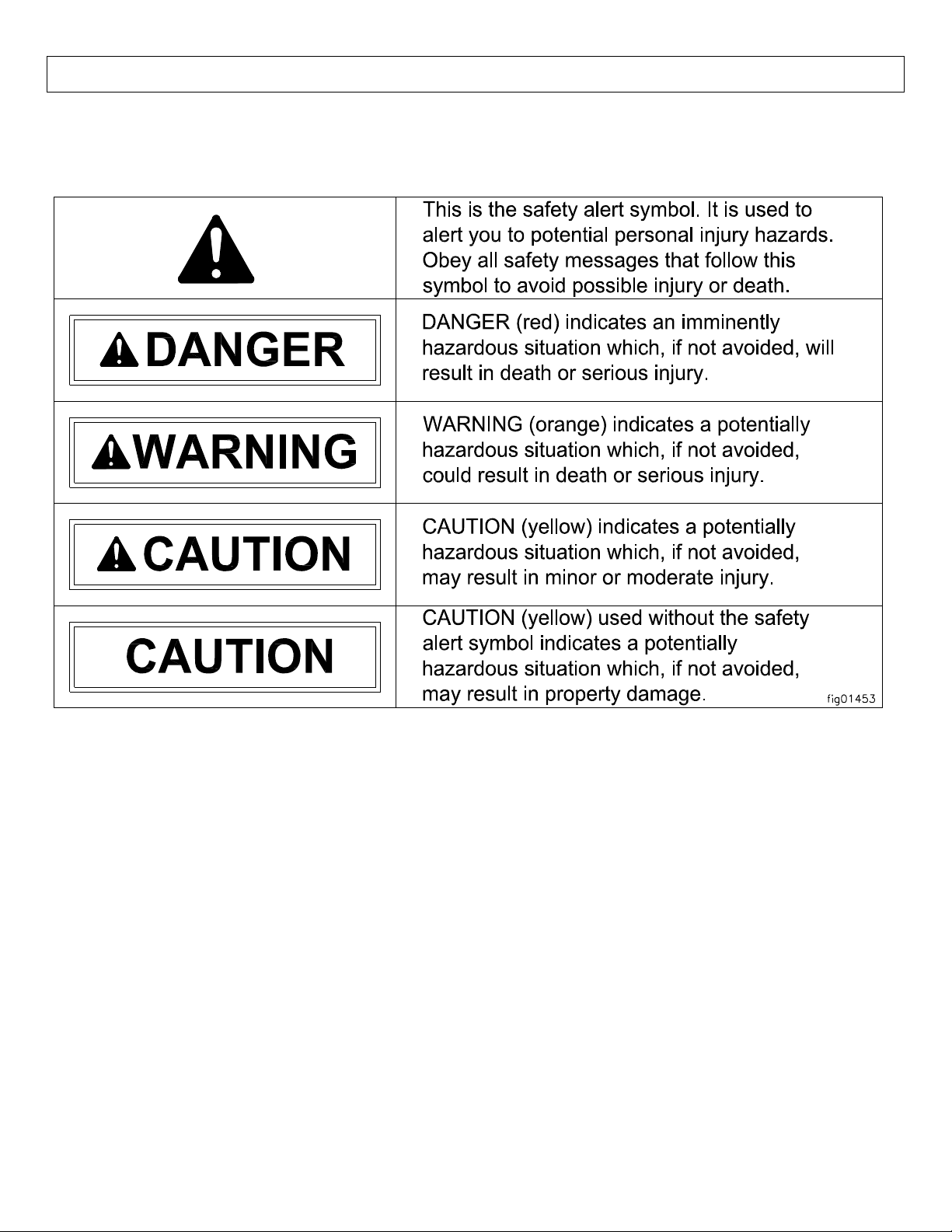

Hazard Signal Word Definitions
2

Table of Contents
3
Important Safety Instructions………………………..……...
4
Grounding Instructions……………………………………...
5
Pump Component Identification…………………………….
6
Operation Instructions………………………………..……..
7-8
Water Supply………………………………………..…
7
Start-Up/Shut-Down Instructions……………………...
7
Applying Chemicals…………………………………...
8
Maintenance and Storage……………………………………
9-11
Maintenance Mode and Maintenance Schedule……….
9
Pump Oil Change………………………………………
10
Winter Storage…………………………………………
11
Troubleshooting……………………………………………..
12
Specifications………………………………………………..
13

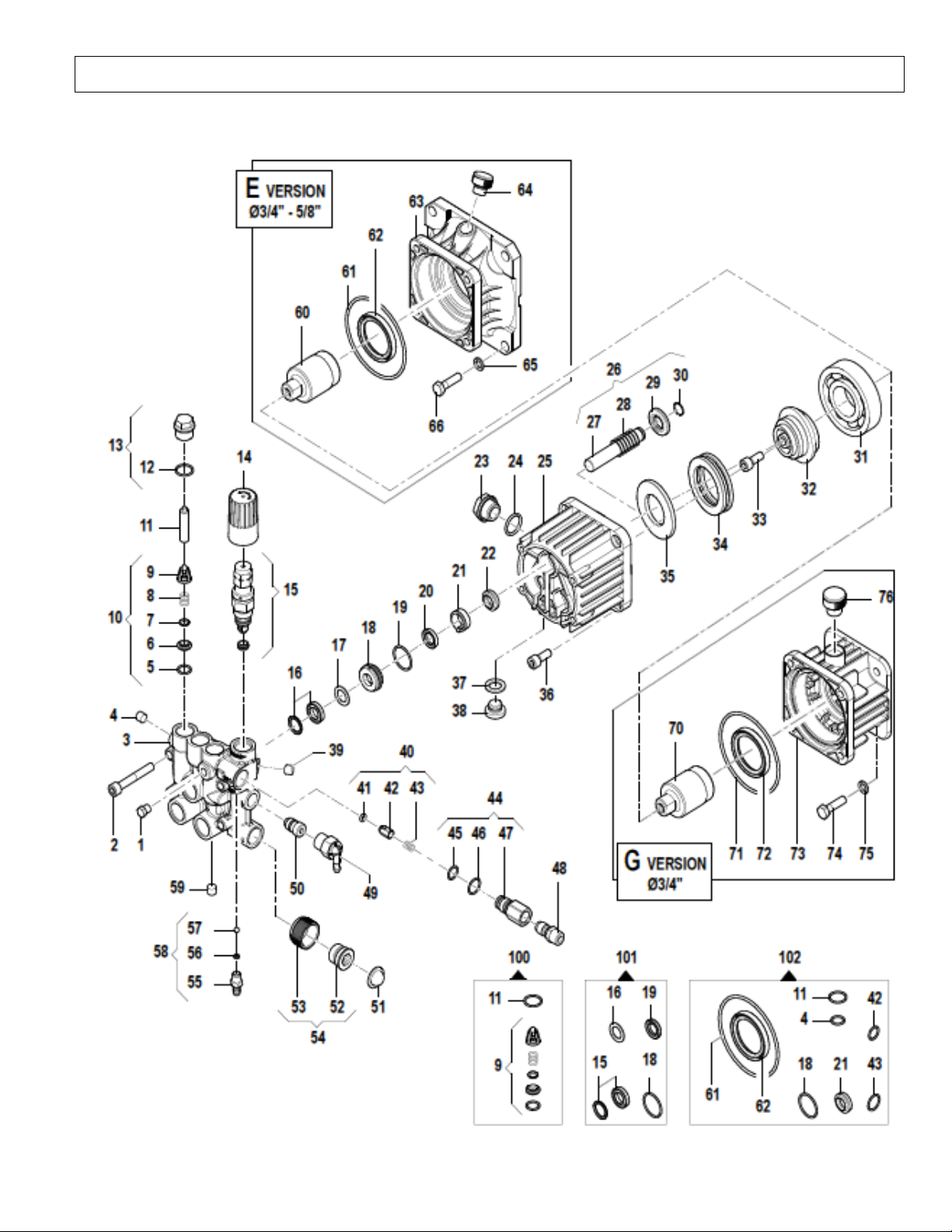

Parts Exploded View……………………………………….
14-15
Pump Exploded Views……………………………………...
Limited Warranty…………………………………………...
16-29
30

Important Safety Instructions
4
WARNING - Risk of Injection or Injury to Persons - Do Not Direct Discharge Stream at Persons. -
Do not use a hose if exterior damage is evident.
- Risk of explosion. - Do not spray flammable liquids. - Do not operate in a flammable
environment.
CAUTION - Gun kicks back. Hold with both hands.
- To reduce the risk of injury, read operating instructions carefully before use.
WARNING - When using this product basic precautions should always be followed, including the following:
1.) Read all the instructions before using the product.
2.) To reduce the risk of injury, close supervision is necessary when the product is used near children. Do
not allow irresponsible use by children. Always stop the product and bleed pressures before leaving
unattended, disconnecting hoses or servicing the pump.
3.) Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
4.) Stay alert - watch what you are doing.
5.) Do not operate the product when fatigued or under the influence of alcohol or drugs.
6.) Keep operating area clear of all persons.
7.) Do not overreach or stand on unstable support. Keep good footing and balance at all times. Wear
footwear capable of maintaining a good grip on wet surfaces - Do not place the machine on soft or
unstable ground.
8.) Follow the maintenance instructions specified in all manuals. Do not run machine without sufficient
lubrication or sufficient water to cool the pump.
9.) Wear safety glasses, gloves, face protection and appropriate clothing when operating the machine.
10.) Do not operate this machine with broken or missing parts. - Never alter the manufacturer’s original
design or deactivate any safety device on the machine.
11.) Risk of exposure to dangerous chemicals. Wear protective gloves when handling and cleaning with
chemicals. Follow the chemical manufacturer’s directions. Understand all safety hazards and first aid
for all chemicals being used. Check whether dangerous chemicals have been used and take any
precautions that may have been recommended by the supplier of these chemicals when cleaning filters.
Do not pump highly abrasive fluids or use with incompatible chemicals or solvents.
12.) Know the pressure and temperature limits of your machine. Be sure all high-pressure accessories meet
or exceed your machine’s limits. Do not set the pressure relief valve above the machine’s limit.
13.) Do not move this machine by pulling on the hose. Do not use the pump to support other items of
equipment that impose unacceptable loads on the pump. Do not attempt to use this machine as a prop.
14.) To reduce risk of injury, do not secure the spray gun open. Your spray gun is equipped with a built-in
trigger safety latch to guard against accidental trigger release and potentially dangerous high-pressure
spray. Rotate the safety latch to the locked position when not spraying.
15.) Do not clean this machine with its own spray. Cleaning should be done with a damp sponge with the
motor OFF.
16.) Always make sure all switches and controls are in the OFF position prior to plugging in the electrical
cord. Do no stand in water while plugging and unplugging electrical cord.
17.) This product is provided with a ground fault circuit interrupter built into the power cord plug. If
replacement of the plug or cord is needed, use only identical replacement parts.
18.) Keep a fire extinguisher rated “ABC” nearby.
SAVE THESE INSTRUCTIONS

Grounding Instructions
5
Your product must be grounded. If your product should malfunction or breakdown, grounding provides a path
of least resistance for electric current to reduce the risk of electrical shock. Your product should be equipped
with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
DANGER - Improper connection of the equipment - grounding conductor can result in a risk of
electrocution. Check with a qualified electrician or service personnel if you are in doubt as to whether the outlet
is properly grounded. Do not modify the plug on your product - if it will not fit the outlet; have a proper outlet
installed by a qualified electrician. Do not use any type adapter with this product.
GROUND FAULT CIRCUIT INTERRUPTER PROTECTION
Your electric pressure washer should have a ground fault circuit interrupter (GFCI) built into the plug of the
power supply cord. This device provides additional protection from the risk of electric shock. Should
replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI
protection. If your power supply cord does not include a built in (GFCI) ensure the receptacle is protected by a
(GFCI).
Extension Cords
Use only 3-wire extension cords that have 3 prong grounding-type plugs and 3-pole cord connectors that accept
the plug from the product. Use only extension cords that are intended for outdoor use. These extension cords are
identified by a marking “Acceptable for use with outdoor appliances; store indoors while not in use.” Use only
extension cords having an electrical rating not less than the rating of the product. Do not abuse extension cord
and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the
extension cord from the receptacle before disconnecting the product from the extension cord.
WARNING - To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch
plug with wet hands.
SAVE THESE INSTRUCTIONS

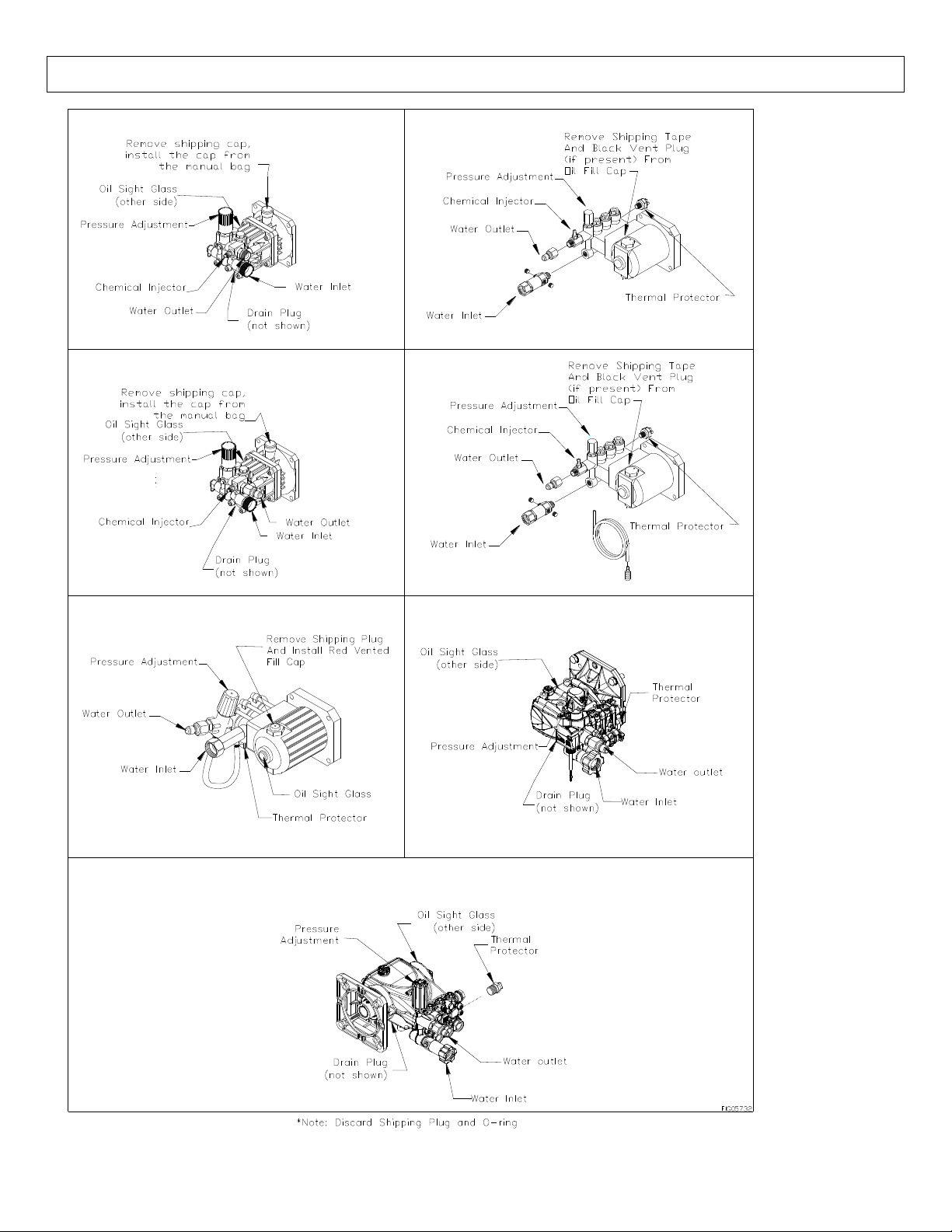

Pump Component Identification
6
A1573021
A1575581
A1573001 A1573011
A1571101
A157306
A1571104

Operation Instructions
7
Water Supply
1.) Make sure the water supply is clean. Debris can cause excess pump wear and reduce performance.
2.) An insufficient water supply will damage your pump. Make sure the water supply is steady and is 20%
over the rated flow of your pump. Use a stopwatch to time how long it takes to fill a 5-gallon bucket with
your garden hose. The bucket must fill faster than the times listed in the table below.
Model
Time to fill a 5 gal. bucket
A1573001
167 seconds
A1573011
167 seconds
A1573021
100 seconds
A157306
100 seconds
A1575581
125 seconds
A1571101
160 seconds
A1571104
60 seconds
3.) The water supply garden hose must have an inside diameter of at least 5/8”. If the hose is more than 100 ft.
long, the diameter must be at least 3/4”.
4.) Never use a reservoir tank as a water source. Drawing water out of a tank may cause pump cavitation and
damage to your pump. This pressure washer is designed for a pressurized water source such as a city water
faucet. However, the water source pressure must not exceed 115 psi (8 bar).
Always use a flexible rubber hose for your water supply. Do not use rigid piping.
SHUT-DOWN INSTRUCTIONS
1. Turn motor OFF.
2. Unplug the power cord.
3. Turn water supply OFF.
4. Squeeze trigger to
relieve system pressure.
5. Remove garden hose.
6. Remove pressure hose.
START-UP INSTRUCTIONS
1. Attach garden hose.
2. Attach pressure hose.
3. Attach gun and lance.
4. Turn water supply ON.
5. Squeeze trigger to
purge air from pump.
6. Insert nozzle.
7. Plug in power cord
8. Reset the GFCI button on the cord
9. Start motor.
Skin puncture hazard.
High pressure fluid can inject under skin resulting in serious injury including
amputation. Do not direct spray at people or animals.
-If skin injection happens, seek IMMEDIATE surgical treatment.
-Do not check for leaks with hand. Instead, use a piece of cardboard to check for
leaks.
-Do not use unit if exterior hose damage is evident. Make sure all fittings are tight
before starting. Relieve system pressure before servicing.
-Know how to stop engine and bleed pressures quickly. Be thoroughly familiar with
the controls.
-Make sure accessories meet the unit's temperature and pressure limits.
-Stop engine and bleed pressures before leaving unit unattended.
WARNING
CONNECTING TO MOTOR
See Specifications section for
motor horsepower, shaft size, and
bolt circle information.

Operation Instructions
8
Applying Chemicals
1.) Install the black nozzle when applying chemicals onto the cleaning surface.
2.) Start the pressure washer according to the start-up instructions.
3.) Submerge the chemical hose in cleaning solution. (See Pump Component Identification section for chemical
injector location.)
4.) Squeeze the spray gun trigger. The chemical injector will draw the chemical into the water stream.
5.) Apply chemicals evenly onto the cleaning surface. Allow the chemicals to react with the dirt, then clean at
high pressure with high pressure (green or yellow) nozzle.
6.) Never use more chemical than is necessary to clean the surface.
7.) To clean the chemical injector, draw water through the strainer until all the chemical is purged from the
system.
Risk of exposure to dangerous chemicals.
Serious injury or death can result if chemical manufacturer instructions are not
followed.
-Wear protective gloves when handling and cleaning with chemicals.
-Understand all safety hazards and first aid for all chemicals being used.
-When cleaning filters, check if chemicals have been used and take any
precautions that are recommended by the chemical manufacturer.
-Different chemicals may interact dangerously with each other, always follow
chemical manufacturer directions before switching chemicals.
-Calculate the correct amount of chemical to mix, dispose of excess chemical
per the manufacturer instructions.
-Never spray flammable liquids.
WARNING
strainer
diluted
chemical
pump inlet
pump outlet
pump

Maintenance and Storage
9
Maintenance Mode
Before performing any maintenance on the pressure washer, it must be placed in maintenance mode.
1.) Turn off motor and unplug cord.
2.) Turn off water supply.
3.) Squeeze trigger to relieve system pressure.
Maintenance Schedule
What to Check
When to Check
What to Do
Inlet Filter
Each Use
Visually inspect and clean inlet filter with clear water.
Pressure Hose
Each Use
Visually inspect pressure hose and hose couplings. Replace hose if
any of the following is evident:
hose coupling is damaged, wire mesh is exposed or damaged, hose
is permanently kinked or flattened, outer hose cover is blistered or
loose.
Bolts
Each Use
Tighten any loose bolts.
Pump Oil
After 1st 50hrs,
then 3mo/500hr
Change pump oil. See pump oil change instructions on next page.

Maintenance and Storage
10
Pump Oil Change
1.) Place a suitable container below the pump to catch the used oil, then remove the oil fill cap and oil drain
plug.
2.) Allow the used oil to drain completely, then reinstall the drain plug and tighten securely.
3.) Please dispose of used oil in a manner that is compatible with the environment. We suggest you take used
oil in a sealed container to your local recycling center or service station for reclamation. Do not throw it in
the trash; pour it on the ground or down the drain.
4.) With the pump in a level position, fill to the halfway point on the oil sight glass (see pump oil capacities
below). For Comet pumps use Universal Tractor Transmission Oil or Mobil 1 15W50 synthetic oil. For Cat
pumps use SAE30 non-detergent oil or Cat Pump Oil Item# 22158.
sight glass
drain plug
fill cap
A1573021
fill cap
A1573001
Oil capacity: 5.7oz. (.17L)
Oil capacity: 8.5 oz. (.25L) Oil capacity: 8.5 oz. (.25L)
drain plug
sight glass
fill cap
A1573011
drain plug sight glass drain plug
Oil capacity: 5.7oz. (.17L)
A157306
sight glass
fill cap
Oil capacity: 11.83 oz. (.35L)
drain plug
sight glass
A1575581
fill cap
fill cap
sight glass
drain plug
Oil capacity: 4.7 oz. (.13 L)
A1571101
A1571104
fill cap
drain Plug Sight Glass
Oil capacity: 15 oz. (.44 L)

Maintenance and Storage
11
Winter Storage
Protect your pump, hose and gun from freezing.
Items needed: 12” piece of garden hose or equivalent, funnel and RV antifreeze (approximately 6 oz.)
1.) Follow the storage instructions listed above.
2.) Make sure the motor start switch is OFF.
3.) Attach the garden hose with funnel to the pump inlet (see illustration).
4.) Pour RV antifreeze into the funnel, run motor until antifreeze comes out the pump outlet.
5.) Drain all water from the high-pressure hose. Depress trigger on gun and drain all water out of gun/lance.
RV Antifreeze
Funnel
Hose
Water Inlet

Troubleshooting
12
Problem
Solution
Motor will not start
SOLUTION: A,B
Low/Surging pressure or no water flow
SOLUTION: C,D,E,F,G,H
No chemical injection
SOLUTION: I,J,K,L
Cause
Solution
A- Tripped GFCI cord
Reset GFCI cord
B- Tripped motor relay
Reset motor
C- Insufficient water supply
See water supply section of this manual
D- Plugged pump inlet filter
See maintenance section of this manual
E- Wrong nozzle
Make sure high-pressure nozzle is being used
F- Plugged nozzle
Remove nozzle, check for blockage
G- Worn nozzle
Replace nozzle
H- Leak in pressure hose
Replace pressure hose
I- Wrong nozzle
Make sure chemical nozzle is being used
J- Back pressure from extra long discharge hose
Try shorter hose
K- Leak in chemical siphon hose
Replace hose –use hose clamps if necessary
L- Chemical strainer not submerged
Make sure strainer is completely submerged
The manufacturer reserves the right to make improvements in design
and/or changes in specifications at any time without incurring any
obligation to install them on units previously sold.
Any Questions, Comments, Problems or Parts Orders
Call NorthStar Product Support 1-800-270-0810

Specifications
13
A1573001
A1573011
PSI (bar)
1700 (117)
PSI (bar)
2000 (138)
GPM (l/min)
1.5 (5.7)
GPM (l/min)
1.5 (5.7)
Max Water Temp
140F (60C)
Max Water Temp
140F (60C)
Horsepower Required
1.5HP Electric Motor
Horsepower Required
2HP Electric Motor
Shaft Size
5/8” keyed
Shaft Size
5/8” keyed
Motor Mounting
Dimensions
C Face
5 –7/8” Bolt Circle
Motor Mounting
Dimensions
C Face
5 –7/8” Bolt Circle
Outlet Connection
22mm
Outlet Connection
3/8 QC
Nozzle Size
#2.0
Nozzle Size
#2.0
Weight
12 lbs (5.4kg)
Weight
13 lbs (5.9kg)
A1573021
A1575581
PSI (bar)
2750 (190)
PSI (bar)
1500 (103)
GPM (l/min)
2.5 (9.4)
GPM (l/min)
2.0 (7.5)
Max Water Temp
140F (60C)
Max Water Temp
140F (60C)
Horsepower Required
5HP Electric Motor
Horsepower Required
2HP Electric Motor
Shaft Size
3/4” keyed
Shaft Size
5/8” keyed
Motor Mounting
Dimensions
C Face
5 –7/8” Bolt Circle
Motor Mounting
Dimensions
C Face
5 –7/8” Bolt Circle
Outlet Connection
3/8 QC
Outlet Connection
3/8 QC
Nozzle Size
#3.0
Nozzle Size
#3.0
Weight
14 lbs (6.4kg)
Weight
16 lbs (7.3kg)
A157306
A1571101
PSI (bar)
2700 (186)
PSI (bar)
1700 (117)
GPM (l/min)
2.5 (9.4)
GPM (l/min)
1.5 (5.7)
Max Water Temp
140F (60C)
Max Water Temp
165F (74C)
Horsepower Required
5HP Electric Motor
Horsepower Required
1.5HP Electric Motor
Shaft Size
3/4” keyed
Shaft Size
5/8” keyed
Motor Mounting
Dimensions
C Face
5 –7/8” Bolt Circle
Motor Mounting
Dimensions
C Face
5 –7/8” Bolt Circle
Outlet Connection
3/8 QC
Outlet Connection
3/8 QC
Nozzle Size
#3.0
Nozzle Size
#2.0
Weight
12 lbs (5.4kg)
Weight
9.7 lbs. (4.4kg)
A1571104
A1571104 Cont’d
PSI (bar)
2500 (172)
Motor Mounting
Dimensions
C Face
7 –1/4” Bolt Circle
GPM (l/min)
4.0 (15.1)
Outlet Connection
3/8 QC
Max Water Temp
165F (74C)
Nozzle Size
#5.5
Horsepower Required
6.2HP Electric Motor
Weight
17.4 lbs. (7.9 kg)
Shaft Size
9/8” keyed

Parts Exploded View
14

Parts Exploded View
15
Item
Part#
Description
Qty
Model
1
790693
Comet AXD 1617E GH
1
A1573001
792420
Cat 4DX
A1573011
789205
Cat 4DNX
A1573021
790550
Comet AXD2527GE-NH
A157306
35149
Cat 2SFX
A1575581
802765
GP EVO-0
A1571101
802760
GP NEP1812E17UL
A1571104
2
777913
3/8” QC male nipple
1
A157306
3
777165
1/4” Braided Hose
36”
A1573001, 3011, 3021, 306,
A1571101
4
221222
Chemical Strainer
1
A1573001, 3011, 3021, 306,
A1571101
5
777915
3/8” QC Female Nipple
1
A1573011, 3021, 5581,
A1571104
6
35918
Thermal Protector
1
A1573011, 3021, 5581,
A1571101
777836
A1571104
12
800985
3/8” Inlet Filter Fitting
1
A1573011, 3021
30484
A1575581
803134
A1571101
800986
1/2” Inlet Filter Fitting
A1571104
13
777119
1/2” Hose Clamp
2
A1575581
14
777839
3/8” Connection Fitting
1
A1575581
15
2264
1/2” Low Pressure Hose
12”
A1575581
16
788711
Unloader
1
A1575581
17
777840
1/4” x 1/2” Hose Barb
1
A1575581
18
4027
Inlet Filter
1
A1575581
19
777837
3/8” Hex Plug
1
A1575581
20
777838
1/4” Hex Plug
2
A1573011, A1573021, A1571104
21
82141
3/16 Key, 1-1/2”
1
A157306, A1573001

Pump Exploded Views
16
A1573001

Pump Exploded Views
17
Ref #
Part #
Description
Qty
Ref #
Part #
Description
Qty
1
CO3202001800
CAP
1
39
CO3200001700
PORT PLUG, AXD COMET PUMP
1
2
CO3609001400
SCREW, M8 X 55
4
40
CO2409009100
PISTON CHECK VALVE KIT,AXD UNL
1
3
CO3218032700
MANIFOLD
1
41
CO1210046000
O-RING
1
4
CO3202001800
CAP
1
42
CO2409008600
CHECK VALVE
1
5
CO1210004900
O-RING,OIL PLUG - WOBBLE
PUMP
6
43
CO1802019700
SPRING
1
6
SEE PART # 10
VALVE SEAT
6
44
CO3410031900
INJECTOR BODY KIT
1
7
CO3604002800
SUCTION/DEL. VALVE
6
45
CO1210004900
O-RING,OIL PLUG - WOBBLE PUMP
1
8
CO1802019200
SPRING, AXD
6
46
CO1210004000
O-RING, AXD
1
9
CO1205003300
VALVE CAGE, AXD
6
47
CO3410031100
INJECTOR BODY
1
10
CO1220004500
VALVE - AXD PUMP
6
48
CO2803043700
OUTLET FITTING, QUICK CONN.-
WO
1
11
CO0601027300
AXD SPACER
2
49
CO1215035400
THERMOVALVE
1
12
CO1210015100
O-RING, AXD3020
6
51
CO8102045000
FILTER WASHER
1
13
CO3202031100
VALVE CAP & O-RING
6
52
CO1223010800
GARDEN HOSE NUT
1
14
CO1817006400
HANDLE
1
53
SEE PART # 54
SPECIAL COUPLING - NLA
1
15
CO1215058500
REG.VALVE KIT & SEAT
1
54
CO2800051100
GARDEN HOSE TAIL W/WING NUT
1
16
CO1241005900
PACKING - GXD1617
3
55
SEE PART # 58
CHEM. COUPLING
1
17
CO0009036900
RING
3
56
CO3003002400
BALL FOR CHEMICAL INJECTOR
1
18
CO0009021900
RING(RETAINER) - WOBBLE
PUMP
3
57
CO1802018000
SPRING FOR CHEMICAL INJECTOR
1
19
CO1210035600
O-RING,SEAL CONTAINER -
WOBBLE
3
58
CO2803043500
CHEMICAL INJECTOR KIT
1
20
CO1241005700
BACK PACKING
3
59
CO3200001700
PORT PLUG, AXD COMET PUMP
1
21
CO0601030800
OIL SEAL SPACER
3
60
CO0001044200
DRIVESHAFT
1
22
CO0019005800
SEALING RING(OIL) - WOBBLE
PLA
3
61
CO1210042900
O-RING FOR AXD
1
23
CO3201002700
OIL SIGHT GLASS
1
62
CO0019003400
SEALING RING - AXD PUMP
1
24
CO1210004800
O-RING, 2.62 X 20.24MM
1
63
NOT AVAILABLE
SUPPORT
1
25
NOT AVAILABLE
PUMP CRANKCASE
1
64
CO3200007100
OIL PLUG - WOBBLE PUMP
1
26
CO2409015600
PISTON KIT
3
65
CO2811000400
WASHER - 268197
4
27
CO2409008900
PISTON - AXD3020G
3
66
CO3607011900
SCREW - 268197
4
28
CO1802015300
SPRING, AXD
3
29
CO0009022100
RING FOR AXD
3
30
CO0009022000
14MM RING FOR AXD
3
31
CO0438007600
BALL BEARING - AXD
1
32
CO0001054800
ECCENTRIC SHAFT - AXD
1
33
CO3609000500
SCREW, M8 X 20 - AXD
1
34
CO0436001700
BEARING
1
100
CO5025001400
VALVE KIT - AXD3020G
1
35
CO2816008800
THRUST BEARING
1
101
CO5019007700
SEAL KIT - AXD3020G
1
36
CO3609002800
SCREW M8 X 22
4
102
CO5019007900
SEAL KIT, AXD
1

Pump Exploded Views
18
A1573011

Pump Exploded Views
19
Ref#
P/N
DESCRIPTION
QTY
Ref#
P/N
DESCRIPTION
QTY
5
Not Available
Screw
3
197
CA941516
Inlet Fitting Assembly
1
8
CA547153
Bearing Cover
1
255
CA30516
Bolt Mount Assembly
1
10
CA14041
O-Ring, Bearing Cover
1
401
CA32088
Handle Adjustable (Not Shown)
1
11
CA55337
Oil Seal
1
402
CA46570
Adjusting Cap
1
15
CA14488
Inner Ball Bearing
1
404
CA45070
Lock Nut
1
20
CA547048
Connecting Rod
3
408
CA33394
Pressure Spring
1
24
Not Available
Oil Plug Cap
1
410
CA549352
Spring Retainer
1
25
Not Available
Crankshaft
1
412
CA46251
Piston Stem
1
27
CA15710
Ball Bearing
1
414
CA28338
Back Up RIng
1
32
CA547961
Cap
1
415
CA22056
O-Ring, Piston Stem
1
33
CA14179
O-ring for Oil Filter Cap
1
418
Not Available
Piston Assy (Included in # 470)
1
37
CA92241
Gauge, Bubble Oil w/Gasket
1
423
CA46249
Retainer Valve
1
38
CA44428
Gasket, Flat Flex Oil Gauge
1
424
CA13966
O-Ring, Valve Retainer (Outer)
1
48
CA44842
Drain Plug
1
425
CA46248
Piston Retainer
1
49
CA14179
O-Ring for Drain Plug
1
426
CA46250
Washer
1
53
Not Available
Crankcase
1
428
CA26133
O-Ring
1
64
CA46229
Crosshead Pin
3
429
CA17399
O-Ring, Valve Retainer
1
65
CA132190
Plunger Rod
3
435
CA548193
Valve
1
70
CA47215
Oil Seal
3
436
CA46253
Seat
1
90
CA542403
Plunger
3
437
CA13963
O-Ring, Seat
1
98
CA46730
Washer
3
438
CA46254
Seat, Check Valve
1
99
CA542405
Retainer, Plunger
3
439
CA13963
O-Ring, Check Valve Seat
1
100
CA46233
Retainer, Seal
3
443
CA541060
Valve, Check
1
106
CA48222
Seal
3
444
CA45924
Spring
1
120
CA547357
Seal Case
3
446
CA26133
O-Ring
1
121
CA13976
O-Ring for Seal Case
3
460
CA107681
Discharge Fitting
1
125
CA46240
Seal
3
469
CA7231
Chemical Fixed Injector
1
160
CA13965
O-Ring, Inlet
3
470
CA76031
Unloader Repair Kit Inclds: 418, 428,
436, 437
1
161
CA545177
Seat, Inlet
3
471
CA76146
Check Valve Kit Inclds: 438, 439, 443,
444, 446
1
163
CA19285
O-Ring
3
472
CA46630
Barb
1
164
CA545178
Seat, Discharge
3
476
Not Available
Barb O-Ring
1
166
CA46764
Valve
6
477
Not Available
Ball
1
167
CA46865
Spring
6
478
Not Available
Spring
1
168
CA543988
Retainer, Spring, Inlet
3
479
Not Available
Orifice
1
169
CA49764
Retainer, Spring, Discharge
3
480
Not Available
Body
1
172
CA142807
O-Ring for Plug
3
483
CA76176
Repair Kit
1
174
CA547104
Plug, Valve w/o-ring
3
Kit #1
CA33053
Seal Kit Inclds: 98, 106, 121, 125
1
185
Not Available
Head, Manifold w/Unloader Body
1
Kit #2
CA76978
Valve Kit Inclds: 160, 161, 162, 163,
164, 166, 167, 168, 169, 172
1
188
Not Available
Screw
6
*
CA76754
O-ring Kit Inclds: 414, 415, 424, 428,
429, 437
1

Pump Exploded Views
20
A1573021
