North Star MA1578111I User manual

1
Pump is shipped with oil.
- Remove shipping plug and install vented fill cap. (Comet Pumps)
- Remove shipping tape from pump oil fill cap. (Cat Pumps)
- Remove shipping plug and install dipstick. (General Pumps)
- Remove shipping plug and install dipstick. (NorthStar Pumps)
- Remove shipping plug and install vented fill cap. (Powerhorse Pumps)
- See pump oil cap section of this manual.
Closely inspect all components.
-If you have damaged components then: Contact the freight company that
delivered the unit and file a claim.
-If you have missing components then: Contact Customer Service at
1-800-270-0810.
Read this manual.
Serious injury or death can result if safety instructions are not followed.
WARNING
MA1578111I
Owner’s Manual
Pressure Washer Pump: For high pressure
cleaning machines.
Any Questions, Comments, Problems or Parts Orders
Call NorthStar Product Support 1-800-270-0810
ITEM NUMBERS:
A1573701, A1573981, A1577541, A1578111,
A1578171, A1578131, A1578181, A1578151,
A1578201, A1578203, A1578173, A157711,
A157712, A157594
®

Hazard Signal Word Definitions
2

Table of Contents
3
Important Safety Rules ........................................……4,5
Pump Oil Cap and Pump Component Identification… 6
Operation Instructions ........................................…….7-9
Water Supply……………….………………………...7
Start-Up/Shut-Down Instructions……………………8
Applying Chemicals..………………………………...9
Maintenance and Storage...................................……10-12
Maintenance Mode and Maintenance Schedule…10
Pump Oil Change….…………………………...……11
Long Term Storage………………………………….12
Winter Storage……………………………………….12
Troubleshooting ...................................……...............13
Specifications .....................…...............................…..13
Parts Explosions ........................................................14
Pump Explosions .......................................................16

Important Safety Rules
4
1.) Read owner's manual completely.
Serious injury or death can result if safety instructions are not followed. You must be
16 or older to operate this machine. Keep untrained people away.
2.) Skin puncture hazard.
High pressure fluid can inject under skin resulting in serious injury including
amputation. Do not direct spray at people or animals.
-If skin injection happens, seek IMMEDIATE surgical treatment.
-Do not check for leaks with hand. Instead, use a piece of cardboard to check for
leaks.
-Do not use unit if exterior hose damage is evident. Make sure all fittings are tight
before starting. Relieve system pressure before servicing.
-Know how to stop engine and bleed pressures quickly. Be thoroughly familiar with
the controls.
-Make sure accessories meet the unit's temperature and pressure limits.
-Stop engine, bleed pressure, and engage spray gun safety lock before leaving unit
unattended.
3.) Risk of fire and explosion.
Hot exhaust fumes from engine can cause fire. Gasoline is highly flammable and
explosive. You can be burned or seriously injured when handling fuel.
-Position muffler at least 7 feet from combustible objects.
-Before adding fuel, stop the engine and keep heat, sparks, and flame away. Do not
add fuel when engine is running or still hot. No smoking near engine.
-Do not pump fuel directly into engine at gas station. Static charge can build and
ignite fuel. Use a UL approved fuel container to transfer gas to the engine. Wipe up
fuel spills immediately.
-Only store and handle fuel outdoors. Gasoline vapors can ignite if they collect
inside an enclosure. Explosion can result.
-Do not change or add to exhaust system. Fire can result.
-Do not change or add fuel tanks or fuel lines. Fire can result.
-Before each use, check fuel tank and fuel lines for leaks. Any fuel leak is a fire
hazard. Fix any fuel leaks before starting engine.
-During transportation take precautions to make sure pressure washer will not tip
over and cause a fuel leak fire hazard.
4.) Poisonous gas.
This machine gives off carbon monoxide, a poisonous gas that can kill you. You
CANNOT smell it, see it, or taste it.
-ONLY run machine outdoors and away from air intakes.
-NEVER run machine inside homes, garages, sheds, or other semi-enclosed spaces.
These spaces can trap poisonous gases, EVEN IF you run a fan or open doors and
windows.
If you start to feel sick, dizzy, or weak while using this machine, shut it off and get to
fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING
Save These Instructions

Important Safety Rules
5
Save These Instructions
5.) Risk of exposure to dangerous chemicals.
Serious injury or death can result if chemical manufacturer instructions are not
followed.
-Wear protective gloves when handling and cleaning with chemicals.
-Understand all safety hazards and first aid for all chemicals being used.
-When cleaning filters, check if chemicals have been used and take any
precautions that are recommended by the chemical manufacturer.
-Different chemicals may interact dangerously with each other, always follow
chemical manufacturer directions before switching chemicals.
-Calculate the correct amount of chemical to mix, dispose of excess chemical
per the manufacturer instructions.
-Never spray flammable liquids.
6.) Risk of electrocution.
Electricity can kill you. Keep water away from electrical outlets and electrical
devices.
7.) Flying objects.
Small particles may fly out while spraying. Wear safety glasses. Serious eye
injury can occur.
Make sure nozzle is secure before squeezing trigger. If nozzle is not secure it
will become a projectile.
8.) Fall hazard.
Pressure washer creates puddles and slippery surfaces. Keep good footing
and balance. Serious injury can occur.
-Wear footwear cabable of maintaining a good grip on wet surfaces.
-Gun kicks back. Hold with both hands.
-Do not overreach or stand on unstable supports.
-Do not stand on ladders or scaffolding.
-Do not place pressure washer on soft or unstable ground.
CAUTION
1.) Hot muffler.
You can be burned by muffler. Do not touch.
WARNING

Pump Oil Cap and Pump Component Identification
6

Operation Instructions
7
Water Supply
1.) Make sure the water supply is clean. Debris can cause excess pump wear and reduce
performance.
2.) An insufficient water supply will damage your pump. Make sure the water supply is steady and is
20% over the rated flow of your pump. Use a stopwatch to time how long it takes to fill a 5 gallon
bucket with your garden hose. The bucket must fill faster than the times listed in the table below.
Model
Time to fill 5 gallon bucket
A157711
100 seconds
A1577541
100 seconds
A1578111
100 seconds
A1578171
100 seconds
A1578173
100 seconds
A1573701
84 seconds
A1578131
84 seconds
A1578181
84 seconds
A1573981
63 seconds
A157712
63 seconds
A1578151
72 seconds
A1578203
72 seconds
A1578201
72 seconds
A157594
63 seconds
3.) The water supply garden hose must have an inside diameter of at least 5/8”. If the hose is more
than 100 ft. long, the diameter must be at least 3/4”.
4.) Never use a reservoir tank as a water source. Drawing water out of a tank may cause pump
cavitation and damage to your pump. This pressure washer is designed for a pressurized water
source such as a city water faucet. However, the water source pressure must not exceed 115 psi
(8 bar).
5.) Always use a flexible rubber hose for your water supply. Do not use rigid piping.

Operation Instructions
8
Start-Up Instructions
1. Attach garden hose to water inlet.
2. Attach pressure hose to water outlet and gun.
3. Attach spray gun to lance.
4. Turn water supply ON.
5. Squeeze trigger to purge air from pump.
6. Insert nozzle.
7. Start engine.
Shut-Down Instructions
1. Turn engine OFF.
2. Turn water supply OFF.
3. Squeeze trigger to relieve system pressure.
4. Remove garden hose.
5. Remove pressure hose.
6. Turn fuel valve OFF (if equipped).
Skin puncture hazard.
High pressure fluid can inject under skin resulting in serious injury including
amputation. Do not direct spray at people or animals.
-If skin injection happens, seek IMMEDIATE surgical treatment.
-Do not check for leaks with hand. Instead, use a piece of cardboard to check for
leaks.
-Do not use unit if exterior hose damage is evident. Make sure all fittings are tight
before starting. Relieve system pressure before servicing.
-Know how to stop engine and bleed pressures quickly. Be thoroughly familiar with
the controls.
-Make sure accessories meet the unit's temperature and pressure limits.
-Stop engine and bleed pressures before leaving unit unattended.
WARNING

Operation Instructions
9

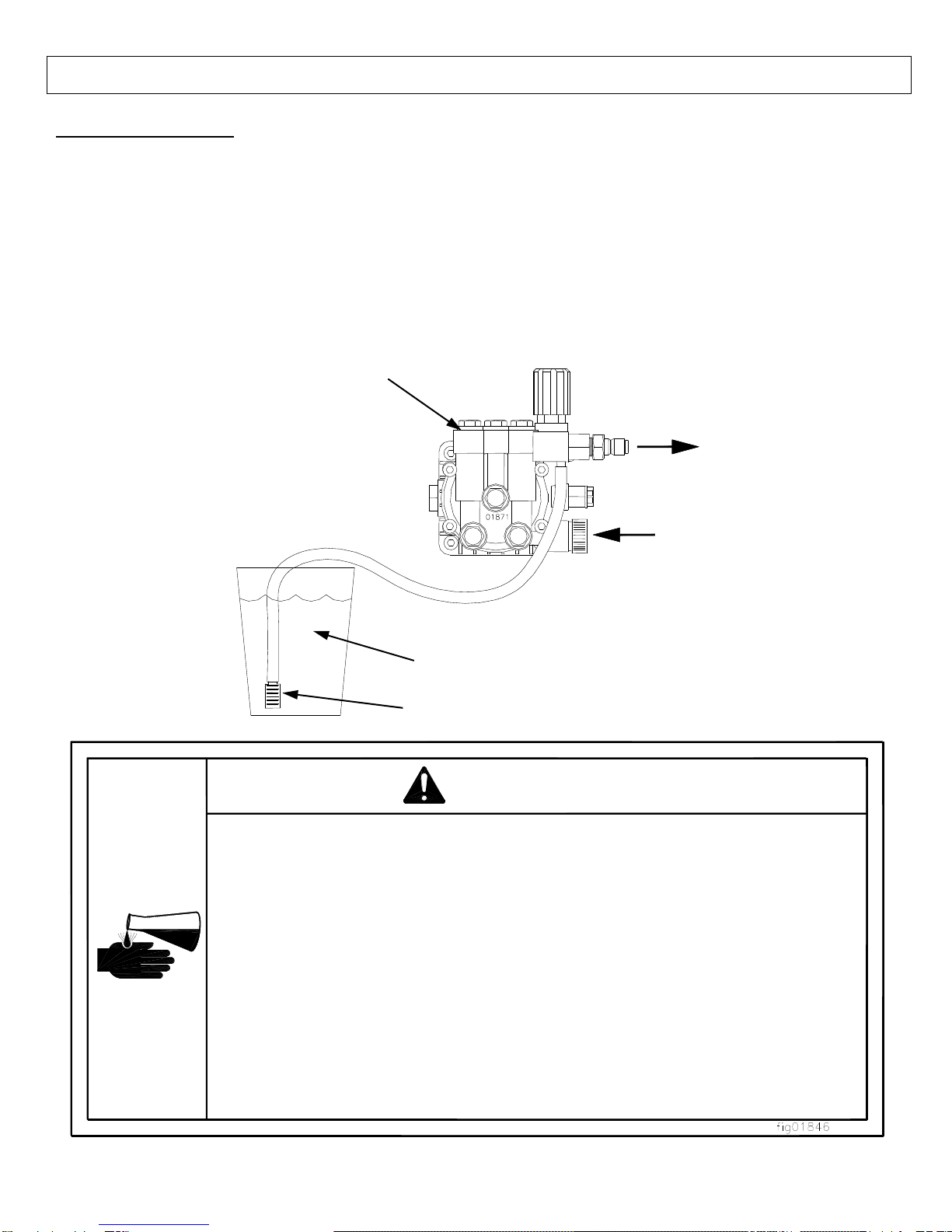

Applying Chemicals
1.) Install the black nozzle to spray chemicals onto the cleaning surface.
2.) Start the pressure washer according to the start-up instructions.
3.) Submerge the chemical hose in cleaning solution.
4.) Squeeze the spray gun trigger. The chemical injector will draw the chemical into the water stream.
5.) Apply chemicals evenly onto the cleaning surface. Allow the chemicals to react with the dirt, then
clean at high pressure with green nozzle.
6.) Never use more chemical than is necessary to clean the surface.
7.) To clean the chemical injector, draw water through the strainer until all the chemical is purged from
the system.
Risk of exposure to dangerous chemicals.
Serious injury or death can result if chemical manufacturer instructions are not
followed.
-Wear protective gloves when handling and cleaning with chemicals.
-Understand all safety hazards and first aid for all chemicals being used.
-When cleaning filters, check if chemicals have been used and take any
precautions that are recommended by the chemical manufacturer.
-Different chemicals may interact dangerously with each other, always follow
chemical manufacturer directions before switching chemicals.
-Calculate the correct amount of chemical to mix, dispose of excess chemical
per the manufacturer instructions.
-Never spray flammable liquids.
WARNING
strainer
diluted
chemical
pump inlet
pump outlet
pump

Maintenance and Storage
10
Maintenance Mode
Before performing any maintenance on the pressure washer, it must be placed in maintenance mode.
1.) Turn off engine.
2.) Turn off water supply.
3.) Squeeze trigger to relieve system pressure.
4.) Shut off fuel valve.
5.) Unplug spark plug wire from spark plug, (see engine owners’ manual).
Maintenance Schedule
What to Check
When To Check
What to Do
Inlet Filter
Each Use
Visually inspect and clean inlet filter with clear water.
Pressure Hose
Each Use
Visually inspect pressure hose and hose couplings. Replace
hose if any of the following is evident:
hose coupling is damaged, wire mesh is exposed or
damaged, hose is permanently kinked or flattened, outer
hose cover is blistered or loose.
Bolts
Each Use
Tighten any loose bolts.
Engine Oil
See engine manual
See engine manual for oil change instructions
Pump Oil
After 1st 50hrs,
then 3mo/500hr
Change pump oil. See pump oil change instructions on next
page.

Maintenance and Storage
11
sight glass
drain plug
fill cap
A1578171
fill cap
drain plug
sight glass
fill cap
drain plug
A1578181
A1578131 A1578151
sight glass
fill cap
drain plug sight glass
sight glass
drain plug
fill cap
A1578201
Oil capacity: 8.5 oz. (.25L) Oil capacity: 10.2 oz. (.30L)
Oil capacity: 5.7 oz. (.17L) Oil capacity: 10.3 oz. (.30L)
Oil capacity: 22.6 oz. (.62L)
FIG03674
A1577541 A1573701 A1573981
sight glass
drain plug
fill cap
fill cap
drain plug sight glass
fill cap
drain plug
Oil capacity: 3.4 oz. (.10 L) Oil capacity: 11 oz. (.33 L) Oil capacity: 14 oz. (.41 L)
A1578111
Oil capacity: 4.3 oz. (.13L)
fill cap
sight glass
drain plug
Oil capacity: 10.3 oz. (.30L)
A1578203
fill cap
sight glass drain plug
A1578173
fill cap
Oil capacity: 11 oz. (.32L)
sight glass drain plug
sight glass
drain plug
fill cap
A157594
Oil capacity: 22.6 oz. (.62L)
fill cap
sight glass
drain plug
Oil capacity: 20.3 oz. (.60L)
A157712
Oil capacity: 5 oz. (.15L)
A157711
drain plug
breather dipstick
plug
Pump Oil Change
1.) Place a suitable container below the pump to catch used oil, then remove the oil fill cap and oil drain plug.
2.) Allow the used oil to drain completely, then reinstall the drain plug and tighten securely.
3.) Please dispose of used oil in a manner that is compatible with the environment. We suggest you take used
oil in a sealed container to your local recycling center or service station for reclamation. Do not throw it in
the trash, pour it on the ground or down the drain.
4.) With the pump in a level position, fill to the half way point on the oil sight glass (see pump oil capacities
below). For Comet or NorthStar pumps use Universal Tractor Transmission Oil or Mobil1 synthetic oil
(15W50). For Cat pumps use SAE30 non-detergent oil or Cat Pump Oil Item# 22158. For Powerhorse
pumps, use SAE30 non-detergent.

Maintenance and Storage
12
Checking Oil Level for 157711
1.) Turn off engine, allow it to cool and disconnect the spark plug wire.
2.) Twist the dipstick cap until the arrow on the cap lines up with the arrow on the breather plug.
Remove the dipstick from the breather plug. Then remove the breather plug from the pump.
3.) Wipe the dipstick off with a clean dry cloth. Insert the dipstick into the pump housing and remove it.
The oil level should be at least to the lower “L” notch on the dipstick, but not above the upper “H”
notch. Add above recommended oil as needed.
4.) Thread the pump breather plug tube back into the pump housing.
5.) Align the arrow on the dipstick cap with the arrow on the breather plug tube, insert it, and twist it to
secure. Reconnect the spark plug.
Long Term Storage
Follow the engine owner’s manual for storing the engine.
Winter Storage
Protect your pump, hose, and gun from freezing.
Items needed: 12” piece of garden hose or equivalent, funnel and RV antifreeze (approximately 6 oz.)
1.) Follow the storage instructions listed above.
2.) Disconnect spark plug cable. Make sure the engine start switch is OFF, and the fuel valve is OFF.
3.) Attach the garden hose with funnel to the pump inlet (see illustration).
4.) Pour RV antifreeze into the funnel, pull the engine recoil until antifreeze comes out the pump
outlet.
5.) Drain all water from the high pressure hose. Depress trigger on gun and drain all water out of
gun/lance.
RV Antifreeze
Funnel
Hose
Water Inlet
Pump
Housing
Dipstick
Cap
Pump
Breather
Plug
Tube
Shipping
Plug

Troubleshooting
13
Problem
Engine will not start
SOLUTION: A,B
Low/Surging pressure or no water flow
SOLUTION: C,D,E,F,G,H
No chemical injection
SOLUTION: I,J,K,L
Cause
Solution
A- Low oil shutdown
See engine manual for oil requirements
B- Engine starting instructions not followed
See engine manual for starting instructions
C- Insufficient water supply
See water supply section of this manual
D- Plugged pump inlet filter
See maintenance section of this manual
E- Wrong nozzle
Make sure high pressure nozzle is being used
F- Plugged nozzle
Remove nozzle, check for blockage
G- Worn nozzle
Replace nozzle
H- Leak in pressure hose
Replace pressure hose
I- Wrong nozzle
Make sure chemical nozzle is being used
J- Back pressure from extra long discharge hose
Try shorter hose
K- Leak in chemical siphon hose
Replace hose –use hose clamps if necessary
L- Chemical strainer not submerged
Make sure strainer is completely submerged
Specifications
Item #
PSI
GPM
Max Water
Temp
Power
Shaft Size
Nozzle
Size
A1573701
2000
3.0
140F
5-6.5hp Gas engine
3/4” keyed
#4.0
A1577541
2700
2.5
5-6.5hp Gas engine
3/4” keyed
#3.0
A1578111
2700
2.5
5-6.5hp Gas engine
3/4” keyed
#3.0
A1578171
2750
2.5
5-6.5hp Gas engine
3/4” keyed
#3.0
A1573981
3000
4.0
11-13hp Gas engine
1” keyed
#4.5
A157711
3000
2.5
5-6.5hp Gas engine
3/4” keyed
#3.0
A1578173
3000
2.5
5-6.5hp Gas engine
3/4” keyed
#3.0
A1578131
3000
3.0
8-9hp Gas engine
1” keyed
#3.5
A1578181
3200
3.0
8-9hp Gas engine
1” keyed
#3.5
A157712
3500
4.0
11-13hp Gas engine
1” keyed
#4.0
A1578151
4000
3.5
11-13hp Gas engine
1” keyed
#3.5
A1578201
4000
3.5
11-13hp Gas engine
1” keyed
#3.5
A1578203
4000
3.5
11-13hp Gas engine
1” keyed
#3.5
A157594
4000
4.0
15hp Gas engine
1” keyed
#4.0
The manufacturer reserves the right to make improvements in design and/or changes in
specifications at any time without incurring any obligation to install them on units previously
sold.

Parts Explosions –Rev I
14
A1578151
A1573701A1577541
A1578111
A1578171
A1573981
A1578201
A1578181
A1578131
A1578173
A1578203
A157711
A157712 A157594

Parts Explosions –Rev I (cont’d)
15
Item
Part#
Description
Qty
Model
1
779827
Comet VRX Pump
1
A1577541
35811
General TP 2530
A1573701
35812
General EZ3040
A1573981
779828
Comet BXD Pump
A1578111
38518
Cat 3DNX Pump
A1578171
779829
Comet AXD Pump
A1578131
777654
Cat 3SPX Pump
A1578181
778164
Comet ZWD Pump
A1578151
38520
Cat 66DX Pump
A1578201
781210
NorthStar NSLW Pump
A1578173
781209
NorthStar NSZW Pump
A1578203
785761
Danau 3025A Pump
A157711
781361
Danau 1807A Pump
A157712
38198
Cat 66DX Pump
A157594
2
777915
Quick Connect Outlet
Plug
1
A1577541, 3701, 3981, 8111, 8171,
8131, 8181, 8151, 8201, 8173, 8203,
712, 594
3
4027
Inlet Filter
1
A1577541, 3701, 3981,8111,8131,
8151,8173,8203,711,712
38596
A1578171, 8181
35169
A1578201, 594
4
777340
1/4” x 1/4” Hose Barb
Fitting
1
A1578171, 181, 8201, 594
5
777834
1/4” Hose Clamp
2
A1578171, 8181, 8201, 594
6
777165
1/4” PVC Hose
14”
A1578171, 8181, 8201, 594
7
38584
Easy Start Valve
1
A1578171, 8181, 8201
8
777347
3/8” Street Tee
1
A1578171, 8181 8201
9
35918
Thermal Valve
1
A1578171, 8181
777836
A1578201, 3701, 3981
10
22393
Pop Off Valve
1
A1578181, 8201
35814
A1573701
782121
A1573981
18
35813
Manifold Inlet
1
A1573701, 3981
19
82141
3/16” x 1.5” Shaft Key
1
A1578171
82142
3/16” x 2” Shaft Key
A1573701
82143
1/4” x 1-3/4” Shaft key
A1578181, 8131, 3981, 8151, 8201
20
777165
1/4” Chemical Hose
3ft
All
21
221222
Chemical Strainer
1
All
22
777837
3/8” plug
1
A1578181
23
2296
3/8” hex nipple
1
A157594
24
782572
Unloader Valve
1
A157594

Comet VRX Pump Exploded View
16
Ref #
Code
Description
Qty
Ref #
Code
Description
Qty
1
2801 0079
Thermo Valve Cover
1
39
2432 0018
Pump Crankcase
1
2
1210 0218
O-Ring
1
40
1802 0213
Piston Spring
3
3
0424 0402
Thermal Valve Body
1
41
2409 0099
Piston
3
4
1210 0475
O-Ring
1
42
0009 0267
Ring
3
5
3230 0031
Sensor
1
43
5026 0260
Piston Kit
3
6
1802 0217
Spring
1
44
1210 0391
O-Ring
1
7
1002 0116
Suction Filter
1
45
1210 0463
O-Ring
1
8
2803 0395
Quick Coupler
1
46
2409 0102
Check Valve
1
9
1223 0093
Wing Nut
1
47
1802 0218
Spring
1
10
2800 0096
Straight Hose Tail Kit
3
48
5026 0262
Check Valve Kit
1
11
3218 0351
Pump Manifold
1
49
1210 0465
O-Ring
1
12
3609 0195
Screw
3
50
0801 0066
Detergent Injector
1
13
3202 0276
Plug
1
51
1210 0170
O-Ring
1

Comet VRX Pump Exploded View
17
14
1802 0219
Regulation Valve Spring
1
52
1410 0322
Detergent Injector Kit
1
15
2811 0117
Washer
1
53
0204 0051
Bushing
1
16
3605 0104
Special Screw
1
54
1802 0216
Spring
1
17
1210 0392
O-Ring
1
55
3003 0033
Ball
1
18
1210 0470
O-Ring
1
56
1210 0466
O-Ring
1
19
0009 0272
Ring
1
57
1210 0465
O-Ring
1
20
1210 0055
O-Ring
1
58
2800 0104
Detergent Straight Hose
Tail
1
21
3021 0034
Elastic Pin
1
59
5026 0261
Complete Detergent Kit
1
22
0015 0187
Valve Rod
1
60
0436 0020
Axial Ball Bearing
1
23
1210 0465
O-Ring
1
61
0001 0460
Throu-Eccentric Shaft
1
24
0009 0112
Backup Ring
1
62
1210 0394
O-Ring
1
25
1215 0334
Regulation Valve Kit
1
63
0438 0081
Ball Bearing
1
26
3009 0136
Regulation Valve Seal
1
64
0031 0012
Pump Crankshaft
1
27
1210 0170
O-Ring
1
65
0019 0112
Oil Seal
1
28
3003 0032
Ball
1
66
0403 0156
Pump Crankcase
1
29
5026 0269
Regulation Valve Seat
Kit
1
67
3200 0071
Plug
1
30
1220 0061
Delivery Valve
2
68
2417 0064
Extension
1
31
1220 0062
Delivery Valve
1
69
1210 0492
O-Ring
1
32
3302 0279
Plug
3
72
0604 0015
Nut
3
33
1241 0068
Packing
3
73
3016 0042
Support
1
34
0009 0274
Anti-Extr. Ring
3
74
3625 0062
Screw
4
35
2811 0004
Washer
3
100
0009 0225
Anti-Extr. Ring
1
36
0009 0270
Packing Retainer
3
103
3000 0781
Oil Seal Spacer
3
37
0019 0111
Oil Seal
3
104
5026 0276
Thermo Valve Kit
1
38
1220 0061
Suction Valve
3
105
3200 0093
Oil Tap Kit
1
Complete Valve Kit (50260270)
Part #
Code
Qty
30
1220 0061
2
31
1220 0062
1
38
1220 0061
3
Part #
Code
Qty
33
1241 0068
3
34
0009 0274
3
Piston Seal Kit (502602556)

General Pump Triplex 2530 Exploded View
18
ITEM
PART #
DESCRIPTION
QTY
1
51.0106.22
CRANKCASE
1
2
98.2100.00
PLUG, 3/8
1
3
90.3833.00
O-RING
1
4
51.2091.02
PROTECTOR
1
5
90.1565.00
OIL SEAL
3
6
98.2041.00
PLUG, 1/4
1
7
51.1200.41
MANIFOLD
1
8
96.6938.00
WASHER
8
9
99.1943.00
SCREW
8
10
90.3841.00
O-RING
6
11
36.2003.66
VALVE SEAT
6
12
36.2001.76
VALVE PLATE
6
13
94.7376.00
SPRING
6
14
36.2025.51
VALVE CAGE
6
15
90.3847.00
O-RING
6
16
98.2216.00
VALVE CAP
6
17
36.7115.01
VALVE ASSEMBLY
6
18
51.1000.51
HEAD RING
3
19
90.2620.00
PACKING
3
20
51.0800.70
PACKING RETAINER
3
21
90.3604.00
O-RING
3
22
90.3835.00
O-RING
3
23
97.5968.00
SIGHT GLASS
1
24
20.2128.35
NEEDLE BEARING
1
25
98.2103.00
OIL DIP STICK
1
26
92.2216.00
NUT
3
27
96.7008.00
WASHER
3
28
51.0400.09
PLUNGER, 15mm
3
29
90.3572.00
O-RING
3
30
90.5022.00
BACK UP RING
3
31
96.0707.00
FLINGER WASHER
3
32
97.0310.00
CONNECTING ROD PIN
3
33
51.1600.22
CRANKCASE COVER
1
34
99.1867.00
SCREW
4
ITEM
PART #
DESCRIPTION
QTY
35
90.3917.00
COVER O-RING
1
36
51.0301.22
CONNECTING ROD
3
37
51.0500.56
PLUNGER ROD
3
49
99.2730.00
SCREW, J34 OPTION
4
50
96.7014.00
WASHER, J34 OPTION
4
51
10.0346.22
FLANGE, J34 OPTION
1
52
99.1867.00
SCREW
4
53
96.6938.00
WASHER
4
54
50.2115.51
SPACER
1
55
90.4097.00
O-RING
1
56
90.1644.00
OIL SEAL
1
57
90.0667.00
SNAP RING
1
58
20.2835.21
BEARING
1
59
51.0221.65
CRANKSHAFT
1
VALVE KIT
123
ITEM
PART #
QTY
10
90.3841.00
6
11
36.2003.66
6
12
36.2001.76
6
13
94.7376.00
6
14
36.2025.51
6
SEAL KIT
97
ITEM
PART #
QTY
18
51.1000.51
3
19
90.2620.00
3
21
90.3604.00
3
22
90.3835.00
3
*Unloader not shown

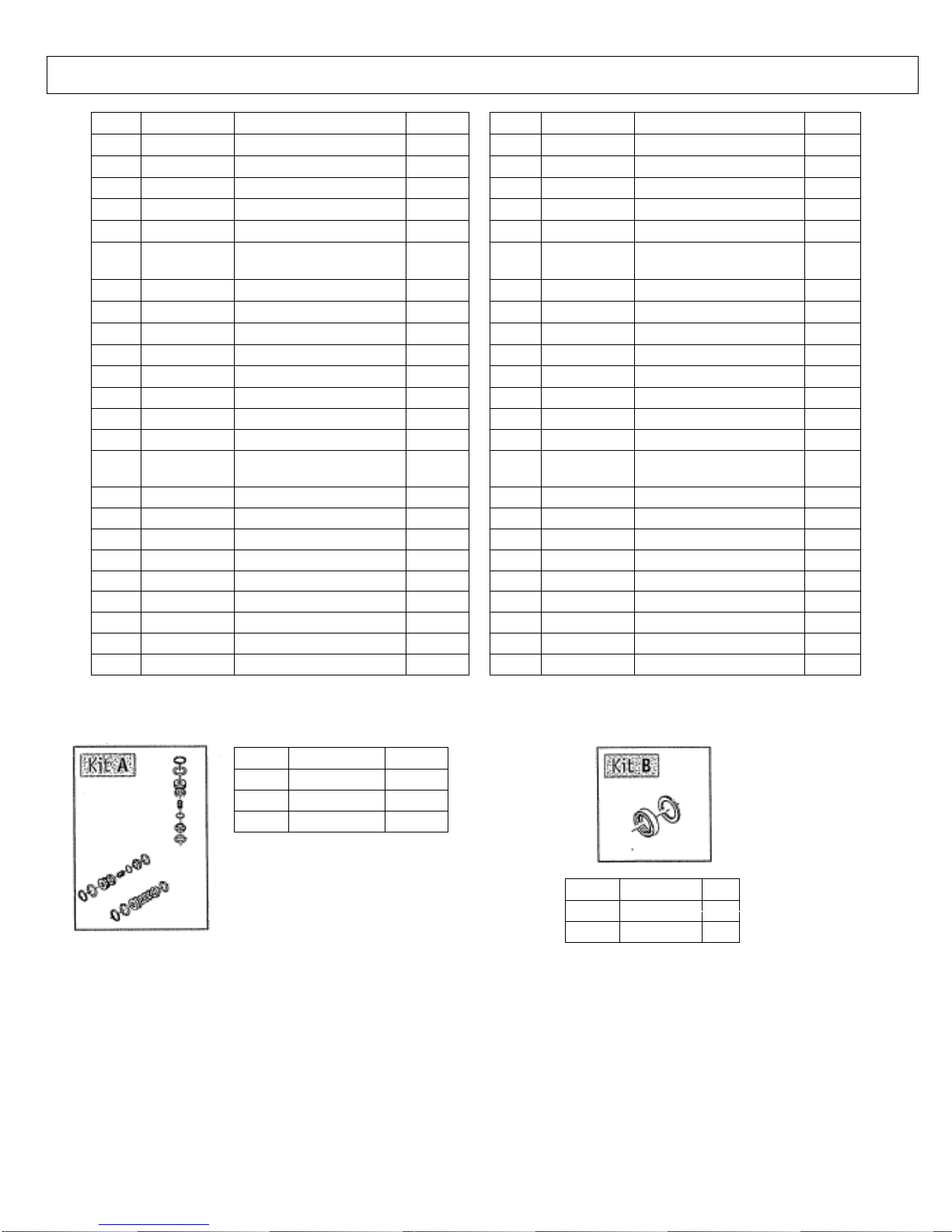

General Pump Triplex EZ3040 Exploded View
19
ITEM
PART #
DESCRIPTION
QTY
35
92.2216.00
NUT
3
40
90.3612.00
O-RING
3
41
44.0800.70
PACKING RETAINER
3
42
52.2166.70
INTERMEDIATE RING
3
43
90.2622.00
PACKING
3
44
90.2620.00
PACKING
3
45
51.1000.51
HEAD RING
3
46
98.2100.00
CAP SCREW
1
47
98.2176.00
CAP SCREW
1
48
96.7380.00
WASHER
1
49
96.7514.00
WASHER
1
50
98.1966.00
CAP SCREW
1
51
90.2617.00
SEAL, LOW PRESSURE
3
75
90.0635.00
RETAINING RING
1
76
44.0209.65
CRANKSHAFT
1
77
91.8568.00
ROLLER BEARING
1
78
90.4097.00
O-RING
1
81
10.0518.22
FLANGE FOR GAS ENGINES
1
82
90.1690.00
OIL SEAL
1
83
96.6938.00
WASHER
4
84
99.1912.00
SCREW
4
ITEM
PART #
DESCRIPTION
QTY
1
44.1200.41
MANIFOLD
1
2
99.3175.00
SCREW
8
3
96.7014.00
WASHER
8
4
90.3841.00
O-RING
6
5
36.2003.66
VALVE SEAT
6
6
36.2001.76
VALVE
6
7
94.7376.00
SPRING
6
8
36.2025.51
VALVE CAGE
6
9
90.3847.00
O-RING
6
10
98.2226.00
CAP SCREW
6
11
36.7115.01
VALVE ASSEMBLY
6
12
99.1807.00
SCREW
4
13
50.1500.74
BEARING COVER
1
14
44.2118.01
SPACER
1
15
90.4097.00
O-RING
1
16
91.8328.00
BALL BEARING
1
17
90.1614.00
OIL SEAL
3
18
44.0100.22
CRANKCASE
1
19
98.2103.00
OIL DIPSTICK
1
22
44.0500.66
PISTON GUIDE
3
23
44.0300.22
CONNECTING ROD
3
24
90.3920.00
O-RING
1
25
44.1600.22
REAR COVER
1
26
99.1837.00
SCREW
5
27
90.3585.00
O-RING
1
28
98.2041.00
CAP SCREW
1
29
97.7340.00
PIN
3
30
96.7350.00
WASHER
3
31
90.5022.00
ANTI-EXT. RING
3
32
90.3572.00
O-RING
3
33
52.0400.09
PISTON
3
34
96.7008.00
WASHER
3
VALVE KIT SEAL KIT
123
130
ITEM
PART #
QTY
ITEM
PART #
QTY
4
90.3841.00
6
40
90.3612.00
1
5
36.2003.66
6
41
44.0800.70
1
6
36.2001.76
6
42
52.2166.70
1
7
94.7376.00
6
43
90.2622.00
1
8
36.2025.51
6
44
90.2620.00
1
45
51.1000.51
1
51
90.2617.00
1
*Unloader not shown

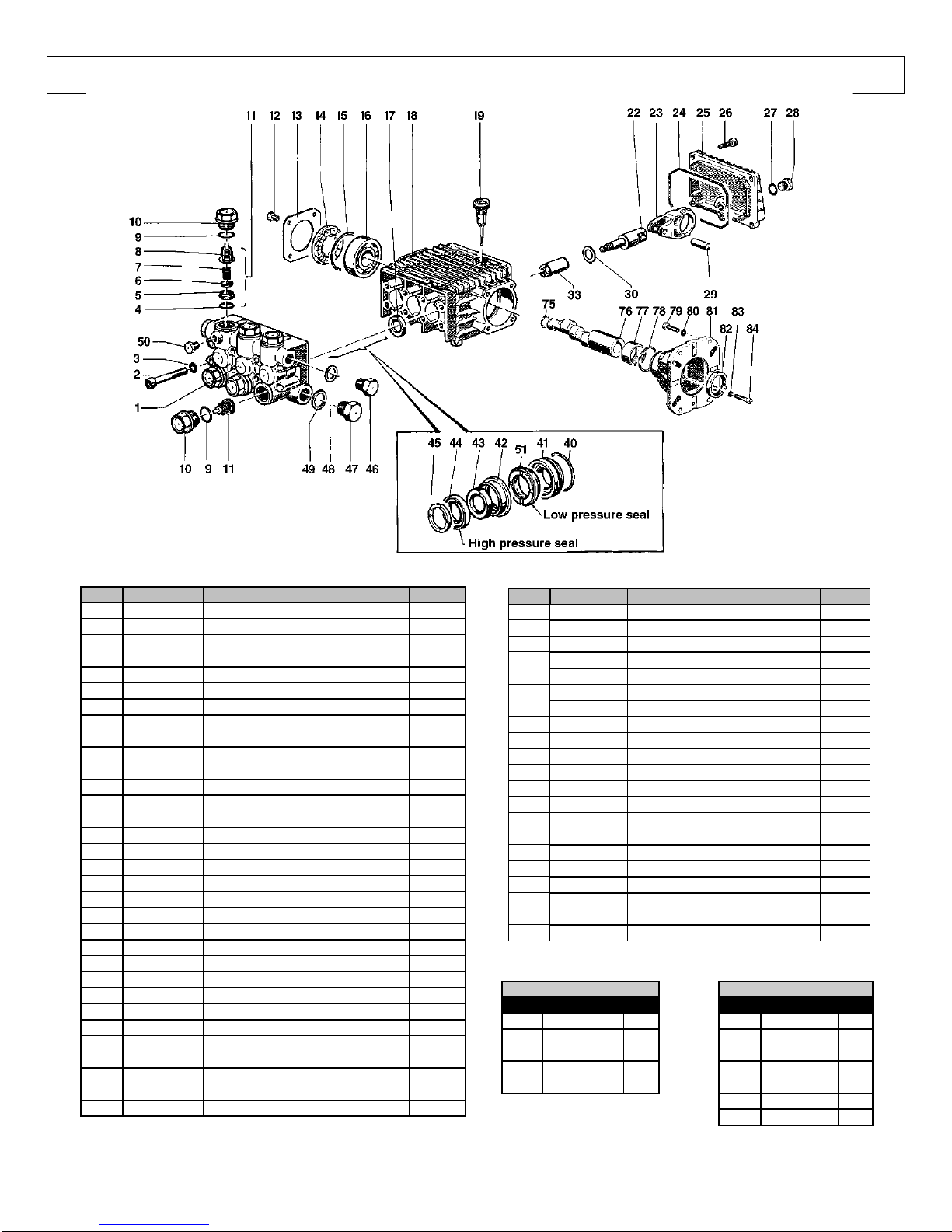

Comet BXD 2530G Pump Exploded View
20
