Northern Diver ARCTIC SURVIVOR EVO X User manual

FILE // ND - RESCUE - ICON AUTHORISATION // JAMIE
DESCRIPTION // Icon design for Rescue sector
sre northern diver
sre northern diver
WARNING!
This chest harness MUST be
trimmed to no more than
15cm from the red line below.
See manual for instructions
NORTHERN DIVER PFD USER MANUAL

PFD Manual | East Quarry Appley Lane North, Appley Bridge, Wigan, WN6 9AE, UK
Thank You.
Thanks for purchasing this Northern Diver Arctic Survivor Evo X PFD. To help ensure your
future safety, do not use this product before reading this manual. It is important to fully
understand its proper handling for safe usage.
Copyright Notice
This owners manual is copyrighted, all rights reserved. It may not, in whole or in part, be
copied, photocopied, reproduced, translated, or reduced to any electronic medium or
machine-readable form without prior consent in writing from Northern Diver (International) Ltd.
© 2022 Northern Diver (International) Ltd.
Evo Pro X.
Application specic PFD
Swift Water Rescue
Product code: PFD-EVOX-SIZE
PFD can be used in all river, lake and ocean environments including aerated moving water,
ood waters and surf.
Using a personal otation device (PFD) helps reduce the risk for workers who fall into water or
who have to evacuate their vessel in an emergency.
Certication.
EN ISO 12402-5:2020
EN ISO 12402-6:2020
PPE Regulation (EU) 2016/425
Vojenský technický ústav, s.p.,
Mladoboleslavská 944, Kbely,
197 00 Praha 9,
Czech Republic,
Notied Body 2452

Contact | [phone] | [e-mail] | www.ndiver-rescue.com 3
Safety Warnings.
This PFD is tted with a chest release harness and should only be used by personnel
who have received the appropriate training by a qualied instructor.
The quick release harness is not to be used in conjunction with any other harness.
Before use, ensure your PFD is the correct size. Do not use if the PFD is either too large
or too small. Please adjust your PFD correctly as per the instructions shown in this user
manual.
We recommend asking a buddy to check your PFD before entering the water.
Do not attach your cowtail and carabiner to any webbing that is permanently xed to the PFD.
If you are using a carabiner to attach to the back of the PFD rather than a xed ring, please
ensure that you use a locking type carabiner to avoid accidental hook up which could
aect your positioning and stability in fast moving water.
Be aware of fast owing aerated water, which reduces the eective buoyancy.
Ensure support is redily available for you (the wearer) and the person being rescued.
Consider the manoeuvrability needed to perform any rescue operations.
Document downloads.
To download this user manual please visit www.ndiver-rescue.com, visit the specic product
page for the PFD and click on documents.
To download an certicates of comformity that are available with this product please visit
www.ndiver-rescue.com, visit the specic product page for the PFD and click on documents.

PFD Manual | East Quarry Appley Lane North, Appley Bridge, Wigan, WN6 9AE, UK
01. Adjustable shoulder straps
02. Reexite® prismatic banding
03. 4-way lash tabs (3)
04. Front zipped pouch with SOS whistle
05. Quick release chest harness
06. Easy pull toggle
1
3
6
8
9
11
5
10
12
4
7
2
Front view features.
07. Quick release buckles (2)
08. Chest buckle
09. D-buckles (3)
10. Anti-slip waist band
11. Sleek sliplock buckle
12. Removable crotch straps
Illustration is only for reference as a guide and may dier from PFD you have purchased.

Contact | [phone] | [e-mail] | www.ndiver-rescue.com 5
2
3
5
6
9
10
7
8
1
4
Back view features.
01. Adjustable shoulder straps
02. Reexite® prismatic banding
03. 4-way lash tabs (3)
04. Additional TPU shoulder protection
05. Quick release chest harness
06. Cowtail and stainless steel O-ring
07. Dual lock carabiner
08. Removable encapsulated panel
09. Anti-slip waist band
10. Removable crotch straps
Illustration is only for reference as a guide and may dier from PFD you have purchased.

PFD Manual | East Quarry Appley Lane North, Appley Bridge, Wigan, WN6 9AE, UK
1
3
4
2
Inside view features.
01. Adjustable shoulder straps
02. Waist band
03. Quick release buckles for crotch straps
04. Internal label
Illustration is only for reference as a guide and may dier from PFD you have purchased.
Fabric construction.
Outer fabric
Type: 400D ripstop nylon
Colour: red
Tested in accordance with
EN ISO 12402-7:2006+A1:2010
Inner lining
Type: 200D nylon
Colour: black
Tested in accordance with
EN ISO 12402-7:09/2006
EN ISO 12402/prA1 08/2007
Interna
Type: buoyant foam & sandwich mesh
Tested in accordance with
EN ISO 12402-7:2006/A1:2011 (D)
NOTE!
This product has undergone re
resistant testing in accordance
with EN ISO 12402-9:2020

Contact | [phone] | [e-mail] | www.ndiver-rescue.com 7

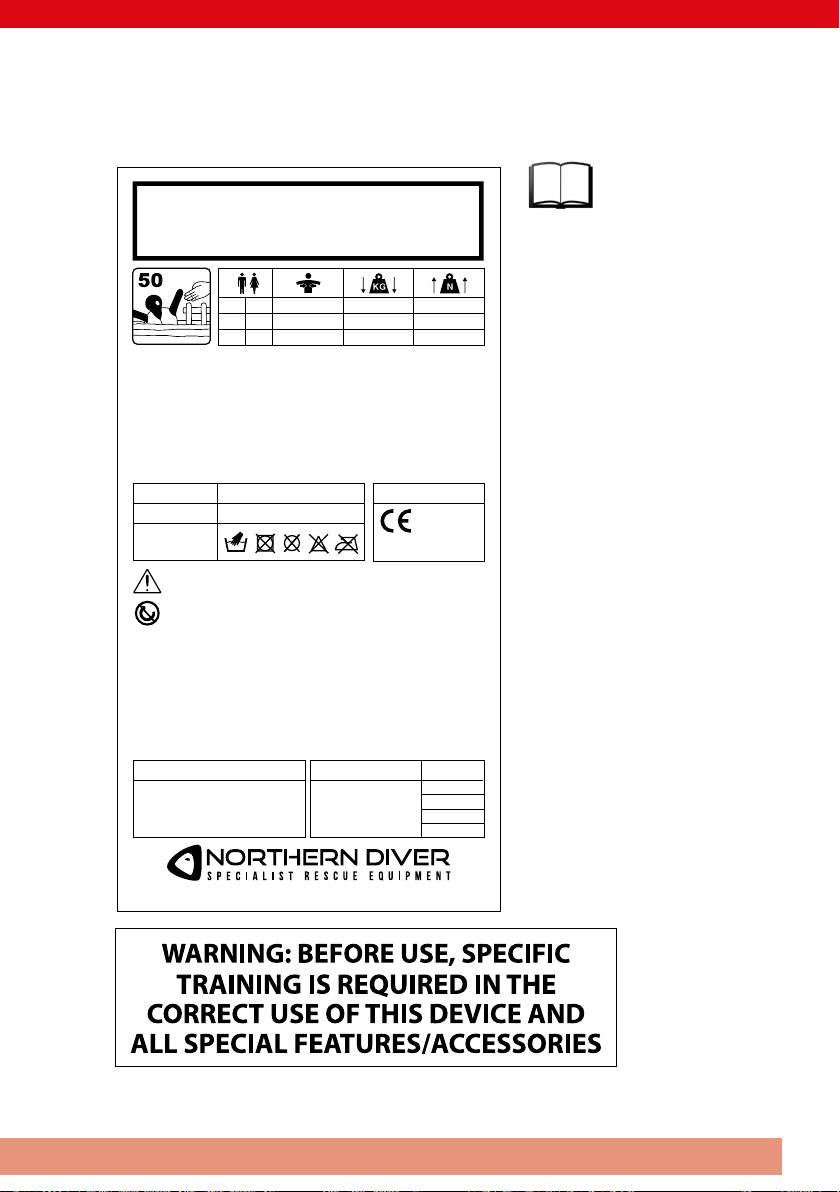

Please check your PFD label for
product specic details.
The label inside the PFD you have
purchased will look similar to the one
illustrated.
The label will give instructions for use
and sizing information specic to that
PFD.
It is vital that your PFD is correctly
adjusted to t you properly. An
incorrectly tted PFD or fastening will
impair performance and may lead
to the PFD slipping or moving when
worn in the water.
Do not try to repair any damage
to the PFD yourself as this could
potentially cause more damage and
render the PFD irreparable and void
the warranty.
You must consider factors such
as the following to determine what
buoyancy to look for in your PFD:
(1) Fast owing aerated water, which
reduces the eective buoyancy
(2) Support needed for both the
wearer and the person being rescued
(3) The manoeuvrability needed to
perform the rescue functions
(4) Any additional equipment worn
i
FILE// EVO-X-LABEL.pdf AUTHORISATION // CRAIG
DESCRIPTION // PFD DATE // 13-07-2023
NOTE:
Serial number and date of manufacture MUST be printed
on the PFD inner label
Serial number must be dierent on EVERY pfd product
Size of PFD must be manually marked on the label
Additional label to be printed inside the PFD
Note: lettering is 5mm high
Label size is 130x36mm
ARCTIC SURVIVOR
EVO X PERSONAL FLOATATION DEVICE
APPLICATION-SPECIFIC PFD – SWIFT WATER RESCUE
Northern Diver International Ltd, East Quarry, Appley Lane North, Appley Bridge, Lancashire, WN6 9AE
Phone [phone] | Email [e-mail] | www.ndiver-rescue.com
M 106cm (42”)
116cm (46”)
142cm (56”)
76kg
95kg
115kg
>70N
>80N
>85N
L
XL
WARNING: LIMITED PROTECTION AGAINST DROWNING. CHECK BEFORE EACH USE
ACCORDINGTO MANUFACTURER’S INSTRUCTIONS. DO NOT USE AS A CUSHION. TRAIN
YOURSELF IN THE USE OF THIS DEVICE. FULL PERFORMACE MAY NOT BE ACHIEVED USING
WATERPROOF CLOTHING OR IN OTHER CIRCUMSTANCES. REFER TO THE LEAFLET.
THIS PFD IS FITTED WITH A CHEST RELEASE HARNESS AND SHOULD ONLY BE USED BY
PERSONNEL WHO HAVE RECEIVED THE APPROPRIATE TRAINING BY A QUALIFIED
INSTRUCTOR. THE QUICK RELEASE HARNESS IS NOT TO BE USED IN CONJUNCTION WITH
ANY OTHER HARNESS. FAMILIARIZE YOURSELF WITH THE FITTING AND OPERATION OF THE
QUICK RELEASE HARNESS SYSTEM. BEFORE USE ENSURE THE PFD ISTHE CORRECT SIZE. DO
NOT USE IF THE PFD IS TOO BIG ORTOO SMALL. ADJUST YOUR PFD CORRECTLY AS PER THE
INSTRUCTIONS.
DO NOT ATTACH YOUR COWTAIL AND CARABINER TO ANY WEBBING THAT IS PERMANENTLY
FIXED TO THE PFD. IF YOU ARE USING A CARABINER TO ATTACHTO THE BACK OF THE PFD
RATHER THAN A FIXED RING, ENSURE THAT YOU USE A LOCKING TYPE CARABINER TO AVOID
ACCIDENTAL HOOK UP WHICH COULD AFFECT YOUR POSITIONING AND STABILITY IN FAST
MOVING WATER. FAMILIARIZE YOURSELF WITH THE CORRECT FITTING, OPERATION AND
SAFE STOWAGE OF THE COWTAIL.
DONNING PFD
1. BEFORE DONNING MAKE SURE THE SHOULDER AND SIDE COMPRESSION STRAPS ARE FULLY
EXTENDED. DON PFD LIKE A STANDARD JACKET.
2. START AT THE BOTTOM AND PUSH ALL AVAILABLE BUCKLES TOGETHER.
3. STARTING FROM THE TOP, TIGHTEN EACH BUCKLE.
4. FASTEN AND ADJUST THE QUICK RELEASE CHEST HARNESS.
5. TIGHTEN THE SIDE COMPRESSION STRAPS. START FROM THE BOTTOM AND PULL BOTH STRAPS
ON LEFT AND RIGHT SIMULTANEOUSLY TO TIGHTEN. REPEAT PROCESS FOR REMAINING STRAPS.
6. PULL FORWARD SIMULTANEOUSLY ON BOTH SHOULDER STRAPS TO ENSURETHE CORRECT
ADJUSTMENT AND FIT.
7. WHEN PFD IS FULLY ADJUSTED ATTACH CROTCH STRAPS INTO THE BUCKLES LOCATED ON THE
FRONT AND BACK OF THE PFD AND ADJUST.
WARNINGS
CHECK BEFORE EVERY USE. PFD SHOULD BE
RINSED WITH FRESH WATER TO REMOVE ANY
DIRT OR SALT RESIDUE. HANG TO DRY. STORE
AWAY FROM DIRECT SUNLIGHT OR RADIANT
HEAT SOURCE. STOW IN A KIT BAG OR LOCKER.
RECOMMENDED FULL
ANNUAL INSPECTION AND
SERVICE WITH A BUOYANCY
TEST EVERY 5 YRS
ASSUMING AVERAGE USE.
EN ISO 12402-5:2020
EN ISO 12402-6:2020
SERIAL NO. Certications.
D.O.M
WASH
INSTRUCTION.
MAINTENANCE & STORAGE. SERVICING. DATES.
Internal label information.
FILE// EVO-X-LABEL.pdf AUTHORISATION // CRAIG
DESCRIPTION // PFD DATE // 13-07-2023
NOTE:
Serial number and date of manufacture MUST be printed
on the PFD inner label
Serial number must be dierent on EVERY pfd product
Size of PFD must be manually marked on the label
Additional label to be printed inside the PFD
Note: lettering is 5mm high
Label size is 130x36mm
ARCTIC SURVIVOR
EVO X PERSONAL FLOATATION DEVICE
APPLICATION-SPECIFIC PFD – SWIFT WATER RESCUE
Northern Diver International Ltd, East Quarry, Appley Lane North, Appley Bridge, Lancashire, WN6 9AE
Phone [phone] | Email [e-mail] | www.ndiver-rescue.com
M 106cm (42”)
116cm (46”)
142cm (56”)
76kg
95kg
115kg
>70N
>80N
>85N
L
XL
WARNING: LIMITED PROTECTION AGAINST DROWNING. CHECK BEFORE EACH USE
ACCORDINGTO MANUFACTURER’S INSTRUCTIONS. DO NOT USE AS A CUSHION. TRAIN
YOURSELF IN THE USE OF THIS DEVICE. FULL PERFORMACE MAY NOT BE ACHIEVED USING
WATERPROOF CLOTHING OR IN OTHER CIRCUMSTANCES. REFER TO THE LEAFLET.
THIS PFD IS FITTED WITH A CHEST RELEASE HARNESS AND SHOULD ONLY BE USED BY
PERSONNEL WHO HAVE RECEIVED THE APPROPRIATE TRAINING BY A QUALIFIED
INSTRUCTOR. THE QUICK RELEASE HARNESS IS NOT TO BE USED IN CONJUNCTION WITH
ANY OTHER HARNESS. FAMILIARIZE YOURSELF WITH THE FITTING AND OPERATION OF THE
QUICK RELEASE HARNESS SYSTEM. BEFORE USE ENSURE THE PFD ISTHE CORRECT SIZE. DO
NOT USE IF THE PFD IS TOO BIG ORTOO SMALL. ADJUST YOUR PFD CORRECTLY AS PER THE
INSTRUCTIONS.
DO NOT ATTACH YOUR COWTAIL AND CARABINER TO ANY WEBBING THAT IS PERMANENTLY
FIXED TO THE PFD. IF YOU ARE USING A CARABINER TO ATTACHTO THE BACK OF THE PFD
RATHER THAN A FIXED RING, ENSURE THAT YOU USE A LOCKING TYPE CARABINER TO AVOID
ACCIDENTAL HOOK UP WHICH COULD AFFECT YOUR POSITIONING AND STABILITY IN FAST
MOVING WATER. FAMILIARIZE YOURSELF WITH THE CORRECT FITTING, OPERATION AND
SAFE STOWAGE OF THE COWTAIL.
DONNING PFD
1. BEFORE DONNING MAKE SURE THE SHOULDER AND SIDE COMPRESSION STRAPS ARE FULLY
EXTENDED. DON PFD LIKE A STANDARD JACKET.
2. START AT THE BOTTOM AND PUSH ALL AVAILABLE BUCKLES TOGETHER.
3. STARTING FROM THE TOP, TIGHTEN EACH BUCKLE.
4. FASTEN AND ADJUST THE QUICK RELEASE CHEST HARNESS.
5. TIGHTEN THE SIDE COMPRESSION STRAPS. START FROM THE BOTTOM AND PULL BOTH STRAPS
ON LEFT AND RIGHT SIMULTANEOUSLY TO TIGHTEN. REPEAT PROCESS FOR REMAINING STRAPS.
6. PULL FORWARD SIMULTANEOUSLY ON BOTH SHOULDER STRAPS TO ENSURETHE CORRECT
ADJUSTMENT AND FIT.
7. WHEN PFD IS FULLY ADJUSTED ATTACH CROTCH STRAPS INTO THE BUCKLES LOCATED ON THE
FRONT AND BACK OF THE PFD AND ADJUST.
WARNINGS
CHECK BEFORE EVERY USE. PFD SHOULD BE
RINSED WITH FRESH WATER TO REMOVE ANY
DIRT OR SALT RESIDUE. HANG TO DRY. STORE
AWAY FROM DIRECT SUNLIGHT OR RADIANT
HEAT SOURCE. STOW IN A KIT BAG OR LOCKER.
RECOMMENDED FULL
ANNUAL INSPECTION AND
SERVICE WITH A BUOYANCY
TEST EVERY 5 YRS
ASSUMING AVERAGE USE.
EN ISO 12402-5:2020
EN ISO 12402-6:2020
SERIAL NO. Certications.
D.O.M
WASH
INSTRUCTION.
MAINTENANCE & STORAGE. SERVICING. DATES.

PFD Manual | East Quarry Appley Lane North, Appley Bridge, Wigan, WN6 9AE, UK
WARNING
Pulling on the yellow toggle that is attached to the cam belt will release the cowtail. Do not
use PFD if you are not qualied. Do not attach the cowtail or carabiner to any webbing that is
permanently xed to the PFD.
If you are using a carabiner to attach to the back of the PFD rather than a xed stainless steel
o-ring, please ensure that you use a screw-gate type carabiner to avoid accidental hook up
which could aect your positioning and stability in fast moving water.
Familiarize yourself with the correct tting, operation and safe stowage of the cowtail.
The cowtail is supplied tted to every PFD purchased from Northern Diver, however should
you need to re-t the cowtail, please proceed as instructed below.
Open the cam buckle on the chest harness (this
is the buckle with the yellow toggle attached) and
unthread the chest harness through the webbing
loops on the PFD.
To ensure the cowtail is tted in the correct position
the stainless steel o-ring must be threaded through
the chest harness and be positioned between
the two webbing loops on the back of the PFD
(illustrated left).
To nish tting make sure the chest harness is
threaded through ALL webbing loops of the PFD.
When the cowtail is not being used you must
ensure you clip the carabiner onto the chest
harness (illustrated left). This helps prevent the cam
buckle from opening and the chest harness and
cowtail from being released.
Although unlikely, it is possible for the cowtail
or chest harness to become entangled this can
prevent easy release. Adequate training and
experience in the use of a cowtail tethered PFD is
essential.
Pre-tting the cowtail.
Do not use if you are not qualied. Do not attach the cowtail or carabiner to any webbing that
is permanently xed to the PFD.
Stowing the cowtail.

Contact | [phone] | [e-mail] | www.ndiver-rescue.com 9
To ensure the correct tting please perform the following steps.
Prior to putting on, ensure all straps, including the shoulder straps, are
extended to their maximum length.
Starting from the bottom and working upwards, clip the quick release
buckles into place.
Donning instructions.
Once the quick release buckles are closed ensure they are tightened.
Do this by holding the plastic buckle in one hand and pulling the
webbing strap, with the other hand, in the opposite direction to tighten
and achieve a good t.

PFD Manual | East Quarry Appley Lane North, Appley Bridge, Wigan, WN6 9AE, UK
1. Quick release plastic buckle
2. Chest harness webbing belt
3. Metal back-buckle
4. Quick release pull toggle
Adjusting the quick release harness.
For in water rescue operations
Thread the webbing through the plastic quick release buckle. MUST be
threaded as shown in Fig.1.
For bank based operations and belaying.
Thread the webbing through both the plastic quick release buckle and
metal back-buckle to prevent the harness slipping under load. MUST be
threaded as shown in Fig.2.
Fig.1
1
2
3
4

Contact | [phone] | [e-mail] | www.ndiver-rescue.com 11
Close the buckle rmly.
Check that the webbing is not twisted during threading.
We recommend that the webbing tail end should only be trimmed if the
PFD has one user. Trimming the webbing tail can cause problems if the
PFD is has multiple users.
If the webbing tail end seems to be essessively long then you should
check the sizing of your PFD as you may be wearing the wrong size.
When trimming the webbing on the harness you must take care to
leave a clean edge with no lip or residue. This is to ensure there is no
restriction for the webbing when it is released through the plastic quick
release buckle.
Familiarize yourself with the tting and operation of the quick release
harness system.
1. Quick release plastic buckle
2. Chest harness webbing belt
3. Metal back-buckle
4. Quick release pull toggle
Fig.2
Important.
1
3
4
2

PFD Manual | East Quarry Appley Lane North, Appley Bridge, Wigan, WN6 9AE, UK
To ensure the PFD is tted correctly tighten the compression straps
on each side of the PFD. Starting from the bottom, place your hand
on each of the side webbing straps and simultaneously pull each one
forward to tighten. Repeat this process for all side webbing straps.
Adjusting the side compression straps.
Next, locate the adjustable webbing straps on both shoulders and
simultaneously pull each one forward to ensure the correct adjustment
and t. Having followed these steps, the PFD should now t close to the
body.
Adjusting the shoulder straps.

Contact | [phone] | [e-mail] | www.ndiver-rescue.com 13
To remove the PFD, reverse the procedures for donning PFD. In an emergency situation,
you will note that the quick release belts are designed for one-handed release, simply
squeeze the red button on the buckle.
If the PFD is only for your personal use you can leave all webbing straps set to the adjusted
lengths.
WARNING
Although Northern Diver reccomends using the PFD with the crotch straps attached it can be
used with crotch straps removed depending on your own/organistaions risk assesment and
operating procedures.
Finally, attach the crotch strap buckles into place and adjust until it is
comfortable.
Attaching crotch straps.
Removing the PFD.

PFD Manual | East Quarry Appley Lane North, Appley Bridge, Wigan, WN6 9AE, UK
IMPORTANT
Do not crush the PFD when storing. The foam will deform over time if heavy
objects are placed on top. Do not machine wash. Do not dry clean.
For PFD testing and servicing, please contact [e-mail] for further information.
It is recommended that following 5 years of use the PFD should have a buoyancy test.
The recommended product life span is 10 years from the date of issue.
FAO. Specialist Rescue Equipment
Northern Diver International Ltd
East Quarry
Appley Lane North
Appley Bridge
Wigan, UK
WN6 9AE
PFD’s have a 12 months warranty.
Terms & conditions may apply contact us for further details.
It is recommended that you regularly inspect your personal otation device including the
buckles, stitching, webbing tears, abrasion, UV damage and the outer fabric cover for
any signs of excessive wear or damage. A visual inspection should be completed every 6
months.
A full annual inspection is recommended as part of any standard operational procedure. If
any signicant damage if found, the PFD should be returned to Northern Diver for further
inspection to the address shown.
Following use the PFD should be rinsed with fresh water to remove any dirt or salt
residue, which could potentially cause premature wear. If the PFD has been exposed
to contamination, please contact Northern Diver for details of what products are
recommended to de-sanitise the PFD.
Hang to dry thoroughly and store away in a well ventilated area to prevent mould growing
on the PFD. Keep out of direct sunlight or any radiant heat source (prolonged exposure to
sunlight will deteriorate the fabric). Store in a suitable kit bag or locker.
It is recommended that following 5 years of use the PFD should have a buoyancy test.
The recommended product life span is 10 years from the date of issue.
Care and maintenance.
Wash icons left to right:
Hand wash only, do not tumble dry, do not dry clean, do not bleach, do not iron.

Contact | [phone] | [e-mail] | www.ndiver-rescue.com 15
Identication and service record.
Visually inspect the PFD at the beginning of each use.
MODEL:
DATE:
SERIAL NUMBER:
OWNER’S NAME:
SERVICE
NAME
NEXT SERVICE
DATE
AUTHORIZED
FACILITY STAMP

PFD Manual | East Quarry Appley Lane North, Appley Bridge, Wigan, WN6 9AE, UK
COWTAIL
CODE: PFD-COWS-TAIL-COLOUR
Unstretched: 500mm (19.7”)
Stretched 950mm (37.4”)
Colour: black or yellow
DUAL LOCK CARABINER
CODE: CARABINER-BLUE-SILVER
MSS 26kN
EN 12275:2013
EN 362:2004/B
CROTCH STRAPS
CODE: PFD-CROTCH STRAPS
One (adjustable)
25mm wide webbing
Colour: black or yellow
RETRACTABLE CORD
CODE: PFD-RETRACTABLE-CORD
One size with snap hook at
one end to fasten to PPE
PEA-LESS MARINE WHISTLE
CODE: WHISTLE
EN394 ISO12402
100+ decibel sound
FLEXI-LIGHT POCKET
CODE: POCKET-FLEXILIGHT
150*50*30mm (5.9*1.9*1.2”)
With velcro attachment strap
ENCAPSULATED PANELS
Available with standard wording, for example,
RESCUE, POLICE, WATER RESCUE or can be
customised with team names and/or artwork.
Hook Velcro is xed to the back, to allow the
badge to be removed from any object that has
the loop fastener tted.
3 sizes of encapsulated panel are available
(L) 300*100mm (11.8*3.9”)
(M) 240*100mm (9.4*3.9”)
(S) 50*150mm (2*5.9”)
MOQ: 15 PIECES
PFD accessories.

Contact | [phone] | [e-mail] | www.ndiver-rescue.com 17
LUG POUCH
CODE: LUG POUCH
Securely ts to Velcro panels
Accessible storage without adding
cumbersome to jacket
Space to t custom removable panel
Loop for easy & quick one-handed removal
Large interior space with split compartment
Mesh exterior removes the risk of any water
build up
Size: 305*160*40mm (12*6.3*1.6”) approx.
LUG POUCH STORAGE BAG
CODE: LUG POUCH BAG
Easy loading & storage of multiple pouches
Quickly accessible
Space for 8 Lug Pouches
25mm (0.9”) strong webbing carry handles
316 stainless steel snaphook clips & D-rings
Folds to a compact, transportable size
Size: 700*750mm (27.6*29.5”) approx.
Versatile piece of safety kit that rolls up
compactly and ts neatly in PFD front
pocket. Ideal for use in rescue situations.
Materials: 25mm (0.9”) nylon tape
4m (13’1) SAFETY SLING
CODE: SAFETY-SLING-4M-RED
Used as a towing sling or anchor
Two sewn end loops
Weight: 146g | Bright red colour
5M (16’4) RESCUE TAPE
CODE: SAFETY-TAPE-5M-YELL
One sewn end loop
Weight: 188g
High vis yellow colour

VISIT
www.ndiver-rescue.com
CONTACT
Tel: [phone]
Email: [e-mail]
HEAD OFFICE
East Quarry
Appley Lane North
Appley Bridge
Wigan
Lancashire
WN6 9AE, UK
