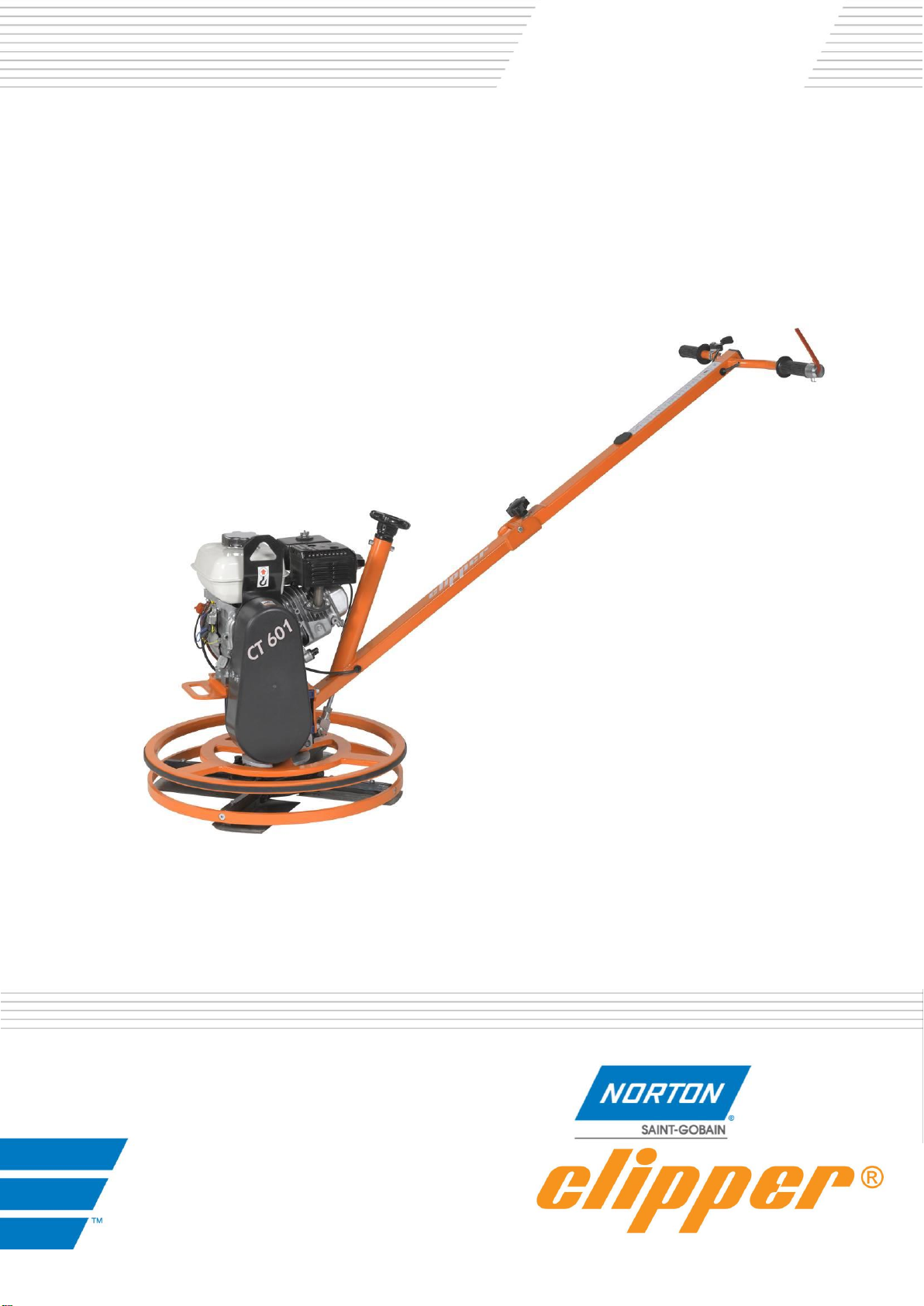

Norton clipper CT 601 ME User manual

CT 601 ME
OPERATING INSTRUCTIONS
Translation of the original instructions

VERS.2015.04.27 CT 601 ME_MAN_EN
2

VERS.2015.04.27 CT 601 ME_MAN_EN
3
The undersigned manufacturer:
SAINT - GOBAIN ABRASIVES S.A.
190, BD. J. F. KENNEDY
L-4930 BASCHARAGE
Declares that this product:
Power Float: CT 601 ME Code : 70184629946
is in conformity with the following Directives:
"MACHINES" 2006/42/CE
"LOW VOLTAGE" 2006/95/CE
"ÉLECTROMAGNÉTIC COMPATIBILITY" 2004/108/CE
"NOISE" 2000/14/CE
And the European standard
EN 12649 –Concrete compactors and resurfacing
Valid for machines as of serial number:
70100000
Storage site for the technical documents :
Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG
This declaration of conformity loses its validity when the product is converted or modified
without agreement.
Bascharage, Luxembourg, 01/02/2012
Olivier Plenert, executive officer.
Declaration of conformity

VERS.2015.04.27 CT 601 ME_MAN_EN
4

VERS.2015.04.27 CT 601 ME_MAN_EN
5
CT601ME
OPERATING INSTRUCTIONS AND SPARE PARTS LIST
1BASIC SAFETY INSTRUCTIONS 6
1.1 Symbols 6
1.2 Machine plate 7
1.3 Safety instructions for particular operating phases 7
2MACHINE DESCRIPTION 8
2.1 Short description 8
2.2 Purpose of use 8
2.3 Layout 8
2.4 Technical Data 9
2.5Statement regarding the vibration emission 10
2.6 Statement regarding noise emission 11
3ASSEMBLY AND COMMISSIONING 12
3.1 Tool assembly 12
3.2 Electrical connections 12
3.3 Starting the machine 12
4TRANSPORT AND STORING 13
4.1 Securing for transport 13
4.2 Transport procedure 13
4.3 Long period of inactivity 13
5OPERATING THE MACHINE 14
5.1 Site of work 14
5.2 Preparing the site 14
5.3 Floating and finishing operation 14
6MAINTENANCE AND SERVICING 16
7FAULTS: CAUSES AND CURES 17
7.1 Fault-finding procedures 17
7.2 Trouble-shooting guide 17

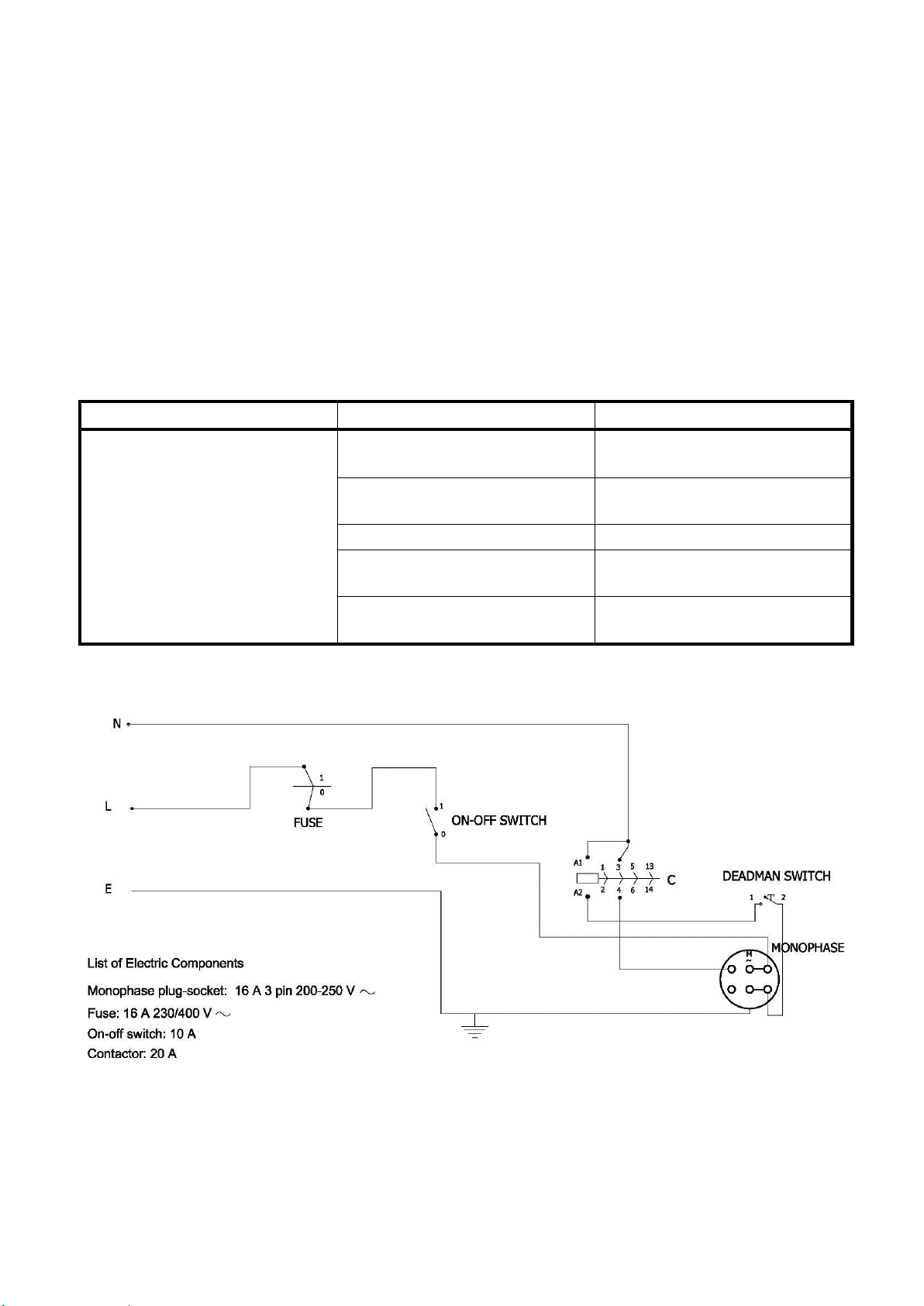

7.3 Circuit diagram 17
7.4 Customer service 18

VERS.2015.04.27 CT 601 ME_MAN_EN
6
1 BASIC SAFETY INSTRUCTIONS
The CT601ME is exclusively designed for the finishing of wet concrete floors mainly on construction
sites.
Uses other than the manufacturer's instructions shall be considered as contravening the
regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall
be borne entirely by the user. Observing the operating instructions and compliance with inspection
and servicing requirements shall also be considered as included under use in accordance with the
regulations.
1.1 Symbols

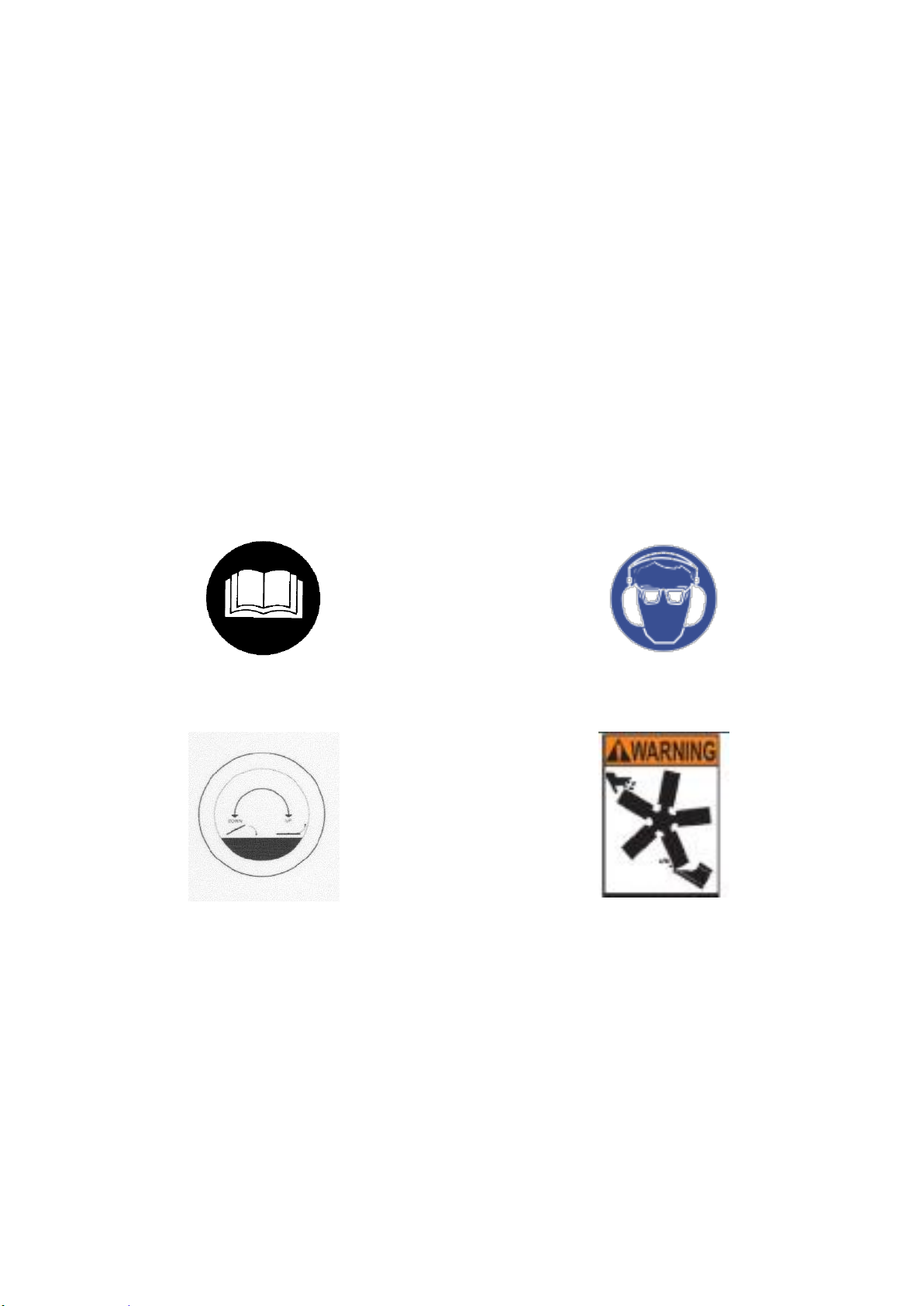

Important warnings and pieces of advice are indicated on the machine using symbols. The following
symbols are used on the machine:
Read operator’s instructions
Ear protection and safety goggles must be
worn
Turn the knob in the indicated direction to
tilt (UP) or flatten (DOWN) the blades.
To prevent severe injuries, keep the feet and
fingers away from the rotating tool

VERS.2015.04.27 CT 601 ME_MAN_EN
7

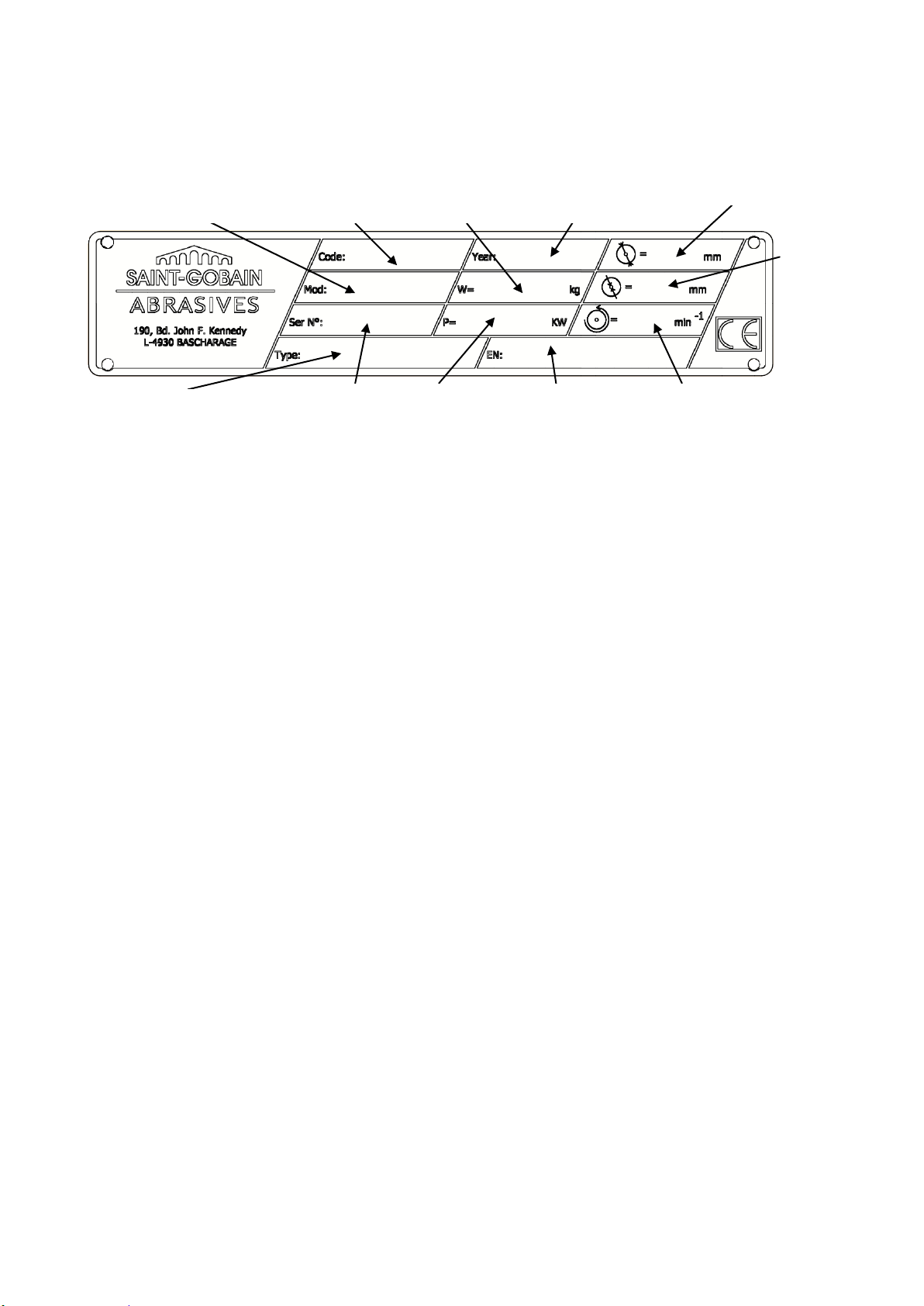

1.2 Machine plate
Important data can be found on the following plate located on the machine:
1.3 Safety instructions for particular operating phases
Before commencing work
Read the present operator’s instructions booklet carefully.
Before commencing work, make yourself familiar with the working environment at the place of
use. The working environment includes: obstacles in the area of work and manoeuvre, the
firmness of the floor, necessary protection at the site relating to public thoroughfares and the
availability of help in the event of accidents.
Check for correct mounting of the tool regularly.
Immediately remove damaged or badly worn tools, as they endanger the operator whilst
rotating.
Always use the machine with the safety guard ring, protection guards and electric box cover in
position.
Only fit NORTON blades or plates to the machine! The use of other tools can damage the
machine!
Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes
No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1.
Electrical powered machine
Always turn off the machine and separate it from the main source of electricity before any work
on the machine is done.
Make all electrical connections securely to eliminate contact of live wires with spray water or
dampness.
It is IMPERATIVE that you earth the machine properly. Let a qualified electrician check in case
of doubt.
In case of emergency, you can stop the machine by releasing the dead-man handle.
In the event of the machine breaking down or stopping for no apparent reason, switch off the
main electricity supply. Only a qualified electrician is allowed to investigate the trouble and
remedy the fault.
Machine Model
Machine Code
Weight
Year of production
Maximum tool diameter
Machine type
Serial number
Power
Safety standard
Tool rotation speed
speed
Do not apply
for CT601ME

VERS.2015.04.27 CT 601 ME_MAN_EN
8
2 MACHINE DESCRIPTION
Any modification, which could lead to a change in the original characteristics of the machine, may
be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity
with the safety regulations.
2.1 Short description
The Mechanical Trowel CT601ME is designed for durability and high performance for onsite
finishing operations on wet concrete floors.
As with all other NORTON products, the operator will immediately appreciate the attention given to
detail and quality of materials used in construction. The machine and its component parts are
assembled to high standards assuring long life and minimum maintenance.
2.2 Purpose of use
The Clipper Mechanical Trowel CT601ME is designed for onsite finishing operations on wet
concrete floors. It is not designed for any other purpose.
2.3 Layout

VERS.2015.04.27 CT 601 ME_MAN_EN
9
Handle (1)
Jig welded steel construction including 2 rubber grips. A dead-man handle (7) allows the operator to
work safely and to stop the machine at any moment. The angle of the machine arm can be adjusted
to operate the machine comfortably.
Pitch of the blades (2)
The pitch of the blades is controlled over a knob on the handle.
Belt drive and belt cover (3)
A centrifugal clutch inside the motor pulley drives the gear shaft through V-Belts. It allows to
gradually engage the tool rotation. The drive assembly is enclosed in a metal guard.
Safety guard ring (4)
A safety guard ring protects the operator from the rotation of the tool while offering an optimum
view of the working progress. This ring can rotate, in order to ease the finishing of floor up to walls.
Electrical Motor (5)
Electrical motor with 2,2kW.
Lifting eye (6)
To lift the machine easily and safely, a lifting eye is located over the motor. This allows a balanced
lifting of the machine.
2.4 Technical Data
Electric motor
2,2kW 230V 1~
Electric motor protection
IP55
Max. tool diameter
600 mm
Rotation speed of the tool shaft
130 min-1
Sound pressure level
79 dB (A) (ISO EN 11201)
Sound energy level
91 dB (A) (ISO EN 3744)
Type of tool
Blade or plate
Machine dimensions (LxWxH)
1560x650x1060mm
Weight (with tool assembled)
68 kg

VERS.2015.04.27 CT 601 ME_MAN_EN
10
2.5Statement regarding the vibration emission
Declared value of vibration emission following EN 12096.
Machine
Model / code
Measured value of vibration
emission at m/s2
Uncertainty K
m/s2
Tool used
Model / code
CT 601 ME
70184629946
<2.5
0.5
Original Pale
The vibration value is lower and does not exceed 2.5 m/s².
Values determined using the procedure described in the standard EN 12649.
The measurements are made with new machines. Actual values may vary with site conditions,
in terms of:
Materials worked
Wear Machine
Lack of maintenance
Inappropriate tool for application
Tool in poor condition
Unskilled operator
Etc…
The exposure time to vibration is based on the performance of work (related to the adequacy
Machine / Tool / worked material / operator)
When evaluating risks due to hand-arm vibration, you need to take into account effective usage
at rated power of machine during a full day of work; quite often you will realise that effective
utilisation time represents around 50% of overall duration of work. You have to consider, of
course, breaks, water feeding, preparation of work, time to move the machine, disk mounting…

VERS.2015.04.27 CT 601 ME_MAN_EN
11
2.6 Statement regarding noise emission
Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744.
Machine
Model / code
Sound
Pressure level
LPeq
EN ISO 11201
Uncertainty K
(Sound
Pressure level
LPeq
EN ISO 11201)
Sound power
level
LWeq
NF EN ISO 3744
Uncertainty K
(Sound power level
LWeq
NF EN ISO 3744)
CT 601 ME
70184629946
79 dB(A)
2.5 dB(A)
91 dB(A)
4 dB(A)
Values determined using the procedure described in the standard EN 12649.
The measurements are made with new machines. Actual values may vary with site conditions,
in terms of:
Wear Machine
Lack of maintenance
Inappropriate tool for application
Tool in poor condition
Unskilled operator
Etc…
Measured values relate to an operator in normal use, as described in the manual position.

VERS.2015.04.27 CT 601 ME_MAN_EN
12
3 ASSEMBLY AND COMMISSIONING
The machine is delivered fully equipped. It is ready for operation after assembly of the tool and
adjustment of the machine arm, and after connection to the appropriate power supply.
3.1 Tool assembly
Only NORTON blades or plate with a maximum diameter of 600 mm can be used with the
CT601ME.
Before mounting a new tool into the machine, switch off the machine and isolate it from the main
source of electricity. Make sure the tools are not rotating anymore.
Screw 2 M6-screws per blade using a 10mm wrench to assemble the blade on the arm. To
assemble a plate, place the machine with the blades assembled on the plate, and turn it until the
blades are located in the hooks on the plate.
3.2 Electrical connections
Check that,
The main switch is on “0”.
The voltage/phase supply corresponds to the information indicated on the motor plate.
Available power supply must have ground connection in conformity with safety regulations.
The connecting cables should have at least a 2.5mm2-section per phase.
3.3 Starting the machine
Set the machine arm in a comfortable position. To that purpose, loosen the handle on the arm and
set the arm at the right angle, then retighten the handle.
To start the machine after connection to the power supply, set the main switch on “1” and press the
dead-man handle. To stop the machine, release the handle and set the main switch to “0”.

VERS.2015.04.27 CT 601 ME_MAN_EN
13
4 TRANSPORT AND STORING
4.1 Securing for transport
Before transporting the machine, always remove the blades and the plate.
4.2 Transport procedure
Conform yourself to work regulations, in order to transport the machine safely.
To lift the machine, use the lifting eye. Make sure that your lifting device is securely fastened to the
lifting eye.
4.3 Long period of inactivity
If the machine is not going to be used for a long period, completely clean the machine and
disassemble the tools. The storage site must be clean, dry and at a constant temperature.

VERS.2015.04.27 CT 601 ME_MAN_EN
14
5 OPERATING THE MACHINE
5.1 Site of work
Remove from the site anything, which might hinder the working procedure!
Make sure the site is sufficiently well lit!
Observe manufacturer's conditions for connecting to power supplies!
Place electric cables in such a way that damage by the machine is excluded!
Make sure you have a continual adequate view of the working area so you can intervene in the
working process at any time!
Keep other staff out of the area, so you can work securely.
5.2 Preparing the site
Prepare the concrete as for manual trowelling. Assure a well levelled surface (we recommend the
use of a beam or better a vibrating screeder). When slab has set sufficiently firm so that the
operator can walk on it, leaving only a slight impression (approx.3mm), it is ready for the floating
operation.
5.3 Floating and finishing operation
To use the machine correctly, you must face it with the two hands on the handle. To start the
machine after connection to the power supply, set the main switch on “1” and press the dead-man
handle. To stop the machine, release the handle and set the main switch to “0”.
Handling the machine

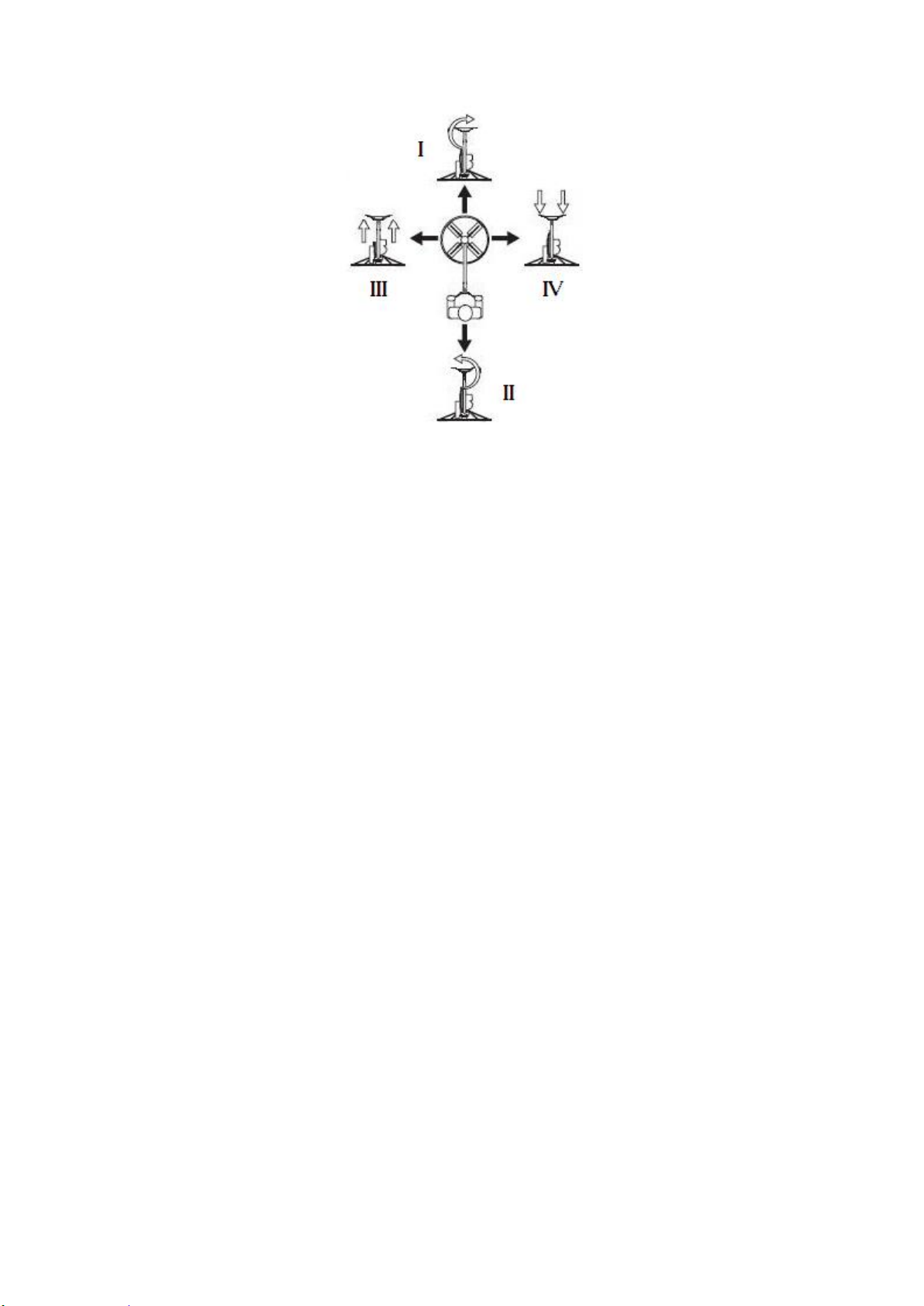

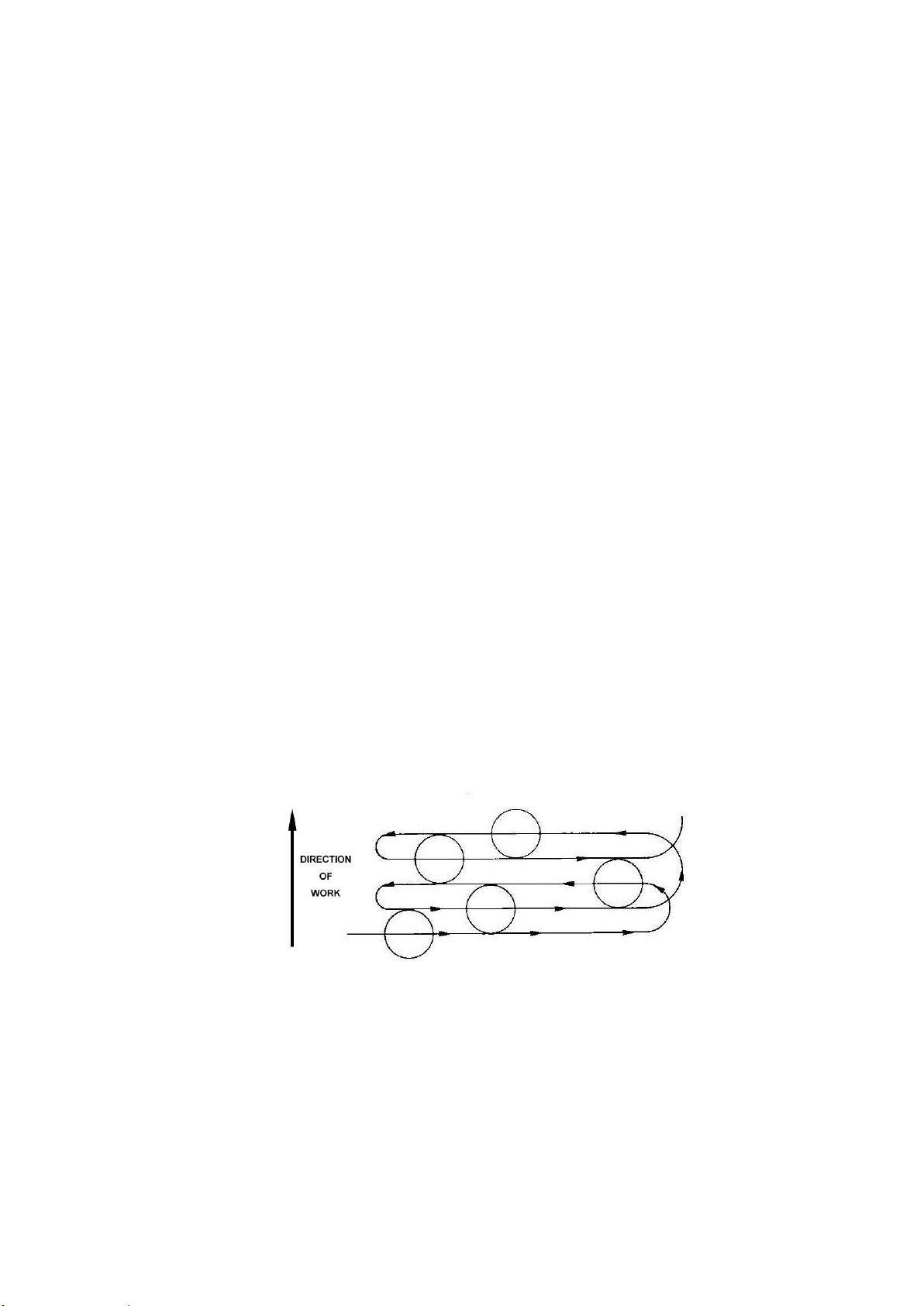

Operate the machine from right to left as shown in the following drawing:
To move the machine:
Forward (I on the following drawing), turn the handle clockwise.
Backward (II), turn the handle counterclockwise.
To the left (III), pull up the handle.
To the right (IV), push down the handle.

VERS.2015.04.27 CT 601 ME_MAN_EN
15
Tilting the blades
Floating the slab is done with the blades nearly flat on the surface of the concrete; however it is
recommended that the blades are just slightly tilted to avoid the suction and drag created in normal
operation of float blades on wet concrete. For the finishing operation, tilt the blades. Start with a
small pitch of 4 to 6 mm. After each finishing pass, continue to tilt blades.
Depression or high spot
To fill a depression or cut down a high spot, simply move the machine back and forward over the
area until the desired surface is obtained.
IMPORTANT: Do not allow the machine to stand in one spot on wet concrete –remove the
machine from the slab when it is not used.
CAUTION: when the machine is switched off, the tools will continue turning slowly to complete stop.
Be therefore very careful to avoid injuries.

VERS.2015.04.27 CT 601 ME_MAN_EN
16
6 MAINTENANCE AND SERVICING
To ensure a long-term quality from the use of the CT601ME, please follow the maintenance plan
below:
Begin of the day
During the changing of tool
End of the day or more often if required
Every week
After a fault
After a damage
Whole machine
Visual control (general aspect,
water tightness)
Clean
Surface of blades or plate
Clean
Tension of the blade
Check
Motor cooling fan
Clean
Motor housing
Clean
Reachable nuts and screws
Tighten up
Maintenance of the machine
Always perform the maintenance of the machine with the machine isolated from the electrical
supply and with tools idle.
Lubrication
The CT601ME uses life-lubricated bearings. Therefore, you don’t need to lubricate the machine at
all.
Control and change of the belt
To control the tension of belts, open the belt guard, and push on the belts. You should be able to
gape the belt as thick as a finger. If the tension is incorrect, loosen the nuts securing the motor on
the machine and move the motor until the correct tension is reached. Make sure that the pulleys are
aligned correctly. Then retighten the nuts.
To change the belts, loosen the nuts securing the motor on the machine and move the motor
forward until you can remove the old belts and put a new set of belts on the pulleys. Move the motor
in order to tighten the belts in a suitable way. Make sure the pulleys are aligned correctly. Then
retighten the nuts to assemble the motor securely.
After the control or the change of the belts, always reassemble the belt guard.
Cleaning of the machine
Your machine will last longer if you clean it thoroughly after each day of work, especially motor and
blades or pan.

VERS.2015.04.27 CT 601 ME_MAN_EN
17
7 FAULTS: CAUSES AND CURES
7.1 Fault-finding procedures
Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical
supply. Any works dealing with the electrical system or supply of the machine can only be carried
out by a qualified electrician.
7.2 Trouble-shooting guide
Trouble
Possible source
Resolution
Motor is not running
No electricity
Check the electrical supply
(fuse for example)
Connection cable section too
small
Change connection cable
Defective connection cable
Change connection cable
Defective switch
CAUTION : can only be solved
by qualified electrician
Defective motor
Change motor or contact motor
manufacturer
7.3 Circuit diagram

VERS.2015.04.27 CT 601 ME_MAN_EN
18
7.4 Customer service
When ordering spare parts, please mention:
The serial number (7 digits).
The code of the part.
The exact denomination.
The number of parts required.
The delivery address.
Please indicate clearly the means of transportation required such as "express" or "by air".
Without specific instructions, we will forward the parts through the means which seem
appropriate to us --- but which is not always the quickest way.
Clear instructions will avoid problems and faulty deliveries.
If not sure, please send us the defective part. In the case of a warranty claim, the part must always
be returned for evaluation. Spare parts for the motor can be ordered with the manufacturer of the
motor or with their dealer, which is often quicker and cheaper.
This machine has been manufactured by Saint-Gobain Abrasives S.A.
190, Bd. J.F. Kennedy
L- 4930 BASCHARAGE
Grand-Duché de Luxembourg.
Tel.: [phone]
Fax: [phone]
http://www.construction.norton.eu
e-mail: [e-mail]

VERS.2015.04.27 CT 601 ME_MAN_EN
19
Guarantee can be claimed and technical support obtained from your local distributor where
machines, spare parts and consumables can be ordered as well:

VERS.2015.04.27 CT 601 ME_MAN_EN
20
www.construction.norton.eu
Saint-Gobain Abrasives
190, Bd. J. F. Kennedy
L-4930 BASCHARAGE
LUXEMBOURG
Tel: ++352 50401-1
Fax: ++352 501633
e-mail: [email protected]
