NOSHOK SERIES 1000 User manual

PRESSURE
Digital
Pressure Gauges
SERIES 1000
HIGH PERFORMANCE DIGITAL PRESSURE GAUGES
USER MANUAL
USER MANUAL
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

1
1
1. Description of Parameters
Series 1000 Display Screen
Series 1000 Optional Display Screen
Max. value
Min. value
Bar graph display
Unit
Main display
LO-BAT
Bar graph display
Unit
Full scale
Max. value
Min. value
Main display
LO-BAT
Special function
2nd display
Ta r e
Full scale
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

2
2
Function in normal mode
Key Function/Action
- switches the device on
- switches the device off
- changes to programming mode if pressed
for longer than 3 secs
- Display indicated max. value as long as
key is pressed
- Display indicates min. value as long as
key is pressed
- Resets max. value to
“ 0 “
- Resets min. value to
“ 0 “
+
+
Min/Max Memory
The min/max memory is updated with the current measured value in
every measuring cycle.
The min. value is displayed by pressing the min. key.
The max. value is displayed by pressing the max. key.
Pressing and holding the appropriate key (min. or max.) and quickly
pressing the menu key at the same time resets the device to the
current measured value.
Bar Graph with Trailing Pointer Function
The integrated bar graph display with trailing pointer function addi-
tionally indicated on the display shows the trend in current working
pressure regardless of the digital display. With the help of the trailing
pointer function, the max. stored value is also indicated in the bar graph
display in addition to the digital display in the form of a bar segment.
This bar segment is also updated to the current measured value when
the min./max. value is reset.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

3
3

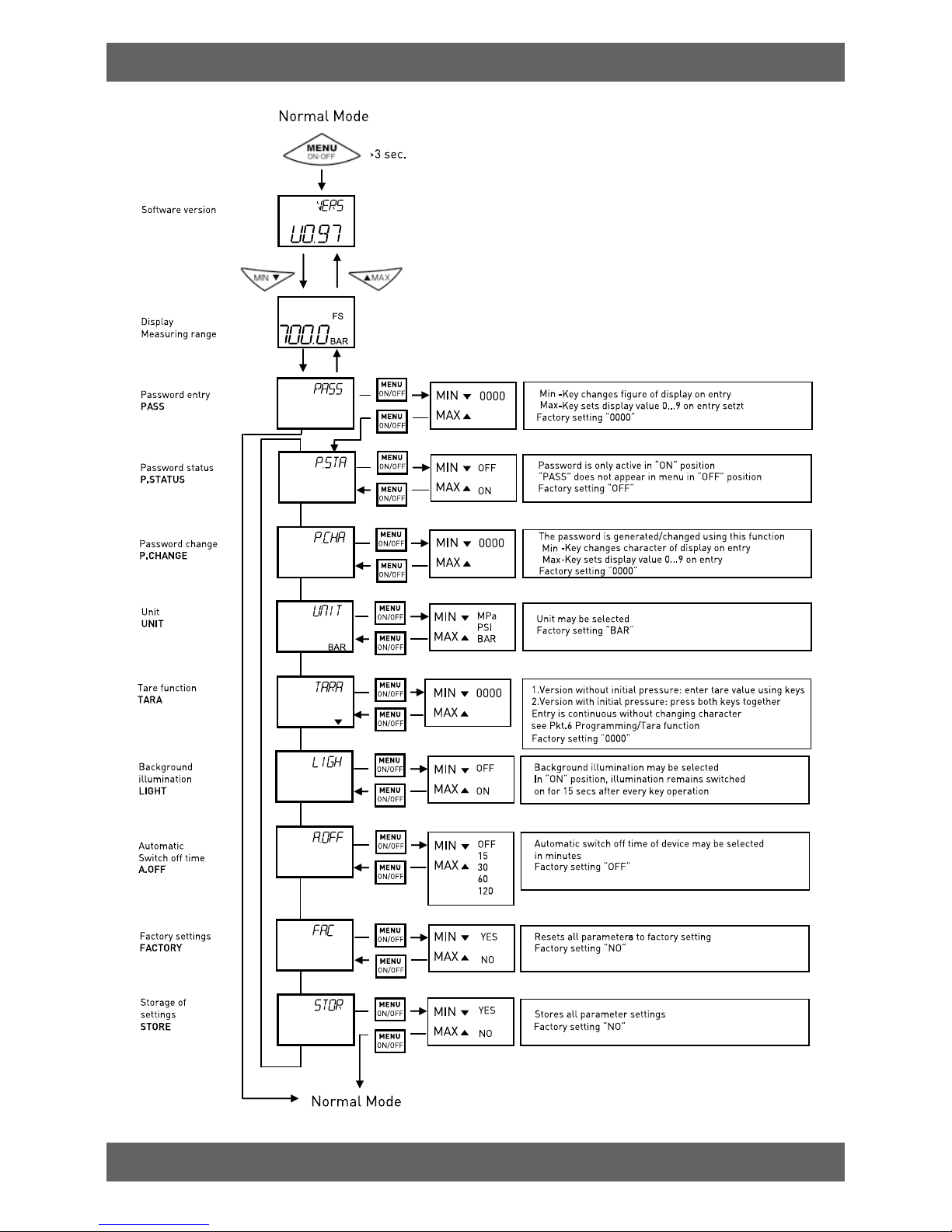

2. Programming Series 1000
Standard Programming
3
2. Programming Series 1000
Standard Programming
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

4
4
Optional Programming
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

5
5
Optional Ta r e F unction
In this mode the positive deviation of the measured value from the
tared value (max. 20% of the measuring range) is constantly indica-
ted by the main display. The untared pressure value is always shown
on the bar graph display. Thus the Digital Gauge’s actual working
load can be read off even if the tare function is active. When the
tare function is active, a function indicator appears on the display.
There are two:
1) Select the tare function and set the value to be tared using
the keys . When set, the measured value to be tared is
backed up as tare. The main display and the auxiliary display then
show the value “0000” in the unpressurised state. Example: If a
value to be tared is set as 2 bar, the main display indicates 0 bar
in the unpressurised state.
2) Load the Digital Gauge with the pressure to be tared.
The current measured value appears in the main display
łAH@ of the main display. Select the tare function and then
operate both keys simultaneously . The current measured
value will be backed up as tare. The main display and the auxiliary
display are set to (0000).
Setting the tare value to (0000) resets the tare function in both
models.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

6
6
3. Technical Data
Series 1000 with 4 digit, 7 segment
Optional: with 4.5 digit, 7/14 segment, second display
Display
• Accuracy
• Update rate
11 mm high, bar graph display
0.5 % o.F.S. ± 1 digit 1)
5 /sec
Measuring ranges
to EN
0...2 bar to 0...700 bar, others on request
Type of pressure Positive overpressure, negative overpressure
Overload limit Twofold, max 1000 bar
Wetted
Materials
Measuring ranges 50 bar stainless steel; AL 2O3; NBR,
Measuring cell ceramic
Measuring ranges 100 bar only stainless steel,
measuring cell thin-film technology
Pressure connector ¼ NPT, other connectors on request
Stability per year ± 0.2 % o.F.S. under reference conditions
Memory MIN/MAX (not volatile even when changing batteries)
Programming
mode Parameters
• Password
• Ta r e
• Automatic
switch off time
• Measuring unit
Optional: settable
Optional: 20% o.F.S. settable
option 2…90 min. factory set
Optional: settable
bar, PSI MPa selectable
Illumination of
display
Optional
Voltage supply
• Operating life
2 x 1.5V cell AA
4000h (AA 2000 mAh)
1) Measuring deviation to IEC 61 298- 2, including non-linearity, hysteresis,
deviation of zero point and upper range value
0 psig to 30 psig through 0 psig to 10,000 psig,
others on request
Twofold, max 15,000 psig
Measuring ranges ≤750 psig stainless steel; AL 203; NBR,
Measuring cell ceramic
Measuring ranges ≥1500 psig only stainless steel,
measuring cell thin-film technology
0 psig to 30 psig through 0 psig to 10,000 psig, others on
request; Compound ranges from 30/30 psig through 30/600 psig
Twofold, max 15,000 psig
Measuring ranges ≤750 psig stainless steel; AL 203; NBR,
Measuring cell ceramic
Measuring ranges ≥1500 psig only stainless steel,
measuring cell thin-film technology
11mm high, bar graph display
0.25% Full Scale (BFSL) ± 1 digit 1); ±0.5% Terminal Point;
5/sec
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

7
7
Temperature
comp. range
0.... 60°C
Temperature
effect
• Zero point
• Measuring range
± 0,15 % /10 K
± 0,15 % /10 K
Degree of pro-
tection
• permissible rel.
humidity
IP 65 to EN 605 29/IEC 5 29
< 90%, non-condensing
Emitted inter-
ference 2)
acc. to EN 613 26
Noise immunity 2) acc. to EN 613 26
Temperature
ranges
• Storage
• Mat. measured
• Environment
-20 .... 70 °C
-30 .... 85 °C (-30 … 100°C for measuring range
100 bar)
-10 .... 60 °C
Housing Stainless steel, Optional black protective cap
Weight Approx. 0.4 kg
2) Conformity declaration on request
4. CE – Conformity
The Digital Gauge complies with all requirements of EN 613 26 with
regard to interference emission and immunity for use in industrial
areas. NOS HOK r e c ommends the use of shielded cables. Installation and
cable routing must be carried out correctly in order to maintain the
effective protection from electromagnetic interference.
7
Temperature
comp. range
0.... 60°C
Temperature
effect
• Zero point
• Measuring range
± 0,15 % /10 K
± 0,15 % /10 K
Degree of pro-
tection
• permissible rel.
humidity
IP 65 to EN 605 29/IEC 5 29
< 90%, non-condensing
Emitted inter-
ference 2)
acc. to EN 613 26
Noise immunity 2) acc. to EN 613 26
Temperature
ranges
• Storage
• Mat. measured
• Environment
-20 .... 70 °C
-30 .... 85 °C (-30 … 100°C for measuring range
100 bar)
-10 .... 60 °C
Housing Stainless steel, Optional black protective cap
Weight Approx. 0.4 kg
2) Conformity declaration on request
4. CE – Conformity
The Digital Gauge complies with all requirements of EN 613 26 with
regard to interference emission and immunity for use in industrial
areas. NOS HOK r e c ommends the use of shielded cables. Installation and
cable routing must be carried out correctly in order to maintain the
effective protection from electromagnetic interference.
7
Temperature
comp. range
0.... 60°C
Temperature
effect
• Zero point
• Measuring range
± 0,15 % /10 K
± 0,15 % /10 K
Degree of pro-
tection
• permissible rel.
humidity
IP 65 to EN 605 29/IEC 5 29
< 90%, non-condensing
Emitted inter-
ference 2)
acc. to EN 613 26
Noise immunity 2) acc. to EN 613 26
Temperature
ranges
• Storage
• Mat. measured
• Environment
-20 .... 70 °C
-30 .... 85 °C (-30 … 100°C for measuring range
100 bar)
-10 .... 60 °C
Housing Stainless steel, Optional black protective cap
Weight Approx. 0.4 kg
2) Conformity declaration on request
4. CE – Conformity
The Digital Gauge complies with all requirements of EN 613 26 with
regard to interference emission and immunity for use in industrial
areas. NOS HOK r e c ommends the use of shielded cables. Installation and
cable routing must be carried out correctly in order to maintain the
effective protection from electromagnetic interference.
0°F to 140°F (0…60°C)
-4°F to 158°F (-20…70°C)
-22°F to 185°F (-22°F to 212°F for measuring range
≥1500 psig); (-30…85°C, -30…100°C for measuring range
≥100 bar)
14°F to 140°F (-10…60°C)
Approx. 0.88 lbs.
7
Temperature
comp. range
0.... 60°C
Temperature
effect
• Zero point
• Measuring range
± 0,15 % /10 K
± 0,15 % /10 K
Degree of pro-
tection
• permissible rel.
humidity
IP 65 to EN 605 29/IEC 5 29
< 90%, non-condensing
Emitted inter-
ference 2)
acc. to EN 613 26
Noise immunity 2) acc. to EN 613 26
Temperature
ranges
• Storage
• Mat. measured
• Environment
-20 .... 70 °C
-30 .... 85 °C (-30 … 100°C for measuring range
100 bar)
-10 .... 60 °C
Housing Stainless steel, Optional black protective cap
Weight Approx. 0.4 kg
2) Conformity declaration on request
4. CE – Conformity
The Digital Gauge complies with all requirements of EN 613 26 with
regard to interference emission and immunity for use in industrial
areas. NOS HOK r e c ommends the use of shielded cables. Installation and
cable routing must be carried out correctly in order to maintain the
effective protection from electromagnetic interference.
7
Temperature
comp. range
0.... 60°C
Temperature
effect
• Zero point
• Measuring range
± 0,15 % /10 K
± 0,15 % /10 K
Degree of pro-
tection
• permissible rel.
humidity
IP 65 to EN 605 29/IEC 5 29
< 90%, non-condensing
Emitted inter-
ference 2)
acc. to EN 613 26
Noise immunity 2) acc. to EN 613 26
Temperature
ranges
• Storage
• Mat. measured
• Environment
-20 .... 70 °C
-30 .... 85 °C (-30 … 100°C for measuring range
100 bar)
-10 .... 60 °C
Housing Stainless steel, Optional black protective cap
Weight Approx. 0.4 kg
2) Conformity declaration on request
4. CE – Conformity
The Digital Gauge complies with all requirements of EN 613 26 with
regard to interference emission and immunity for use in industrial
areas. NOS HOK r e c ommends the use of shielded cables. Installation and
cable routing must be carried out correctly in order to maintain the
effective protection from electromagnetic interference.
7
Temperature
comp. range
0.... 60°C
Temperature
effect
• Zero point
• Measuring range
± 0,15 % /10 K
± 0,15 % /10 K
Degree of pro-
tection
• permissible rel.
humidity
IP 65 to EN 605 29/IEC 5 29
< 90%, non-condensing
Emitted inter-
ference 2)
acc. to EN 613 26
Noise immunity 2) acc. to EN 613 26
Temperature
ranges
• Storage
• Mat. measured
• Environment
-20 .... 70 °C
-30 .... 85 °C (-30 … 100°C for measuring range
100 bar)
-10 .... 60 °C
Housing Stainless steel, Optional black protective cap
Weight Approx. 0.4 kg
2) Conformity declaration on request
4. CE – Conformity
The Digital Gauge complies with all requirements of EN 613 26 with
regard to interference emission and immunity for use in industrial
areas. NOS HOK r e c ommends the use of shielded cables. Installation and
cable routing must be carried out correctly in order to maintain the
effective protection from electromagnetic interference.
0°F to 140°F (0…60°C)
-4°F to 158°F (-20…70°C)
-22°F to 185°F (-22°F to 212°F for measuring range
≥1500 psig); (-30…85°C, -30…100°C for measuring range
≥100 bar)
14°F to 140°F (-10…60°C)
Approx. 0.88 lbs.
7
Temperature
comp. range
0.... 60°C
Temperature
effect
• Zero point
• Measuring range
± 0,15 % /10 K
± 0,15 % /10 K
Degree of pro-
tection
• permissible rel.
humidity
IP 65 to EN 605 29/IEC 5 29
< 90%, non-condensing
Emitted inter-
ference 2)
acc. to EN 613 26
Noise immunity 2) acc. to EN 613 26
Temperature
ranges
• Storage
• Mat. measured
• Environment
-20 .... 70 °C
-30 .... 85 °C (-30 … 100°C for measuring range
100 bar)
-10 .... 60 °C
Housing Stainless steel, Optional black protective cap
Weight Approx. 0.4 kg
2) Conformity declaration on request
4. CE – Conformity
The Digital Gauge complies with all requirements of EN 613 26 with
regard to interference emission and immunity for use in industrial
areas. NOS HOK r e c ommends the use of shielded cables. Installation and
cable routing must be carried out correctly in order to maintain the
effective protection from electromagnetic interference.
7
Temperature
comp. range
0.... 60°C
Temperature
effect
• Zero point
• Measuring range
± 0,15 % /10 K
± 0,15 % /10 K
Degree of pro-
tection
• permissible rel.
humidity
IP 65 to EN 605 29/IEC 5 29
< 90%, non-condensing
Emitted inter-
ference 2)
acc. to EN 613 26
Noise immunity 2) acc. to EN 613 26
Temperature
ranges
• Storage
• Mat. measured
• Environment
-20 .... 70 °C
-30 .... 85 °C (-30 … 100°C for measuring range
100 bar)
-10 .... 60 °C
Housing Stainless steel, Optional black protective cap
Weight Approx. 0.4 kg
2) Conformity declaration on request
4. CE – Conformity
The Digital Gauge complies with all requirements of EN 613 26 with
regard to interference emission and immunity for use in industrial
areas. NOS HOK r e c ommends the use of shielded cables. Installation and
cable routing must be carried out correctly in order to maintain the
effective protection from electromagnetic interference.
7
Temperature
comp. range
0.... 60°C
Temperature
effect
• Zero point
• Measuring range
± 0,15 % /10 K
± 0,15 % /10 K
Degree of pro-
tection
• permissible rel.
humidity
IP 65 to EN 605 29/IEC 5 29
< 90%, non-condensing
Emitted inter-
ference 2)
acc. to EN 613 26
Noise immunity 2) acc. to EN 613 26
Temperature
ranges
• Storage
• Mat. measured
• Environment
-20 .... 70 °C
-30 .... 85 °C (-30 … 100°C for measuring range
100 bar)
-10 .... 60 °C
Housing Stainless steel, Optional black protective cap
Weight Approx. 0.4 kg
2) Conformity declaration on request
4. CE – Conformity
The Digital Gauge complies with all requirements of EN 613 26 with
regard to interference emission and immunity for use in industrial
areas. NOS HOK r e c ommends the use of shielded cables. Installation and
cable routing must be carried out correctly in order to maintain the
effective protection from electromagnetic interference.
0°F to 140°F (0…60°C)
-4°F to 158°F (-20…70°C)
-22°F to 185°F (-22°F to 212°F for measuring range
≥1500 psig); (-30…85°C, -30…100°C for measuring range
≥100 bar)
14°F to 140°F (-10…60°C)
Approx. 0.88 lbs.
0°F to 140°F (0…60°C)
-4°F to 158°F (-20…70°C)
-22°F to 185°F (-22°F to 212°F for measuring range
≥1500 psig); (-30…85°C, -30…100°C for measuring range
≥100 bar)
14°F to 140°F (-10…60°C)
Approx. 0.88 lbs.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

8
9
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
Notes:
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

9
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
_________________________________________________________
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

10
10
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
________________________________________________________
_
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

CORPORATE HEADQUARTERS
1010 West Bagley Road • Berea, Ohio 44017 • 440-243-0888 • FAX [phone]
E-MAIL: [e-mail] • WEB: www.noshok.com.
DGI 07-2
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
