DELUXE ALTERNATING
PRESSURE SYSTEM
USER GUIDE
NOVA Pump & Pad
(On/Off Switch & Pressure Adjustable)
Item # APP-2001

IMPORTANT SAFEGUARDS
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the
following:
HOUSEHOLD USE ONLY
READ ALL INSTRUCTIONS BEFORE USING
DANGER
To reduce the risk of electric shock:
• Always unplug this product immediately after using.
• Do not use while bathing.
• Do not place or store product where it can fall or be pulled into a
tub or sink.
• Do not place in or drop into water or other liquid.
• Do not reach for a product that has fallen into water. Unplug
immediately.
WARNING
To reduce the risk of burns, electric shock, fire, or injury:
• This product should never be left unattended when plugged in.
• Close supervision is necessary when this product is used by, on, or
near children or invalids.
• Use this product only for its intended use as described in this
manual. Do not use attachments not recommended by the
manufacturer.
• Never operate this product if it has a damaged cord or plug, is
not working properly, has been dropped or damaged, or has
fallen into water. Return the product to the dealer from whom you
purchased for examination and repair.
• Keep the cord away from heated surfaces.
• Never block the air openings of this product or place it on a soft
surface, such as a bed or couch, where the openings may be
blocked. Keep the air openings free of lint, hair, and other similar
particles.
• Never drop or insert any object into any opening or hose.
• Connect this product to a properly grounded outlet only. See
Grounding Instructions (page 13).
• Do not use outdoors or operate where aerosol (spray) products
are being used.

CONTENTS
INTRODUCTION
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Contraindication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WHAT’S IN THE BOX
Included components . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
OPERATION
General operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
To deflate mattress pad . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pressure set up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Low pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CLEANING
Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mattress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
HANDLING AND STORAGE
Storage instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
MAINTENANCE
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Low pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Changing air filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
TECHNICAL DESCRIPTION
America, Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
TROUBLESHOOTING
Troubleshooting steps . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
GROUNDING INSTRUCTIONS
Grounding Instructions . . . . . . . . . . . . . . . . . . . . . . . . . .13
Extension Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
WARRANTY INFORMATION. . . . . . . . . . . . . . . . . 15
SAVE THESE INTRUCTIONS

4
INTRODUCTION
This manual should be used for the initial set up of the system and for
reference purposes.
ØGeneral information
The NOVA series is a high quality and affordable air mattress pad
system suitable for medium and high risk pressure ulcer treatment.
It has been designed for prevention of bed sores. It is an affordable
solution to 24 hour pressure area care.
The NOVA series has been tested and certificated to the following
standards:
UL 1431 (120V 60Hz)
FDA (120V 60Hz)
ØIntended use
NOVA series is intended to reduce the incidence of pressure ulcers
while optimizing patient comfort. It also provides the following.
• Individual home care setting and long term care.
• Pain management as prescribed by a physician.
ØContraindication
Patient conditions for which the application of pressure relieving
therapy on an alternation system is contraindicated as follows:
• Cervical or skeletal traction
• Unstable spinal cord injuries
NOTE: The pump has no AP or APG protection. Please do not
operate on the floor.

NOVA
5

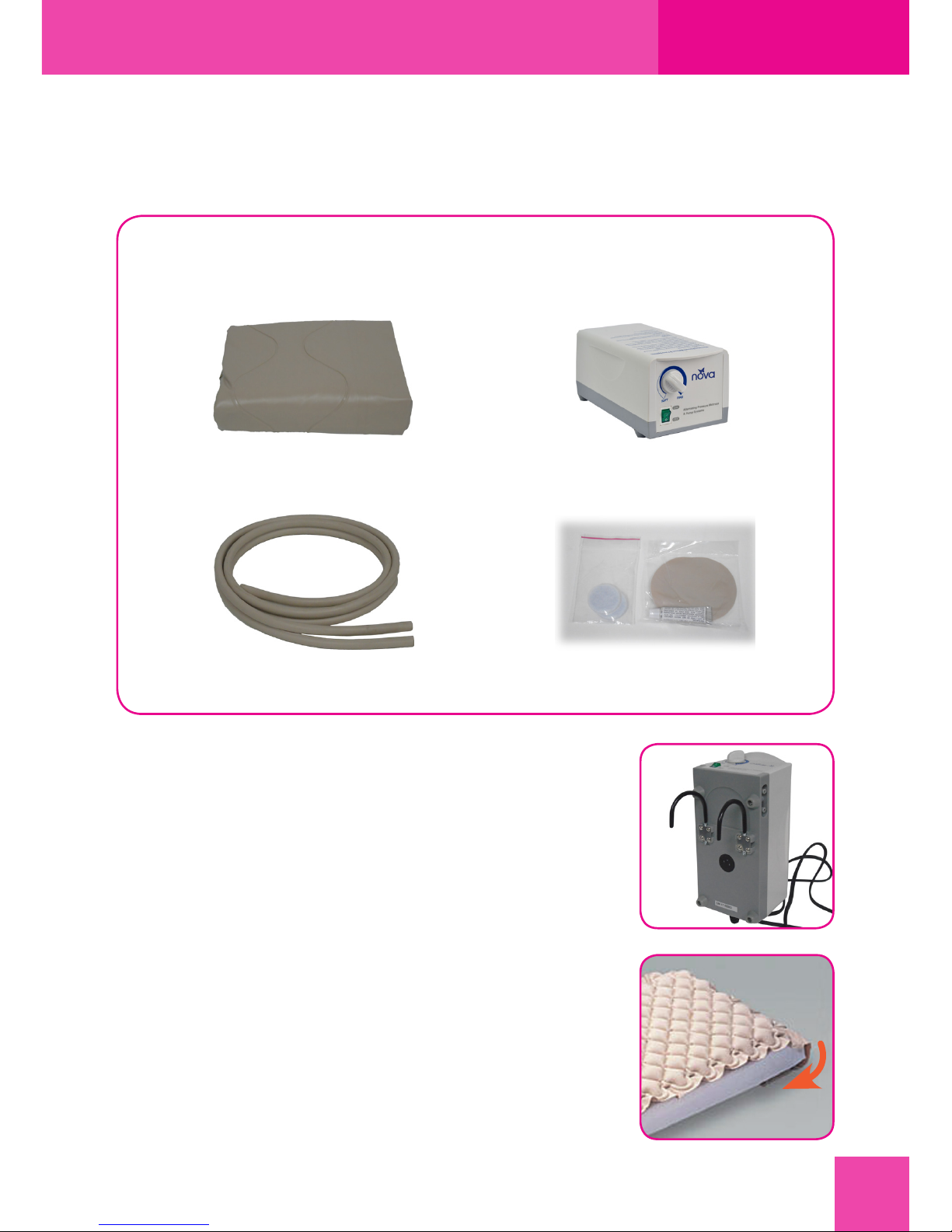

WHAT’S IN THE BOX
ØIncluded components
a. (1) Mattress pad
b. (1) Pump
c. (1) Air supply hose
d. (1) Repair & filter kit
a.
c.
b.
d.
1 Position pump on horizontal surface, or
hang it on the frame of the foot end with
the hooks. Ensure the pump is stable. DO
NOT operate pump on carpet.
2 Open mattress pad flat on the bed. Secure
it by tucking end flaps under bed. Inflation
nozzles must be face-up and at foot end of
bed.

6

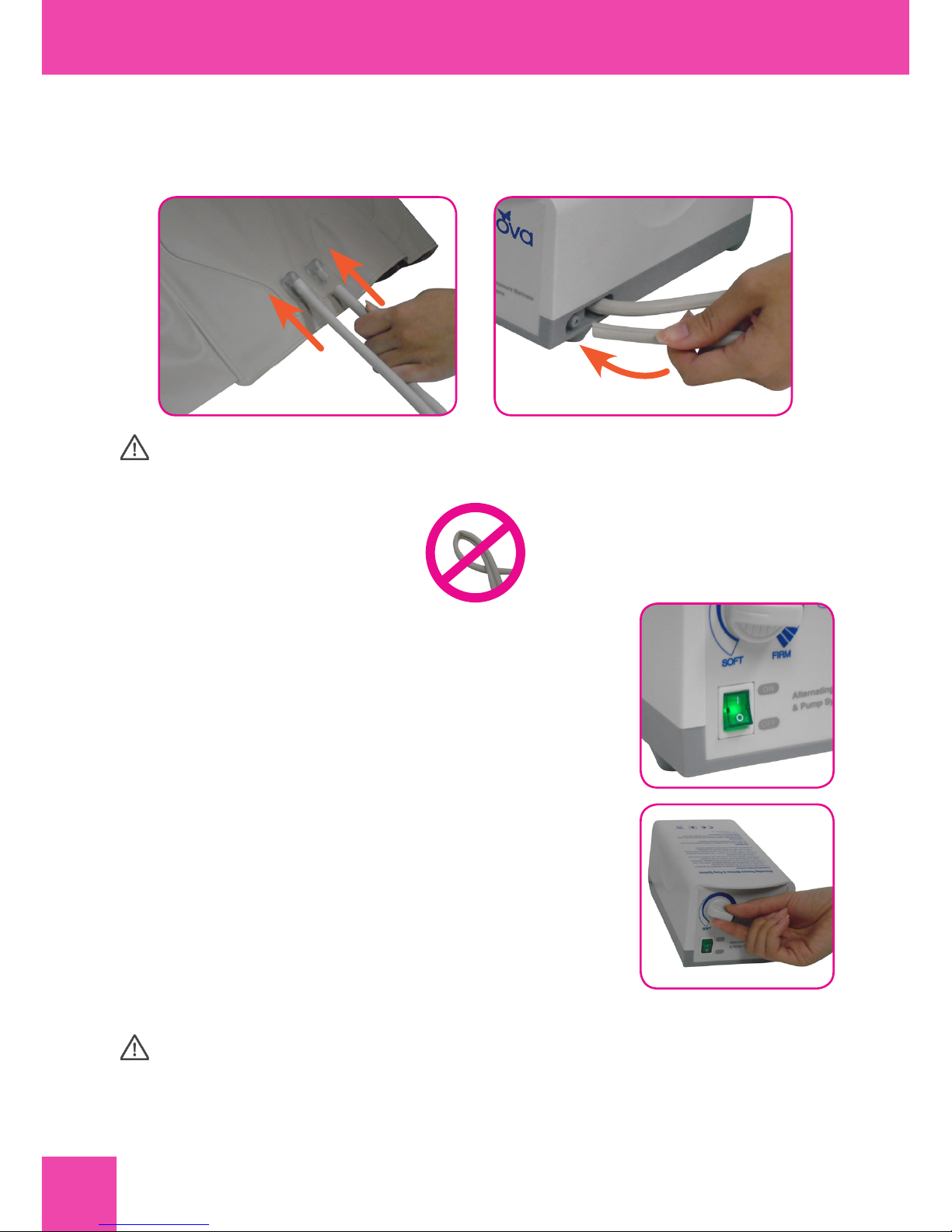

3 Connect inflation tubes to inflation nozzles on the mattress pad
and pump.
NOTE: Ensure the tubes are not twisted or “kinked” and are
completely connected to inflation nozzles.
4 Plug the pump into a suitable electrical
power source and switch on. The switch
indicator will light up. When switched off,
the indicator will turn off.
5 For the first inflation, to save inflating
time, adjust the pressure adjust knob to
“FIRM” setting. Allow 20-30 minutes for
mattress pad to inflate fully. Then, adjust to
the desired firmness to provide maximum
patient comfort.
NOTE: Please cover the mattress pad with a low friction sheet to
avoid direct skin contact and shearing.

NOVA
7
OPERATION
NOTE: Always read the operating instructions before use.
ØGeneral operation
• Turn the power on.
• Then, the power switch indicator will light up.
• The pump begins to pump air into the mattress pad.
NOTE: Each time when the mattress pad is first inflated, it is
recommended that the pressure dial to be set to “Firm”. The
user can then adjust the air mattress pad to the desired firmness
afterward.
ØTo deflate mattress pad
To deflate mattress pad, turn off pump and unplug it from the power
source. Detach inflation tubes from mattress pad, and allow pad to
expel air completely.
ØPressure set up
Users can adjust the pressure of the air mattress pad to a desired
firmness by themselves, or by the suggestion of a health care
professional.
NOTE: Please cover the mattress pad with a cotton sheet to
avoid direct skin contact and for patient’s comfort. The patient
may now lie on the mattress pad.
NOTE: Please do not use another pump and mattress pad with
different specifications from NOVA series. Also, it is dangerous
to use a pump greater than 120mmHg pressure, which may
cause cell-puncture.
NOTE: Check to see if the suitable pressure is selected by sliding
one hand between the air mattress pad and the foam base to
feel the patient’s buttock. Users should be able to feel the dis-

8
tance between the patient’s buttock and the bed. The accept-
able range is approximately 25 to 40 mm (1 to 1 ½ inches).
ØLow pressure
NOTE: If the pressure level is consistently low, check for any
leakage (tubes or connecting hoses). If necessary, replace any
damaged tubes or hoses, or contact the dealer from whom you
purchased for repair.
CLEANING
In this section, we describe the procedures to clean and
decontaminate the unit. It important to follow these procedures
before using the system on patients.
ØPump
• Do not immerse or soak pump unit.
• Check for external damage and move the pump to the cleaning
area.
• Place pump on a work surface and spray or wipe the outside of
the case with quaternary ammonium solution. DO NOT spray any
cleaning solution directly on the surface of the pump.
• DO NOT use a hypocarbonate or phenolic based cleaning solution
as this may cause damage to the case. Allow the solution to
incubate for 10 minutes or accordingly as stated by the cleaning
product used.
• Wipe case with a clean cloth. Make sure all areas are clean (top and
bottom, both sides).
• Spray cloth with cleaning solution and clean faceplate. DO NOT
allow excess cleaning solution on faceplate or control panel. (If
solution gets inside, damage will occur.) Allow surface to thoroughly
dry after cleaning.
• After the pump is thoroughly cleaned and dried, proceed to plug in
the pump and test to see if it runs normally.
• Unplug the pump and store with proper identification tag.
ØMattress

NOVA
9
• Brush off or wipe down all surfaces with soap and water before
wetting with any liquid disinfectant.
• Any obvious blood spots should be wet thoroughly with 1:9
hypochlorite solution (1 part bleach to 9 parts water) and allow to
dry for at least 10 minutes. Then blot with a clean, damp cloth.
• Unbutton or unzip the top cover from the mattress pad.
• Brush or wipe down all surfaces with soap and water before
applying any liquid.
• Covers are immersed and soaked in disinfectant for the required
incubation time.
• After pre-soaking, the cover is rinsed through a regular cycle in a
washer with no soap, then laundered with mild detergent ( wash
temperature 93°F, rinse temperature 78°F or on the coldest setting).
• Covers are aerated until they are fully dry. (Drying temperature
range 90-120°F or on the coldest setting).
• The air cells are unsnapped from one side and are sprayed on all
sides with a disinfectant. Let it sit for the required incubation time
and wipe down with a clean cloth. (Make sure to disconnect all
the air cells, one by one, and spray the disinfectant on all sides,
including all the connecting tubes and hoses. Let it sit for least 10
minutes).
• If there is a base after you remove all the air cells, the base has to
be sprayed down with the disinfectant, inside and out. Let it sit for
the required incubation time and wipe down with a cloth.
• Repeat the process with the tubing set: spray, incubate, and then
wipe clean.
• The carrying bag should be turned inside out and completely wiped
down using the disinfectant solution.
• Allow it to thoroughly air dry. Once the inside is dry, turn it back,
wipe down the outside of the bag with disinfectant.
• Dry the mattress pad in a SUNLESS area after cleaning.
HANDLING AND STORAGE
ØStorage instructions
• Lay the mattress pad out flat and upside down.
• Roll from the foot end towards the head end and store.
• Do not crease, or stack the mattress pad.

10
MAINTENANCE
ØGeneral
• Check main power cord and plug if there are abrasions or excessive
wear.
• Check mattress cover for signs of wear or damage. Ensure mattress
cover and tubes are connected together correctly.
• Plug in the pump unit and check the airflow from the hose
connection port. The airflow should alternate between ports every
half-cycle time.
• Check the air hoses if there are kinks or breaks. For replacement,
please contact the dealer from whom you purchased.
• Make sure the mattress tube is well connected.
• Check the pump unit and make sure both power and power
indicator are off when the switch is turned off.
NOTE: In case the fuse of the pump needs to be changed, use a
1-Ampere fuse.
ØLow pressure
To examine if there is air leakage between pump and mattress pad
connections or from air mattress tubes:
• Check connectors between air mattress pad and pump. If they are
disconnected, please reconnect them.
• Check air-connecting tubes. Ensure each single cell is not broken.
Set pressure dial to firm position. Keep the tubes fully inflated and
inspect for air leakage.
• Exam air leakage from cells. Ensure no leakage occurs. If any
leakage occurs, please contact .
ØChanging air filters
It is recommended to change the air filter on the pump every 6
months of continued use. Please contact the dealer from whom you
purchased for replacement filters.

NOVA
11
Follow the instructions below to change your air filter.
1 Turn over pump and gently lay top of pump on a flat surface.
Locate the black, circle filter cap.
2 Using a small, flathead screwdriver, gently pry up on the edge of
the filter cap.
3 Remove dirty filter, and insert a clean filter into the filter cap.
Place filter cap into pump.
TECHNICAL DESCRIPTION
NOVA pump & mattress pad is designed and manufactured to meet
the most demanding environment. The specifications are listed below:
ØAmerica, Canada
Equipment fulfills the requirement of the standard UL 1431.

12
ØSpecifications
Item Specification
Power supply AC 120V/60Hz, 5.8W
Pressure range 40mmHg - 100mmHG (± 10)
Cycle time 10 min.
Dimension 22.4cm x 10.8cm x 10.3cm
Weight 1.4 kg
Due to continued development of these products, specifications
may be changed without prior notice.
Item Specification
Environment/
Temperature/Humidity
Operation: 50°F ~ 95°F
Storage: 59°F ~ 122°F
Shipping: 59°F ~ 158°F
Operation: 20% ~ 80% non-condensing
Storage: 10% ~ 90% non-condensing
NOTE: The specifications also apply to those areas operating
with the same power supply.
TROUBLESHOOTING
ØTroubleshooting steps
Problems Solutions
When pump
doesn’t work
Check if plug is correctly inserted. Turn switch
“ON”. If the unit cannot be restarted even
when switched on, call the dealer from whom
you purchased immediately.

NOVA
13
Problems Solutions
Incomplete inflation
(low pressure)
Check to see if tubes are connected with
pump, twisted, or leaking. Keep tubes straight.
Change tubes if there is a leak.
Check and adjust the pressure to the firm
position.
Ensure every single cell is not broken.
If any leakage occurs, please contact the
dealer from whom you purchased.
Filter cleaning
Please check the air filter on the back of pump
unit every month.
Wash the filter with mild detergent to keep it
clean. A dirty filter may decrease the air flow.
GROUNDING INSTRUCTIONS
ØGrounding Instructions
This product should be grounded. In the event of an electrical short
circuit, grounding reduces the risk of electric shock by providing an
escape wire for the electric current. This product is equipped with a
cord having a grounding wire with a grounding plug. The plug must
be plugged into an outlet that is properly installed and grounded.
NOTE: Improper use of the grounding plug can result in a risk of
electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or without
yellow stripe is the grounding wire.
Check with a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if in doubt as to
whether the product is properly grounded.
This product is factory equipped with a specific electric cord and plug
to permit connection to a proper electric circuit. Make sure that the

14
product is connected to an outlet having the same configuration as
the plug. No adapter should be used with this product. Do not modify
the plug provided—if it will not fit the outlet, have the proper outlet
installed by a qualified electrician. If the product must be reconnected
for use on a different type of electric circuit, the reconnection should
be made by qualified service personnel.
ØExtension Cords
If it is necessary to use an extension cord, use only a three wire
extension cord that has a three-blade grounding plug, and a three-
slot receptacle that will accept the plug on the product.
Replace or repair if damaged.

NOVA
15
WARRANTY INFORMATION
NOVA stands firm on our commitment to providing the highest quality products, as
well as exceptional service. This product was built to precise standards and thoroughly
inspected prior to shipment. This warranty represents our confidence in the materials
and workmanship of our product.
NOVA extends this warranty only to the original purchaser of this product. The
warranty does not extend to any subsequent purchaser or owner. The warranty is void
upon any sale or transfer of ownership or use by other person. NOVA warrants its
products are free from defects in material and workmanship under NORMAL use for
the period commencing upon the date of purchase and continuing for the following
specified period of time after that date:
Pump Unit One Year Limited Warranty
Mattress Pad Three Month Limited Warranty
This warranty does not cover problems due to user negligence, misuse of the product,
failure to adhere to product instructions, or normal wear and tear. Items that have
been subject to negligent abuse, modified without prior written authorization are not
covered within this warranty.
For warranty service, please contact the dealer from whom you purchased your NOVA
product. In the event that you do not receive satisfactory service, please call us directly
at the number on the bottom front of this sheet. Be prepared to indicate, the nature
of the defect, the product serial number, and the name and location of where you
purchased the product. You will also be required to provide a receipt of your purchase.
Do not return any products to our office without prior consent.
Repair or replacement is the only remedy under this limited warranty. This warranty
does not include any labor or shipping charges incurred in replacement part installation
or repair of product.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES,
IMPLIED WARRANTIES, IF ANY, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NOVA SHALL NOT
BE LIABLE FOR ANY SEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
IMPORTANT WARNING
FOLLOW ALL DIRECTIONS CAREFULLY BEFORE USE. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY.
Connect with us!
novajoy.com
novamedicalprod
novamedicalprod
novawalkerstalk
NOVA Medical Products

NOVA Medical Products
1470 Beachey Place
Carson, CA 90746 USA
MADE IN CHINA
4FL1
E346315
