NOVAERUS NV200 User manual

Document No. 610-00-0303 Rev E.
COPYRIGHT © 2019 NOVAERUS US, INC.
1

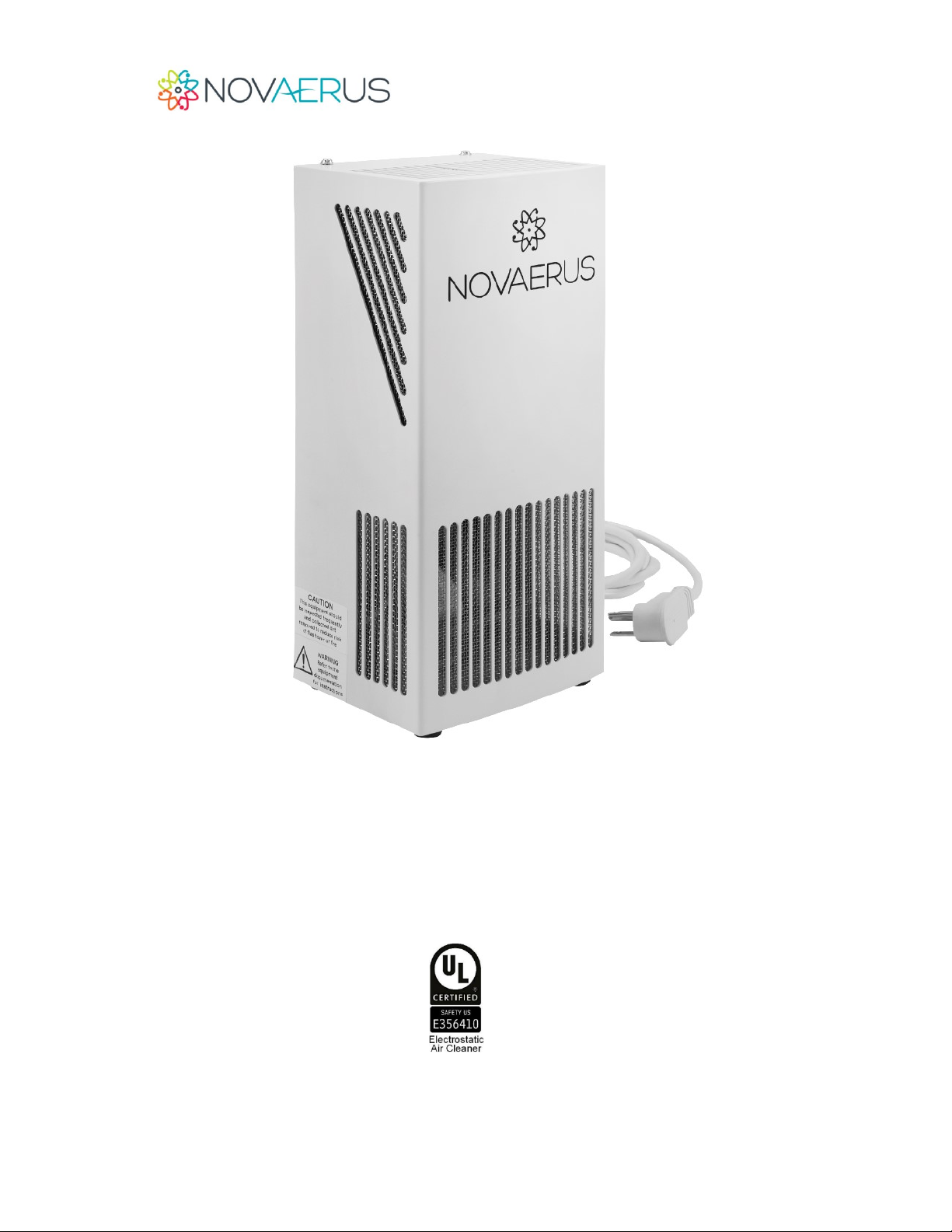

NV200 Air Purifier
User Manual
Novaerus US, Inc.
35 Melrose Place, Stamford
CT 06902, USA
Phone: [phone]
www.novaerus.com

Document No. 610-00-0303 Rev E.
COPYRIGHT © 2019 NOVAERUS US, INC.
2
Table of Contents
1. INTENDED PURPOSE...........................................................................................................................3
2. LABELING SYMBOLS ...........................................................................................................................3
3. CLASSIFICATION OF EQUIPMENT ........................................................................................................4
4. WARNINGS........................................................................................................................................4
5. TECHNICAL SPECIFICATIONS ...............................................................................................................5
6. INSTRUCTIONS FOR USE.....................................................................................................................5
7. WALL MOUNTING INSTRUCTIONS ......................................................................................................5
8. SERVICE AND MAINTENANCE INSTRUCTIONS......................................................................................7
9. TROUBLESHOOTING...........................................................................................................................7
10. PRODUCT CERTIFICATIONS.................................................................................................................7

Document No. 610-00-0303 Rev E.
COPYRIGHT © 2019 NOVAERUS US, INC.
3
1. Intended Purpose
The intended purpose of the NOVAERUS NV200 Air Purifier is to improve the quality of air. Please
read and follow all instructions in this manual.
2. Labeling Symbols
Symbol
Meaning
Caution, Consult Users Manual
Caution, High Voltage
Date of Manufacture
Manufactured For or By
Serial Number
This product conforms to North American safety standard.
On (Power)
Off (Power)
Accompanying documents must be consulted.
Indicates the temperature limits to which the medical device can be
safely exposed.
Indicates the range of humidity to which the medical device can be
safely exposed.

Document No. 610-00-0303 Rev E.
COPYRIGHT © 2019 NOVAERUS US, INC.
4
3. Classification of Equipment
Item
Classification
Protection of Harmful Ingress of Water
IPX0 (No protection, Indoor Use Only)
Mode of Operation
Continuous
Oxygen Rich Environments
Not intended for Oxygen Rich Environments
4. Warnings
General Warnings
CAUTION: This equipment contains high voltage
CAUTION: This equipment should be inspected frequently and collected dirt removed from it
regularly to prevent excessive accumulation that may result in flashover or a risk of fire.
CAUTION: To avoid the risk of electric shock, this equipment must only be connected to a supply
mains with protective earth.
CAUTION: This equipment shall only be installed by a qualified installer.
CAUTION: No modification of this equipment is allowed.
CAUTION: Do not modify this equipment without authorization of the manufacturer.
CAUTION: Do not restrict the air flow of the product.
CAUTION: Do not open the tamper proof screws on the casing of the unit. No serviceable parts are
contained within. The units should be opened by qualified Novaerus personnel only.
CAUTION: Do not position the equipment where it is difficult to operate the power switch.
CAUTION: For continued protection against risk of fire, replace the fuse with the same type and
rating, Listed, 125VAC 3 Amps.
CAUTION: The non-detachable power supply cord is not field replaceable by service personnel. If
damaged is found during inspection, the device should be immediately disconnected
from power and returned to Novaerus.
CAUTION: Do not use outdoors or near water.
CAUTION: Not to be used by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction.

Document No. 610-00-0303 Rev E.
COPYRIGHT © 2019 NOVAERUS US, INC.
5
CAUTION: To reduce the risk of electric shock, this equipment has a grounding type plug that has a
third (grounding) pin. This plug will only fit into a grounding type power outlet. If the plug
does not fit into the outlet, contact qualified personnel to install the proper outlet. Do
not alter the plug in any way.
5. Technical Specifications
a. Dimensions: 5.2” w x 11.1” h x 4.3” d
b. Weight: Approx. 7.6 lb.
c. Power Requirements: 120 VAC, 60 Hz, 0.08 A
d. Fuse Specification: 125 VAC, 3 Amps, Listed
e. Mounting: Wall mountable, countertop or stand-alone
f. Fan Air Flow: 50 ft3/min
g. Shipping / Storage Conditions: 5°C-50°C, Maximum 95% Relative Humidity
h. Operating Conditions: 10 - 35°C, 10 - 75% Relative Humidity, 2000m
6. Instructions For Use
The product should be placed in a dry location and connected to a suitable grounded outlet. The
product is intended to be either placed on a flat surface or wall mounted. If wall mounting is
desired, please follow the instructions provided in the Wall Mounting Instructions included in this
document. Once the product is installed, turn the power switch to the on position. The device is
now operating.
7. Wall Mounting Instructions
The mounting of this product shall be conducted by a trained service person that is experienced
with the proper use of standard installation tools such as a drill, screw driver, tape measure and
level.
The product can be wall mounted using suitable fasteners for your wall type. Fix the screws
horizontally with a spacing of 2-1/2”. Leave the screw head protruding no more than 0.5 “ from the
wall for hanging. Ensure screws are tightly secured into the wall and a solid connection is made
between the screws and the unit. Ensure the product is level. Follow these instructions depending
upon mounting surface:

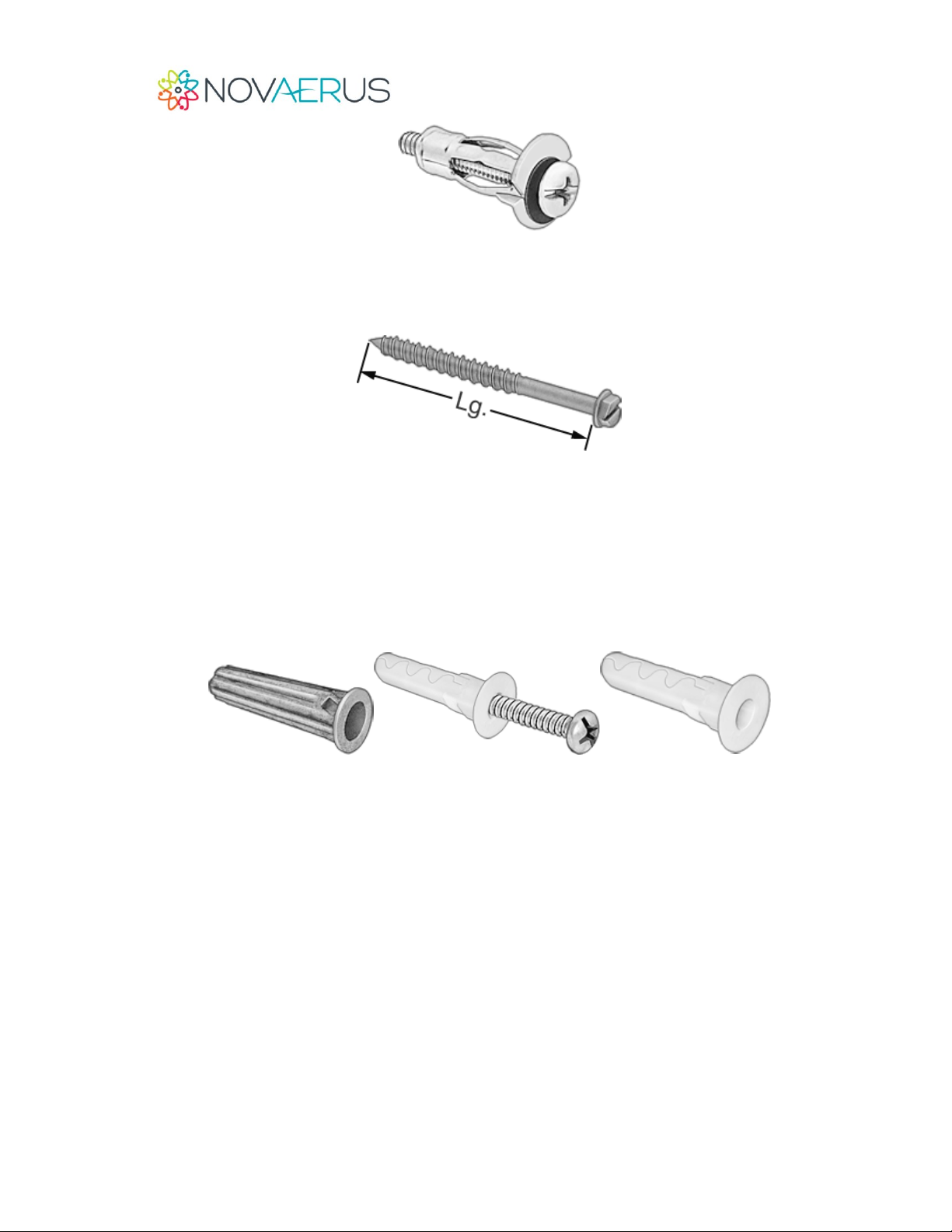

For hollow wall construction studded with metal or wood framing and sheathed with Drywall,
Plaster, or Plywood, an appropriate hollow wall such as a #10 re-usable anchor.
Each of the two reusable anchors must be rated for a 20.0 lbs. rating minimum and be the
appropriate size for the sheathing thickness. Use #10 size minimum.

Document No. 610-00-0303 Rev E.
COPYRIGHT © 2019 NOVAERUS US, INC.
6
Typical drill size is 3/8” for the #10 re-usable anchor shown. Follow manufacturer’s instructions.
For concrete or masonry wall construction
Purposed 3/16” concrete screws
Each of the two screws must be rated for 20.0 lb minimum.
Typical drill size is 5/32” for the 3/16” concrete screw. Follow manufacturer’s instructions. Follow
manufacturer’s recommendation for drill depth for screws being used.
Various types of concrete inserts are available that are adequate for use in concrete, such as conical
lead or flanged Polypropylene that will be adequate for installation of the rack mount bracket. They
must be individually rate to support 20.0 lb minimum.
Use sizes that support a #10 screw minimum.
Typical drill size is 5/16” for the #10 conical lead anchor for concrete. Follow manufacturer’s
instructions. Follow manufacturer’s recommendation for drill depth for insert being used.
Typical drill size is 1/4” for the #10 flanged Polypropylene anchor for concrete. Follow
manufacturer’s instructions for drill depth for insert being used.
For plywood wall construction
Use #10 1” screw, each of the two screws must be rated for 20.0 lbs. minimum.

Document No. 610-00-0303 Rev E.
COPYRIGHT © 2019 NOVAERUS US, INC.
7
8. Service and Maintenance Instructions
Do not open the tamper proof screws on the casing of the unit. No serviceable parts are contained
within. The units should only be opened and serviced, if necessary, by qualified Novaerus personnel.
Cleaning:
The unit should be visually inspected on a monthly basis for accumulation of dirt and dust on the
wire mesh screen that is located inside the unit chassis. The wire mesh is clearly visible from the
outside of the unit. It is recommended that the unit be cleaned using a vaccum cleaning brush from
the outside of the unit to remove any dirt and dust that may have accumulated on the wire mesh
screen.
9. Troubleshooting
Should the unit sustain severe damage and an increase in noise from the internal parts is observed,
discontinue use of the unit and contact a representative of the Novaerus technical team for
assistance. This product is not intended to be repaired in the field.
Should the unit not power on, check to ensure that the fuse located on top of the unit is secured
tightly in its socket.
10. Product Certifications
NV200: UL Listed, UL 867
