Quick Start Guide
Mobile Broadband
MC950D
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

Mobile Broadband
when you need it.
Your Ovation MC950D allows you to surf the web with the great-
est of ease, download your files, your music, manage your mail,
all at speeds of up to 7.2 Mbps download and 2.1 Mbps upload.
This means true mobility to do what you want, when you want.
Supported technology includes HSUPA, HSDPA, UMTS, EDGE,
and GPRS. This means that the Ovation MC950D can give you
Mobile Broadand speeds in Europe, North America, and Asia
Pacific*.
Utilising the new Zero-CD technology, the Ovation MC950D
installation procedure couldn’t be more simple. Follow the next
five steps, and you’ll be well on your way to accessing the infor-
mation super highway.
* Subject to operator roaming agreements
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

Contents
English
System Requirements/Contents 1
Ovation MC950D 2
Safety Guidelines 3
Installation 4
Removing Your MC950D 9
LED States 10
Italiano
Guida rapida 11
Requisiti di sistema/Contenuto della confezione 13
Ovation MC950D 14
Indicazioni per la sicurezza 15
Installazione 16
Estrazione dell'Ovation MC950D 21
Stato del LED 22
Français
Guide de démarrage 23
Configuration requise/Contenu de l’emballage 25
Modem Ovation MC950D 26
Précautions de sécurité 27
Installation 28
Retirer votre Ovation MC950D 33
Voyants d’état 34
Español
Guía de inicio rápido 35
Requisitos del sistema/Contenido del paquete 37
El módem Ovation MC950D 38
Instrucciones de seguridad 39
Instalación 40
Extracción del módem Ovation MC950D 45
Estados del LED 46
Deutsch
Kurzanleitung 47
Systemvoraussetzungen/Packungsinhalt 49
Ovation MC950D 50
Sicherheitsanweisungen 51
Installation 52
Ovation MC950D entfernen 57
LED-Zustände 58
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

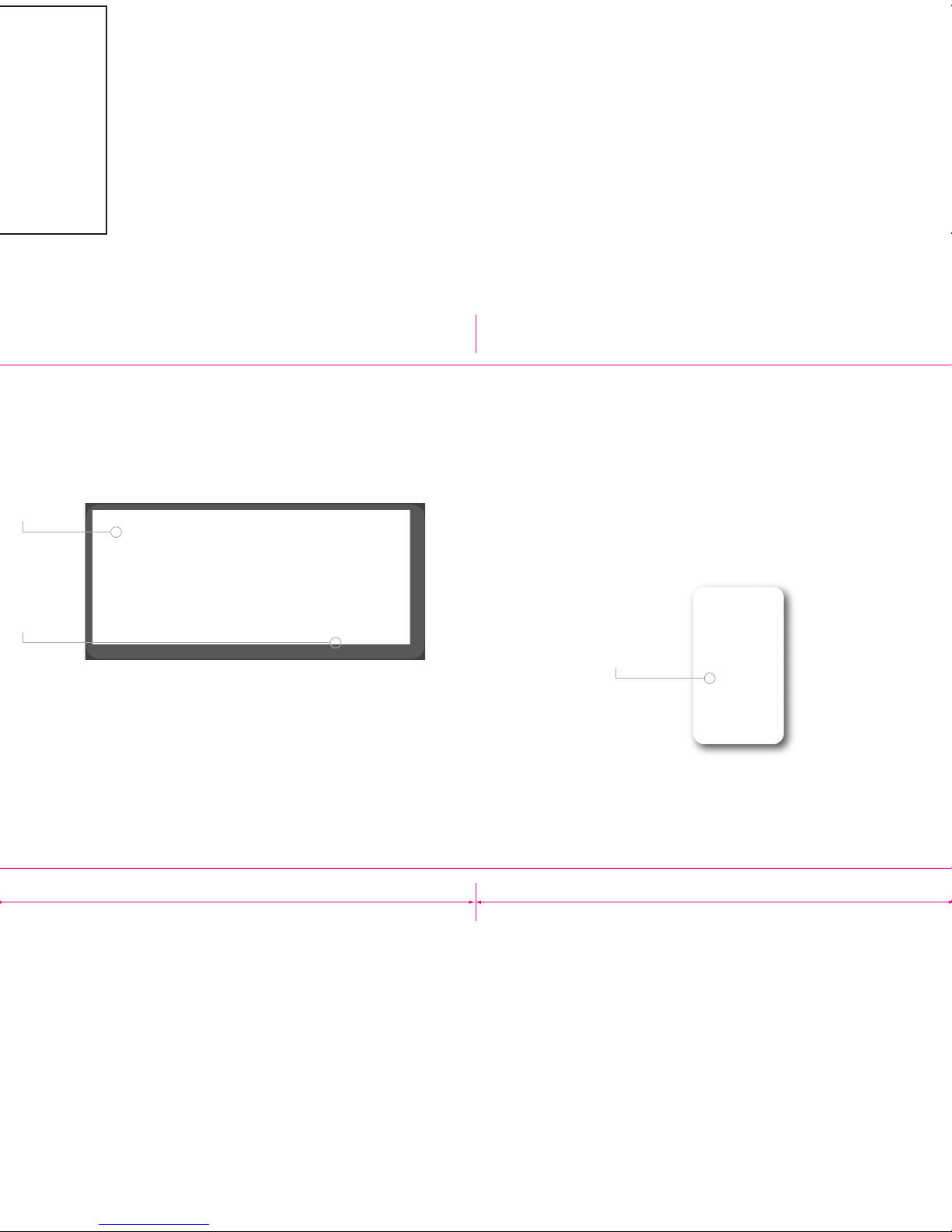

LED
The LED provides connections status. See Page 10 for a detailed list of
the colours and their defined states
SIM Card Slot
The SIM card is inserted here
The Ovation MC950D
2
1
System Requirements
Pack Contents
• Windows 2000, XP, Vista
Mac OS X (10.4.7 or later)
• 14 MB Hard Drive Space
• 64 MB of RAM
• MC950D
A powerful Mobile Broadband Modem
• USB Cable
For use in low signal strength areas, where more power
may be required, and when in use with the Clip
• Monitor Clip
Allows you to attach your USB Modem to your laptop
screen or monitor
LED
SIM
Card Slot
English
English
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

3
Safety Guidelines
• Avoid storing your Ovation MC950D in extreme
temperatures
• Store your Ovation MC950D in a dry and clean
environment
• Avoid spilling any liquid on your Ovation MC950D or
immersing it in water
• Do not place any labels on the antenna as doing so
could alter the sensitivity of the antenna
• Do not force the Ovation MC950D into the USB port
• Do not force the SIM card into the SIM card slot
• Do not apply force to the top or bottom of your Ovation
MC950D
• Remove your Ovation MC950D from the USB port
before transporting your laptop
4
Installation
1Insert the SIM card
• Insert the SIM card into the Ovation MC950D as shown
• Push the SIM card completely into the slot
Add SIM insertion image
Orientation
Notch
English
English
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

5
2Insert the Modem
• Insert the Ovation MC950D into your laptop
• The installation procedure will start automatically
6
3Installation Complete
• Once the following screen appears, MobiLink Lite has
successfully installed and the main program will begin
• If the installation fails to start, click the START menu then
MY COMPUTER. Double Click the CD ROM NVTL and run
the file Liteauto.exe In case of difficulty please contact your
IT administrator.
English
English
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

7
4Create a profile
• Open the newly installed Mobilink Lite software
• Click on the Menu Icon and select Profile Manager
• Click New
• Enter the Profile Name and APN*
• Click Next
• If required, enter your Username* and Password*
• Click Finish
• Once complete please highlight the new profile and
click Set Default
*Available from your wireless provider
5Connect to the Internet
NOTE: You’ll find additional information about Profiles and
Connection states in the User Guide available from
www.novatelwireless.com
• Double-click the MobiLink Lite icon on your desktop
• If your SIM card is locked, type in your SIM code and click OK
• When the LED blinks Green, Violet, Blue, Yellow or Cyan select a
profile and click Connect
8
Connect
Profile Manager
Menu
English
English
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO: 07482

9
Removing your Ovation MC950D
• Click Disconnect to end your Internet session
• Click the Menu button and select Exit
• Remove your Ovation MC950D from the USB port

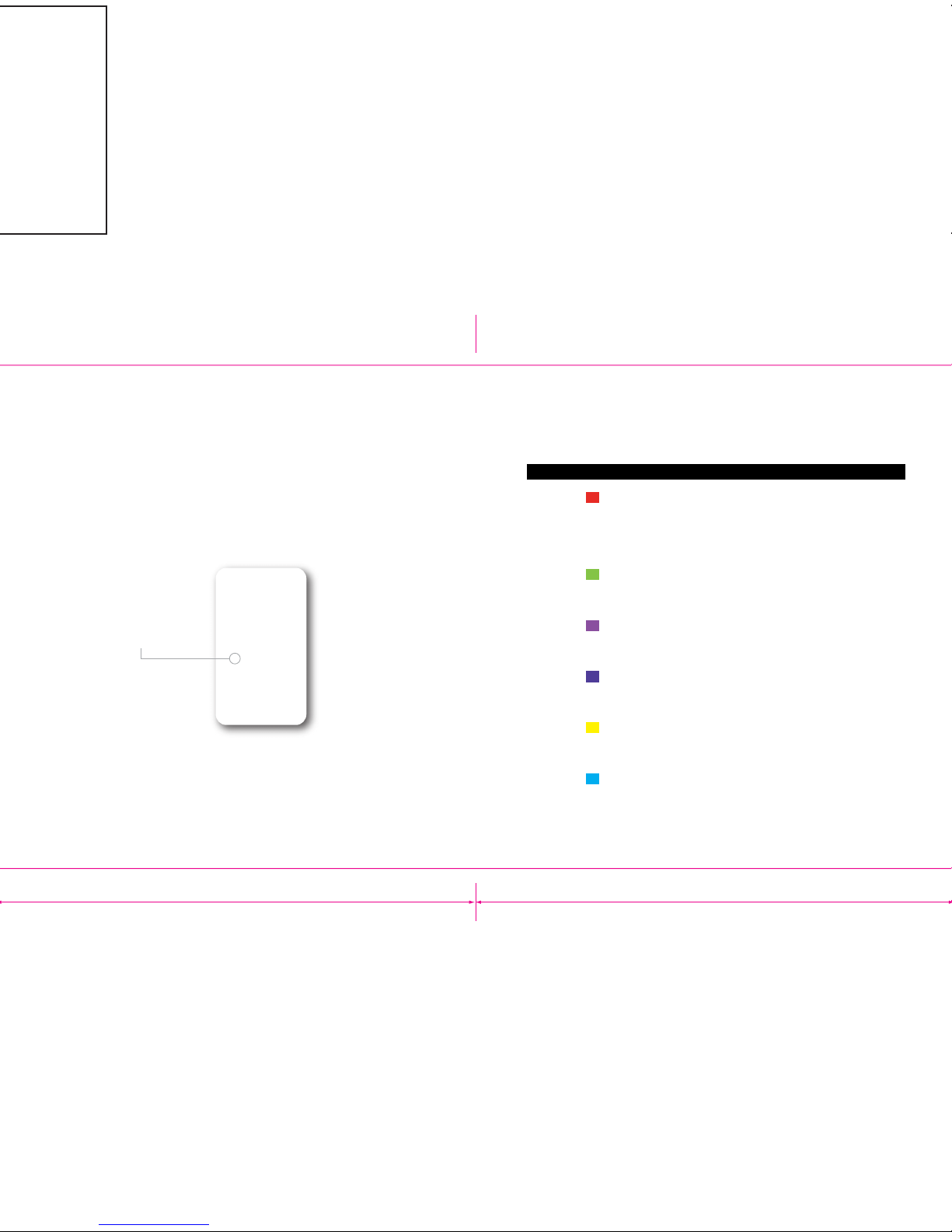

LED States
LED Color LED State Description
RED SIM Error Flashing: SIM card may be missing or inserted
incorrectly
No Service Solid: GPRS/EDGE/UMTS/HSDPA cellular
service is currently not available
GREEN GPRS Flashing: GPRS service is available
Solid: Connected to a network using GPRS
VIOLET EDGE Flashing: EDGE service is available
Solid: Connected to a network using EDGE
BLUE UMTS Flashing: UMTS service is available
Solid*: Connected to a network using U
MTS
YELLOW HSDPA Solid*: HSDPA service is available and is
being used during the download
CYAN HSUPA Solid*: HSUPA service is available and is
being used during the upload
10
* The LED may appear to flash blue and then yellow or cyan as the service transitions
between UMTS and HSDPA/HSUPA
Disconnect
English
English
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

Guida rapida
Banda larga mobile
quando serve.
L'Ovation MC950D consente di navigare in Internet con la mas-
sima facilità, scaricare file e musica e gestire la posta, il tutto a
velocità che possono raggiungere 7,2 Mb/s in download e 2,1
Mb/s in upload.
È in grado di offrire una vera mobilità, per fare ciò che si desidera,
quando si desidera. Le tecnologie supportate includono HSUPA,
HSDPA, UMTS, EDGE e GPRS. Questo significa che l'Ovation
MC950D è in grado di fornire velocità a livello di banda larga
mobile in Europa, Nord America e Asia Pacifico*.
La procedura di installazione dell'Ovation MC950D utilizza la
nuova tecnologia Zero-CD che è di una semplicità sorprendente.
Seguendo i cinque passi qui elencati sarà possibile accedere
all'autostrada informatica.
* In base agli accordi di roaming tra operatori
11 12
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

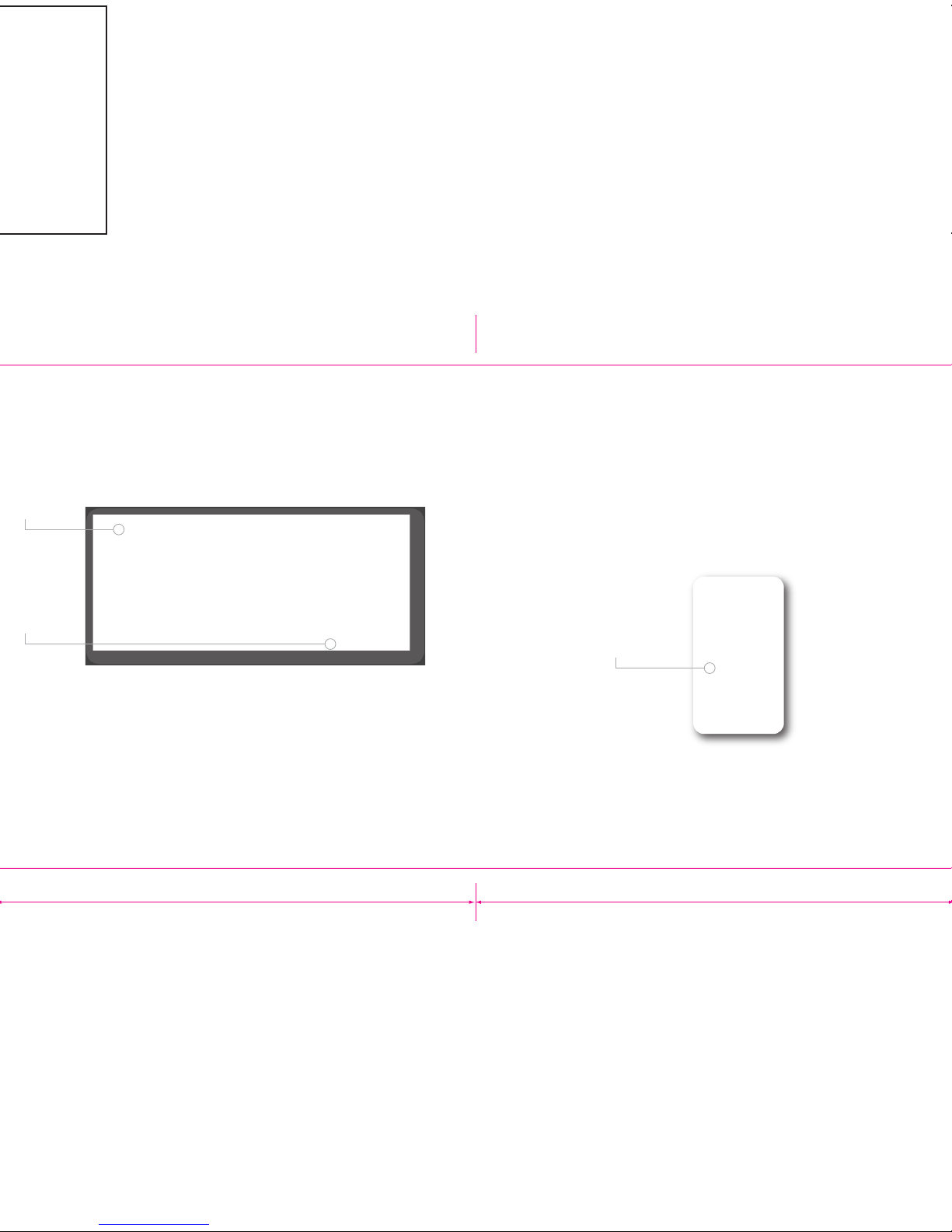

Indicatore a LED
Il LED fornisce indicazioni sullo stato delle connessioni. Per un elenco
dettagliato dei colori e degli stati da essi definiti, vedere pagina 10
Alloggiamento della scheda SIM
La scheda SIM si inserisce qui
Ovation MC950D
Requisiti di sistema
Contenuto della confezione
• Windows 2000, XP, Vista
Mac OS X (10.4.7 o versione successiva)
• 14 MB di spazio sul disco fisso
• 64 MB di of RAM
• MC950D
Un potente modem a banda larga mobile
• Cavo USB
Da usare nelle aree con bassa intensità del segnale,
in cui può essere necessaria una potenza maggiore,
e in caso di utilizzo con la clip
• Clip per il monitor
Consente di collegare il modem USB allo schermo di un
laptop o a un monitor
Indicatore
a LED
Alloggiamento
della scheda SIM
13 14
Italiano
Italiano
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

Indicazioni per la sicurezza
• Evitare di conservare l'Ovation MC950D a temperature
eccessivamente alte o basse
• Conservare l'Ovation MC950D in un ambiente asciutto e pulito
• Evitare di versare liquido sull'Ovation MC950D o di immergerlo
in acqua
• Non attaccare etichette sull'antenna, in quanto così facendo se ne
può alterare la sensibilità
• Non inserire a forza l'Ovation MC950D nella porta USB
• Non inserire a forza la scheda SIM nel relativo alloggiamento
• Non applicare una forza eccessiva sulla parte superiore o inferiore
dell'Ovation MC950D
• Scollegare l'Ovation MC950D dalla porta USB prima di trasportare
il laptop
Installazione
1Inserimento della scheda SIM
• Inserire la scheda SIM nell'Ovation MC950D, come illustrato
in figura
• Spingere a fondo la scheda SIM all'interno dell'alloggiamento
Add SIM insertion image
Tacca di
orientamento
15 16
Italiano
Italiano
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

2Inserimento del modem
• Inserire l'Ovation MC950D nel laptop
• La procedura di installazione si avvia automaticamente
3Completamento dell'installazione
• Quando appare la schermata seguente, Mobilink Lite e'
stato installato correttamente e l'applicazione principale
avra' inizio.
• Se l'installazione non si avvia, fare clic sul menu START e
quindi su RISORSE DEL COMPUTER. Fare doppio clic su
CD ROM NVTL ed eseguire il file Liteauto.exe. Per qualsiasi
problema, rivolgersi all'amministratore dell’informatica.
1817
Italiano
Italiano
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

4Creazione di un profilo
• Aprire il software Mobilink Lite appena installato
• Fare clic sull'icona Menu e selezionare Gestione profil
• Fare clic su Nuovo
• Immettere un nome per Profile Name e un valore per APN*
• Fare clic su Avanti
• Se necessario, immettere Nome Utente* and Password
• Fare clic su Fine
• Quando completo, selezionare il nuovo profilo e cliccare
su Imposta Predefinito
*Disponibile presso il proprio fornitore di servizi wireless
5Connessione a Internet
NOTA: ulteriori informazioni sui profili e lo stato della connessione
sono disponibili nella Guida per l'utente reperibile sul sito web
www.novatelwireless.com.
• Fare doppio clic sull'icona MobiLink Lite sul desktop.
• Se la scheda SIM è bloccata, digitare il codice appropriato
e fare clic su OK.
• Quando il LED lampeggia in verde, viola, blu, giallo o ciano,
selezionare un profilo e fare clic su Connetti.
Connetti
Gestione profil
Menu
19 20
Italiano
Italiano
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO: 07482

Estrazione dell'Ovation MC950D
• Fare clic su Disconnetti per chiudere la sessione Internet
• Fare clic sul pulsante Menu e selezionare Uscita
• Estrarre l'Ovation MC950D dalla porta USB
Stato del LED
Colore LED Stato LED Descrizione
ROSSO Errore SIM Lampeggiante: La scheda SIM può non essere presente o
essere stata inserita in modo errato
Servizio assente Fisso: Il sevizio cellulare GPRS/EDGE/UMTS/HSDPA
non è attualmente disponibile
VERDE GPRS Lampeggiante: Il servizio GPRS è disponibile
Fisso: Connesso a una rete mediante GPRS
VIOLA EDGE Lampeggiante: Il servizio EDGE è disponibile
Fisso: Connesso a una rete mediante EDGE
BLU UMTS Lampeggiante: Il servizio UMTS è disponibile
Fisso*: Connesso a una rete mediante UMTS
GIALLO HSDPA Fisso*: Il servizio HSDPA è disponibile e viene
utilizzato durante il download
CIANO HSUPA Fisso*: Il servizio HSUPA è disponibile e viene
utilizzato durante l'upload
* Il LED può lampeggiare in blu e quindi in giallo o ciano durante il passaggio del
servizio tra UMTS e HSDPA/HSUPA
Disconnetti
21 22
Italiano
Italiano
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

Guide de démarrage
Le haut débit mobile,
où que vous soyez.
Grâce à votre Ovation MC950D, vous allez pouvoir surfer sur le
Web, télécharger des fichiers et gérer votre courrier électronique,
le tout à des vitesses de 7,2 Mbit/s en trafic descendant et 2,1
Mbit/s en trafic ascendant.
La mobilité quand vous voulez, où vous voulez. Le modem est
compatible avec les technologies HSUPA, HSDPA, UMTS,
EDGE et GPRS. Votre Ovation MC950D vous offre donc un
accès haut débit mobile en Europe, en Amérique du Nord et en
Asie-Pacifique*.
Grâce à la technologie « Zéro CD », votre modem Ovation
MC950D sera installé en quelques clics. Suivez les cinq étapes
qui suivent et préparez-vous pour les autoroutes de
l’information.
* Selon accords de roaming souscrits par l’opérateur
23 24
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

Voyant
Le voyant indique l’état de la connexion. Voir page 10 pour une
explication détaillée des différentes couleurs.
Emplacement pour carte SIM
Destiné à recevoir votre carte SIM
Modem Ovation MC950D
Configuration requise
Contenu de l’emballage
• Windows 2000, XP, Vista
Mac OS X (version 10.4.7 ou ultérieure)
• 14 Mo d’espace disque
• 64 Mo de RAM
• MC950D
Un modem haut débit mobile performant
• Câble USB
À utiliser lorsque le signal est faible, lorsqu’une alimentation
électrique supérieure est requise ou avec le clip écran
• Clip écran
Permet de fixer le modem USB sur votre moniteur ou sur
l’écran de votre portable
Voyant
Emplacement
pour carte SIM
25 26
Français
Français
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

Précautions de sécurité
• Évitez d’exposer votre Ovation MC950D à des températures
extrêmes
• Entreposez votre Ovation MC950D dans un environnement
sec et propre
• Évitez de répandre du liquide sur votre Ovation MC950D ou
de le plonger dans l’eau
• Ne collez rien sur l’antenne, sous peine d’en diminuer la sensibilité
• Ne forcez pas lors de la connexion du modem Ovation MC950D
au port USB
• Ne forcez pas lors de l’insertion de la carte SIM dans l’emplacement
prévu à cet effet
• N’appliquez pas de pression sur le bas ou le haut de votre
Ovation MC950D
• Déconnectez votre Ovation MC950D du port USB lorsque vous
devez transporter votre ordinateur portable
Installation
1Insérer la carte SIM
• Insérez la carte SIM dans le modem Ovation MC950D (voir figure)
• Poussez la carte SIM à fond dans l’emplacement
Add SIM insertion image
Encoche
d’orientation
27 28
Français
Français
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

2Insérer le modem
• Insérez le modem Ovation MC950D dans l’ordinateur
• La procédure d’installation démarre automatiquement
3Terminer l’installation
• Lorsque la fenêtre suivante apparait, MobiLink Lite a été installé
et le programme va démarrer
• Si la procédure d’installation ne se lance pas automatiquement,
cliquez sur le menu Démarrer puis sur Poste de travail.
Double-cliquez sur le CD-ROM NVTL et lancez le fichier
Liteauto.exe. En cas de difficultés, contactez votre service
informatique.
29 30
Français
Français
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:

4Créer un profil
• Lancez le logiciel MobiLink Lite qui vient d’être installé
• Cliquez sur l’icône de menu et sélectionnez Gestionnaira de profils
• Cliquez sur Nouveau
• Remplissez les champs Nom du profil et APN*
• Cliquez sur Suivant
• Si nécessaire, remplissez les champs Nom d’utilsateur
et Mot de passe*
• Cliquez sur Terminer
• Une fois complété, sélectionnez le nouveau profile et cliquez
sur Définir par défaut
* Fourni par votre opérateur sans fil
5Connexion à Internet
REMARQUE : Pour de plus amples informations sur les profils et les
états de connexion, reportez-vous au manuel de
l’utilisateur disponible sur notre site :
www.novatelwireless.com
• Double-cliquez sur l’icône MobiLink Lite située sur le bureau
• Si votre carte SIM est verrouillée, entrez votre code PIN et
cliquez sur OK
• Lorsque le voyant clignote en vert, violet, bleu, jaune ou bleu clair,
sélectionnez un profil et cliquez sur Connecter
Connecter
Gestionnaire
de profils
Menu
31 32
Français
Français
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO: 07482

Retirer votre Ovation MC950D
• Cliquez sur Déconnecter pour fermer la session Internet
• Cliquez sur le bouton de menu et sélectionnez Quitter
• Retirez votre Ovation MC950D du port USB
Voyants d’état
Couleur État Description
ROUGE Erreur SIM Clignotant : Carte SIM absente ou mal insérée.
Aucun service Fixe : Service mobile GPRS/EDGE/UMTS/HSDPA
actuellement non disponible.
VERT GPRS Clignotant : Service GPRS disponible.
Fixe : Connesso a una rete mediante GPRS
VIOLET EDGE Clignotant : Service EDGE disponible.
Fixe : Connesso a una rete mediante EDGE
BLEU UMTS Clignotant : Service UMTS disponible.
Fixe* : Connesso a una rete mediante UMTS
JAUNE HSDPA Allumé* : Service HSDPA disponible et utilisé lors
du téléchargement.
BLEU CLAIR HSUPA Fixe* : Service HSUPA disponible et utilisé lors du
téléchargement.
* Lors d’une transition entre UMTS et HSDPA/HSUPA, le voyant peut clignoter
en bleu puis en jaune ou en bleu clair.
Déconnecter
33 34
Français
Français
126.6 126.6
133.3
Novatel Wireless Technologies Ltd.
Suite 325, 6715 - 8th St NE
Calgary, AB Canada T2E 7H7
Phone: [phone]
TITLE: QUICK START GUIDE MULTI-LANGUAGE MC950D NVTL
P/N: 90025128
NOTES:
1. MAGENTA OUTLINE DOES NOT PRINT. FOR
DIE CUT REFERENCE ONLY.
2. MATERIAL:
COVERS: 80# COVER MATTE
PAGES: 70# TEXT MATTE
COLOURS:
Pantone 2767C
Pantone 376C
Rev.1 09/13/07 - Lawrence Zalasky - INITIAL RELEASE
ECO:
