Repair Instructions
for
SLB 125

Contents
Page
Safety regulations
General information
1. Changing the limit switch................................................................................................... 1
2. Replacing the cylinder ....................................................................................................... 2
SPARE PARTS-parts lists / drawings
40070 SLB125 basic unit with carriage........................................................................................ 6
31242 Cutting tool....................................................................................................................... 11
31890 Adjustable hole template ................................................................................................. 14
31243 R 10 bending tool............................................................................................................. 15
31732 R 6 bending tool...............................................................................................................15
31425 Step bending tool, small .................................................................................................. 16
31646 Step bending tool, large................................................................................................... 16
31646 Step bending tool, large................................................................................................... 17

009NP004.DOC
GENERAL SAFETY REGULATIONS
Read all safety regulations and instructions!
1. Keep the place of work clean.
Disorderly work-places and work-benches invite accidents.
Ensure that lighting is good.
2. Keep children away.
Do not allow unauthorised persons to touch the device or the cable.
Keep unauthorised persons away from your place of work.
3. Wear suitable working clothing.
Do not wear any wide clothes nor jewellery - they may get caught up in moving parts.
When working in the open it is recommended that you wear rubber gloves and non-slip
footwear. Wear a hair- net if you have long hair.
4. Always be alert.
Only use a device after having been instructed in its operation.
Concentrate on your work. Proceed sensibly.
Do not use the device when you are distracted.
5. Do not lean too far forward. Avoid abnormal stance.
Make sure that you have a secure standing position, and maintain balance at all times.
6. Leave safety devices where they belong.
7. Hand tools may not be installed as fixtures.
8. Repair and maintenance.
Have repairs and maintenance work carried out in an authorised NOVOPRESS specialist
workshop.
Only use original and identical NOVOPRESS spare parts.
We reject all responsibility and liability for work carried out by third- party personnel.

009NP006.DOC
SAFETY INSTRUCTIONS FOR HYDRAULIC EQUIPMENT
1. Please read the operating instructions.
Acquaint yourself with the hydraulic equipment.
2. Provide the equipment with the necessary care.
Always keep the equipment in operational condition.
Cleanness is an essential requirement for good and safe working.
3. Switch off the electric power supply to the hydraulic equipment,
•when the equipment is not in use
•when maintenance work is to be carried out.
4. Avoid unintentional switching - on.
Keep hands and feet away from the switch when the equipment is not being used.
5. Do not use the equipment in a manner in contravention of the instructions.
Never carry the equipment by the pipe or pull on the pipe.
Protect the piping from heat, oil, sharp edges and high levels of weight strain.
6. Use only piping, fittings and accessories wich have been designed for the operating pressure of
the hydraulic unit.
BURSTING PRESSURE OR TEST PRESSURE IS NOT OPERATING PRESSURE!
Avoid squashing or bending of the piping.
Piping must not be painted over.
7. Replace the hydraulic piping
•when cracks, squashed or bent points are to be seen
•when blistering is established
•when hydraulic fluid escapes
•when pipe fittings are damaged
•when discolouration is established on the outer layer,
e.g. due to the influence of solvents.
8. The hydraulic fluid used in the system is kerosene-based.
This requires particular care and attention.
•Avoid continuous contact with the skin
•ensure that the hydraulic fluid does not get into the eyes or mouth.
Hydraulic pipes have to be replaced after 5 years of usage, despite of the circumstance that no
damages should be remarkable.
9. The equipment must not be operated, if it has leaks and there is a danger of hydraulic fluid
coming into contact with persons, open fire, heating equipment, electric cabling, ground water,
foods and other substances which are intended for human consumption.
10. Hydraulic units with petrol engines
•must not be operated in closed rooms, due to the
DANGER OF INTOXICATION!
•do not pour in petrol while the motor is running or in the vicinity of open fire.
DANGER OF EXPLOSION!

1
WARNING! Before beginning any maintenance or repair work, disconnect the
hydraulic unit.
1. Changing the limit switch
1.1. Unscrew indexing bolt (62) and remove it
together with spacer bush (61).
1.2. Unscrew bolts (25).
1.3. Remove cover (9).
1.4. Unscrew bolts (48).
1.5. Remove limit switch (15) and place it on
the workplate.
1.6. If present:
Unscrew 2 bolts (41).
1.7. If present:
Set aside angled plate (18).
1.8. Unscrew 2 bolts (53).
1.9. Remove socket housing (S).
1.10.Reassemble in reverse order.

2
2. Replacing the cylinder
Disassembly
2.1. Unscrew indexing bolt (62) and remove it together with
spacer bush (61).
2.2. Unscrew bolts (25).
2.3. Remove cover (9).
2.4. Remove stroke adjustment plate (60).
2.5. Unscrew bolts (48).
2.6. Remove limit switch (15) and place it on the
workplate.
2.7. If present:
Unscrew 2 bolts (41).
2.8. If present:
Remove angled plate (18).
2.9. Unscrew 2 bolts (53).
2.10.Remove socket housing (S).

3
2.11.Unscrew bolts (68).
Note
Do not adjust the nuts.
2.12.Unscrew bolt (22).
2.13.Remove the unit comprising spindle
bearing block (13), spindle (14), spindle
guide (12) and switch valve (10) in such
a way as to ensure that the spindle does
not become bent.

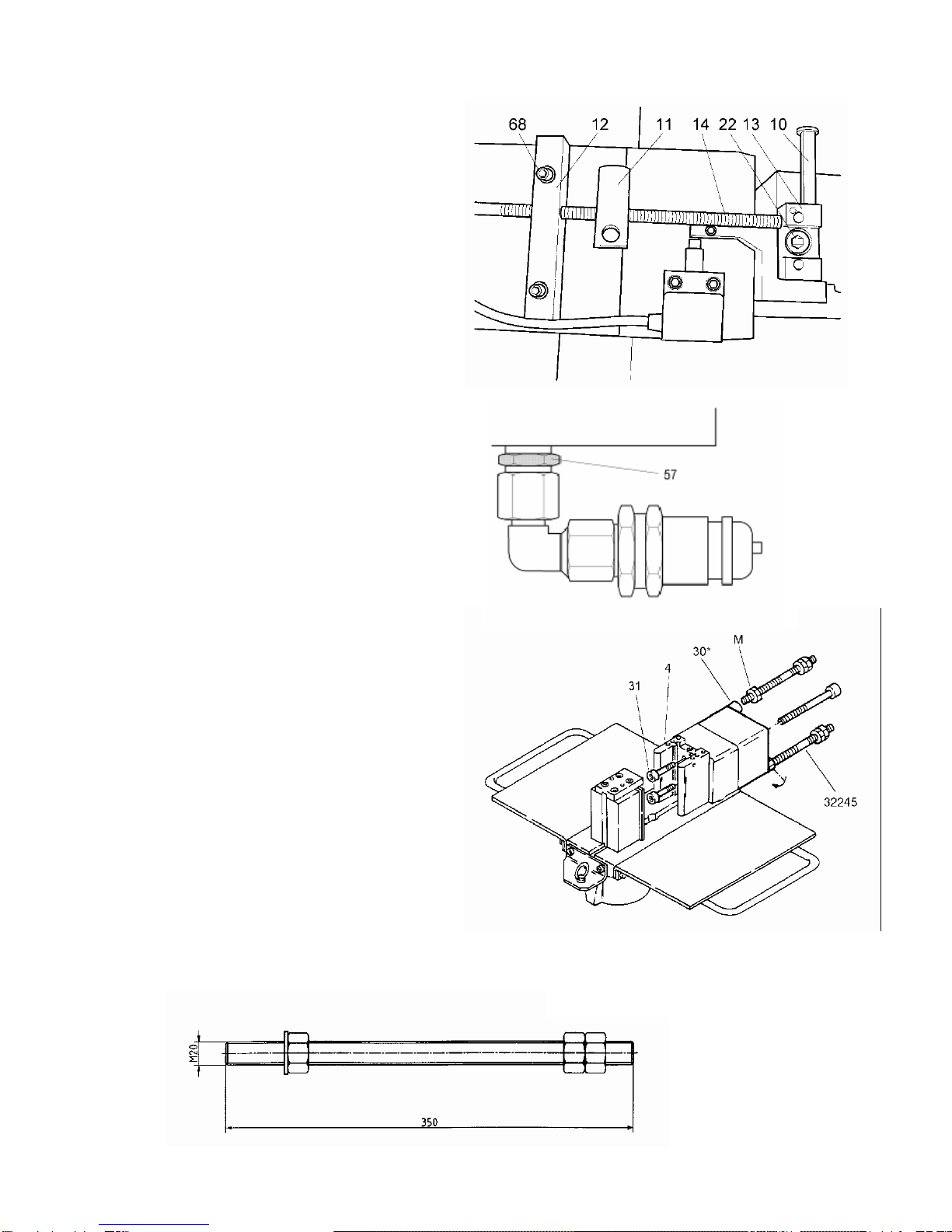

2.14.Unscrew pipe connector (57) from the
cylinder.
2.15.Unscrew bolts (31) and remove
pressure piece (4).
2.16.Unscrew bolts (30*) diagonally.
2.17.In place of the bolts (30*), screw in the
assembly bolts (accessory no. 32245)
as illustrated and tighten them.
2.18.Screw loose nuts (M) onto the cylinder
by hand.
2.19. Unscrew the 2 remaining bolts (30).
Screw the nuts against
each other (fully tighten)
Accessory no. 32245

4
2.20.
Unscrew loose nuts (M) step
by step from the assembly
bolts on alternating sides until
the return spring is not
tensioned.
2.21.Unscrew assembly bolts
(32245).
2.22.Remove cylinder (2), piston (3)
and return spring (29).
2.23.Wearing parts - replace O-ring
(33), bearing ring (32) and
scraper (34) if required.

5
Assembly
2.1. Place bearing ring (32) and O-ring
(33) on piston (3).
2.2. Insert piston (3) in cylinder (2).
2.3. Push return spring (29) onto the
piston rod.
2.4. Insert scraper (34) into plate (1).
2.5. Insert cylinder (2) with the components
assembled into plate (1).
2.6. Screw assembly bolts (32245)
diagonally through cylinder (2) into
plate (1) and tighten them.
2.7. Using loose nuts (M), gradually (1/4
turns) draw cylinder (2) onto plate (1).
2.8. Screw in 2 bolts (30) and tighten them.
2.9. Unscrew assembly bolts (32245).
2.10.Screw in the remaining 2 bolts (30*)
and tighten them.
2.11.Initiate a test stroke to check that the
device functions correctly.
2.12.Insert bolts (31) into piston (3) without
pressure piece (4).
2.13.Bolts (31) must be positioned
vertically to the plate (check using a
set square).
2.14.Unscrew bolts (31), position
pressure piece (4) and attach it
loosely to piston (3) using bolts (31).
Align the pressure piece with table
(1) so as to ensure that distance X
is the same on both sides of the
pressure piece.
2.15.Tighten bolts (31).
2.16.Finish assembly in reverse order.

6

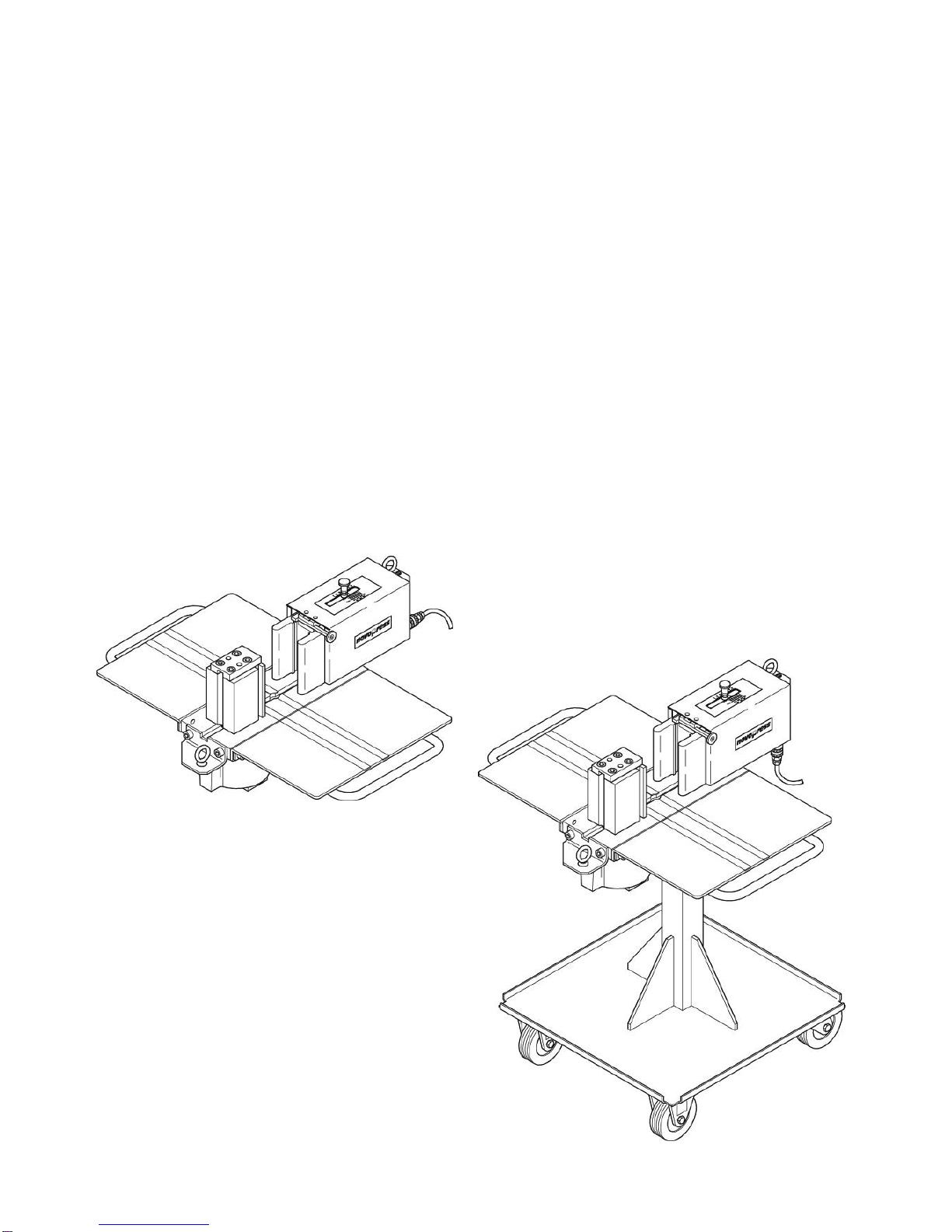

40070SLB125 basic unit with carriage
Item Description Ord. no. Qty.
1 SLB 125 basic unit 40200 1
2 SLB 125 carriage assy. 40390 1

7
40200SLB 125 basic unit
Item Country
code Description Ord. no. Qty.
1 Table 30769 1
2 Cylinder 39696 1
3 Piston 31029 1
4 Pressure piece 39697 1
5 Tool retainer 31032 1
6 Cutting bar 31033 2
7 Pressure plate 31034 1
8 Anti-twist device 31035 1
9 Cover 39624 1
10 Switch valve 39625 1
11 Switching block 39628 1
12 Spindle guide 39627 1
13 Spindle bearing block 39626 1
14 Adjusting spindle 39629 1
15 Limit switch assy. 40138 1
16 Identification plate 39692 1
17 Stroke angle scale 40353 1
20 Carrying handle 31334 2
21 Coupling plug 3659 1
22 Cheese-head screw M10x40 16787 1
25 Countersunk screw M5x10 11197 2
26 Cheese-head screw M5x20 11010 2
29 Pressure spring 30378 1
30 Cheese-head screw M20x160 12131 4
31 Cheese-head screw M16x30 13982 2
32 Bearing ring 13979 1
33 O-ring 13980 1
34 Scraper 13229 1
35 Cheese-head screw M8x16 11313 4
37 Cheese-head screw M10x25 11248 10
39 Straight pin 12751 2
40 Cheese-head screw M6x12 11259 8
43 Straight pin 14223 1
44 Support plate, right 37525 1
45 Support plate, left 37526 1
47 Measuring tape 13377 4
46 45 Measuring tape 14058 4
48 Cheese-head screw M5x25 11323 2

8
Item Country
code Description Ord. no. Qty.
50 Washer 11203 5
51 Countersunk screw M4x10 11070 1
52 Novopress plate 33316 1
53 Cheese-head screw M3x8 12377 2
55 Base 40339 1
56 Cheese-head screw M10x12 11686 2
57 Straight pipe connector 13376 1
58 Adjustable angled coupling 13414 1
59 Union nut 1725 1
60 Stroke adjustment plate 40456 1
61 Spacer bush 40457 1
62 Indexing bolt 14127 1
66 Clamping sleeve 11977 2
67 Straight pin 11137 1
68 Cheese-head screw M5x35 11142 2
69 Nut M5 11065 2

9
40200SLB125 basic unit

10

11
31242Cutting tool
Item Description Ord. no. Qty.
1 Blade 31039 1
2 Blade bracket 31041 1
3 Sleeve 31307 2
4 Guard plate 31049 1
5 Cheese-head screw M5x50 12143 2
6 Knurled screw M8x25 14138 1
7 Hexagonal nut M8 11367 1
8 Protective glass 31323 1
9 Cheese-head screw M8x20 11094 2
10 Cheese-head screw M5x10 12350 2
11 Sleeve 31593 1
12 Straight pin 16206 1
11
12

12

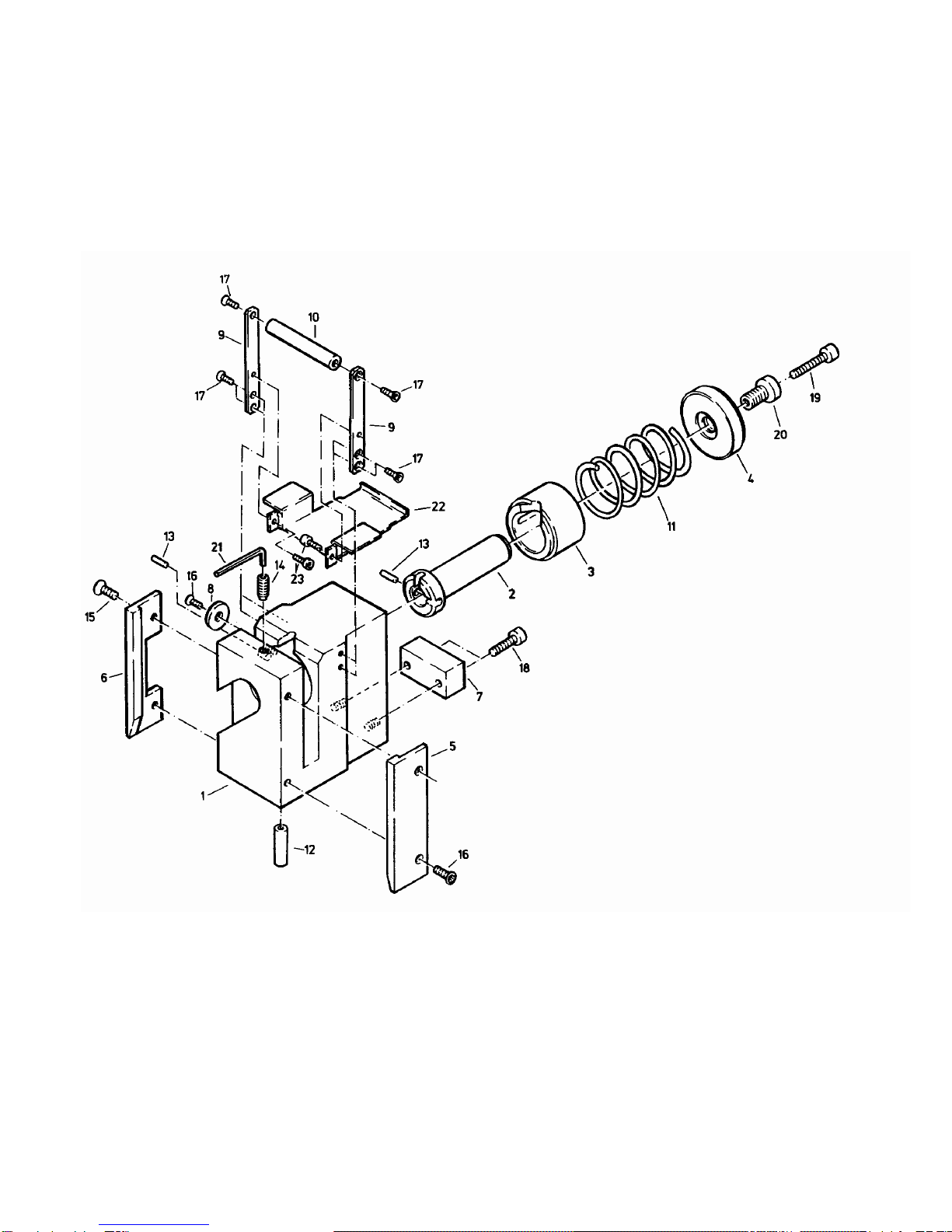

30980Hole puncher
Item Description Order no. Qty.
1 Body 30971 1
2 Piston 30973 1
3 Scraper 30974 1
4 Retractor washer 30975 1
5 Bracket, right 30972 1
6 Bracket, left 31122 1
7 Spacer block 30977 1
8 Cover disc 30978 1
9 Handle piece 31289 2
10 Handle 31291 1
11 Spring system, yellow 13926 1
12 Straight pin 10m6x30 14072 1
13 Straight pin 6m6x12 13150 1
14 Grub screw M8x12 14128 2
15 Countersunk screw M6x10 11044 4
16 Countersunk screw M5x8 12608 1
17 Countersunk screw M5x10 11197 6
18 Cheese-head screw M6x20 11009 2
19 Tool screw assy. 31480 1
20 Fastening bolt M12x20 31456 1
21 Hexagon socket spanner A/F 4 11769 1
22 Guard plate 31597 1
23 Cheese-head screw M4x6 14174 2

13
30980Hole puncher

14
31890Adjustable hole template
Item Description Order no. Qty.
1 Guide rail 31891 1
2 Slide 31892 1
3 Guide plate 31893 1
4 Adjusting plate 31894 1
5 Scale 31071 1
6 Knurled screw 14260 2
7 Pressure spring 14261 2
8 Clamping lever 14262 1
9 Countersunk screw 11197 3
10 Adjusting plate 31912 1
11 Scale 31965 2
12 Scoring plate 31981 1

15
31243R 10 bending tool
Item Description Ord. no. Qty.
1 Bending mandrel 31038 1
2 Handle shaft 14197 1
3 Protective disc 31619 1
31732R 6 bending tool
Item Description Ord. no. Qty.
1 R6 bending mandrel 31747 1
2 Handle shaft 14197 1
3 Protective disc 31619 1

16

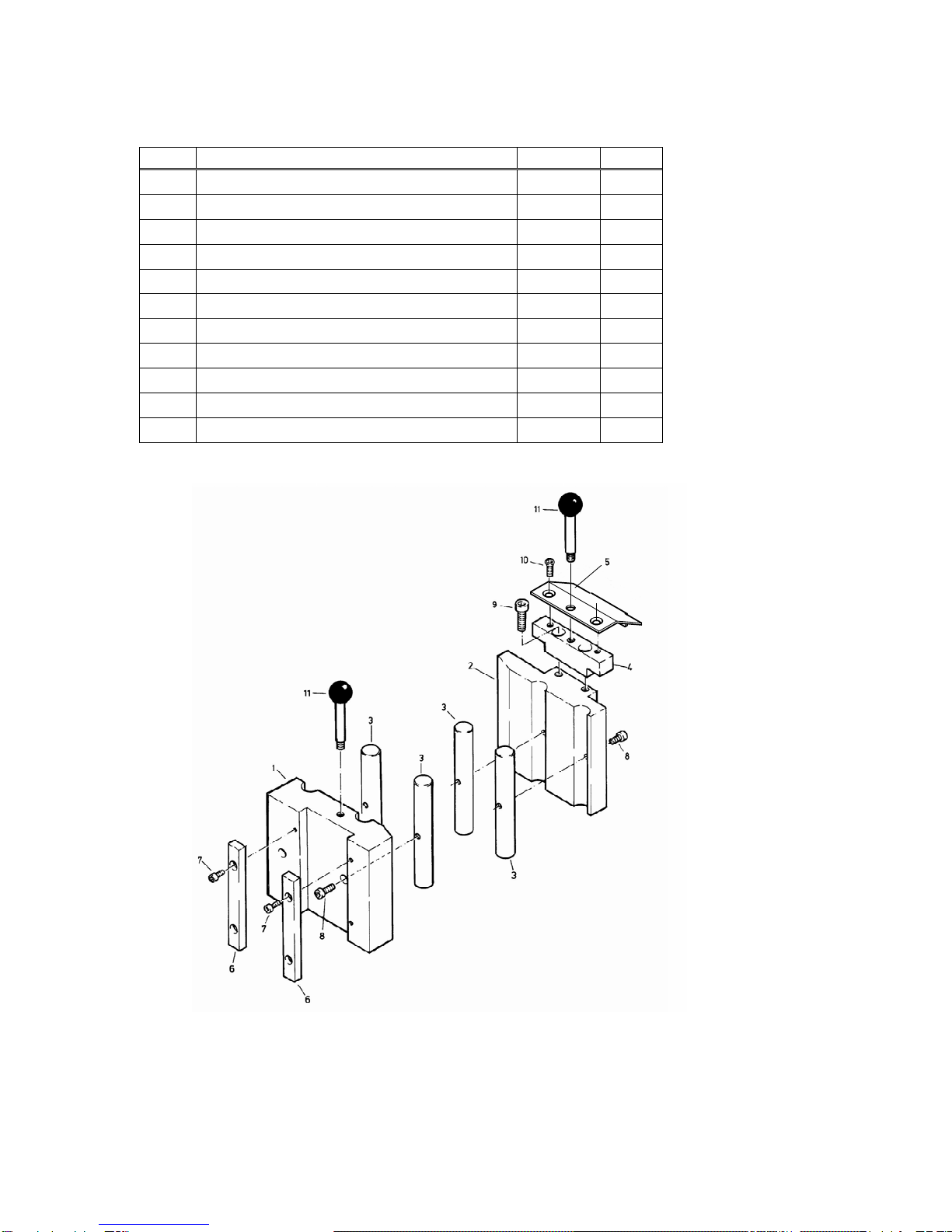

31425Step bending tool, small
Item Description Ord. no. Qty.
1 Step bending pressure piece 1 31423 1
2 Step bending pressure piece 2 31424 1
3 Step bending radius 31327 4
4 Stop bridge 31774 1
5 Retractor 40326 1
6 Guide bars 31339 2
7 Cheese-head screw M5x10 11081 4
8 Cheese-head screw M5x20 11010 4
9 Cheese-head screw M8x30 12590 2
10 Countersunk screw M6x12 11647 2
11 Handle shaft M8 14197 2
