novostella NTF 71 User manual

NTF 71 & NTF 72
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás

2
English
3 –18
Čeština
19 –35
Slovenčina
36 –52
Magyar
53 –69

3
Thank you for ordering Novostella. Set-up is easy and takes only a few minutes by
following the instructions.
How to install the light?
Warning
•Please check it he light and the parts are intact before installation.
•Make sure to cut off power before installation.
•Please do not place this light in corrosive conditions.
•If there is any damage to the cord, please cut off the power and stop using it
immediately.
•Please do not retrofit the light withing the warranty period.
•To ensure the light works properly, please use the voltage indicate on the
packing.
Model
NTF71
NTF72
Wattage
25W
50W
Input Voltage
EU/UK: 220-240V AC US: 100-120V AC
Color
EU/UK: RGB US: RGB, Cool White, Warm White
Frequency
50/60Hz
Waterproof Rating
IP66
Bean Angle
120°
Working temperature
-20~40°C
Components
Antenna
LED light source
Reflector
Tempered glass lid
Heatsink
Lock screw
Bracket
UK/EU: HO5RN-F 2x1.0mm2
US: 18AWG 2x0.824mm2
US Plug
UK Plug
EU Plug

4
Note: Cord –type Y attachment.
For type Y attachment: If the external flexible cable or cord of this luminaire is damaged,
it shall be exclusively replaced by the manufacturer of his service agent or a similar
qualified person in order to avoid a hazard.

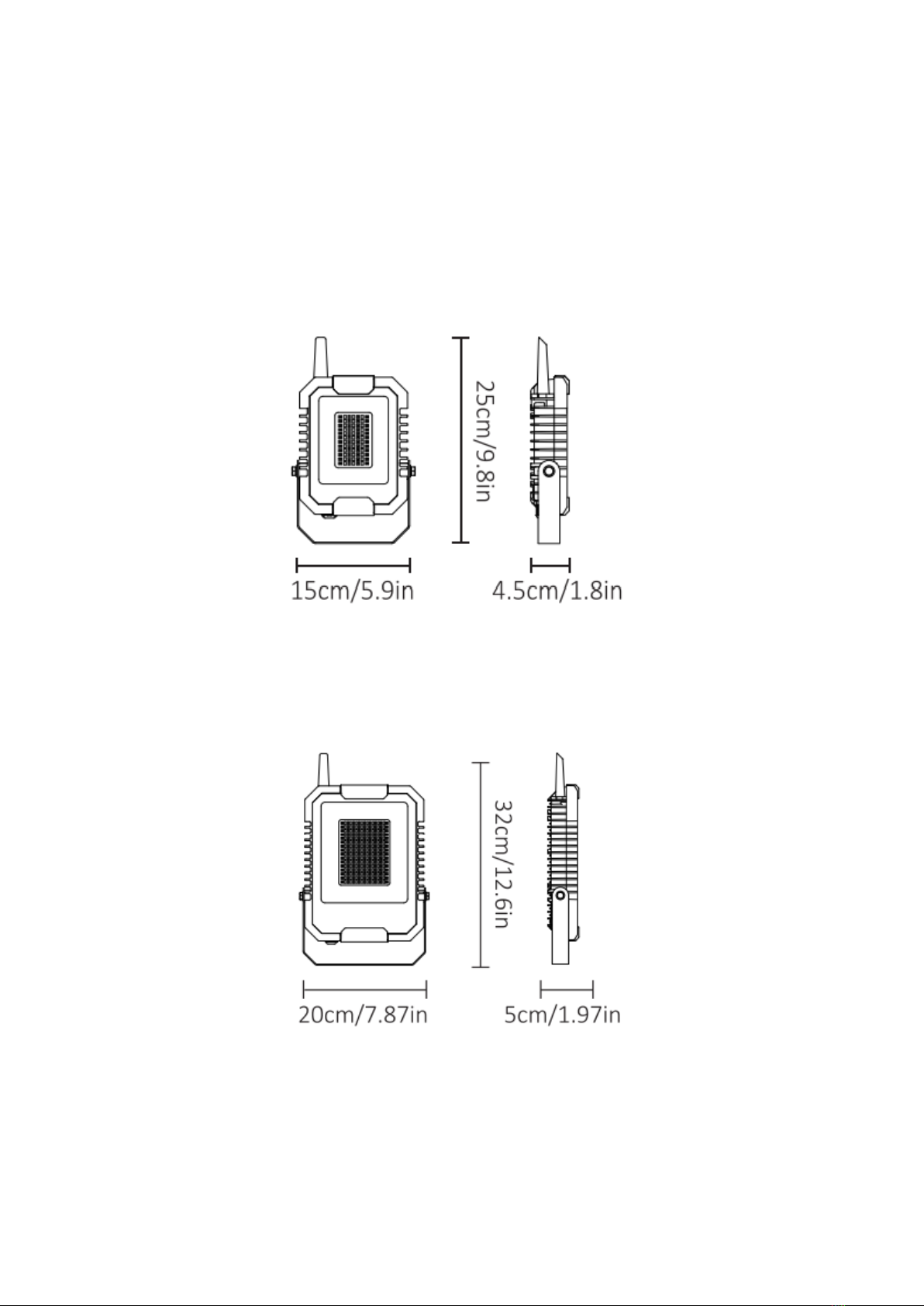

Dimension
NTF71
Weight: 1.1lb/0.5kg
Max Projected Area: 30m2
NTF72
Weight: 2.2lb/1kg
Max Projected Area: 50m2

5
Installation
Step A: According to the spacing of two screw buts on the bracket, drill two holes on the
mounting panel.
Note: Maximum mounting height is over 5m.
Step B: Aim the bracket at the holes and fix it with two bolts.
Step C: Adjust the lighting direction up or down as per your need and plug in to power
the light on.
Note:
Make sure that the distance between the light and the object being lits is more than 1
meter, so as to avoid high temperature caused by short distance.

6
Limitation of Indoor and Outdoor Use
•This light is waterproof and damp proof. It is protected against the rain, but it
cannot be immersed in water.
•The mounting position of this light should be able to bear at least 10 times as
heavy as the light-
•This light should be used in condition that is good for heat dissipation. Its
working temperature should be less than 40°C. Too hight the working
temperature will cause serious lumen depression and affect lifespan of the light.
The light source of thus luminaire is not replaceable, when the light source
reaches its end of life the whole luminaire shall be replaced.
How to pair the light to Smart Life app?
Before staring the pairing, please make sure to turn on the Bluetooth on your phone
and connect to the Internet.
Smart Life app installation
Please choose either way to below to download and install the app.
1. As per your phone system, choose the QR code to scan.
2. Search keyword “Smart Life” in Apple Store or Google Play.
Create an account on Smart Life and login.
Note: Please keep your account and password in mind for Alexa or Google Assistant APP
pairing later.

7

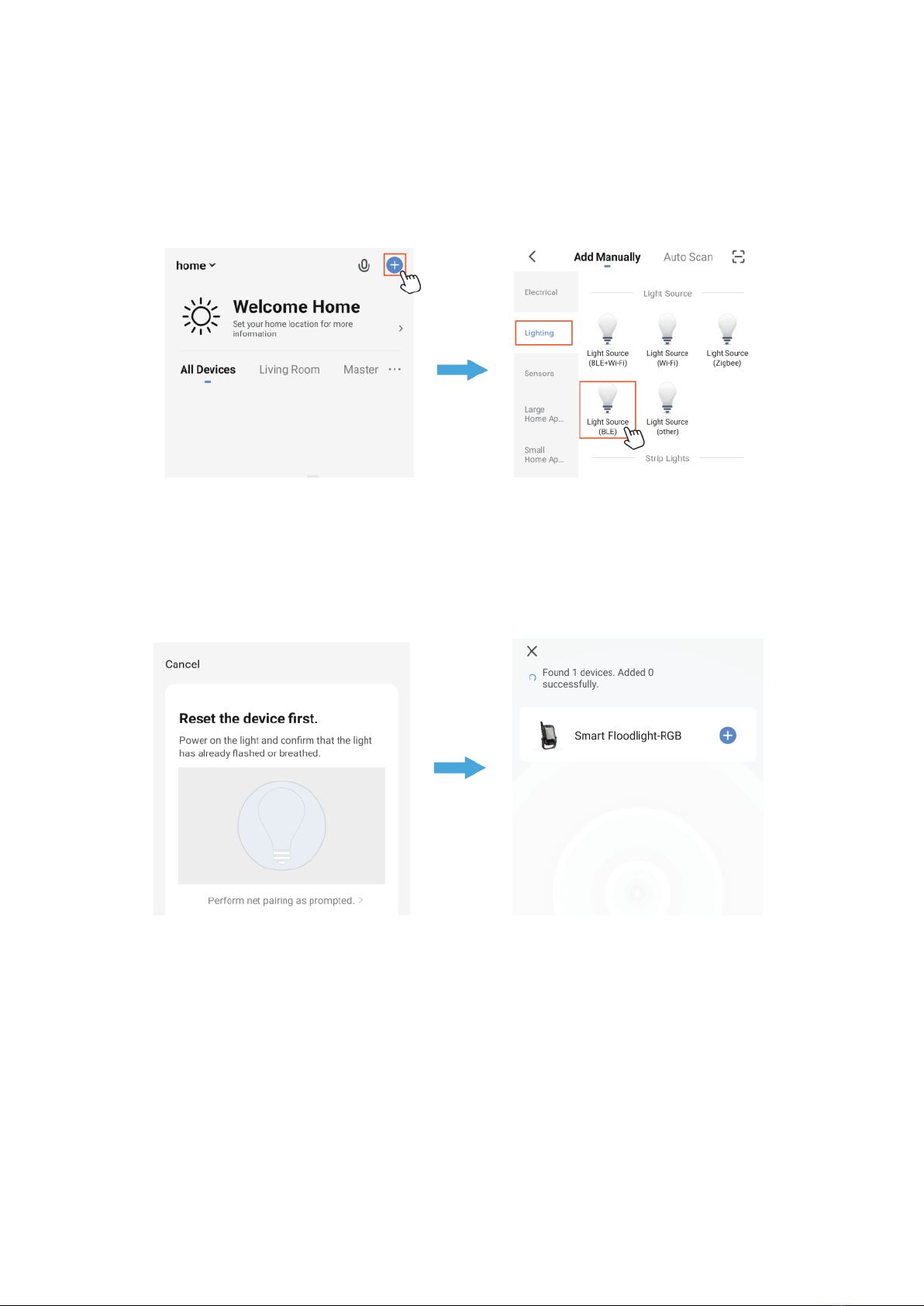

Ass the light to Smart Life App
1. Tap “+” button on top right corner to add devices. Tap “Lighting”, then choose
“Light Source (BLE)” to add the lights.
2. Power on the light with your own switch: Repeatedly turn on-off-on—off-on-off-
on switch to activate the light into rapid blinking status (about 0.5s per blink).
Please make sure to keep an interval over 2 seconds between each turn-on and
turn-off. Then click the “Next” button on this page. Find the lighting devices and
click “+”.
3. Give a name to the light.
Note: A simple name is recommended.
4. The named light will be shown on the app homepage. Now you can control the
light (turn on/off, change colors, adjust brightness etc.) with Smart Life on the
setting page. Turn on or off the light by tapping the bulb icon.

8
How to group the lights?
Make sure all the lights have been paired “Smart Life” app, then group the lights by
following these steps.
1. Choose any light on the app, click the edit button on the top right corner, then
click “Create Group”.
2. Choose the lights you want to group from the device list and rename the group.
Now you can control the lights and sync with the music, the colors will be synchronized
in the group.

9
How to connect the light to Internet and control with
Amazon Alexa and Google Assistant?
If you want to connect the lights to Internet and control with Amazon Alexa and Google
Assistant, you can easily expand the smart flood lights wit our Hub accessory (sold
separately).
Please click below link to purchase the Hub accessory from our shop:
US: https://www.amazon.com/dp/B08WXBLN3G
UK: https://www.amazon.co.uk/dp/B08WKWMMFR
After you get the Hub accessory, please follow below steps to setup:
Wi-Fi connection, pair the Hub to Smart Life App.
Please turn on the Wi-Fi on you phone. The hub only supports 2.4GHz Wi-Fi network, not
5.0GHz. Please make sure your working network is 2.4GHz and your router had disabled
the MAC filter.
It is strongly recommended to place the hub to somewhere that is between the light
devices and the router, and make sure it responds well to have Wi-Fi signal.
1. Tap “+” button on top right corner to add device. Tap “Gateway Control” the
choose “Wireless Gateway (BLE)” to add the hub.

10
2. Plug the hub into a socket. Long press the power button and the hub till the
indicator lights rapidly blink, tap the “Next” button, the click “+” button to add the
hub.
3. Choose your Wi-Fi network, enter your password, and tap the “Next” button. Give
a name to the hub and tap the “Done” button.
