USER GUIDE
Multi-band Wireless Access Point
N3600
USER GUIDE
Revision1.0
FCC ID: 2ATDI-N3600

NRadio Technologies Co., Ltd. Page 2/ 8
Add.: A408,DonglianBuilding,Chuangye 2nd Rd.,Bao'anDistrict,Shenzhen, P.R.C
Tel: [phone]Web: www.nradiowifi.com
USER GUIDE
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does
not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliancecould void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with minimum distance 20cm between the radiator and your
body.
Packing List

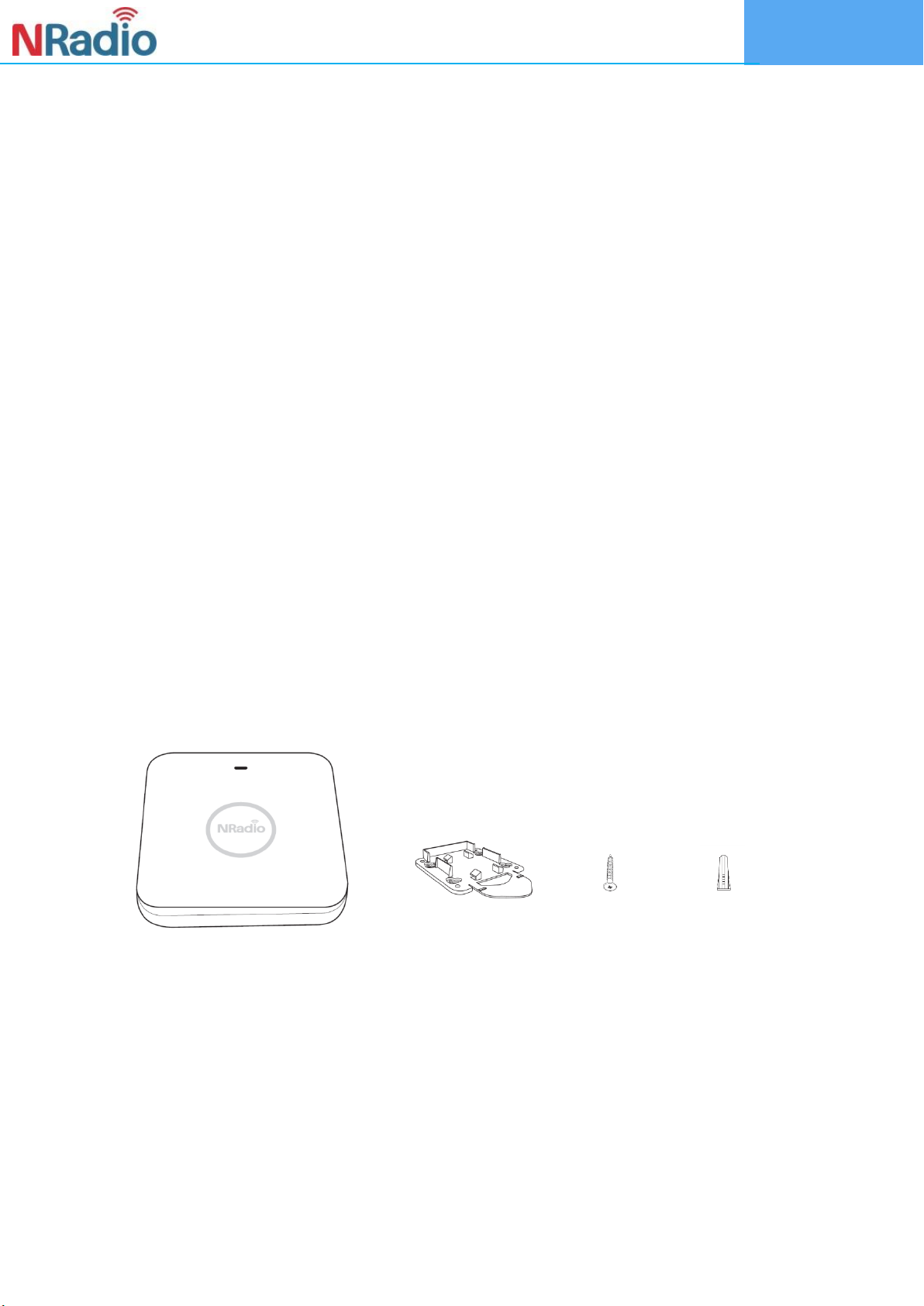

AP*1 backplane*1 screw*4 tube*4

NRadio Technologies Co., Ltd. Page 3/ 8
Add.: A408,DonglianBuilding,Chuangye 2nd Rd.,Bao'anDistrict,Shenzhen, P.R.C
Tel: [phone]Web: www.nradiowifi.com
USER GUIDE
Network settings
AP Mode

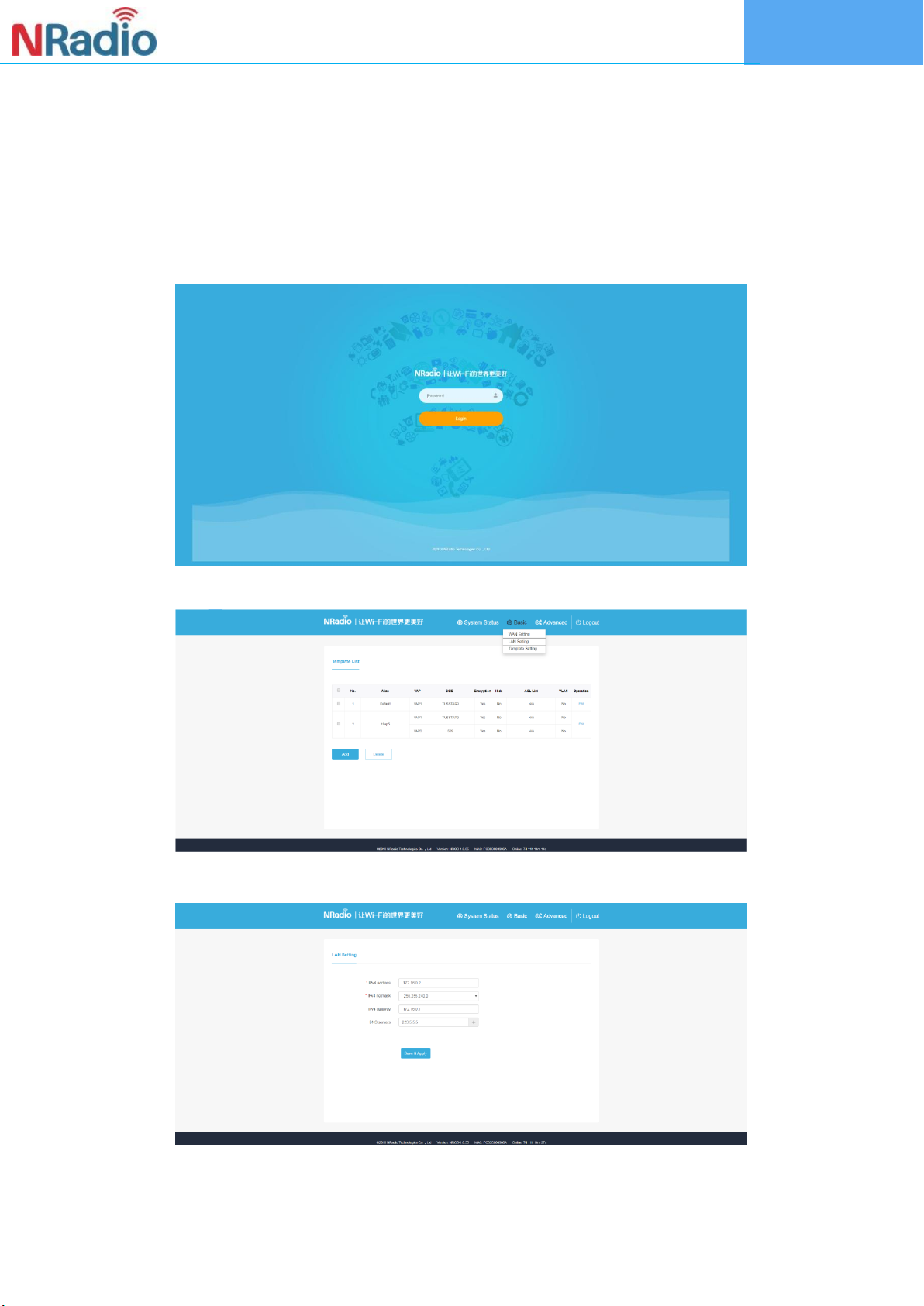

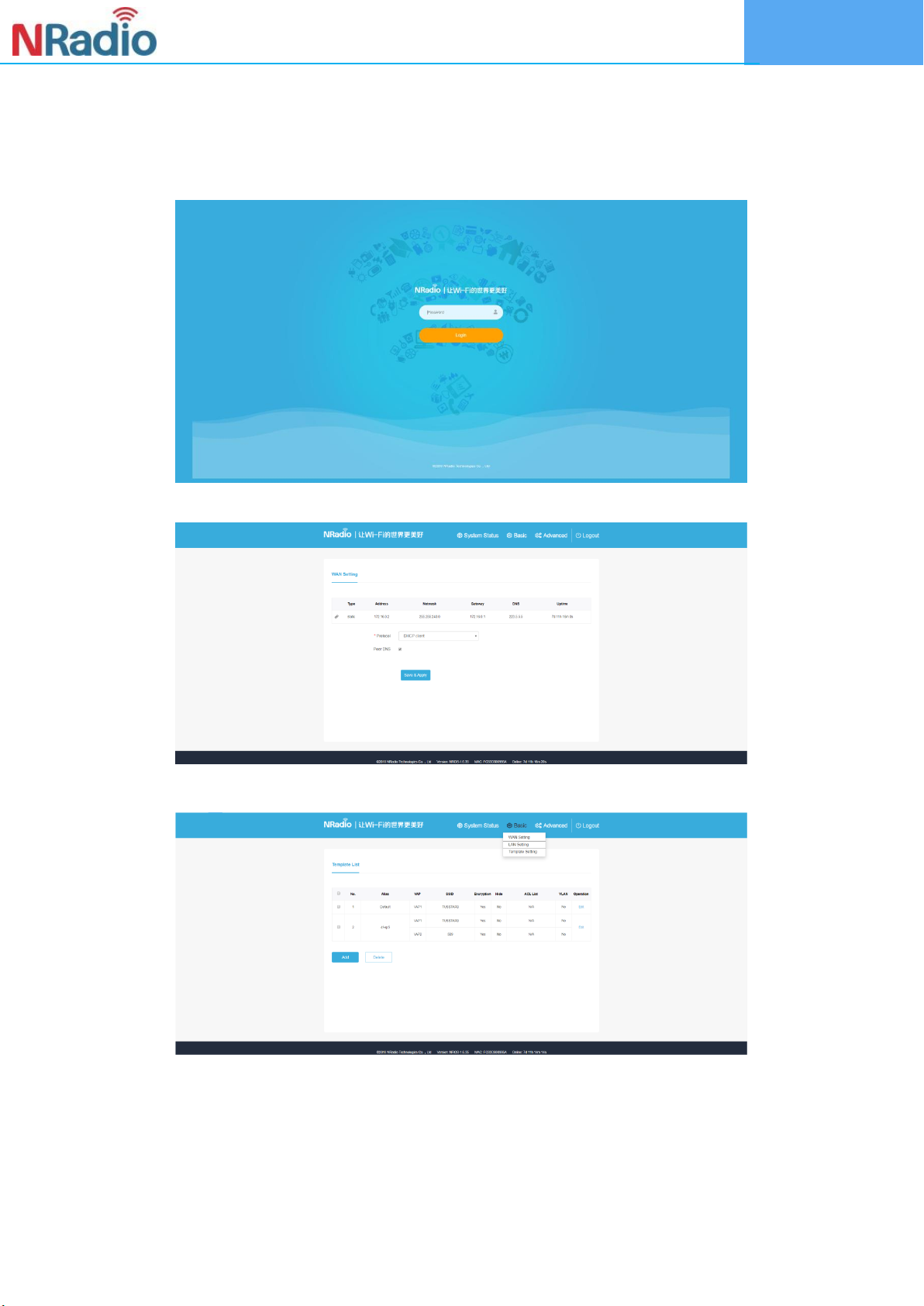

1. Login management page.Set the PC's network card to static IP 192.168.88.X (1<X<255),
connect to the device LAN port, open the browser and enter 192.168.88.1 to enter the
management page. The default password is admin.
2. Modify wireless parameters.
3. Modify LAN IP.

NRadio Technologies Co., Ltd. Page 4/ 8
Add.: A408,DonglianBuilding,Chuangye 2nd Rd.,Bao'anDistrict,Shenzhen, P.R.C
Tel: [phone]Web: www.nradiowifi.com
USER GUIDE
Router Mode

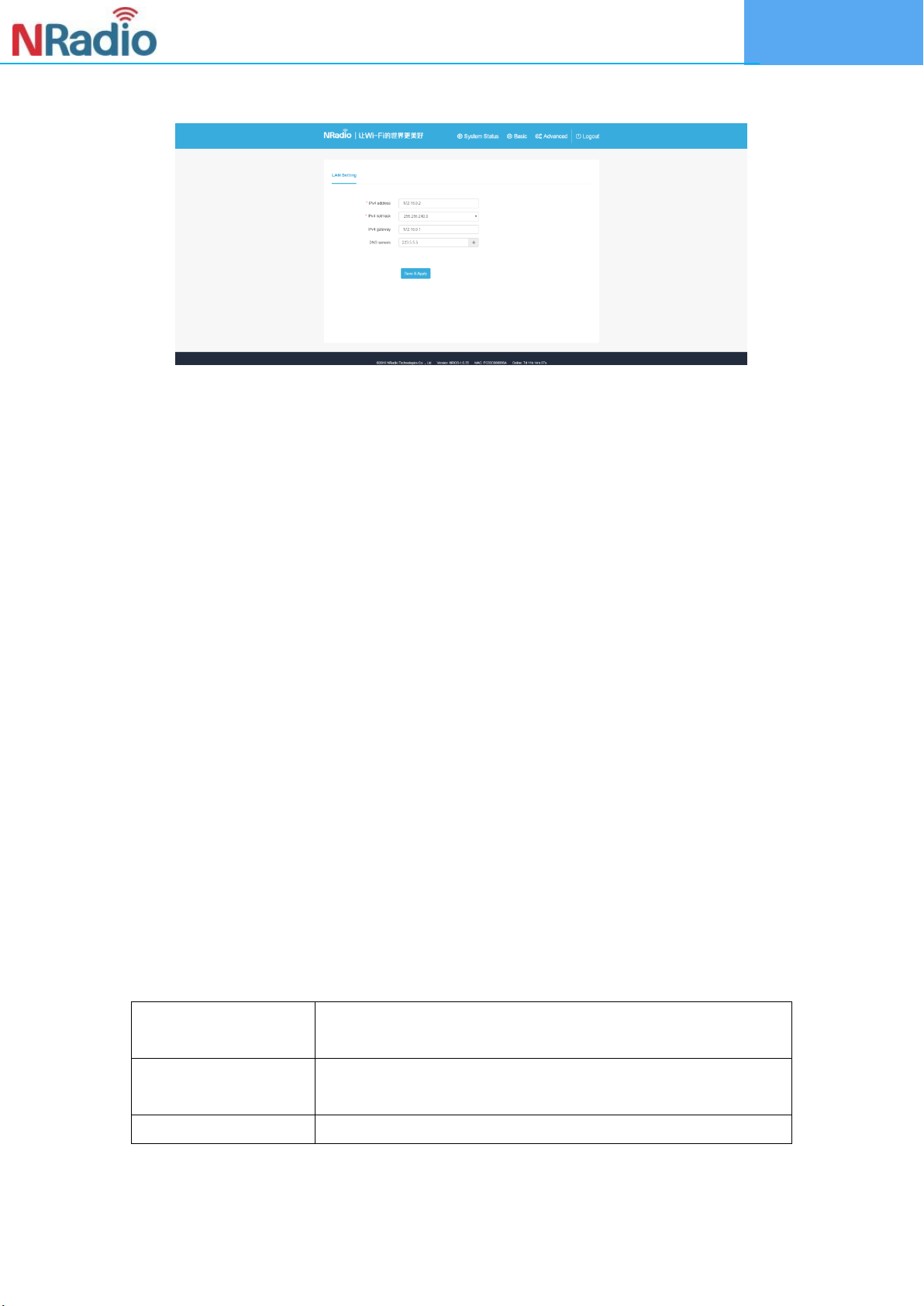

1. Login management page. Connect to the device LAN port, open the browser and enter
192.168.88.1 to enter the management page. The default password is admin.
2. Modify WAN parameters.
3. Modify wireless parameters.
4. Modify LAN parameters.

NRadio Technologies Co., Ltd. Page 5/ 8
Add.: A408,DonglianBuilding,Chuangye 2nd Rd.,Bao'anDistrict,Shenzhen, P.R.C
Tel: [phone]Web: www.nradiowifi.com
USER GUIDE
Troubleshooting
The Device is NOT working.
1. Check if the DC or PoE power supply is working properly.
2. Check if the network cable connection is normal.
Unable to enter WEB management page
1. Check whether the network cable connection of the computer is normal. The network
cable should be connected to the LAN port of the device.
2. Check if your computer's network card settings are correct.
3. Check if the management address IP entered by the browser is correct.
4. Check if the browser is set up with a proxy, or try changing your browser, computer, or
network cable.
5. Check if the password is entered correctly.
6. The above five points are consistent, you still cannot enter the management page, it is
recommended to press and hold the reset button for 10 seconds and then release,
restore the factory settings
Specification
Radio
Four(4) kits of metamaterial components and
antennas Transmit power adjustable
Phy Data Rates
Up to 600Mbps (2.4GHz)
Up to 1734Mbps (5GHz)
Concurrent Clients
128

NRadio Technologies Co., Ltd. Page 6/ 8
Add.: A408,DonglianBuilding,Chuangye 2nd Rd.,Bao'anDistrict,Shenzhen, P.R.C
Tel: [phone]Web: www.nradiowifi.com
USER GUIDE
Associated Clients
256
Wi-Fi Standards
IEEE 802.11a/b/g/n/ac
Supported Data Rates
802.11n/ac: 6.5Mbps –173.4Mbps (20MHz)
13.5Mbps –400Mbps (40MHz)
29.3Mbps –867Mbps (80MHz)
802.11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps
802.11b: 11, 5.5, 2 and 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
Spa�al Streams
2x2:4
Spa�al Streams
20MHz, 40MHz and 80MHz
Frequency Band
IEEE 802.11n: 2.4 –2.484 GHz and 5.15–5.85 GHz
IEEE 802.11a/ac: 5.15–5.85 GHz
IEEE 802.11b/g: 2.4–2.484 GHz
BSSIDs
Up to Eight(4) (2.4GHz)
Up to Eight(4) (5GHz)
Configuration
CPU: One(1) dual-core and one(1) single-core processors
RAM: 256MB
ROM: 128MB
Interface & Ports
One(1) Gigabit Ethernet PoE port
One(1) Gigabit Ethernet LAN port
One(1) Auxiliary DC input port
One(1) Reset button
Environmental
Conditions
Operating Temperature: 32℉(0℃) - 104℃(40℃)
Operating Humidity: 10% - 95% non-condensing
Power Draw
8.5W (standby)
16W (typical)
18W (peak)
* Data from NRadio test lab with 100-meter CAT5e.
Power
PoE 802.3at
25.5W PoE Power Injector
12V/2A DC adapter

NRadio Technologies Co., Ltd. Page 7/ 8
Add.: A408,DonglianBuilding,Chuangye 2nd Rd.,Bao'anDistrict,Shenzhen, P.R.C
Tel: [phone]Web: www.nradiowifi.com
USER GUIDE
NRadio Technologies, Co., Ltd.
Add.:A408,DonglianBuilding,Chuangye 2nd Rd.,Bao'an District,Shenzhen, P.R.C
Tel: [phone]
Web: www.nradiowifi.com Email：[e-mail]
Version: 20190403-V1.0
Copyright © 2019NRadio reserves all rights
Disclaimer: NRadio attempts to provide accurate information in this material, but does not
guarantee that the content of the material does not contain technical errors or typographical
errors. For this reason, NRadio does not assume any responsibility for the inaccuracy in this
material. NRadio reserves the right to modify the contents of this material without notice or
prompt.
Manufacturer's Name: NRadio Technologies Co., Ltd.
Address: A408,Donglian Building,Chuangye 2nd Rd.,Bao’anDistrict,Shenzhen, P.R.C
Product Name: Multi-band Wireless Access Point
Trade Mark: NRadio
Model number: N3600
Operating Temperature: 0°C to 40°C
This device is in compliance with the essential requirements and other relevant provisions
of Directive 2014/53/EU. All essential radio test suites have been carried out.
Detailed DOC file please visit our website:
www.nradiowifi.com
The device complies with RF specifications when the device used at 20cm from your
body.
. Adapter shall be installed near the equipment and shall be easily accessible.
. The plug considered as disconnect device of adapter.
Adapter 1
Model: GP304U-120-200
Input: 100-240V~50/60Hz 1A Max
Output: 12V 2A
Adapter 2
Model: G0720-480-050
Input: 100-240V~50/60Hz 0.75A Max
Output: 48V 0.5A
Care for the environment! Must not be discarded with household waste!

NRadio Technologies Co., Ltd. Page 8/ 8
Add.: A408,DonglianBuilding,Chuangye 2nd Rd.,Bao'anDistrict,Shenzhen, P.R.C
Tel: [phone]Web: www.nradiowifi.com
USER GUIDE
RF Secification:
Function
Operation Frequency
Max RF output
power:
Limit
WIFI
802.11B/G/N(HT20,
HT40)
802.11b/g/n(20MHz): 2412~2472MHz;
802.11n(40MHz):2422~2462MHz
16.17 dBm
.
20 dBm.
WIFI
802.11a/n20/n40/
ac20/ac40/ac80
802.11a/n/ac(20):5180MHz~5240MHz
802.11n/ac(40):5190MHz~5230MHz
802.11ac80:5210MHz
16.71 dBm
23 dBm.
WIFI
802.11a/n20/n40/
ac20/ac40/ac80
802.11a/n(HT20)/ac20: 5745-5825 MHz
802.11n(HT40)/ac40: 5755-5795 MHz
802.11 ac80: 5775MHz
13.96 dBm
13.98 dBm
The device for operation in the band 5150 - 5250 MHz is only for indoor use
This product can be used across EU member states.
