Number 8 JS-HH15A User manual

SPRAY GUN
322789
JS-HH15A
Warning!
When using electric tools, basic safety precautions, including the following, should always be
followed to reduce the risk of re, electric shock and personnal injury.
Read all these instructions before operating this product and save these instructions.

2
TABLE OF CONTENTS
For safe operations 2
Safety Instructions for Spray Guns 4
Description 7
Start-up 10
Spray Technique 11
Maintenance 14
Correction of Malfunctions 15
Environmental protection 16

2
For safe operations
For safe operations:
1) Work area
a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b. Consider work area environment. Do not expose power tools to rain. Do not use
power tools in damp or wet locations. Keep work area well lit. Do not use power tools
where there is risk to cause re or explosion.
c. Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gasses or dust. Power tools create sparks which may ignite the
dust of fumes.
c. Keep children away. Do not let vistors touch the tool or extension cord. All visitors
should be kept away from area.
2) Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not
use any adapter plugs which earthed (grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
b. Guard against electric shock. Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges and refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Always
use tool in conjunction with a residual circuit breaker device.
3) Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a
power tool.
Do not use a power tool while you are tired or under the inuence of drugs, alcohol or
medication.
A moment of inattention while operating power tools may result in serious personal
injury.
b. Use safety equipment. Always wear eye protection. Safety equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.

3
c. Avoid accidental starting. Ensure the switch is in the o󰀨 position before plugging in.
Carrying power tools with your nger on the switch or plugging in power tools that
have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery, they can be caught in
moving parts. Rubber gloves and nonskid footwear are recommended when working
outdoors. Wear protecting hair covering to contain long hair.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of these devices can reduce
dust related hazards.
h. Use clamps or a vice to hold work. It’s safer than using your hand and it frees both
hands to operate tool.
4) Power tool use and care
a. Do not force the tool. It will do the job better and safer at the rate for which it was
intended.
b. Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d. Store idle tools. When not in use, tools should be stored in a dry, high or locked up
place, out of reach of children.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may a󰀨ect the power tools operation.
If damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier to control.
g. Use the right tool. Do not force small tools or attachments to do the job of a heavy
duty tool. Do not use tools for purpose not intended; for example, do not use circular
saws to cut tree limbs or logs.
h. Damaged switches must be replaced at a customer service repair centre. Do not use
power tools that cannot be switched on and o󰀨.
i. Do not leave power tools unattended while they are switched on. Always switch o󰀨
the tool and wait until it has come to a full standstill before leaving.
For safe operations

4
j. If the mains cable has been damaged, it must be replaced with a special mains
cable. These can be obtained from the manufacturer or the manufacturer's customer
service department. The mains cable may only be replaced by the manufacturer, the
manufacturer's customer service department or equally qualied persons.
5) Service
a. Please use a qualied expert who uses original replacement parts to repair your
power tool. This will ensure proper functioning of the power tool.
b. Caution! The use of any accessories or additional tools other than those
recommended in this manual may lead to an increased risk of injury. Only use
original replacement parts.
Safety Instructions for Spray Guns
• You may only spray coating materials such as paints, varnishes, glazes, etc. with a
ashpoint of 55°C and higher without additional warning. (German classifcation of
coating material is hazard classes A II and A III, see material tin.)
• The device may not be used in workplaces covered by the explosion-protection
regulations.
• There must be no sources of ignition such as, for example, open fres, smoke of lit
cigarettes, cigars and tobacco pipes, sparks, glowing wires, hot surfaces, etc. in the
vicinity during spraying.
• Do not spray any substances whose hazard potential is not known.
• Before working on the spray gun remove the power plug from the socket.
• Do not use the spray guns to spray ammable substances.
• The spray guns are not to be cleaned with ammable solvents which have a
ashpoint under 55°C.
• Caution against dangers that can arise from the sprayed substance and observe the
text and information on the containers or the specications given by the substance
manufacturer.
Recommendation: Wear a breathing mask and safety glasses when spraying.
CAUTION - DANGER OF INJURY!
Never point the spray gun at yourself, at other people or at animals.
• When working with the tool indoors as well as outdoors ensure that no solvent vapors
are sucked in by the spray gun.
Safety Instructions for Spray Guns

5
• When working outdoors, be aware of the wind direction. Wind can carry the coating
substance across greater distances - thus causing damage. When working indoors,
provide for adequate ventilation.
• Do not let children handle the device.
• Never open the device yourself in order to carry out repairs in the electrical system!
• Do not lay the spray gun.
Residual risks
Even when the power tool is used as prescribed it is not possible to eliminate all
residual risk factors. The following hazards may arise in connection with the power
tool’s construction and design:
1. Damage to lungs if an e󰀨ective dust mask is not worn.
2. Damage to hearing if e󰀨ective hearing protection is not worn.
3. Damages to health resulting from vibration emission if the power tool is being used
over longer period of time or not adequately managed and properly maintained.
WARNING! This power tool produces an electromagnetic eld during operation. This eld
may under some circumstances interfere with active or passive medical implants. To
reduce the risk of serious or fatal injury, we recommend persons with medical implants
to consult their physician and the medical implant manufacturer before operating this
machine.
JS-HH15A
Rated voltage 230-240V ~
Rated input power 400W
Double insulation
Container capacity 800mL
Flow rate 700mL /min
Nozzle size: Φ1.8 mm
Φ2.6 mm
Safety Instructions for Spray Guns

6
Wear hearing protection while operating the power tool.
The declared vibration total value has been measured in accordance with a standard
test method and may be used for comparing one tool with another.
The declared vibration total value may also be used in a preliminary assessment of
exposure.
Warning
The vibration emission during actual use of the power tool can di󰀨er from the declared
total value depending on the ways in which the tool is used.
There is the need to identify safety measures to protect the operator that are based on
an estimation of exposure in the actual conditions of use (taking account of all parts
of the operating cycle such as the times when the tool is switched o󰀨 and when it is
running idle in addition to the trigger time).
Safety Instructions for Spray Guns

7

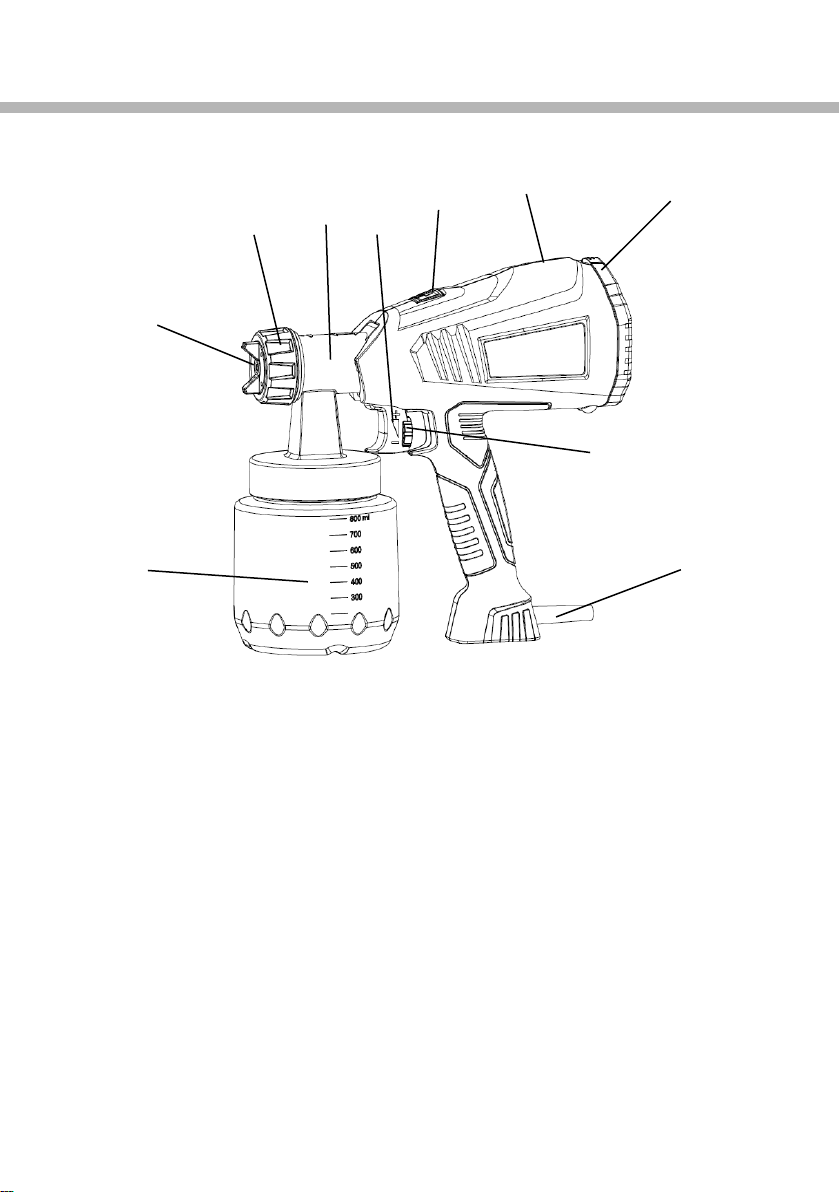

Description (Fig. 1)
1) Air Cap 2) Nozzle
3) Union nut 4) Spray gun front part
5) Trigger 6) Release button
7) Spray gun rear part 8) Air lter cover
9) Material volume adjustment 10) Mains lead
11) Container
FIG.1
11
1/2
34 5 678
10
9
Description

8
FIG.2
Coating Materials Suitable for Use
Water- and solvent-based paints, fnishes, primers, 2-component paints, clear fnishes,
automotive fnishes, staining sealers and wood sealer-preservatives.
Coating Materials Not Suitable for Use
Wall paints (emulsion paints) etc., alkali and acidic paints. Coating materials with a fash
point below 55°C.
Preparation of the Coating Material
The enclosed spray attachment can be used to spray paints, varnishes and glazes that
are undiluted or slightly diluted.
1. Stir the material up and put the required amount into the paint container.
Thinning recommendation
Sprayed material
Glazes undiluted
Wood preservatives, mordants, oils,
disinfection agents, plant protective agents
undiluted
Paints containing solvents and water-
soluble
paints, primers, vehicle coating paints,
hick-m glazes
dilute by 5 - 10%
2. If the convey capacity is too low, add 5 - 10% dilution step-by-step until the convey
capacity fullls your requirements.
AB
Description

9
FIG.3
FIG.4
3A
2
1
3B 3C
FIG.5
Description

10
FIG.6
A
10-30cm
B
Start-up
Before connecting to the mains supply, be sure that the supply voltage is identical with
the value given on the rating plate.
• Unscrew the container from the spray gun.
• Aligning suction tube. (Fig. 2)
If the suction tube is positioned correctly, the container contents can be sprayed without
almost any residue.
When working on lying objects: Turn the suction tube forwards. (Fig. 2 A)
Spraying work when working on overhead objects: Turn the suction tube rearwards. (Fig.
2 B)
• Set the container on a sheet of paper, pour in the prepared coating material and
screw the container tightly onto the spray gun.
• Put the machine down only on a level, clean surface. Otherwise the machine could
tip over!
• Adjust the spray setting on the spray gun.
Three different spray jet settings can be chosen on the spray gun, depending on
the application and target object.
Selecting the Spray Setting
Fig. 3 A = horizontal fat jet
Start-up

11
Fig. 3 B = circular jet
Fig. 3 C = vertical fat jet
The spray pattern indication can be found on the front part of the sprayer. With the
arrowhead towards the boss on the tip.

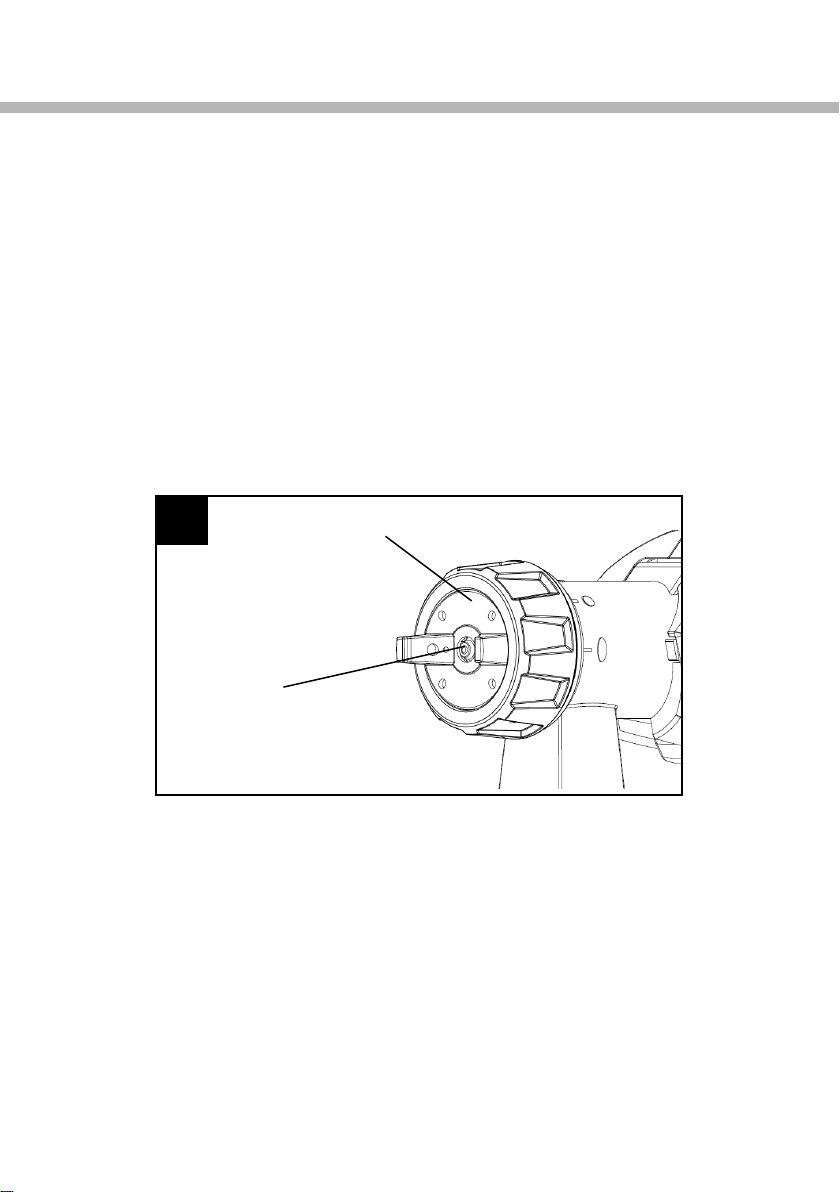

Adjusting the desired Spray Setting (Fig. 4)
With the union nut (2) slightly unscrewed, turn the air cap (1) to the desired spray setting
position. Then tighten the union nut.
WARNING! Danger of injury! Never pull the trigger guard while adjusting
the air cap.
Adjusting the Material Volume (Fig. 5)
Set the material volume by turning the regulator on the trigger guard of the spray gun.
- turn to downside lower material volume
+ turn to upside higher material volume
Spray Technique
■ The spray result depends heavily on the smoothness and cleanliness of the surface
to be sprayed. Therefore the surface should be carefully prepared and kept free of
dust.
■ Cover all surfaces not to be sprayed.
Boss on the tip
Spray pattern indicator
Start-up

12
■ Cover screw threads or similar parts of the target object.
■ It is advisable to test the spray gun on cardboard or a similar surface to find the
correct setting.
Important: Begin spraying outside of the target area and avoid interruptions inside
the target area.
■ Correct (Fig. 6a). Be sure to hold the spray gun at an even distance of approx. 10 –
30 cm to the target object.
■ Incorrect (Fig. 6b) Heavy spray fog build-up, uneven surface quality.
■ Move the spray gun evenly cross-wise or up-and-down, depending on the spray
pattern setting.
■ An even movement of the spray gun results in an even surface quality.
■ When coating material builds up on the nozzle (A) and air cap (B) (Fig. 7), clean both
parts with a solvent or water.
Interruption of Work till 4 Hours
■ Turn the machine off.
■ When processing 2-component varnishes, clean the device immediately.
Taking Out of Operation and Cleaning
Proper cleaning is the prerequisite for problem-free operation of the paint application
device. No warranty claims are accepted in case of improper or no cleaning.
FIG.7 B
A
Spray Technique

13
1) Unplug the power plug. Vent the container in case of longer breaks and after the
work has been terminated. This can be done by briey turning open and then closing
the container or by pulling the trigger guard and letting the paint into the original paint
container.

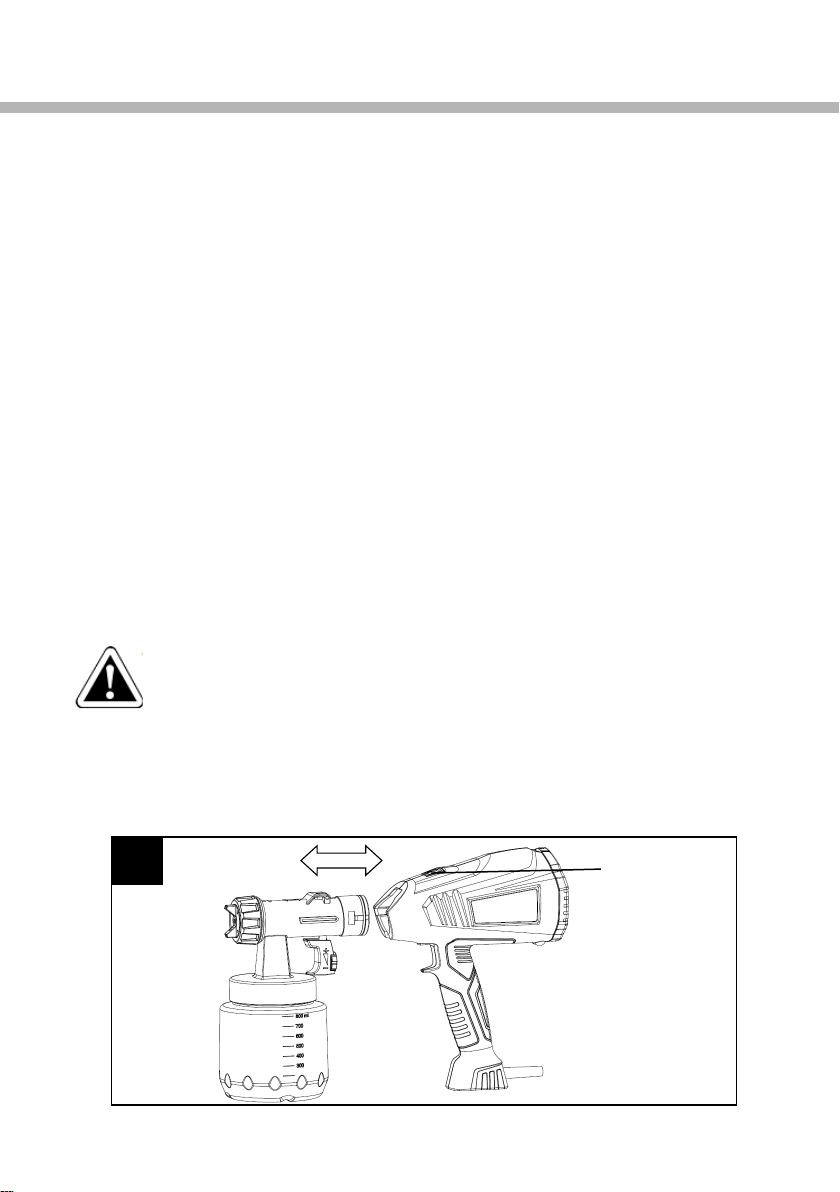

2) Divide the spray gun. Press the Release button (Fig. 8) downwards, pull out the front
part of the spray gun.
3) Unscrew the container. Empty any remaining coating material back into the material
tin.
4) Preclean the container and suction tube with a brush.
5) Pour solvent or water into the container. Screw the container back on. Use only
solvents with a ashpoint over 55°C .
6) Assemble the gun again.
7) Insert the power plug, turn on the machine and spray the solvent or water into a
container or a cloth.
8) Repeat the above procedure until the solvent or water emerging from the nozzle is
clear.
9) Turn o󰀨 the machine and remove the plug.
CAUTION!
Never clean seals and nozzle or air holes of the spray gun with metal objects.
The seal parts are only solvent-resistant to a limited extent. Do not immerse in
solvent, only wipe.
WARNING! Never hold the spray gun rear part under water or immerse it
into liquids. Clean the housing only with a moistened cloth.
10) Clean the outside of the spray gun and container with a cloth soaked in solvent or
water.
11) Unscrew the union nut and remove the air cap and nozzle. Clean the air cap and
nozzle with a brush and solvent or water.
FIG.8 Unlock button
Spray Technique

14
FIG.9
7, air lter
Maintenance
Change the air lter if it is soiled (Fig. 9, item 7).
WARNING! Never operate the machine without the air lter; dirt could be
sucked in and interfere with the function of the machine.
Maintenance

15
Correction of Malfunctions
Problem Cause Remedy
No coating material
emerges from the nozzle
Nozzle clogged
Feed tube clogged
Material volume setting
turned too far to the
downside (-)
Feed tube loose
No pressure build-up in
container
Viscosity of coating
material too high
Clean
Clean
Turn to the upside (+)
Insert
Tighten container
Thin
Coating material drips
from the nozzle
Nozzle loose
Nozzle worn
Coating material assembly
at air cap, nozzle or
needle
Tighten
Change
Clean
Atomisation too coarse Viscosity of coating
material too high
Material volume too large
Material volume adjusting
screw turned
too far to the upside (+)
Nozzle contaminated
Air lter heavily soiled
Too little pressure build-up
in container
Thin
Turn material volume adjusting
screw to the downside (-)
Clean
Change
Tighten container
Spray jet pulsates Coating material in
container running out
Air lter heavily soiled
Rell
Change
Coating material causes
"paint tears"
Too much coating material
applied.
Turn material volume adjusting
screw to the downside (-)
Correction of Malfunctions

16
Environmental protection
The appliance and accessories should be recycled in an environmentally
friendly way. Do not dispose of the appliance with household waste. Support
environmental protection by taking the appliance to a local collection point or
obtain information from a specialist retailer.
Environmental protection
