NURZVIY SolarEpoch 200 User manual
SolarEpoch 200
What’s In the Box
Technical Specifications
How It Works
Safety Guidelines
FAQ
Warranty and Contact
1
2
4
5
6
8
CONTENTS

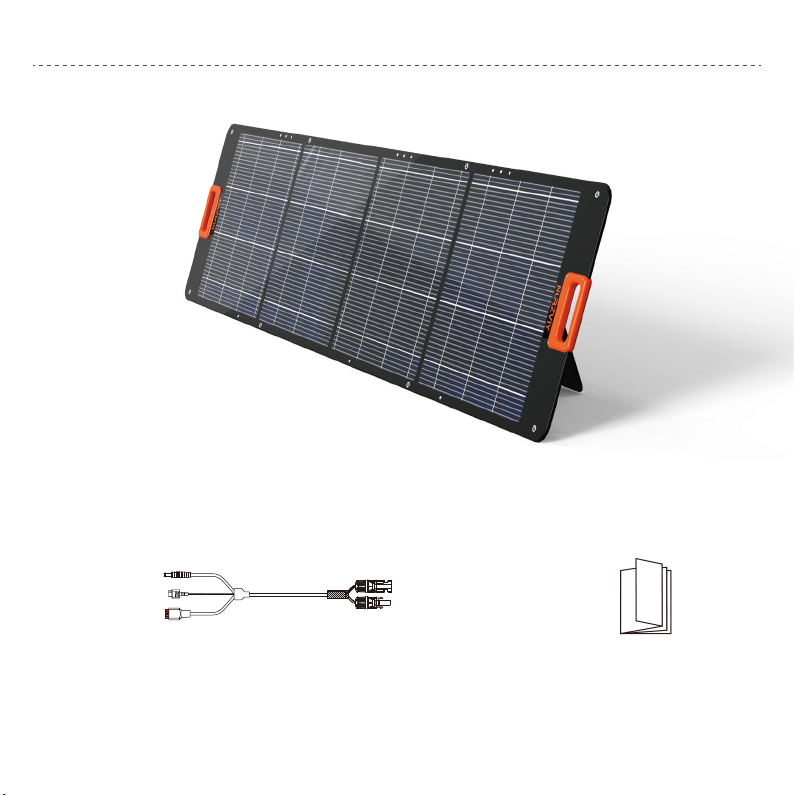

What's in the Box
1
Solar Panel
User Manual
MC4 Connector
(Applied to Anderson Port/8mm DC Port/XT60 Port)
2
Technical Specifications
Model
Peak Power
Solar Cell Lamination
Power Voltage
Power Current
Open Circuit Voltage
Short Circuit Current
Cell Type
Cell Efficiency
Connector Type
SolarEpoch 200
200W
ETFE
19.8V
10.1A
23.7V
10.67A
Monocrystalline Silicon
22.6%
MC4
Technical Specifications
Weight
Folding Number
Dimensions (Folded)
Dimensions (Unfolded)
Waterproof Rating
Operating Temperature
Best Working Temperature
Warranty
General
24.3 lbs. (11 Kg)
4
23.7 x 21.3 x 1.5 inch (60.3 x 54 x 3.8cm)
93.7 x 21.3 x 1 inch (238 x 54 x 2.5 cm)
IP67
14 ~ 149℉(-10 ~ 65℃)
77℉(25℃)
24 Months
3
How It Works
4
1. Open and unfold the solar panel.
2. Adjust the solar panel on the kickstands.
3. Connect the MC4 connector to the corresponding input port on the power
station - Anderson port, 8mm DC port, or XT60 port.
4. In order to increase the efficiency of the solar panel, position it perpendicular to
sunlight, and make sure there are no obstructions between the solar panel and
sunlight.
Safety Guidelines
5
As the efficiency of the solar panel depends upon light intensity and the tilt angle,
the charging power of the panel may be affected by several factors such as
weather conditions, seasonal changes, and location. The installation and
connection of this product should be carried out strictly in accordance with the
instructions in the User Manual.
·Only the main body of the solar panel is waterproof. The junction box and
connection points should not be immersed in water or any other liquid.
·The solar panel must not come into contact with highly corrosive substances, or
be immersed in corrosive liquids.
·Do not use sharp objects on the surface of the panel, and do not knock or impact
the product.
·Do not apply pressure to the panel or allow the panel to be dropped on any of its
corners, sides or faces. Such actions may result in damage to the solar panel.
·The panel must not be knocked, exposed to heavy pressure, or bent during
transport, rotation or installation. Please keep it in a vertical position when it is
being moved or stored.
·Do not use the solar panel as a children’s toy.
·Do not charge automotive battery directly.
·When storing the panel, always ensure that the positive and negative terminals
of the junction box are not exposed to sunlight.
·To avoid the risk of injury, this product and its junction box must only be opened
or disassembled by qualified personnel. Do not disassemble the solar panel by
yourself in any way.
·Unwanted solar panel must be disposed of in accordance with the local legal
requirements.
6
FAQ
Q1: What kind of battery can be charged by this solar panel?
A: 1) Nurzviy Discover series
2) Sealed lead-acid batteries
3) Colloidal lead-acid batteries
4) Open lead-acid batteries
Tip: To confirm whether the solar panel’s compatibility with the third party devices,
please consult with the seller.
Q2: Does the solar panel produce power when the sun isn’t shining?
A: Yes, but please keep in mind that the amount of power the solar energy system
can generate depends upon sunlight. The solar panels will produce slightly less
energy when the weather is cloudy, and no energy at night.
Q3: Can the solar panel work in winter?
A: Yes, but please keep in mind that the solar panel must be exposed to sunlight.
Keep snow clear from the face of the solar panel. Colder temperatures increase
voltage, which means the system is more efficient when it’s cold & sunny
meanwhile. However, there are fewer sun hours during the day in the winter,
leading to an overall drop in production. Take steps to converse energy to get
the most out of the system in the winter.
FAQ
Q4: How to decide the number of panels required to recharge?
A: 1) The output power of the solar panel should fit the recommended voltage.
2) The max open circuit voltage must not exceed in the max input voltage of
power station.
3) The gross output current of the solar panel should be between the recom
mended working voltage.
Tip: When using multiple solar panels in series or parallel, please make sure that
the accumulated maximum voltage and current of the solar panels do not exceed
in the maximum voltage and current of the power station.
Q5: Is it waterproof?
A: In order to maximize the lifespan of the solar panel, please try not to get it wet
or soak the solar panel into water.
Q6: How to clean the solar panel surface?
A: Dust or dirt on the surface should first be removed by using a soft brush. Use a
damp cloth to wipe the surface of the solar panel module to remove remaining
dust or dirt. Any guano or other adhesive should be removed as soon as
possible from the solar panel surface to avoid a reduction in performance.
7
Warranty and Contact
8
The product is covered by a limited warranty from Nurzviy for the original
purchaser that covers the product from defects in workmanship and
materials for 12 months from the date of purchase (damages from normal
wear and tear, misuse, carelessness, accident, service by anyone other
than authorized service center, or force majeure are not included). Warran-
ty period may vary according to local laws and regulations.
To obtain warranty service, please contact our customer service at
service@nurzviy.com or call +1 408 400 3805, thank you!
Nurzviy Energy, Inc.
4555 GREAT AMERICA PKWY 5TH FL SANTA CLARA,
CA 95054 UNITED STATES
+1 408 400 3805
www.nurzviy.com
service@nurzviy.com
