NUTONEHAVENBACKYARDMOSQUITO
REPELLENTSYSTEM
INSECT REPELLENT
DOMESTIC
SOLUTION
FOR OUTDOOR USE ONLY
Do not use indoors, in a tent or an enclosed area.
REPELS MOSQUITOES
READ THE LABEL BEFORE USING
KEEP OUT OF REACH OF CHILDREN
ACTIVE INGREDIENT: METOFLUTHRIN …………………..4.0%
REGISTRATION. NO. 32988 PEST CONTROL PRODUCTS ACT
CAUTION
POISON
NET CONTENTS: Contains a total of 45ml to 400ml
Contains a total of 24ml to 192ml
{PRODUCT NAME WITH FIXTURE}
Contains: 1 to 8 Fixture(s) [Device(s)] [Unit(s)] and 1 x 24 ml to 8 x 24 ml or 1 x 45 ml to 8 x 45 ml or 1 x 50 ml to 8 x 50 ml
Bottle Name [Repellent Bottle(s)] [Repellent Cartridge(s)] [Repellent Refill(s)]
{Bottle only}
Contain(s): 1 x 24ml to 8 x 24 ml or 1 x45 ml to 8 x 45 ml or 1 x 50 ml to 8 x 50 ml Bottle Name [Repellent Bottle(s)] [Repellent
Cartridge(s)] [Repellent Refill(s)]
Distributed by
Broan-NuTone LLC
926 W. State Street
Hartford, WI 53027
NuTone.com
NuTone.ca
U.S.A.
[phone]
Canada
(877)-896-1119
2018-02-19
2017-7614

Page 2 of 10
Repels [protects against] biting mosquitoes
Repels mosquitoes
Repels [biting] mosquitoes
Fast-acting mosquito protection
Easy to use
Convenient
Non-Staining
Odorless
Unscented
Repellent is odorless, [silent] [and invisible area of protection]
{Additional alternate bullets at end of label}
HOT LINE NUMBER
Have the product container or label with you when calling a poison control center or doctor, or going for treatment. In case of
Medical emergencies or health and safety inquiries or in case of fire, leaking or damaged containers, information may be
obtained by calling 1-888-740-8712.
DIRECTIONS FOR USE:
For use outdoors on patios, decks, unenclosed porches, walkways, around swimming pools and other outdoor areas where
mosquito protection is desired.
Do not use indoors, in a tent or an enclosed area.
Do not pry NuTone Haven [Bottle Name] [Repellent Cartridge] [Repellent Refill] open.
DO NOT apply to any body of water.
DO NOT contaminate irrigation or drinking water supplies or aquatic habitats by cleaning of equipment or disposal of wastes.
For best results [protection] [coverage] [for a typical sized deck or patio] place [install] one fixture [PRODUCT NAME] [Device]
[Unit] every 3.6m around [throughout] the area you wish to protect [from biting mosquitoes].
A set of 4 Fixtures [Devices] [Units] provides up to 40m2 of mosquito protection.
A set of 6 Fixtures [Devices] [Units] provides up to 61m2of mosquito protection.
The Vaporizer [Liquid] [Repellent] [Emanator] works [operates] independently from [with or without] the Light [Light Fixture]
[Lamp] [LED].
The Vaporizer [Liquid] [Repellent] [Emanator] should be turned off when not in use.
The Vaporizer [Liquid] [Repellent] [Emanator] will get hot while in use. Always allow Vaporizer [Liquid] [Repellent] [Emanator]
to cool before replacing with NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill].
After 6 weeks of use, open [remove] Fixture [device] cover and visually inspect NuTone Haven [Bottle Name] [Repellent
Bottle] [Repellent Cartridge] [Repellent Refill] to determine usage rate.
The claimed hours of repellency are an average based on lab testing, and presume using 90% of repellent provided. The last
10% of repellent is not claimed, as repellency effectiveness may diminish with reduced wick exposure. Your repellent usage
rate will vary based on the temperature and relative humidity.
The Vaporizer [Liquid] [Repellent] [Emanator] power-on indicator light will flash when device has been operated for
approximately 195 hours, indicating that NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent
Refill] has about 20 hours remaining of effective operating life. We recommend that you check the NuTone Haven [Bottle
Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] and replace it before it is empty.
Replace when NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] is empty.
Replace NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] when power to device is
turned off.

Page 3 of 10
Do not insert [use] anything other than NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent
Refill] in [to] the Fixture [Product Name] [Device] [Unit].
Operating Instructions: [Please refer to detailed instructions provided with the (PRODUCT NAME)]
Use [transformer] [optional controller] photo sensor, [timer] or [switch] to operate [to turn on] Vaporizer [mosquito repellent]
[repellent] [mosquito protection] [system] [device] [Repellent] [Emanator].
Use [transformer] [optional controller] photo sensor, [timer] or [switch] to operate [to turn on] Light [Light Fixture] [Lamp] [LED].
Use with transformer and controller provide [available separately].
Installation Instructions: [Please refer to detailed instructions provided with the (PRODUCT NAME)]
[Turn off electricity at main circuit breaker panel before beginning installation.] Consult local building codes to ensure
compliance with wiring and grounding requirements.
1. Attach each Fixture [Device] [Unit] to post or stem, using hardware provided making sure Fixture [Device] [Unit] is
level.
2. Connect Vaporizer [Liquid] [Repellent] [Emanator] and Light {Light Fixture] [Lamp} [LED] wires to controlled 12v
power source, [or use (PRODUCT NAME) Controller and Transformer].
3. Place [Install] one NuTone Haven [PRODUCT NAME] [Fixture] [Device] [Unit] every 3.6m.
If you have any questions about wiring, get assistance from a professional electrical contractor.
When using for the first time [For first time] [Initial] Use:
How to insert NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] into Fixture
[Device] [Unit].
1. Remove 1[one] NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] from
packaging.
2. Place on a flat surface and remove protective cap.

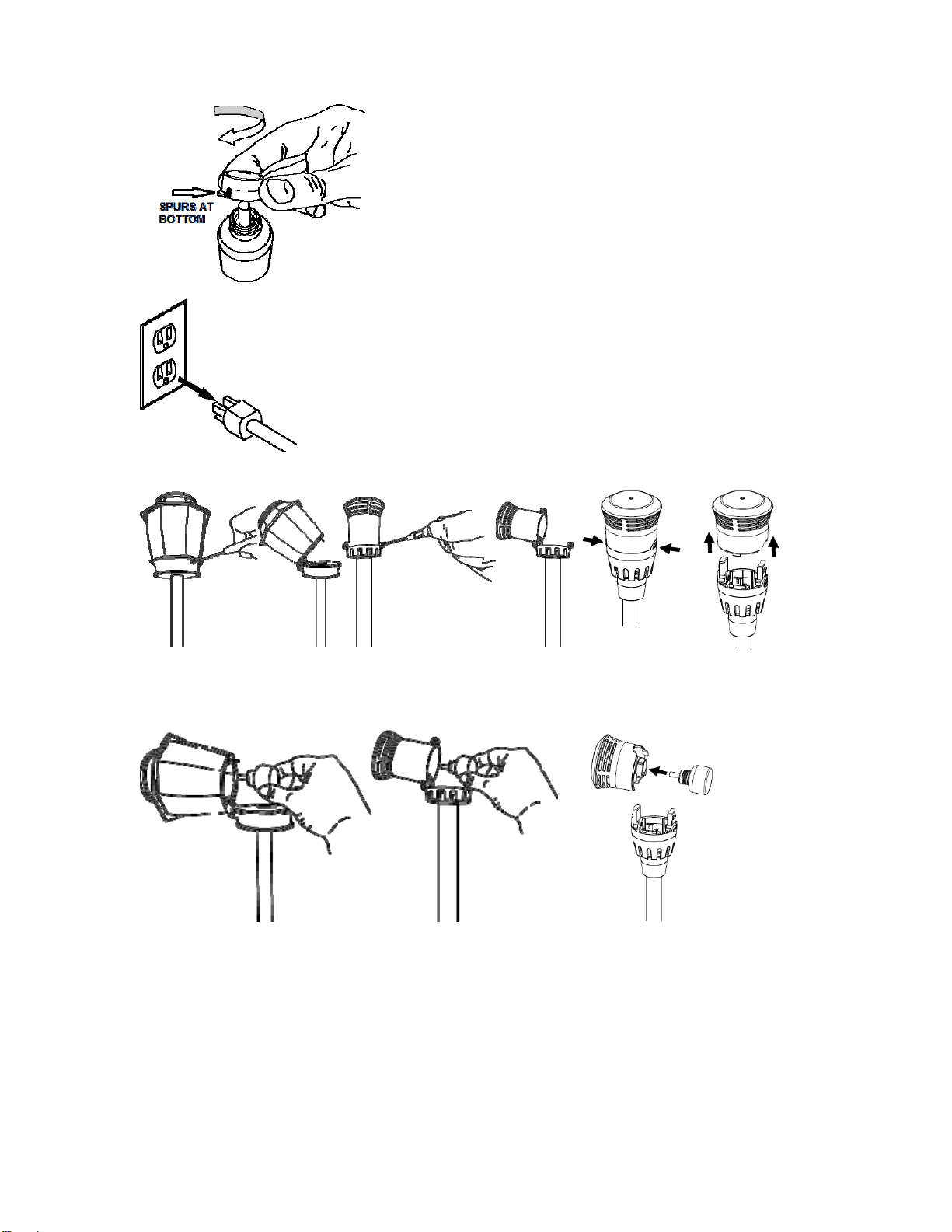

3. Attach locking adaptor cap to bottle with spurs at bottom, closest to bottom of bottle, and turn until secure. Once
attached properly, this cap is not removable. Only applicable to certain models.

Page 4 of 10
4. Unplug [Disconnect power to] Fixture [Device] [Unit].
5. Open [Remove] Fixture [Device] [Unit].
6. Ensuring that the locking adaptor is secured to the [Repellent Bottle] [Repellent Cartridge] [Repellent Refill],
carefully insert NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] into fixture
so that top of wick fits into Vaporizer [Liquid] [Repellent] [Emanator] and rotate about 30 degrees to secure to fixture.
No rotation necessary for certain models.
7. Replace [Attach] Fixture [Device] [Unit] cover.

Page 5 of 10
8. Repeat each Fixture [Device] [Unit] [reconnect power].
9. When finished plug in Fixture [Device] [Unit] [reconnect power].

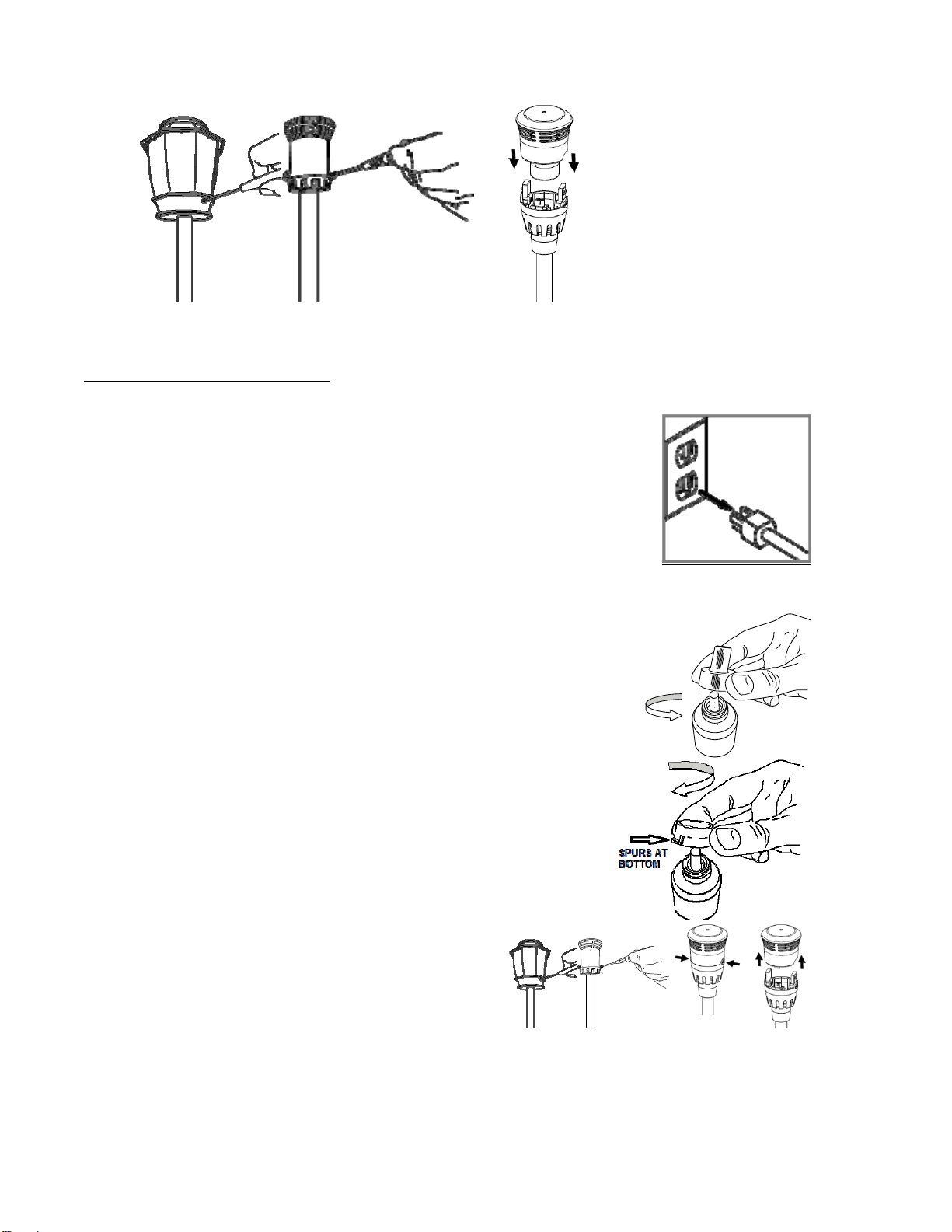

How to replace empty NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] into fixture
[device].
1. Unplug [Disconnect power to] Fixture [Device] [Unit].
If Vaporizer [Liquid] [Repellent] [Emanator] has been
operating, allow at least 1 hour to cool down before
handling.
2. Remove 1 [one] NuTone Haven [Bottle Name]
[Repellent Bottle] [Repellent Cartridge] [Repellent
Refill] from packaging.
3. Place on a flat surface and remove protective cap.
4. Attach locking adaptor cap to bottle with spurs at
bottom, closest to bottom of bottle, and turn until
secure. Once attached properly, this cap is not
removable. Only applicable to certain models
5. Open [Remove] Fixture [Device] [Unit].
6. Remove used [empty] NuTone Haven [Bottle Name]
[Repellent Bottle] [Repellent Cartridge] [Repellent
Refill] from assembly.

Page 6 of 10
7. Ensuring that the locking adaptor cap is secured to
the [Repellent Bottle] [Repellent Cartridge]
[Repellent Refill], carefully insert NuTone Haven
[Bottle Name] [Repellent Bottle] [Repellent
Cartridge] [Repellent Refill] into fixture so that top of
wick fits into Vaporizer [Liquid] [Repellent] [Emanator]
and rotate about 30 degrees to secure to fixture. No
rotation necessary for certain models.
8. Replace [re-attach] [Fixture] [Device] [Unit].
9. Repeat for each Fixture [Device] [Unit].
10. When finished, plug in Fixture [Device] [Unit]
[reconnect power].
PRECAUTIONS:
KEEP OUT OF REACH OF CHILDREN. HAZARDS TO HUMANS AND DOMESTIC ANIMALS. Harmful if swallowed,
inhaled, or absorbed through the skin. Avoid contact with skin, eyes or clothing. Avoid breathing vapor. Wash hands
thoroughly with soap and water after handling and before eating, drinking, chewing gum, or using tobacco or using the toilet.
Only adults are permitted to replace the cartridge.
FIRST AID:
IF SWALLOWED: Call a poison control centre or doctor immediately for treatment advice. Do not induce vomiting unless told
to do so by a poison control centre or doctor. Do not give any liquid to the person. Do not give anything by mouth to an
unconscious person. IF ON SKIN OR CLOTHING: Take off contaminated clothing. Rinse skin immediately with plenty of
water for 15-20 minutes. Call a poison control centre or doctor for treatment advice. IF INHALED: Move person to fresh air.
If person is not breathing, call 911 or an ambulance, then give artificial respiration, preferably by mouth-to-mouth, if possible.
Call a poison control centre or doctor for further treatment advice. IF IN EYES: Hold eye open and rinse slowly and gently
with water for 15-20 minutes. Remove contact lenses, if present, after the first 5 minutes, then continue rinsing eye. Call a
poison control centre or doctor for treatment advice.
Take container, label or product name and pest control product registration number with you when seeking medical attention.
TOXICOLOGICAL INFORMATION:
Contains petroleum distillates. Vomiting may cause aspiration pneumonia.
ENVIRONMENTAL PRECAUTIONS:
Toxic to aquatic organisms. Do not apply directly to water.
STORAGE:
Do not contaminate water, food or feed by storage and disposal of repellent unit.

Page 7 of 10
Pesticide Storage: Store in a cool, dry place out of reach of children. Keep container tightly closed. Store refills out of direct
sunlight.
DISPOSAL:
Pesticide Disposal and Container Handling: Non-refillable [liquid vaporizer] [bottle] [cartridge] [container]. Wrap in
newspaper and dispose with household garbage. DO NOT reuse the empty containers. Unused or partially used products
should be disposed at provincially or municipally designated hazardous waste disposal sites. Never place unused product
down any indoor or outdoor drain.
IMPORTANT: READ BEFORE USE
Read the entire Directions for Use, Conditions, Disclaimer of Warranties and Limitations of Liability before using this product.
If terms are not acceptable, return the unopened product container at once.
By using this product, user or buyer accepts the following conditions, disclaimer of warranties and limitations of liability.
Conditions: The directions for use of this product are believed to be adequate and must be followed carefully. However, it is
impossible to eliminate all risks associated with the use of this product. Ineffectiveness or other unintended consequences
may result because of such factors as weather conditions, presence of other materials, or the manner of use or application, all
of which are beyond the control of Broan-NuTone. All such risks shall be assumed by the user or buyer.
DISCLAIMER OF WARRANTIES: TO THE EXTENT CONSISTENT WITH APPLICABLE LAW, Broan-NuTone MAKES NO
OTHER WARRANTIES, EXPRESS OR IMPLIED, OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
OR OTHERWISE THAT EXTENDS BEYOND THE STATEMENTS MADE ON THIS LABEL. No agent of Broan-NuTone is
authorized to make any warranties beyond those contained herein or to modify the warranties contained herein. To the extent
consistent with applicable law, Broan-NuTone disclaims any liability whatsoever for special, incidental or consequential
damages resulting from the use or handling of this product.
LIMITATIONS OF LIABILITY: TO THE EXTENT CONSISTENT WITH APPLICABLE LAW, THE EXCLUSIVE REMEDY OF
THE USER OR BUYER FOR ANY LOSSES, INJURIES OR DAMAGES RESULTING FROM THE USE OR HANDLING OF
THIS PRODUCT, WHETHER IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE,
SHALL NOT EXCEED THE PURCHASE PRICE PAID, OR AT Broan-NuTone’s ELECTION, THE REPLACEMENT OF
PRODUCT.
[Or alternate text
Note [Notice]: Seller warrants that this product complies with the specifications expressed in this label. To the extent
consistent with applicable law, seller makes no other warranties, and disclaims all other warranties, express or implied,
including but not limited to warranties of merchantability and fitness for the intended purpose. To the extent consistent with
applicable law, seller’s liability or default, breach or failure under this label shall be limited to the amount of the purchase price.
To the extent consistent with applicable law, seller shall have no liability for consequential damages.]
[Or alternate text
Notice: To the extent consistent with applicable law, buyer assumes all responsibility for safety and use not in accordance
with directions.]
[[Fixture] [Device] [Unit] made in (country of Origin)]
[[Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] made in (country of origin)]
{Additional alternate bullets}
[Reaches optimal performance within 15 minutes of activation.
Provides protection within 15 minutes of use.
Contains 1 [2] [3] [4] [5] [6] [7] [8] NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent
Refill](s) [for PRODUCT NAME].
Includes 1 (one), [2 (two)], [3 (three)], [4 (four)], [5 (five)], [6 (six)], [7 (seven)], [8 (eight)] NuTone Haven [Bottle
Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill].
Available [in] single pack [multi pack] [2 pack] [4 pack] [6 pack] [8 pack].
Effective, season-long* mosquito protection for your entire deck, porch or patio.
Attractive lights fixtures that protect your outdoor patio, [unenclosed porch], [walkway] [or deck] area from [biting]
mosquitoes all season*.
Attractive lights enhance your patio, unenclosed porch, deck, walkways or yard.
Each Fixture [PRODUCT NAME] [DEVICE] [UNIT] contains a Vaporizer [Liquid] [Repellent] [Emanator] [that]
releases an odorless, invisible repellent [that] [and] protects up to 10m2 (SF).
Protects up to 10m2 area.
Protects [provides] a 3.6m diameter [area] [of repellency].
10m2 (SF) [area] [zone] of protection [from biting mosquitoes] from each Fixture [PRODUCT NAME] [DEVICE]
[UNIT].
Use [Recommend using] four (4) Fixture [Device] [Unit] on a typical [average] sized deck, patio or outdoor area [for]
[provides] over 40m2of coverage.

Page 8 of 10
Use [Recommend using] six (6) Fixture [Device] [Unit] on a typical [average] sized deck, patio or outdoor area [for]
[provides] over 60m2of coverage.
Fixture [PRODUCT NAME] [DEVICE] [UNIT] produces an invisible area [cloud] [zone] of protection which repels
biting mosquitoes.
Fixture [PRODUCT NAME] [DEVICE] [UNIT] produces an invisible [odorless] vapor to repel [that repels] [biting]
mosquitoes.
Vaporizer [Liquid] [Repellent] [Emanator] produces an invisible [cloud] [zone] of protection which repels biting
mosquitoes.
Vaporizer [Liquid] [Repellent] [Emanator] produces an invisible [odorless] vapor to repel [that repels] [biting]
mosquitoes.
Each 45ml NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] provides
Season-Long* mosquito protection.
Each 45ml NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] provides 90
days [3months] of mosquito protection 4.5 hours per day.
Each 45ml NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] provides 400
[total] hours of mosquito protection.
Each 50ml NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] provides
Season-Long** mosquito protection.
Each 50ml NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] provides 90
days [3months] of mosquito protection 5 hours per day.
Each 50ml NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] provides 455
[total] hours of mosquito protection.
Each 24ml NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] provides
Season-Long*** mosquito protection.
Each 24ml NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] provides 90
days [3months] of mosquito protection 2.4 hours per day.
Each 24ml NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] provides 216
[total] hours of mosquito protection.
*assumes season as 90 days [3months]/average use 4.5 hours per day [45ml fill]
** assumes season as 90 days [3months]/average use 5.0 hours per day [50ml fill]
*** assumes season as 90 days [3months]/average use 2.4 hours per day [24ml fill]
[NuTone Haven with] Mosquito Protection Technology.
[Patented] Patent Pending Mosquito Protection Technology [System]
Easy to install.
No batteries required.
No open flame.
No candles.
Powered by low voltage electricity.
No butane required.
No external fuel required.
Use [program] timer [photo sensor] [or switch] to turn on Vaporizer [mosquito repellent] [repellent] [system] [Liquid]
[Repellent] [Emanator].
Use [program] photo sensor [timer] [or switch] to turn on lights.
Use [optional] controller [available separately] to independently operate lights and control Vaporizer [mosquito
repellent] [repellent] [system] [Liquid] [Repellent] [Emanator].
Lights [Lighting] [Light] [Light Fixture] [Lamp] [LED] may be used independently of Vaporizer [mosquito repellent]
[repellent] [system] [Liquid] [Repellent] [Emanator].
Durable [metal and glass] construction will provide beautiful lighting [and mosquito protection] for years to come.
Efficient LEDs [use less power for year-round energy savings] [and] [lasts up to 20,000 [30,000] hours].
Plus attractive, low-voltage outdoor lighting for that perfect summer evening.
It’s as easy as turning on the lights to say goodbye to [biting] mosquitoes and the old hassles of keeping them away
for the entire summer!
Use on patios, [unenclosed porches], [decks], [walkways], [yards] and other outdoor areas where mosquito protection
is desired [required] [needed].
Designed to mount [sit] on [existing] deck post, railing or a stake in the ground.
Permanent low voltage [lighting] [fixture] are easy to install using [a supplied] [available] [an available] transformer
and low voltage wire.
Use with 12v transformer and controller [included] [available separately].
Control with timer, [photo sensor] [or switch] for lighting and/or repellent when you want them, [day or night].
Vaporizer [Liquid] [Repellent] [Emanator] can operate [be used] independently of lights [with or without] [having] lights
on.

Page 9 of 10
Refillable light(ing) fixtures NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent
Refill].
Free NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] included.
Extra refill included.
Buy one get one free.
Coupon [$] Rebate(s) available [inside].
NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] works with [in]
[PRODUCT NAME].
NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill].
Specially designed for use with [in] PRODUCT NAME.
For protection and added comfort outdoors.
Works [when you want it] [day [and] [or] night].
[Helps you] enjoy your evening activities with fewer [less] annoying [biting] mosquitoes.
Simply turn [switch] off the Vaporizer [Liquid] [Repellent] [Emanator] when protection is not needed.
Won’t harm plants, [flowers], [shrubs] or [and] [grass] [lawns].
Illuminated [Green], [Yellow], [Orange], [Blue] LED indicator [light] on [fixture] [device] indicates [signals] that
Vaporizer [Liquid] [Repellent] [Emanator] is operating].
[Green], [Yellow], [Orange], [Blue] LED indicator [light] on [fixture] [device] will flash [after 195 hours] to indicate it is
time to [check] [and] [or] replace NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent
Refill] level.
Reset timer when NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] has
been replaced to begin another 195 hour countdown.
Convenient protection from [biting] mosquitoes.
Built-in timer signals when it’s time to replace NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent
Cartridge] [Repellent Refill].
Effective against all types of mosquitoes.
Discreet, low-profile fixtures blend in to landscapes.
Add an existing [LV] [low voltage] lighting system or install with transformers and wire.
Determine Location for [Power Pack] Controller.
Plug In & Mount [Power Pack] Controller.
Space Fixtures 3.6 meters apart.
Use the provided 18-gauge electrical cable to create a perimeter of protection around the coverage area. Fixtures can
be placed behind or between shrubs and plants for more discreet protection.
Lay electrical cable down to outline your protected zone.
Install Fixtures In Ground.
Use the provided ground stakes to securely install each fixture in an upright position. Fixtures will stand 0.42 meters
tall. Connect Cables With Single-Snap Cable Connectors.
Bury or Cover Cable.
Cover with mulch, soil or landscape stone. Use a sod cutter to quickly and cleanly bury cable under grass.
Install [PRODUCT NAME WITH FIXTURE] only once, and enjoy season after season.
Repel mosquitoes at the flip of a switch.
3 year [1year] [2 year] [4 year] [5 year] [limited] warranty

Page 10 of 10
Individual Small Bottle Label
NuTone Haven [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill].
INSECT REPELLENT
DOMESTIC
SOLUTION
READ THE LABEL BEFORE USING
KEEP OUT OF REACH OF CHILDREN
ACTIVE INGREDIENT: METOFLUTHRIN …………………..4.0%
REGISTRATION. NO. 32988 PEST CONTROL PRODUCTS ACT
CAUTION
POISON
NET CONTENTS:
See [outside] [Bottle Name] [Repellent Bottle] [Repellent Cartridge] [Repellent Refill] packaging [carton] [insert] for
precautions and directions for use.
Distributed by
Broan-NuTone LLC
926 W. State Street
Hartford, WI 53027
U.S.A.
[phone]
Canada
(877)-896-1119
