NuMaker NUC980 IIoT
MAY 20, 2020 Page 1of 46 Rev 1.00
NuMaker NUC980 IIoT
User Manual
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NUC980 microprocessor based
system design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com

NuMaker NUC980 IIoT
MAY 20, 2020 Page 2of 46 Rev 1.00
Table of Contents
OVERVIEW..................................................................................................................................3
INTRODUCTION TO NUMAKER NUC980 IIOT BOARD.............................................4
NuMaker NUC980 IIoT Board Features......................................................................................... 4
NUC980 LINUX BSP INTRODUCTION..............................................................................5
QUICK STARTING TO USE NUMAKER NUC980 IIOT................................................6
NUWRITER TOOL.................................................................................................................. 15
SPI NAND Mode.............................................................................................................................. 16
Operation Steps ..............................................................................................................................16
Boot from SPI Flash........................................................................................................................20
U-BOOT..................................................................................................................................... 22
DETAILS OF NUMAKER NUC980 IIOT BOARD......................................................... 23
NuMaker NUC980 IIoT Board －Front View .............................................................................. 23
NuMaker NUC980 IIoT Board －Rear View................................................................................ 29
NuMaker NUC980 IIoT Board PCB Placement........................................................................... 30
NuMaker NUC980 IIoT Schematics.............................................................................................. 31
NuMaker NUC980 IIoT －Block Diagram Schematic...............................................................31
NuMaker NUC980 IIoT －GPIO List Schematic........................................................................32
NuMaker NUC980 IIoT －Power Schematic..............................................................................33
NuMaker NUC980 IIoT －NUC980DK Schematic ....................................................................34
NuMaker NUC980 IIoT －Power Filter Schematic....................................................................35
NuMaker NUC980 IIoT －Configure Schematic........................................................................36
NuMaker NUC980 IIoT －NUC123ZD4AN0 Schematic...........................................................37
NuMaker NUC980 IIoT －Memory Schematic...........................................................................38
NuMaker NUC980 IIoT －RMII_PE Schematic.........................................................................39
NuMaker NUC980 IIoT －Audio Codec Schematic..................................................................40
NuMaker NUC980 IIoT －SD1/eMMC1 Schematic..................................................................41
NuMaker NUC980 IIoT －Arduino Uno Interface Schematic ..................................................42
NuMaker NUC980 IIoT －USB Schematic.................................................................................43
NuMaker NUC980 IIoT －Expand EBI Interface Schematic ...................................................44
REVISION HISTORY............................................................................................................. 45

NuMaker NUC980 IIoT
MAY 20, 2020 Page 3of 46 Rev 1.00
OVERVIEW
This document introduces the specification and features of NuMaker NUC980 IIoT board. Providing a
quick guide for developers to realize what the NUC980 with Linux contains and get started quickly for
the operation process of NuWriter and U-boot.
Figure 1-1 NuMaker NUC980 IIoT Board

NuMaker NUC980 IIoT
MAY 20, 2020 Page 4of 46 Rev 1.00
INTRODUCTION TO NUMAKER NUC980 IIOT BOARD
The NuMaker NUC980 IIoT is a development board based on an ARM® ARM926EJ-S
microprocessor NUC980DK61Y which has very rich peripherals to help users easily to design-in
their products or application systems.
The NuMaker NUC980 IIoT board uses NUC980DK61Y microprocessor run up to 300 MHz with
built-in 64MB DDR2 memory, 16 KB I-cache, 16 KB D-cache and MMU, 16 KB embedded SRAM
and 16.5 KB IBR (Internal Boot ROM) for system booting from USB, SPI NAND flash and
SD/eMMC, All functions of the NUC980DK61Y are placed on the board, including peripheral
interfaces such as memory (SPI NAND Flash, eMMC, SD), UART, Audio controller(NAU8822L),
10/100 Mb Ethernet MAC controller, high speed USB(device, HOST), JTAG and EBI, furthermore,
the board provides Arduino Uno compatible interface for expansion. Users can use it to develop
and verify applications to emulate the real behavior.
NuMaker NUC980 IIoT Board Features
NUC980DK61Y: LQFP128 pin MCP package with DDR2 (64 MB), which can run up to
300MHz operating speed
SPI Flash: Quad mode system booting or data storage, use W25N01GVZE1G SPI-NAND
(128 MB)
SD1/eMMC1: User SD/eMMC memory card for system booting, data storage or SDIO (Wi-
Fi) device
UART0: Connected to Virtual COM port for system development, debug message output
Arduino Uno compatible interface connectors (NU1, NU2, NU3, NU4 and NU5)
JTAG interface provided for software development
RJ45 port with Ethernet 10/100Mbps MAC (Ethernet0)
EBI interface with pin header
Microphone input and Earphone/Speaker output with 24-bit stereo audio codec (NAU8822L)
for I2S interfaces
3 sets of LED for status indication
2 sets of user-configurable push button keys
USB port-0 that can be used as Device/HOST and USB port-1 that can be used as HOST
Supports pen drives, keyboards, mouse and printers
Provides over-voltage and over current protection
3.3V I/O power, 1.8V Memory power and 1.2V core pow

NuMaker NUC980 IIoT
MAY 20, 2020 Page 5of 46 Rev 1.00
NUC980 LINUX BSP INTRODUCTION
NUC980 Linux BSP provides cross compilation tools based on Linux operating system. We have
tested this BSP in different x86 Linux distributions, including Ubuntu, CentOS, and Debian…etc.
Because there are so many distributions out there with different system configuration, sometimes
it is necessary to change system setting or manually install some missing component in order to
cross compile.
Linux development environment could either be native, or install in a virtual machine execute on
top of other operating system.
For more detailed on how to download and install VMware virtual machine, please refer to “NUC980
Linux 3.10 BSP User Manual EN” in the “Documents”directory.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 6of 46 Rev 1.00
QUICK STARTING TO USE NUMAKER NUC980 IIOT
This chapter will help users easily to use NuMaker NUC980 IIoT step by step.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 7of 46 Rev 1.00

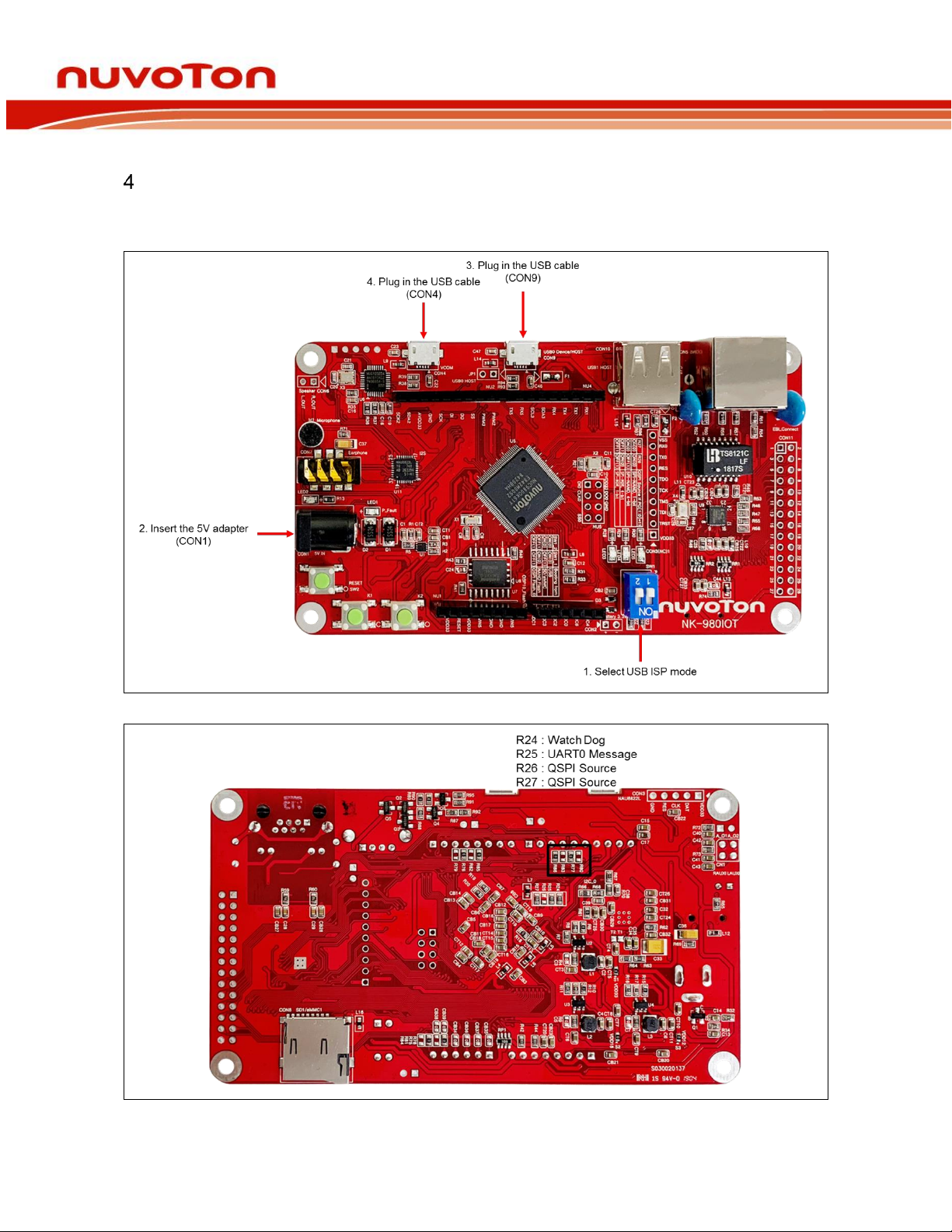

1. Select USB ISP mode and enable the UART_0 message
NuMaker NUC980 IIoT provides jumpers (SW1) to select boot-up conditions. The jumpers (SW1)
ON to select USB ISP mode
Switch
Status
Function
GPIO pin of NUC980
SW1.2/SW1.1
ON/ON
Boot from USB
GPG1/GPG0
SW1.2/SW1.1
ON/OFF
Boot from SD/eMMC
GPG1/GPG0
SW1.2/SW1.1
OFF/ ON
Boot from NAND Flash
GPG1/GPG0
SW1.2/SW1.1
OFF/OFF
Boot from QSPI0 Flash
GPG1/GPG0
NuMaker NUC980 IIoT development board defaults to enable the UART_0 message.If you need to
disable the NuMaker NUC980 IIoT development board UART_0 message, you must remove the
resistor R25.
Switch
Status
Function
GPIO pin of NUC980
R24
ON/OFF
Watch Dog
GPG3
R25
ON/OFF
UART0 Message
GPG5
R27/R26
ON/ON
SPI NAND, 1 bit
GPG9/GPG8
R27/R26
ON/OFF
SPI NAND, 4 bit
GPG9/GPG8
R27/R26
OFF/ ON
SPI NOR, 4 bit
GPG9/GPG8
R27/R26
OFF/OFF
SPI NOR, 1 bit
GPG9/GPG8
2. Insert the 5V adapter (CON1)
3. Plug in the USB cable (CON9)
The burning tool requires a NuWriter driver to be installed on PC first. Please follow the steps below
to install the driver.
Please visit nuvoTon’s NuMicro™ website (http://www.nuvoton.com/hq/products/microprocessors/arm9-
mpus/Software/?__locale=en&resourcePage=Y) to download the “NUC980 NON-OS BSP”. Run the
“WinUSB4NuVCOM.exe”before the USB cable is plugged in. The “WinUSB4NuVCOM.exe”can
be found in the “Tool”directory. Power on the NUC980 Series MPU EVB and plug the USB cable
into PC, the Windows shall find a new device and then request to install its driver. Simply follow the
installation and optional steps to install USB Driver, included VCOM driver.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 8of 46 Rev 1.00
Click “Next”. The software installation will ask you how to install the driver.
Select “setup path”to specific location (Advanced), and then click “Next”. The installation software
will ask you the option.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 9of 46 Rev 1.00
Click “Next”. As follows.
Click “Next”. As follows.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 10 of 46 Rev 1.00

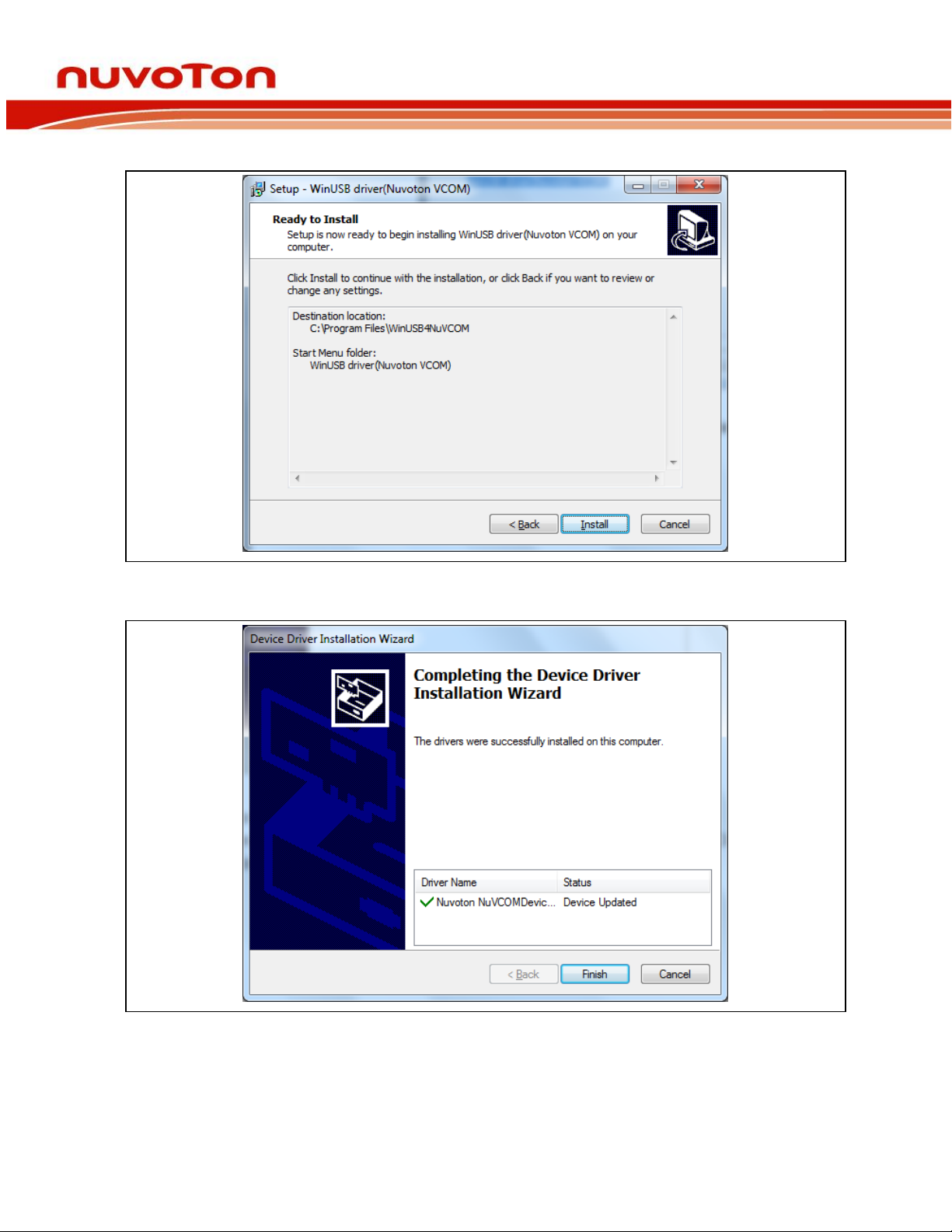

Click “Install”. As follows.
Click “Finish”to finish install driver. As follows.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 11 of 46 Rev 1.00

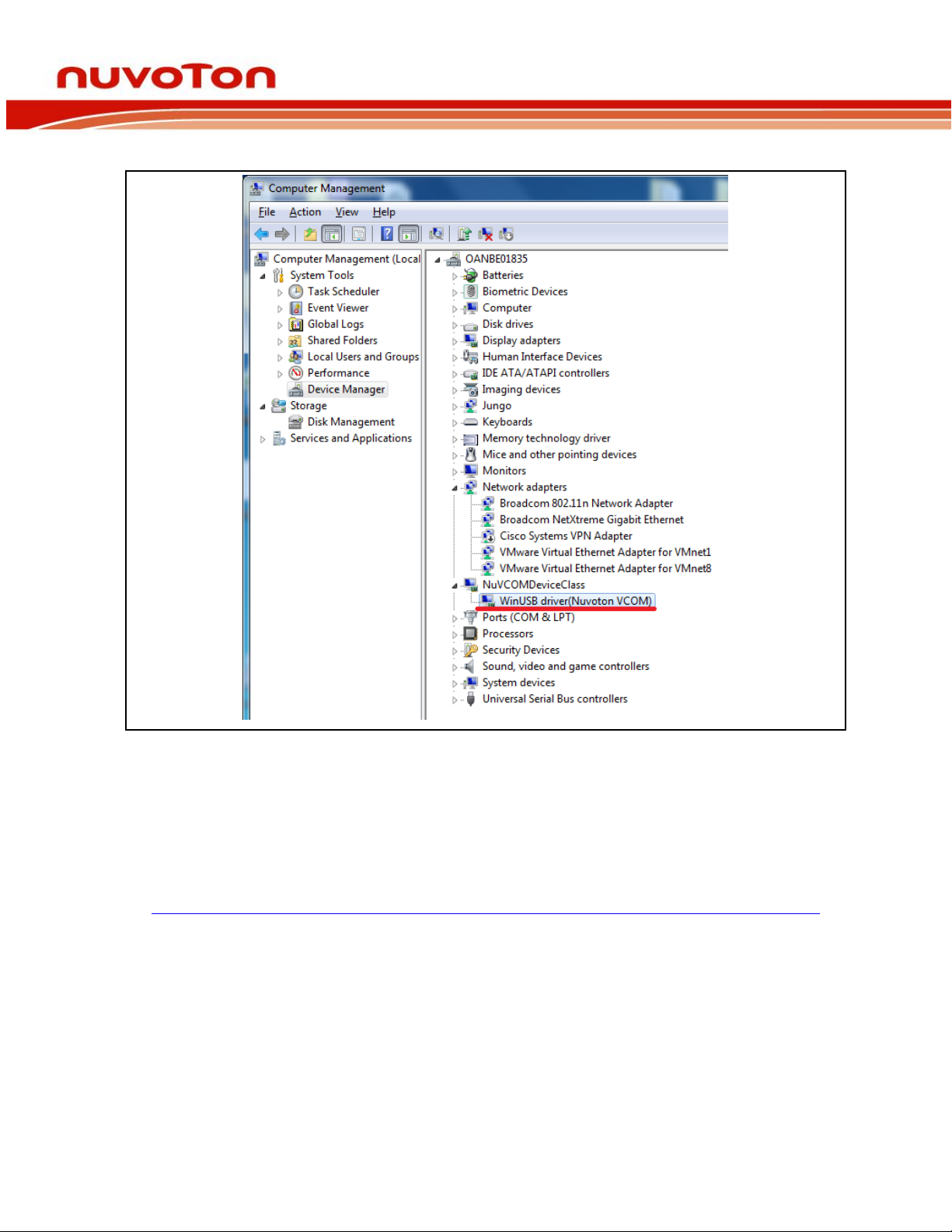

If the installation is successful, a virtual COM port named “WinUSB driver (Nuvoton VCOM)”can
be found by using “Device Manager”to check the ports devices.
4. Plug in the USB cable (CON4)
The USB serial port function is used to print some messages on PC API, such as SecureCRT,
through the standard UART protocol to help user to debug program.
Please download USB CDC driver ”TomatoUSB CDC driver” from Nuvoton’s official webpage,
executing the “NuvotonCDC_V1.00.001_Setup.exe” to install the driver:
http://www.nuvoton.com/hq/products/microprocessors/arm9-mpus/Software/?__locale=en&resourcePage=Y

NuMaker NUC980 IIoT
MAY 20, 2020 Page 12 of 46 Rev 1.00

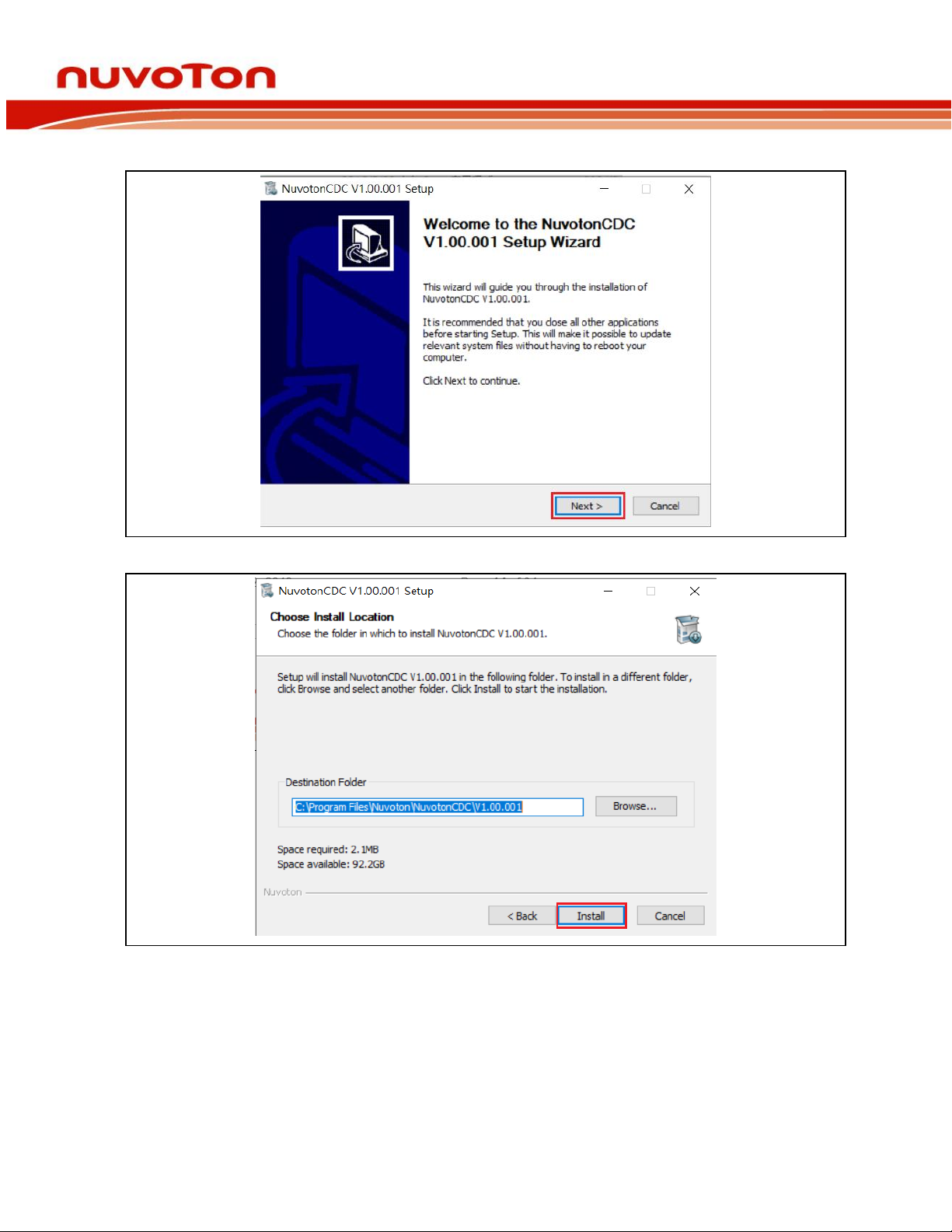

Click “Next”.
Click “Install”.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 13 of 46 Rev 1.00

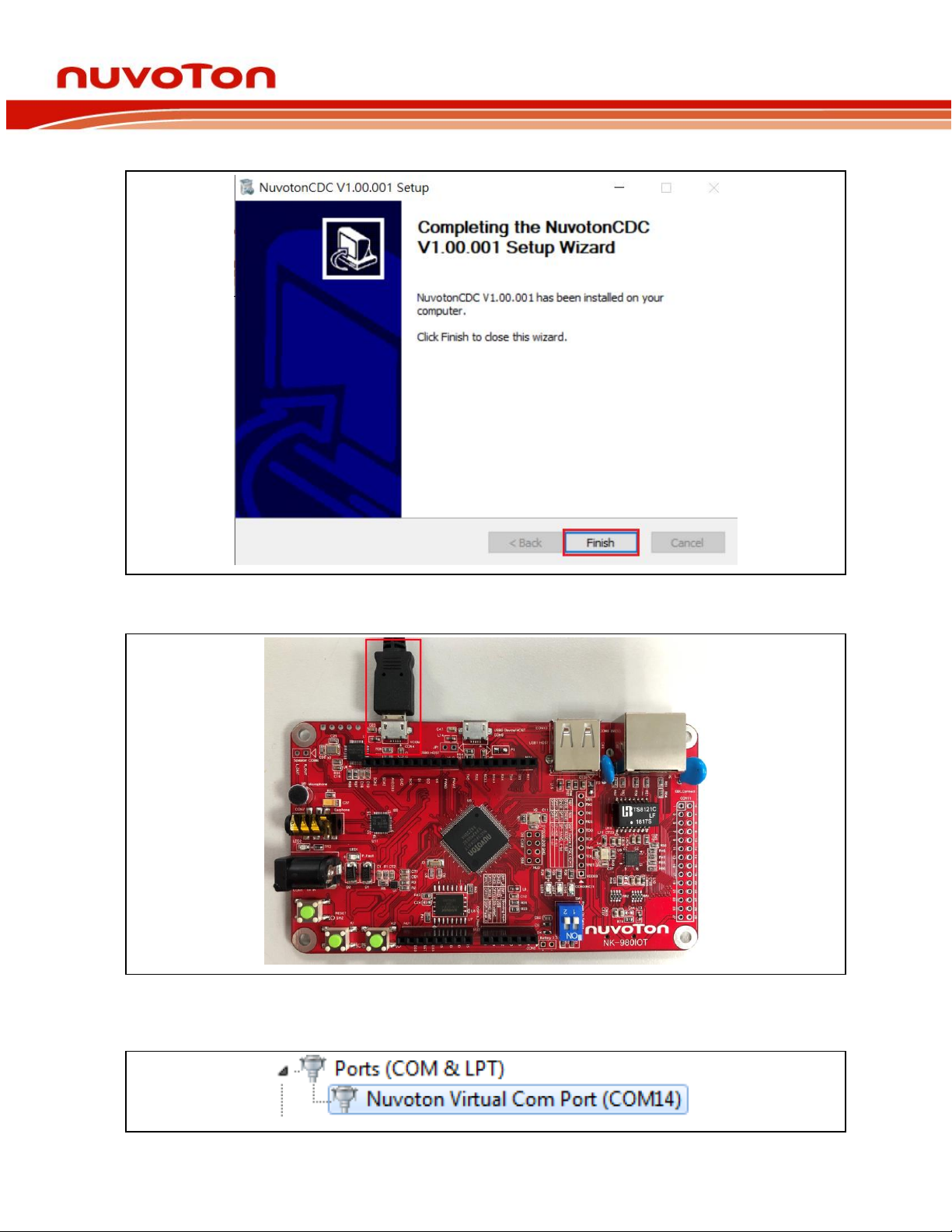

Click “Finish”to finish install driver.
If the installation is successful, the PC will recognize the board as a USB composite device when
the USB micro-B port (CON4) connect the PC HOST.
Check the COM port number from device manager.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 14 of 46 Rev 1.00

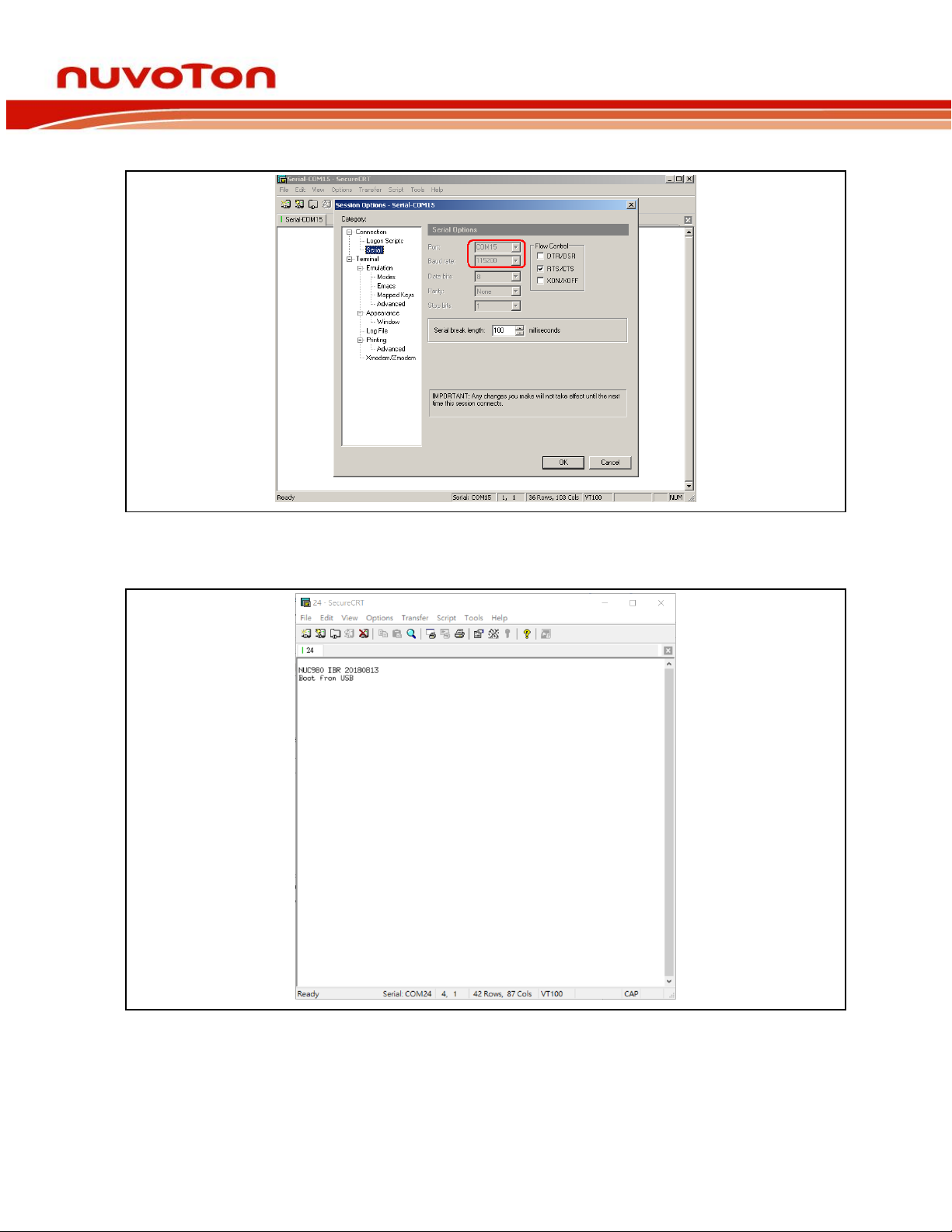

Use SecureCRT, HyperTerminal, Putty or TeraTerm to open the serial COM port, and set the
baud rate to 115200.
After pressing the reset button (SW1), the chip will reprogram application and print out debug
message.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 15 of 46 Rev 1.00
NUWRITER TOOL
NuWriter can download images to NAND flash while NUC980 is in USB ISP mode. This chapter will
guide users to use this tool boot-up from SPI NAND flash
The NUC980 Series MPU EVB provides jumpers to select boot-up conditions. To select USB ISP mode,
the statuses of SW1.1 and SW1.2 are ON. Other boot selects can refer to the following table:
Power-on setting
SW1.2
SW1.1
USB ISP
ON
ON
Boot from eMMC/SD
ON
OFF
Boot from NAND
OFF
ON
Boot from SPI
OFF
OFF
Power-on NUC980 Series MPU EVB, and then open the burning tool, “NuWriter.exe”, on the PC. Note
that the tool cannot work if the “WinUSB4NuVCOM”driver is not found.
First, double click “NuWriter.exe”on PC. NuWriter will start and a window appears. Select target chip
to NUC980 series and select DDR parameter to DDR initial files.
After select DDR parameter, click “Continue” to use NuWriter tool.
Figure 5-1 NuWriter –Set Chip
NuWriter provides 7 types to be downloaded images including DDR/SRAM, SPI, NAND, eMMC/SD,
SPI NAND, PACK and Mass Production. This chapter will guide users to download images to SPI
NAND flash. If users want to choose others types to download images. Please refer to “NUC980
NuWriter User Manual” in the “Documents”directory.

NuMaker NUC980 IIoT
MAY 20, 2020 Page 16 of 46 Rev 1.00
SPI NAND Mode
This mode can write a new image to SPI NAND flash and specify the type of the image. These types
can be recognized by uboot or Linux. The Image type is set Loader, Data, Environment or Pack.
Operation Steps
According to the figure below,follow the below steps to add image to SPI NAND flash:
1. Select the “SPI NAND”type, which will not list the pre-burned images in the SPI NAND Flash
ROM.
2. Fill in the image information：
Image Name : Browse the image file
Image Type Select the image type (only one type can be selected)
Image execute address: Enter image execute address. Only is Loader Type is vaild.
Image start offset: Enter image start offset.
3. Click “Program”.
4. Waiting for finishing progress bar.
5. After “Program” the image, click the “Verify”button to read back the image data to make sure
the burning status.

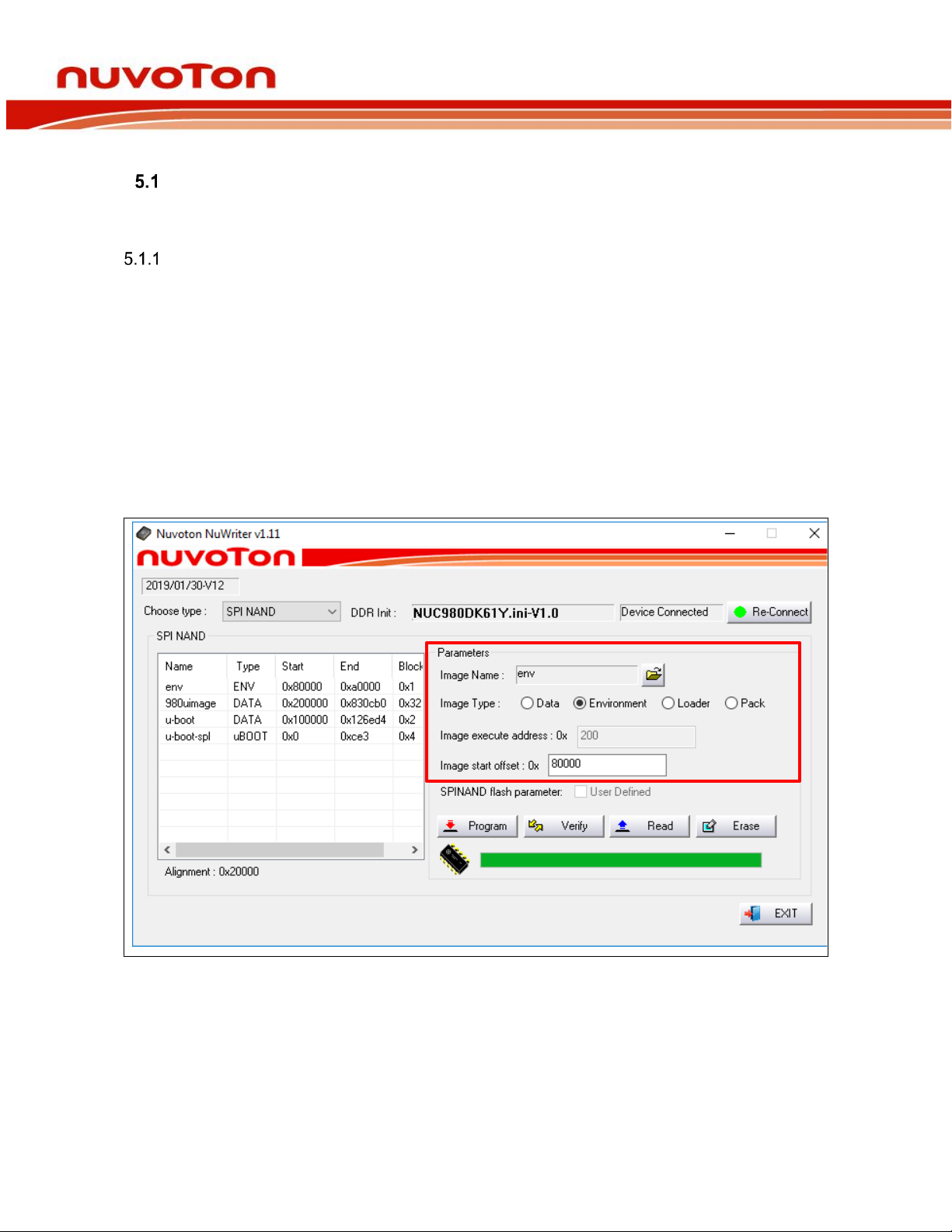

Figure 5-2 SPI NAND –New Image
1
2
3
5
4

NuMaker NUC980 IIoT
MAY 20, 2020 Page 17 of 46 Rev 1.00

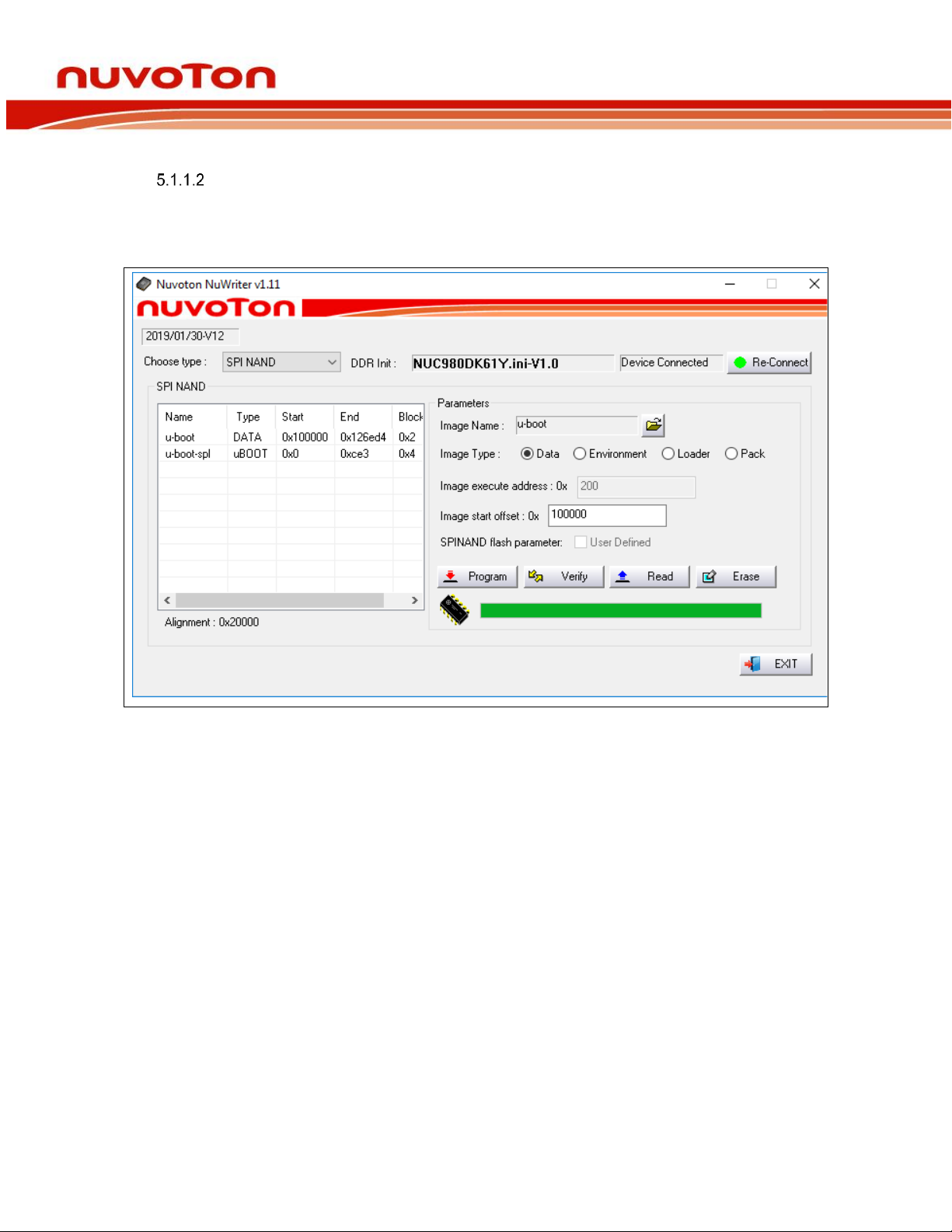

SPI NAND –u-boot spl
For the Linux system, Loader Type is used to boot the Linux kernel. To compile NUC980 U-Boot to get
Main U-Boot and SPL U-Boot. The SPL U-Boot is a small binary, it will move Main U-Boot into DDR
execution. The SPL U-Boot is only for NAND/SPI NAND boot. The default link address of SPL U-Boot
is 0x200. The detailed introduction of Loader Type format, please refer to “NUC980 NuWriter User
Manual” in the “Documents” directory.

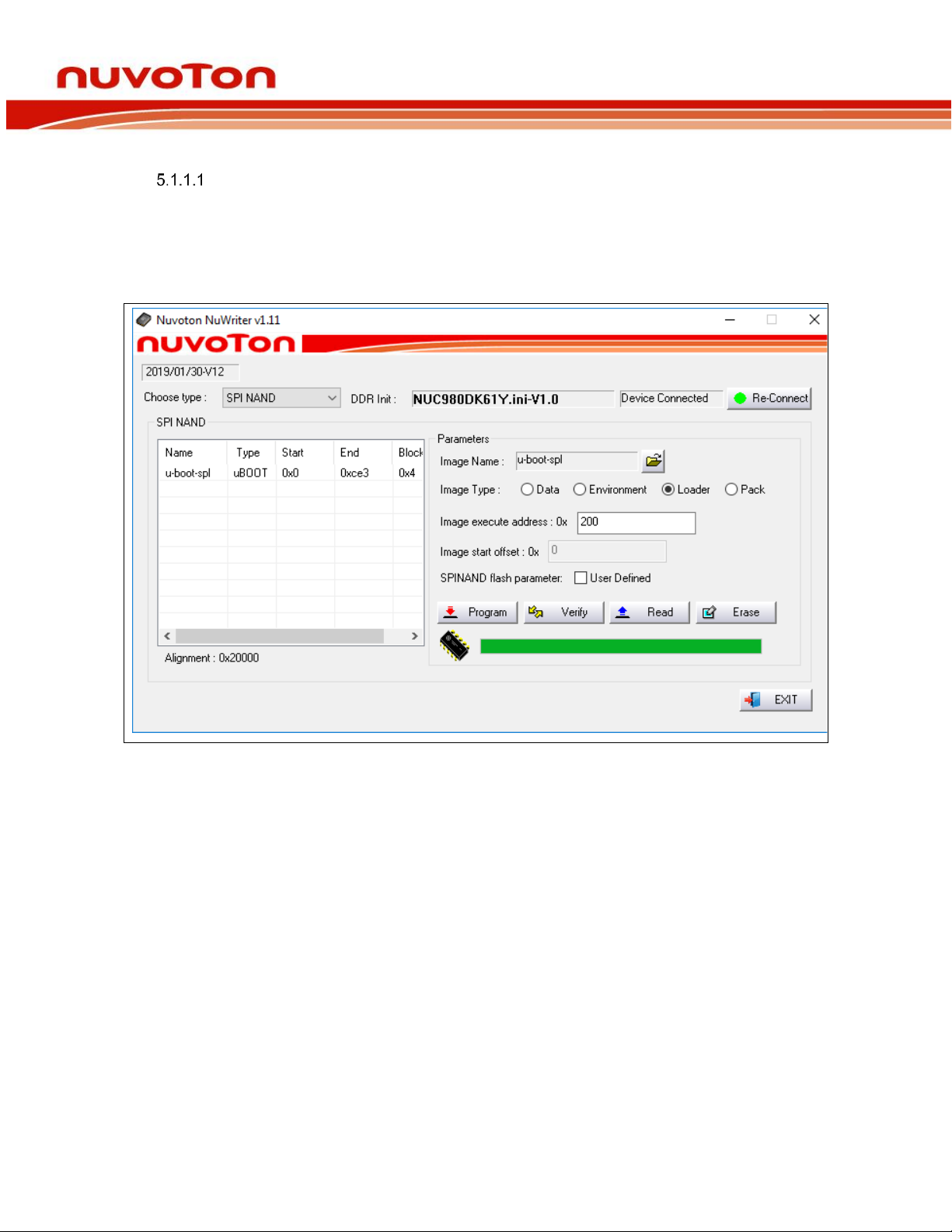

Figure 5-3 SPI NAND –u-boot spl

NuMaker NUC980 IIoT
MAY 20, 2020 Page 18 of 46 Rev 1.00
SPI NAND –u-boot
For the Linux system, Loader Type is used to boot the Linux kernel. To compile NUC980 U-Boot to get
Main U-Boot and SPL U-Boot. The Main U-Boot is a fully featured version of U-Boot. In this case, The
Main U-Boot need to set the address at 0x100000 address.
Figure 5-4 SPI NAND –u-boot

NuMaker NUC980 IIoT
MAY 20, 2020 Page 19 of 46 Rev 1.00
SPI NAND –980uimage
Mainly the image of data type into SPI NAND flash in the specified address. Depending on the value
of image start offset (aligned on block size boundary, block size is based on SPI NAND
specifications). If image start offset equal then 0x200000, image of data into SPI NAND flash in the
0x200000 address, it can help user to configure SPI NAND flash.
Figure 5-5 SPI NAND –980uimage

NuMaker NUC980 IIoT
MAY 20, 2020 Page 20 of 46 Rev 1.00
SPI NAND –environment
Loader Type is set uboot environment variables, the image of environment type into SPI NAND flash
in the specified address. U-Boot reads environment variables file to set the environment. If image start
offset equal then 0x80000, image of data into SPI NAND flash in the 0x80000 address, it can help
user to configure SPI NAND flash.
Figure 5-6 SPI NAND –environment
Boot from SPI Flash
The NUC980 Series MPU EVB provides jumpers to select boot-up conditions. According to the following
switches, users can boot from SPI Flash and watch the successful boot message from UART_0.
SW
Description (Status and Function)
GPIO pin of NUC980
SW1.2/ SW1.1
Boot Source Selection
OFF/OFF = Boot from SPI Flash.
GPG1/GPG0
R24
Watchdog Timer (WDT) Enabled/Disabled
Selection
ON = After power-on, WDT Disabled.
OFF = after power-on WDT Enabled
GPG3
R25
UART 0 Debug Message Output ON/OFF Selection
ON = UART 0 debug message output ON.
GPG5
R27, R26
SPI Flash type and data width selection
ON/ON = SPI-NAND Flash with 1-bit mode.
ON/OFF = SPI-NAND Flash with 4-bit mode.
OFF/ON = SPI-NOR Flash with 4-bit mode.
OFF/OFF = SPI-NOR Flash with 1-bit mode.
GPG9/ GPG8
