Nuvoton NuMicro NUC200 Series User manual

NuTiny-SDK-NUC200 User Manual
NuTiny-SDK-NUC200 User Manual
for NuMicro™NUC200 Series
MCU 별도구매 가능합니다.
LogicTech Inc
서울시구로구구로동615-3
STX W타워813-1호
Tel : [phone]
Fax : [phone]
Sales & Tech : [e-mail]
커스터마이징및신규개발문의환영합니다.
June 24 2014 Rev. 1.00

NuTiny-SDK-NUC200 User Manual
Table of Contents
1 Overview........................................................................................... 3
2 Introduction to NuTiny-SDK-NUC200..................................................... 4
2.1 NuTiny-SDK-NUC200 Jumper Description ......................................................5
2.2 Pin Assignment for Extended Connectors.......................................................6
2.3 NuTiny-SDK-NUC200 PCB Placement ............................................................7
3 Starting to Use NuTiny -SDK-NUC200 on the Keil μVision® IDE................. 8
3.1 Downloading and Installing Keil μVision® IDE Software ..................................8
3.2 Downloading and Installing Nuvoton Nu-Link Driver........................................8
3.3 Hardware Setup.........................................................................................8
3.4 Smpl_NuTiny-NUC200 Program....................................................................9
4 Starting to Use NuTiny-SDK-NUC200 on the IAR Embedded Workbench .. 10
4.1 Downloading and Installing IAR Embedded Workbench Software ....................10
4.2 Downloading and Installing Nuvoton Nu-Link Driver......................................10
4.3 Hardware Setup.......................................................................................10
4.4 Smpl_NuTiny-NUC200 Program..................................................................11
5 NuTiny-EVB-NUC200 Schematics ........................................................ 12

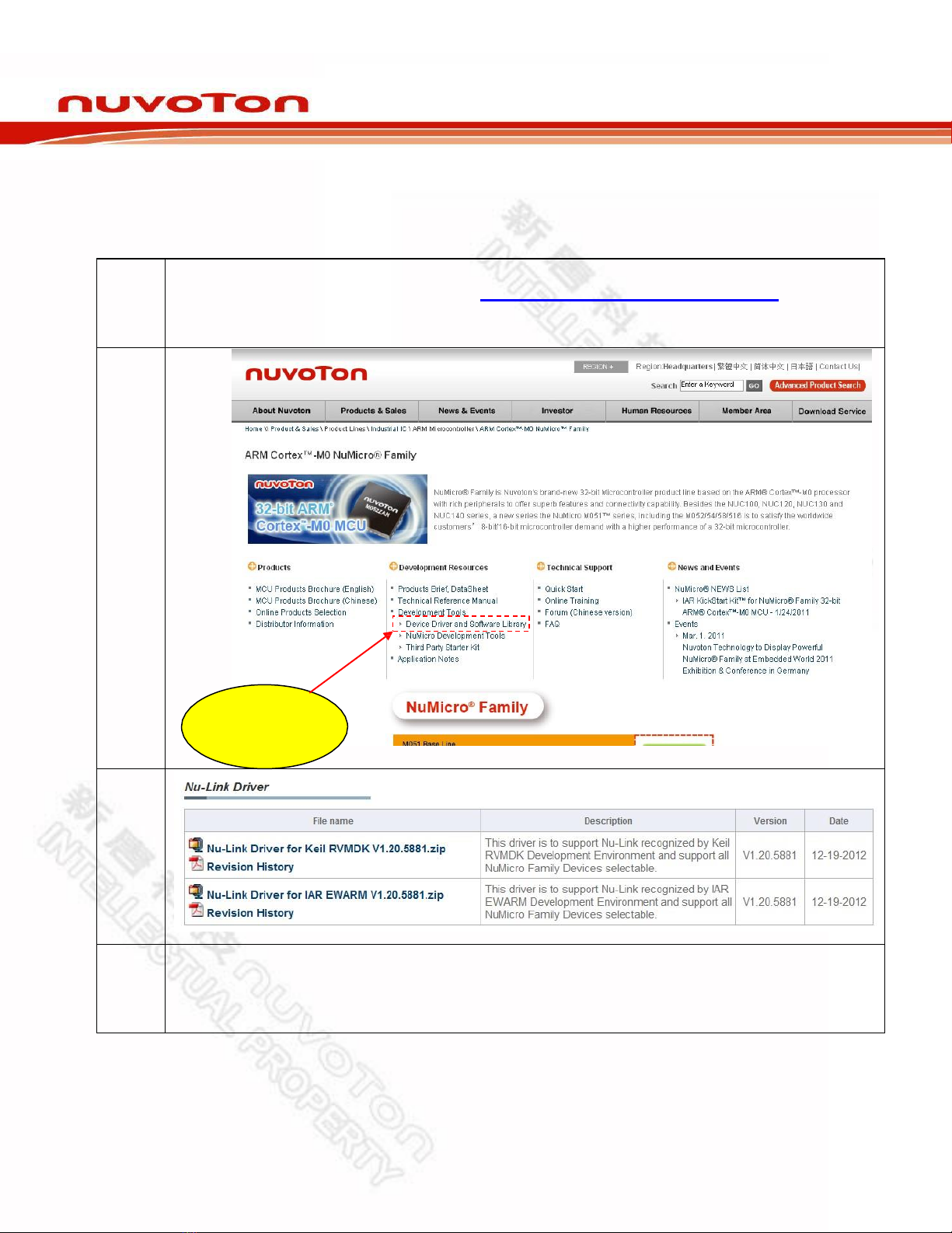

6 Downloading NuMicro™ Related Files from Nuvoton Website .................. 13
6.1 Downloading NuMicro™ Keil μVision® IDE Driver .........................................13
6.2 Downloading NuMicro™IAR EWARM Driver ..................................................14
6.3 Downloading NuMicro™NUC200 series BSP Software Library.......................... 15
7 Revision History ............................................................................... 16
June 24 2014 2 of 16 Rev. 1.00

NuTiny-SDK-NUC200 User Manual
June 24 2014
3 of 16
Rev. 1.00
1 Overview
The NuTiny-SDK-NUC200 is a specific development tool for the NuMicro NUC200
series users to develop and verify the application program easily. The NuTiny-SDK-
NUC200 includes two portions: NuTiny-EVB-NUC200 (an evaluation board) and Nu-
Link-Me (its Debug Adaptor), such that users do not need additional ICE or debug
equipment.

NuTiny-SDK-NUC200 User Manual
June 24 2014
4 of 16
Rev. 1.00
2 Introduction to NuTiny-SDK-NUC200
The NuTiny-SDK-NUC200 uses the NUC200VE3AN as the target microcontroller.
Figure 2-1 shows the NuTiny-SDK-NUC200 for NUC200 series, in which the left portion
is called NuTiny-EVB-NUC200 and the right portion is called Nu-Link-Me. …
The NuTiny-EVB-NUC200 is similar to other development boards, by which users can
develop and verify applications to emulate the real behavior. The on board chip covers
NUC200 series features. The NuTiny-EVB-NUC200 can be a real system controller to
design the users’ target systems.
The Nu-Link-Me is a Debug Adaptor, which connects your PC's USB port to a target
system (via Serial Wired Debug Port) and allows you to program and debug embedded
programs on the target hardware. To use the Nu-Link-Me Debug adaptor with IAR or
Keil, please refer to “Nuvoton NuMicro™ IAR ICE Driver User Manual”or “Nuvoton
NuMicro™ Keil ICE Driver User Manual”for details. The two documents will be stored
in the local hard disk when each is installed.
Figure 2-1 NuTiny-SDK-NUC200 (Red PCB Board)

NuTiny-SDK-NUC200 User Manual
June 24 2014
5 of 16
Rev. 1.00
2.1 NuTiny-SDK-NUC200JumperDescription
2.1.1 Power Settings
JP1: VCC5 Voltage connecter in NuTiny-EVB-NUC200
J2: USB port in Nu-Link-Me
JPR1: Select 5V or 3V for system power
Model
J2 USB Port
JP1 VDD5
MCU Voltage
Model 1
Connect to PC
DC 3.3V output
DC 3.3V
Model 2
X
DC 5V output
DC 5V
Model 3
X
DC 2.8-5.5V
input
Voltage by VCC
input
X: Unused.
2.1.2 Debug Connectors
JP4: Connector in target board (NuTiny-EVB-NUC200) for connecting with
Nuvoton ICE adaptor (Nu-Link-Me)
JP9 Connector in ICE adaptor (Nu-Link-Me) for connecting with a target board
(e.g. NuTiny-EVB-NUC200)
2.1.3 USB Connectors
J2: Mini USB Connector in Nu-Link-Me connected to a PC USB port
2.1.4 Extended Connectors
JP3, JP5, JP7 and JP8: Show all chip pins in NuTiny-EVB-NUC200
2.1.5 Buttons
SW1: Reset button in NuTiny-EVB-NUC200
2.1.6 Power Connectors
JP2: VDD33 connector in NuTiny-EVB-NUC200
JP3: GND connector in NuTiny-EVB-NUC200
2.1.7 Power Jumpers
JP1: VCC connector in NuTiny-EVB-NUC200
JP2: GND connector in NuTiny-EVB-NUC200

NuTiny-SDK-NUC200 User Manual
June 24 2014
6 of 16
Rev. 1.00
2.2 Pin Assignment for Extended Connectors
The NuTiny-EVB-NUC200 provides the NUC200KE3BN target chip on board and the
extended connectors (JP3, JP5, JP7 and JP8) for LQFP100-pin
Pin
Pin Name
Pin
Pin Name
Pin
Pin Name
Pin
Pin Name
01
PE15
26
PE12
51
PE4
76
PA5
02
PE14
27
PE11
52
PE3
77
PA6
03
PE13
28
PE10
53
PE2
78
PA7
04
PB14
29
PE9
54
PE1
79
Vref
05
PB13
30
PE8
55
PE0
80
AVDD
06
VBAT
31
PE7
56
PC13
81
PD0
07
X32O
32
PB0
57
PC12
82
PD1
08
X32I
33
PB1
58
PC11
83
PD2
09
PA11
34
PB2
59
PC10
84
PD3
10
PA10
35
PB3
60
PC9
85
PD4
11
PA9
36
PD6
61
PC8
86
PD5
12
PA8
37
PD7
62
PA15
87
PC7
13
PD8
38
PD14
63
PA14
88
PC6
14
PD9
39
PD15
64
PA13
89
PC15
15
PD10
40
PC5
65
PA12
90
PC14
16
PD11
41
PC4
66
ICE_DAT
91
PB15
17
PD12
42
PC3
67
ICE_CK
92
XT1_Out
18
PD13
43
PC2
68
VDD
93
XT1_In
19
PB4
44
PC1
69
VSS
94
/RESET
20
PB5
45
PC0
70
AVSS
95
VSS
21
PB6
46
PE6
71
PA0
96
VDD
22
PB7
47
PE5
72
PA1
97
PS2DAT
23
LDO
48
PB11
73
PA2
98
PS2CLK
24
VDD
49
PB10
74
PA3
99
PVSS
25
VSS
50
PB9
75
PA4
10
PB8
Table 2-1 NUC200VE3AN LQFP 100-pin Assignment for Extended Connectors

NuTiny-SDK-NUC200 User Manual
June 24 2014
7 of 16
Rev. 1.00
2.3 NuTiny-SDK-NUC200PCB Placement
The following figure shows the NuTiny-SDK-NUC200 PCB placement.
Figure 2-2 NuTiny-SDK-NUC200 PCB Placement

NuTiny-SDK-NUC200 User Manual
June 24 2014
8 of 16
Rev. 1.00
3 Starting to Use NuTiny -SDK-NUC200 on the Keil μVision® IDE
3.1 Downloading and Installing Keil μVision® IDE Software
Please connect to the Keil company website (http://www.keil.com) to download the
Keil μVision® IDE and install the RVMDK.
3.2 Downloading and Installing Nuvoton Nu-Link Driver
Please connect to Nuvoton NuMicro™ website (http://www.nuvoton.com/NuMicro) to
download the “NuMicro™ Keil μVision® IDE driver” file. Please refer to section 6.1 for
the detailed download flow. After the Nu-Link driver is downloaded, please unzip the
file and execute the “Nu-Link_Keil_Driver.exe” to install the driver.
3.3 HardwareSetup

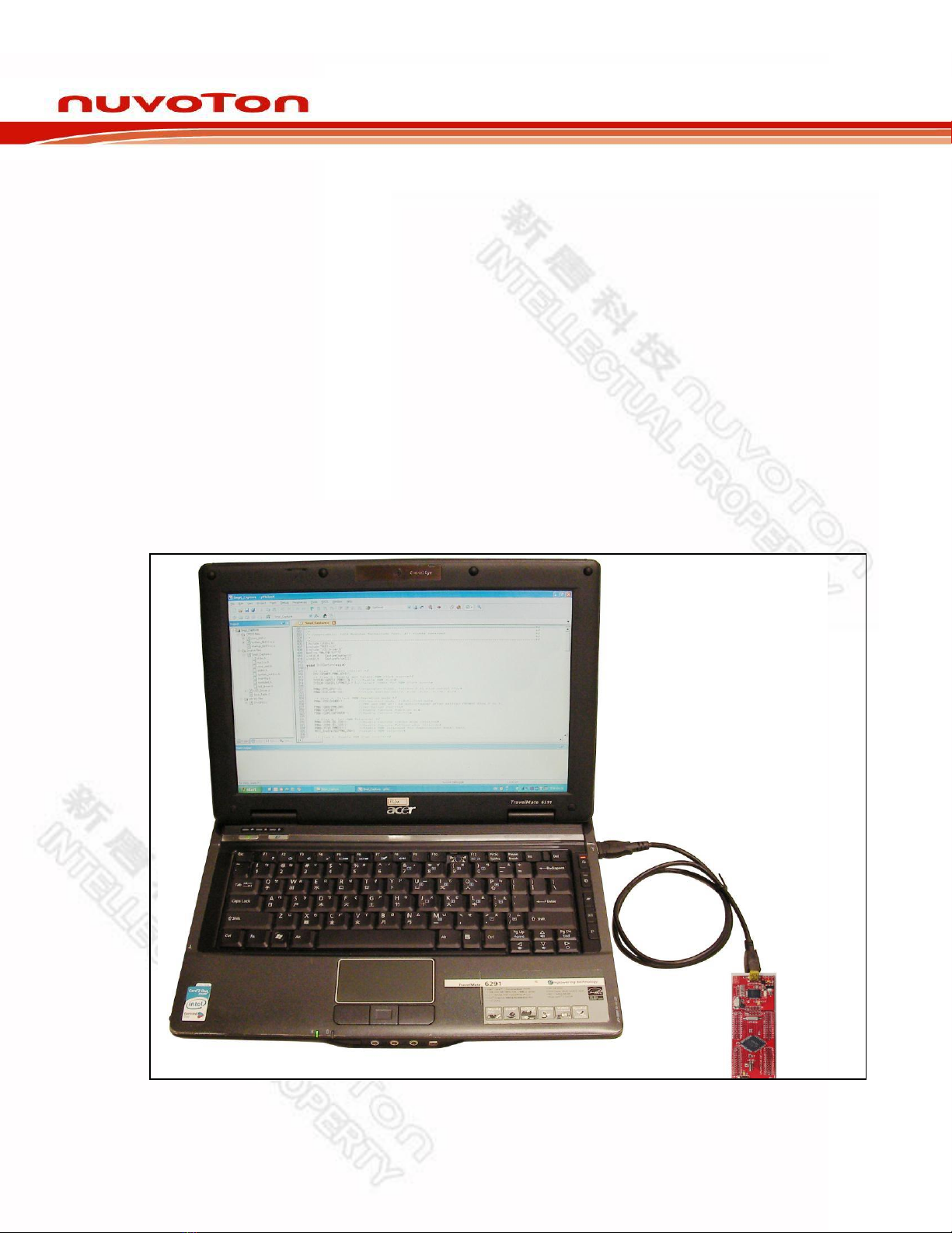

The hardware setup is shown in the following figure.
Figure 3-1 NuTiny-SDK-NUC200 Hardware Setup

NuTiny-SDK-NUC200 User Manual
June 24 2014
9 of 16
Rev. 1.00
3.4 Smpl_NuTiny-NUC200Program

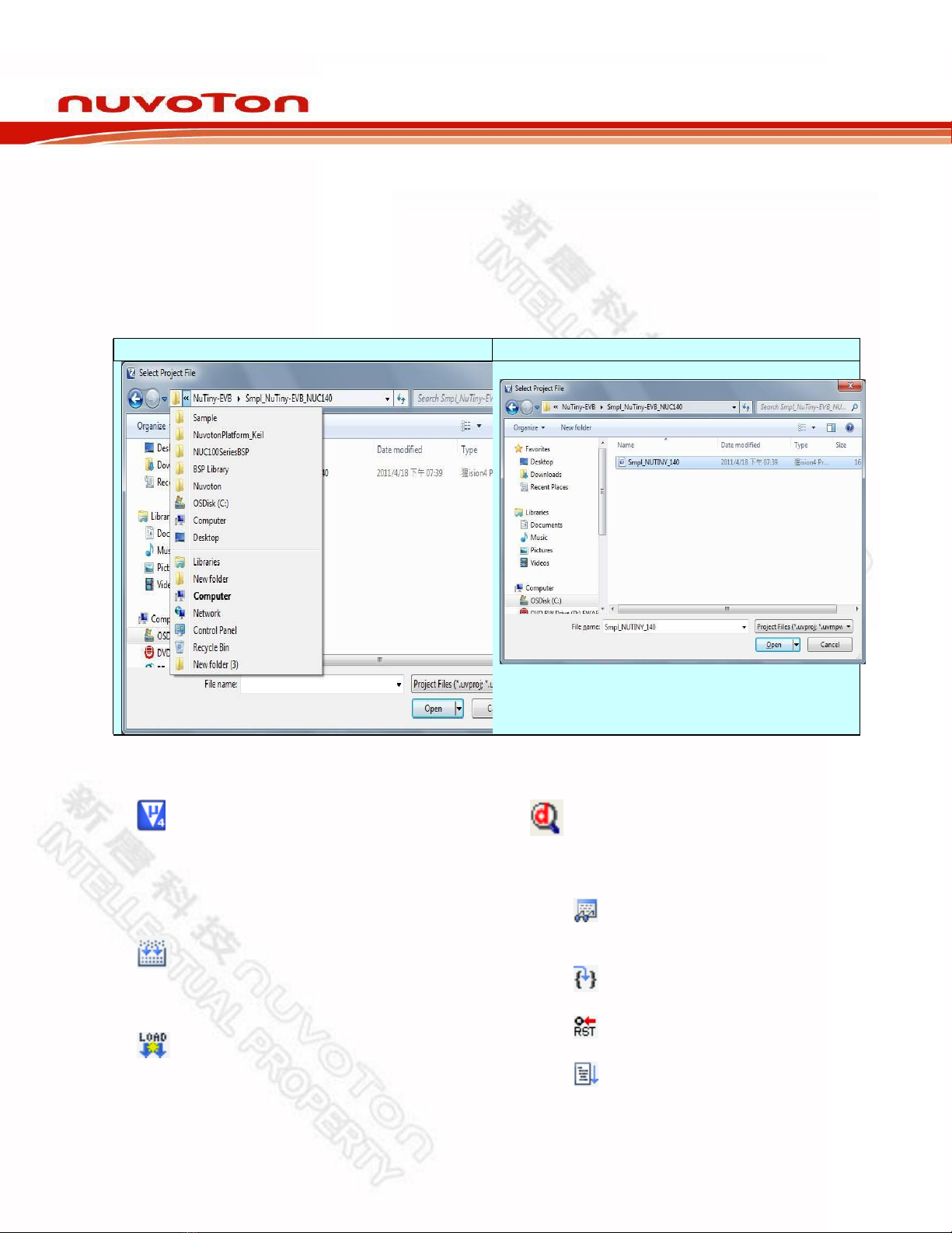

The example, as shown in the directory of Figure 3-2, demonstrates the download
and debugging of an application on a NuTiny-SDK-NUC200 board. The example file
can be downloaded from Nuvoton NuMicro™ website as described in 6.3
Downloading NuMicro™NUC200 series BSP Software Library.…
Directory Project File
To use this example: Figure 3-2 Smpl_NuTiny_200 Example Directory
The PA.10 LED will toggle on the NuTiny-EVB-NUC200 board.
Start μVision®
Project-Open
Open the Smpl_NuTiny_200.uvproj project
file
Project - Build
Compile and link the Smpl_NuTiny_200
application
Flash –Download
Program the application code into on-chip
Flash ROM
Start Debug mode
When using the debugger commands, you
may:
Review variables in the watch
window
Single step through code
Reset the device
Run the application

NuTiny-SDK-NUC200 User Manual
4 Starting to Use NuTiny-SDK-NUC200 on the IAR Embedded
Workbench
4.1 Downloading and Installing IAR Embedded Workbench Software
Please connect to IAR company website (http://www.iar.com) to download the IAR
Embedded Workbench and install the EWARM.
4.2 Downloading and Installing Nuvoton Nu-Link Driver
Please connect to Nuvoton Company NuMicro™website
(http://www.nuvoton.com/NuMicro) to download the “NuMicro™IAR ICE Driver User
Manual”file. Please refer to section 6.2 for the detailed download flow. When the Nu-
Link driver has been well downloaded, please unzip the file and execute the “Nu-
Link_IAR_Driver.exe” to install the driver.
4.3 HardwareSetup
The hardware setup is shown in the following figure.
Figure 4-1 NuTiny- SDK-NUC200 Hardware Setup
June 24 2014 10 of 16 Rev. 1.00

NuTiny-SDK-NUC200 User Manual
June 24 2014
11 of 16
Rev. 1.00
4.4 Smpl_NuTiny-NUC200Program
The example, as shown in the directory of Figure 4-2, demonstrates the download
and debugging of an application on a NuTiny-SDK-NUC200 board. The example file
can be downloaded from Nuvoton NuMicro™ website as described in 6.3
Downloading NuMicro™NUC200 series BSP Software Library....
Directory
Project File
Figure 4-2 Smpl_NuTiny-NUC200 Example Directory
To use this example:
The PA.10 LED will toggle on the NuTiny-EVB-NUC200 board.
Start IAR Embedded Workbench
File-Open-Workspace
Open the NuTiny-EVB-NUC200.eww
workspace file
Project - Make
Compile and link the NuTiny-EVB-NUC200
application
Project –Download and Debug
Program the application code into on-chip
Flash ROM
Single step through code
Reset the device
Run the application

NuTiny-SDK-NUC200 User Manual
June 24 2014
12 of 16
Rev. 1.00
P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51
PE.
15
PE.
14
PE.
13
I
N
T
0/
SPI
SS1/
PB.
14
C
PO1/
PB.
13
VBAT X32_O X32_I I
2C
1SC
L/
PA.
11
I
2C
1SD
A/
PA.
10
I
2C
0SC
L/
PA.
9
I
2C
0SD
A/
PA.
8
SPI
SS30/
PD
.
8
SPI
C
LK3/
PD
.
9
SPI
M
I
SO30/
PD
.
10
SPI
M
OSI
30/
PD
.
11
SPI
M
I
SO31/
PD
.
12
SPI
M
OSI
31/
PD
.
13
R
X1/
PB.
4
T
X1/
PB.
5
R
T
S1/
PB.
6
C
T
S1/
PB.
7
LD
O_C
AP
VD
D
VSS
SC
1PW
R
/
AD
C
4/
PA.
4
SC
0D
AT
/
AD
C
3/
PA.
3
SC
OC
LK/
AD
C
2/
PA.
2
SC
OR
ST
/
AD
C
1/
PA.
1
SC
0PW
R
/
AD
C
0/
PA.
0
AVSS
VSS VD
D
I
C
E_C
LK
I
C
E_D
AT
SC
2D
AT
/
PW
M
0/
PA.
12
SC
2C
LK/
PW
M
1/
PA.
13
SC
2R
ST
/
PW
M
2/
PA.
14
SC
2PW
R
/
I
2SM
C
LK/
PW
M
3/
PA.
15
M
C
LK/
SPI
SS10/
PC
.
8
SPI
C
LK1/
PC
.
9
SPI
M
I
SO10/
PC
.
10
SPI
M
OSI
10/
PC
.
11
SPI
M
I
SO11/
PC
.
12
SPI
M
I
SO11/
PC
.
13
PW
M
6/
PE.
0
PW
M
7/
PE.
1
PE.
2
PE.
3
PE.
4
D
X32O
D
X32I
P1 P3 P5 P7 P9 P11 P13 P15 P17 P19 P21 P23 P25
P2 P4 P6 P8 P10
P12
P14 P16 P18 P20 P22
P24
GN
D
1 3 5 7 9 11 13 15 17 19 21 23 25
2 4 6 8
10 12 14 16 18 20 22 24 26
GN
D
P74 P72 P70 P68 P66 P64 P62 P60 P58 P56 P54 P52
26 24 22 20 18 16 14 12 10 8 6 4 2
25 23 21 19 17 15 13 11
9 7 5 3 1
5 NuTiny-EVB-NUC200 Schematics
JP4
1 2
3 4
5 6
7 8
ICEDAT
ICECLK
ICERST
DVCC5
DAVDD L1
JP2
1
2
HEADER 2
DVCC5
P76 76
U1 NUC200_LQFP100
50 P50
JP3
HEADER 13X2
9 10
HEADER 5X2
L0603
L3
DVCC5
L2
L0603
P77
P78
P79
P80
77 ADC5/PA.5/SC1RST
78 ADC6/PA.6/SC1CLK
79 ADC7/PA.7/SC1DAT/SPISS21
80 VREF
TM1/SPISS11/PB.9 49
TM2/SPISS01/PB.10 48
TM3/PMW4/PB.11 47
T1EX/PWM5/PE.5 46
P49
P48
P47
P46
ICE INTERFACE L0603 DAVDD
P81
81
AVDD
PE.6 45 P45
C2
20p
C3
20p
ADAVSS
P82
P83
P84
P85
P86
P87
P88
P89
82 SPICS20/PD.0
83 SPICLK2/PD.1
84 SPIMISO20/PD.2
85 SPIMOSI20/PD.3
86 SPIMISO21/PD.4
87 SPIMOSI21/PD.5
88 CPN0/PC.7/SC1CD
89 CPP0/PC.6/SC0CD
I2SLRCLK/SPISS00/PC.0 44
I2SBCLK/SPICLK0/PC.1 43
I2SDI/SPIMISO00/PC.2 42
I2SDO/SPIMOSI00/PC.3 41
SPIMISO01/PC.4 40
SPIMOSI01/PC.5 39
TX2/PD.15 38
RX2/PD.14 37
P44
P43
P42
P41
P40
P39
P38
P37
DX32O D12MO
P90
90
CPN1/PC.15 PD.7 36
P36
C0603 X1
C0603
X2
D12MO
D12MI
P91
P92
P93
91 CPP1/PC.14
92 T0EX/INT1/PB.15
93 XT_OUT/PF.0
PD.6 35
T3EX/SC2CD/CTS0/PB.3 34
T2EX/RTS0/PB.2 33
P35
P34
P33
32.768K
12MHz RESET
P94
94
XT_IN/PF.1
TX0/PB.1 32 P32
C4 XTAL-3.4MM-2P
C5 XTAL3-1
P95
95 /RESET
RX0/PB.0 31
P31
20p
DX32I
20p
D12MI
DVCC5
P96
96
VSS
P97 97 VDD
PE.7 30
PE.8 29
P30
P29
C0603
C0603
P98
P99
98 PS2DAT/PF.2
99 PS2CLK/PF.3
PE.9 28
PE.10 27
P28
P27
JP5
P100 100 PVSS
PE.11 26
P26 GND P50
CLKO/TM0/PB.8/STADC PE.12
P49
26 25
P48
IO1
KPT-2012
DVCC5
R2
500
DVCC5
Crystal
P47
P45
P43
P41
P39
P37
P35
P33
P31
P29
P27
24 23 P46
22 21 P44
20 19 P42
18 17 P40
16 15 P38
14 13 P36
12 11 P34
10 9 P32
8 7 P30
6 5 P28
4 3 P26
P10
2
1
KP-2012
R0603
PR1 P76
JP7
2 1
P77
P78
1 2 P79
HEADER 13X2
POWER1
500
P80
3 4
P81
KPT-2012
2 1
KP-2012
R0603
P82
P84
P86
P88
5 6 P83
7 8 P85
9 10 P87
11 12 P89
P90
13 14
P91
CT1
VCC
VCC5
VCC
P92
P94
P96
15 16 P93
17 18 P95
19 20 P97 R3
10uF/6.3V
TANT-R
CB1
0.1u
GND
P98
P100
21 22
23 24
25 26
HEADER 13X2
P99
GND
DVCC5
0
R0603
C0603
JP8
HEADER 13X2

NuTiny-SDK-NUC200 User Manual
June 24 2014
13 of 16
Rev. 1.00
6 Downloading NuMicro™Related Files from Nuvoton Website
6.1 DownloadingNuMicro™Keil μVision® IDE Driver
Step
1
Visit the Nuvoton NuMicro™website: http://www.nuvoton.com/NuMicro
Step
2
Click here to
enter
Device Driver and
Step
3
Step
4
Download the NuMicro Keil μVision® IDE driver.

NuTiny-SDK-NUC200 User Manual
June 24 2014
14 of 16
Rev. 1.00
6.2 Downloading NuMicro™IAR EWARM Driver
Step
1
Visit the Nuvoton NuMicro™website: http://www.nuvoton.com/NuMicro
Step
2
Click here to
enter
Device Driver
Step
3
Step
4
Download the NuMicro™IAR Embedded Workbench® driver.

NuTiny-SDK-NUC200 User Manual
June 24 2014
15 of 16
Rev. 1.00
6.3 Downloading NuMicro™NUC200 series BSP Software Library
Step
1
Visit the Nuvoton NuMicro™website: http://www.nuvoton.com/NuMicro
Step
2
Click here to enter
Device Driver and
Software Library.
Step
3
Download the NuMicro™NUC200 series software library.

NuTiny-SDK-NUC200 User Manual
June 24 2014
16 of 16
Rev. 1.00
7 Revision History
Revision
Date
Description
1.00
June 24 2014
Initially issued.
Important Notice
Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any
malfunction or failure of which may cause loss of human life, bodily injury or severe property damage.
Such applications are deemed, “Insecure Usage”.
Insecure usage includes, but is not limited to: equipment for surgical implementation, atomic energy
control instruments, airplane or spaceship instruments, the control or operation of dynamic, brake or
safety systems designed for vehicular use, traffic signal instruments, all types of safety devices, and
other applications intended to support or sustain life.
All Insecure Usage shall be made at customer’s risk, and in the event that third parties lay claims to
Nuvoton as a result of customer’s Insecure Usage, customer shall indemnify the damages and
liabilities thus incurred by Nuvoton.
