1 Safety
The intended audience of this User’s Manual is system integrators and hardware/software
engineers.
1.1 Safety Symbols used in this document
1.2 General Safety Precautions
• Service personnel must know the necessary electrical safety, wiring and connection
practices for installing this equipment.
• Install this equipment only in compliance with local and national electrical codes.
Hazardous voltage!
This is the electrical hazard symbol. It indicates that there are dangerous voltages inside the
Shelf.
Caution!
This is the user caution symbol. It indicates a condition where damage of the equipment or
injury of the service personnel could occur. To reduce the risk of damage or injury, follow all
steps or procedures as instructed.
Danger of electrostatic discharge!
Static electricity can damage sensitive components in a system. To avoid damage, wear ESD
wrist straps or at regular intervals touch blank enclosure parts.
Warning!
Voltages over 60 VDC can be present in this equipment. This equipment is intended to be 
accessed, to be installed and maintained by qualified and trained service personnel only.
This equipment is designed in accordance with protection class 1!
It must therefore be operated only with protective GND/earth connection!

14579-030 (PXIe System)
2Safety R1.5, April 2021
1.3 References and Architecture Specifications
• PXI-5 (PCI EXPRESS eXtensions for Instrumentation)
• User Manual Schroff embedded Controller, Ord.-No: 63972-389
• User Manual PXIe Chassis Management (CMM), Ord.-No: 63972-391

14579-030 (PXIe System)
R1.5, April 2021 Product Overview 3
2 Product Overview
2.1 Key features
• Shielded ratiopacPRO-air case with front card cage for 3 U boards according to the 
PXI Express (PXI-5) Standard
• 44 HP / 8 slot front card cage
•8slot3Ubackplanewith:
- 1 PXIe system slot 4-16 HP
- 7 PXI Express Hybrid slots 4 HP, accepting PXIe modules according to the PXI Express
(PXI-5) standard as well as PXI, CompactPCI, CompactPCI Express modules
• BNC connectors for 10 MHz clock input/output
• 1 Power supply (400 W) with wide range input
• Power input module with IEC 60320-C14 connector, mains/line switch, mains/line filter
and fuses
• 2x 80 mm Fans for the active cooling of the boards and the power supply, controlled and
monitored by a Chassis Management Module (CMM)
• Power switch with chassis status LEDs at the front side
The system 14579-030
is described as an example below in this manual.
The system can be modified with various backplane configurations.
All pictures in this manual may differ from the latest series.

14579-030 (PXIe System)
4Product Overview R1.5, April 2021
2.2 System Overview
The 4 U case is based on the Schroff ratiopacPRO-air system with EMC shielding. The 3 U card
cage provides 1 system slot (4 - 16 HP) an 7 peripheral slots (4 HP).
The lower guide rails of the card cage are equipped with ESD clips.
Figure 1: Front View
1PS-ON Switch with Chassis Status LEDs 3PXIe Backplane
2Filler Panels 4/8 HP System Slot Extension 4Air Intake

14579-030 (PXIe System)
R1.5, April 2021 Product Overview 5
Figure 2: Rear View
5Power Input Module 9Fans/Air Outlet
6Ground stud (M5) 10 Fan Speed Selector
7Inhibit Mode Selector 11 DSUB-9 Connector, female, Inhibit and volt-
age monitoring
8BNC Connectors 10 MHz REF clock in/out

14579-030 (PXIe System)
68 Slot PXIe Backplane (23007-508) R1.5, April 2021
3 8 Slot PXIe Backplane (23007-508)
The PXIe backplane provides:
•1PXIesystemslot
• 7 PXI Express Hybrid slots
- accepting CompactPCI, PXI, CompactPCI Express, and PXIe modules.
•1PCIe-to-PCI bridge
- utilizes a single PCI segment for the hybrid slots
- designed to the PCI Express-to-PCI Bridge Specification 1.0 that enables applications to
migrate legacy parallel PCI bus interfaces to the advanced serial PCI Express
- the bridge is equipped with a single lane PCI Express port and a parallel bus segment
supporting the conventional PCI operation for up to eight PCI masters concurrently.
- Primary Bus: x1 PCI Express Base Specification R1.1 compliant
- Secondary Bus: 33 MHz/32 bit PCI Local Bus Specification R3.0 compliant
• All PXIe hybrid slots with 32 bit 33 MHz PCI interface
• 1 PXIe clock module
- generates and controls PXI specific high accuracy clocks and trigger signals.
• One x4 PCIe Link provided by the System controller is connected to an ultra-high perfor-
mance PCIe switch that operates with up to Gen 3 speeds.
• All of the PXIe peripheral slots have a x4 PCIe link providing a maximum data bandwidth
of 4 GB/s each.

14579-030 (PXIe System)
R1.5, April 2021 8 Slot PXIe Backplane (23007-508) 7
3.1 Backplane Topology
Figure 3: Backplane Topology

14579-030 (PXIe System)
88 Slot PXIe Backplane (23007-508) R1.5, April 2021
3.2 PCIe-to-PCI bridge
The Schroff PCIe-to-PCI Bridge is a high performance bridge designed to the PCI Express-to-
PCI Bridge Specification 1.0 that enables applications to migrate legacy parallel PCI bus
interfaces to the advanced serial PCI Express.
The bridge module is equipped with a single lane PCI Express port and a parallel bus segment
supporting the conventional PCI operation for up to eight PCI masters concurrently.
Primary Bus: x1 PCI Express Base Specification R1.1 compliant
Secondary Bus: 33 MHz/32 bit PCI Local Bus Specification R3.0 compliant
3.3 PCIe Switch
The Schroff PCIe Switch is a 24-lane, 6-port, PCIe Gen 3 switch device that enables users to
connect a PCIe host to respective endpoints via a fully transparent, high-bandwidth, non-
blocking peer-to-peer interface. The default configuration with a x4 upstream port to the
host supports up to five independent x4 down-stream clients.
Port Configuration: 1 x4 upstream port, 5 x4 downstream ports
Compatibility: PCI Express Base Specification R3.0, PCI Express Base Specification R2.0, PCI
Express Base Specification R1.0a/1.1

14579-030 (PXIe System)
R1.5, April 2021 8 Slot PXIe Backplane (23007-508) 9

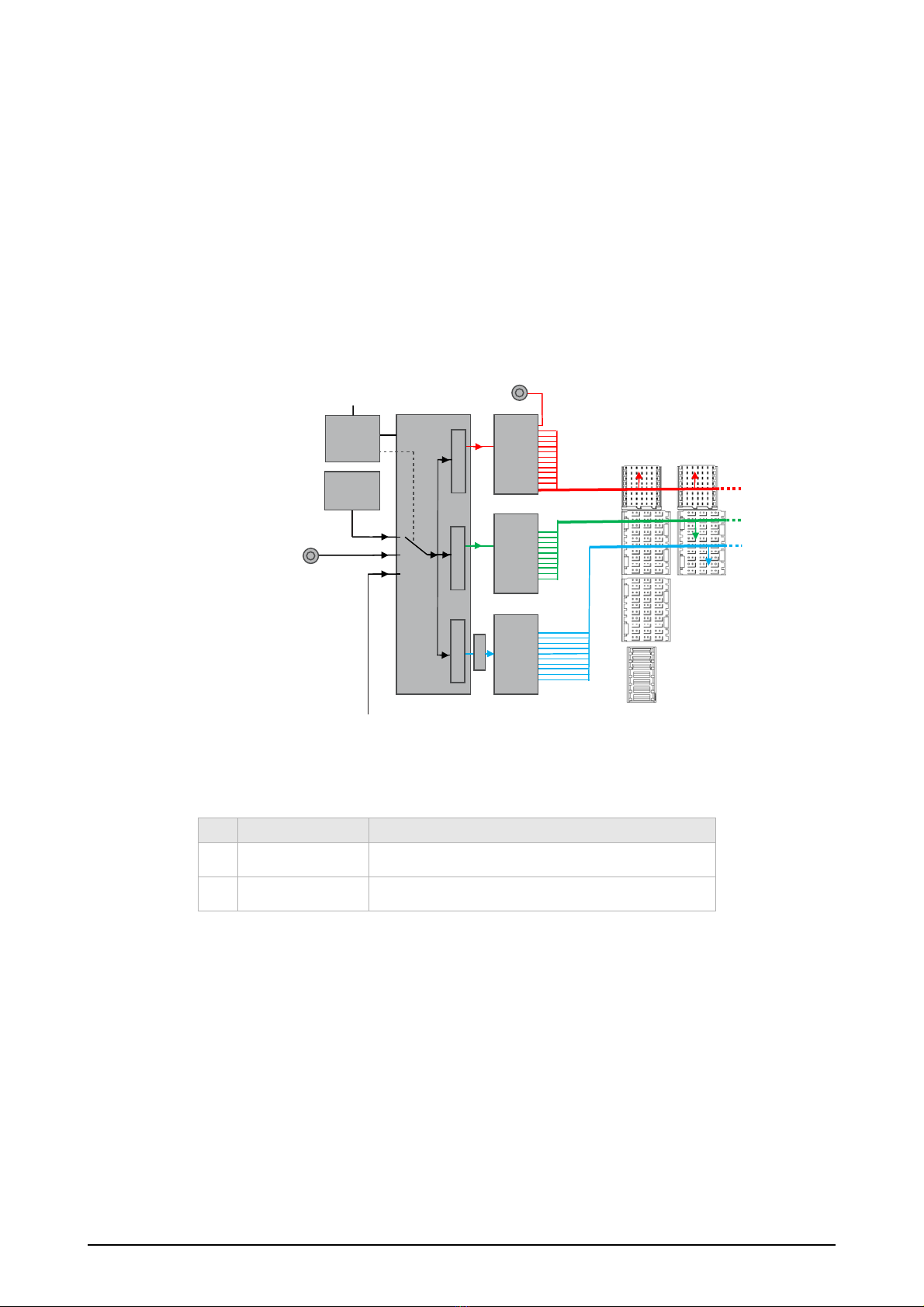

3.4 System Synchronisation Clocks
Acc. to the PXI specifications, the Schroff PXIe system routes the PXI_CLK10 to slot 1-8 and
PXIe_CLK100 and PXIe_SYNC100 to the peripheral slots 2-8.
PXI_CLK10 is also routed to the external BNC connector 10 MHz REF OUT at the chassis rear
side.
All clocks/timing signals are generated by the PXI-5 compliant Schroff PXIe Clock Module.
When a 10 MHz reference clock signal is present at the System Timing Slot or the rear panel
connector 10 MHz REF IN, PXI_CLK10, PXIe_CLK100 and PXIe_SYNC100 are phase-locked to
this reference clock signal according to the following table:
The source for the reference signal is selected automatically.
Mode Ext. 10 MHz REF In Backplane Clock Module
110 MHz clock present 10 MHz REF IN, PXI_CLK10, PXIe_CLK100 and PXIe_SYNC100 are
aphase-locked to reference clock signal from Ext. 10 MHz REF In
2-10 MHz REF IN, PXI_CLK10, PXIe_CLK100 and PXIe_SYNC100 are
generated by the Clock Module
PXI_CLK10
PXIe_CLK100
PXIe_SYNC100
XO
10 MHz
10 MHz
REF IN
PLL Buffer
Buffer
Buffer
Auto-mode:
1->2
2
I2C-Control
10 MHz
REF OUT
Slot 1 Slot 2
Schroff PXIe Clock Module
3
1
T
-> 3

14579-030 (PXIe System)
10 8 Slot PXIe Backplane (23007-508) R1.5, April 2021
3.4.1 Clock specifications
For all specifications not mentioned in the tables below refer to the PXI-1 und PXI-5 PXIe
Hardware specifications
PXI_CLK10
Maximum slot to slot time skew 500 ps
Note: PXI-5 spec specifies 1 ns
Frequency accuracy ±25 ppm max (guaranteed over the operating temperature range) 
Note: PXI-5 spec specifies ±100 ppm
Maximum jitter 5 ps RMS phase jitter (10 Hz – 10 MHz range)
Duty factor 45 % to 55 %
Unloaded signal swing 3.3 V ±0.3 V
Values above valid for PXI standard products. Optimized parameters are possible on
request (Jitter ≤2 ps, Accuracy 2 ppm, slot-to-slot skew 100 ps)
PXIe_CLK100 and PXIe_SYNC100
Maximum slot to slot time skew 80 ps
Note: PXI-5 spec specifies 200 ps
Frequency accuracy ±25 ppm max (guaranteed over the operating temperature range) 
Note: PXI-5 spec specifies ±100 ppm
Maximum jitter 5 ps RMS phase jitter (10 Hz – 20 MHz range)
Duty factor 45 % to 55 %
Absolute differential voltage when each line pair is ter-
minated with a 50 load to 1.30 V (or Thevenin equiva-
lent)
500 mV to 950 mV
Values above valid for PXI standard products. Optimized parameters are possible on
request (Jitter ≤2 ps, Accuracy 2 ppm)
External 10 MHz Reference In
Frequency 10 MHz ±50 ppm
Input amplitude 200 mV to 5 V, square wave or sine wave
Maximum jitter introduced by backplane 1 ps RMS phase jitter (10 Hz – 10 MHz range)
Rear panel BNC connector input impedance 50 ±5 
External 10 MHz Reference Out
Frequency accuracy ±25 ppm max.
(guaranteed over the operating temperature range)
Maximum jitter 5 ps RMS phase jitter (10 Hz – 10 MHz range)
Output amplitude min. 1.2 Vpp square wave into 50 
min. 2.9V unloaded
Output impedance 50 ±5 

14579-030 (PXIe System)
R1.5, April 2021 8 Slot PXIe Backplane (23007-508) 11
3.5 Schroff PXIe Chassis Management Module (CMM)
The Schroff PXIe Chassis Management Module (CMM) allows access from the operating
system to all important chassis functions. The CMM provides an I2C interface which is
connected to backplane SMB (system slot pins XP3-a3, -b3).
The CMM:
• Monitors all chassis voltage levels
• Monitors and control the power supply
• Monitors and control the fans
• Monitors the chassis temperatures (inlet and outlet)
• Controls SYNC100 frequency from clock module
• Controls the chassis status LEDs

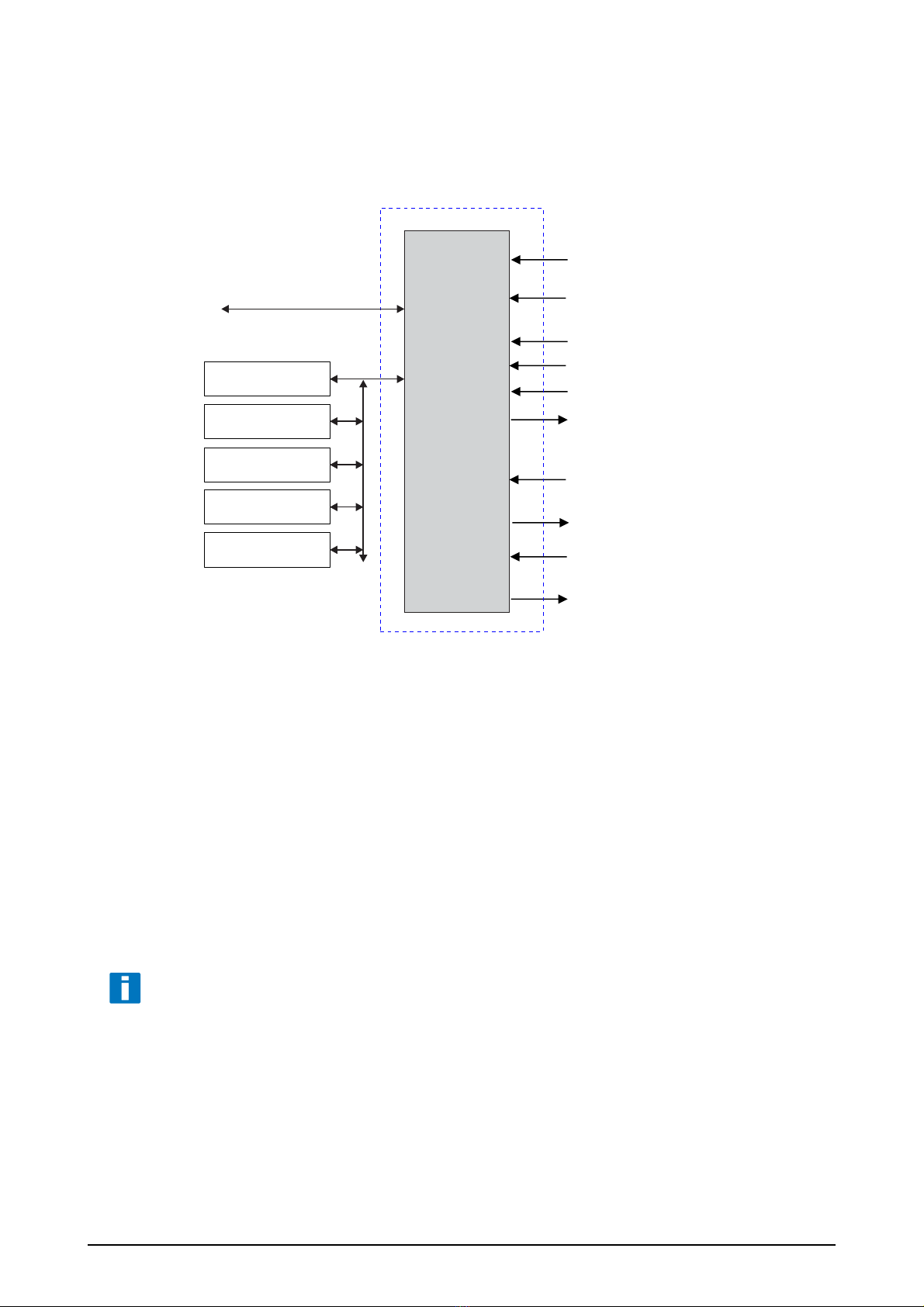

I2C interface
(to SMB on backplane
pins XP3-a3, -b3)
Backplane voltages
(5 V aux, 5 V, 3,3 V, +12 V,-12 V)
Temperature Sensors (4x)
Select “PS_ON” source
“PS_ON” from system slot source
“PS_ON” external source
4x “PS_ON” output
(for different PSU modules)
FAN PWM (fan speed control)
6x FAN Tacho
“AC_OK” from PSU
Chassis status LEDs
I2C
Trigger Bridge1
Clock Module
CMM module
μC
Default I2C
address 0x58h
Trigger Bridge2
Trigger Bridge3
Trigger Bridge4
To use the CMM‘s full capabilities, you have to access the CMM‘s I²C register with the
Schroff Embedded Controller or another appropriately configured and programmed
system controller.
For further information see CMM User Guide, Ord--No: 63972-391

14579-030 (PXIe System)
12 8 Slot PXIe Backplane (23007-508) R1.5, April 2021
3.5.1 Chassis status LED
The power switch on the front of the chassis has two LEDs (red and white).
The table below shows the chassis states and corresponding LED behavior.
Chassis state Notification LED behavior
Chassis is off Both LED OFF
Chassis powered and operating properly Solid white
Air intake temperature is above 55°C Flashing white
Power supply DC outputs not within
acceptable voltage range
Flashing red
One of the chassis fans failed Solid red

14579-030 (PXIe System)
R1.5, April 2021 8 Slot PXIe Backplane (23007-508) 13
3.6 Power Supply
The PXIe system is powered by a 600 W power supply with wide range input (100 - 240 VAC).
The power supply contacts via a connector to the PXIe backplane.
The power input is provided by an AC mains/line module with IEC 60320-C14 connector,
integrated mains/line fuses and line filter.
The fuse rating is 10 A slow blow (T10AH250V).
Figure 4: AC mains/line module
Table 1: Data AC Power Supply
e
Hazardous voltage!
Parts of the power supply may be exposed with hazardous voltage. Always remove mains/
line connector before carry out any assembly work.
Caution!
Your system has not been provided with a AC power cable. Purchase an AC power cable that
is approved for use in your country. The AC power cable must be rated for the product and
for the voltage and current marked on the product's electrical ratings label. The voltage and
current rating of the cable should be greater than the ratings marked on the product.
12309010
1Fuse holder 3AC Connector (IEC60320-C14)
2Mains/line switch
Input voltage nominal 100 - 240 VAC
Mains Frequency 50 / 60 Hz
Power (max.) 600 W
Output Voltage
+3.3 V
+5.0 V
+5.0 V Aux
+12.0 V
-12.0 V
Current
25 A
25 A
1 A
30 A
2.5 A
Load Regulation
±2 %
±2 %
-
±2 %
±2 %
Ripple
±50 mV
±50 mV
±50 mV
±100 mV
±100 mV


14579-030 (PXIe System)
14 8 Slot PXIe Backplane (23007-508) R1.5, April 2021
3.6.1 Per slot power
The table below shows the maximum available electrical power per slot.
Please note:
• All current carrying backplane pins must be used by the boards
• The average cooling capacity of the PXIe chassis is 50 W per slot
•Max.PSUpower
3.6.2 Grounding/Earthing
The PXIe system provides an additional ground terminal at the rear side. If required, an
additional protective connector can be connected to the bolt.
5 V 3.3 V +12 V -12 V 5 Vaux max power per
slot
PXI Express System
Controller Slot
10.5 A 10.5 A 21 A 0 A 1.5 A 320 W
Hybrid Slot 12 A 19.5 A 4.5 A 1.5 A 1.5 A 312 W
Max PSU current per
voltage
25 A 25 A 30 A 2 A.5 1 A
Caution!
The unit is designed in accordance with protection class 1! It must therefore be operated
with protective earth/GND connection. Use only a three conductor AC power cable with a
protective earth conductor that meets the IEC safety standards!

14579-030 (PXIe System)
R1.5, April 2021 8 Slot PXIe Backplane (23007-508) 15
3.7 Power-on behaviour
The power-on behaviour depends on the setting of the inhibit mode switch at the rear panel.
When the inhibit mode switch is set to "DEF", the CMM controls the power supply inhibit, the
chassis can be powered by pushing the power button at the left front side.
When the inhibit mode switch is set to 'MAN', the chassis boots when AC-power is applied,
as long as Pin 5 at the DSUB connector is not connected to GND.
3.8 Voltage monitoring
The female DSUB-9 connector allows remote monitoring of the system voltages.
INHIBIT MODE
DEF MAN
1 GND
2 +5 V
3 not used
4 +3.3 V
5 Inhibit
6 +12 V
7 not used
8 -12 V
9 GND
16
INHIBIT/
VOLTAGE MON
59
FAN SPEED
AUTO MAX
Please note the following:
In order to ensure a proper function of the DEF and MAN settings, the BIOS settings in the
embedded controller must be adjusted.
DEF Mode:
- Set BIOS Power Loss Control to "Remain Off".
MAN Mode:
- Set BIOS Power Loss Control to "Turn On".
For further information see the embedded Controller User Guide, Ord.-No: 63672-389

14579-030 (PXIe System)
16 Cooling R1.5, April 2021
4 Cooling
The PXIe boards and the power supply are cooled by forced air convection through two 12
VDC axial fans (258 m³/h (172 cfm)).

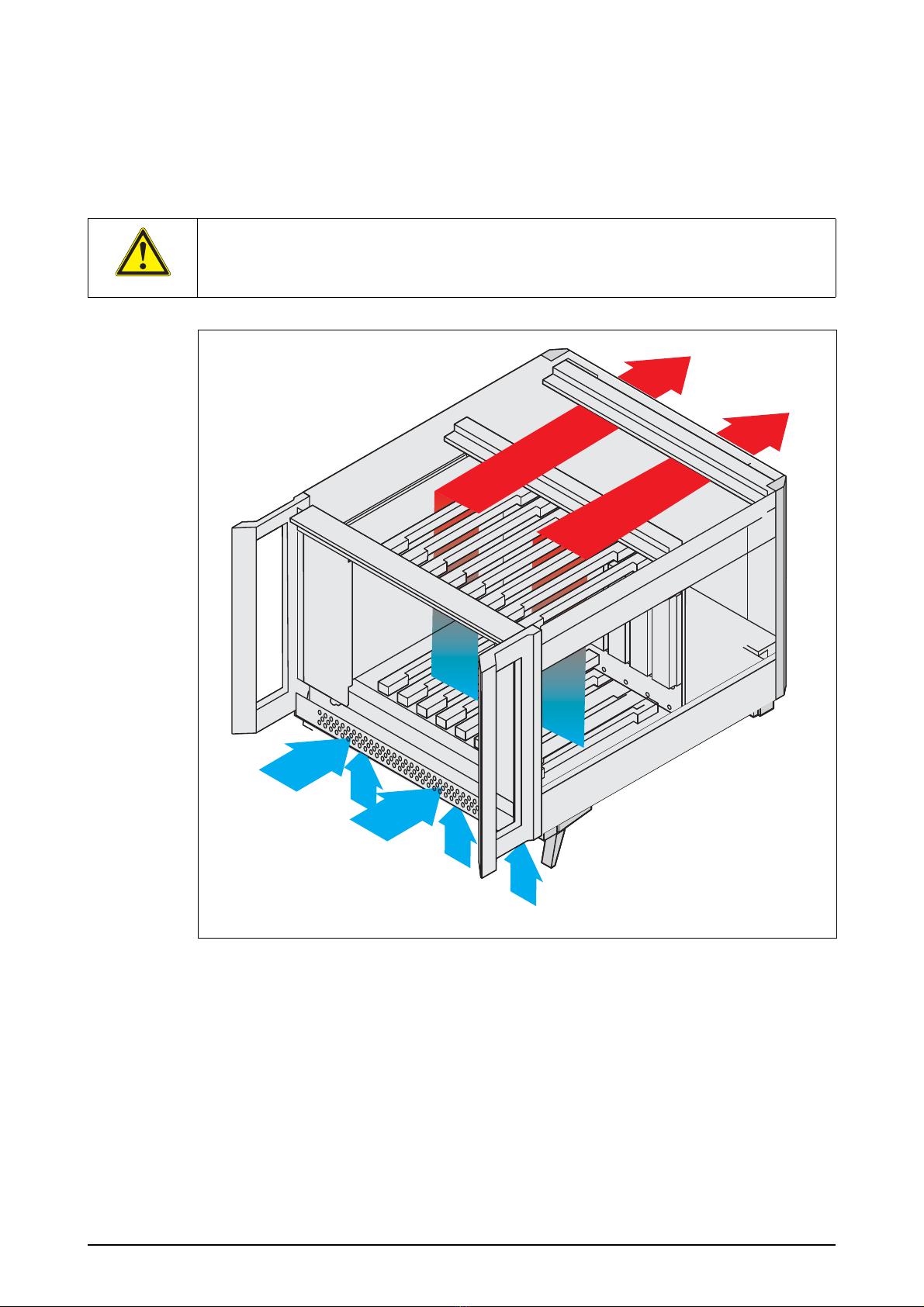

Figure 5: Air Flow
Caution!
To maintain proper airflow, all open slots must be covered with filler panels. The filler panel
should include an airflow baffle that extends to backplane.
