CPCI Serial System 3+1 U Safety
24579-415
www.schroff.biz 1 R1.0, July 20, 2011
1 Safety
1.1 Intended Application
The CompactPCI Serial system, described in this manual, is intended as a
platform for a microcomputer system based on the CompactPCI Standard
CPCI Serial CPCI-S.0.
The case systems are designed for protection class IP 20 and can be used only
in the resp. environments.
CPCI system subracks are not end-products, so there is no valid approval for
this unit. In order to enable stand-alone functionality, additional elements are
required. An operational system is achieved only by way of appropriate CPCI
Serial boards.
The completion and final testing of the units have been carried out, or at least
supervised, by qualified technicians. These instructions are directed exclusively
to these qualified technicians i.e.engineers, trained and qualified electricians
etc.
Make sure that:
• the finished system complies with the safety regulations currently applicable
in the country it is going to be used.
• the finished system complies with all other regulations and specifications at
the place and country of use, e.g. interference limits, approval by the tele-
communications authorities.

CPCI Serial System 3+1 U Safety
24579-415
www.schroff.biz 2 R1.0, July 20, 2011
1.2 Safety Instructions
The intended audience of this User’s Manual is system integrators and
hardware/software engineers.
1.2.1 Safety Symbols used in this document
1.3 General Safety Precautions
• Service personnel must know the necessary electrical safety, wiring and
connection practices for installing this equipment.
• Install this equipment only in compliance with local and national electrical
codes.
Hazardous voltage!
This is the electrical hazard symbol. Familiarise yourself with the danger of
electrical voltages and the safety precautions to avoid accidents before

starting to work with parts that carry dangerous voltages.
Caution!
This is the user caution symbol. It indicates a condition where damage of the
equipment or injury of the service personnel could occur. To reduce the risk of
damage or injury, follow all steps or procedures as instructed.
Danger of electrostatic discharge!
Static electricity can damage sensitive components in a system. To avoid 
damage, wear ESD wrist straps or at regular intervals touch blank enclosure
parts.
Warning!
Voltages over 60 VDC can be present in this equipment. This equipment is 
intended to be accessed, to be installed and maintained by qualified and
trained service personnel only.

This equipment is designed in accordance with protection class 1! 
It must therefore be operated only with protective GND/earth connection!

CPCI Serial System 3+1 U Product Definition
24579-415
www.schroff.biz 3 R1.0, July 20, 2011
2 Product Definition
The Schroff CPCI Serial system consists of:
• A shielded subrack with front card cage for 
3 U boards according to IEEE 1101.x, IEC 20297.x and the CompactPCI
Standard CPCI Serial (CPCI-S.0)
• A 9 slot 3 U CPCI Serial backplane with Single Star Ethernet routing,
Part No.: 23007-612 (Full Mesh routing available on request)
• An ATX power supply (300 W) with wide range input, IEC320-C14 connector
and mains/line switch
• 1 U Fan Tray with 2 axial Fans (140 m³/h (85 cfm)) for the active cooling of
the boards
• Drive holder for an optional slim line DVD drive
• Drive holder for an optional 3.5“ HDD
2.1 References and Architecture Specifications
• User Guide Schroff CPCI Serial Backplanes 23007-61x
Order no.: 63972-277
Further information can also be found in the catalogue „Electronic Packaging“
and on the internet under www.schroff.biz

CPCI Serial System 3+1 U Product Definition
24579-415
www.schroff.biz 4 R1.0, July 20, 2011
2.2 System Overview
Figure 1: System Overview
2.3 Subrack
The 4 U chassis is based on the Schroff europacPRO system with EMC
shielding. The front card cage provides 9 CPCI Serial slots.
The lower guide rails of the card cage are equipped with ESD clips.
12311820
1Drive holder with front panel for an
optional 3.5“ HDD 5Front panel 3 U, 8 HP
2Drive holder for an optional slim line
DVD drive 6Handle
3ATX Power Supply 7Front Card cage with guide rails
4Fan Tray with 2 fans
Variations
The Schroff assembly service can customize your system with:
•Different Backplane configurations
•Drive mounting cassettes
•Special power supplies
More information in the catalogue or at www.schroff.biz

CPCI Serial System 3+1 U Product Definition
24579-415
www.schroff.biz 5 R1.0, July 20, 2011
2.4 CPCI Serial Backplane
Figure 2: Backplane front and rear view
23456789
1
17
28
15
GND +5V STNDBY12V12V12V12V GNDGNDGND
IPMB UTILITY

CPCI Serial System 3+1 U Product Definition
24579-415
www.schroff.biz 6 R1.0, July 20, 2011
2.4.1 Backplane topology
The CPCI Serial backplane with 9 slots supports the full set of serial links at all
slots.
The serial links (SATA/SAS, USB2/3, PCIe) are arranged as a Single Star
architecture.
Ethernet is implemented by 4 differential pairs in Single Star routing to support
10/100/1000/10GBase-T. (Full Mesh routing available on request)
More information in the Schroff Backplane manual, order no.: 63972-277
Figure 3: Backplane Topology
23007-612 (Ethernet Single Star)
Control

CPCI Serial System 3+1 U Product Definition
24579-415
www.schroff.biz 7 R1.0, July 20, 2011
Figure 4: Backplane Topology (Option)
23007-611 (Ethernet Full Mesh)
Control

CPCI Serial System 3+1 U Product Definition
24579-415
www.schroff.biz 8 R1.0, July 20, 2011
2.5 Power Supply
Power is provided through a 300 W ATX power supply with wide range input,
IEC 320-C14 connector and mains on/off switch. The power supply is located at
the front to the left of the card cage behind a front panel.
2.5.1 ATX Power Supply
Table 1: Techn. Data
For temperatures <20°C a higher min. output current is required.
Hazardous voltage!
Parts of the power supply may be exposed with hazardous voltage. Always 
remove mains/line connector before carry out any assembly work.
Caution!
Your system has not been provided with a AC power cable. Purchase a 
AC power cable that is approved for use in your country. The voltage and 
currentrating ofthe ACpower cableshould begreater thanthe ratingsmarked
on on the product's electrical ratings label.
Input voltage 90 ... 264 VAC, active PFC
Input frequency 47...63 Hz
Input current 6 A (115 V) / 3 A (230 V)
Output (max) 5 V / 35 A; 3,3 V / 28 A, 12 V / 22 A, -12 V / 0,8 A)
Output (min) 5 V / 0,5 A; 3,3 V / 0 A, 12 V / 0,5 A, -12 V / 0,0 A)
Inrush Current 44/87 A (115/230 VAC)
Efficiency >70%/75% (115/230 VAC)
Overload protection 110...150%, switch-off
Overvoltage protection +3,3 V (+3,9...+4,3 V), +5 V (+5,7...+6,5 V), +12 V (+13,6...+15 V)
Ripple +3,3 V 50 mV / +5 V 50 mV / +12 V 120 mV / -12 V 150 mV
Load regulation +3,3 V ±5% / +5 V ±5% / +12 V +7/-5% / -12 V ±5%
Hold up time >16 msec.
Power Good Signal Power on delay 100...500 msec, Power off delay 1 msec.
Insulation Voltage Input/Chassis 3100 VDC,Input/Output 4242 VDC.
Earth Leakage Current <3,5 mA (115/230 VAC)
Operating temperature -10...+70 °C
Derating From 50...+70 °C 1%/°C
Storage temperature -20...+80 °C
Humidity 10...90% RH, non-condensing
MTBF >100.000 h at +50 °C, without fan
Safety EN 60950 / UL 60950
EMV CE
Fan Ball bearing fan
Dimensions 140 x 150 x 86 mm, ±0,5mm

CPCI Serial System 3+1 U Product Definition
24579-415
www.schroff.biz 9 R1.0, July 20, 2011
2.5.2 Load Resistor
TheATX PSU requiresminimumloads atthe 5V andthe 12V outputs.Because
the CPCI Serial Backplane need only 12 V supply voltage, a load resistor (10
Ohms / 5 W) is connected to the 5 V output.
Figure 5: Airflow
2.5.3 Grounding/Earthing
12311823
Caution!
The unit is designed inaccordance with protection class 1! It must therefore be
operated with protective earth/GND connection. Use only a three conductor
AC power cable with a protective earth conductor that meets the IEC safety
standards!

CPCI Serial System 3+1 U Product Definition
24579-415
www.schroff.biz 10 R1.0, July 20, 2011
2.6 Cooling
The boards are cooled by forced air convection through two 12 VDC axial fans
(140 m³/h (85 cfm)).
The fans are located in a hot-swappable fan tray.
The operating temperature is from 0°C to 50°C.

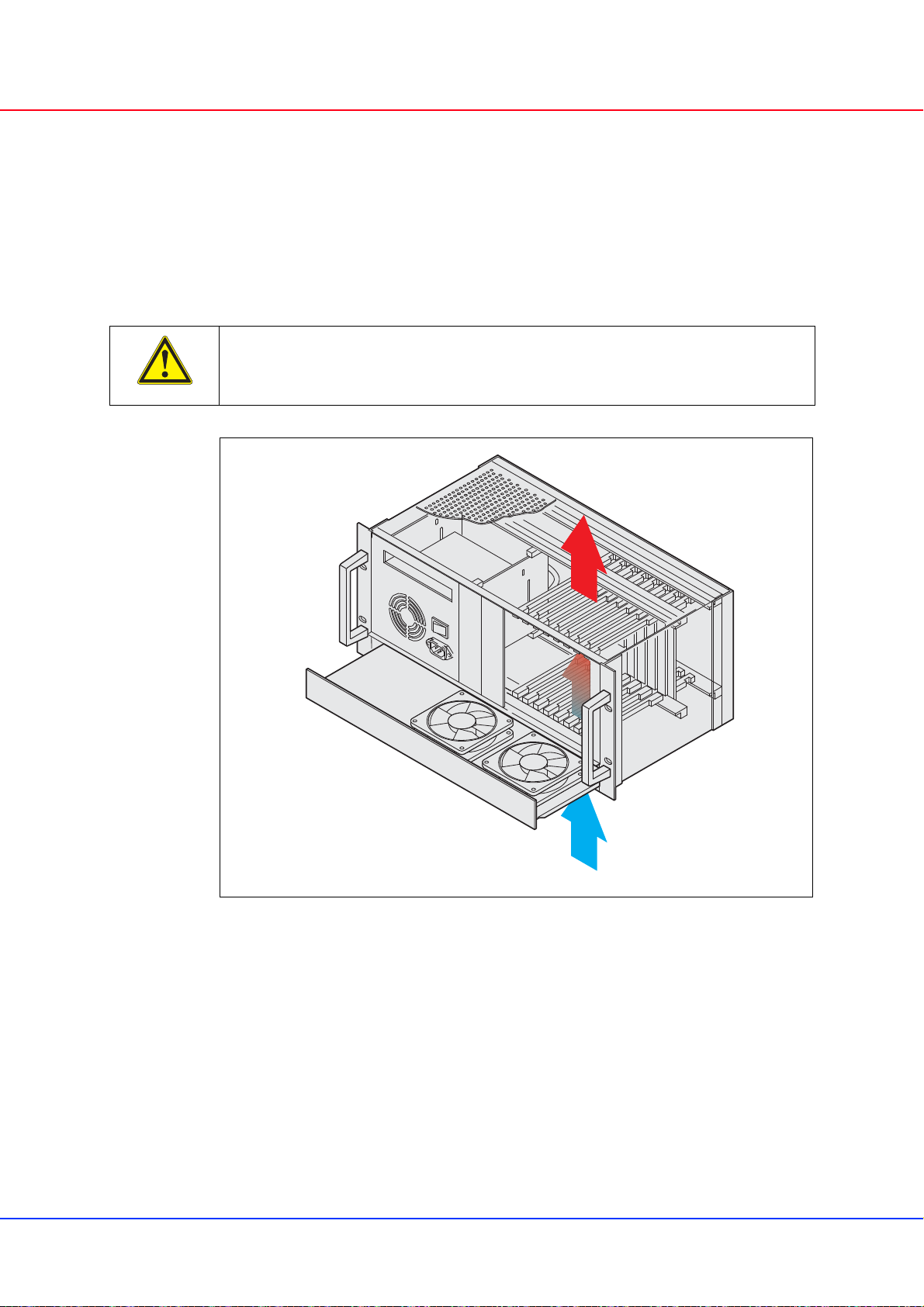

Figure 6: Airflow
Caution!
To maintain proper airflow, all open slots must be covered with filler panels.
The filler panel should include an airflow baffle that extends to backplane.
12308833

CPCI Serial System 3+1 U Installation
24579-415
www.schroff.biz 11 R1.0, July 20, 2011
3 Installation
3.1 General Installation Guidelines
3.1.1 Unpacking
Consider the following when unpacking and storing the system:
• Leave the system packed until it is needed for immediate installation.
• After unpacking the system, save and store the packaging material in case
the system must be returned.
If the packaging is damaged and possible system damage is present, report to
the shipper and analyze the damage.
3.1.2 Ensuring Proper Airflow
• Maintain ambient airflow to ensure normal operation. If the airflow is blocked
or restricted, or if the intake air is too warm, an over temperature condition
can occur.
• Ensure that cables from other equipment do not obstruct the airflow through
the systems.
• Use filler panels to cover all empty chassis slots. The filler panel should
include an airflow baffle that extends to backplane. The filler panel prevents
fan air from escaping out of the front of an open slot.
Caution!
When opening the shipping carton, use caution to avoid damaging the system.
Filler Panels and Air Baffles
Airbafflesandfrontpanelswithairbafflesare availableintheSchroffcatalogue
or at www.schroff.biz

CPCI Serial System 3+1 U Installation
24579-415
www.schroff.biz 12 R1.0, July 20, 2011
3.2 Rack-Mounting
This subrack system can be installed in 19“ equipment racks. The rack must be
accessible from the front and rear for equipment installation.
Mounting Instructions:
• Ensure that the rack is constructed to support the weight and dimensions of
the system.
• Install any stabilizers that came with your equipment rack before mounting
or servicing the system in the rack.
Load the rack from thebottom to the top, withthe heaviest system at the bottom,
avoid uneven mechanical loading of the rack.
3.3 Initial Operation
• Ensure that the system has not been damaged during transport, storage or
assembly.
•Check the Protective Earth (PE) resistance, should be < 0,1 Ohm.
• Switch on the system and check the supply voltage directly on the
backplane connectors before the board assembly.
Note: The ATX power supply requires a minimum load!
• Plug-in the boards
•Cover all open Slots with filler panels.
Mounting Kit
A rack mounting kit comes with the system.
Warning!
This equipment is intended to be accessed, to be installed and maintained by
qualified and trained service personnel only.

This equipment is designed in accordance with protection class 1! 
It must therefore be operated only with protective GND/earth connection!

CPCI Serial System 3+1 U Service
24579-415
www.schroff.biz 13 R1.0, July 20, 2011
4 Service
4.1 Technical support and Return for Service Assistance
We generally recommend to return the complete system. For all product returns
and support issues, please contact your Schroff sales distributor or
www.schroff.biz.
Werecommendthatyousave thepackingmaterial.Shippingwithouttheoriginal
packing material might void the warranty.
4.2 Declaration of Conformity
SCHROFF CompactPCI systems are developed and manufactured according
to EN 60950-1.
SCHROFF CompactPCI systems are not end-products with independent
functionality as described in the definition of the EMC regulations, and therefore
a CE marking is not required. However, when CPCI Serial cards are assembled
according to specification, the systems fulfill the requirements in accordance
with EMC Directive 2004/108/EG and Low-voltage Directive
2006/95/EG.
Interferenceresistanceand interferenceemissionsarefactors whichareheavily
influenced by the type and quantity of CPCI cards used in the system assembly.
Through the use of high quality line filters and EMC optimized enclosure design,
SCHROFF offers CPCI systems which serve as an ideal base for system
integrators, which comply with the prescribed limits of EN 6100-6-3 and
EN 61000-6-2
The systems are generally equipped with power supplies which possess
CE markings in accordance with EN 60950-1, EN 61000-6-3, EN 61000-6-2).
Before delivery a high-voltage, protective earth and functionality test is carried
out on each individual system.

CPCI Serial System 3+1 U Service
24579-415
www.schroff.biz 14 R1.0, July 20, 2011
4.3 Scope of Delivery
Please order the power cable separately.
4.4 Accessories
4.5 Spare Parts
On request.
Quantity Description
1Shielded europacPRO chassis 4 U / 84 HP with front handles
1CPCI Serial backplane 9 slot 3 U with Single Star Ethernet topology
1Front card cage for max. 9 boards 3 U 160 mm deep
IEEE guide rails inc. ESD clips)
1300 W ATX power supply with input range of 100 VAC to 240 VAC, IEC320-C14 connector and
mains/line switch.
12 V / 22 A
1Complete AC/DC cabling
1Fan Tray 1 HP with 2 fans 140 m³/h (85 cfm) each
1Drive holder for a slim line DVD drive
1Drive holder with front panel 3 U, 8 HP for a 3,5“ HDD
1Front panel 3 U, 8 HP
1Front panel 3 U, 84 HP
119“ rack mounting kit
Order No. Description
20848-75x Front panels for Rear I/O Boards, dimensions see catalogue
24579-033 Air filter kit
20848-7xx Slot covers with front panel and EMC shielding for vacant slots. For dimensions, please see
catalogue.
34562-8xx Slot covers for vacant slots. For dimensions, please see catalogue.
24579-03x Printed Circuit Board covers (solder side covers). For dimensions, please see catalogue

CPCI Serial System 3+1 U Technical Data
24579-415
www.schroff.biz 15 R1.0, July 20, 2011
5 Technical Data
Table 2: Technical Data
Dimensions
Height 4 U
Width 482.60 mm (19“)
Depth (Card cage) 275 mm
Depth (Overall with handles) 322 mm
Weight
Completely assembled approx. 7,5 kg
Power Supply
Input Voltage 100 VAC to 240 VAC
Frequency 50 / 60 Hz
Power input up to 300 W
Cooling
2 x 12 VDC fans 140 m³/h (85 cfm) each, free blow
Ambient Temperature
Operation +0 °C to +50 °C
Storage -40 °C to +85 °C
Humidity
Admissible humidity 30 % to 80 %, non-condensing
EMC, fulfils requirements for:
Transient Emissions EN 61000-6-3
Interference Resistance EN 61000-6-2
Safety
Test voltages according to EN 60950 Input - Output:
Input - PE:
Output - PE:
Output - Output:
4,3 kVDC
2,2 kVDC
0,7 kVDC
0,7 kVDC
Shock and vibration: EN 60068-2-6 and EN 60068-2-27
Electromagnetic Shielding
Shielding attenuation typ. 40 dB at 1 GHz if shielded front
panels are used.

CPCI Serial System 3+1 U Dimensions
24579-415
www.schroff.biz 16 R1.0, July 20, 2011
6 Dimensions
Figure 7: Dimensions
