NVX VCW102 User manual

VC-SERIES
SUBWOOFERS
USER MANUAL
VCW102
VCW122
VCW152
VCW104
VCW124
VCW154

1
NVX VC-SERIES
THANK YOU FOR CHOOSING NVX
Congratulations on the purchase of your new NVX subwoofer. The VC-Series subwoofer you
hold in your hands is the culmination of an extensive research, development and real world
testing process. While this isn’t the easiest way to build a sub, the time and personal attention
we dedicate reects in the quality and performance of the nished product. We are proud to
build NVX subwoofers and are condent you will be proud to own one.

Visit: nvx.com | Call: 213.444.1689 |15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
2
SUBWOOFERS

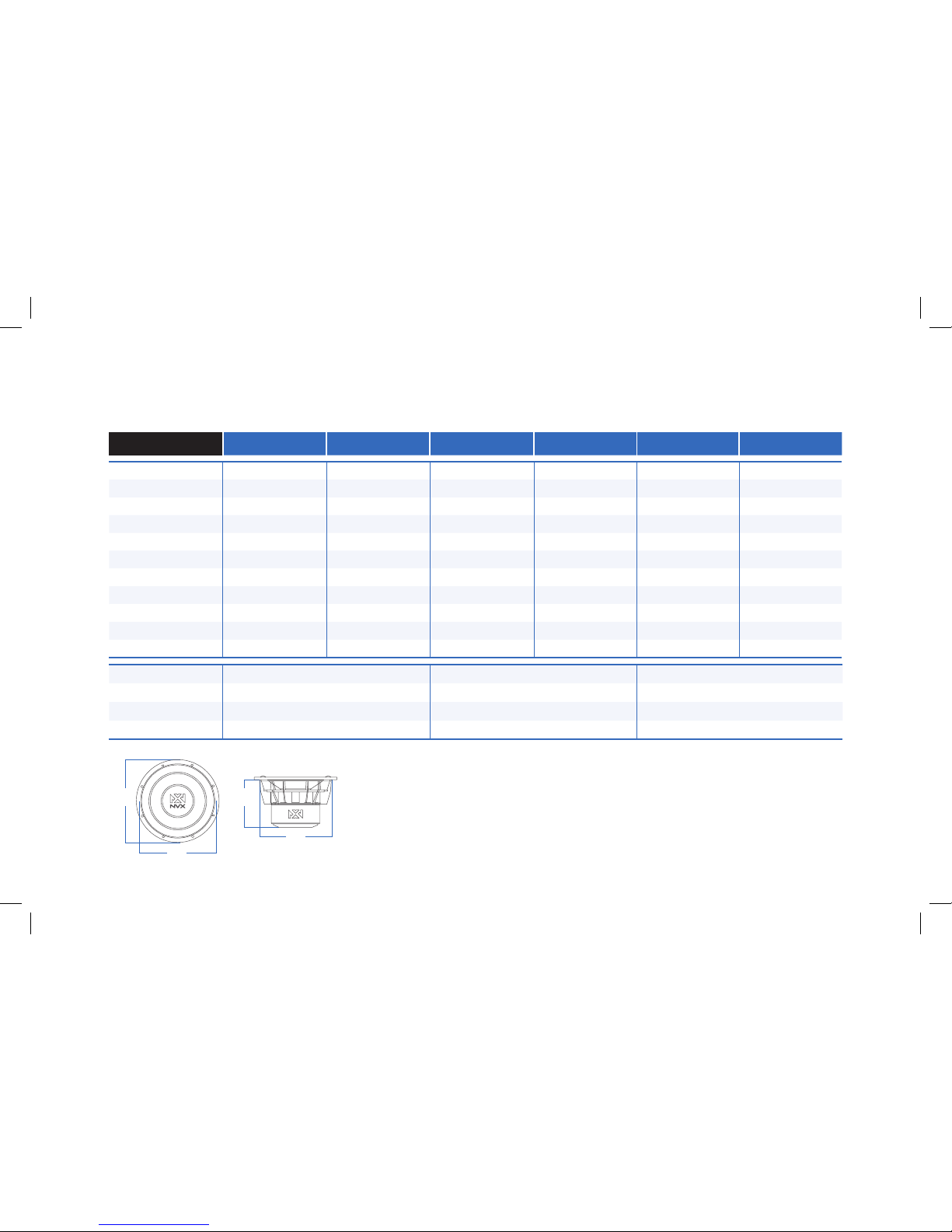

SPECIFICATIONS
Results vary based on enclosure type and volume. See pages 4 and 5.
A
B
D
C
VC-SERIES VCW102 VCW104 VCW122 VCW124 VCW152 VCW154
Power Range (RMS) 600-750 Watts 600-750 Watts 850 - 1000 Watts 850 - 1000 Watts 850 - 1000 Watts 850 - 1000 Watts
Impedance per Voice Coil 2 Ohms 4 Ohms 2 Ohms 4 Ohms 2 Ohms 4 Ohms
Frequency Response 20-200 Hz 20-200 Hz 20 - 200 Hz 20 - 200 Hz 20 - 200 Hz 20 - 200 Hz
Xmax 20 mm 20 mm 20 mm 20 mm 20 mm 20 mm
Fs 29 31 24 26 24 26
Vas 23.03 L 23.17 L 33.81 L 33.79 L 10 6 .14 L 10 6 .14 L
Sd 48.69 48.69 73.06 73.06 124.65 124.65
Qts 0.527 0.525 0.454 0.465 0.440 0.436
SPL (1W/M) 83 83 85 85 87 87
QES 0.578 0.563 0.486 0.490 0.458 0.451
Net Weight 17.50 lbs (7.90 kg) 17.50 lbs (7.90 kg) 28.50 lbs (12.90 kg) 28.50 lbs (12.90 kg) 30.5 lbs (13.80 kg) 30.5 lbs (13.80 kg)
AOverall Diameter 11.02” (280 mm) 12.60” (320 mm) 15.55” (395 mm)
BMounting Diameter 9.61” (244 mm) 11.26” (286 mm) 14.41” (366 mm)
CCutout Diameter 9.06” (230 mm) 10.83” (275 mm) 13.78” (350 mm)
DMounting Depth 6.00” (152 mm) 7.02” (178 mm) 7.57” (192 mm)

3
NVX VC-SERIES
The enclosure designs listed
will give you the best possible
performance from your N-Series
subwoofer.
PORTED BOX
Ported boxes are the enclosure type we recommend for
optimum performance of your VC-Series Subwoofer.
A ported box features a vent or port to couple the woofer’s
back-wave with the front-wave. This results in markedly
improved efciency and low frequency response. These
enclosures are somewhat larger than the sealed alternative.
SEALED BOXES
A sealed enclosure offers improved acoustic suspension and
cone control, which reduces distortion. They are smaller than
their ported counterparts, and offer atter bass response with
more consistency across the frequency range.
ENCLOSURES
VC-SERIES VCW102 / 104 VCW122 / 124 VCW152 / 154
Recommended
Enclosure Volume 0.70 ft.30.85 ft.31.70 ft.3
Ideal Power RMS 750 Watts 1,000 Watts 1,000 Watts
F3 (Hz) 39 37 39
FC (Hz) 43 37 39
QTC 0.775 0.704 0.781
VC-SERIES VCW102 / 104 VCW122 / 124 VCW152 / 104
Recommended
Enclosure Volume 1.50 ft.31.85 ft.32.75 ft.3
Tuning Frequency 32 Hz 32 Hz 32 Hz
Ideal Power RMS 600 Watts 900 Watts 900 Watts
F3 (Hz) 29 30 32

Visit: nvx.com | Call: 213.444.1689 |15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
4
SUBWOOFERS
• This limited warranty does not cover failure of the product resulting improper
installation, misuse, abuse, accident, neglect, mishandling, or wear from
ordinary use or environmental deterioration.
• This limited warranty does not cover cosmetic damage, including paint
damage, or consequential damage to ordinary use or environmental
deterioration.
• This limited warranty does not cover cosmetic damage, including paint
damage, or consequential damage to other components or premises which
may result for any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance
with NVX’s instructions.
• This limited warranty is null and void for products with altered or missing
serial numbers and for products not purchased from an authorized dealer.
• This limited warranty terminates if you sell or otherwise transfer this product
to another party.
• This limited warranty is null and void for any speaker or subwoofer that
has been damaged due to over-powering causing burnt voice coils and /or
mechanical failures such as ripped spiders or surrounds.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, JURISDICTION TO JURISDICTION, OR
COUNTRY TO COUNTRY. NVX’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPLACEMENT OR REPAIR AS SET FORTH IN THIS WAR-
RANTY STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE
PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS, OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF
CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO
YOU. NVX DOES NOT ACCEPT LIABILITY FOR SPECIAL, INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD
PARTY CLAIMS AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE MAXIMUM LIABILITY FOR WHICH NVX MAY BE RESPONSIBLE WILL
BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM. SOME STATES, JURISDICTIONS, OR COUNTRIES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Warranty Outside the U.S.
The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States. To obtain any applicable warranty service, please contact the dealer from
which you purchased this product, or the distributor that supplied this product.
WARRANTY
NVX warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of one (1) year from the date of purchase, if it is properly used
and maintained. If this product proves defective in either material or workmanship, NVX, at it’s discretion, will (a) repair the product, or (b) replace the product, at no charge for parts or labor.
If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, NVX at it’s sole option may replace the unit with a current model of equal or
greater value. To obtain a repair or replacement under the terms of this warranty, please return to dealer rst, if possible, and the dealer will direct you accordingly for repairs or replacement.
You will be required to submit a copy of the original receipt. Return shipping for exchanges/repairs is the sole responsibility of the original retail purchaser.
LIMITATIONS:

5
NVX VC-SERIES
•Receive your RA Number from NVX online at
nvx.com/support
•Package all defective components in the original packaging (if
available) or in a package that will prevent shipping damage.
•Package the original packaging in an additional shipping container to
avoid shipping damages and to comply with most shipping couriers
such as UPS and FedEx.
•Insure your return at the price paid as NVX is not responsible for
insurance losses or damages occurring in shipment to our facility.
•Clearly mark RA Number on the outside shipping container.
•Return only defective components as the return of functioning items
increases your return freight charges.
-Non-defective returns or products not eligible for warranty service will
be returned freight collect.
•Include a copy of the original receipt with the purchase date clearly
visible, and a “proof-of-purchase” statement listing the customer’s
name, dealer’s name and invoice number, and product purchased.
-Warranty expiration on items without proof-of-purchase will be
determined from type of sale and the manufacturing date code.
•Ship your package freight prepaid to the address below. Items sent
freight collect or COD will be refused.
NVX
Attn: Returns
10645 Freeport Dr.
Louisville, KY 40258-1873
Failure to follow the steps listed above may void your warranty. Any questions can be directed via email to [e-mail] or via mail at the
address listed above.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE
Defective products should be returned to the place of purchase. Your authorized NVX dealer is trained to handle
and expedite any warranty claim. Assistance in locating an authorized dealer can be found at nvx.com or by
contacting NVX directly.
Alternatively, if it becomes necessary for you to return defective product directly to NVX,
please refer to the following instructions for warranty service:

Visit: nvx.com | Call: 213.444.1689 |15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
6
SUBWOOFERS
NOTES
Authorized Dealer’s Name:
Model Number:
Purchase Date:
Serial Number:
