NVX VSW82V2 User manual

VS-SERIES
SUBWOOFERS
USER MANUAL
VSW82V2
VSW102V2
VSW122V2
VSW152V2
VSW84V2
VSW104V2
VSW124V2
VSW154V2

1
NVX VS-SERIES
THANK YOU FOR CHOOSING NVX
Congratulations on the purchase of your new NVX subwoofer. The VS-Series V2 subwoofer
you hold in your hands is the culmination of an extensive research, development and real
world testing process. While this isn’t the easiest way to build a sub, the time and personal
attention we dedicate reects in the quality and performance of the nished product. We are
proud to build NVX subwoofers and are condent you will be proud to own one.
We have incorporated many features in the VS-Series V2 that will separate NVX from the
competition. Utilizing our engineering strengths and woofer knowledge, we created VS-Series
V2 to deliver amazing SQ (Sound Quality) and performance while providing the best value in
its class.

Visit: nvx.com | Call: 213.444.1689 |15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
2
SUBWOOFERS
SPECIFICATIONS
Results vary based on enclosure type and volume. See pages 4 and 5.
A
B
D
C
Model Number VSW82V2 VSW84V2 VSW102V2 VSW104V2 VSW122V2 VSW124V2 VSW152V2 VSW154V2
Power Range (RMS) 250-400 Watts 250-400 Watts 350-500 Watts 350-500 Watts 450-600 Watts 450-600 Watts 600 - 750 Watts 600 - 750 Watts
Impedance
per Voice Coil 2 Ohms 4 Ohms 2 Ohms 4 Ohms 2 Ohms 4 Ohms 2 Ohms 4 Ohms
Frequency Response 20-200 Hz 20-200 Hz 20-200 Hz 20-200 Hz 20-200 Hz 20-200 Hz 20 - 200 Hz 20 - 200 Hz
Xmax 9 mm 9 mm 11 mm 11 mm 12 mm 12 mm 12 mm 12 mm
Fs 53 Hz 53 Hz 30 Hz 30 Hz 25 Hz 25 Hz 23 Hz 23 Hz
Vas 6.65 L 6.65 L 27.73 L 27.73 L 66.24 L 66.24 L 179.78 L 179.78 L
Sd 20.11 20.11 33.00 33.00 49.08 49.08 85.50 85.50
Qts 0.595 0.595 0.476 0.476 0.396 0.396 0.489 0.489
SPL (1W/ M) 85 85 87 87 90 90 92 92
QES 0.694 0.694 0.537 0.537 0.437 0.437 0.532 0.532
Net Weight 12.04 lbs (5.45 kg) 12.04 lbs (5.45 kg) 13.15 lbs (5.95 kg) 13.15 lbs (5.95 kg) 15.58 lbs (7.05 kg) 15.58 lbs (7.05 kg) 16.90 lbs (7.65 kg) 16.90 lbs (7.65 kg)
AOverall Diameter 8.50” (216 mm) 10.35” (263 mm) 12.44” (316 mm) 15.47” (393 mm)
BMounting Diameter 7.82” (198.50 mm) 9.65” (245 mm) 11.63” (295.50 mm) 14.69” (373 mm)
CCutout Diameter 7.20” (183 mm) 9.15” (236 mm) 11.12” (282.50 mm) 14.06” (357 mm)
DMounting Depth 4.37 ” (111 mm) 5.00” (127 mm) 5.95” (151 mm) 6.83” (173.50 mm)

3
NVX VS-SERIES
Model Number VSW82V2/
VSW84V2
VSW102V2/
VSW104V2
VSW122V2/
VSW124V2
VSW152V2/
VSW154V2
Recommended
Enclosure Volume 0.65 ft.30.70 ft.31.75 ft.32.75 ft.3
Tuning Frequency 43 Hz 34 Hz 32 Hz 32 Hz
Ideal Power RMS 250 Watts 350 Watts 450 Watts 600 Watts
F3 39 Hz 29 Hz 31 Hz 35 Hz
Model Number VSW82V2/
VSW84V2
VSW102V2/
VSW104V2
VSW122V2/
VSW124V2
VSW152V2/
VSW154V2
Recommended
Enclosure Volume 0.35 ft.31.00 ft.31.25 ft.31.75 ft.3
Ideal Power RMS 400 Watts 500 Watts 600 Watts 750 Watts
F3 64 Hz 45 Hz 55 Hz 39 Hz
FC 70 Hz 51 Hz 51 Hz 47 Hz
QTC 0.780 0.820 0.670 0.890
The enclosure designs listed below will give you the best possible
performance from your VS-Series V2 subwoofer. NVX subwoofers
are optimized for use in both ported and sealed enclosures, each of
which has distinct sonic characteristics.
PORTED BOX
Ported boxes are the enclosure type we recommend for
optimum performance of your VS-Series V2 Subwoofer.
A ported box features a vent or port to couple the woofer’s back-
wave with the front-wave. This results in markedly improved
efciency and low frequency response.
These enclosures are somewhat larger than the sealed alternative.
ENCLOSURES
SEALED BOXES
A sealed enclosure offers improved acoustic suspension and
cone control, which reduces distortion and increases the power
handling capabilities of the subwoofer. They are smaller than
their ported counterparts, and offer atter bass response with
more consistency across the frequency range.

Visit: nvx.com | Call: 213.444.1689 |15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
4
SUBWOOFERS
FEATURES
OPTIMIZED MOTOR STRUCTURE
To begin with, we used motor analysis tools to effectively create the needed force to
drive the woofer in the most linear fashion. The BL (Motor Force) was optimized to allow
the VS-Series V2 to operate in smaller sealed and ported enclosures. The VS Series V2
will reach its’ performance potential in enclosures ranging from 0.35 cuft to 2.75 cuft.,
with a mounting depth as little as 4.50 inches.
ALUMINUM SHORTING RING
Perhaps the most distinguishing component of the VS-Series V2 subwoofers is the
innovative aluminum shorting ring system. This technology prevents a rise in inductance
caused by the movement of the driver, which has several positive impacts on the
subwoofers’ performance:
● Improved power delivery to the voice coil
● Decreased inductive distortion
● Improved cone linearity
● Improved high-end extension
● Decreased risk of overheating
WHAT IS THIS SHORTING RING?
The shorting ring is a conductive aluminum ring placed in the air gap between the
pole piece and the voice coil former to reduce inductance. Inductance can best be
understood as the change in magnetic energy that occurs as the voice coil moves in
and out of the air gap. In most subwoofers this energy is absorbed by the voice coil,
causing impedance rise, introducing distortion and reducing the woofer’s ability to play
at the top of the bass spectrum. In the VS-Series V2 subwoofers, the shorting ring simply
absorbs changes in inductance, optimizing the sound quality, output potential and
frequency response of the woofer.
SO WHY DOES IT WORK?
● Improved power delivery to the voice coil
Any increase in inductance correlates to an increase in voice coil impedance, meaning
increased resistance to the input power. By preventing inductance rise, we effectively
increase the amount of power carried to the voice coil, increasing the output potential
of the woofer with each given watt.
● Decreased inductive distortion
When inductive energy is introduced into the motor structure, it causes the subwoofer
to produce sounds and artifacts at higher frequencies around the 500-1,000 Hz range.
Our Aluminum shorting ring absorbs these changes in inductive energy, resulting in
crisp, distortion-free bass.
● Improved cone linearity
A great deal of care was taken during the research and development process to ensure
that the movement of the cone is as linear as possible. Since inductance is a change
in magnetic energy, it’s easy to see how undesired inductance can alter the movement
of the cone. By using our shorting ring, we absorb these changes in magnetic ux and
prevent modulation of the cone resulting in tighter, more accurate bass.
● Improved high-end extension
The low-pass lter in a standard crossover network is basically just a coiled conductive
wire with an iron core very similar to the design of a voice coil. When the inductance of
the voice coil increases, it begins to lter out notes at the top of the woofer’s frequency
range. Our aluminum shorting ring eliminates these variations in inductance, allowing
the woofer to play as it was intended.
● Decreased risk of overheating
In addition to the positive impact the shorting ring has on the subwoofer’s sound
quality, it also acts as an effective heat sink to carry heat away from the voice coil, which
contributes to improved performance and durability.
IF IT’S SO GREAT, WHY DON’T OTHERS USE IT?
Where we see an opportunity to build a better product, other manufacturers see an
opportunity to maximize prots. Shorting rings require additional materials and add
complexity to the manufacturing process. Rather than skimp on the shorting ring
and make inferior woofers, we ultimately decided to create a masterpiece. The most
experienced engineering team in the industry has painstakingly designed our VS-Series
V2 subwoofers, and we rmly believe that you will hear the difference.

5
NVX VS-SERIES
• This limited warranty does not cover failure of the product resulting improper
installation, misuse, abuse, accident, neglect, mishandling, or wear from
ordinary use or environmental deterioration.
• This limited warranty does not cover cosmetic damage, including paint
damage, or consequential damage to ordinary use or environmental
deterioration.
• This limited warranty does not cover cosmetic damage, including paint
damage, or consequential damage to other components or premises which
may result for any reason from the failure of the product.
• This limited warranty is null and void for products not used in accordance
with NVX’s instructions.
• This limited warranty is null and void for products with altered or missing
serial numbers and for products not purchased from an authorized dealer.
• This limited warranty terminates if you sell or otherwise transfer this product
to another party.
• This limited warranty is null and void for any speaker or subwoofer that
has been damaged due to over-powering causing burnt voice coils and /or
mechanical failures such as ripped spiders or surrounds.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, JURISDICTION TO JURISDICTION, OR
COUNTRY TO COUNTRY. NVX’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPLACEMENT OR REPAIR AS SET FORTH IN THIS WAR-
RANTY STATEMENT. ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS, OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF
CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO
YOU. NVX DOES NOT ACCEPT LIABILITY FOR SPECIAL, INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD
PARTY CLAIMS AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE MAXIMUM LIABILITY FOR WHICH NVX MAY BE RESPONSIBLE WILL
BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM. SOME STATES, JURISDICTIONS, OR COUNTRIES DO NOT ALLOW
THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
Warranty Outside the U.S.
The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States. To obtain any applicable warranty service, please contact the dealer from
which you purchased this product, or the distributor that supplied this product.
WARRANTY
NVX warrants to the original retail purchaser that this product is to be free from defective materials and workmanship for a period of one (1) year from the date of purchase, if it is properly used
and maintained. If this product proves defective in either material or workmanship, NVX, at it’s discretion, will (a) repair the product, or (b) replace the product, at no charge for parts or labor.
If the product model is no longer available and cannot be repaired effectively or replaced with an identical model, NVX at it’s sole option may replace the unit with a current model of equal or
greater value. To obtain a repair or replacement under the terms of this warranty, please return to dealer rst, if possible, and the dealer will direct you accordingly for repairs or replacement.
You will be required to submit a copy of the original receipt. Return shipping for exchanges/repairs is the sole responsibility of the original retail purchaser.
LIMITATIONS:

Visit: nvx.com | Call: 213.444.1689 |15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
6
SUBWOOFERS
•Receive your RA Number from NVX online at
nvx.com/support
•Package all defective components in the original packaging (if
available) or in a package that will prevent shipping damage.
•Package the original packaging in an additional shipping container to
avoid shipping damages and to comply with most shipping couriers
such as UPS and FedEx.
•Insure your return at the price paid as NVX is not responsible for
insurance losses or damages occurring in shipment to our facility.
•Clearly mark RA Number on the outside shipping container.
•Return only defective components as the return of functioning items
increases your return freight charges.
-Non-defective returns or products not eligible for warranty service will
be returned freight collect.
•Include a copy of the original receipt with the purchase date clearly
visible, and a “proof-of-purchase” statement listing the customer’s
name, dealer’s name and invoice number, and product purchased.
-Warranty expiration on items without proof-of-purchase will be
determined from type of sale and the manufacturing date code.
•Ship your package freight prepaid to the address below. Items sent
freight collect or COD will be refused.
NVX
Attn: Returns
10645 Freeport Dr.
Louisville, KY 40258-1873
Failure to follow the steps listed above may void your warranty. Any questions can be directed via email to [e-mail] or via mail at the
address listed above.
WHAT TO DO IF YOU NEED WARRANTY OR SERVICE
Defective products should be returned to the place of purchase. Your authorized NVX dealer is trained to handle
and expedite any warranty claim. Assistance in locating an authorized dealer can be found at nvx.com or by
contacting NVX directly.
Alternatively, if it becomes necessary for you to return defective product directly to NVX,
please refer to the following instructions for warranty service:

7
NVX VS-SERIES
RECOMMENDED PRODUCTS
AMPLIFIERS
MVPA
Micro-V Series 300W RMS Monoblock Class
BDA750
BOOST 750W RMS Monoblock Class D Amplier
JAD1200
JAD 1200W RMS, Class D Monoblock Amplier
Model Number JAD1200.1*
RMS Power @ 14.4
1200 Watts x 1 Ch @ 1 Ohm
800 Watts x 1 Ch @ 2 Ohm
500 Watts x 1 Ch @ 4 Ohm
Lowpass Filter 50 Hz - 200 Hz
Highpass Filter —
Subsonic Filter 20 Hz - 38 Hz
Height 1.84” (46.70 mm)
Length 12.83” (326 mm)
Width 6.70” (170 mm)
Model Number MVPA1*
RMS Power @ 14.4
200 Watts x 1 Ch @ 4 Ohm
300 Watts x 1 Ch @ 2 Ohm
—
Lowpass Filter 40 Hz - 400 Hz
Highpass Filter —
Subsonic Filter —
Height 1.56” (39 mm)
Length 5.44” (138 mm)
Width 4” (102 mm)
Model Number BDA7501*
RMS Power @ 14.4 450 Watts x 1 Ch @ 4 Ohm
750 Watts x 1 Ch @ 2 Ohm
Lowpass Filter 20 Hz - 500 Hz
Highpass Filter —
Subsonic Filter 10 Hz - 50 Hz
Height 2” (50.8 mm)
Length 9.75” (247.65 mm)
Width 7” (177.8 mm)

Visit: nvx.com | Call: 213.444.1689 |15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
8
SUBWOOFERS
SPEAKERS
V-Series Component
V-Series Car Speaker System with
25 mm Silk Dome Tweeters
V-Series Coaxial
2-Way V-Series Car Speakers with
25 mm Silk Dome Tweeters
Kit Model Number VSP52KIT*VSP65KIT*
Midbass Drivers VSP525 VSP65
Tweeters VSPTW VSPTW
Crossover Network — —
Model Number VSP4*VSP525*VSP60*VSP65*VSP68*VSP69*VSPTW*
Size 4” 5.25” 6” 6.50” 6” x 8” 6” x 9” 25 mm
RMS Power 60 Watts 90 Watts 100 Watts 100 Watts 130 Watts 200 Watts 20 Watts
Freq. Response 100 Hz - 20 kHz 80 Hz - 20 kHz 68 Hz - 20 kHz 70 Hz - 20 kHz 100 Hz - 20 kHz 68 Hz - 20 kHz 2 KHz - 20 kHz
Impedance 4 Ohm 4 Ohm 4 Ohm 4 Ohm 4 Ohm 4 Ohm 4 Ohm
Cone Composition Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene/
Carbon Fiber Blend
Polypropylene/
Carbon Fiber Blend Silk Dome
Overall Diameter 5.11” (130 mm) 5.90” (150 mm) 6.49” (165 mm) 6.49” (165 mm) 8.03” x 5.74”
(204 mm x 146 mm)
9.25” x 6.49”
(235 mm x 165 mm) 2.40” (61 mm)
Mounting Depth 2.04” (52 mm) 2.04” (52 mm) 2.51” (64 mm) 2.51” (64 mm) 2.59” (66 mm) 3.14” (80 mm) 3.14” (80 mm)
* Specications are subject to change without notice

9
NVX VS-SERIES

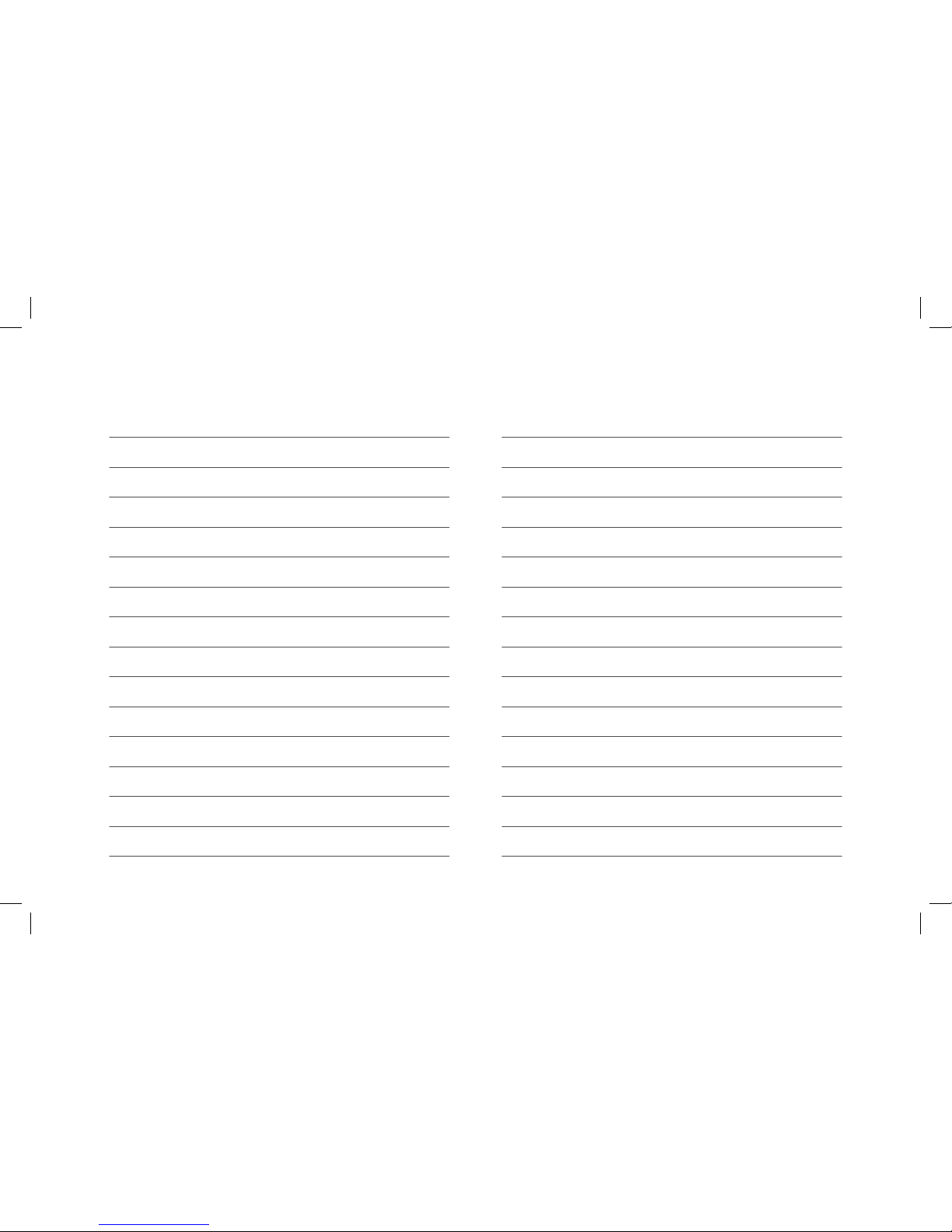

NOTES

Visit: nvx.com | Call: 213.444.1689 |15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
10
SUBWOOFERS
Authorized Dealer’s Name:
Model Number:
Purchase Date:
Serial Number:

Visit: nvx.com | Call: 213.444.1689 | 15303 Ventura Blvd. 9th Floor, Sherman Oaks, CA 91403
